The difference between a cool, stable PC and one throttling under load often comes down to the tiny blades bolted to your radiator. A 120mm radiator fan must conquer dense fin stacks with enough static pressure to force air through, not just circulate it around the case. Picking the wrong fan means wasted heat dissipation and higher decibel levels under your desk.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing torque curves, blade materials, and bearing acoustics to separate marketing noise from real cooling performance in this narrow category.
After comparing static pressure ratings, maximum RPM ranges, and build materials across the leading models on the market, I’ve assembled this guide to help you find the best 120mm radiator fan for your specific cooling setup and noise tolerance.
How To Choose The Best 120mm Radiator Fan
Not every 120mm fan is built for radiator duty. A case fan designed for open airflow will struggle to push through dense radiator fins. Here are the critical specs to evaluate.
Static Pressure: The Real Radiator Metric
A fan’s static pressure, measured in mm-H₂O or mmAq, tells you how much backpressure it can overcome. Radiator fin density creates resistance. Any fan with less than 1.5 mm-H₂O will audibly struggle or simply circulate air around the fins rather than through them. High-performance options like the CORSAIR RS120 MAX hit 4.2 mm-H₂O and can handle thick radiators without airflow drop-off.
Fan Thickness: 25mm vs 30mm
Standard 120mm fans are 25mm thick, but a growing number of radiator-focused models use a 30mm frame. The extra 5mm allows for larger blade geometry and higher static pressure without requiring extreme RPMs. The trade-off is clearance. Many compact cases and push-pull configurations on radiators will not fit a 30mm fan. Always measure before committing.
Blade Material and Bearing Construction
At high RPMs, standard plastic blades flex, distort, and cause the fan to lose efficiency. Liquid Crystal Polymer (LCP) mixed with glass fiber, as used on the MACH120, resists that flexing. For bearings, hydraulic and FDB designs provide the quietest operation over thousands of hours. Cheap sleeve bearings lose lubricant quickly when mounted horizontally on a radiator, so look for sealed hydraulic bearings or dual-ball designs if mounting orientation is a concern.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Noctua NF-P12 redux-1700 PWM | Mid-Range | Silent balanced radiator cooling | 1700 RPM, 25.1 dB(A) | Amazon |
| Thermalright TL-C12C X5 | Value | Multi-fan radiator or case setup | 1550 RPM, 66.17 CFM | Amazon |
| CORSAIR RS120 MAX | Premium | Dense high-FPI radiator performance | 30mm thickness, 4.2 mm-H₂O | Amazon |
| Sudokoo MACH120 | High-End | Extreme cooling and high RPM needs | 3000 RPM, 108 CFM, LCP blades | Amazon |
| Thermaltake ToughFan 12 | Premium | Quiet high-pressure radiator work | 2000 RPM, 22.3 dB(A), steel hub | Amazon |
In‑Depth Reviews
1. Noctua NF-P12 redux-1700 PWM
The Noctua NF-P12 redux-1700 PWM uses a pressure-optimized blade design that delivers 2.83 mm-H₂O of static pressure, which is more than enough for most standard single or dual-fan radiators. The 1700 RPM max speed is moderate, but the S-FDB bearing keeps noise at just 25.1 dB(A), making it nearly inaudible during idle and whisper-quiet even under load. This redux edition strips away the premium color scheme and extras to offer the core engineering at a significantly lower entry point.
Real customer reports consistently note that this fan outperforms units costing twice as much when paired with CPU air coolers and slim radiators. The 150,000-hour MTTF rating means the bearing will outlast several PC builds. At max RPM there is a gentle whoosh rather than a grinding or whining tone, which is a hallmark of Noctua’s blade acoustics optimization. It also plays nicely with automatic motherboard fan curves, spinning down to near silence when the CPU is idle.
The only area where it falls short is extreme radiator density. If you own a thick 45mm+ radiator or a high-FPI (fins per inch) model, the static pressure at 1700 RPM may struggle to push through efficiently. For the vast majority of AIO coolers and custom loop radiators under 40mm, this is the safest, most reliable choice on the list.
What works
- Proven high static pressure for slim to mid-density radiators
- Outstanding acoustic profile with no bearing chatter
- Exceptional long-term reliability with S-FDB bearing
- Great value compared to the premium Noctua line
What doesn’t
- Redux edition lacks anti-vibration pads and accessories
- Moderate max RPM not suited for thick high-FPI radiators
2. Thermalright TL-C12C X5
The Thermalright TL-C12C X5 gives you five 120mm fans for roughly the price of a single premium unit, making it the obvious choice if you need to populate a large radiator or an entire case loop on a tight build budget. Each fan spins up to 1550 RPM and pushes 66.17 CFM with 1.53 mm-H₂O of static pressure. That static pressure number is modest, so these fans work best on low to medium-density radiators where you do not need to force air through extremely tight fins.
Customer satisfaction runs high based on airflow-to-noise ratio. At 25.6 dB(A) maximum, these fans are genuinely quiet during normal operation. The S-FDB bearing is a genuine quality step above cheap sleeve bearings, reducing blade wobble and extending service life. Many users report noticeable temperature drops of 5–10°C at idle after replacing generic case fans with these units. The 55cm PWM cable length also makes daisy-chaining across a large radiator practical without extra extension cables.
The primary weakness is the lack of included mounting screws for both sides, which can be mildly annoying during first installation. Additionally, the 1.53 mm-H₂O static pressure is borderline for any radiator with high fin density. If you are running a slim AIO like a 240mm or 360mm with standard fins, these fans will perform well. For thick custom loop radiators, you will want a model with higher dedicated pressure.
What works
- Unmatched value per fan when bought as a five-pack
- Smooth acoustics with no bearing noise at low RPM
- Long PWM cable for easy radiator configuration
- Solid build quality with silicone corner dampers
What doesn’t
- Modest static pressure limits radiator density compatibility
- No mounting screws included in the packaging
3. CORSAIR RS120 MAX
The CORSAIR RS120 MAX distinguishes itself with a 30mm thick frame that houses larger blade geometry than standard 25mm fans. That extra 5mm translates directly to 4.2 mm-H₂O of static pressure, a figure that comfortably handles dense radiator fin stacks without having to run at max speed. At 2000 RPM maximum, it moves up to 72 CFM while the CORSAIR AirGuide anti-vortex vanes keep the airflow column tight and focused directly into the radiator core.
Build quality is exceptional, with Liquid Crystal Polymer construction that prevents blade flex even at sustained high RPM. Real users report that the RS120 MAX is noticeably quieter than the legendary Noctua NF-A12x25 under heavy load, while moving more air through restrictive radiators. The 29.5 dB(A) noise rating is achieved through careful blade balancing and the rigid LCP material that minimizes vibration harmonics that cheaper plastic blades produce.
The most significant caveat is physical clearance. At 30mm thick, this fan will not fit in every case or every push-pull radiator sandwich. It also lacks daisy-chaining capability for the power connection, which means you will need a fan hub or multiple motherboard headers when running several on a large radiator. The higher power draw also requires attention to total header amperage limits. These are not dealbreakers, but they do demand careful planning.
What works
- Industry-leading static pressure for dense radiator penetration
- LCP blades maintain shape at high RPMs
- AirGuide vanes concentrate airflow on the radiator core
- Excellent acoustic performance at moderate RPMs
What doesn’t
- 30mm thickness requires careful case and radiator clearance checks
- No daisy-chaining and higher power draw per fan

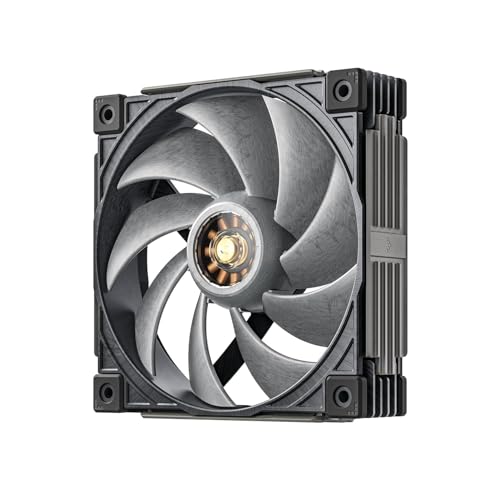

4. Sudokoo MACH120
The Sudokoo MACH120 pushes the boundary of what a single 120mm fan can do, reaching 3000 RPM with a staggering 108 CFM of airflow and 7.31 mmAq of static pressure. This is achieved through a 3-phase, 10-pole, 12-slot FOC closed-loop motor that delivers precise control across the entire PWM range. The 30mm thick frame is reinforced with LCP and 40% glass fiber composites that resist thermal warping even when the fan runs at full tilt for extended periods.
Customer feedback reveals that the MACH120 can drop CPU and GPU temperatures by 5-7°C compared to more modest mid-range fans. At speeds below 1300 RPM the fan is genuinely quiet, making it suitable for daily use. The Japanese PORITE hybrid hydraulic bearing and dynamic balance correction eliminate the wobble that plagues lesser high-RPM fans. The integrated white LED motor window and 3D-printable side panels offer cosmetic customization that appeals to modders.
The trade-off for this extreme performance is acoustics at the top end. At 39.9 dB(A) near 3000 RPM, this fan is audible. A small subset of users have reported a slight coil whine below 650 RPM, which may be noticeable in an open-air chassis or a very quiet office environment. The 30mm thickness also limits placement options. For those who need raw cooling headroom for overclocked CPUs or dense radiators in well-ventilated cases, the MACH120 is unmatched in this tier.
What works
- Extremely high 108 CFM and 7.31 mmAq static pressure
- LCP with glass fiber blades resist deformation at high RPMs
- FOC motor provides smooth PWM control down to 500 RPM
- 6-year warranty reflects confidence in the bearing
What doesn’t
- Audible at maximum RPM above 2000
- 30mm thickness reduces compatibility
- Potential coil whine at very low RPMs in silent setups
5. Thermaltake ToughFan 12
The Thermaltake ToughFan 12 targets the enthusiast who wants Noctua-level performance with a more understated aesthetic and a steel-reinforced motor hub for extra structural rigidity. Its maximum speed of 2000 RPM delivers 58.35 CFM, but the key spec here is the acoustics: at just 22.3 dB(A), it is one of the quietest high-static-pressure fans available. The LCP blades resist deformation, and the 2nd-generation hydraulic bearing with internal lubricant etches keeps the fan running smoothly over long periods.
Users consistently compare this fan favorably against the Noctua NF-A12x25, noting that the ToughFan 12 matches its pressure output while costing less per fan, especially when purchased in the two-pack. It excels in radiator applications where noise is the primary constraint, such as a living room HTPC or a recording studio PC. The modular design includes interchangeable color rings, allowing some visual personalization. The included anti-vibration pads are effective at isolating the fan frame from radiator vibrations that can cause resonance in thin metal cases.
The durability track record is the weak point. A small but noticeable number of customer reports mention individual units developing bearing squeaks or failing within weeks to a couple of years, which is below the standard set by Noctua. The warranty and build consistency do not fully match the price premium, especially when the two-pack cost approaches that of a single top-tier Noctua. If you get a good unit, the ToughFan 12 is a phenomenal radiator fan. If you are risk-averse about longevity, a more established competitor may be safer.
What works
- Exceptionally quiet operation even at high RPMs
- LCP construction and steel hub reduce blade vibration
- Good static pressure for medium-density radiators
- Comes as a two-pack with accessories
What doesn’t
- Inconsistent bearing longevity reported by some users
- Lower CFM than other premium options at the same speed
Hardware & Specs Guide
Static Pressure
Measured in mm-H₂O or mmAq, static pressure indicates the fan’s ability to push air through resistance. Radiator fins create significant backpressure. A fan with 2.5 mm-H₂O or above is suitable for most radiators. Below 1.5 mm-H₂O, you will see diminishing airflow returns on any radiator thicker than 25mm.
Blade Materials and Frame Thickness
Standard fans use PBT or ABS plastic. For radiator duty at sustained high RPMs, Liquid Crystal Polymer (LCP) is superior because it resists thermal creep and blade flexing. Frame thickness is also a factor. A 30mm fan can generate higher pressure at lower RPMs compared to a 25mm fan, but will not fit in every chassis.
Motor Type and PWM Control
A 4-pin PWM fan allows the motherboard to dynamically adjust speed based on coolant temperature. Look for FOC (Field Oriented Control) motors on high-end fans for smoother low-speed operation and quieter startup. Cheaper DC voltage-controlled fans (3-pin) may buzz or stutter at low voltages, which is undesirable in quiet builds.
Bearing Durability
Fluid Dynamic Bearings (FDB) and hydraulic bearings are the best choice for horizontal mounting on a radiator. Unlike sleeve bearings, they do not rely on gravity to circulate lubricant. Sleeve bearings will wear out prematurely if the fan is mounted on its side. Dual-ball bearings last longer but produce more audible noise in the mid-frequency range.
FAQ
Can I use any 120mm case fan on a radiator?
Is a 30mm thick fan always better for radiator cooling?
Do high RPM fans damage my radiator?
Final Thoughts: The Verdict
For most users, the best 120mm radiator fan winner is the Noctua NF-P12 redux-1700 PWM because it delivers reliable static pressure, proven acoustic tuning, and years of trouble-free operation at a reasonable investment. If you need a multi-fan setup to cover a large radiator without overspending, grab the Thermalright TL-C12C X5 five-pack for unbeatable system-wide coverage. And for dense custom loop radiators where every degree matters, nothing beats the CORSAIR RS120 MAX with its thick frame and high static pressure rating.
