Walking into a freezing garage and pulling the cord on a heater that instantly dims the lights because it’s pulling too much current is a familiar frustration. A 120V electric garage heater solves that by plugging into a standard household outlet without a dedicated 240V line — but finding one that actually moves warm air, doesn’t rattle the building, and holds a set temperature requires sorting through wattage claims, heating-element types, and build quality.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years comparing forced-air, radiant, and PTC heating systems, studying thermostat accuracy ratings, and digging into the wiring feedback from thousands of verified buyers.
After combing through every spec sheet and owner review, this is the definitive guide to the 120v electric garage heater market — filtered for safety, real-world coverage, and features that actually survive a Michigan winter.
How To Choose The Best 120V Electric Garage Heater
120V heaters are capped at 1500 watts on a standard 15-amp circuit, which limits total heat output to roughly 5120 BTU. That number determines how large a space you can warm, but real-world performance also depends on the heating method, thermostat control, and installation type.
Heating Element: PTC vs. Radiant vs. Quartz
PTC ceramic elements self-regulate resistance as they heat up, which reduces fire risk and keeps the air output from scorching nearby objects. Radiant quartz tubes heat people and objects directly — ideal for spot heating at a workbench or under a tool chest. Radiant coil elements (often forced-air) are the most cost-effective but produce the highest surface temperatures and longest after-cool-down period.
Thermostat and Control Type
A built-in mechanical thermostat is the bare minimum for preventing runaway heat, but digital ECO modes with app-based scheduling can cut energy consumption by cycling the heater precisely at the set temperature. Infrared remote controls are a convenience, not a substitute for an accurate thermal cutoff.
Mounting and Airflow Clearance
Wall-mounted units with oscillation cover a wider area but require at least 6 inches of clearance from combustible surfaces. Ceiling-mounted radiant heaters work best when positioned directly above a work area. Hardwired units (those without a plug) demand either a dedicated 120V circuit or a professional electrician to avoid tripping breakers the moment the compressor kicks on.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Cadet CSC151TW | Wall Mount | Small shop finishing room | 5120 BTU | Amazon |
| Stiebel Eltron CK Trend | PTC Fan | Quiet secondary heating | 49 dB(A) fan | Amazon |
| Brightown Wall Heater | Smart Wall | App + voice control | WiFi / Alexa | Amazon |
| VEVOR 5000W | Hardwired | Large shop coverage | 50 sq. m. rating | Amazon |
| DREO Smart Wall | PTC Oscillation | Garage with insulation | 11.5 ft/s airflow | Amazon |
| Shinic 2-Pack Quartz | Ceiling Radiant | Spot heating workbench | 90° rotation | Amazon |
| Dr. Infrared DR218 | Greenhouse/Radiant | Small greenhouse frost | IPX4 rated | Amazon |
| CSC151TW (Affectnianly) | Hardwired Wall | Budget room heating | Manual thermostat | Amazon |
| 9815WH Large Wall | 120/240V | Flexible voltage install | 120V/240V switchable | Amazon |
In‑Depth Reviews
1. Cadet Com-Pak CSC151TW
This Cadet forced-air wall heater squeezes the maximum legal wattage (1500W / 5120 BTU) from a 120V circuit, making it the single most powerful plug-and-play option for a two-car garage. Owners consistently report the 4-inch-deep cabinet barely protrudes from the wall, and the front-mounted thermostat cycles reliably between 60°F and 80°F without the digital fussiness that plagues cheaper units.
Installation requires hardwiring — no cord included — and customers emphasize it needs a dedicated 15A circuit. Most buyers recommend hiring an electrician because the heater must be wired into a junction box with proper in-wall clearance for combustibles. Once installed, the unit pushes enough hot air to bring a 200-square-foot insulated garage from 38°F to 65°F in roughly 45 minutes.
The forced-air fan runs at a moderate 30 dB and produces a distinct first-day burn-off smell that clears after two cycles. The mechanical thermostat has no “off” position — it will activate if the room temperature drops below the dial setting — so pairing it with a wall timer switch is a common workaround for seasonal use.
What works
- True 5120 BTU output on a standard 120V circuit
- Very compact cabinet — 4 inch depth saves wall space
- Mechanical thermostat is simple and reliable over years of use
What doesn’t
- Hardwired only — no plug option for quick disconnect
- Lacks an “off” switch; may need a separate timer or line-voltage thermostat
- Fresh unit emits strong burnt-dust smell for the first 1-2 days
2. Brightown Wall Heater
Brightown’s wall-mounted PTC heater brings smart-home integration to the garage without sacrificing heat output. The 1500W ceramic element works through three power levels (600W, 1000W, 1500W) plus an ECO thermostat mode that holds the set temperature within 1°F accuracy. The WiFi chip connects to the Tuya/Smart Life app, which means IFTTT schedules and Alexa voice commands work right out of the box.
Physically, the unit measures roughly 10 x 7 x 4 inches — small enough to mount between two studs without blocking the receptacle. Buyers report the wall mount leaves all four corners exposed, so at least one screw should hit a stud for secure attachment. The remote control and app allow fan-only circulation during summer, a useful dual-season trick most competing heaters skip.
The 200 sq. ft. coverage rating is conservative — owners in 400 sq. ft. basements say it works as a “kicker” alongside central heat, but uninsulated garages will require the heater to run nearly continuously. The memory function remembers the last mode after a power loss, which is critical for workshops where the breaker may trip from other tools.
What works
- Full smart-home integration via WiFi and Alexa
- Three selectable wattages plus fan-only mode
- ECO mode maintains temperature within 1°F
What doesn’t
- Mounting bracket too narrow to span two studs
- Rated for 200 sq. ft. — insufficient for uninsulated 2-car garages
- Requires dedicated circuit to avoid nuisance tripping
3. Stiebel Eltron CK Trend
Stiebel Eltron’s CK Trend is a wall-mounted fan heater with a glass-reinforced polycarbonate radial fan that moves air at 49 dB(A) — roughly the sound level of a refrigerator compressor. That quiet operation makes it a top choice for attached garages where noise bleeds into living spaces. The PTC ceramic element never glows red and auto-regulates to prevent overheating, even if the fan slows down from dust accumulation.
The unit ships with a 71-inch cord and plug, so it can be installed without calling an electrician, as long as a dedicated 15A outlet is available. Customers report it can warm a 25×40-foot finished basement from 58°F to 67°F in two hours, then cycle on for only 15 minutes per hour to maintain that temp. The manual mechanical thermostat is simple — turn the knob until the click sounds — and there are no digital menus to confuse a gloved hand.
The biggest drawback is that the 120V version outputs only 5118 BTU, which is the legal cap for this voltage. For larger shops, owners universally recommend the 240V 2000W model. Additionally, the heater has no external conduit knockout — wiring must enter through the back, so surface-mounted conduit requires punching a custom hole.
What works
- Extremely quiet radial fan at 49 dB(A)
- Cord and plug included — no electrician for basic install
- PTC element self-regulates, reducing fire risk
What doesn’t
- 120V version limited to 5118 BTU — inadequate for large uninsulated spaces
- No external knockout for side-entry conduit wiring
- Mechanical thermostat has limited temperature range
4. VEVOR 5000W Digital
The VEVOR 5000W digital heater is a hardwired forced-air unit designed for ceiling or wall mounting in large shops. Despite “5000W” in the name, the heater runs on a 240V circuit — not 120V — so it requires a 30-amp double-pole breaker and NEMA 6-30P wiring. Once installed, the digital thermostat maintains room temperature within 2°F, and the 9-hour timer with auto shutoff allows you to pre-heat the garage before your morning shift.
Build quality is surprisingly robust for the mid-range price point. The SPCC cold-rolled steel housing resists deformation, and the louvers can be angled during installation to direct heat across a 50-square-meter coverage area. Owners note the fan is noticeably quieter than similar Chinese-market clones — no rattling panels even at full 5000W output — and the remote control works from about 30 feet.
The controls are somewhat unintuitive. The default behavior cycles down to 3000W whenever the room approaches the set temperature, and the fan continues running even after the heating element shuts off. This prolongs element life but adds noise. The heater ships with no cord — professional hardwiring is mandatory — and a few units arrived with minor dents from shipping.
What works
- 5000W output heats a 2-car garage very quickly
- Digital thermostat maintains ±2°F accuracy
- 9-hour timer and remote add real convenience
What doesn’t
- Requires 240V hardwiring and a 30A breaker — not a 120V plug-in
- Fan runs continuously even when heat cycles off
- Control panel interface is not intuitive
5. DREO Smart Wall Heater
DREO’s wall-mounted PTC heater is the only unit in the lineup with 30-degree manual oscillation, which spreads heat across a wider area than static louvers. The fan moves air at 11.5 ft/s while producing only 28 dB — quiet enough to run in a bedroom or workshop without shouting over it. The ECO mode allows you to set a target temperature and lets the heater cycle between 600W, 1000W, and 1500W automatically to hold that number.
The DREO app adds scheduling and a temperature calibration slider that compensates if the built-in sensor reads a degree or two off your external thermometer. Voice control via Alexa works seamlessly, and the unit remembers its setting after a power cycle. The IP24 waterproof rating means it can hang in a damp garage or semi-enclosed space without corrosion worries.
The 150 sq. ft. primary heating coverage is conservative — owners successfully heat 750 sq. ft. as a supplemental source in insulated spaces. However, the heater lacks an auto-oscillation feature; you must tilt the manual louvers by hand. The 70.8-inch power cord is fixed, so placement is limited to areas within reach of an outlet.
What works
- Manual 30° oscillation for wider heat distribution
- 28 dB noise level — barely audible
- IP24 water-resistant rating for damp garages
What doesn’t
- No auto-oscillation — louvers must be tilted by hand
- Fixed 70.8-inch cord limits placement options
- Primary rated coverage is only 150 sq. ft.
6. Shinic 2-Pack Quartz Radiant
The Shinic 2-pack delivers instant radiant heat directed at people and objects rather than the air — a fundamentally different approach from forced-air units. Each head contains dual quartz tubes that glow orange within seconds of being turned on. The built-in halogen work light on each unit provides 360-degree illumination for tasks at the workbench, making this a strong dual-purpose tool for garage workshops.
Five pull-string modes let you select 750W (one tube), 1500W (both tubes), or either power level combined with the work light. The 90-degree swivel mount allows you to aim heat directly at a tool chest or project table without heating the entire garage. Users who sit under these units report feeling warm enough to work in shorts even when the ambient garage temperature is in the 30s.
Reliability is a concern. Multiple buyers report units failing after a half-dozen cycles — the power LED stays on but the quartz tubes never glow. Finding customer service is reportedly very difficult. The set also does not heat the whole garage; it only warms the area directly in the radiant path. For whole-room coverage, you need forced air.
What works
- Instant radiant heat warms people and objects directly
- Built-in halogen work light doubles as task illumination
- 90-degree swivel aims heat exactly where needed
What doesn’t
- Unreliable — several units fail after 6-7 uses
- Will not heat the entire garage, only the direct path
- Customer service contact is nearly impossible to find
7. Dr. Infrared Heater DR218
The Dr. Infrared DR218 is a compact 1500W forced-air heater built with a green cabinet and an IPX4 water-splash rating, making it the safest choice for greenhouses, porches, and semi-exposed garages. The single-setting operation is simple: plug it in and it runs until you unplug it — there is no thermostat, no timer, and no fan speed control.
Owners of 6×8 polycarbonate greenhouses report it maintains 42°F to 48°F during outdoor freezes as low as 22°F, which is sufficient for frost protection but not for active plant growth. The forced-air fan runs at a moderate noise level, and the cabinet dimensions (10x10x15 inches) are small enough to sit on a shelf or bench without taking up valuable floor space.
The lack of an automatic shutoff when the set temperature is reached is the biggest drawback. Users report the heater will run continuously unless manually unplugged, wasting electricity and risking overshoot in small enclosed spaces. Additionally, the single setting limits flexibility — you cannot run it at lower wattage for milder days.
What works
- IPX4 water-splash rating — safe for greenhouses and damp garages
- Compact footprint — fits on a shelf or workbench corner
- 1500W output provides adequate frost protection for small structures
What doesn’t
- No thermostat — runs continuously until unplugged
- Single setting with no adjustable wattage or fan speed
- Not powerful enough for active greenhouse growing in deep winter
8. Affectnianly CSC151TW
This Affectnianly-branded wall heater is essentially the same form factor as the Cadet Com-Pak but sold as a hardwired-only unit with a manual thermostat knob. The 1500W / 5120 BTU output is identical to the Cadet, and the 30 dB noise level makes it suitable for bedrooms and bathrooms as well as garages. The built-in thermostat cycles the heater on and off based on room temperature, which is the bare minimum for efficient operation.
The biggest catch is that this unit has no power cord — it ships with two pigtail wires (black and white) that must be connected to a junction box by a licensed electrician. Several buyers report difficulty finding an electrician willing to do a small job like this, forcing them to return the unit. The heater is also strictly indoor-rated, with no water resistance for greenhouses or damp spaces.
Performance reviews are polarized. Most buyers in small bathrooms and home offices report it heats quickly and holds temperature accurately through the manual knob. A minority report the unit arrived dead on arrival, and customer support for the Affectnianly brand is inconsistent. The value proposition hinges entirely on whether you can install it yourself or find affordable labor.
What works
- Full 1500W / 5120 BTU output on a standard 120V circuit
- Quiet operation at 30 dB — suitable for bedrooms
- Built-in manual thermostat cycles heat automatically
What doesn’t
- No power cord — hardwired installation is mandatory
- Random quality control — some units arrive dead on arrival
- Customer support for the brand is difficult to reach

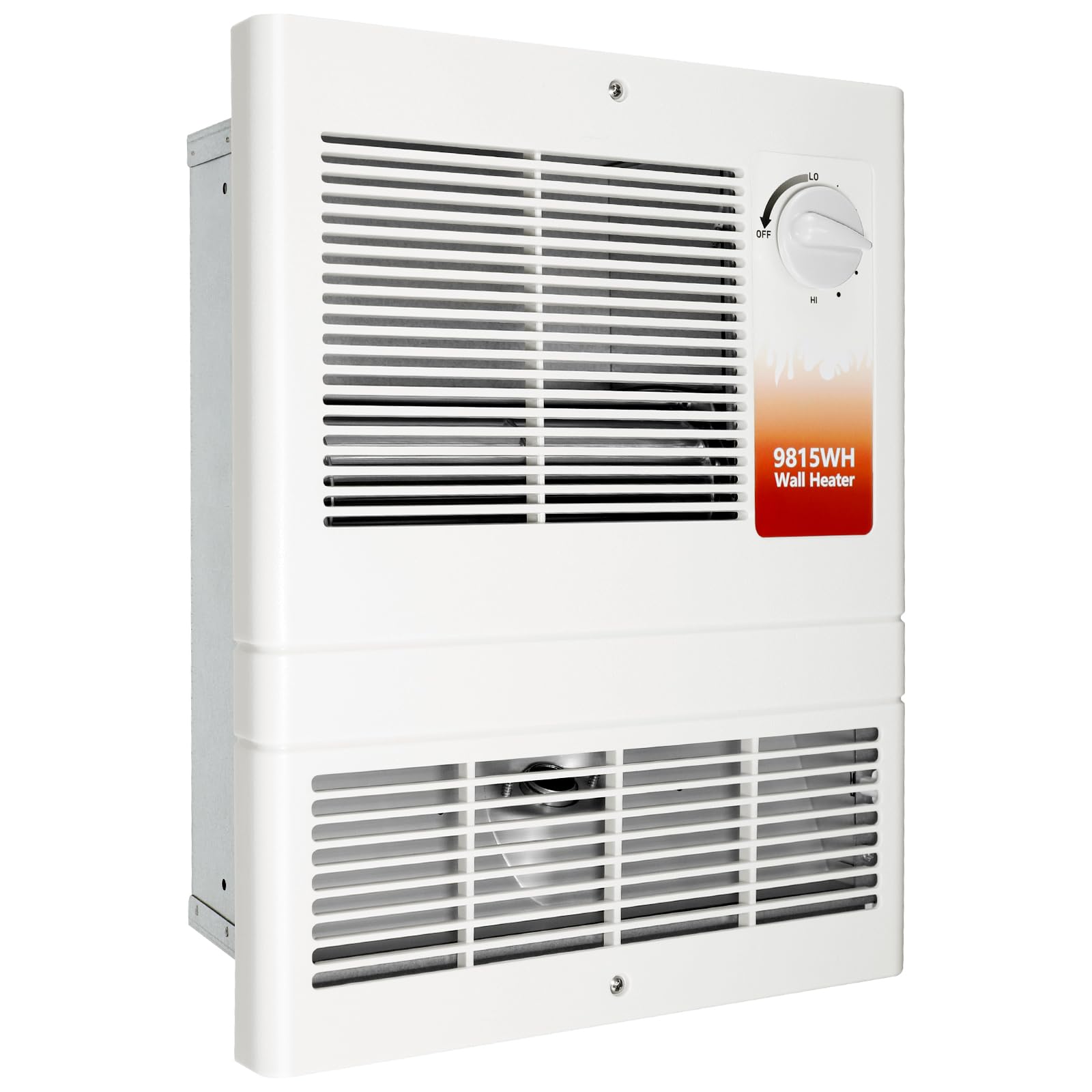

9. Leafinnerin 9815WH Large Wall Heater
The Leafinnerin 9815WH is unusual in that it ships factory-wired for 120V/1500W but can be rewired for 240V/1500W — essentially future-proofing the heater if you ever upgrade your garage’s electrical service. The forced-air design uses a permanently lubricated copper motor that buyers describe as “silent” compared to the buzzing and humming of cheaper in-wall units.
The louvers distribute heat evenly across a 6×21-foot laundry room conversion without creating hot spots near the ceiling. The front-mounted adjustable thermostat is easy to reach even with the heater installed high on the wall, and the overheat protection triggers reliably when airflow is blocked. Owners report the unit maintains 60°F easily in attached garage rooms during Missouri winters.
The main drawback is size. At 10.5 x 3.38 x 12.5 inches, it is significantly deeper than the Cadet or Stiebel options, which can make it difficult to fit between standard stud bays in a remodel situation. The thermostat accuracy is also questionable — a few buyers report the heater running past the set temperature by several degrees before cutting off, leading to short cycling.
What works
- Switchable between 120V and 240V wiring — flexible for future upgrades
- Permanently lubricated copper motor for quiet operation
- Overheat protection triggers reliably when airflow is blocked
What doesn’t
- Deeper cabinet (3.38 inches) may not fit tight stud bays
- Thermostat sometimes overshoots set temperature by 4-5°F
- Limited to 1500W even on 240V — no wattage gain from switching
Hardware & Specs Guide
BTU and Wattage Limits
A 120V 15A circuit is capped at 1500 watts continuous load, which translates to roughly 5120 BTU per hour. That is sufficient to heat a 200 to 300 sq. ft. insulated space to comfortable working temperature. Anything beyond that requires supplemental heating or a dedicated 240V line.
Heating Element Types
PTC ceramic elements self-regulate their resistance as temperature rises, which naturally limits current draw and reduces fire risk while maintaining a consistent output temperature around 100°F. Radiant quartz tubes emit infrared energy that warms people and objects directly, bypassing air temperature entirely — ideal for spot heating but inefficient for whole-room coverage.
Thermostat and Control Accuracy
Mechanical bi-metallic thermostats (found on Cadet, Stiebel, and Affectnianly units) are simple and reliable but typically have a 5-8°F hysteresis. Digital thermostats with ECO modes (DREO, Brightown) achieve 1-2°F accuracy but add complexity and potential failure points. Line-voltage thermostats wired remotely offer the best precision for permanently installed heaters.
Clearance and Mounting Requirements
Wall-mounted forced-air heaters need at least 6 inches of clearance from the floor and 12 inches from combustible materials on the sides. Ceiling-mounted radiant units require 18 inches of clearance below the heat tubes and must be positioned to avoid direct contact with shelving or stored items. Hardwired units require a junction box recessed into the wall with proper insulation clearance per local electrical code.
FAQ
Why is my 120V garage heater tripping the breaker?
Can I use a 120V garage heater with an extension cord?
Will a 120V garage heater keep my uninsulated garage warm?
What is the difference between forced air and radiant heat in a garage?
Final Thoughts: The Verdict
For most users, the 120v electric garage heater winner is the Cadet Com-Pak CSC151TW because it delivers the full 5120 BTU legal limit in a compact wall-mount design and uses a simple mechanical thermostat that works reliably for years. If you want WiFi and phone control, grab the Brightown Wall Heater. And for quiet operation in a space where sound matters, nothing beats the Stiebel Eltron CK Trend.
