You pick a 140mm radiator fan for one reason: static pressure (the force that pushes air through a radiator’s tight fins). A fan that moves plenty of air in open space can choke on a radiator, leaving your CPU or GPU hotter than you expect. This guide compares five top contenders on the specs that matter for liquid cooling, so you choose the one that keeps your system cool without sounding like a jet engine.
I’m Mo Maruf — the co-founder and writer behind The Tools Trunk. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
Matching the right 140mm radiator fan to your system’s noise tolerance and cooling demand makes the difference between a build that runs silently under load and one that constantly fights thermal throttling.
How To Choose The Best 140mm Radiator Fan
Not every 140mm fan is built for the job. A fan designed for case airflow often falls short when mounted on a radiator because it lacks the static pressure (the force that pushes air through dense fin stacks) to overcome the resistance. Here is what to look for so you do not get fooled by specs that sound good on paper.
Prioritise Static Pressure Over Raw Airflow
Airflow (measured in cubic feet per minute, or CFM) tells you how much air the fan moves in open space. Static pressure (measured in mm-H2O, or millimeters of water column) tells you how hard it pushes that air through an obstacle. For a radiator, static pressure matters more — a fan with high CFM but low static pressure will struggle to push air through dense fins, leaving heat trapped in the coolant. Look for a static pressure rating above about 2.0 mm-H2O for most standard radiators, and higher if your radiator has a very high fin density (meaning more tightly packed fins).
Watch the Noise Level and Speed Range
Every radiator fan makes noise, but the character of that noise changes with speed. A fan that is whisper-quiet at idle (under 25 decibels, or dB, which measures loudness) might still sound intrusive at full speed (over 35 dB). The key is a wide PWM (pulse width modulation) range — this lets your motherboard adjust speed dynamically by pulsing power on and off, keeping the fan near-silent when your CPU is cool and ramping up only when needed. A fan that stops completely below a certain PWM signal (like the ARCTIC P14 Pro Reverse) gives you the option of a semi-passive build that sits dead silent during light tasks.
Check Fan Thickness for Case Clearance
Standard 140mm fans are 25 millimeters thick, but some high-performance radiator fans like the Corsair RS140 MAX measure 30mm. That extra 5mm allows a larger blade with steeper pitch, which improves static pressure and airflow. However, it also means you need to check clearance — can your case or radiator mount accommodate the extra thickness without hitting your motherboard’s heatsinks, RAM, or the side panel? If space is tight, stick with 25mm fans.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Noctua NF-A14x25 G2 PWM | Premium | Silent high-performance radiator builds | 24.8 dB noise level | Amazon |
| be quiet! Silent Wings Pro 4 140mm | Premium | High static pressure adjustable speed | 2400 RPM max speed | Amazon |
| CORSAIR RS140 MAX 140mm | Mid-Range | Maximum airflow on thick radiators | 104 CFM airflow | Amazon |
| ARCTIC P14 Pro Reverse A-RGB 3‑Pack | Mid-Range | High‑speed cooling with RGB and reversed airflow | 2650 RPM max speed | Amazon |
| F140P (NZXT) 140mm Static Pressure Fan | Budget | Cost‑effective radiator upgrade | 1700 RPM max speed | Amazon |
In‑Depth Reviews
1. Noctua NF-A14x25 G2 PWM
24.8 dB(A) at 1500 RPM makes the Noctua NF-A14x25 G2 PWM the top pick for anyone who demands silent radiator cooling above all else. Its noise level at maximum speed is 33% lower than the be quiet! Silent Wings Pro 4’s 36.8 dB, making it far better for silent builds.
Noctua packs advanced engineering into this brown 140mm frame: a Sterrox LCP (liquid crystal polymer) blade that reduces blade vibration, Flow Acceleration Channels that boost airflow along the blade tips, and an ultra-tight tip clearance (the tiny gap between blade edge and frame) that prevents air from slipping back. Buyers report that after installing this fan, their CPU temperature dropped by about 1°C over their previous-generation fan. The included Low-Noise Adaptor lets you cap speed at around 1100 RPM if you want even quieter operation, ideal for a system that rarely hits full load.
The catch is the price — this single fan costs more than some three-packs — and the polarizing brown colour that clashes with most builds. This fan suits you if you are building a premium, silent-focused system and prioritize low noise over every other spec. skip it if you need maximum speed or want a fan that matches an all-black or RGB build without extra cost. For the quietest radiator cooling available, the Noctua NF-A14x25 G2 PWM is the definitive choice.
Why it’s great
- Industry-leading low noise at 24.8 dB
- Delta-wing inspired blade design for efficient static pressure
- Includes anti-vibration mounts, gasket, LNA, and Y-splitter cable
Good to know
- Premium price — highest single-fan cost on this list
- Brown colour scheme does not suit all builds
- Max 1500 RPM is lower than some high-speed competitors
2. be quiet! Silent Wings Pro 4 140mm PWM High Speed
The be quiet! Silent Wings Pro 4 trades the Noctua’s near-silent operation for sheer speed flexibility, and according to buyers it is one of the very best airflow fans on the market. It runs up to 2400 RPM — a full 900 RPM faster than the Noctua. That speed means you get a massive 97.4 CFM (cubic feet per minute) of airflow when you need it, but at a noise level of 36.8 dB — about 48% louder than the Noctua. The built-in speed switch lets you pick between medium, high, and ultra-high PWM caps without touching a BIOS setting. This means you can cap the fan at a quieter speed for daily use and switch to high speed for heavy rendering sessions.
Use it on a thick radiator where you need raw push power: the funnel-shaped frame and tiny gap between blade and frame concentrate the air stream into a narrow column that punches through dense fins. At 310 grams, it is 23% heavier than the ARCTIC P14 Pro Reverse pack, which tells you the build quality is dense — thick fan blades, reinforced frame, and rubber-insert corners that dampen vibration.
Buyers specifically note it works well as a quiet case fan at lower RPMs but delivers serious airflow when turned up. Choose this over the Noctua if you need adjustable speed that ranges from inaudible to high-volume, and you do not mind the extra noise at the top end.
Where it shines
- Speed switch for quick performance/noise tuning
- 97.4 CFM airflow pushes hard through radiators
- Excellent build quality with anti-vibration corners
Worth noting
- 36.8 dB noise at full speed is noticeable
- Heavier than most 140mm fans at 310g
- Limited colour choice — black only
3. CORSAIR RS140 MAX 140mm PWM Thick Fan
If you have a thick, high-density radiator and the case clearance to spare, this fan is built to dominate airflow. At 30mm thick (5mm thicker than standard fans), it pushes 104 CFM — 7% more airflow than the be quiet! Silent Wings Pro 4’s 97.4 CFM. The extra thickness also yields 2.4 mm-H2O of static pressure, making it ideal for tightly packed fins that would choke thinner fans like the standard NZXT F140P.
Owners mention that at lower RPMs the airflow is still excellent, and the liquid crystal polymer construction keeps the blades from flexing under load. The included CORSAIR AirGuide technology uses anti-vortex vanes (small plastic fins) that straighten the airflow, so the air hits the radiator fins head-on instead of swirling past them. One buyer switching from a Noctua 3000 RPM fan noted this fan is still silent even at maximum speed, and the temperature difference is only a few degrees — meaning it trades peak speed for quieter operation.
One standout spec to keep in mind: this fan draws more power than standard 140mm fans, so if you are running three on a single motherboard header, buyers recommend splitting them across three separate headers to avoid overloading the amperage limit. This is the pick if you have a thick, high-density radiator and the case clearance for 30mm fans — but it is not for you if your case is tight on space or you are on a strict budget.
What stands out
- 30mm thickness delivers 104 CFM airflow — best on this list
- High static pressure of 2.4 mm-H2O for dense radiators
- Liquid crystal polymer blades for rigidity and low vibration
The trade-offs
- Thicker design may not fit all cases
- High power draw — watch header amperage limits
- No daisy-chain option for clean cabling
4. ARCTIC P14 Pro Reverse A-RGB 3‑Pack
The single number that matters most in this category is 2650 RPM — the fastest maximum rotational speed here, beating the Noctua by 77% and even the be quiet! by 10%. That speed gives this fan the raw ability to blast through even the densest radiator stacks when you crank it up. At 253 grams for a three-pack, each fan weighs less than a single premium fan, which tells you the priority is performance per dollar, not overbuilt materials.
The downside you accept is noise: at full speed this fan generates a distinct woosh that customers note becomes noticeable above 50% PWM. The included 0 RPM mode means the fan stops completely at less than 5% PWM signal, so it sits dead silent on the desktop and only spins up under load. Reviewers point out it provides excellent cooling for a high-end GPU build — keeping exhaust cool even with a 5080 at 96% utilization. This is a reversed airflow model, meaning it pulls air from the back side, which is ideal for glass-fronted cases or builds where you want the clean side of the fan visible.
If pure speed and per-fan cost matter more than stone-cold silence, this three-pack is the smart buy. It is for the builder who wants maximum cooling headroom and RGB, and who does not mind noise at high RPM. pass on it if you need a standard forward-blowing fan or your build is in a bedroom where low noise at any speed is critical.
The upsides
- Fastest 140mm fan at 2650 RPM — 77% faster than Noctua
- Three-pack price beats single-fan costs from premium brands
- 0 RPM mode for silent operation at idle
Keep in mind
- Noticeable noise above 50% PWM speed
- Reversed airflow orientation limits standard use
- RGB LEDs are visible through fan body — not fully diffused

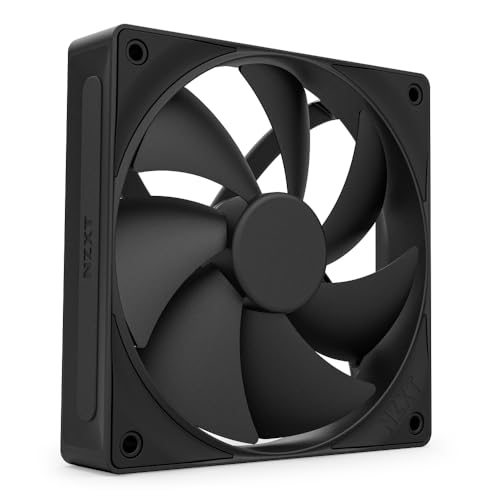

5. F140P (NZXT) 140mm Static Pressure Fan
For around the cost of a single premium fan you get a seven-blade 140mm fan designed specifically for static pressure, spinning up to 1700 RPM and pushing with a fluid dynamic bearing (FDB) rated for 60,000 hours of life. The chamfered frame design directs air in a concentrated column that travels far into your case, which means fewer dead zones around your radiator or heatsink. Buyers confirm they noticed an immediate improvement in their cooler’s performance with less noise after swapping stock fans for this NZXT model.
What you give up is top-end speed and extreme silence. At 1700 RPM it is not going to out-blast the ARCTIC at 2650 RPM, and at 30 dB it is audibly louder than the Noctua at full speed. The FDB is a solid mid-range option — less noisy than a sleeve bearing (a simple metal sleeve with basic lubrication) but not as smooth as a premium hydrodynamic bearing used in high-end fans. There is also no RGB, no daisy-chain, and no speed switch, so you rely entirely on your motherboard’s PWM curve for speed adjustment.
This is the pick for the budget-conscious builder who already owns a 140mm radiator and wants a noticeable upgrade from generic case fans or an AIO’s stock fans without spending more on the fan than the radiator itself cost.
Why we’d pick it
- Optimised seven-blade design for high static pressure
- 60,000-hour fluid dynamic bearing for longevity
- Budget-friendly — noticeable upgrade without premium cost
A few caveats
- 1700 RPM max speed limits extreme cooling potential
- No RGB, no daisy-chain, no speed switch
- 30 dB noise level is mid-pack — not silent
Understanding the Specs
Static Pressure (mm-H2O)
Static pressure measures how much force the fan can apply to push air through an obstruction like a radiator’s dense fins. Think of it like a car’s torque versus horsepower — high static pressure means the fan can keep moving air even when there is resistance in front of it. For a standard 30mm radiator, aim for at least 2.0 mm-H2O (millimeters of water column, a unit of pressure); for high-density models, 2.5 mm-H2O or higher gives you headroom. A fan with high airflow but low static pressure will struggle on a radiator and sound like it is working hard without moving much air.
Noise Level (Decibels)
Decibels (dB) tell you the loudness of the fan at full speed. A 10 dB increase sounds roughly twice as loud to human ears, so the difference between a 24.8 dB fan (Noctua NF-A14x25 G2) and a 36.8 dB fan (be quiet! Silent Wings Pro 4) is significant — the be quiet! sounds about four times louder at full blast. That said, noise perception is personal: some people notice a low hum at 25 dB, while others run fans at 35 dB without caring. The shape of the noise matters too — a smooth whoosh is less annoying than a high-pitched whine.
FAQ
Can I use a standard case fan on my radiator?
Does fan thickness really matter for radiator cooling?
What’s the difference between 3-pin and 4-pin PWM fans?
What is a fluid dynamic bearing?
Final Thoughts: The Verdict
For most people, the 140mm radiator fan winner is the Noctua NF-A14x25 G2 PWM because it sets the standard for quiet, high-performance radiator cooling — it pushes serious air at just 24.8 decibels, making it ideal for builds where silence under load is non-negotiable. If you want maximum raw speed and per-fan value, grab the ARCTIC P14 Pro Reverse A-RGB 3-Pack at 2650 RPM. And for a budget-conscious upgrade from stock fans, the NZXT F140P mixes solid static pressure with a reasonable price.
