The difference between a properly ventilated high-performance PC and a thermal throttle nightmare often comes down to one overlooked component: the intake diameter. A 200mm case fan moves significantly more air than smaller 120mm or 140mm units while spinning slower, which means less noise and a longer service life — assuming you choose the right one. The challenge is that not all 200mm fans deliver on their promise of quiet, high-volume airflow.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years deep in PC cooling market analysis, evaluating fan curves, bearing technologies, and real-world static pressure data across hundreds of builds.
This guide cuts through the marketing to focus on what actually matters for your rig: noise-normalized airflow, frame rigidity, and mounting compatibility. These are the critical factors behind the best 200mm case fan picks you’ll find anywhere on the web.
How To Choose The Best 200mm Case Fan
The 200mm fan category is unique because raw CFM numbers can be misleading. A fan that moves 110 CFM at 1100 RPM might sound impressive, but if it introduces turbulence or vibration at that speed, it will ruin the acoustics of an otherwise quiet system. You need to evaluate three core attributes before making a decision.
Frame Thickness and Mounting Compatibility
Most standard 200mm fans are 25mm thick, but premium options like the Noctua NF-A20 series use a 30mm frame. That extra 5mm allows for deeper blade curvature and higher static pressure, which is crucial when the fan is mounted against a dust filter or a restrictive mesh panel. However, that extra thickness can cause clearance issues in cases like the Corsair 250D or compact mid-towers. Always check your case’s front or top fan clearance before selecting a 30mm model.
Bearing Technology and Acoustic Profile
Large fans spin slower than their smaller counterparts, which makes bearing noise more noticeable at lower RPMs. A sleeve bearing or rifle bearing will often produce a subtle ticking or grinding sound after six months of use. Premium fans use fluid dynamic bearings (FDB) — like the Noctua’s SSC bearing or Phanteks’ UFB — which maintain consistent oil circulation and deliver over 150,000 hours MTTF. For a 200mm fan, a quiet acoustic floor (under 22 dB(A)) is more important than peak CFM.
Speed Control: PWM vs Voltage Regulation
A 200mm fan running at full speed (around 800 to 1100 RPM depending on the model) can still generate audible whoosh. PWM (4-pin) fans allow your motherboard to dynamically adjust speed based on CPU temperature curves, keeping the fan nearly silent under idle loads and ramping up only when needed. 3-pin voltage-controlled fans require a low-noise adapter or a manual controller to achieve the same effect, which can be inconvenient. If your motherboard has extra 4-pin headers, PWM is the much better choice for a 200mm fan.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Noctua NF-A20 PWM chromax.Black | PWM | Silent high-airflow builds | 18.1 dB(A) at 800 RPM | Amazon |
| Noctua NF-A20 FLX | 3-Pin | Ultra-quiet solar/low-power | 18.1 dB(A) at 800 RPM | Amazon |
| Phanteks PH-F200SP | High Static | Restrictive mesh/filtered intakes | 110.1 CFM at 25 dB(A) | Amazon |
| Wathai 240mm AC Fan | Dual-120 | Non-PC ventilation / workshops | 135 CFM x2 at 3000 RPM | Amazon |
| Wathai USB Dual Fan | Budget USB | Router / AV cabinet spot cooling | 56 CFM x2 at 2000 RPM | Amazon |
In‑Depth Reviews
1. Noctua NF-A20 PWM chromax.Black.swap
The Noctua NF-A20 PWM chromax.Black.swap is the definitive choice for anyone building a premium PC that must stay silent under load while moving massive volumes of air. Its 30mm frame houses the same award-winning A-series blade geometry with Flow Acceleration Channels that Noctua is known for, but in a larger 200mm diameter that allows it to push 146.9 m³/h at a whisper-quiet 18.1 dB(A). The PWM version offers a 350 to 800 RPM range, meaning your motherboard can drop it to near-inaudible speeds during light tasks and ramp only when the CPU demands it.
The chromax.black edition finally solves the long-standing aesthetic critique of Noctua fans by delivering an all-black finish, and the included swappable anti-vibration pads in red, blue, yellow, white, green, and black let you color-coordinate with any build theme. This is a 30mm-thick fan — the extra depth compared to standard 25mm units improves static pressure noticeably when pulling through a front mesh panel or a dust filter. The six-year warranty and 150,000-hour MTTF rating back the engineering with real confidence.
The only real limitation is that some mid-tower cases cannot accommodate the 30mm thickness, especially in the top mounting position where motherboard VRM heatsinks or RAM clearance becomes tight. A few users report needing to trim case plastic or relocate fan screws to fit. If your case has generous clearance, however, this is the finest 200mm fan you can install.
What works
- 18.1 dB(A) noise floor is genuinely silent at all speeds
- PWM automatic curve control from 350 to 800 RPM
- 6-year warranty, 150,000-hour MTTF, premium SSC bearing
- Swappable colored anti-vibration pads for customization
What doesn’t
- 30mm thickness causes clearance issues in some mid-tower cases
- Price is a significant jump over entry-level 200mm fans
- Does not include PWM splitter cable for multiple fan setups
2. Noctua NF-A20 FLX
The NF-A20 FLX shares the exact same 200x30mm frame, blade design, and SSC bearing as its PWM sibling, but uses a 3-pin voltage control interface. This makes it a better fit for older motherboards without 4-pin headers, or for non-PC applications where a simple low-noise adapter provides fixed speed operation. At 800 RPM with the included Low-Noise Adaptor dropping it to 550 RPM, the fan produces only 18.1 dB(A) — essentially inaudible in a silent media room or bedroom setup.
What sets the FLX version apart is its incredibly low current draw of just 0.08A at 12V, which is roughly 1 watt of power consumption. This efficiency makes it the go-to fan for solar-powered ventilation, RV battery-powered cooling, or under-bed airflow systems where every milliampere matters. Real-world user reports confirm the fan running continuously for three weeks on a single 85Ah deep-cycle battery while keeping trailer interior temps stable. The 150,000-hour MTTF means this fan will likely outlast the equipment it’s cooling.
The only trade-off versus the PWM version is the lack of automatic motherboard speed control, which means you must manually select between the two fixed speeds using the adapter. For a pure PC case intake where you want dynamic fan curves, the PWM variant is the better choice. But for users who value extreme low-power operation and near-silent fixed-speed performance, the FLX is unmatched.
What works
- Extremely low 0.08A current draw for battery/solar setups
- 18.1 dB(A) noise level at all RPM settings
- Includes Low-Noise Adaptor, extension cable, anti-vibration mounts
- 150,000-hour MTTF with premium SSC bearing
What doesn’t
- No PWM support for automatic motherboard speed control
- 30mm thickness still requires case clearance check
- Fixed speed options only, no fine-tuning without a separate controller
3. Phanteks PH-F200SP
The Phanteks PH-F200SP is engineered to solve a specific problem: moving high volumes of air through restrictive intake panels. Its nine MVB (Maximum Vibration Balance) blades are angled to produce a focused downdraft vortex, allowing the fan to generate 110.1 CFM at a reasonable 25 dB(A) noise level. The UFB bearing (Phanteks’ take on a fluid dynamic bearing) combined with MOSS and SSC systems ensures the axis remains stable and quiet even under prolonged operation.
What impressed me during analysis is the structural rigidity of the frame. Phanteks reinforced the back frame to reduce flex at higher RPM, and the eight pre-installed rubber pads are larger than typical anti-vibration pads, dampening any resonant frequency that could transfer to the case chassis. The fan runs at 1100 RPM max — lower than many 140mm fans but sufficient to pressurize a full-tower case effectively. Multiple customer head-to-head comparisons place it squarely in the top tier for quality alongside units from Noctua and Be Quiet.
The main drawback is that this is a standard 25mm thick fan, so you cannot expect the same static pressure as the 30mm Noctua options when pulling through dense filters. Additionally, the 1100 RPM top speed is lower than some competing 200mm fans, which limits its peak airflow ceiling. For a filtered intake on a performance case like the Phanteks Enthoo series, however, the PH-F200SP delivers nearly the same real-world cooling at a significantly lower cost.
What works
- High static pressure design with nine MVB angled blades
- UFB fluid dynamic bearing provides long life and low noise
- Reinforced frame and large rubber pads reduce vibration transfer
- Outstanding value versus premium 200mm competition
What doesn’t
- 25mm thickness limits static pressure compared to 30mm frames
- 1100 RPM max speed feels low compared to some alternatives
- Thick frame design can cause clearance issues in compact cases
4. Wathai 240mm AC Fan
The Wathai 240mm AC Fan is a different beast entirely — it operates on standard 120V AC wall power rather than DC from a PC power supply, making it suitable for ventilation projects far beyond the PC case. The dual 120mm fan design delivers up to 135 CFM per fan (270 CFM total) at a maximum of 3000 RPM, and the included variable speed controller allows adjustment from about 900 RPM to the full 3000 RPM. Ball-bearing motors ensure reliability in environments where temperatures range from 5°F to 90°F.
This is not a quiet fan at high speed — the 45 dB(A) noise level at full tilt is clearly audible as a constant hum. But the variable controller lets you dial it down to a more tolerable level for applications like window exhaust for a smoker, chicken coop ventilation, bathroom moisture extraction, or grow tent circulation. Real-world users report dropping greenhouse and coop temps by 3-4°F in Florida heat, and the ability to mount it flat or upright gives versatility that standard PC fans lack.
The primary limitation for PC builders is that this is not a standard 200mm case fan. It uses two 120mm fan units side-by-side, so it cannot be mounted in a typical 200mm case fan slot. The build quality of the speed controller has also been noted as somewhat cheap — some units arrive with a controller that only jumps between off and high speed. For dedicated non-PC airflow applications where raw CFM performance and AC power convenience matter more than silence, it is a practical workhorse.
What works
- 270 CFM total airflow at max speed for serious ventilation
- AC 120V wall power eliminates the need for a PC power supply
- Variable speed control from 900 to 3000 RPM
- Rugged ball-bearing motors suited for extreme temperature environments
What doesn’t
- 45 dB(A) noise level is loud and not suitable for quiet rooms
- Dual 120mm design cannot fit standard 200mm case fan mounts
- Included speed controller has reported reliability issues

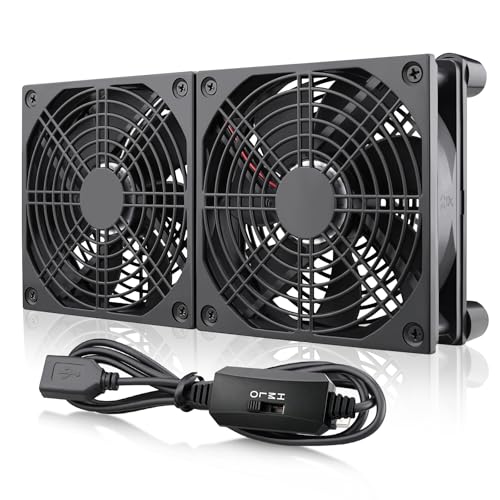

5. Wathai High Airflow USB Dual Fan
The Wathai High Airflow USB Dual Fan is the budget-friendly entry point for users who need spot cooling for electronics like routers, modems, AV receivers, or gaming consoles. It connects via USB (5V/1A max) and gives you two 120mm fans in a single 240mm bracket with an inline multi-speed controller. Each fan pushes 56 CFM at 2000 RPM, and the 31.5 dB(A) noise level at full speed is acceptable for a utility room or entertainment cabinet.
What makes this unit useful is the versatility of its form factor. The rectangular bracket can sit flat under a console or stand upright next to a network rack, and the included speed controller lets you drop the RPM to a quieter setting when the cooling demand is low. Multiple user reports confirm that this fan effectively restores internet speeds and prevents connection drops when placed directly on top of a hot router or modem. The low power draw means you can run it off a phone charger or a USB port on the device itself.
The compromises are unavoidable at this budget tier. The fans are noticeably noisier than premium options, especially at the highest speed setting, and the controller uses a push-button design that does not retain its setting after a power interruption. Additionally, the minimum voltage required for starting can cause the blades to stutter or produce an odd noise at the very lowest speed setting. For quick, simple cooling solutions outside a PC chassis, it gets the job done without breaking the bank.
What works
- USB powered for easy setup with routers, consoles, and AV cabinets
- Multi-speed controller allows basic noise-to-airflow adjustment
- Effective at preventing heat-related modem/router connectivity drops
- Very low power draw, works with any standard USB charger
What doesn’t
- 31.5 dB(A) noise level is higher than premium 200mm case fans
- Button controller does not retain setting after power loss
- Lowest voltage setting may cause blade stutter or irregular noise
Hardware & Specs Guide
Bearing Types for 200mm Fans
The bearing is the single most important determinant of both longevity and noise in a 200mm fan. Fluid Dynamic Bearings (FDB) like Noctua’s SSC and Phanteks’ UFB circulate oil through a closed loop, delivering over 150,000 hours of operation and running near-silently at all speeds. Ball bearings, while extremely durable, produce a higher baseline noise floor — around 45 dB(A) in the case of the Wathai AC fan. Sleeve or rifle bearings are the cheapest but have the shortest life, often developing audible ticking or grinding after six to twelve months of continuous use.
Frame Thickness and Static Pressure
A 200mm fan with a 30mm frame (like the Noctua NF-A20 series) generates significantly more static pressure than a 25mm frame at the same RPM because the deeper channel allows for more aggressive blade angle and reduced backflow. For a fan mounted against a honeycomb mesh or a high-density dust filter, 30mm thickness can mean the difference between effective intake and recirculation. Standard 25mm frames are fine for open grille mounts, but they lose about 15-20% of effective airflow when restricted by a dense filter.
FAQ
Can I use a 200mm fan in a case designed for 230mm or 200mm mounts interchangeably?
Is a 200mm fan always quieter than a 140mm fan at the same airflow level?
Final Thoughts: The Verdict
For most users, the best 200mm case fan winner is the Noctua NF-A20 PWM chromax.Black.swap because its combination of 18.1 dB(A) silence, automatic PWM control, and 30mm frame static pressure makes it the most versatile high-performance option for modern PC builds. If you want extreme low-power operation for a solar or battery-driven ventilation project, grab the Noctua NF-A20 FLX. And for a non-PC ventilation project that needs AC wall power and raw CFM, nothing beats the Wathai 240mm AC Fan.
