A garage workshop at 30°F turns a simple screwdriver task into a knuckle-busting ordeal. The right 240-volt forced-air or infrared unit doesn’t just raise the temperature—it transforms a freezing, unproductive space into a year-round workspace where adhesives cure and your hands stay nimble.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing heating hardware across thermal output, build material gauge, and safety circuit design to separate units that deliver sustained heat from those that just spin a noisy fan.
Whether you are wiring a new build or upgrading an existing circuit, this guide cuts through the BTU ratings and thermostat quirks to help you find the right 240v electric garage heater for your specific square footage and insulation reality.
How To Choose The Best 240V Electric Garage Heater
A 240V circuit delivers double the power of a standard 120V outlet, which means you can throw serious thermal energy at a cold garage. But bigger wattage isn’t automatically better — the heater’s design, safety certifications, and installation demands matter just as much as the raw number. Here is what to check before you pull the trigger.
Wattage and BTU Output Against Your Garage Volume
Heat output is measured in both watts and BTUs. A general rule of thumb for a 240V forced-air unit is roughly 10 watts per square foot in a well-insulated space. An uninsulated two-car garage with a high ceiling may need 15 to 20 watts per square foot. The BTU figure (watts multiplied by 3.41) tells you how much raw heat the element can produce, but the fan’s cubic-feet-per-minute rating determines how effectively that heat spreads across the floor.
Heating Method: Forced Air vs. Infrared vs. Fan-Forced Convection
Forced-air heaters pull cold air across a hot coil and push it out at high velocity — they heat the air quickly but can be noisy. Infrared units warm solid objects and people directly without heating the air volume first, making them ideal for drafty spaces or spot heating a workbench. Fan-forced convection combines a lower-speed fan with a longer heat sink to circulate warm air gently, which works well in insulated spaces where you want even temps without a jet-engine roar.
Installation Type: Portable, Wall-Mount, or Ceiling-Mount
Portable units with a NEMA 6-30P plug let you move the heater between outlets, but you are limited to locations where that receptacle exists. Wall-mount and ceiling-mount units are hardwired directly to a breaker, which frees up floor space and places the heat source up and out of your way. Ceiling-mounted forced-air heaters are common in auto shops, while wall-mounted infrared panels suit patios or areas with low headroom.
Thermostat Quality and Control Responsiveness
A built-in thermostat with a mechanical knob can drift over time or cycle the fan on and off too rapidly — a common complaint that leads to annoying noise and temperature swings. Units with an electronic thermostat or a remote sensor maintain steadier temps and usually offer a timer function. If you plan to leave the heater on overnight, look for models that support an external line-voltage thermostat for more precise control.
Safety Certifications and Overheat Protection
ETL or UL listing means the unit has passed third-party safety tests. Overheat protection that shuts the element off when the outlet is blocked is standard, but the more important safety feature is a high-limit switch that trips if internal temperatures exceed safe thresholds. For infrared units, look for IP54 or higher ingress protection if the heater will be used near moisture or in a semi-covered area.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Dr. Heater DR-910M | Premium | Large insulated shops | 10,000W / 60A circuit | Amazon |
| KING GH2407TB | Premium | Reliable long-term heating | 7,500W with Smart Limit | Amazon |
| Infratech WD-4024 SS | Premium | Outdoor/semi-covered spot heat | 4,000W dual-element radiant | Amazon |
| Qmark MUH35 | Premium | Industrial/warehouse heating | 5,000W adjustable wattage | Amazon |
| ThermoMate Infrared | Mid-Range | Drafty patios and spot heating | 3,000W carbon fiber tube | Amazon |
| KING PAW2422-W | Mid-Range | Quiet zone heating in small rooms | 2,250W selectable wattage | Amazon |
| Comfort Zone 4,800W | Mid-Range | Budget-friendly forced air | 4,800W fan-forced | Amazon |
| INNOVATIVE LIFE 8500W | Mid-Range | Smart features on a budget | 8,500W with remote & timer | Amazon |
| King Electric PGH2440TB | Budget | Entry-level portable heating | 3,750W compact portable | Amazon |
In‑Depth Reviews
1. Dr. Heater Dr. Infrared DR-910M
The DR-910M is the heavyweight champion of this lineup, pulling a full 10,000 watts on a dedicated 60-amp breaker. It requires 6 AWG copper wire, which means this is a serious electrical project, but the payoff is heat that hits hard and fast — owners report bringing large greenhouses and 12×32 workshops up to temp in minutes rather than hours.
Five adjustable louvers let you direct the forced air exactly where it’s needed, and the included wheeled cart makes it semi-portable despite the hardwired installation. The thermostat range of 37 to 104 degrees gives you fine control, though the internal sensor placement can cause a slow re-ignition cycle because the heater reads its own internal temperature rather than the room’s ambient air.
Build quality is rugged, with a fully enclosed motor and UL listing, but the lack of a fan-only cool-down cycle means the motor stops as soon as the elements cut off. For a large insulated shop where quick temperature recovery matters more than whisper-quiet operation, this unit delivers raw thermal output that smaller heaters can’t match.
What works
- Massive 10kW output heats large spaces fast
- Adjustable louvers direct airflow precisely
- Wheeled cart adds mobility despite hardwiring
What doesn’t
- Requires 60A breaker and 6 AWG wire
- No fan cool-down cycle after element shuts off
- Internal thermostat can cause delayed re-ignition

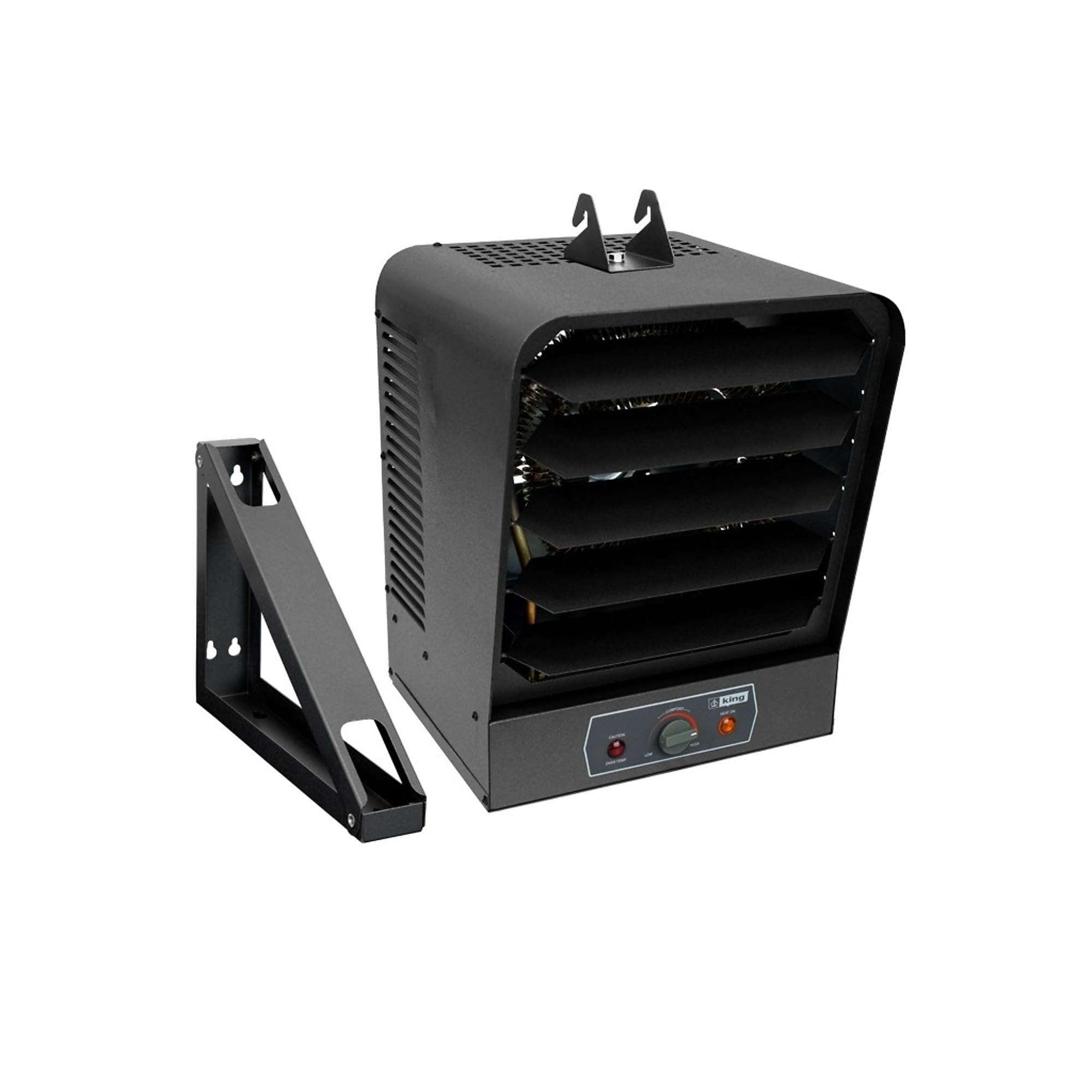

2. KING GH2407TB
King Electric has a reputation for building heaters that outlast the buildings they’re installed in, and the GH2407TB continues that tradition with a high-mass steel fin heat exchanger and patented Smart Limit Protection that prevents overheating without nuisance trips. The 7,500-watt output on a 240V circuit handles insulated spaces up to roughly 750 square feet with authority.
Adjustable louvers let you aim the warm air stream, and the built-in thermostat includes power-on and over-temperature indicator lights so you can see at a glance whether the unit is actively heating. Owners report heating a 16×20 insulated shop from 27°F to 60°F in under 30 minutes, and the gentle forced-air circulation is less turbulent than typical fan-forced units.
Quality control has been inconsistent — some units ship with faulty indicator lights or defective limit switches right out of the box. King Electric does stand behind the product and sends replacement parts promptly, but the need for early repairs on a premium-priced unit is frustrating. The mounting bracket is also a single-bolt design that can cause ceiling-mounted units to sway.
What works
- Fast heat recovery in insulated spaces
- Smart Limit Protection prevents dangerous overheating
- Indicator lights provide clear operational status
What doesn’t
- Inconsistent quality control on early units
- Ceiling mount bracket prone to swaying
- Thermostat knob lacks clear markings
3. Infratech WD-4024 SS
Infratech’s WD-Series heaters occupy a unique slot — they are radiant heaters that warm people and objects directly without heating the air volume, making them ideal for covered patios, outdoor kitchens, and drafty garages where forced-air heat would be lost in seconds. The 4,000-watt dual-element design lets you run just one bulb at 2,000 watts for mild evenings or both for full output on cold nights.
The 304 stainless steel housing withstands moisture and UV exposure without corroding, and the UL/CUL listing for indoor and outdoor use means you can install it in semi-covered spaces without worrying about safety certification. Owners report bringing a double-wall solarium from 43°F to 82°F with two units, and the infrared heat feels intense — you can feel it on your skin at 8 feet of mounting height.
This is a zone-specific heater, not a whole-space warmer. It covers roughly 80 square feet effectively, and the heat drops off sharply as you move outside the beam pattern. Installation requires hardwiring by a licensed electrician, and the three-year warranty is competitive for this price tier. If you need silent, wind-resistant heat for a specific work area, this is the most effective solution.
What works
- Dual-element allows half-power for mild days
- Stainless steel is fully weather-resistant
- Silent operation with instant-on heat
What doesn’t
- Limited coverage zone of about 80 square feet
- Heat intensity at close range can be uncomfortable
- Premium price for a relatively low-wattage output
4. Qmark MUH35
The Qmark MUH35 is built for factories, warehouses, and schools — environments where reliability is non-negotiable and the heater runs for months straight. The self-contained unit heater design includes a built-in manual thermostat and a wall-or-ceiling mounting bracket standard, with adjustable discharge louvers that let you fine-tune the airflow direction across the space.
One of the defining features is field-adjustable wattage, which allows you to match the heater’s output to your specific breaker size and space volume. At 5,000 watts on a 240V circuit, it draws roughly 21 amps, which means it fits comfortably on a 30-amp breaker without requiring the heavy-gauge wire that larger units demand. The bronze finish is utilitarian but tough, and the forced-air fan moves a serious volume of air.
Customer service appears responsive — when one owner had a fan motor fail after several months, the manufacturer sent a replacement without hassle. That said, the unit ships without a power cord, which is not clearly stated in the product description, and some units have arrived with physical damage from shipping. At this price point, build quality should be flawless out of the box.
What works
- Field-adjustable wattage for breaker matching
- Sturdy industrial build with adjustable louvers
- Responsive customer service on defective parts
What doesn’t
- No power cord included — must be purchased separately
- Shipping damage reported by multiple buyers
- Warranty process felt restrictive for some owners

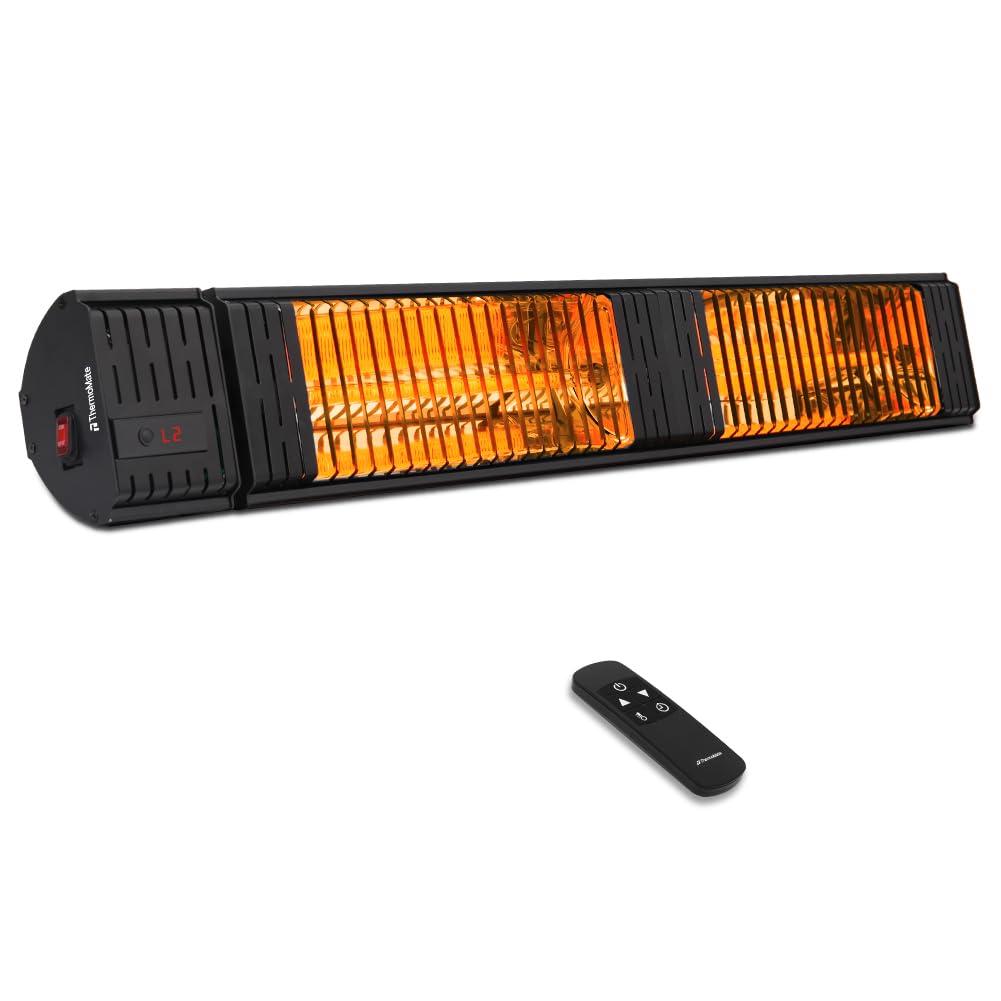

5. ThermoMate Infrared Electric Patio Heater
ThermoMate takes a different approach with a carbon fiber heating tube that delivers infrared heat in three seconds flat. Unlike forced-air units that heat the entire air volume, this heater warms people and solid surfaces directly, which makes it effective in drafty spaces where warm air would escape before it could provide any comfort.
The remote control gives you two power levels — 1,500W and 3,000W — plus a 24-hour programmable timer so you can schedule the heater to warm the garage before you step into it. The wall or ceiling mount keeps it out of the way, and the 45-degree angle adjustment lets you aim the beam exactly where you need it. The IP54 rating means it can handle some moisture, making it suitable for covered patios as well.
Owners have used these heaters in enclosed porches with outdoor temperatures in the 20s and reported that the units maintained a tolerable area for both people and animals. The downside is coverage area — at roughly 120 square feet, this is a spot heater, not a whole-garage solution. Some units have arrived damaged due to insufficient packaging, and the manufacturer’s fuse replacement process caused delays for at least one buyer.
What works
- Instant heat with carbon fiber element
- Full-function remote with 24-hour timer
- Wind-resistant radiant heat for drafty areas
What doesn’t
- Limited coverage — spot heat only
- Packaging issues leading to shipping damage
- Lower 1,500W setting may be underwhelming in colder climates
6. KING PAW2422-W Pic-A-Watt
The KING PAW2422-W is a wall-mounted fan-forced heater that prioritizes quiet operation above all else. The squirrel cage blower produces a sound closer to a forced-air HVAC vent than the jet-engine whine typical of inexpensive fan-forced units. For a home office, finished basement, or a small heated garage workshop where noise matters, this is the most comfortable unit to be around.
The Pic-A-Watt element lets you select from multiple wattage settings to match the heater’s output to your room size, which is a genuine advantage when you are heating a small space and don’t want the full 2,250 watts cycling on and off constantly. The Smart Limit Protection prevents overheating, and the white finish blends into a wall much better than the industrial silver or bronze of larger units.
Installation is straightforward if you have access to the wall cavity, but the included thermostat bracket is finicky — the screws strip easily, and the instructions are sparse. The silver-colored grill screws also stand out against the white housing, which is a minor but noticeable aesthetic misstep. This heater works best in spaces up to 400 square feet where you want even, quiet heat without the rush of forced air.
What works
- Exceptionally quiet squirrel cage blower
- Selectable wattage for room-size matching
- Smart Limit Protection for safe operation
What doesn’t
- Thermostat bracket installation is difficult
- Screws strip easily during setup
- Grill screws are silver, not white
7. Comfort Zone 4,800W
The Comfort Zone heater delivers 4,800 watts of forced-air heat with a simple plug-and-play NEMA 6-30P connection, making it one of the easiest 240V heaters to install if you already have the right receptacle. The heavy-gauge steel body and rubber feet give it a durable, no-nonsense feel that belongs in a workshop, and the built-in carrying handle makes it genuinely portable.
With a rated coverage of 1,000 square feet and 17,065 BTUs of heat output, this unit can handle a large two-car garage on a 30-amp circuit. The fan noise is noticeable — several owners describe it as louder than a hairdryer but with a different pitch — and the screw-knob thermostat on the back is basic but functional. In a well-insulated shop with R19 walls and an R21 ceiling, one owner reports maintaining a 45°F temperature rise above outdoor conditions with minimal power draw.
Customer experiences split sharply: long-term owners who installed it permanently love the value, while a smaller group reports very little heat output and jet-engine noise from the first use. The quality variance suggests some units slip through with blade balance or element issues. At this wattage and price, though, the Comfort Zone is the strongest entry-level forced-air option for anyone who already has a 240V outlet ready.
What works
- Plug-and-play with NEMA 6-30P for easy setup
- Decent coverage of 1,000 square feet
- Durable heavy-gauge steel body
What doesn’t
- Quality control issues with fan noise and heat output
- Basic thermostat can be finicky
- Some units sound like a jet engine from day one
8. INNOVATIVE LIFE 8500W
The INNOVATIVE LIFE 8500W heater packs an enormous 29,010 BTUs into a ceiling-mount form factor, with smart features that are rare at this price point — a built-in electronic thermostat with a precision sensor, a programmable timer, and a full-function remote control. The adjustable tilt head lets you angle the forced air exactly where it’s needed, which is critical for ceiling-mounted units that are fixed in place.
The all-metal construction, including metal fan blades, gives it a durable feel, and the ETL certification provides a baseline safety assurance. For an 850-square-foot garage, this unit delivers enough heat to warm the space quickly, and the smart thermostat helps prevent the constant on-off cycling that plagues mechanical-knob heaters. The hardwired installation is mandatory, and the manufacturer explicitly states that professional electricians should handle the connection.
Reliability is the biggest question mark here — multiple owners report the heater dying after three to five months of use, with the fan developing a loud noise or the unit shutting off entirely. For a heater that requires professional installation and hardwiring, having the unit fail within a single winter season is a major headache. If you are willing to roll the dice on longevity for the sake of smart features and high wattage, this is a compelling deal.
What works
- High 8,500W output with electronic thermostat
- Convenient remote control and programmable timer
- All-metal construction with adjustable tilt head
What doesn’t
- Inconsistent reliability — some units fail within months
- Fan noise can escalate quickly before failure
- Hardwired installation adds cost and complexity
9. King Electric PGH2440TB
The King Electric PGH2440TB is a compact portable unit heater that brings 3,750 watts of forced-air heat to the table at the lowest entry point in the lineup. It includes a built-in thermostat, a durable scratch-and-rust-resistant finish, and a built-in fan delay that runs the fan after the heating element shuts off to dissipate residual heat — a smart feature that many budget units skip entirely.
Owners report that it takes the chill off a three-car uninsulated garage in about an hour, raising the temperature from 35°F to around 55-60°F when the outdoor temp is in the 20s. The 3,600-watt actual draw (15 amps at 240V) means it can run on a 20-amp breaker with 12-gauge wire, which is much easier to install than the larger units requiring 30 or 60 amps. The sound level is noticeable, but it’s described as a broad volume heater rather than a point-source blast.
Thermostat sensitivity is a consistent complaint — the mechanical knob tends to cycle the fan on and off rapidly, which becomes annoying in a quiet workshop. Power delivery can also be finicky, with some owners needing to nudge the power switch to maintain a closed circuit. The long-term durability seems mixed, with some units dying after two winters of use, though the initial performance during that period is described as excellent.
What works
- Low amp draw fits on a 20A breaker
- Fan delay dissipates heat after shutdown
- Compact and easy to position
What doesn’t
- Thermostat cycles fan too rapidly
- Power switch may need physical adjustment
- Long-term durability is inconsistent
Hardware & Specs Guide
Heating Element Types
The element determines how heat is generated and transferred. Coil elements are simple resistive wire coils that glow orange-red at full power — they are durable and cheap but can oxidize over time. Radiant elements use metal sheaths that emit infrared waves, heating objects directly rather than the air. Carbon fiber tubes produce infrared heat with a faster warm-up time and are more energy-efficient per watt, but they are more fragile and expensive to replace.
Fan Motor and Airflow Design
Forced-air and fan-forced heaters use a motor-driven fan to push air across the hot element. Squirrel cage blowers are quieter than axial fans and produce a steady, wide airflow pattern, making them ideal for wall-mounted units in occupied spaces. Axial fan motors are simpler and cheaper but generate the jet-engine noise that many budget heaters are known for. Some premium units include a fan-only cool-down mode that continues circulating air after the element shuts off.
FAQ
What size breaker do I need for a 7,500W 240V garage heater?
Can I run a 240V garage heater on a 120V outlet with an adapter?
What is the difference between forced-air and infrared garage heaters?
Final Thoughts: The Verdict
For most users, the 240v electric garage heater winner is the Dr. Heater Dr. Infrared DR-910M because its 10,000-watt output and five-louver design deliver fast, directed heat in large insulated spaces where performance matters most. If you want whisper-quiet operation with selectable wattage, grab the KING PAW2422-W Pic-A-Watt. And for a budget-conscious forced-air solution with easy plug-in installation, nothing beats the Comfort Zone 4,800W.
