Splitting a single HDMI signal across four displays only to watch each screen repeat the same image defeats the purpose of a video wall. A proper 2×2 controller stitches those panels into one contiguous canvas, handling bezel correction, image rotation, and layout switching so your content flows edge-to-edge without awkward gaps or upside-down panels.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I track the commercial AV market closely, comparing chipset support, output resolutions, and control protocols across dozens of controller models to separate reliable commercial-grade units from flimsy consumer boxes that fail within weeks.
Whether you are outfitting a control room, a digital signage installation, or a multi-projector stage backdrop, finding the right 2×2 video wall controller comes down to matching your source resolution, output format, and control environment to a unit built for 24/7 duty cycles.
How To Choose The Best 2×2 Video Wall Controller
Selecting a video wall controller is less about brand loyalty and more about matching your input source resolution, your display panel arrangement, and your preferred control method. A controller that works well for a retail digital sign might lack the audio de-embedding or RS232 integration a house of worship or broadcast setup demands.
Input Resolution and HDMI Standard
Controllers vary between accepting a 4K@30Hz signal and a full 4K@60Hz 4:4:4 stream. For video content with fast motion — live sports, gaming streams, or real-time camera feeds — the higher refresh rate eliminates visible judder. Check whether the unit supports HDCP 2.2 as well; protected content like streaming services will not display without it.
Output Resolution and Splicing Modes
A dedicated 2×2 controller should handle at least 1080p per output, but many premium units push 4K per screen for a combined ultra-high-resolution canvas. Verify the exact splicing modes supported: 1×2, 2×1, 1×3, 3×1, 1×4, 4×1, and 2×2 are standard, but some units offer cascading for larger arrays like 3×3 or 4×6 configurations.
Bezel Correction and Image Rotation
Physical display bezels create visual gaps between panels. Bezel correction shifts the image so content bridges those gaps cleanly without cropping or letterboxing. Image rotation (180 degrees or 90 degrees) allows for upside-down or portrait-oriented panel mounting, which is common when installing displays with thin bezels on one edge.
Control Protocol Integration
Commercial installations benefit from RS232 or IP-based control so the video wall can be managed remotely or integrated into an automation system. Basic IR remote control works for home setups, but professional environments should prioritize Web GUI or telnet access for scripted presets and scheduled layout changes.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| AV Access 4KVW24 | Premium Cascading | Scalable multi-unit walls | 4K60 4:4:4, cascades to 4×6 | Amazon |
| gofanco Videowall22 | Pro 1U Rack | Rack-mount commercial installs | 4K30, 4 inputs, loopout | Amazon |
| MT-VIKI 8×8 Matrix | Matrix + Wall | Multi-source switcher walls | 8×8 seamless, 4K30 | Amazon |
| OREI UHDS-404VW | Matrix + Wall | 4×4 matrix with video wall mode | 4K60, 4×4 seamless, HDCP 2.2 | Amazon |
| LINK-MI LMTV04U | USB Media Player | USB auto-play signage | 4K60, USB media playback | Amazon |
| Arvitek 4×4 Matrix | Multi-view + Wall | Multiviewer and wall combo | 4K30, PIP, 23 split modes | Amazon |
| ISEEVY TWC4-4K60P | 4K60 Entry | Affordable 4K60 wall setup | 4K60, USB-C + HDMI input | Amazon |
| OREI UHD-19VW | 3×3 Controller | Larger 3×3 or 2×2 walls | 4K60 input, 1080p output | Amazon |
| FoMaKo KC800 | PTZ + Switcher | Live production with camera control | 4K60 input, 1080p output | Amazon |
In‑Depth Reviews

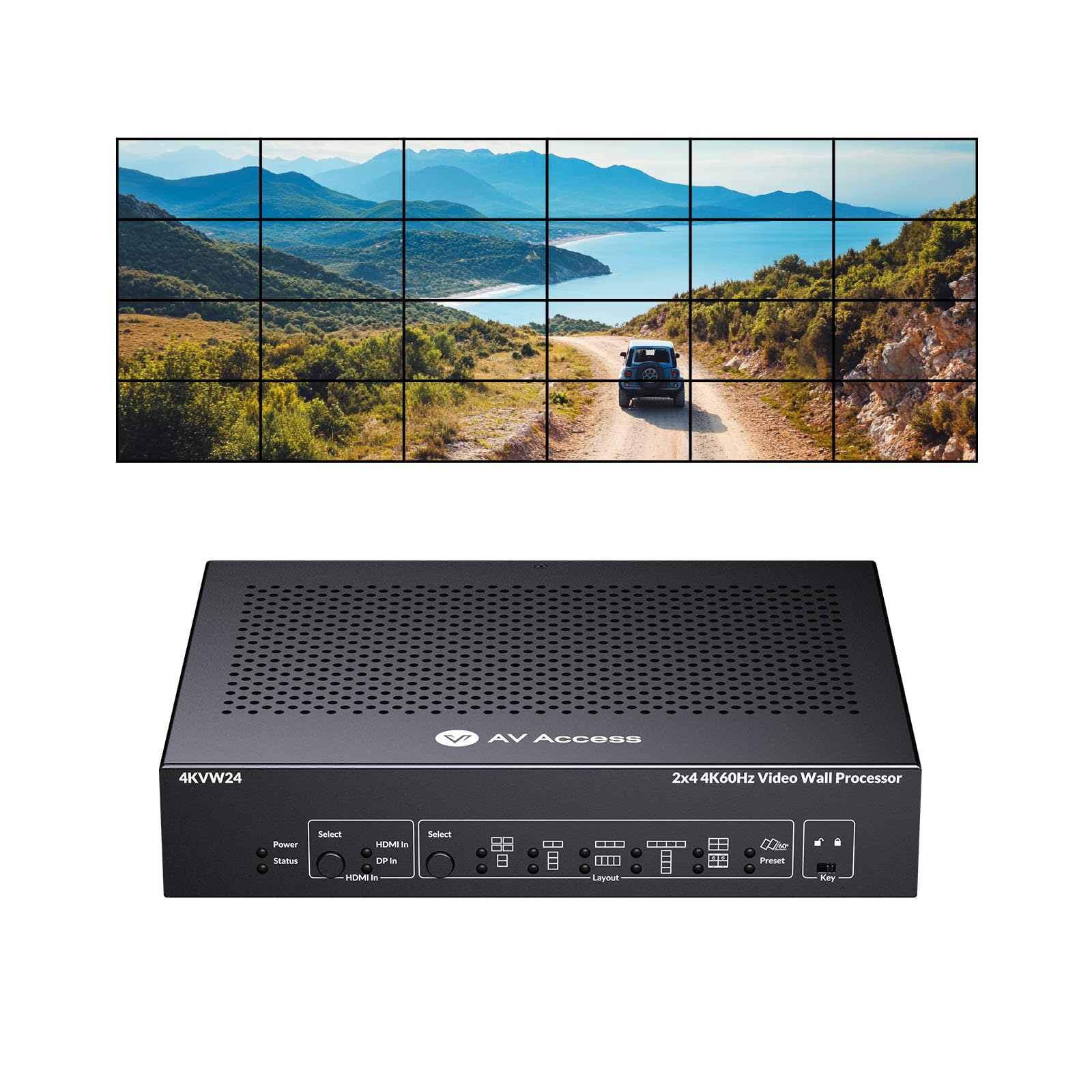

1. AV Access 4KVW24
The AV Access 4KVW24 is the only controller in this lineup that natively supports both HDMI and DisplayPort inputs at a full 4K@60Hz 4:4:4 chroma subsampling, which matters for text-heavy dashboards and broadcast graphics. It also offers unique 60-degree rotation angles alongside the usual 90/180/270-degree options, giving installers flexibility for diamond-shaped or angled panel arrangements.
Bezel correction is precise enough that multi-projector backdrops — as validated by users running 30-foot-wide theater setups — show no visible seams or edge artifacts. The Web UI control interface allows remote layout switching and preset recall without needing an IR line of sight, and the cascading feature supports expanding from a single 2×2 unit up to a 4×6 array of 24 displays using multiple units.
The 3-year solid product guarantee from AV Access is notably longer than the typical one-year warranty found on competing controllers in this price tier. The only real trade-off is that it handles a single active source at a time rather than functioning as a multi-input matrix switcher, so users who need to toggle between four separate sources should pair it with an external HDMI switch.
What works
- True 4K@60Hz 4:4:4 HDR10 support
- Advanced cascading up to 4×6 displays
- Flexible rotation angles including 60° and 90°
- 3-year warranty, longer than industry norm
What doesn’t
- Single active source; no matrix switching
- IR remote build is basic
- Premium price point
2. gofanco Videowall22
The gofanco Videowall22 is built around a 1U rack-mountable metal chassis with front-panel buttons and a Web GUI for control, making it the most installation-friendly option for server-room or broadcast rack setups. It offers four switchable inputs — two HDMI, one USB-C, and one DVI — so legacy sources like older PCs can participate without a separate adapter.
Edge correction (bezel compensation) is handled through the Web GUI or RS232, and users who tested three different controllers side-by-side reported that the gofanco delivered the cleanest edge alignment straight out of the box. The unit supports nine video wall modes from 1×1 up to 2×2 with 180-degree rotation, and it can be cascaded for larger arrays up to 10×10.
Audio extraction via S/PDIF coaxial and 3.5mm analog out makes it suitable for setups where sound needs to feed a separate amplifier rather than passing through the display speakers. The one-year limited warranty is standard, but the tech support team based in Silicon Valley was specifically praised by a brewpub owner who built a 3×3 wall using multiple gofanco units with HDMI extenders.
What works
- 1U rack-mountable metal chassis
- Four switchable inputs (HDMI/USB-C/DVI)
- Clean bezel correction out of box
- Audio extraction via coax and analog
What doesn’t
- Limited to 4K@30Hz input
- HDR is not supported
- Remote batteries not included
3. MT-VIKI 8×8 Seamless HDMI Matrix
This 8×8 matrix switcher from MT-VIKI operates in three modes — video wall controller, HDMI matrix, and HDMI splitter — which means it can serve as the central hub for an entire conference room or broadcast studio rather than just a dedicated wall processor. In video wall mode it supports splicing configurations including 2×2, 2×4, 4×2, 1×8, and 8×1, with flexible custom layouts accessible through the Web GUI or Android app.
Seamless switching between sources happens with near-zero latency, a feature that users running gaming consoles and live streams specifically confirmed. The 3.5mm audio embedding and de-embedding supports PCM, Dolby AC3, DTS 5.1 and 7.1, which covers most surround sound formats for broadcast environments. The 1U rack ears are included in the package, and the front-panel buttons provide tactile control without needing the remote.
The main drawback is that output resolution in splicing mode drops to 1080p@60Hz, so 4K-per-panel output is not achievable here. Additionally, some users reported that the advertised 90-degree screen rotation was not available in all firmware versions, so checking the included manual for your specific unit is recommended before mounting TVs in portrait orientation.
What works
- 8×8 matrix with video wall mode
- Seamless switching with zero lag
- Web GUI and Android app control
- Audio de-embedding for DTS 7.1
What doesn’t
- Output limited to 1080p in wall mode
- Screen rotation may be firmware-dependent
- Overkill for simple 2×2 setups
4. OREI UHDS-404VW
The OREI UHDS-404VW is a 4×4 HDMI matrix that also includes a dedicated video wall processing mode, making it a dual-purpose solution for setups that need both multi-source routing and a spliced display wall. It handles up to 4K@60Hz 4:4:4 8-bit input across all four ports, and HDCP 2.2 compliance ensures streaming devices like Apple TV and Roku deliver protected content without a black screen.
Users have successfully built large video walls using four 75-inch TVs daisy-chained from this unit, with the matrix saving video wall layout preferences so they do not have to reconfigure after power loss — a feature many standalone wall controllers lack. The image rotation supports upside-down display mounting, which users running PS5 and Switch alongside a Firestick confirmed works correctly with the bezel correction offset.
The unit does not support HDR10 or Dolby Vision pass-through, so videophiles expecting wide color gamut and high dynamic range from HDR sources will be disappointed. Also, the instruction manual has been criticized for being light on step-by-step video wall setup guidance, though the labeled rear panel makes basic connection straightforward for those with some AV experience.
What works
- Combined 4×4 matrix and video wall processor
- 4K@60Hz 4:4:4 input support
- HDCP 2.2 compliant
- Saves wall layout preferences
What doesn’t
- No HDR10 or Dolby Vision support
- Manual lacks clear video wall instructions
- Steep learning curve for new users
5. LINK-MI LMTV04U
The LINK-MI LMTV04U stands apart from other 2×2 controllers because of its built-in USB media player: plug a USB drive containing MP4, MOV, AVI, MKV, or TS files up to 4K@60Hz, and the controller will play them directly across the video wall without needing an attached PC or media player. It also supports image files (JPG, PNG, BMP), audio files (MP3, WAV, FLAC), and even text files for simple digital signage.
The controller features two HDMI 2.0 inputs and one USB 2.0 input, plus both 3.5mm analog audio out and SPDIF optical out, giving it solid connectivity for a signage kiosk or museum display. Each output supports 180-degree rotation for upside-down TV mounting, and the bezel correction includes image cropping to eliminate black edges around the combined canvas.
Advanced image adjustments — brightness, sharpness, contrast, and color temperature presets (standard, cool, warm, user) — are configurable via the included IR remote, making on-site tuning possible without a laptop. The 10-meter IR extender is a welcome inclusion for setups where the controller is hidden in a cabinet. The main downside is that the Web GUI control found on pricier units is absent, so remote management requires the physical remote or front-panel buttons.
What works
- Built-in USB media player for PC-free signage
- True 4K@60Hz input and output
- Image cropping and bezel correction
- Color temperature adjustment presets
What doesn’t
- No Web GUI for remote control
- Slight learning curve for setup
- Limited to 2×2 without cascading
6. Arvitek 4×4 HDMI Matrix (Update)
This Arvitek unit functions as three devices in one: a 4×4 seamless HDMI matrix switch, a 2×2 video wall controller, and a single-screen multiviewer with 23 split modes including PIP, POP, and quad-view. In video wall mode it supports layouts from 1×2 up to 4×1 and 2×2, plus four mirror modes (no mirror, horizontal, vertical, and both) that are useful for artistic or retail installations where mirrored content is desired.
The multiviewer mode on OUTPUT 1 alone supports 0/90/180/270-degree rotation of individual input sources, which is rare at this price tier and useful for a security command center where one operator needs to watch four cameras on a single screen. Control methods are extensive: Web GUI, panel buttons, RS232, LAN, IR remote, software, and an Android app, with up to 16 scene presets that can be recalled or scheduled for rotation.
Output resolution caps at 4K@30Hz (1080p in splicing mode), so it is not ideal for high-refresh-rate gaming walls. Some users reported that the unit did not include a printed manual adequate for understanding the full feature set, and the lack of online documentation made initial configuration frustrating. The 2-year warranty is longer than the standard one year, adding some peace of mind.
What works
- Three modes: matrix, wall controller, multiviewer
- 23 split modes with PIP/POP
- 16 customizable scene presets
- 2-year warranty
What doesn’t
- 4K@30Hz only, no 4K60
- Poor documentation, steep learning curve
- Multiviewer limited to OUTPUT 1
7. ISEEVY TWC4-4K60P
The ISEEVY TWC4-4K60P offers a straightforward path to a 4K60 video wall at an accessible price, with one HDMI input and one USB-C input feeding four HDMI outputs. Each output supports up to 3840×2160 resolution, meaning you get a full 4K-per-panel canvas if your source can deliver it. Splicing modes include 2×2, 1×2, 2×1, 1×3, 3×1, 1×4, and 4×1, covering most basic wall layouts.
The 180-degree rotation per output port is a practical feature for installers who mount TVs with the bezel-reduced edge at the top, and the ability to switch display modes via the IR remote or three front buttons keeps operation simple. The metal housing feels solid, and users reported that the unit worked for 24/7 operation without overheating.
The main concern is reliability: while many users reported great results with sharp 4K picture, a small number experienced unit failure within the first week. The lack of RS232 or Web GUI control limits its suitability for commercial or remote-managed installations, and there is no bezel correction setting, so physical panel gaps will be visible on the combined image.
What works
- True 4K60 per output port
- USB-C input besides HDMI
- Simple plug-and-play operation
- Compact metal housing
What doesn’t
- Reported reliability issues in some units
- No RS232 or Web GUI control
- No bezel correction adjustment
8. OREI UHD-19VW (3×3 Controller)
Though marketed as a 3×3 controller, the OREI UHD-19VW also handles 2×2, 2×3, 3×2, 4×2, 1×4, and several other layouts, making it more versatile than a pure 2×2 unit for installations that might grow later. It accepts a single 4K@60Hz source via HDMI or USB-C and splits it across up to nine displays, with each output capped at 1080p@60Hz — a necessary trade-off when driving 9 screens from one input lane.
Audio extraction via Optical (SPDIF) and L/R analog outputs means you can route sound to a separate PA system, which is critical for theater and house-of-worship applications where the projection screens have no speakers. Users confirmed that the bezel correction and 180-degree rotation worked reliably with projectors, creating a seamless 30-foot-wide backdrop with no visible seams.
Control is limited to IR remote and front-panel buttons; RS232 control requires a cable that is not included, and there is no Web GUI. This makes on-site adjustment straightforward but prevents integration with automation systems. The 1-year warranty is standard, but OREI’s lifetime customer support has been noted as responsive by multiple users.
What works
- Supports 3×3, 2×2, 2×3, and 4×2 layouts
- Audio extraction via optical and analog
- Reliable bezel correction with projectors
- 4K60 input, 1080p per output
What doesn’t
- RS232 cable not included
- No Web GUI control
- Single input source only
9. FoMaKo KC800
The FoMaKo KC800 is not a traditional video wall controller — it is a multi-camera video switcher with a built-in PTZ camera controller that can also drive a multi-display setup via its three HDMI outputs (PGM, multiviewer, and loop-through). For users building a video wall from multiple camera feeds rather than a single computer source, this all-in-one console eliminates the need for a separate PTZ controller and audio mixer.
The integrated 4D joystick controls up to four PTZ cameras via VISCA or VISCA-over-IP, and the 5.5-inch LCD screen provides a built-in multiview of all inputs. The 6-channel audio mixer with two XLR inputs (48V phantom power) and two 3.5mm mic/line inputs lets you embed clean sound directly into the stream or recording, which is valuable for live event production where the video wall is the main audience display.
The RGB 24-bit True Color processing delivers 16.7 million hues, giving the output a noticeably more accurate color rendition than lower-bit controllers. Dual recording to USB and SD cards up to 2TB with MP4/TS formats means the video wall can double as a live recording system. The unit operates at 4K60 input, but outputs at 1080p, so it is best suited for scenarios where the destination displays are 1080p panels or projectors. Thermal management has been flagged by one user as insufficient for hot environments, though the replacement was handled promptly under warranty.
What works
- Integrated PTZ joystick controller
- Professional XLR audio with phantom power
- Dual recording to USB and SD cards
- AI tracking for cameras
What doesn’t
- Output limited to 1080p
- Thermal management could be better
- Initial network setup can require support
Hardware & Specs Guide
HDMI Bandwidth and Chroma Subsampling
Controllers rated for 4K@60Hz typically use an HDMI 2.0 chipset with 18 Gbps bandwidth, supporting 4:4:4 chroma subsampling for sharp text and graphics. Units limited to 4K@30Hz often run HDMI 1.4 or lower-bandwidth silicon, which is acceptable for video content but produces visible aliasing on fine text. Always check whether the controller supports HDCP 2.2 if you plan to stream protected content from a Blu-ray player or 4K streaming stick.
Internal Splice Engine and Frame Buffer
Dedicated video wall controllers use an internal FPGA or ASIC to split the input signal into quadrants and map each quadrant to the correct output. The quality of this splice engine determines whether the seams between displays show tearing, lag, or color mismatch. Units with larger frame buffers can handle ultra-wide resolutions (like 5400×1920) and maintain sync across all outputs even during rapid scene changes.
FAQ
Can I use a 2×2 video wall controller with four different TV brands or sizes?
What is the difference between a matrix switch with video wall mode and a dedicated video wall controller?
Why does my video wall controller only output 1080p even when I feed it a 4K signal?
Can I cascade two 2×2 controllers to make a 4×4 video wall?
Does a video wall controller introduce input lag or delay?
Final Thoughts: The Verdict
For most users, the 2×2 video wall controller winner is the AV Access 4KVW24 because it delivers true 4K@60Hz 4:4:4 per output, supports cascading for future expansion, and offers the longest warranty in this guide. If you need a rack-mounted unit with four switchable inputs and clean bezel correction, grab the gofanco Videowall22. And for a PC-free signage solution with built-in USB media playback, nothing beats the LINK-MI LMTV04U.
