Digitizing a cracked bumper bracket, a custom intake manifold, or an interior trim panel used to mean hours measuring by hand or sculpting in clay—until handheld 3D scanners made reverse engineering a plug-and-play reality. For mechanics, restorers, and fabrication shops, the right scanner turns a damaged plastic part into a printable file in minutes, but picking the wrong one—with poor tracking on reflective metal or a capture volume too small for a hood—wastes a budget that should buy tools.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent hundreds of hours comparing point-cloud density, tracking algorithms, and software pipelines across 3D scanners to separate marketing claims from usable automotive-grade results.
Whether you need to replicate a discontinued bracket or model a custom body panel, this guide covers the essential hardware specs, real-world tracking behavior, and software compatibility you need to find the best 3d scanner for car parts.
How To Choose The Best 3D Scanner For Car Parts
Automotive parts are a worst-case scan target: black plastic absorbs light, polished metal reflects it, and curved geometry breaks feature tracking. Choosing a scanner for car parts requires prioritizing light-source type, working range, and tracking method over headline accuracy numbers.
Light Source: Blue Laser vs. NIR vs. Structured Light
Blue laser (450 nm) cuts through reflective glare and dark finishes better than near-infrared (NIR) or white LEDs. NIR handles black rubber and matte plastic well but struggles on chrome. White-light structured-light scanners (like the EinScan SP V2) need a matte coating on shiny parts. For car parts, a dual-source scanner—blue laser plus NIR or structured light—gives the most flexibility across painted metal, raw plastic, and clean milled surfaces.
Tracking Method: Marker vs. Marker-Free vs. Geometry
Marker-free tracking (also called feature tracking) works when the part has enough natural texture—grain, scratches, paint orange peel. For smooth engine blocks or unpainted bumper covers, you’ll need stick-on markers or a scanner with a built-in global-marker mode. The best automotive scanners offer all three tracking modes and let you switch without restarting the scan.
Capture Volume and Working Distance
A scanner optimized for small objects (10–300 mm) like the 3DMakerpro Seal Lite will struggle on a full door panel. For bumpers, hoods, and entire body sections, look for a working distance of at least 300–800 mm and a single-capture range wide enough to cover a 12-inch-wide span. Desktop scanners like the EinScan SP V2 are excellent for small brackets and interior trim but cannot handle large panels.
Output Formats and CAD Compatibility
You need STL for 3D printing and OBJ for textured models. For reverse engineering into solid CAD (Fusion 360, SolidWorks, Rhino), ensure the scanner exports PLY or ASC point clouds. The MetroX, Raptor Pro, and Einstar offer direct PLY export, while many entry-level units only output STL, requiring third-party mesh-to-CAD conversion steps.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Creality Sermoon S1 | Premium Blue Laser | Full body & large panels | 0.02 mm accuracy, 5 mm – 4 m range | Amazon |
| Creality Raptor Pro | Premium Dual Laser | Shiny & black parts no spray | 0.02 mm, 22+7 blue laser + NIR | Amazon |
| EinScan SP V2 | Desktop Structured Light | Small brackets & trim pieces | 0.05 mm accuracy, turntable auto scan | Amazon |
| Revopoint MetroX | Pro Blue Laser | Mechanical parts & molds | 0.01 mm precision, 60 fps | Amazon |
| Revopoint RANGE | Large-Object Structured Light | Car doors, bumpers, wheels | 360 x 650 mm capture at 600 mm | Amazon |
| 3DMakerpro Mole | Mid-Range NIR | Black & colored plastic parts | 0.05 mm accuracy, NIR, no markers | Amazon |
| Shining 3D Einstar | Mid-Range NIR | Automotive interior & exterior | 0.1 mm point distance, 14 fps | Amazon |
| Autel MaxiCheck MX900 | Diagnostic Scanner | Vehicle system diagnostics | 8″ touch, 40+ service functions | Amazon |
| Revopoint INSPIRE 2 | Hybrid Structured Light | Mixed geometry, no spray needed | 0.03 mm precision, dual scanning modes | Amazon |
| Creality Ferret Pro | Entry-Level Wireless | Learning scan-to-print workflow | 0.1 mm accuracy, WiFi 6 wireless | Amazon |
| 3DMakerpro Seal Lite | Budget Blue Light | Small parts & educational use | 0.02 mm accuracy, 10–300 mm only | Amazon |
In‑Depth Reviews
1. Creality Sermoon S1
Creality Sermoon S1 is the top-tier pick for automotive work because its three blue-laser modes—34 crossed lines for speed, 7 parallel lines for detail, and single-line for deep holes—cover the full spectrum of car parts from tiny dash clips to a complete door panel. The working range from 5 mm to 4000 mm means you never need a second scanner for small brackets vs. bumpers.
The 0.02 mm accuracy and 90 fps frame rate let you sweep across an engine bay section without losing tracking, and the four-lens stereo vision handles marker-free scanning on textured plastic. For a full restoration project where you alternate between scanning a mirror cap and a long skid plate, the Sermoon S1 saves reconfig time.
The only catch is the price premium and the need for a powerful PC (recommended i7 Gen10, 32 GB RAM). For dedicated shops scanning multiple parts weekly, the investment pays off in fewer rescans and faster mesh-to-CAD turnaround.
What works
- Triple laser modes adapt to any part size or surface.
- Deep-hole detection (0.1 mm) for threaded bosses and intake ports.
- AI-driven software streamlines alignment and mesh cleanup.
What doesn’t
- High system requirements demand a recent laptop or desktop.
- Price is steep for occasional hobby use.
2. Creality CR-Scan Raptor Pro
The Raptor Pro combines 22 crossed blue lasers and 7 parallel blue lasers with NIR infrared structured light, making it one of the only scanners in its price bracket that can handle bare aluminum, black ABS, and chrome trim without any powder. At 0.02 mm accuracy and 60 fps, it captures engine block fins and suspension arms in the same pass.
The built-in 24-bit RGB camera adds color texture mapping for documentation, though the software (Creality’s CR Studio) has drawn mixed reactions—users report that V4 software introduced regressions. The hardware itself is robust, and the outdoor capability works up to 100k lux for scanning parts in daylight.
The main tradeoff is software polish. If you’re comfortable with a minor learning curve and occasional updates, the no-spray scanning and fast capture make the Raptor Pro one of the most versatile tools for automotive reverse engineering.
What works
- Scans black and metallic surfaces without spray.
- Fast 60 fps capture for large panels.
- Wireless and outdoor-ready up to 100k lux.
What doesn’t
- Software has known bugs and version regressions.
- Requires high-end PC for full 660k-point processing.
3. EinScan SP V2 Desktop 3D Scanner Pro
For small, repeatable parts—bushings, brackets, dash clips, custom gaskets—the EinScan SP V2 delivers desktop-grade consistency. It uses white structured light with a rotating turntable, completing a full 360° scan under 45 seconds. The fixed and auto dual modes let you switch between turntable automation and tripod-based free scanning for larger objects under 1200 mm³.
Accuracy is rated at 0.05 mm with a point distance range of 0.17–0.2 mm, which is solid for producing CAD-ready models of small mechanical parts. The software looks dated but works, and it exports directly to OBJ, STL, ASC, PLY, and 3MF. The turntable supports up to 5 kg, so an intake manifold or cylinder head fits easily.
Shiny metal needs a dusting of baby powder or scanning spray, and USB connections can be finicky if the camera cable shifts. For consistent small-part scanning in a workshop environment, the SP V2 is a reliable workhorse that doesn’t need a high-end PC to run.
What works
- Fast turntable scans under 45 seconds.
- Good accuracy (0.05 mm) for small mechanical parts.
- Simple, repeatable workflow with auto alignment.
What doesn’t
- No wireless; must stay tethered to a PC.
- Shiny surfaces require coating before scanning.
4. Revopoint MetroX 3D Scanner
The MetroX is the first Revopoint scanner to break into true metrology territory with 0.01 mm precision and 0.02 mm accuracy using 14 crossed blue laser lines. It’s built for scanning metal molds, machined parts, and cast iron components—common in engine work—without needing spray on dark or shiny surfaces. The 60 fps capture speed feels snappy, and the dual-axis auto turntable mode is ideal for small machined parts.
Three tracking modes (feature, marker, global marker) let you handle smooth engine block faces with markers or rely on geometry for threaded areas. Revo Scan 5 MetroX software includes built-in alignment and post-processing, and the output can be exported directly into Quicksurface or Geomagic Wrap for CAD conversion. The calibration board ensures consistent accuracy across scans.
The downside is that it’s a workstation-locked tool—requires Intel i7 13th gen or AMD Ryzen 7 5800 with 32 GB RAM and an RTX 3060 GPU as a minimum. For shops that need repeatable sub-0.02 mm tolerance on metal parts, the MetroX is a no-compromise choice.
What works
- Industrial-grade 0.01 mm precision for metal parts.
- No spray needed on dark or reflective surfaces.
- Fully automated turntable mode for hands-free scanning.
What doesn’t
- Very high PC requirements limit mobility.
- Not designed for very large body panels.
5. Revopoint RANGE Handheld 3D Scanner
The RANGE is Revopoint’s answer to scanning large objects—its single-capture range of 360 mm x 650 mm at 600 mm distance means you can cover a wheel well or door panel in far fewer passes than the narrower POP series. With up to 18 fps scanning and a working distance of 300–800 mm, it’s comfortable for walking around a car.
Full-color texture capture via the integrated RGB camera is useful for documentation and restoration notes. The scanner works wirelessly via Wi-Fi with an iPhone or Android, letting you walk freely without a cable tether. Users report excellent results scanning wheel areas and bumpers with minimal marker placement, and the free Revo Scan app provides real-time feedback.
The structured light struggles with direct sunlight and very shiny paint—a light dusting of scanning spray helps. Some users also note that the free software limits export to STL/OBJ/PLY, requiring a paid conversion tool for CAD. For big-panel scanning at a mid-range price, the RANGE delivers the widest per-shot coverage in its class.
What works
- Wide 360 x 650 mm capture range speeds up door/panel scans.
- Wireless mobile scanning eliminates cable drag.
- Works well on car wheels and bumpers with few markers.
What doesn’t
- Structured light needs spray on shiny automotive paint.
- Limited direct CAD file export without paid converter.
6. 3DMakerpro Mole Handheld 3D Scanner
The Mole uses near-infrared light, which has excellent optical compatibility with black and colored plastics—two of the most common surfaces in a car interior. It achieves 0.05 mm accuracy and supports marker-free scanning on textured parts, meaning you can pick up a dashboard panel or trim piece and scan immediately.
The optical anti-shake modules keep the frame stable even with handheld motion, and the JMStudio software includes post-processing tools for denoising, smoothing, and texture mapping. The scanner bundles a tripod and turntable, making it easy to set up a repeatable scanning station for smaller parts like HVAC vents or door handles.
The lean learning curve is a highlight—one user described it as “as easy as shooting a video.” However, the narrow focal range means consistent hand distance is critical, and very glossy surfaces may still benefit from a light coating. The Mole is the best entry-to-mid scanner for plastic-intensive automotive work.
What works
- Scans black and dark plastic parts without spray.
- Anti-shake modules reduce jitter during handheld scanning.
- Comes with tripod and turntable for repeatable setup.
What doesn’t
- Narrow focal range requires precise hand distance.
- Glossy trim pieces may still need a matte coating.
7. Shining 3D Einstar Handheld 3D Scanner
The Einstar gained a reputation in the automotive community for its ability to scan dark, shiny bumpers without spray—one user reported capturing a glossy bumper in poor indoor lighting with tracking that rivaled a professional Artec Leo. Three infrared VCSEL projectors and two stereo depth cameras give it stable point cloud generation even outdoors up to 20,000 lux.
The 14 fps frame rate feels smooth, and the detail enhancement technology adds resolution to high-contrast edges like body creases and mounting flanges. The EXstar software includes automatic alignment and provides a data quality indicator to guide you in real time. Output supports STL, OBJ, PLY, ASC, and 3MF—good for direct import into CAD or slicers.
The tradeoff is a noticeable learning curve for new users. Tracking can drop if you move too fast, and the scanner lacks a tripod mount out of the box (some users rig their own). For hobbyists and shops willing to invest a few hours learning the technique, the Einstar delivers near-professional quality at a mid-range price.
What works
- Captures dark, glossy bumpers without scanning spray.
- Stable tracking in indoor and outdoor lighting.
- Wide file format support for direct CAD workflow.
What doesn’t
- Some users report defective fans on early units.
- No built-in tripod mount; must use third-party rig.

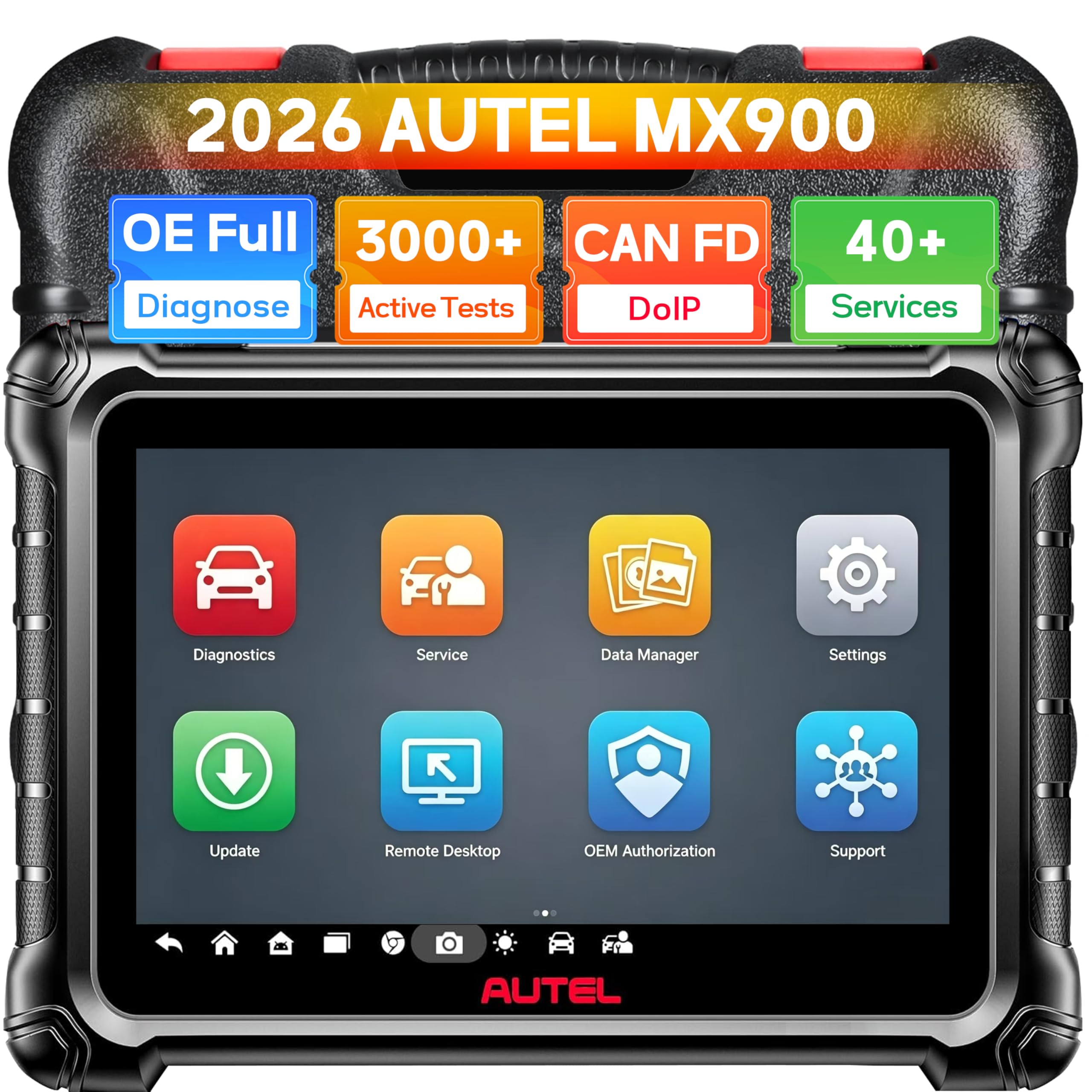

8. Autel MaxiCheck MX900 OBD2 Scanner
While technically an OBD2 diagnostic tool, the MX900 deserves mention on this list because reverse engineering car parts often starts with understanding the vehicle’s electronic systems—especially for mounts and brackets that interface with sensors, ECUs, or actuator locations. The MX900 runs full system diagnostics (engine, transmission, ABS, SRS, etc.) and supports CAN FD and DoIP protocols for modern cars up to 2024 models.
The 1.8 GHz processor and wired connection (no Bluetooth dropout) provide stable real-time graphing, which helps identify which components are worth scanning for replacement. It also performs over 3000 active tests, making it a companion to a physical 3D scanner for complete reverse engineering workflows where shape and electrical fit must align.
It’s not a geometry scanner, but for a shop building a database of parts, pairing the MX900 with a scanning tool gives you both the 3D model and the system specs. The 8″ touchscreen and 7-hour battery make it easy to carry alongside a handheld 3D scanner.
What works
- Full-system diagnostics complement physical scanning projects.
- Supports CAN FD/DoIP for modern cars.
- Fast 1.8 GHz processor with stable wired connection.
What doesn’t
- Not a 3D scanner—does not capture geometry.
- Battery-powered only; not designed for continuous tether.
9. Revopoint INSPIRE 2
The INSPIRE 2 is the first Revopoint scanner to combine infrared structured light with multi-line laser scanning in one unit. That dual-mode approach is a huge advantage for car parts: use the infrared mode for large, feature-rich panels (interior trim, door cards) and switch to laser mode for reflective or dark surfaces (engine components, painted metal) without changing hardware.
It achieves 0.03 mm precision and 0.05 mm accuracy, with an adjustable optical zoom (1.5x, 2x) to focus on mixed-geometry surfaces. The built-in WiFi 6 supports wireless scanning to iOS/Android devices, and the full-color RGB camera adds realistic texture to scanned bumpers and grilles. The 190 g weight makes it one of the lightest dual-mode scanners available.
The included accessories—tripod, mini turntable, calibration board—add value, but some users report that the included sticky calibration dots don’t adhere well. Setup is straightforward for those familiar with Revopoint’s Revo Metro software, and the calibration board improves accuracy by 75% compared to earlier Revopoint models.
What works
- Dual scanning modules handle both painted and reflective surfaces.
- Adjustable optical zoom captures fine detail on complex parts.
- Lightweight (190 g) and supports wireless scanning.
What doesn’t
- Calibration dots may not stick well to flat surfaces.
- Advanced settings have a learning curve for new users.
10. Creality CR-Scan Ferret Pro
The Ferret Pro is Creality’s entry-level wireless scanner, and it’s the easiest way to start scanning car parts without a laptop. The WiFi 6 bridge lets you scan directly to an iPhone 11+ or Android phone, so you can walk around a car in a shop without dragging cables. The 0.1 mm accuracy is adequate for prototyping brackets, interior trim, and simple replacement parts.
At only 105 g, the Ferret Pro is light enough for one-handed scanning, and the anti-shake technology helps maintain tracking on smooth surfaces. It works best on objects from 50 mm to 2000 mm, and the kit includes a tripod, power bank, phone holder, and carrying case. The 24-bit color capture adds visual reference for part documentation.
The tradeoff is that the software has been reported as buggy, with limited export options (STL only at first, later updates added PLY). The scanner also struggles with very shiny or transparent surfaces, and tracking can be finicky without good lighting. For the price, though, the Ferret Pro is the most accessible way to enter automotive scanning.
What works
- Wireless scanning via phone—no laptop required.
- Lightweight 105 g design reduces hand fatigue.
- Good 24-bit color texture capture for documentation.
What doesn’t
- Software has known bugs and limited export options.
- Struggles with shiny, transparent, or very dark surfaces.
11. 3DMakerpro Seal Lite
The Seal Lite offers 0.02 mm accuracy at one of the most competitive price points in the category—but it is strictly a small-format scanner limited to objects between 10 mm and 300 mm. That makes it ideal for scanning brackets, sensors, bolt caps, and small interior components, but it cannot handle a bumper or door panel in a single workflow.
The blue LED light source projects finer structured light than infrared, which helps capture tiny dents and edge textures on small plastic parts. The JMStudio software is free and supports OBJ, STL, PLY, and ASC export. The scan-back and anti-shake features reduce failed frames, and the 10 fps rate is slow but usable for small objects.
The biggest drawbacks are the single-tether requirement to a powerful PC, the mono texture capture (no color), and poor performance on black, shiny, or tiny objects (< 0.5″). It also has a steep learning curve—one user described it as “like learning to drive.” For the absolute entry-level budget focused exclusively on small parts, the Seal Lite is worth considering.
What works
- 0.02 mm accuracy for small part detail.
- Free JMStudio software with lifetime updates.
- Anti-shake and scan-back reduce failed captures.
What doesn’t
- Limited to 10–300 mm size range.
- No color capture; mono texture only.
- Struggles with black, shiny, or very small objects.
Hardware & Specs Guide
Blue Laser vs. NIR vs. Structured Light
Blue laser (450 nm) cuts through reflective metal and dark plastic without needing spray powder. NIR (near-infrared) handles black and colored plastic well but bounces off polished chrome. White structured light produces high-resolution color scans but requires a matte surface—ideal for small desktop scanning but limiting for automotive body panels. The best choice for car parts is a hybrid unit offering at least two light sources.
Volumetric Accuracy vs. Single-Frame Accuracy
Many scanners advertise single-frame accuracy (e.g., 0.02 mm), but volumetric accuracy (expressed as 0.02 mm + 0.08 mm/m) matters more for large parts. Single-frame accuracy measures a single captured frame; volumetric accuracy accounts for error accumulation as you move across a bumper or hood. Always check volumetric accuracy for parts larger than 300 mm.
FAQ
Can I scan black plastic interior trim without using spray powder?
What accuracy do I need for reverse engineering a car bracket?
How do I scan a reflective chrome or unpainted aluminum part?
Why does my scanner track well on the workbench but lose tracking on a car in the shop?
Can I use a phone with any of these scanners to scan car parts?
Final Thoughts: The Verdict
For most users, the 3d scanner for car parts winner is the Creality Sermoon S1 because its triple blue-laser modes and 5 mm–4 m range handle everything from a dash clip to a full bumper without switching equipment. If you need to scan black and metallic parts without spray, grab the Creality Raptor Pro. And for a dedicated desktop solution for small production-run brackets and interior trim, nothing beats the EinScan SP V2.
