Snapping a 48-inch line across masonry or hanging cabinets demands a level that doesn’t introduce its own error—a box beam that twists under pressure or a vial that fogs on the third job will cost you time and material. The wrong 4-foot level turns a simple layout into a rework loop, while the right one delivers repeatable plumb and level across framing, tile, and finish work.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing aluminum extrusion profiles, vial fluid chemistries, and end-cap impact data to separate genuine precision tools from overpriced shelf ornaments.
After comparing drop-test results, reverse-position accuracy shifts, and real-world readability in low light, I’ve assembled the definitive guide to the 4 foot level that actually holds its calibration on the jobsite.
How To Choose The Best 4 Foot Level
A 48-inch level bridges the gap between a short torpedo tool and a long 8-footer, making it the go-to for door jambs, window headers, and cabinet rail alignment. The right pick depends on whether you need raw shock resistance, readability at a distance, or digital slope measurement.
Box Beam Profile and Frame Stiffness
The aluminum extrusion’s wall thickness and internal rib pattern determine how much the level deflects under load. A flimsy I-beam profile flexes when you lean on it during a layout, while a reinforced box beam with cross-ribs holds its geometry. Look for manufacturers that publish weight per meter—890 g/m signals a rigid frame that won’t introduce error when you apply pressure.
Vial Technology and Readability
Acrylic block vials with 60% magnification create a wider bubble image that you can read from a standing position, reducing parallax error. Fluorescent backing fluid helps the vial pop in dim crawl spaces, but some formulations yellow under UV exposure. The vial fluid should resist separation in freezing temps and avoid electrostatic bubbling—both issues common in budget levels that switch to low-viscosity mineral oil.
End Cap Design and Drop Protection
Two-material shock-absorbing end caps with anti-slip texture do double duty: they cushion the frame during a fall and prevent the level from sliding when you’re marking a line. Hard plastic caps transfer impact energy directly to the vial mounts, which can shift calibration over time. Look for caps that replace independently if damaged—glued-on caps force a full level replacement after one bad drop.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| SOLA LSX48 X PRO | Premium | All-day readability in low light | 60% magnified vials, 890 g/m frame | Amazon |
| STABILA Type 196 | Premium | Heavy daily use on job sites | ±1/32 in at 72 in accuracy | Amazon |
| ToughBuilt TB-H2-L-48S | Mid-Range | Wide-frame stability for masonry | Dual-edged milled surfaces, powder coat | Amazon |
| Spec Ops Tools Box Beam | Mid-Range | Hands-free tensioning on pipes and lumber | Tourniquet bungee system, 0.0005 in/in vials | Amazon |
| STABILA 80AS-2 | Mid-Range | Delicate finish work without marring | Non-machined coated surfaces, 0.5 mm/m reverse | Amazon |
| Kapro 985-41X Apollo | Premium | Parallax-free plumb reading at a distance | Plumb Site dual-view vial, 33% larger vials | Amazon |
| M-D Building Products SmartTool | Digital | Angles and slopes with audible confirmation | Digital LCD with backlight, recalibratable | Amazon |
In‑Depth Reviews
1. SOLA LSX48 X PRO
The SOLA LSX48 X PRO uses FOCUS acrylic block vials with 60% magnification and a luminous backing strip that keeps the bubble visible in low-light conditions without a separate light source. The ergonomic aluminum box beam hits 890 g/m, which puts it right in the rigid-frame sweet spot—stiff enough to resist twist when you apply downward pressure, yet light enough that a tile installer can carry it all day without fatigue.
What sets this level apart is the vial fluid performance across temperature swings. The fluid resists bubbling from shock and doesn’t separate in freezing conditions, so you get the same reading at 20°F as you do at 100°F. The two-material end caps absorb impact while the anti-slip surface adds grip on wet jobsite surfaces, reducing the chance the level walks off a layout mark.
Roughly 1.8 pounds for a 48-inch level is genuinely impressive—most competitors in this tier weigh 2.5 to 3 pounds. That weight savings comes from the extrusion design, not from thin walls, so you don’t sacrifice stiffness for portability. After a side-by-side comparison against Stabila and Kapro, the SOLA’s readability advantage in dim rooms made it the daily driver for finish trimmers and tile setters.
What works
- Exceptional vial magnification eliminates squinting in low light
- Very light frame reduces fatigue during repetitive work
- Fluid remains stable across extreme temperature ranges
What doesn’t
- Frame feels slightly less robust than a full-box beam like the Stabila Type 196
- Amazon often ships these in an oversized box without padding, risking surface scratches
2. STABILA Type 196 High-Performance Level
The STABILA Type 196 is the reference standard for masons, ironworkers, and general contractors who need a level that survives a fall from scaffolding and comes back true. The slim aluminum profile uses reinforcing ribs instead of thick walls to maintain stiffness while keeping a narrow grip—a design choice that helps the level fit between studs spaced at 16 inches on center without interference.
The vial system is permanently secured into the frame using STABILA’s installation technology, which means vials don’t loosen over time as the frame expands and contracts. The fluorescent vial liquid remains bright after years of UV exposure, and the company guarantees the vials won’t leak, break, or fog during normal use. The non-slip end caps hold the level in place while you mark, eliminating the drift problem that plagues levels with glossy flat caps.
This level is noticeably heavier than the SOLA, weighing roughly 2.5 to 3 pounds, but that weight translates into a solid feel during masonry screeding and heavy framing layouts. The milled measuring surface resists dirt buildup and cleans easily, which matters when you’re hauling it between concrete pours and steel framing.
What works
- Survives high drops and retains calibration
- Permanently secured vials won’t shift over time
- Narrow profile fits tight stud bays
What doesn’t
- Heavier than comparable premium models from SOLA
- Premium price point may be overkill for occasional home use
3. ToughBuilt TB-H2-L-48S Masonry Level
The ToughBuilt TB-H2-L-48S uses a wide aluminum box frame with powder-coated housing and dual milled precision edges—one side for standard marking and the other for screeding or mud scraping. The wide profile increases stability when you lay it across a mortar bed, reducing the rocking that happens on narrower levels. Recessed impact-resistant vials sit protected within the frame, so a strike from a dropped trowel won’t shatter the acrylic.
Beveled openings on the side allow rear viewing of the vials, which is useful when you’re leveling pipe or conduit that blocks a direct overhead view. The shock-absorbing end caps have an ergonomic texture that provides a solid grip even with wet hands, and the caps are replaceable if they get crushed. The level ships with a limited lifetime warranty, which covers material defects but excludes impact damage from misuse.
At roughly 2 pounds, it lands between the lightweight SOLA and the heavy Stabila Type 196. The powder coat holds up well against mortar splatter and cleans off with a wire brush without damaging the aluminum underneath.
What works
- Wide profile prevents rocking on masonry beds
- Milled edges allow dual use for marking and screeding
- Side viewing ports help with overhead pipe work
What doesn’t
- Powder coat can chip on sharp concrete edges
- Not the lightest carry for all-day tile work
4. Spec Ops Tools Box Beam Level
The Spec Ops Tools Box Beam Level stands out for its patented Tourniquet Bungee System, a retractable strap that wraps around pipes, 2x4s, or conduit and lets you tension the level in place hands-free. That system is genuinely useful for sprinkler fitters and electricians who need to install brackets on horizontal runs while keeping both hands on the hardware. The bungee is stored inside the box beam, so it doesn’t snag on toolbag zippers or catch on rebar.
The 33% larger precision block vials use 2% slope lines that help you find a quarter-inch-per-foot pitch without switching to a digital tool. The vials are invertible, meaning you can read the bubble accurately when the level is held upside down using the milled surface—a feature that speeds up overhead string-line checks. The epoxy-locked vials claim an accuracy of 0.0005 inches per inch, which matches the Kapro premium tier.
The aluminum box beam has a non-magnetic design, which is a deliberate choice for workers near sensitive electronics or battery storage areas where magnetic fields could be problematic. The shock-absorbing end caps are tool-free removable, so you can pop them off to clean debris out of the cap pockets without carrying a screwdriver.
What works
- Bungee system enables true one-person tensioning on pipes
- Invertible vials work accurately upside down
- 2% slope lines help pitch drains without digital tools
What doesn’t
- Non-magnetic frame limits use on metal stud work
- Bungee mechanism adds complexity that could wear over time

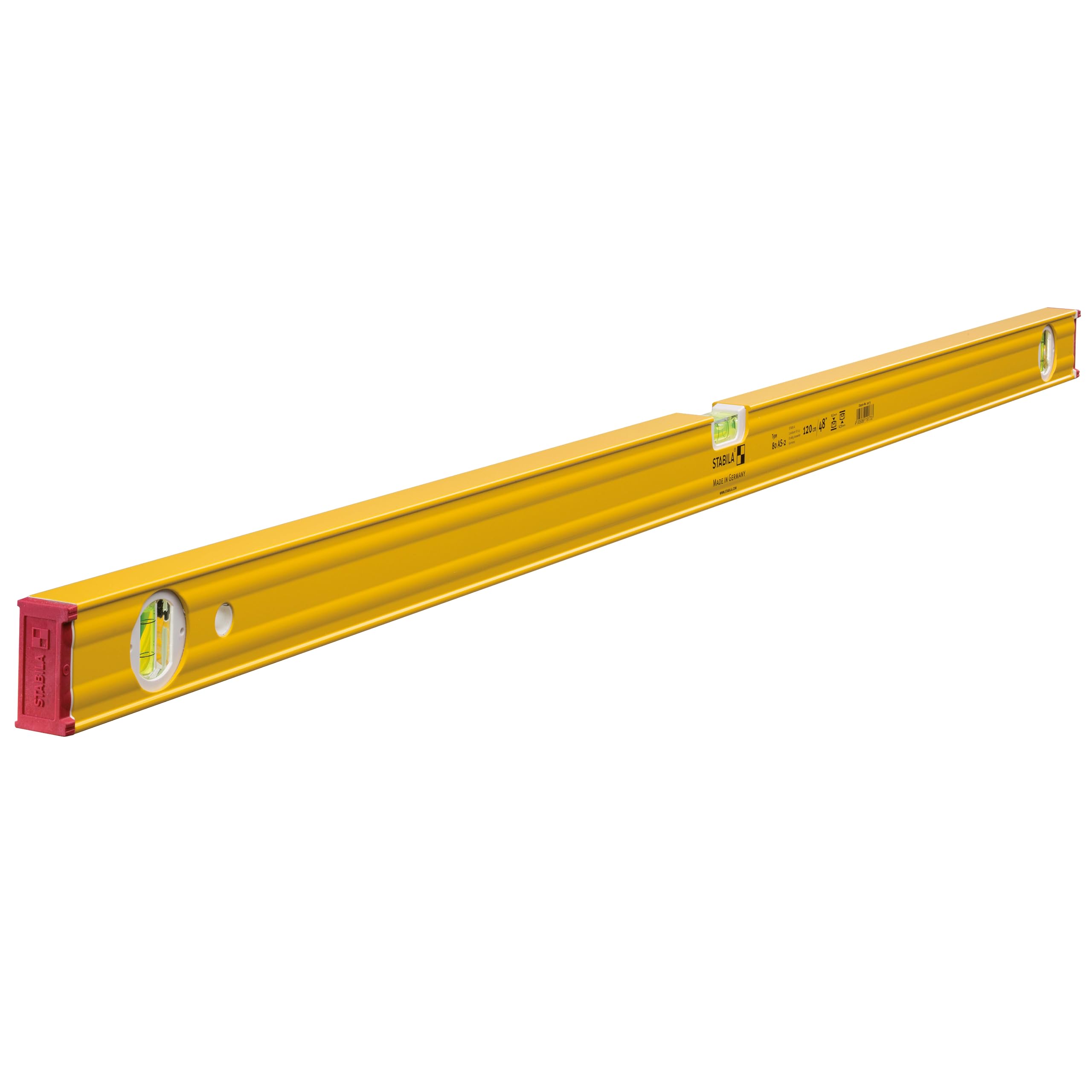

5. STABILA 80AS-2 Double Plumb Spirit Level
The STABILA 80AS-2 uses an aluminum rectangular profile with internal reinforcing ribs, similar to the Type 196 but without the milled edges that can scratch painted trim or millwork. The coated measuring surface is smooth and non-abrasive, making this the preferred level for finish carpenters installing wainscoting, crown molding, and door hardware where every surface needs to remain unblemished. The profile is narrower than a standard box beam, which helps when leveling between narrow reveals on cabinetry.
The vials feature precision-ground inner contours and fluorescent liquid that maintains readability over years. STABILA’s installation technology holds the vials permanently in place, delivering ±0.5 mm/m accuracy in normal position and ±0.75 mm/m in reverse position—a tighter reverse tolerance than most mid-range levels can claim. The plastic end caps are less rugged than the two-material caps on the premium models, but they protect the profile during typical finish-work drops onto subflooring.
Finish-focused users have also noted that the smooth profile doesn’t grab onto drywall dust or caulk as aggressively as a textured frame, making cleanup faster between trades.
What works
- Smooth coated surfaces won’t scratch painted or stained wood
- Narrow profile fits tight gaps in cabinet and trim work
- Tight reverse-position accuracy for overhead checks
What doesn’t
- Standard plastic end caps offer less drop protection than premium models
- Not ideal for rough masonry or concrete applications

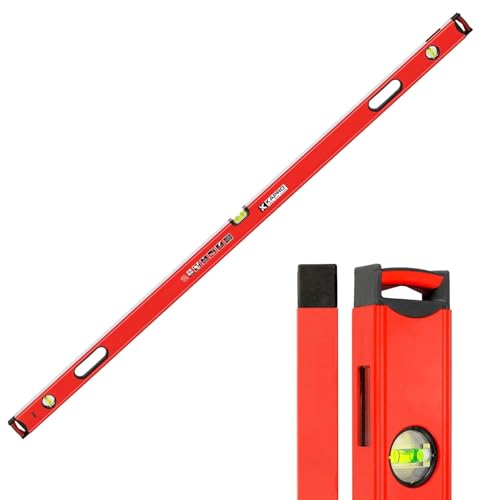

6. Kapro 985-41X Apollo Box Level
The Kapro Apollo 985-41X features a patented Plumb Site dual-view vial that lets you read plumb from a front-facing position or a side angle, eliminating the parallax error that happens when you’re forced to align your eye with a standard narrow window. That design is especially useful when installing shower niches or blocking between studs where you can’t get your head directly in front of the vial. The vials are machined from optical-grade acrylic blocks, hand-calibrated, and VPA-certified to maintain 0.0005 in/in sensitivity.
The reinforced asymmetric aluminum frame adds ergo-grip handles that are molded into the extrusion, not added as a secondary wrap—so they don’t peel or compress over time. The shock-resistant end caps are replaceable, and the company’s customer service is responsive enough that a missing cap was replaced with a follow-up call after a damaged-in-shipping scenario. The level is fully reversible with no accuracy shift between normal and inverted positions, which is critical for ceiling track work.
At roughly 2 pounds for this 8-foot version, the scaling down to a 48-inch model would land it at a very manageable weight. The non-magnetic frame is a deliberate choice to avoid magnetic pull interfering with sensitive bubble movement in fine-leveling scenarios.
What works
- Dual-view plumb vial eliminates parallax at awkward angles
- Hand-calibrated vials deliver consistent 0.0005 in/in sensitivity
- Replaceable end caps backed by responsive customer service
What doesn’t
- Product photos on Amazon can be misleading—verify the exact model features
- Non-magnetic frame limits applications with metal stud systems
7. M-D Building Products SmartTool 48 Inch
The M-D Building Products SmartTool is a hybrid digital level that pairs a standard acrylic block vial set with a recalibratable digital module. The LCD screen rotates to display all 360 degrees, and an audible beep sounds only when you hit exactly 0.00 degrees—useful when working overhead in a dark attic where you can’t read a conventional vial. The digital module runs on a 9V battery, which typically lasts about a year with 20-minute session usage, and the level resets to zero at the push of a button to compensate for calibration drift over time.
The heavy-duty aluminum frame is wrapped in indestructible acrylic block vials that serve as backup if the battery dies, so you never lose the ability to check level regardless of power state. The digital readout works reliably for slope measurements—you can set a 1/4 inch per foot pitch for drainage pipe and hold it without switching to a separate pitch tool. The included carrying case has a wear-resistant design and an adjustable drawstring that makes transport manageable on crowded toolbags.
One quirk is that the digital module takes 3-4 seconds to stabilize at maximum precision, which slows down rapid transfers between marks. The beep function is less intrusive than competitive models, and you can disable it if you prefer silent operation. For site surveyors and roof installers who need both bubble and angle reads, this hybrid approach eliminates the need to carry two tools.
What works
- Recalibratable digital module extends usable lifespan
- Audible beep is useful in dark or overhead positions
- Standard vials serve as reliable backup when battery dies
What doesn’t
- Digital readout takes several seconds to fully stabilize
- 9V battery is less common than the AA cells used on competitor digital levels
Hardware & Specs Guide
Vial Sensitivity
Measured in inches per inch (in/in), vial sensitivity tells you exactly how much the bubble moves when the surface tilts. A rating of 0.0005 in/in means the bubble shifts 0.001 inches for every 1/16-inch rise over 48 inches. Higher sensitivity numbers (like 0.05 in/in) are easier to read but less precise—these are common on torpedo levels for rough work. For a 4-foot level used in finish carpentry and masonry, stick to 0.0005 in/in or ±0.5 mm/m. Vials with 60% magnification increase the apparent bubble size without increasing sensitivity, which helps you spot the bubble position faster without sacrificing accuracy.
Box Beam vs. I-Beam Profile
A box beam level uses a fully enclosed rectangular extrusion with internal cross-ribs that resist torsional twist when you apply off-center pressure. An I-beam profile is thinner, lighter, and cheaper to extrude, but it flexes more under load—especially at the 48-inch length where deflection becomes measurable. Weigh your level: a quality 48-inch box beam should land between 1.8 and 3 pounds depending on wall thickness. Under 1.5 pounds signals thin-wall construction that will introduce error over repeated heavy use. Look for milled edges that indicate precision surface grinding, not just as-cast extrusion.
FAQ
What is the best way to check if my 4-foot level is still accurate?
Can a non-magnetic level be used with a laser receiver mount?
Why do acrylic block vials outperform glass tube vials in cold weather?
Final Thoughts: The Verdict
For most users, the 4 foot level winner is the SOLA LSX48 X PRO because its 60% magnified vials and 890 g/m frame offer the best readability-to-weight ratio on the market, making it the daily driver for both framing and finish work. If you need a level that survives repeated high drops on scaffold, grab the STABILA Type 196. And for pipe fitters and electricians who need hands-free tensioning on conduit runs, nothing beats the Spec Ops Tools Box Beam with its integrated Tourniquet bungee system.
