Upgrading to a modern graphics card only to discover your power supply lacks the right PCIe connectors is a frustrating roadblock that stops a build cold. A 6 pin gpu adapter or extension cable bridges that gap, letting you power an 8-pin card from an older PSU or route cables cleanly through your case without replacing your entire power supply.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent hundreds of hours combing through technical datasheets and real customer reports on PCIe power cables to identify which units deliver reliable 12V current without voltage drop or heat buildup under sustained gaming loads.
These adapters and extensions use 18AWG or 16AWG tinned copper wire with rated connectors to ensure stable delivery from your PSU to your graphics card. Whether you need a 6-pin to 8-pin splitter for a new GPU or a simple extension for cable management, the right 6 pin GPU cable makes the difference between a stable system and a fire hazard.
How To Choose The Best 6 Pin GPU Cable
Picking the wrong PCIe power cable can lead to unstable voltage, melted connectors, or a dead graphics card. These three factors separate a safe adapter from a risky one.
Wire Gauge and Current Rating
The thickness of the copper wire inside the cable determines how much current it can safely carry. 18AWG is the minimum standard for PCIe power cables, handling up to about 10 amps per wire. 16AWG wire is thicker and offers lower resistance, making it better suited for high-wattage cards that draw sustained current over longer cable runs. Cheap cables sometimes use undersized wire that heats up under load, which can melt the connector housing and damage your GPU.
Connector Type and Compatibility
Not all 6-pin or 8-pin PCIe connectors are wired the same. A 6-pin to 8-pin adapter converts two 6-pin outputs into one 8-pin input, but some splitters draw too much current from a single rail. Always check whether your PSU has the headroom to support the splitter. Also verify that the male and female ends match your specific power supply brand — some EVGA or Silverstone units use proprietary pinouts that won’t fit standard cables from other manufacturers.
Build Quality and Locking Mechanism
A secure latch on both ends of the cable prevents accidental disconnection, which is especially important inside a cramped case where cable movement can nudge a plug loose. Braided sleeves protect the wire from abrasion and make routing easier, but stiff sleeving can make tight bends difficult. Look for cables with molded strain relief at the connector base to prevent wire breakage at the crimp point over repeated insertions.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| J&D PCIe Power Adapter 2-Pack | Splitter | Upgrading GPU with older PSU | 18AWG tinned copper, braided sleeve | Amazon |
| lkelyonewy 8-pin to 2×8-pin Splitter | Splitter | Dual high-end GPU power | 18AWG, 7.9 inch length | Amazon |
| TeamProfitcom 6-pin to Dual 8-pin Y-Splitter | Y-Splitter | Legacy PSU with dual-8-pin GPU | 18AWG UL 1007, 9 inch length | Amazon |
| YEZriler 8-pin PCIe for EVGA PSU | Modular Cable | EVGA PSU owners needing 6+2 pin | 18AWG, 25 inch length, EVGA compatible | Amazon |
| TeamProfitcom 6-pin Extension 2-Pack | Extension | Clean cable routing in large cases | 16AWG UL 1007, 32 inch length | Amazon |
In‑Depth Reviews

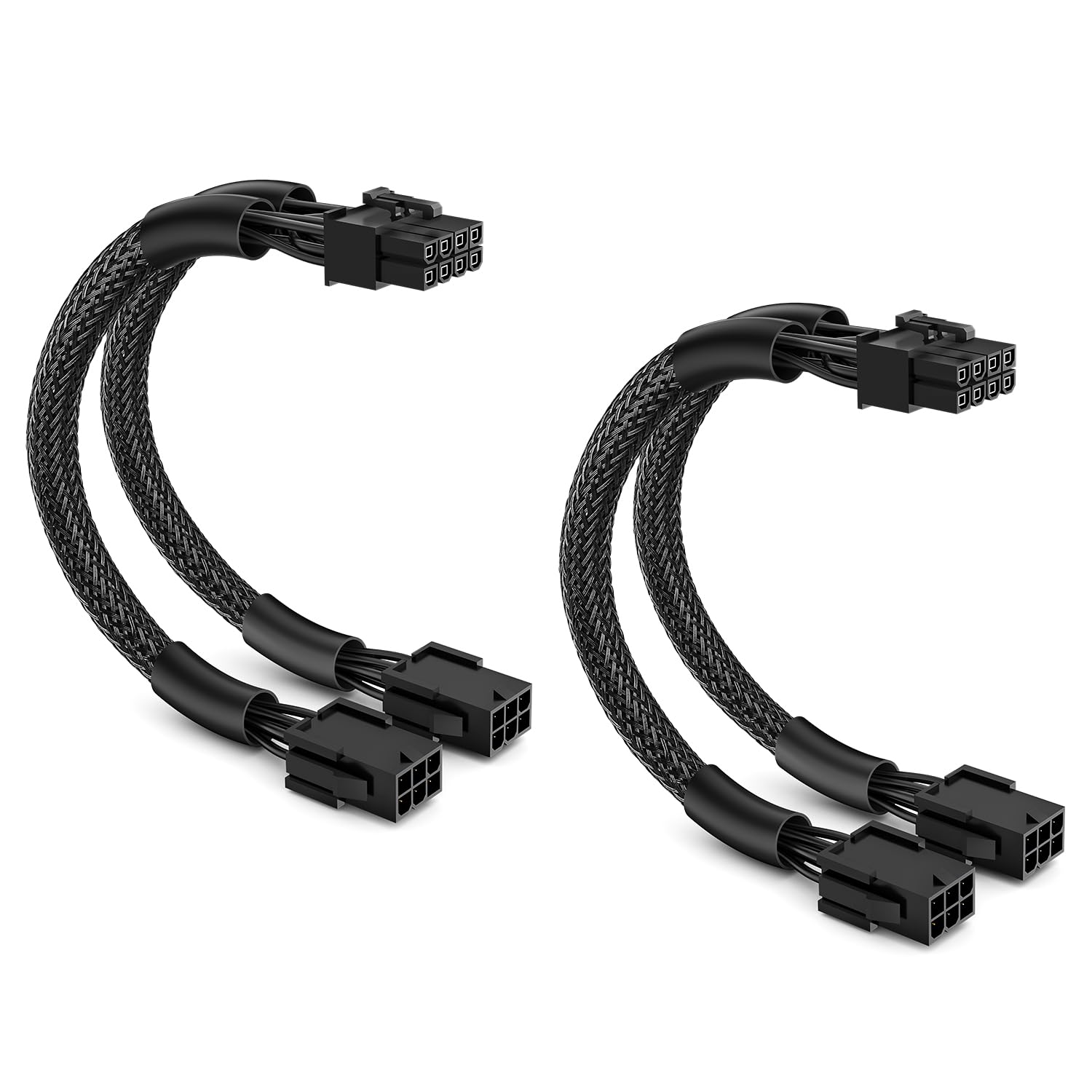

1. J&D PCIe Power Adapter, Dual 6 Pin Female to 8 Pin Male
The J&D adapter tackles the most common scenario among builders with older PSUs — two available 6-pin outputs on the power supply but an 8-pin input on the GPU. Each cable merges a pair of male 6-pins into a single female 8-pin, using 18AWG tinned copper wire wrapped in a braided sleeve that resists abrasion inside the case. The 9-inch length is short enough to avoid cable bulk but long enough to reach the GPU port in most mid-tower layouts.
Reviewers consistently note the locking connector on the 8-pin end holds firmly even when the cable is routed near other components, and the braided jacket does not add excessive stiffness that makes tight bends impossible. One user reported the wires felt stiff when bending near the GPU plug to close the case, but this is a common trade-off with sleeved cables that offer better durability than bare PVC. The 2-pack gives you a spare or allows dual-GPU setups without buying additional adapters.
For a mid-range solution that solves the most frequent compatibility headache without cutting corners on wire quality or connector retention, this pack earns its top spot. The 1-year limited warranty from J&D adds a layer of confidence that budget off-brands often skip.
What works
- Braided sleeve protects against chafing and wear
- Locking connector stays secure under heavy GPU load
- 2-pack covers dual-card setups or provides a backup
What doesn’t
- Wires are stiff near the connector, making tight bends difficult
- 9-inch length may be short in full-tower cases with PSU far from GPU
2. lkelyonewy 2Pcs PCIe 8 Pin to Dual 8 Pin Splitter Adapter
Where the J&D adapter converts 6-pin to 8-pin, the lkelyonewy splitter is designed for a different scenario — taking one 8-pin output from your PSU and splitting it into two 8-pin (6+2) male connectors to feed a graphics card that requires dual power inputs. The 18AWG copper wire and durable PVC jacket support stable current delivery up to about 175 watts per leg based on user testing, which covers most mid-range and upper-mid GPUs like the RTX 4070 Ti Super or AMD 7900 XTX.
Several buyers reported using this cable with high-end cards drawing over 200 watts total without heat issues over extended periods. The locking device on the female end prevents accidental disconnection, a critical feature when the cable runs near case fans or other moving parts. The 7.9-inch length is tight for routing behind a motherboard tray but perfectly suited for direct PSU-to-GPU runs in standard ATX cases.
One note — this is strictly a PCIe power cable and cannot be used for EPS 8-pin motherboard power. The male-to-female gender orientation is clearly marked, but verify your PSU has the correct 8-pin PCIe port before buying. Users with older EVGA and Silverstone units confirmed compatibility without issues.
What works
- Handles 175+ watts per leg without heat buildup
- Locking connector on female end prevents accidental pull-out
- Compatible with high-end GPUs like 4070 Ti Super and 7900 XTX
What doesn’t
- Short 7.9-inch length limits routing flexibility in large cases
- Not compatible with Corsair power supplies
3. TeamProfitcom PCI-e 6 Pin to Dual 8 Pin Y-Splitter
This Y-splitter from TeamProfitcom takes a single 6-pin female input and breaks it into two 8-pin (6+2) male outputs, making it a specific tool for PSUs that only have a 6-pin PCIe connector but need to feed a GPU with dual 8-pin inputs. The 18AWG UL 1007-rated wire uses genuine copper cores with no recycled material, which is a common corner-cutting area in ultra-budget cables that can lead to resistance spikes and heat failure.
User feedback across several years of use shows the splitter holds up well under loads up to 280 watts total system draw, with stable operation on GPUs like the Sapphire RX 570 Nitro+ and PNY GeForce 1660 Super. The black sleeving is basic PVC rather than braided mesh, which makes the cable less flexible but also cheaper. Some reviewers mentioned the +2 clip on the 8-pin side locks securely into the 6-pin base, so the combined 8-pin connector stays solid during installation.
The 9-inch length is adequate for direct runs in mid-tower cases but may be too short for full-tower builds where the PSU is mounted at the bottom and the GPU sits high. Buyers seeking a no-frills Y-splitter for a legacy system will find this gets the job done without breaking the bank, though the exposed wire ends near the connector require careful handling to avoid pinching.
What works
- Genuine copper cores with no recycled materials for reliable conduction
- Locking +2 clip creates solid 8-pin connection
- Stable under 280W total load in tested builds
What doesn’t
- Basic PVC sleeving lacks the durability of braided mesh
- Exposed wire ends near connector need careful handling to avoid tugging
4. YEZriler 2-Pack 8 Pin PCIe Cable for EVGA Power Supply
The YEZriler cables are specifically designed for EVGA modular power supplies, with an 8-pin male end that plugs into the PSU and a 6+2 pin male end that connects to the GPU. The 25-inch length is significantly longer than the other cables in this roundup, giving room to route behind the motherboard tray or through cable management grommets for a clean build. The 18AWG tinned copper wire and braided sleeve offer the same core quality as the J&D adapter but in a longer, PSU-brand-specific format.
Compatibility extends across EVGA’s G2, G3, G5, G+, P2, T2, and BQ series, as well as select Silverstone and COUGAR units. Reviewers using RTX 5070 and RX 9070 XT cards with EVGA 850W and 1300W PSUs reported plug-and-play installation with no modification needed. One critical caveat — these cables are NOT compatible with Corsair power supplies, and using them on an unsupported unit can cause damage. The included hook-and-loop strip helps with cable management in the PSU shroud area.
For anyone running an EVGA power supply who wants OEM-specific cables that guarantee correct pin mapping, this 2-pack is the premium option. The longer reach is especially useful in full-tower cases or when routing the GPU cable through distant grommets for aesthetic builds. One review noted the 8-pin PSU end had pins tied together that prevented insertion into a standard PSU, so verify your specific EVGA model against the compatibility list before purchase.
What works
- 25-inch length allows clean routing behind motherboard tray
- Specific pin mapping for EVGA PSUs ensures correct voltage delivery
- Braided sleeve and hook-and-loop strip aid cable management
What doesn’t
- Not compatible with Corsair PSUs — using on wrong unit risks damage
- Some units reported pinned connectors that prevented insertion
5. TeamProfitcom 6 Pin PCIe Extension Cable, 32 Inch 2-Pack
This extension cable solves a different problem than the adapters above — it does not convert between pin counts but simply lengthens an existing 6-pin PCIe connection. The male-to-female design lets you plug your PSU’s native 6-pin cable into one end and run the extension to your GPU port. At 32 inches, this is the longest cable in the lineup, and it uses 16AWG wire instead of the standard 18AWG, providing lower resistance per foot for longer runs.
The thicker 16AWG gauge is noteworthy because longer cable lengths increase resistance, and stepping up to 16AWG compensates for voltage drop that would occur with 18AWG over 32 inches. Users have reported using these extensions for applications beyond GPU power, including extending PSU cables for TV lift motors, JennAir cooktop exhaust fans, and standing desk controller cables — the straight-through wiring works with any 6-pin PCIe connection regardless of the device. The basic PVC insulation is not as premium as braided sleeving, but it bends well for routing in tight spaces.
If your build needs to reach a GPU that sits far from the PSU — common in full-tower cases or wall-mounted setups — this 2-pack gives you the length and the thicker wire gauge to maintain stable power delivery. Just be aware that these are pure extensions with no pin conversion, so they only work if both ends of your existing connection already use 6-pin PCIe.
What works
- 16AWG wire minimizes voltage drop over long 32-inch runs
- Flexible PVC insulation bends well for tight routing
- Works with any 6-pin PCIe connection beyond just GPU power
What doesn’t
- No braided sleeving for abrasion resistance
- Only extends 6-pin connections — no pin conversion
Hardware & Specs Guide
18AWG vs 16AWG Wire Gauge
The American Wire Gauge (AWG) rating indicates the thickness of the copper conductor inside the cable. Lower AWG numbers mean thicker wire with less electrical resistance. 18AWG — the most common gauge in PCIe power cables — can safely carry about 10 amps per wire at 12 volts, which translates to roughly 120 watts per wire pair. When a cable runs longer than 18 inches or powers a GPU drawing over 200 watts, stepping up to 16AWG (thicker wire) reduces heat buildup and voltage sag. Always check the AWG rating printed on the cable jacket before installation.
6-Pin vs 8-Pin PCIe Power Ratings
A standard 6-pin PCIe power connector is rated to deliver up to 75 watts, while an 8-pin connector is rated for 150 watts. These ratings assume quality 18AWG wire and proper pin contact. Some GPUs draw more than the rated spec for short bursts, but sustained overdraw on undersized cables can melt the connector plastic or burn the pins. When using an adapter that converts two 6-pins to one 8-pin, you are effectively combining two 75-watt feeds into one 150-watt output. Ensure your PSU’s 6-pin rails are not already near their current limit.
FAQ
Can I plug a 6-pin PCIe cable into an 8-pin GPU port?
What happens if I use a splitter on a PSU that lacks the wattage?
Can I use a PCIe 8-pin cable for CPU EPS 8-pin power?
Final Thoughts: The Verdict
For most users, the 6 pin gpu cable to buy is the J&D PCIe Power Adapter 2-Pack because it combines braided sleeving, locking connectors, and the most common 6-pin to 8-pin conversion at a competitive price. If you have an EVGA modular PSU and need longer reach for a modern card, grab the YEZriler 2-Pack 8 Pin PCIe Cable. And for extending native 6-pin connections over long distances with minimal voltage drop, nothing beats the TeamProfitcom 6 Pin PCIe Extension Cable 2-Pack with its 16AWG wire.
