Silence is the first thing you lose with a bad 92mm fan. These compact square coolers are the unsung workers inside electronics enclosures, printer cabinets, RV fridges, and grow tents. The difference between a whisper-quiet unit and a droning turbine isn’t luck — it’s bearing type, frame design, and voltage matching. Buy the wrong one, and the hum will drive you to open the case and pull the plug.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years digging through motor specs, bearing data sheets, and user reports to find which small-frame fans actually deliver on their airflow claims without turning your workspace into a wind tunnel.
Whether you are cooling a server rack, installing an exhaust in a camper van, or replacing a failed part in a 3D printer, choosing the right 92mm fan means matching the correct voltage, bearing type, and noise profile to your specific application without overspending on features you do not need.
How To Choose The Best 92mm Fan
A 92mm fan looks simple, but the wrong choice leads to annoying noise, poor cooling, or early failure. Focus on three core criteria before clicking add to cart.
Voltage and Connector Type
Your power source decides everything. A 5V fan like the Noctua NF-A9 5V PWM works with USB battery packs and phone chargers. A 12V DC fan is standard for PC cases and automotive projects. For mains-powered ventilation, you need a 120V AC unit such as the AC Infinity model. The connector matters too — the 2-pin XH2.54 connector used on some budget fans often requires adapter work for PC motherboard headers.
Bearing Type and Lifespan
Sleeve bearings are cheap but die fast in hot or sideways mounting positions. Dual-ball bearings last over 60,000 hours and tolerate any orientation. The GDSTIME and AC Infinity fans use ball bearings and are rated for 67,000 hours. If your fan runs 24/7 in a warm enclosure, ball bearings are mandatory.
Noise Level vs Airflow Balance
A high-RPM fan like the Wathai (5800 RPM) moves 117 CFM but hits 49 dBA — that is loud enough to hear across a room. A quiet fan such as the Noctua NF-A9 at 22.8 dBA is barely audible but pushes less air. If you need to move air through a radiator or a long duct, prioritize static pressure and a thicker 38mm frame. For open ventilation, a standard 25mm fan at 30-37 dBA strikes the best balance.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Noctua NF-A9 5V PWM | Premium 5V | Ultra-quiet PC or USB-powered cooling | 22.8 dBA noise floor | Amazon |
| Wathai 92mm x 38mm | High Static Pressure | Radiator or dense fin stacks | 117 CFM at 5800 RPM | Amazon |
| AC Infinity AXIAL 9225 | 120V AC Mains | DIY ventilation and enclosures | UL-certified aluminum build | Amazon |
| GDSTIME EC 9225B | AC/DC Hybrid | AC-powered projects needing low noise | 54.8 CFM at 31 dBA | Amazon |
| PANO-MOUNTS 2-Pack | Value 2-Pack | Greenhouse or RV fridge exhaust | IP44 moisture resistance | Amazon |
In‑Depth Reviews
1. Noctua NF-A9 5V PWM
Noctua’s reputation in the quiet computing world is built on engineering like this. The NF-A9 5V PWM uses Flow Acceleration Channels on the blade tips to reduce turbulence, and its Advanced Acoustic Optimisation frame eliminates the whistling that plagues cheaper fans. At maximum 2000 RPM, it pushes enough air for a CPU cooler or case exhaust while staying at 22.8 dBA — quieter than a library. The 5V power requirement makes it a perfect match for USB battery banks, Raspberry Pi enclosures, or any device with a USB host port.
The included accessory bundle is generous: anti-vibration mounts, a USB power adaptor cable, extension cable, and the OmniJoin adaptor set for proprietary fan headers. The fibre-glass reinforced PBT frame resists warping in warm enclosures. Users report running these fans for years inside Prusa 3D printer power supplies and server racks without bearing noise developing.
The main trade-off is the higher upfront cost compared to generic 12V fans. You pay for the quiet operation and the 150,000-hour MTTF rating. The brown color scheme is also polarizing, though performance-minded buyers rarely care about aesthetics. For any application where noise matters, this is the reference standard.
What works
- Extremely quiet across the entire 5V PWM range
- Comes with USB adaptor, mounts, and extension cables
- Industrial-grade lifespan rating of over 150,000 hours
What doesn’t
- Premium price relative to budget alternatives
- 5V only — not compatible with standard 12V PC headers
2. Wathai 92mm x 38mm Dual Ball
The Wathai is a 38mm thick fan built for one job: moving massive volumes of air through restrictive spaces. Its 5800 RPM motor paired with a dual-ball bearing pushes 117 CFM — nearly three times the airflow of a standard 25mm fan. This makes it the ideal choice for cooling a dense radiator, a compact server chassis, or any application where you need static pressure to punch through a filter. The reverse frame design concentrates the airflow into a tighter cone, pushing air farther across components.
Users upgrading Dell Optiplex SFF machines and Li-ion battery compartments report significant temperature drops after installing this fan. The included 2-pin XH2.54 connector is common in industrial gear but may require adapters for standard PC headers. Several reviewers used a noise reducer resistor or a PWM controller to drop speed below 2000 RPM, where the fan runs much quieter while still moving more air than standard options.
At full speed, expect 49 dBA of noise — it is a jet-engine sound profile. This is not a quiet fan by any measure. The thicker 38mm frame also means it will not fit in all 25mm-deep mounting slots. Measure your clearance carefully. If your priority is sheer airflow and you can tolerate the noise, this fan outperforms everything else in its size class.
What works
- Extremely high 117 CFM airflow for demanding cooling tasks
- Dual-ball bearings provide long service life in any orientation
- Thicker 38mm frame delivers focused static pressure
What doesn’t
- Very loud at full 5800 RPM speed
- Thicker frame may not fit standard 25mm mounting spaces
3. AC Infinity AXIAL 9225
When your project runs on standard household current, the AC Infinity AXIAL 9225 is the correct choice. It draws 120V AC directly from a wall outlet via the included power plug cord — no transformer or DC adapter needed. The heavy-duty aluminum housing gives it a robust feel that plastic fans lack, and the UL certification means it has passed safety testing for continuous operation. The dual-ball bearing motor is rated for 67,000 hours of service life.
This fan ships with two metal fan guards and a mounting screw set, so it is ready to install as an exhaust or intake in a ventilation project. Users have deployed it successfully in reptile egg incubators, spray booths, and Halloween fog machines. The 37 CFM airflow at 2900 RPM is moderate, but the 37 dBA noise level is acceptable for most hobbyist environments. The included power cord has a detachable plug connector, which simplifies routing through tight enclosures.
The main limitation is the lack of speed control — this unit runs at full speed whenever plugged in. If you need adjustable airflow, you will need to add an external fan speed controller. The 120V AC power requirement also means it is not suitable for battery-powered or low-voltage installations. For mains-powered projects where reliability and build quality matter, this is the safest bet.
What works
- UL-certified for safe continuous 120V AC operation
- Aluminum housing is more durable than plastic alternatives
- Includes guards, mounting screws, and a detachable power cord
What doesn’t
- No speed control — always runs at full 2900 RPM
- Not compatible with low-voltage 12V systems
4. GDSTIME EC 9225B
The GDSTIME EC 9225B uses an electronically commutated motor that runs on DC internally but accepts a wide AC input voltage range from 90V to 270V. This makes it exceptionally versatile — you can plug it into 110V US outlets or 220V European sockets without a transformer. The dual-ball bearing construction provides the same 67,000-hour lifespan as premium options, and the 31 dBA noise rating at 2400 RPM is noticeably quieter than comparable AC fans.
At 54.8 CFM, it moves more air than the AC Infinity while producing less noise. The included US plug power cord comes with a wire clip for strain relief, and the fan includes a mounting grille and screw kit. Several users have wired these through thermostats for automatic temperature-controlled ventilation in server closets and grow cabinets. The EC motor technology also means lower power draw — only 2 watts at full speed, making it economical for 24/7 operation.
One weak point reported is the plastic screw hole flanges, which can crack if overtightened without the supplied spacers. The customer support is responsive about replacing units with bearing issues. For anyone needing an AC-powered fan that runs quietly and handles multiple voltage regions, this is the best value proposition in the 92mm category.
What works
- Wide 90-270V AC input works worldwide without adapters
- Quiet 31 dBA operation with strong 54.8 CFM airflow
- Low 2W power consumption ideal for continuous use
What doesn’t
- Plastic mounting flanges can crack if overtightened
- First unit had bearing noise — QC inconsistency reported

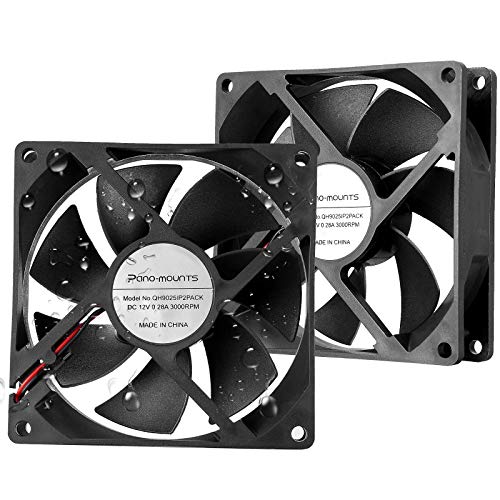

5. PANO-MOUNTS Moisture-Proof 2-Pack
This 2-pack from PANO-MOUNTS is purpose-built for damp environments. With an IP44 ingress protection rating, these fans resist splashing water and humidity that would kill a standard PC fan. The 90mm x 25mm (marketed as 92mm) form factor runs on 7V to 12V DC, making it flexible for automotive, RV, and greenhouse installations. At 12V and 3000 RPM, each fan pushes 48.2 CFM at a moderate 37.5 dBA noise level.
Real-world feedback from RV owners is excellent. Multiple reviewers used these to replace noisy fridge fans in camper vans, reporting that two of these units ran quieter than the single original fan while keeping temperatures stable even in South Texas heat. The 2-pin XH2.54 connector works for standalone applications but may need a wiring reversal if the polarity is mismatched — one reviewer noted the wires were reversed for their setup. The fans are also effective as bathroom exhaust fans in small RVs.
The main caveat is the connector. The 2-pin XH2.54 header is not compatible with PC motherboard fan headers without modification. These are designed for DIY and replacement projects, not desktop PC builds. At full speed, the 37.5 dBA noise is noticeable but not intrusive. For the price of a two-pack, you get a moisture-sealed solution ideal for projects where humidity and budget are the primary constraints.
What works
- IP44 moisture-proof rating for humid or wet locations
- Two fans per pack offer excellent value for multi-point cooling
- Runs on 7-12V for flexible voltage matching
What doesn’t
- 2-pin XH2.54 connector not compatible with PC headers
- Polarity may be reversed on some units requiring rewiring
Hardware & Specs Guide
Bearing Type: Sleeve vs Ball
The bearing determines how long your fan lasts and where you can mount it. Sleeve bearings are lubricated with oil-impregnated bronze and fail faster in hot environments or when mounted sideways due to oil migration. Dual-ball bearings use steel balls in races and can be mounted in any orientation, operating reliably for over 60,000 hours. For any 24/7 application or a vertical mount, choose ball bearings exclusively.
Frame Thickness: 25mm vs 38mm
Standard 92mm fans are 25mm thick. A 38mm thick fan like the Wathai provides significantly higher static pressure because the taller blade surface can push air through dense radiator fins or long ducts. The trade-off is higher noise and incompatibility with standard PC case mounting screws. Always measure your available clearance before buying a thick fan.
Voltage Matching: 5V, 12V, and 120V AC
5V fans pair with USB power sources and low-power electronics. 12V DC is the standard for computer cases and automotive systems. 120V AC fans plug directly into household outlets and are best for ventilation projects. Applying 12V to a 5V fan will burn it out instantly. The GDSTIME EC 9225B accepts a wide voltage range, making it the most flexible AC option.
Airflow vs Noise Trade-Off
CFM measures total air volume moved per minute, while dBA measures perceived loudness. A fan moving 117 CFM at 49 dBA (Wathai) is too loud for a bedroom but perfect for a server closet. A fan moving 48 CFM at 37.5 dBA (PANO-MOUNTS) is moderate noise, suitable for cabinets. A fan at 22.8 dBA (Noctua) is barely audible but moves less air. Map your noise tolerance to your cooling needs before buying.
FAQ
Can I replace a 12V PC case fan with a 5V Noctua fan?
Why does my 92mm fan make a grinding noise after a few months?
Are 92mm fans interchangeable with 80mm or 120mm mounting holes?
Is a 38mm thick fan always better than a 25mm fan?
Final Thoughts: The Verdict
For most users, the 92mm fan winner is the Noctua NF-A9 5V PWM because it delivers whisper-quiet cooling with premium build quality and a comprehensive accessory kit that covers nearly every 5V application. If you need maximum static pressure for a radiator or server chassis, grab the Wathai 38mm High Airflow Fan. And for a mains-powered ventilation project where safety and durability come first, nothing beats the AC Infinity AXIAL 9225.
