The AM5 socket runs hot — really hot. Between the 7950X’s bursty PPT spikes and the 7800X3D’s chiplet stack trapping heat under the IHS, a mediocre cooler leaves performance on the table. Choosing the wrong liquid cooler for this platform means thermal throttling within seconds of a Cinebench run or pump noise that makes productivity sessions unbearable.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent hundreds of hours researching socket-specific cold plate designs, pump motor topologies, and radiator fin densities to parse which AIOs actually tame AM5’s uneven heat distribution without emptying your wallet.
If you’re building or upgrading a desktop around AMD’s latest socket, finding the right aio cooler for am5 means balancing cold plate coverage, pump speed, and radiator size against your specific case and CPU power target.
How To Choose The Best AIO Cooler For AM5
AM5’s LGA1718 socket shifts heat distribution compared to previous generations. The CCDs sit off-center under the integrated heat spreader, meaning a cooler that worked perfectly on AM4 may leave hotspots on a Ryzen 9 7950X. You need an AIO whose cold plate geometry and mounting pressure align with the socket’s specific layout.
Cold Plate Coverage & Offset Mounting
Not all cold plates cover the AM5 IHS evenly. Some AIOs now offer offset mounting brackets that shift the cold plate center toward the chiplet cluster — ARCTIC’s Liquid Freezer III line uses this natively. If your cooler lacks this feature, the pump may cool the thicker IHS edge while the CCDs cook under load. Verify that the mounting kit explicitly lists AM5 offset support, not just vague “AM5 compatible” language.
Pump Speed vs. Noise Tradeoff
AM5 CPUs require high instantaneous flow to move heat away from the small 5nm chiplets. Pumps rated at 3000–3600 RPM move coolant faster but introduce audible whine above 3200 RPM. Look for PWM-controlled pumps that let you cap speed at 60–70% during idle and ramp only under sustained load — many premium Asetek-based units let you set custom curves in BIOS or software.
Radiator Thickness & Fan Static Pressure
A 360mm radiator with a slim 24mm core (like Lian Li’s Hydroshift II) relies on high-static-pressure fans to push through dense fins. A thicker 38mm radiator (ARCTIC Liquid Freezer III) moves more heat passively but demands more case clearance. Measure your top or front mount depth before buying — many mid-tower cases struggle with 45mm+ combined radiator-and-fan stacks.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Lian Li GA II LCD 360 | Premium | High-TDP builds with LCD monitoring | 3600 RPM Asetek 8th Gen pump | Amazon |
| TRYX Panorama SE 360 | Premium | Showpiece builds with curved OLED | 280W TDP Asetek Adela pump | Amazon |
| be quiet! Silent Loop 3 420 | Premium | Silence-focused workstation builds | 3-chamber dampened pump, refillable | Amazon |
| Lian Li Hydroshift II-S LCD 360 | Mid-Range | Clean cable routing with LCD | 3.4″ IPS 480×480 LCD, 24mm rad | Amazon |
| ARCTIC Liquid Freezer III Pro 420 | Mid-Range | Max thermal headroom 420mm size | 38mm thick rad, VRM fan, offset | Amazon |
| MONTECH HyperFlow ARGB 360 | Mid-Range | 6-year warranty, value 360mm | 3100 RPM pump, 28mm fans | Amazon |
| Thermalright FW360 SE ARGB V2 | Mid-Range | Budget LCD with 360mm cooling | 2″ LCD, 3000 RPM pump | Amazon |
| Corsair Nautilus 240 RS | Budget | Compact builds needing 240mm fit | Convex cold plate, pre-applied paste | Amazon |
| NZXT Kraken Core 240 RGB | Budget | Entry-level 240mm with single-frame fans | 3100 RPM pump, 75 CFM fans | Amazon |
In‑Depth Reviews
1. Lian Li GA II LCD 360
The Asetek 8th Gen three-phase motor spins up to 3600 RPM, delivering the sustained flow rate needed to pull heat away from AM5’s dense 5nm chiplets. Users report an i9-14900K peaking at 80°C and dropping to 50–65°C during gaming sessions — the 360mm radiator with SL-INF fans pushes 61.3 CFM at 2.66 mmH2O, which is enough to cool a Ryzen 9 7950X under full AVX-512 loads without thermal throttling.
The 2.88-inch IPS LCD runs at 60 Hz and supports real-time system monitoring through L-Connect 3. The software lets you record and edit content directly on the display, which is useful for live stats or custom GIF loops. The cold plate covers the AM5 IHS completely, though Lian Li does not offer the offset mounting that ARCTIC provides — the GA II relies on its pump flow rate to manage off-center hotspots.
Installation is beginner-friendly thanks to pre-installed UNI fan daisy chains and a single-cable pump connection. The 3600 RPM pump can be audible at default settings; many users lower it to 1690 RPM in BIOS for near-silent idle operation. At this price point, you get premium cooling, decent software, and the LCD gimmick without sacrificing raw thermal performance.
What works
- Asetek 8th Gen pump handles sustained 250W+ AM5 loads
- LCD screen offers real-time monitoring without extra hardware
- Pre-installed daisy-chained fans simplify cable management
What doesn’t
- Pump whine at default speed may require manual curve tuning
- L-Connect 3 software can spike CPU usage during gaming
2. TRYX Panorama SE 360
The Panorama SE’s defining feature is its 6.67-inch curved AMOLED screen with a 2K resolution, 60 Hz refresh rate, and 1,000,000:1 contrast ratio. The 3D anamorphic effect makes preloaded “Waterfall” animations pop with depth that no flat LCD can match. Under the glass, the Asetek Adela pump delivers 280W TDP cooling capacity — enough to keep a Ryzen 9 9950X3D in the low 50°C range during gaming sessions.
Users report idle temperatures between 40–45°C and max gaming temps around 73°C after hours of play. The ROTA ARGB fans, equipped with FDB bearings and damping pads, stay under 27.86 dB(A) even at full 3600 RPM. The 27mm radiator uses high-density fins that pair well with the static pressure of these fans, though the 5.6-pound weight requires a sturdy mounting bracket or motherboard tray support.
The KANALI software handles split-screen display capabilities and supports uploaded media up to 500 MB per file. Installation is straightforward but cable management requires planning due to the screen’s data cable routing. Early batch pump buzz has been reported, but the 280W TDP rating and OLED visual quality make this the definitive showpiece AIO for AM5 flagship builds.
What works
- Curved AMOLED screen sets new visual standard for AIOs
- Asetek Adela pump handles 280W AM5 CPUs without breaking a sweat
- Damped fans remain near-silent at full RPM
What doesn’t
- Pump can buzz at full speed in early units
- Heavy assembly may strain motherboard in horizontal orientation
3. be quiet! Silent Loop 3 420
The three-chamber pump design separates coolant intake, pressurization, and outflow to reduce turbulence noise — a meaningful advantage for AM5 workstations that run 24/7 rendering jobs. The 6-pole motor provides smooth PWM regulation from silent idle to full 2500 RPM, and the included coolant bottle lets you top off the loop over time, extending service life beyond typical sealed AIOs.
Users running a Ryzen 9 7900X reported temperature drops from 80–90°F range down to 65–74°F under sustained load after upgrading from a Dark Rock 4 air cooler. The 420mm radiator with three Silent Wings 4 140mm fans moves 110 CFM at 2500 RPM, though the stiff sleeved tubing requires careful routing in mid-tower cases. The pump is near-inaudible at 70% speed, and the ARGB lighting remains subtle rather than flashy.
The refill port is a rare feature in consumer AIOs — most competitors force you to replace the entire unit when coolant permeation occurs after 3–5 years. The cold plate uses a convex curvature optimized for AM5’s concave IHS, and the included mounting kit covers TR5/TR4 threadripper sockets as well. For silent AM5 workstations that prioritize longevity over LCD gimmicks, this is the strongest 420mm option available.
What works
- Refillable design extends service life beyond sealed AIOs
- Three-chamber pump eliminates coolant turbulence noise
- 140mm Silent Wings 4 fans provide high CFM at low dB
What doesn’t
- Stiff tubing makes routing in compact cases frustrating
- No LCD screen for system monitoring

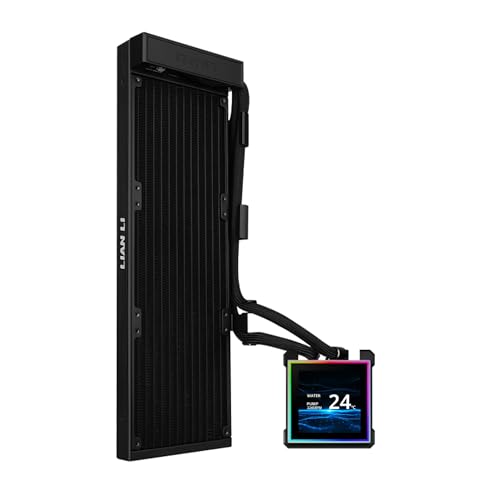

4. Lian Li Hydroshift II-S LCD 360
The Hydroshift II-S introduces a sliding tube clamp that lets you route hoses tightly along the radiator edge, hiding them behind the motherboard tray for a nearly cable-free front view. The 3.4-inch IPS LCD at 480×480 resolution and 500 nits brightness supports both wireless mode (for quick theme changes) and wired USB mode for full L-Connect 3 customization, including system monitoring and GIF playback.
The 24mm slim radiator sacrifices some thermal mass compared to standard 27mm designs, but the Lian Li engineers compensated with higher static pressure fan profiles. Users running a Ryzen 7 9800X3D at +200 MHz overclock reported a max Cinebench R23 temperature of 79°C, with gaming temps staying well below that threshold. The pump and fans remain quiet under load, though the 1700 RPM max fan speed limits overall CFM compared to thicker rad options.
The hot-swappable screen uses magnetic pogo pins, so you can remove the display without powering down the system. Installation produces only three visible cables — one for PWM, one for USB, and one for SATA power — making this the cleanest-looking AIO for AM5 builds that prioritize aesthetics. The lack of a fill port or VRM cooling fan means it’s not the most serviceable option, but for pure visual integration, it leads the category.
What works
- Sliding tube clamp enables near-invisible cable routing
- Hot-swappable magnetic LCD requires no power-down
- Quiet pump and fans suit noise-sensitive AM5 builds
What doesn’t
- 24mm radiator limits thermal capacity vs thicker competitors
- No motherboard lighting sync without third-party software
5. ARCTIC Liquid Freezer III Pro 420
The 38mm-thick radiator is the most thermally substantial option in this lineup — 11mm thicker than standard 27mm designs, translating directly to higher heat rejection at lower fan speeds. The integrated VRM fan on the pump housing actively cools the AM5 voltage regulator modules during sustained AVX-512 workloads, a feature absent on virtually every competing AIO. The P14 PRO fans move 110 CFM at 2500 RPM with enhanced low-speed acoustics.
Native offset mounting shifts the cold plate center toward the AM5 chiplet cluster, directly addressing the hotspot issue that plagues coolers designed for Intel’s monolithic dies. Users running a Ryzen 9 9950X report 68°C under 200W load and mid-60s during gaming, with the VRM fan keeping motherboard power stages below 70°C. The pre-applied MX-6 paste offers strong thermal transfer, though some users note it arrives with a dry clay-like consistency.
Installation is moderately complex — the lack of a rear mounting bracket and stiff mounting screws can frustrate first-time builders. The PWM cables for all three fans are integrated into the hose sheathing, exiting as a single cable near the pump head, which reduces visible wiring but limits fan replacement flexibility. For AM5 workstations that push 200W+ continuously, the Liquid Freezer III Pro 420 offers unmatched thermal headroom in a price that undercuts premium LCD units by a wide margin.
What works
- 38mm radiator provides class-leading heat dissipation
- VRM fan actively cools AM5 voltage regulators under load
- Offset mounting targets AM5 chiplet hotspot directly
What doesn’t
- Installation requires patience with rear bracket access
- Stock fans have mechanical noise at high RPM that some find harsh
6. MONTECH HyperFlow ARGB 360
The HyperFlow ARGB 360 delivers chart-topping thermal performance at a price that undercuts most 360mm competitors. The 3100 RPM gemstone-design pump pushes coolant efficiently through a slim 27mm radiator with 20 FPI fin density. A user running an Intel 13700KF at 253W PL1/PL2 reported a 20°C drop compared to their previous 240mm AIO, with no thermal throttling under sustained Cinebench runs.
The Metal Pro 12 fans are 28mm thick — 1mm thicker than standard 27mm fans — which increases static pressure to 2.21 mmH2O without raising noise above 28 dB(A). The ARGB syncs seamlessly with Montech case fans via the included hub, but the mounting bracket design is slightly more finicky than competing units — the manual could benefit from clearer illustrations for the AM5 backplate alignment.
The six-year warranty is the longest in its class, signaling confidence in the pump’s longevity. The pre-applied thermal paste is adequate for immediate use, though enthusiasts may prefer to replace it with a high-viscosity compound for better long-term performance. For AM5 builders on a strict budget who still want 360mm cooling and ARGB integration, the HyperFlow offers the best combined value and warranty in the mid-range segment.
What works
- Six-year warranty leads the mid-range AIO segment
- 28mm fans provide extra static pressure over standard 27mm
- Handles 253W Intel loads without throttling — overkill for most AM5 CPUs
What doesn’t
- AM5 mounting bracket alignment can be fiddly
- No LCD screen for system stats
7. Thermalright FW360 SE ARGB V2
The FW360 SE ARGB V2 packs a 2-inch LCD screen into a 360mm AIO at a price that typically buys a 240mm unit without any display. The 3000 RPM pump and three TL-M12Q 120mm daisy-chain fans (2000 RPM max, 68.9 CFM, 2.21 mmH2O) provide enough cooling for a Ryzen 7 7800X3D or Ryzen 9 7950X under gaming workloads. Users report the unit keeping a 7800X3D cool and quiet, with the LCD offering system stats and custom GIF display through Thermalright’s software.
The daisy-chain fan design reduces cable clutter significantly — only one PWM header and one ARGB header needed for all three fans. Installation is straightforward, and the included thermal paste is adequate for initial setup. The 5-year warranty provides peace of mind at this price tier. However, some users report USB-C connection issues with the LCD screen, and Thermalright’s warranty support for the screen component has been inconsistent.
The 200-gram claimed weight is almost certainly a listing error (the actual cooler is substantially heavier), but the aluminum radiator construction feels solid. The silver mounting bracket may contrast with black motherboards — some users painted theirs for visual consistency. For AM5 builders who want the LCD experience without the premium price tag, the FW360 SE offers an uncompromising thermal baseline with a display that punches above its class.
What works
- 2-inch LCD at a price that undercuts every other display AIO
- Daisy-chain fans dramatically reduce cable clutter
- Quiet operation with adequate 360mm thermal headroom
What doesn’t
- LCD USB-C connection issues reported in some units
- Thermalright warranty support for screen may be inconsistent
8. Corsair Nautilus 240 RS
The Nautilus 240 RS uses a convex cold plate that presses firmly into the AM5 IHS center, improving contact pressure compared to flat-plate designs. The pump runs at a whisper-quiet 20 dBA — the lowest rated noise floor in this lineup — making it ideal for home offices or recording studios where fan and pump noise disturbs concentration. The pre-applied thermal paste uses an optimized pattern for even spread across the AM5 heat spreader.
Users report idle CPU temperatures around 28°C on a Ryzen 9 9950X, with gaming loads staying well within safe limits. The RS120 fans use CORSAIR AirGuide technology and Magnetic Dome bearings to maintain low noise under load, though at 36 dB(A) peak they are not the quietest 120mm fans available. The daisy-chain connection to a single 4-pin PWM header simplifies installation, but the 240mm radiator size limits overclocking headroom for high-TDP AM5 SKUs like the 7950X.
Installation is straightforward with spring-screw mounting, and the unit is nearly inaudible at idle. The non-RGB design appeals to users who prefer a clean, stealthy look — but if you want ARGB lighting, you’ll need to replace the fans or look elsewhere. For compact AM5 builds in cases that can only fit a 240mm radiator, the Nautilus 240 RS delivers the quietest operation in its size class.
What works
- Convex cold plate improves contact with AM5 IHS
- 20 dBA pump is virtually silent at low RPM
- Daisy-chain fans connect to single motherboard header
What doesn’t
- 240mm radiator limits thermal capacity for high-TDP AM5 CPUs
- No ARGB lighting for users wanting visual customization
9. NZXT Kraken Core 240 RGB
The Kraken Core 240 RGB uses a single-frame design that merges both 120mm fans into one solid unit, reducing screws and cables during installation. The 3100 RPM pump moves coolant aggressively enough to handle an overclocked Ryzen 7 7800X3D or Intel i7-11700K at 5 GHz, with users reporting well-controlled temperatures under sustained synthetic loads. The Core (EV-B) RGB fans deliver 75.05 CFM at peak — high for a 120mm fan — which compensates for the 240mm radiator’s limited surface area.
The pump connects directly to the motherboard without requiring a separate controller, and the PWM-enabled fans allow precise speed adjustment through BIOS or NZXT CAM software. Noise levels register at 31.9 dB(A) at maximum RPM, which is acceptable for a 240mm unit but not the quietest in class. Some users note the pump does not display temperature readings — a common complaint given the lack of an LCD screen at this price.
Installation requires a 5V ARGB header on the motherboard — the fans do not include a SATA-powered RGB adapter, so verify your motherboard’s header availability before purchasing. For budget-conscious AM5 builders who need 240mm cooling with RGB and don’t want to deal with separate fan controllers, the Kraken Core 240 RGB offers solid baseline performance with a clean, straightforward build process. The single-frame fan design genuinely simplifies installation in tight cases.
What works
- Single-frame fan design reduces screws and installation time
- 75 CFM airflow is strong for 120mm fans
- No controller needed — direct motherboard connection
What doesn’t
- Requires 5V RGB header — 12V header incompatibility a common trap
- No pump temperature display or LCD screen
Hardware & Specs Guide
Cold Plate Geometry
AM5’s IHS is slightly concave and shifts the CCD hotspots toward the socket’s upper-left quadrant. Flat cold plates with even mounting pressure may leave air gaps over the chiplet cluster. Coolers with convex cold plates (like the Corsair Nautilus 240 RS) or offset mounting brackets (like the ARCTIC Liquid Freezer III) press more firmly into the hotspot zone, reducing thermal resistance by 2–4°C compared to universal flat plates.
Pump Motor & PWM Control
Three-phase motors (Asetek 8th Gen, TRYX Adela) provide smoother torque at low RPM and higher peak flow than single-phase DC pumps. A 3600 RPM three-phase pump can maintain 1.5+ GPM flow even under full CPU load. PWM control lets you set a flat 40% duty cycle for idle silence and ramp only when coolant temperature exceeds 50°C — most motherboards support this curve adjustment in the BIOS fan control panel.
Radiator Dimensions & Fin Density
Standard 360mm radiators measure 27mm thick with 15–20 FPI (fins per inch). Thicker 38mm radiators (ARCTIC Liquid Freezer III) offer roughly 30% more surface area but require 45mm+ clearance when stacked with fans. Thin 24mm radiators (Lian Li Hydroshift II) fit in more cases but need high-static-pressure fans (>2.5 mmH2O) to push air through dense fins effectively. Always measure your case’s top or front mount depth before purchasing.
Fan Static Pressure vs. Airflow
Radiator fans need static pressure, not just high CFM. A fan with 2.0 mmH2O static pressure pushes air through 20 FPI fins effectively; below 1.5 mmH2O, airflow stalls and thermal performance drops. The MONTECH HyperFlow’s 28mm fans achieve 2.21 mmH2O by using steeper blade angles, while slim 25mm fans (Lian Li Hydroshift) rely on higher RPM to compensate. Check the fan’s static pressure rating at your target RPM — not just the maximum spec at 100% speed.
FAQ
Does an AM5 AIO need offset mounting to cool properly?
Can I use an AM4 AIO cooler on AM5 without a new bracket?
How much radiator size do I need for a Ryzen 7 7800X3D?
Final Thoughts: The Verdict
For most users, the aio cooler for am5 winner is the Lian Li GA II LCD 360 because its Asetek 8th Gen pump handles sustained 250W+ AM5 loads while the 2.88-inch LCD provides useful system monitoring without sacrificing thermal performance. If you want the best raw thermal headroom for a Ryzen 9 9950X workstation, grab the ARCTIC Liquid Freezer III Pro 420 with its 38mm radiator and integrated VRM fan. And for a showpiece build with the most impressive screen on the market, nothing beats the TRYX Panorama SE 360 with its curved AMOLED panel and 280W TDP cooling capacity.
