Poking a flashlight into a dark drain pipe or engine bay only reveals the first inch, leaving you to guess at blockages, leaks, or damage hiding just around the bend. An Android endoscope camera turns your phone into a visual probe that snakes into those tight spaces, delivering live video straight to your screen so you diagnose the problem instead of hoping for the best.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent over a thousand hours cross-referencing user reports, technical spec sheets, and real-world performance data on inspection tools to separate the units that actually deliver a usable image from those that leave you squinting at a muddy mess.
Whether you are a mechanic tracing a vacuum leak, a plumber scoping a sewer run, or a DIYer checking wall cavities for rodent damage, the right android endoscope camera saves hours of tear-down and wasted guesswork by putting a tiny, waterproof eye exactly where you need it.
How To Choose The Best Android Endoscope Camera
Three specs define whether an endoscope becomes a trusted diagnostic tool or a frustrating paperweight: sensor resolution combined with a focal range that actually captures sharp close-ups, a semi-rigid cable that holds its bend without fighting your hand, and a waterproof rating that lets you poke into wet drains without killing the electronics on the first dip.
Sensor Resolution and Real Focal Range
Marketing numbers like “1920P HD” don’t tell you the whole story. What matters more is the combination of the sensor’s actual megapixel count — 2MP is the baseline for usable stills, while 3.69MP gets you low-grain images that hold up under pinch-to-zoom — and a focal range that starts between 2 cm and 10 cm. An endoscope with a narrow depth of field blurs anything closer or farther than a few inches, so check those macro focus specs if you plan to inspect valve seats or hairline cracks in cast iron.
Probe Diameter and Cable Type
A 7.9 mm probe is the near-universal sweet spot for wriggling past P-traps and behind dashboards without getting stuck, while an 8.5 mm probe still slips into most standard openings but adds a fraction more light-gathering capability from the LEDs. The cable’s construction — semi-rigid versus pure flexible — dictates whether you can pre-bend a curve and have it hold that shape as you push the scope forward, or whether the tip flops around and refuses to point where you aim. Semi-rigid is the preferred choice for most automotive and plumbing work because it transmits rotational torque from your hand to the camera tip.
Waterproofing and LED Brightness
IP67 waterproofing means the probe can be submerged up to one meter for 30 minutes without leaking, which is essential for drain scoping and engine coolant jacket inspections. Adjustable LED brightness — not just a fixed on-off toggle — is equally critical because reflective metal surfaces blow out the image if the lights are too bright, while dark pipe interiors need full blast to resolve the bottom of the sump. A thumb wheel or slider control in the app lets you dial the exact level for whatever surface you are inspecting.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DEPSTECH NTC55 | Dual 2K | Pro-grade inspections with hyper detail | 3.69 MP / 2560×1440P sensor | Amazon |
| PAPIBLU Dual-Lens | Dual 1920P | Quick view switching on tight corners | 7.9 mm probe / dual front & side lens | Amazon |
| WORKPRO Endoscope | Single 1920P | Durable build with reinforced cable | Ultra-thin pure copper core cable | Amazon |
| Teslong 50FT | Long-Reach | Deep sewer line and duct runs | 50 ft (15 m) semi-rigid cable | Amazon |
| Anykit Single Lens | Entry Single | Budget-friendly home maintenance | 9.8 ft cable / 8.5 mm probe | Amazon |
1. DEPSTECH NTC55 2K Endoscope
The DEPSTECH NTC55 is the only unit in this roundup that pushes past the 1080P barrier with a native 2560×1440P sensor packing 3.69 million pixels, translating to noticeably lower grain when you zoom in on a hairline crack in a cylinder wall or a worn valve seat. Its dual-lens system — a front-facing camera and a side-facing camera — eliminates the need to rotate the probe back and forth, letting you toggle between perspectives in the app with one tap. The 7.9 mm probe diameter slips through standard pipe openings and into engine bays without binding, and the 16.5-foot semi-rigid cable provides enough reach for most HVAC duct runs and drain lines.
IP67 waterproofing means you can submerge the camera head in a sump pit or a toilet drain without worrying about moisture shorting the sensor. The 8+1 adjustable LEDs deliver adequate illumination for dark spaces, though some users note that the light diffusion is slightly more focused than a flood pattern, meaning you may need to wiggle the tip to fully illuminate a wide cavity. The DEPSTECHCAM app supports photo capture, 2x digital zoom, and 90-degree rotation, and it works with both USB-C (Android 9.0+) and Lightning connectors out of the box.
The included hook and magnet accessories add practical retrieval capability, and DEPSTECH backs the unit with a two-year support window — a meaningful warranty length for a tool in this price tier. The combination of the highest effective resolution, instant lens switching, and a proven app ecosystem makes this the benchmark choice for anyone who needs clear, reliable inspection footage on a regular basis.
What works
- Industry-leading 2K sensor captures sharp, low-grain stills at 2560×1440P.
- Dual front/side lenses let you inspect blind corners without re-angling the probe.
- IP67-rated probe handles wet drains and submerged inspections safely.
- App supports 2x zoom and 90° rotation for flexible viewing angles.
What doesn’t
- Requires manual OTG activation on many Android devices before the app will recognize the camera.
- Long 16.5 ft cable is difficult to push through tight 90-degree plumbing bends without a stiff fish tape.
2. PAPIBLU Dual-Lens Endoscope
PAPIBLU’s dual-lens endoscope stands out for its practical one-click camera toggle that switches between front and side views without requiring you to fish the probe backward through a pipe. The 1920×1440P sensor — a higher vertical resolution than standard 1920×1080P — captures finer detail in the 4:3 aspect ratio, which is a genuine advantage when you are inspecting gasket surfaces or looking for debris in a flat drain channel. The 7.9 mm ultra-thin probe with 8 LEDs provides enough light for dark interiors, and users consistently report that the thumb-wheel brightness control on the cable itself is more tactile and responsive than app-based sliders.
The semi-rigid 16.4-foot cable is stiff enough to hold a pre-bent curve as you push it through a dryer vent or HVAC duct, yet flexible enough to follow gentle radius bends in drain lines. Three detachable connectors — USB-C, Micro USB, and Lightning — cover basically every Android and iOS device in circulation, which is a nice touch for households with mixed ecosystems. The included magnet and hook attachments let you retrieve dropped screws or pull wires through wall cavities, extending the scope beyond pure inspection into light tool retrieval.
Setup is straightforward: scan the QR code to install the app, plug in the correct connector, and the live feed appears within seconds. The app supports still capture and video recording, and the focus is fixed at the factory, which means close-up sharpness is decent but not adjustable. A handful of users reported the probe losing connection after several months of use, though the seller offered a full refund in those cases, suggesting responsive customer service behind the product.
What works
- One-click camera switch between front and side view avoids awkward probe rotations.
- Cable-mounted brightness thumb wheel gives precise LED control without app navigation.
- Includes separate Lightning, USB-C, and Micro USB connectors for broad device compatibility.
- 1920×1440P sensor captures taller images better suited to pipe cross-section inspection.
What doesn’t
- Fixed-focus lens struggles to resolve objects closer than about 3 cm.
- Long-term reliability is inconsistent; a small number of units lose camera connection after repeated use.

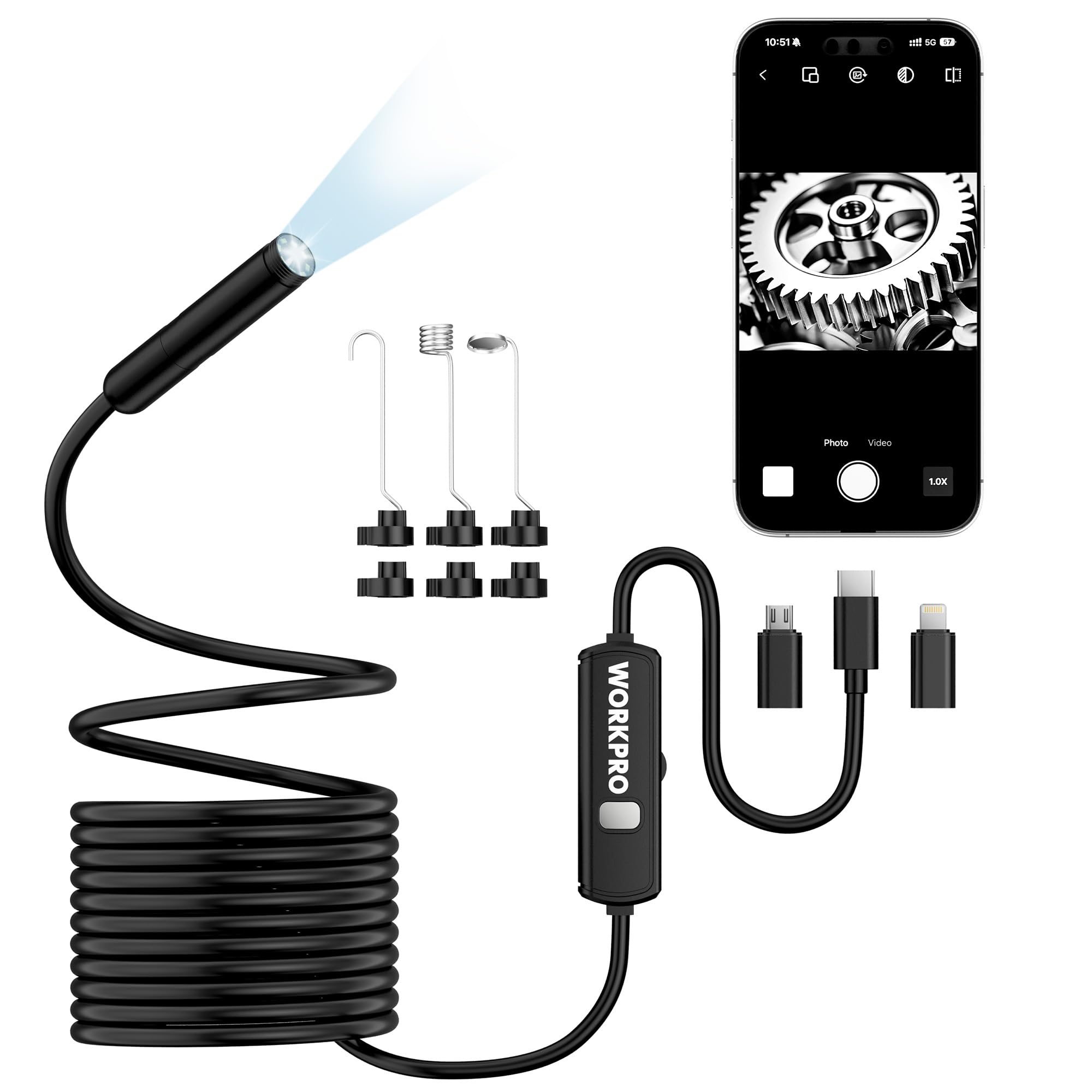

3. WORKPRO Industrial Endoscope
WORKPRO positions this endoscope as an industrial-grade tool, and the cable construction backs up that claim: a pure copper core wrapped in reinforced steel wire gives the 16.4-foot lead noticeably more tensile strength and crush resistance than the plastic-jacketed cables found on budget scopes. The 1920P 2MP camera delivers image quality that is perfectly adequate for diagnosing blockages, inspecting wiring bundles, and checking equipment interiors, though the fixed 20-100mm focal range means you need to maintain at least a couple inches of distance for a sharp image. The 8.0 mm probe is just slim enough to fit through most standard openings, and the IP67 waterproofing lets you work in wet cavities without hesitation.
One trade-off that shows up consistently in user feedback is the light output: the 8 adjustable LEDs are bright enough for short-range work inside an engine bay or a wall cavity, but in very dark, long pipe runs the illumination falls off quickly, creating a high-contrast image where shadows go black. Tilting the camera to catch reflected light helps, but it is a quirk you learn to work around rather than a flaw you can fix. The app includes 1x, 1.5x, and 2x zoom settings plus color and black-and-white viewing modes, which is a nice bonus for highlighting contrast on specific surfaces.
The bundle includes a mirror accessory for seeing around corners, a magnet for retrieving ferrous objects, and a hook for pulling cables or loose debris. Setup is simple: plug into a USB-C port, follow the QR code to the app, and the live feed starts immediately. The unit lacks articulation — the cable does not steer itself — but for straight-ahead inspection tasks where you push the scope into position and look, it gets the job done at a price that undercuts most of its competition.
What works
- Reinforced copper-and-steel cable resists kinking and crushing better than plastic-jacketed alternatives.
- Multiple zoom levels and color/B&W modes in the app help differentiate surface details.
- Includes mirror, magnet, and hook accessories for versatile light retrieval tasks.
What doesn’t
- LED illumination struggles in deep, dark pipe runs; shadows lose detail quickly.
- Fixed 20-100mm focus makes close-up inspection of very tight gaps challenging.
4. Teslong 50FT USB-C Borescope
The Teslong 50FT borescope fills a specific gap that short-cable endoscopes cannot touch: deep sewer lateral inspections, long HVAC duct runs, and automotive diagnostics where the inspection point is a full car length away from your phone. The 50-foot semi-rigid cable is the longest in this roundup by a wide margin, and while the cable itself bends and holds a shape well, it is not rigid enough to push through tight 90-degree plumbing turns on its own. Experienced users solve this by zip-tying the probe to a stiff fish tape or threading it through a foam practice golf ball to create a rough steering bulb.
The camera sensor is the trade-off for the extreme cable length: effective still resolution is 720P rather than the 1920P or 2K found on shorter scopes, so image detail is noticeably softer when you zoom in on markings or cracks. The 8 high-brightness LEDs are genuine and adjustable, but the same user reviews that praise the light also note that the tip lights alone are not sufficient for complete darkness — a separate flashlight taped to the probe is a common workaround for black-pipe inspections. The IP67 waterproof rating is intact, so wet environs like sump pits and toilet drains are safe.
Compatibility is limited to USB-C devices running Android 8.0+ with OTG support and the iPhone 15/16/17 series — no Lightning adapters are included, and the unit will not work with older iPhones. The correct app is “Xscope” (not “UseePlus” as some listings suggest), which provides photo and video capture plus basic zoom. For the DIYer who needs to see down a 40-foot sewer line without renting a professional sewer camera rig, the Teslong 50FT is the only option at this price that even attempts that job, even if you must supplement the cable with a fish tape.
What works
- 50-foot cable reaches farther than any other endoscope in this comparison — ideal for sewer laterals and long ducts.
- IP67 waterproof rating handles wet environments without damage.
- Compatible with USB-C iPads and iPhone 15/16/17 in addition to Android.
What doesn’t
- Camera resolution is only 720P, producing soft, grainy images at any magnification.
- Cable alone cannot push through tight pipe bends; requires a fish tape or other stiff guide for sewer work.
- Lights are dim for complete darkness; a supplemental flashlight is often needed.
5. Anykit 9.8 ft Single Lens Endoscope
The Anykit endoscope strips away complexity and delivers a solid 1920×1440P image from a 2MP sensor at a price that makes it an easy impulse purchase for the homeowner tackling drain clogs and wall cavity inspections. The 8.5 mm probe is slightly thicker than the 7.9 mm standard, but that extra fraction of a millimeter allows the 8 adjustable LEDs to cast a broader, more even light across the inspection area, which users frequently note as surprisingly effective for the price. The semi-rigid 9.8-foot cable is long enough for most residential tasks — checking under a dishwasher, looking inside a water heater, peeking into a vent boot — without the bulk and tangling that longer cables create.
Setup is as simple as it gets: plug the USB-C connector into an Android 8.0+ device, install the X-SCOPE app, and the live feed appears. There is no dual-lens switching or fancy digital features — just a straightforward single-camera view with adjustable brightness and the ability to capture photos and video. The fixed-focus lens has a macro range starting at 1 cm, which is tighter than many competitors and means you can actually resolve the texture of calcium buildup inside a water heater element or inspect a solder joint up close without the image going blurry.
The cable is stiffer than some users initially expect, which is actually an advantage for transmitting steering input from your hand to the tip, but it does require more effort to navigate sharp-radius bends in a P-trap. The included hook and magnet add basic retrieval capability, and the IP67 waterproofing allows submerged use without worry. If you only need an endoscope occasionally for home maintenance and refuse to overspend on features you will never use, the Anykit delivers reliable image quality and solid usability at the lowest entry point in this list.
What works
- Excellent value per dollar with a 1920×1440P sensor that punches above its price tier.
- Broad LED coverage from the slightly larger 8.5 mm probe lights up dark cavities evenly.
- 1 cm minimum focus range allows crisp close-up inspection of small details.
What doesn’t
- Single-lens design means you must rotate the entire cable to change viewing angle; no side camera is available.
- 9.8 ft cable is too short for deep sewer runs or long automotive frame rails.
Hardware & Specs Guide
Sensor Resolution and Pixel Density
The camera sensor’s effective megapixel count determines how much detail the endoscope can resolve at a given distance. A 2MP sensor (1920×1080P or 1920×1440P) is adequate for identifying blockages, loose wires, and gasket wear, while a 3.69MP sensor (2560×1440P) like the one in the DEPSTECH NTC55 reveals finer textures like sand in a drain or hairline fractures in metal castings. Higher pixel density also supports pinch-to-zoom on your phone without the image dissolving into blocky artifacts, which matters when you need to read a stamped part number inside a tight cavity.
Cable Construction and Semi-Rigid Behavior
The cable is the mechanical backbone of the inspection tool. A semi-rigid endoscope cable uses a steel wire spiral wrapped around a copper or fiber-optic core, allowing the lead to hold a bent shape after you manually curve it. This property — called “grip” or “shape memory” in the borescope world — lets you pre-bend the probe to navigate around a P-trap or through an engine mount and have the tip stay pointed at your target. Pure flexible cables, by contrast, flop to the lowest point and require constant manual guidance, which is a dealbreaker for one-person inspections where both hands are already busy.
FAQ
Why does my Android phone not recognize the endoscope camera after plugging it in?
Can I use an Android endoscope camera to inspect a gas pipe or fuel line?
Final Thoughts: The Verdict
For most users, the android endoscope camera winner is the DEPSTECH NTC55 because its 2K sensor, instant dual-lens switching, and robust cable deliver the highest usable image quality per dollar. If you want to switch between front and side views without re-angling the probe, grab the PAPIBLU Dual-Lens. And for deep sewer or duct inspections where cable length is the primary constraint, nothing beats the Teslong 50FT.
