The single clearest sign you installed the wrong opener is the gate sagging at the hinge, the motor straining on a windy day, or a remote that fails at the end of the driveway. An automatic gate opener is a heavy mechanical investment—picking one rated for your gate’s actual weight and length separates a decade of silent operation from a season of frustration.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I analyze hundreds of product specifications and real-world user reports to isolate the hardware details that actually determine long-term reliability in outdoor automation gear.
Whether you’re securing a remote farm entrance or automating a residential driveway, the best automatic gate opener comes down to matching motor torque, gate material, and power source to your specific site conditions.
How To Choose The Best Automatic Gate Opener
Choosing the right opener requires reconciling three fixed variables: the gate’s physical dimensions (weight and length), its swing or slide orientation, and your access to AC power at the installation point. Each variable eliminates entire categories of openers before you even look at remote range or smart features.
Gate Type and Physical Limits
Swing gate openers use an articulated arm that pushes or pulls the gate leaf. They are sensitive to hinge binding and gate plumb—if the gate does not swing freely by hand, no motor will fix it. Sliding gate openers use a chain or rack to drag the gate laterally along a track. Slides can handle heavier gates (often over 3000 pounds) because the motor does not fight gravity, but they require a clear straight line of travel and a concrete foundation for the track.
Motor Voltage and Power Source
12V DC systems are the most common for residential kits because they run on a single deep-cycle battery kept charged by an AC transformer or solar panel. 24V DC motors produce higher torque and quieter operation but often require a dedicated 24V battery bank. 120V AC motors are rare in all-in-one kits and are typically found on commercial sliding operators. For solar installations, look for openers that explicitly list a solar panel wattage range—5 to 30 watts is the sweet spot for battery top-off in most climates.
Safety Compliance and Sensors
UL 325 is the safety standard for gate operators in North America. It mandates either inherent or entrapment-protection sensors (photocells or edge sensors) on any automatic gate. Infrared sensors are the most common add-on; they create an invisible beam that triggers a stop-and-reverse if interrupted. Openers sold without any sensor provisions force you to retrofit, which can void the warranty or create liability.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Ghost Controls TDS2XP | Dual Swing Solar | Off-grid dual gates | 1000 ft remote / 900 lbs | Amazon |
| Ghost Controls TSS1 | Single Swing | Heavy single gates | 900 lbs / 20 ft max | Amazon |
| Blütezeit 6300lb WiFi | Sliding Heavy-Duty | Commercial / heavy slide | 6300 lbs / 2.05 HP motor | Amazon |
| Blütezeit 4000lb WiFi | Sliding Mid-Range | Residential sliding gates | 4000 lbs / 1 HP motor | Amazon |
| TOPENS PW502 Dual | Dual Swing | Medium driveway pairs | 550 lbs per leaf / 16 ft | Amazon |
| TOPENS A8 | Single Swing Heavy | Heavy wrought-iron gates | 880 lbs / 18 ft | Amazon |
| Mighty Mule MM571W | Single Swing Smart | Smart remote / solar ready | 850 lbs / 18 ft | Amazon |
| CO-Z 3300 lb Sliding | Sliding Value | Long lightweight slides | 3300 lbs / 40 ft / 550W | Amazon |
| Mighty Mule MM271 | Single Swing Entry | Light gates under 300 lbs | 300 lbs / 12 ft max | Amazon |
In‑Depth Reviews
1. Ghost Controls TDS2XP Solar Dual
The TDS2XP comes as a true dual-swing kit with two arms, a 10-watt monocrystalline solar panel, and two 3-button transmitters—everything needed to automate a pair of gates up to 900 pounds per leaf and 12 feet per side. The solar panel is monocrystalline, meaning it maintains charge even in overcast conditions, and the included battery harness works directly with a 12V deep-cycle marine battery you supply. The remote range is a class-leading 1000 feet, enough to open from the house without line-of-sight.
Installation is genuinely DIY-friendly—you can manage it with two people in an afternoon using basic hand tools and no welding. The controller offers adjustable auto-close timing, obstacle detection through the limit switch setup, and separate jogging sequences to synchronize leaf overlap. The staggered opening feature lets one gate move first, reducing the load spike on the battery. Owners consistently report flawless operation through winter and summer, with the solar panel keeping the battery topped off even in shaded locations.
The primary weak point appears to be the control board’s plastic stop-switch assembly, which has failed on a few units after the warranty period. Ghost Controls has improved the replacement board design, but the company does not sell individual internal parts—if the board goes, you replace the whole assembly. The power-on beep is also quite loud and cannot be silenced. For an off-grid property needing reliable dual-gate automation without trenching AC lines, this is the top-tier solution.
What works
- Genuine 1000-ft remote range
- Monocrystalline solar handles overcast days well
- Staggered leaf opening reduces battery load
- No welding or high-voltage wiring required
What doesn’t
- Loud power-on beep cannot be disabled
- Entire control board must be replaced if internal switch fails
- Battery not included in kit
2. Ghost Controls TSS1
The TSS1 is Ghost Controls’ single-arm heavy-duty opener rated for gates up to 900 pounds or 20 feet, making it one of the longest-throw residential swing openers on the market. The arm construction uses a steel tube with internal limit switches that are adjustable without removing the cover. The control box runs on 12V DC battery power with an included AC transformer for continuous trickle charge—you supply a deep-cycle marine battery. The 3-button transmitter works reliably at about 150 feet, enough to trigger from inside most homes.
User reports highlight the exceptional documentation: the manual includes step-by-step mechanical alignment, limit switch setup, and transmitter programming with clear photos. The universal tube brackets let you attach to round, square, or wood posts without custom fabrication. The soft-start and soft-stop ramping reduces mechanical stress on the gate hinges, and the force-sensing auto-reverse meets UL 325 entrapment protection standards. Multiple owners report replacing Mighty Mule units with this opener and seeing immediate improvement in smooth operation and fewer ghost openings.
The main limitation is the omission of a battery from the kit—you must purchase a 12V deep-cycle separately, and the quick-disconnect harness is bare wire, not a pre-terminated connector. A small number of units have shipped with a defective control board that Ghost support handled promptly, but the return process involves shipping the entire controller back. Some users also note that the soft-close threshold is tricky to dial in on gates under 250 pounds, occasionally causing bounce-back. For a heavy single gate where reliability is non-negotiable, the TSS1 justifies its premium price.
What works
- Rated for 20-ft gates—the longest in this class
- Adjustable soft-start/stop reduces hinge wear
- Excellent DIY instructions with tube bracket adapters
- UL325 certified with force-sensing auto-reverse
What doesn’t
- Battery not included; harness is bare wire
- Soft-close tuning difficult on lightweight gates
- Control board issues require full unit return
3. Blütezeit 6300lb WiFi Sliding
The Blütezeit 6300lb is an extra-heavy-duty sliding gate opener packing a 1500W (2.05 HP) copper motor and a rack-driven system with 13.12 feet of steel gear racks. It handles gates up to 6300 pounds and 40 feet—easily the highest weight capacity in this lineup. The motor is paired with a pre-installed WiFi module that connects to the eWeLink app over 2.4GHz networks, enabling remote open/close, scheduling, and user sharing. Two 433MHz remotes with 100-foot range are included, and the system supports up to 40 remotes total.
The rack-driven design uses eight individual 1.64-foot steel racks that bolt together, making installation modular and allowing you to adjust the total rack length if your gate is shorter than 40 feet. The infrared sensors trigger a stop-and-reverse if the beam is interrupted during closing, and the auto-close timer can be set to 5, 10, or 15 seconds after the gate fully opens. Owners note the motor is genuinely quiet—rated at ≤45 dB—which is important for residential areas where chain-driven units vibrate audibly through the house.
The number one complaint is the WiFi/app setup: first-time users often struggle with the pairing sequence, and the eWeLink app requires network permissions that aren’t always intuitive. The motor unit itself weighs 38 pounds, so mounting the drive unit to a concrete base requires planning for anchor bolt placement. Several users report that the customer support team responds within 20 minutes via WhatsApp, even for basic questions like lost manuals. For a sliding gate installation where weight capacity and smart control are priorities, this opener delivers industrial-grade muscle at a residential-friendly price point.
What works
- 6300-lb capacity handles commercial-grade gates
- Quiet rack-drive operation at under 45 dB
- WiFi app control with schedule and sharing
- Lifetime tech support with fast WhatsApp response
What doesn’t
- WiFi pairing procedure is not beginner-friendly
- Heavy 38-lb motor requires sturdy base mount
- App currently 2.4GHz only; no 5GHz support

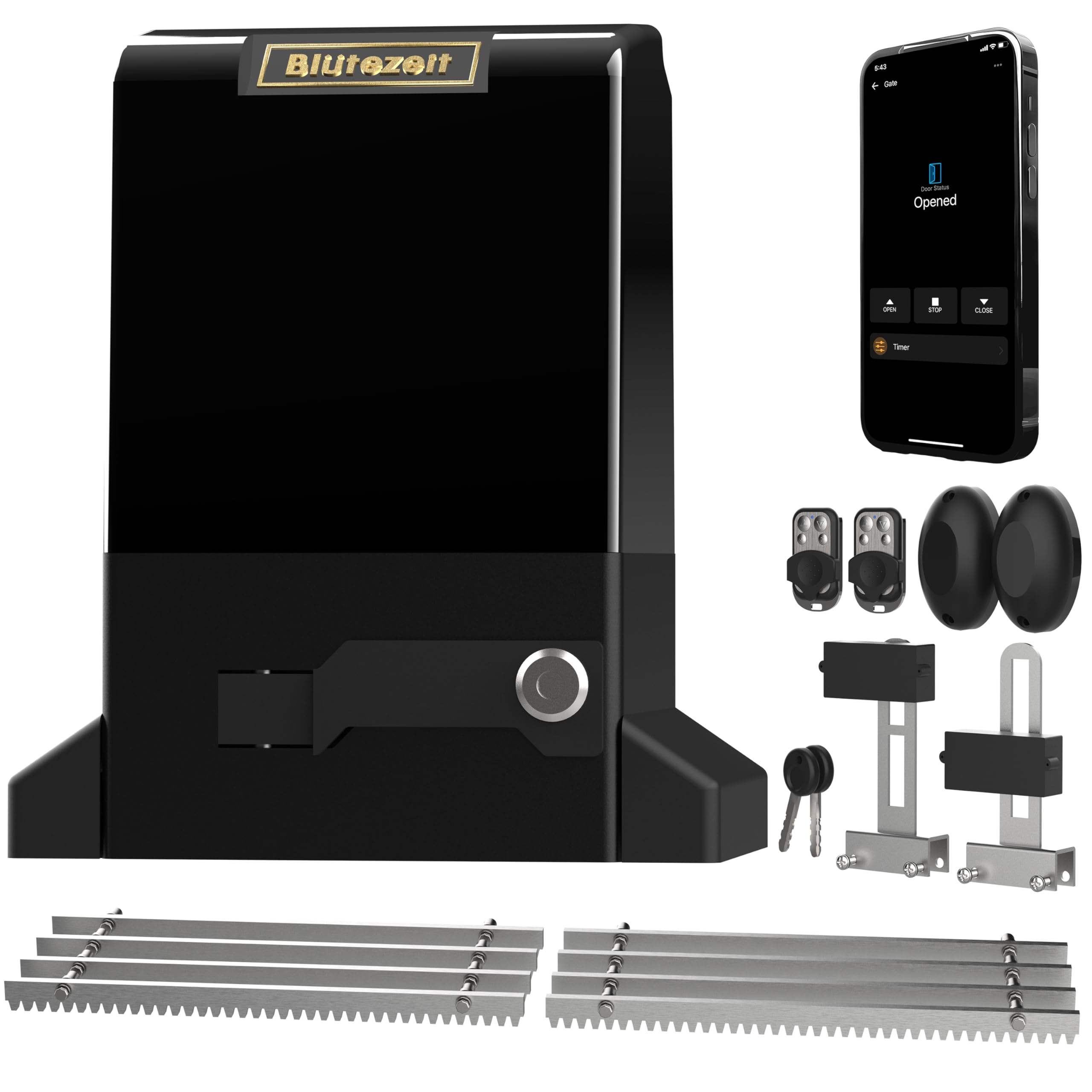

4. Blütezeit 4000lb WiFi Sliding
This 4000-pound version from Blütezeit shares the same rack-driven platform as the 6300lb model but uses a 750W (1 HP) motor instead of the 1500W unit. It still covers gates up to 40 feet with the same eight-piece steel rack kit, and the included hardware is identical—two remotes, two manual release keys, two infrared sensors, and a full mounting kit. The WiFi module and eWeLink app are also the same, so you get remote control without paying extra for an add-on module.
At 1 HP, this motor is more than sufficient for standard residential sliding gates made of steel tube, chain link, or wood with a typical weight under 3000 pounds. The current draw is lower than the 6300lb model, which means you can run it on a lighter-gauge extension cord or a smaller solar panel if you’re going off-grid. The infrared sensor wiring is particularly straightforward: the contact terminals are clearly labeled inside the control box, and the included brackets mount to the gate frame without drilling into the motor housing.
The trade-offs are predictable: the 1 HP motor lacks the overhead torque for gates approaching 4000 pounds on a slight incline, and the soft-start ramping is less aggressive than the larger unit, meaning the gate can jerk slightly on the first inch of travel. The remote range is rated at 100 feet, but real-world tests put it closer to 70 feet through metal gates. For the majority of residential sliding gates where the budget matters but reliability cannot be compromised, this is the smartest mid-range choice.
What works
- Excellent value for sub-3000-lb residential sliding gates
- Same WiFi app and IR sensors as the premium model
- Lower power draw enables off-grid solar flexibility
- 8-piece steel rack kit provides full 13-ft coverage
What doesn’t
- Soft-start ramping is not smooth on first inch of travel
- Remote range drops to ~70 feet through metal gates
- Not recommended for inclined slide tracks
5. TOPENS PW502 Dual
The PW502 is a dual-swing opener that uses two independent 24V DC 50-watt motors to handle gate leaves up to 550 pounds and 16 feet each. The 24V architecture gives it a distinct advantage over 12V systems: the motors run quieter, the torque curve is flatter, and the included DPS180-U power supply converts 100-240V AC directly to 24V DC without requiring a separate battery. The control box supports both pull-to-open and push-to-open configurations, and the electromagnetism limit switches are adjustable without disassembling the arm—you turn a small screw on the actuator body.
Installation is uncomplicated for anyone comfortable with basic wiring: the two 5-conductor cables from the arms terminate into labeled screw terminals in the control box, and the remote pairing is a simple DIP-switch procedure. The auto-close timer and soft-start/stop parameters are adjusted via dials on the control board. Owners upgrading from older Mighty Mule systems note that the GTO mounting brackets are compatible with the TOPENS arms, and the GTO keypads can be wired directly into the PW502 control board (though the remotes are cross-brand incompatible).
The main reliability issue surfaces with the power supply: under sustained heavy use, the DPS180-U can overheat and trigger a thermal reset, which manifest as the gate stopping mid-cycle. Several users switched to a 24V 12Ah battery as the primary power source (bypassing the included supply) and reported zero subsequent issues. The plastic NEMA enclosure also lacks a dedicated port for an electric gate lock, so you must drill a hole and use a waterproof gland. For medium-duty dual gates where smooth 24V operation is the goal, this kit delivers solid performance once you address the power supply limitation.
What works
- Quiet 24V DC motors with smooth torque curve
- Electromagnetic limit switches are easily adjustable
- Compatible with existing GTO mounting brackets and keypads
- Supports push-to-open and pull-to-open configurations
What doesn’t
- Included power supply can overheat under sustained use
- Plastic enclosure lacks port for electric gate lock
- 5-conductor cables are short for wide gate posts
6. TOPENS A8
The TOPENS A8 targets the heavy single-swing segment with an 80W 24V DC motor rated for gates up to 880 pounds or 18 feet—more torque than most 12V alternatives. The motor is paired with a built-in electromagnetic limit switch that you adjust by sliding a magnetic collar along the actuator shaft, a much cleaner method than the microswitches found on budget units. The kit includes a manual release key, a full set of mounting hardware, and two CR2 batteries for the remote, but you must supply a 24V 12Ah battery and a 20W solar panel if you want off-grid operation.
Real-world reports from users with 250-300 pound wrought-iron gates confirm the A8 opens and closes faster than the Mighty Mule MM571 while running significantly quieter. The soft-start and soft-stop function is calibrated well out of the box—the gate decelerates smoothly before reaching the stop point, reducing the jolt on the actuator and hinge. The auto-close timer is adjustable from the control board, and the stop-and-reverse obstacle detection works reliably with the included photocell beam set. Multiple owners have crossed the three-year mark without any motor or control board failure, qualifying this as a genuinely durable long-term investment.
The remote transmitter uses a small coin cell battery and the rubber buttons are prone to sticking after a year of outdoor use—you can purchase replacement fobs with sealed silicone covers directly from TOPENS. The installation requires you to fabricate or weld a bracket for the actuator pivot point; the included universal bracket fits most square posts but may not work with thick-wall steel posts without modification. For a heavy residential swing gate where quiet 24V operation and long-term reliability are the priority, the A8 is the strongest contender.
What works
- Quieter and faster than competing 12V swing openers
- Electromagnetic limit switch stays accurate over time
- Soft start/stop extends actuator and hinge life
- Multiple users report 3+ years of daily cycling without issues
What doesn’t
- Remote buttons become sticky with outdoor use
- Battery and solar panel sold separately
- Actuator bracket may require welding for non-standard posts
7. Mighty Mule MM571W
The MM571W is Mighty Mule’s heavy-duty single swing opener with a rated capacity of 850 pounds and 18 feet, plus integrated smart-readiness that lets you add a remote access module for smartphone control. The kit includes the heavy-duty actuator arm, a control panel/battery box, an MM150 12V battery, a single 3-button transmitter, and all mounting hardware—the only missing piece is a solar panel if you want off-grid operation. The actuator uses a 12V DC motor similar to the MM271 but with a larger gearbox and a reinforced drive shaft to handle the higher weight rating.
One of the strongest selling points is the Mighty Mule ecosystem: the control box accepts plug-in accessories like the FM123 solar panel, the MMT103 transmitter, and the MultiConnect smart module without any wiring modifications. The installation video library on the Mighty Mule website is comprehensive—there are dedicated guides for ornamental, chain link, tube, panel, vinyl, and wood gate mounting. Users upgrading from the older MM500 report that the new actuator arm bolts directly to the old brackets, making replacement a 30-minute job.
The less positive side is inconsistency: a significant number of owners report ghost opening/closing behavior, where the gate activates randomly, and some units fail entirely within two months. The included MM150 battery is a small-format 12V 8Ah unit that struggles in cold climates—if you live where winter temperatures drop below freezing, upgrading to a larger deep-cycle battery is mandatory. The control board’s internal timer and limit settings are adjusted using tiny DIP switches and potentiometers that are easy to misconfigure. Despite these flaws, users who get a properly assembled unit often report 15-20 year lifespans with just a battery swap every 5 years, which is unmatched longevity in the residential segment.
What works
- Accessory ecosystem with plug-in solar and smart modules
- Replacement arms bolt directly to old Mighty Mule brackets
- Vast library of installation videos for all gate types
- Some units last 15-20 years with only battery changes
What doesn’t
- High incidence of ghost opening/closing reported
- Included 8Ah battery is undersized for freezing climates
- DIP switch configuration is easy to mis-set
8. CO-Z 3300 lb Sliding
The CO-Z 3300 lb sliding gate opener is the entry-level workhorse for anyone with a long sliding gate who doesn’t need WiFi control. The 550W copper motor is connected to a roller chain drive system that moves gates up to 40 feet at about 42 feet per minute. The steel construction with an ABS cover is lightweight enough to mount on a medium-duty gate track, and the built-in heat dissipation vents keep the motor from overheating during back-to-back cycles. The kit includes two remotes with frequency encryption technology to prevent code grabbing, plus infrared safety sensors for obstacle detection.
Installation requires welding or bolting the drive bracket to the gate frame, plus pouring a concrete pad for the motor base—this is not a simple bolt-on kit. The remote range is approximately 110 feet in open air, and the system supports up to 25 remotes total. Users who built 28-foot metal gates with wood pickets report that the CO-Z pushes them effortlessly, and after three years of daily operation, the only maintenance needed has been replacing the track magnets (which are cheap and easy to source). The auto-close timer and obstacle detection are functional, but the motor does not have soft-start or variable speed control—the gate jolts into motion and stops abruptly.
The major safety gap is that without the infrared sensors installed, the motor will not stop if it encounters a 220-pound obstacle because the force-sensing auto-reverse relies on the current draw increasing past a threshold, which a person or animal may not trigger. The programming button is also awkwardly positioned inside the control housing, requiring you to open the box to adjust settings. For a budget-conscious buyer with basic welding skills and a flat gate run, the CO-Z offers an incredible price-to-performance ratio as long as the safety sensors are properly installed.
What works
- Extremely high value for 3300-lb sliding capacity
- Durable build with heat-dissipating ABS cover
- Roller chain drive is easy to tension and maintain
- Magnets are cheap and simple to replace
What doesn’t
- No soft-start or variable speed—gate jolts at start/stop
- Force-sensing reverse may not detect a person without IR sensors
- Welding required for gate bracket; concrete pad for motor base
9. Mighty Mule MM271
The MM271 is an entry-level swing opener for light-duty single gates up to 12 feet and 300 pounds. It runs on a 12V DC motor that requires a separate 12V automotive or marine battery with at least 250 CCA—the battery is not included. The kit provides one 3-button remote, the control box, and all mounting brackets with a manual that links to online how-to videos. The actuator is the same basic design as the larger Mighty Mule models but uses a smaller gear motor and a lighter-duty piston, meaning it cannot be swapped with the MM571 arm if you upgrade later.
The soft-close deceleration works reasonably well on gates under 250 pounds, slowing the gate before the final stop point to reduce hinge slam. Users with lightweight ornamental or chain-link gates generally report smooth operation after the initial DIP-switch programming. The control box has a convenient status LED that shows battery voltage level and limit switch position, which helps during installation. The solar compatibility is a plus for off-grid applications—you can connect a 10-watt Mighty Mule FM123 panel directly to the control board terminals without a charge controller.
The Achilles’ heel is reliability inconsistency: the gear motor has failed prematurely on some units operating with gates as light as 85 pounds, and the control board has a known issue with random activation triggered by electrical noise from nearby appliances. The base hinge is made of stamped steel rather than cast metal, and several users report it bending under normal load within the first year. The long beeping noise before the gate starts moving cannot be adjusted or silenced, which can be annoying on gates near the house. For a very light chain-link or tube gate that requires minimal force, this opener works fine—but pushing it anywhere near the 300-pound limit invites failure.
What works
- Soft-close deceleration reduces hinge slamming
- Control box has useful status LED for troubleshooting
- Solar-ready with direct panel connection (no charge controller needed)
- Easy DIP-switch remote programming
What doesn’t
- Gear motor fails prematurely under moderate loads
- Stamped steel base hinge bends under normal use
- Loud pre-motion beep cannot be silenced
- Random activation from electrical noise interference
Hardware & Specs Guide
Motor Voltage and Torque
12V DC motors are the most common in residential swing openers because they run directly on automotive or marine deep-cycle batteries. The motor’s torque rating—usually expressed as wattage (e.g., 50W, 80W, 1500W) or horsepower—determines how much gate weight the actuator can pivot. Sliding gate motors use higher wattage (550W to 1500W) because they push the entire gate mass laterally rather than pivoting it, which requires more continuous power but less peak torque. 24V DC motors deliver smoother acceleration and slower heat buildup, which is why premium swing openers are migrating to 24V designs.
Battery and Solar Compatibility
All 12V DC openers need a deep-cycle battery (not a starting battery) to buffer the current draw and provide consistent voltage. The battery size is measured in amp-hours (Ah); an 8Ah battery works for light cycling, but a 35Ah marine group-size battery is recommended for daily use with solar charging. Solar panel compatibility is typically expressed as a maximum wattage—most 12V control boxes accept 5W to 30W panels through a direct screw terminal. The panel must include a blocking diode or the control box must have a built-in charge controller to prevent battery drain at night.
Drive Mechanism: Arm, Chain, Rack
Swing openers use an articulating arm that extends and retracts via a lead screw or hydraulic piston inside the actuator tube. The arm’s stroke length determines maximum gate leaf length—longer arms require a bigger actuator. Sliding openers use either a steel roller chain (like a motorcycle chain) or a pinion rack system where a gear on the motor drives a toothed steel bar bolted to the gate. Rack-driven systems are stronger and quieter than chain, but they require precise alignment between the gear and rack teeth during installation.
Safety and Compliance Features
UL 325 is the mandatory safety standard for automatic gate operators in the United States. It requires the gate opener to include at least one primary entrapment-protection system—either Type A (inherent clutch or current sensing) or Type B (photoelectric sensor). Photoelectric sensors are external infrared beams that stop the gate and reverse it if the beam is broken during closing. Most kits include the sensors and wiring, but the quality of the bracket mounting and beam alignment is left to the installer, which is where most safety failures occur.
FAQ
Can I install a sliding gate opener on a slight incline in my driveway?
What size battery do I need for daily off-grid operation with a swing gate opener?
Why does my gate opener ghost-open randomly in the middle of the night?
Final Thoughts: The Verdict
For most users, the best automatic gate opener winner is the Blütezeit 6300lb WiFi Sliding because it combines industrial-grade 6300-pound capacity with a quiet rack-driven mechanism and smart app control at a price that undercuts commercial brands by a wide margin. If you need a solar-ready dual-swing system for an off-grid property, grab the Ghost Controls TDS2XP. And for a heavy residential single swing gate where quiet 24V operation and proven longevity matter, nothing beats the TOPENS A8.
