When the shower turns into a trickle or the washing machine takes forever to fill, the culprit is usually a home water supply line that lacks the raw pressure to serve multiple outlets at once. An automatic water pressure pump is the dedicated fix, and the choice comes down to flow rate, shut-off head, and whether the pump can handle the specific demands of your home’s plumbing without cycling itself to death.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I track the residential water pump market closely, analyzing build materials, pressure switch reliability, and real-world customer feedback across hundreds of units.
This guide is built to help you identify the right automatic water pressure pump for home by comparing flow rates, pressure ratings, and construction quality without burying you in marketing fluff.
How To Choose The Best Automatic Water Pressure Pump For Home
Not every pump is built for a residential multipoint system. Some are designed for RVs, others for irrigation spigots, and a few for whole-house pressurization. Your home’s pipe diameter, number of fixtures, and incoming municipal pressure will dictate which one survives the first year without a rebuild.
Flow Rate vs. Pressure: Which One Do You Need?
Gallons per minute dictates how much water volume you get at each fixture. Pressure, measured in PSI, dictates how hard that water hits you in the shower. A pump with 7 GPM at 70 PSI is ideal for a home with two bathrooms, while a smaller 5.5 GPM unit may struggle if someone flushes a toilet while you shower. Most homes need at least 6 GPM and 50 PSI sustained at the farthest tap.
Self-Priming and Dry-Run Protection
A pump that can self-prime pulls water from below its inlet level without you manually filling the intake line. This is critical if your pump sits above a well, a rain barrel, or a basement tank. Dry-run protection shuts the motor off if the water source runs out — without it, the pump can burn its seals and impeller in minutes.
Automatic Pressure Switch Quality
The pressure switch is the component that tells the pump to start at a low pressure setpoint and stop at a high one. Cheap switches stick, cycle rapidly, or fail entirely within a year. Look for pumps with adjustable switches and replaceable relays. A pump with a pre-charged pressure tank extends switch life by reducing on/off cycles.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Truper PRES-1 | Whole-House Booster | Multi-story residential | 53 L/min flow rate | Amazon |
| BACOENG P0097 | Tankless Booster | No pressure tank | 12 GPM max flow | Amazon |
| LANCHEZ Shallow Well | Jet Pump with Tank | Garden & home supply | 1340 GPH max flow | Amazon |
| VIVOSUN 1.6 HP | Shallow Well with Tank | Well & rain barrel | 1320 GPH, 5-gal tank | Amazon |
| Aquastrong 1.6 HP | Shallow Well Pump | Lawn irrigation | 1320 GPH, 164 ft lift | Amazon |
| Aquatec 6800 Kit | RO Booster Pump | Reverse osmosis systems | 2 L/min, 60-80 PSI | Amazon |
| hzhdven 7 GPM | Fresh Water Diaphragm | RV & off-grid cabin | 7 GPM at 70 PSI | Amazon |
| BOKYWOX RS15-9SB | Recirculation Pump | Solar heater & recirc | 8 GPM, 304 stainless | Amazon |
| Dreyoo 5.5 GPM | Diaphragm Utility | RV & washdown | 5.5 GPM at 70 PSI | Amazon |
In‑Depth Reviews
1. Truper PRES-1
The Truper PRES-1 is a 1 HP inline booster designed to raise water pressure across an entire multi-story home, not just a single tap. Its automatic flow switch detects water movement instantly — open a faucet and the pump engages, close it and the unit powers down without a pressure tank. This eliminates the short-cycling that kills lesser pumps.
With a flow rate of 53 liters per minute and a maximum head of 124 feet, the Truper can push water from a basement or crawl space to a second-story shower without noticeable drop-off. The ABS housing reduces weight but holds up well against corrosion. Thermal overload protection prevents burnout during extended use.
User reports confirm quiet operation and straightforward installation, though the 1-inch ports require careful fitting for homes with 3/4-inch plumbing. This pump is the best choice for a permanent whole-house installation where you want set-and-forget reliability.
What works
- Strong 53 L/min flow handles multiple fixtures
- Flow switch activation, no pressure tank needed
- Quiet enough for a crawl space install
What doesn’t
- ABS housing less rugged than stainless steel
- 1-inch ports may need adapter bushings
2. BACOENG P0097
The BACOENG P0097 is marketed specifically for tankless water heater systems and direct in-line pressurization. Its 0.6 HP motor pushes a maximum of 12 GPM at up to 6 bar (roughly 87 PSI), making it more than capable of feeding a rain shower or a tankless unit that requires minimum flow to fire. The built-in dry-run protection stops operation if the inlet runs out of water, which is a common failure point in budget pumps.
The wetted parts are all stainless steel 304, so this pump can handle potable water without introducing rust or off-flavors. The smart controller continuously monitors pressure and cycles the pump only when demand is detected, avoiding the rapid on/off nuisance that plagues many automatic units.
Some users report that the pump runs noticeably at full speed and that the inlet threads require careful sealing to avoid leaks. It has also been noted that pressure may decline after a year of continuous use. For homes with tankless heaters or a no-tank configuration, the BACOENG is a strong contender.
What works
- All 304 stainless wetted parts for potable water
- Dry-run and thermal overload protection
- Smart controller prevents rapid cycling
What doesn’t
- Noise level noticeable in living spaces
- Long-term reliability reports are mixed
3. LANCHEZ Shallow Well Pump
The LANCHEZ combines a 1.6 HP jet pump with a 5-gallon pressure tank, giving you both sustained pressure and reduced switch cycling. It self-primes up to 26 feet, making it an excellent solution for homes drawing from a shallow well or a rain barrel system. The pump delivers up to 1340 GPH with a maximum head of 150 feet.
The pressure switch is set to start at 20 PSI and shut off at 40 PSI, which is conservative but protects the motor from running dry. The stainless steel casing resists corrosion better than painted iron, and the included pressure gauge lets you monitor performance at a glance. The matte black finish is more resistant to rust spotting than traditional painted pumps.
Reports of pinhole leaks in the housing after several months suggest that careful installation and periodic inspection are necessary. However, the 3-year warranty and responsive customer service have resolved most issues for buyers. This is a solid mid-range option for anyone needing a tank-integrated unit.
What works
- 5-gallon tank reduces motor cycling
- Stainless steel casing resists corrosion
- 3-year warranty with good support
What doesn’t
- Potential pinhole leaks in housing
- Thread type is NPS, not NPT
4. VIVOSUN 1.6 HP Shallow Well Pump
The VIVOSUN 1.6 HP shallow well pump carries NSF-61 certification, meaning all materials in contact with drinking water are safe for potable use. It pairs a 1320 GPH maximum flow with a 5-gallon pressure tank and a pressure switch that activates at 30 PSI and cuts off at 50 PSI. Overheat and overload protection are built directly into the motor housing.
This pump can draw water from 26 feet deep and lift it 164 feet vertically, which is enough to supply a house from a shallow well or fill elevated storage tanks. The stainless steel head resists rust, though the included foot valve and adapters are basic and may need upgrading for permanent installations.
User feedback highlights that the pressure switch may require replacement with a higher-quality unit like a Square D, as some units have shown sticking. The pump itself is durable, but the switch is the weak link. For those comfortable with a simple DIY upgrade, this is one of the most capable pump-plus-tank packages available.
What works
- NSF-61 certified for potable water
- High 1320 GPH flow and 164 ft head
- Tank reduces on/off cycling
What doesn’t
- Pressure switch may stick over time
- Included fittings are basic
5. Aquastrong 1.6 HP Shallow Well Pump
The Aquastrong 1.6 HP pump is built for portability with an iron carry handle and a waterproof on/off switch, making it easy to move between a rain barrel, shallow well, or garden spigot. It delivers a maximum flow of 1320 GPH and can lift water up to 164 feet. The pump is not self-priming, so the intake line must be filled before each use.
The stainless steel casing and aluminum motor housing are corrosion-resistant, but the pump relies on a carbon ceramic mechanical seal to prevent leaks. This seal is effective if the pump is run with water in the chamber, but running it dry will quickly destroy it. Overheat protection shuts the motor off if it gets too hot.
Users have noted that while the pump works well for irrigation and water transfer, the lack of automatic pressure control without an external pressure switch limits its use as a whole-home booster. It is best used for lawn sprinklers, filling tanks, or as a transfer pump for ponds and ditches.
What works
- Portable with carry handle and waterproof switch
- High 1320 GPH flow rate
- Good warranty and customer support
What doesn’t
- Not self-priming, requires manual fill
- No built-in pressure switch for auto operation
6. Aquatec 6800 Booster Kit
The Aquatec 6800 is a specialized booster designed exclusively for reverse osmosis systems up to 100 GPD. It takes incoming feed pressure of 30-40 PSI and ramps it up to 60-80 PSI, significantly improving RO membrane efficiency and reducing wastewater. The kit includes the pump, a PSW-240 pressure switch, a 110V transformer, and all necessary 1/4-inch fittings.
The pump is marvelously quiet — with the cabinet door closed, it is nearly inaudible. The pressure switch is adjustable via a small Allen screw, which allows fine-tuning of the shut-off pressure. Vibration can travel through rigid plumbing, but the included dampening base helps isolate the movement.
Users with well water or low municipal pressure have reported instant improvement in RO water production and storage tank fill speed. This pump is not for whole-house boosting or water transfer — it is a targeted solution for RO systems only. The made-in-USA quality gives it a longer service life than generic import pumps.
What works
- Near-silent operation
- Adjustable output pressure up to 80 PSI
- Significantly improves RO water production
What doesn’t
- Only works with RO systems under 100 GPD
- Vibrations may travel through hard plumbing

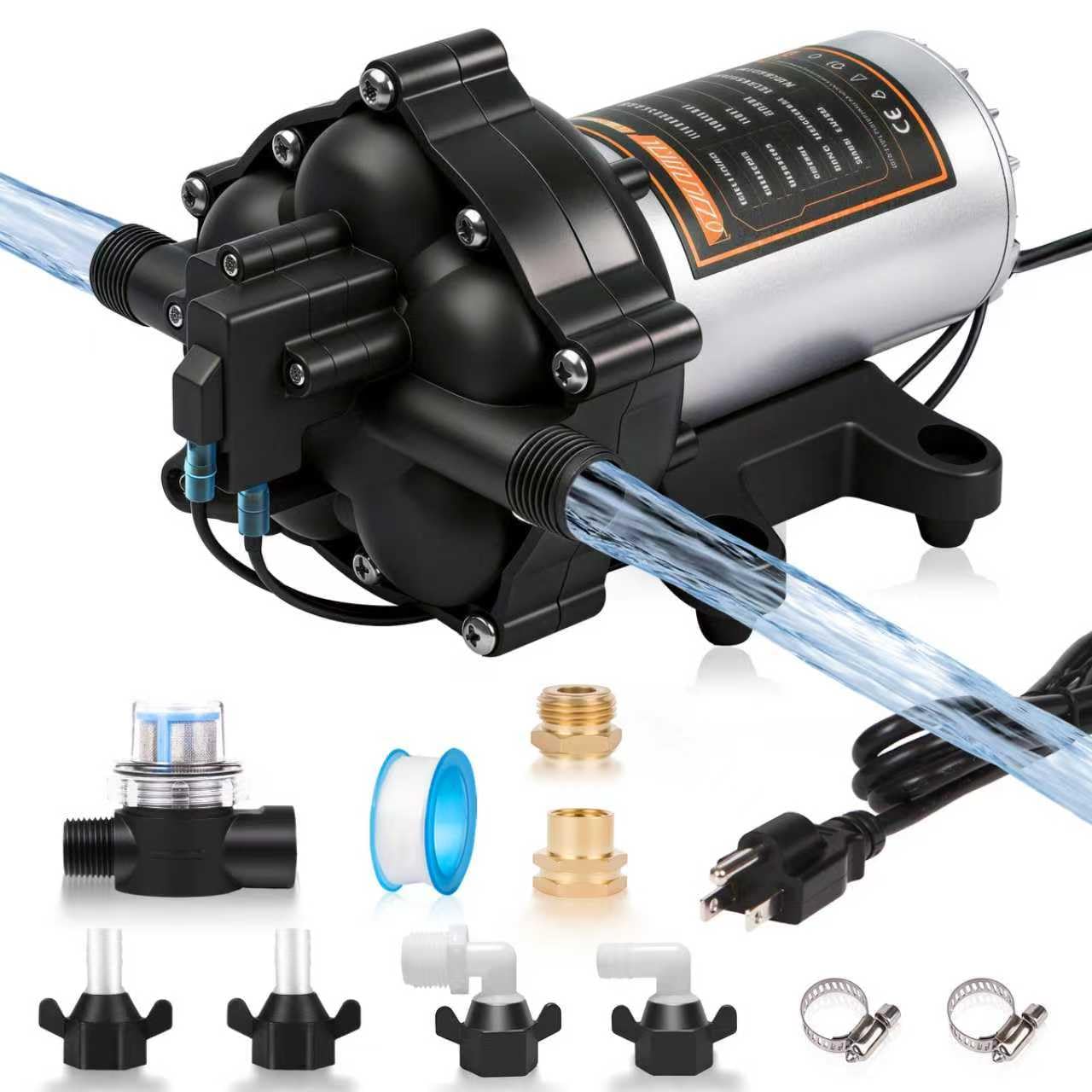

7. hzhdven 7 GPM Fresh Water Pump
The hzhdven 7 GPM pump is a five-chamber diaphragm pump that draws only 6.5 amps at 110V, making it compatible with solar battery systems and RV electrical panels. It produces 70 PSI max pressure and is self-priming, so it can pull water from a tank or reservoir located below the pump level. The ABS plastic and stainless steel construction keeps weight at just 7 pounds.
The five-chamber design reduces pulsation, delivering more consistent water flow than standard three-chamber pumps. NSK double ball bearings on the motor shaft contribute to a quieter run cycle — significantly less drone than most diaphragm pumps at this price point. The automatic pressure switch handles the on/off cycling reliably.
Some users have reported pressure switch failures on the first trip, suggesting quality control can be inconsistent. The fittings are also reported to be somewhat fragile, so hand-tightening is strongly recommended. For the price, the performance is impressive, but it is best suited for applications where a replacement switch is an acceptable risk.
What works
- Five-chamber design minimizes pulsation
- Compact and lightweight at 7 lbs
- Low amp draw works with solar systems
What doesn’t
- Pressure switch quality control can be hit or miss
- Fittings are fragile, easy to overtighten
8. BOKYWOX RS15-9SB
The BOKYWOX RS15-9SB is a compact recirculation pump with a stainless steel head and a 120W motor that delivers 8 GPM at a maximum head of 39 feet. It is designed for closed-loop systems such as solar water heaters, boiler circulation, and tankless water heater recirculation loops. The 3/4-inch NPT ports are standard for residential plumbing connections.
The pump is exceptionally quiet for a circulator, with multiple users noting that it runs nearly silently when placed in a utility closet. It can be wired to run constantly or on a timer, and the built-in check valve prevents backflow when the pump is off. The PE impeller and ceramic bearings provide long life in continuous operation.
One important caveat is that the threads are actually BSPP (55-degree angle), not NPT (60-degree), despite being advertised as NPT. This mismatch can cause leaks if standard NPT fittings are tightened too aggressively. Using PEX push-fit adapters or heavy pipe dope can get a reliable seal. This pump is excellent for recirculation but not suitable as a whole-house pressure booster.
What works
- Near-silent operation
- Stainless steel head resists corrosion
- Good for solar and hot water recirculation
What doesn’t
- Threads are BSPP, not NPT as listed
- Not designed for whole-house pressure boosting
9. Dreyoo 5.5 GPM Diaphragm Pump
The Dreyoo 5.5 GPM pump is the entry-level workhorse for anyone needing reliable water pressure at a low cost. It is a diaphragm-style pump with an automatic pressure switch that activates when a faucet opens and shuts off when the flow stops. The pump delivers 70 PSI at a steady 5.5 GPM, which is sufficient for a single bathroom, kitchen sink, or garden hose setup.
The kit includes a 50-mesh strainer, brass fittings, hose connectors, and a mounting base, so you have everything needed for a basic installation. The pump can run dry briefly without damaging the seals, though extended dry operation will reduce the lifespan. Users have reported using this for soft-washing roofs, boat washdowns, and cabin water systems with consistent results over multiple years.
One limitation is that the pump is not designed as a true inline booster — it requires a minimum inlet pressure of 30 PSI per the manual, which some buyers miss before installation. The noise level is moderate, comparable to an RV pump. For the price, it offers the best entry point into automatic water pressure for light home and outdoor use.
What works
- Excellent value with high 70 PSI output
- Includes strainer, fittings, and mounting base
- Can run dry briefly without damage
What doesn’t
- Requires minimum 30 PSI inlet pressure
- Not ideal for whole-house multi-fixture use
Hardware & Specs Guide
Diaphragm vs. Jet Pump
Diaphragm pumps are positive-displacement units that push water steadily from a tank or reservoir, making them ideal for RV, marine, and off-grid cabin systems. They are self-priming and can run dry for short periods. Jet pumps use a centrifugal impeller and an ejector to create suction, making them better suited for shallow wells and continuous whole-house supply, but they must be primed with water before every start.
Pressure Tank Compatibility
A pressure tank stores water under pressure and reduces the frequency of pump motor starts. Without a tank, a pump will cycle every time a small amount of water is used — this short-cycling drastically reduces motor and switch lifespan. Most automatic pumps can be paired with an external tank, and some models include a built-in 5-gallon tank for convenience.
Flow Rate and Pipe Diameter
Flow rate is measured in GPM and must match your home’s plumbing. A 1/2-inch pipe can carry roughly 6 GPM, while 3/4-inch pipe can handle up to 12 GPM. If your pump outputs 12 GPM into a 1/2-inch line, you will experience friction loss and reduced pressure at the tap. Always match the pump’s GPM to the largest pipe diameter in your home run.
Pressure Switch Adjustability
The pressure switch determines the cut-in (low) and cut-out (high) pressure points. Adjustable switches allow you to set these values to match your home’s plumbing limits or your personal preference. Fixed switches are less expensive but cannot compensate for changes in inlet pressure or tank precharge. An adjustable switch with a 20 PSI differential (e.g., 30-50 PSI) is the standard for residential use.
FAQ
What pressure should my home water pump be set to?
Can I install an automatic water pressure pump myself?
Why does my water pump keep turning on and off rapidly?
Final Thoughts: The Verdict
For most users, the automatic water pressure pump for home winner is the Truper PRES-1 because its 1 HP motor and flow-sensing activation handle multi-story houses without requiring a pressure tank, making installation simpler and cycling less frequent. If you need a pump-and-tank combo for a shallow well, grab the LANCHEZ Shallow Well Pump for its 5-gallon tank and 1.6 HP motor. And for a tankless water heater or in-line boosting without a tank, nothing beats the BACOENG P0097 for its stainless steel construction and smart controller.
