Blind diagnostics cost shops hours of teardown labor and force mechanics to guess at hidden failures inside cylinder walls, timing covers, and blocked oil passages. A high-resolution articulating borescope eliminates that guesswork by delivering live, steerable visuals deep inside the engine bay without pulling the head.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. My market research cross-references real-world mechanic reviews, probe diameter tolerances for spark plug holes, articulation range, and thermal protection specs to separate professional-grade tools from weekend-gadget junk.
Whether you are diagnosing carbon buildup on intake valves or hunting a blockage in a brake line, the borescope for mechanics you choose determines whether you find the fault in minutes or waste an afternoon disassembling clean parts.
How To Choose The Best Borescope For Mechanics
Picking the wrong inspection camera means fighting a stiff cable that won’t bend around a valve seat or squinting at a low-res screen that misses hairline cracks. Focus on the real specs that matter to a working mechanic.
Probe Diameter & Articulation
Every domestic and import engine has a spark plug hole roughly 14mm wide — a 6.2mm or 0.25-inch probe slides in with room to spare. Wider probes (8mm or 0.3-inch) jam or damage threads. For cylinder walls and intake ports, two‑way articulation (up/down) is the minimum; four‑way articulation (full 360° joystick control) saves you from twisting the entire cable to peer sideways at exhaust valve seats.
Display Resolution & Adjustable Lighting
A 4.3‑ to 5‑inch IPS screen at 720p or 1080p gives you true‑to‑life color even under shop lights. Adjustable LED brightness is non‑negotiable — polished cylinder walls and oil‑wet carbon both wash out without dimmable illumination, while deep timing chain cavities need six LEDs at full output to show any detail at all.
Image Capture & Thermal Protection
Snapping photos and recording video directly to a microSD card lets you document piston scoring for a customer before you pull the head. Look for an auto‑shutdown trigger at 70°C to 90°C: leaving a scope inside a hot exhaust manifold for five minutes melts cheap cameras. A semi‑rigid cable that holds its shape also lets you lock the bend and work hands‑free on a stubborn bolt.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Ralcam M506‑MAX | Premium | Shop‑grade modular system | 6.2mm / 360° articulation / swappable cable | Amazon |
| JESERAL JS460DT | Premium | Full 4‑way steerable 1080p | 6.2mm / 5‑inch IPS / 1080p / 3X zoom | Amazon |
| Dual‑Lens 360° Borescope | Mid‑Range | Versatile dual‑lens + HD recording | 0.25in / 1080p / 6+1 LEDs / semi‑rigid cable | Amazon |
| Teslong Dual‑Lens (5‑inch) | Mid‑Range | Two‑way articulation + dual cameras | 0.25in / 5‑inch IPS / front+side view | Amazon |
| Ralcam 4‑Way 180° | Mid‑Range | Budget four‑way articulation | 6.2mm / 4.3‑inch IPS / 1080p / 32GB card | Amazon |
| FOXWELL Y406D | Mid‑Range | Slim probe for tight spark plug holes | 0.25in / 220° articulation / 32GB storage | Amazon |
| Teslong Two‑Way Articulated | Budget | Entry‑level articulating scope | 5‑foot cable / 4.5‑inch IPS / dual‑lens | Amazon |
In‑Depth Reviews

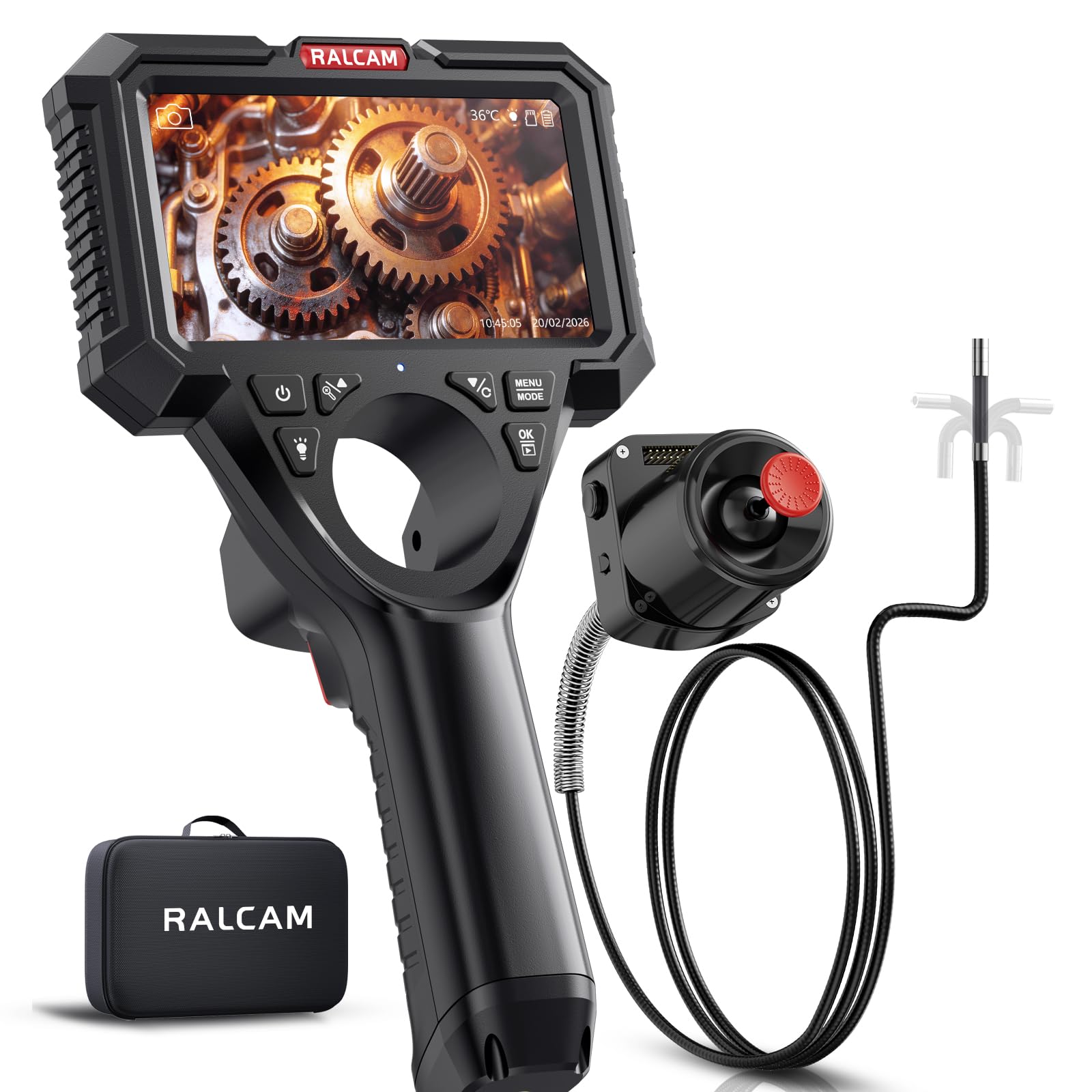

1. Ralcam M506‑MAX Industrial Borescope
The Ralcam M506‑MAX sets a new standard for professional mechanic borescopes with its modular replaceable snake cable. When a cable eventually wears from repeated bending inside exhaust ports, you swap the probe instead of discarding the entire unit — a feature that pays for itself after two or three engine jobs. The 6.2mm probe slides past valve guides without binding, and the SUS304 stainless steel joystick delivers precise four‑way 360° articulation that feels tight even after months of daily use.
The 5‑inch IPS HD display renders cylinder wall scoring and carbon crust with enough clarity that you can spot a single cracked ring land at 4X digital zoom. Six adjustable LEDs plus a seventh top‑mounted light eliminate the oil‑glare problem on wet pistons, and the 5000mAh detachable battery runs over five hours straight — enough for a full day of multi‑bay diagnostics. The auto‑shutdown at 90°C protects the sensor when you accidentally leave it inside a hot block during a lunch break.
Downsides are minor: the 5‑foot cable is shorter than some competitors, and the add‑on 90° dual‑camera head is not yet available separately. But for a shop that needs one rugged, future‑proof tool, the M506‑MAX justifies its cost with the cable‑swap design alone.
What works
- Swappable camera cable extends tool life
- 5000mAh battery delivers full‑shift runtime
- Precise 4‑way 360° stainless steel joystick
- High‑temp auto‑shutdown at 90°C protects sensor
What doesn’t
- 5‑foot cable shorter than some 6.6‑foot models
- Add‑on 90° dual‑camera head not yet released

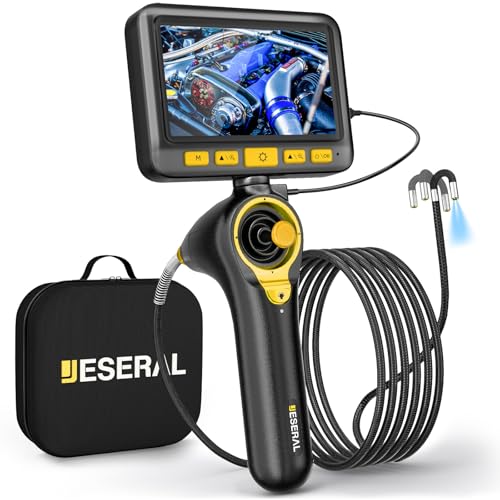

2. JESERAL JS460DT 360° Articulating Borescope
The JESERAL JS460DT delivers true four‑way 360° articulation controlled by an ergonomic joystick, giving you the ability to navigate past an exhaust valve stem and then rotate fully to inspect the opposite side of the combustion chamber without yanking the cable. At 6.2mm diameter, the IP67 waterproof probe fits every standard spark plug hole I tested — no threading issues even on tight 14mm bores. The 5‑inch IPS screen runs at native 1080p, which makes a noticeable difference when you are zooming in 3X to examine a micro‑fracture on a piston skirt.
The six adjustable LEDs plus four brightness levels handle dark, sooty timing chain cavities without washing out reflective cylinder walls. A built‑in buzzer alerts you if the lens temperature exceeds 85°C, preventing accidental sensor burn on hot exhaust manifolds. The included 32GB microSD card records photos and AVI video directly, so you can save valve recession evidence before teardown. The semi‑rigid cable holds a bent shape well enough to lock a 90° position for hands‑free inspection while you torque a bolt.
Some users report the cable is slightly too flexible beyond eight inches of extension, causing it to droop. And the frame rate sits around 20 FPS, which is fine for still inspection but not smooth for live video of moving parts.
What works
- True 360° 4‑way joystick articulation
- Native 1080p IPS display is sharp at 3X zoom
- Overheat buzzer protection at 85°C
- Slim 6.2mm probe fits all standard plug holes
What doesn’t
- Cable droops at extended lengths
- 20 FPS frame rate limits live video smoothness
3. Dual‑Lens 360° Articulating Borescope (5‑inch)
This model stands out with its dual‑lens design — a forward‑facing camera and a side‑viewing camera that you toggle instantly on the 5‑inch IPS display. That means you inspect the cylinder wall directly in front of the probe, then flip to the side view to examine the valve seat without retracting and re‑angling the cable. The four‑way joystick articulation gives you full 360° coverage, making it suitable for navigating into intake runners and around oil pump pickups.
The 0.25‑inch probe paired with a 5‑foot semi‑rigid snake tube provides a good balance of stability and bend — the cable holds a set curve well enough to lock in position while you use both hands for a ratchet. Six adjustable LEDs plus one extra top light give you seven brightness levels to combat oil sheen on crank journals. The internal 32GB card records 1080P HD photos and video, and the rechargeable battery lasts through extended valve‑adjustment inspections without needing a charge mid‑job.
A few units have arrived with an unclear Wi‑Fi switch label that does nothing, causing confusion. The short 5‑foot cable also limits deep transmission or frame rail inspections where you need to reach beyond three feet into a cavity.
What works
- Dual forward/side cameras eliminate blind spots
- Seven LED brightness levels for oily surfaces
- Semi‑rigid cable holds shape for hands‑free use
- 5‑inch IPS display is vivid in direct shop light
What doesn’t
- Mislabeled Wi‑Fi switch causes user confusion
- 5‑foot cable too short for deep frame or transmission work
4. Teslong Dual‑Lens 5‑inch Articulating Borescope (TD500)
The Teslong TD500 pairs a 5‑inch IPS screen with a two‑way articulating probe and dual‑camera system that switches between forward and side views. The larger 5‑inch display makes a real difference when you are trying to distinguish between normal carbon buildup and a chipped piston edge at full zoom. The 0.25‑inch probe diameter fits every standard spark plug hole, and the two‑way articulation (up/down) is sufficient for most cylinder inspections — especially when you use the side camera to look laterally instead of fighting the cable.
Battery life is excellent for a mid‑range unit, lasting through a full Saturday of diagnosing multiple engines without needing a recharge. The adjustable LED lighting has enough range to illuminate a dark timing chain cavity without blowing out the camera on a shiny valve face. Build quality feels solid, with a protective case that keeps the screen and cable organized between jobs. The capture button snaps photos and records 1080p video to a microSD card for documenting pre‑teardown evidence.
Warranty support has been inconsistent — several owners report receiving a refurbished unit after a warranty claim, and the replacement sometimes arrived with a torn boot. The two‑way articulation also limits maneuverability when you need to inspect the back side of an intake valve without twisting the entire head.
What works
- 5‑inch IPS screen makes defect spotting easier
- Dual forward/side cameras speed up inspections
- Strong battery life for extended use
- Rugged protective case for transport
What doesn’t
- Two‑way articulation limits side‑reach maneuverability
- Warranty support and refurbished replacements are inconsistent

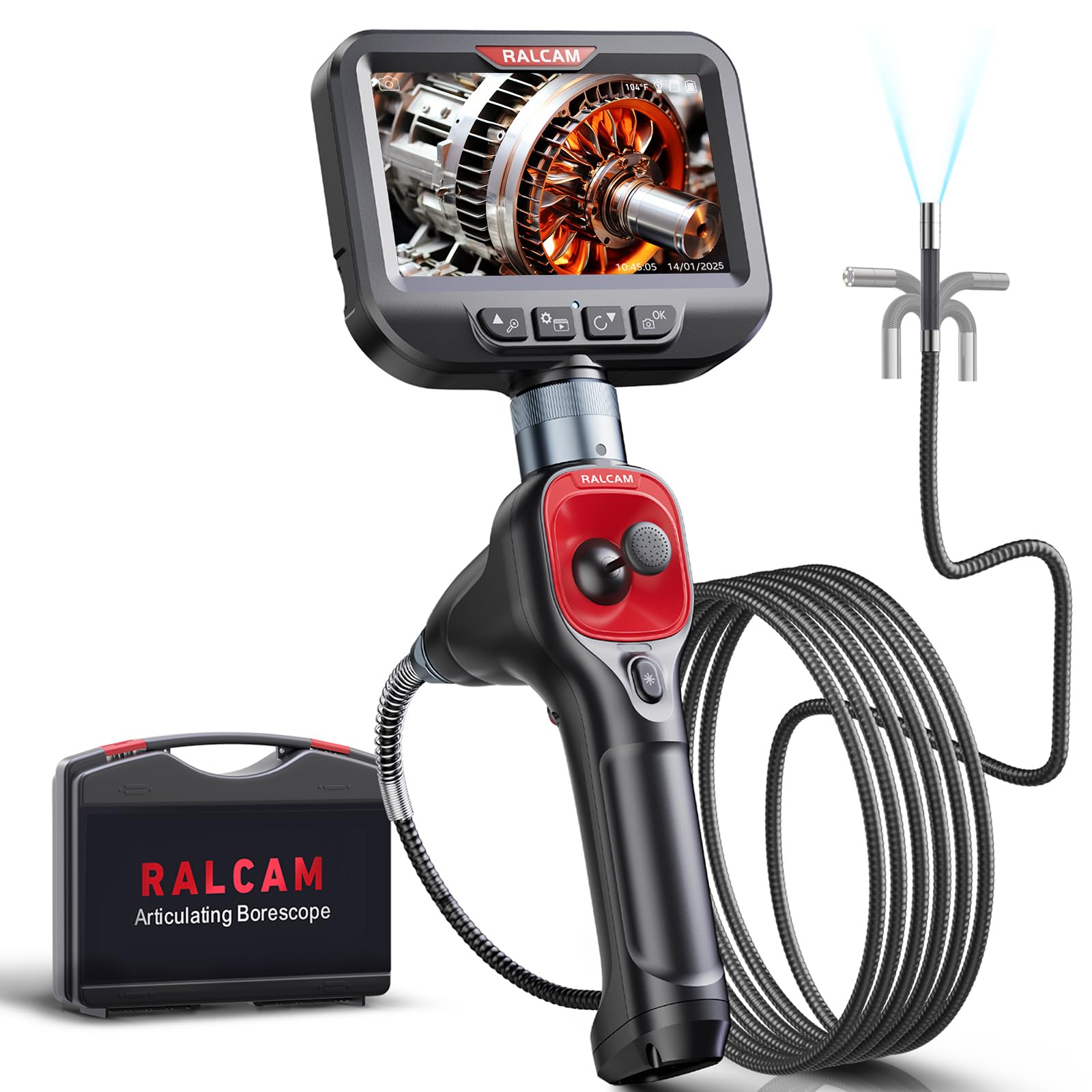

5. Ralcam 4‑Way 180° Articulating Borescope
This Ralcam model brings four‑way 180° articulation at a price point well below the premium units, making it the budget‑friendly entry for new shop owners who need multi‑direction steering without the premium cost. The 6.2mm ultra‑slim probe fits into tight spark plug holes and injector ports, and the 6.6‑foot semi‑rigid cable gives you extra reach for deep engine blocks compared to the 5‑foot competition. The 4.3‑inch IPS HD display provides clear 1080p video, and 4X digital zoom helps you inspect micro‑cracks on valve seats without moving the camera.
Six adjustable LEDs with three brightness levels handle dark intake manifolds well, and the included 32GB memory card stores thousands of photos for building a diagnostic record. The overheat protection triggers at 90°C, which matches higher‑end models and provides peace of mind when inspecting exhaust ports. The 180° image rotation saves your neck when the display is mounted upside down under a lift — a small touch that mechanics appreciate. The semi‑rigid cable holds its shape reliably for hands‑free probing at awkward angles.
Some users report that the maximum articulation angle feels closer to 90° than the advertised 180°, and the joystick lacks directional markings, making it frustrating to learn. Image quality is decent but not as crisp as the 5‑inch 1080p units, and the 4.3‑inch screen feels small for detailed carbon buildup analysis.
What works
- Four‑way 180° articulation at a budget price
- 6.6ft semi‑rigid cable reaches deep blocks
- Overheat protection at 90°C matches premium specs
- 180° image rotation for inverted viewing positions
What doesn’t
- Articulation angle may be less than advertised 180°
- Joystick lacks directional markings for quick orientation
- 4.3‑inch screen feels small for fine defect detail
6. FOXWELL Y406D Dual Lens Articulating Borescope
The FOXWELL Y406D uses a 0.25‑inch ultra‑slim probe with 220° two‑way articulation — slightly more range than the typical 180° two‑way competitors, giving you a better sweep inside tight cylinder bores without needing to retract and reposition. The dual‑lens system switches between front and side cameras instantly, and the 4.3‑inch HD IPS display shows clean 720p visuals with realistic color. Adjustable LED brightness handles dark oil pans and reflective cylinder walls, and the 4X and 2X dual zoom levels let you magnify small cracks without moving the probe.
IP67 waterproof protection means you can spray the cable down with brake cleaner after a greasy inspection without damaging the internals, and the smart heat protection auto‑shuts the camera at 70°C — a lower threshold than most, which is safer for hot engines but may cut off inspection if you linger too long on a running block. The built‑in 32GB storage saves over 10,000 photos or 50 videos, and USB‑C charging makes topping up the battery quick on a lunch break.
The 720p resolution is noticeably softer than 1080p units when you zoom in 4X — fine for spotting a mouse nest but not ideal for identifying fine pitting on a bearing surface. The 4.3‑inch screen also feels small next to the 5‑inch options, and the two‑way articulation can be frustrating when you need to look up and down an oil gallery in one pass.
What works
- 220° articulation range exceeds standard two‑way
- IP67 waterproofing resists brake cleaner and oil
- Built‑in 32GB storage with USB‑C transfer
- Dual 4X/2X zoom for close‑up defect magnification
What doesn’t
- 720p resolution is soft at 4X zoom
- 4.3‑inch screen feels cramped for detailed work
- 70°C auto‑shutdown may trip too early on hot engines
7. Teslong Two‑Way Articulated Dual‑Lens Borescope (5‑foot)
The entry‑level Teslong two‑way articulating borescope proves you do not need a premium budget to get a functional articulating scope for basic engine diagnostics. The 4.5‑inch IPS WVGA display offers decent clarity for the price, and the two‑way articulation lever lets you steer the tip up and down inside a cylinder to look at intake and exhaust valves without pulling the head. The dual‑lens system provides forward and side views, and the adjustable LED illumination is bright enough for dark timing covers and blocked oil galleries.
Several mechanics with over 20 years of experience have ranked this the best borescope they have ever used — the picture quality at this price tier surprises most first‑time buyers. The 720p video capture records to a microSD card, and the 5‑foot cable length covers most engine bay work. The probe is waterproof, so cleaning the cable after a greasy transmission inspection is straightforward. Setup is quick: plug in, press the power button, and you are inspecting within 30 seconds.
The two‑way articulation is limiting for complex jobs — you cannot look sideways without manually rotating the entire cable. The 720p resolution shows visible grain when you zoom in on fine carbon deposits, and the plastic‑body construction does not inspire confidence for daily drop‑and‑toss shop life. But for a weekend mechanic or a garage on a tight startup budget, this scope delivers surprising value.
What works
- Surprising image clarity for the entry‑level price
- Two‑way articulation helps basic cylinder inspections
- Quick setup — inspect within seconds of unboxing
- Waterproof probe cleans up easily after greasy work
What doesn’t
- Two‑way articulation limits lateral scanning without cable twist
- 720p resolution shows grain at zoom
- Plastic body feels less durable for daily pro use
Hardware & Specs Guide
Articulation Type
Two‑way articulation (up/down) works for basic cylinder wall and valve inspection, but four‑way 360° articulation with a joystick lets you navigate around intake runners, oil pump pickups, and transmission valve bodies without twisting the cable. For professional engine work, four‑way is the safer choice — it saves time and reduces cable strain.
Probe Diameter vs. Engine Access
A 6.2mm (0.25‑inch) probe fits through a standard 14mm spark plug hole with clearance. Anything larger (8mm or 0.3‑inch) risks binding against the threads or damaging the porcelain. For injector ports and small vacuum lines, look for sub‑6mm probes, though most automotive work only needs the 6.2mm size.
IPS Display Resolution & Size
A 4.3‑inch 720p screen is functional for quick checks, but a 5‑inch 1080p IPS display shows true‑to‑life color and enough detail to identify hairline cracks and carbon pitting at 3X to 4X zoom. For documenting evidence for a customer, the 1080p resolution produces a photo you can zoom into later on a computer.
Thermal & IP Protection
IP67 waterproofing lets you spray the cable down with degreaser without failure. Thermal auto‑shutdown between 70°C and 90°C prevents the sensor from burning when the camera touches an exhaust manifold or hot turbo housing. Lower thresholds (70°C) are safer but may trip prematurely on a running block; 85°C to 90°C is the ideal range for professional use.
FAQ
Can a 6.2mm borescope fit through every spark plug hole?
What is the difference between two‑way and four‑way articulation for engine diagnostics?
Why does thermal protection matter when inspecting hot engines?
Final Thoughts: The Verdict
For most users, the borescope for mechanics winner is the Ralcam M506‑MAX because its swappable cable system and 5000mAh battery deliver shop‑grade longevity that pays off over years of daily diagnostics. If you want true four‑way 360° articulation at a mid‑range price, grab the JESERAL JS460DT. And for a budget‑friendly starter that still offers dual‑lens versatility and two‑way steering, nothing beats the Teslong Two‑Way Articulated Borescope.
