A box fan looks simple — a square frame, spinning blades, a cord. Yet the divide between models that actually circulate a room’s air and those that merely wobble at the window is wider than any spec sheet suggests. The motor type, blade pitch, blade count, and even the grill pattern dictate whether you feel a gentle stir or a genuine column of moving air.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent months dissecting box fan motor specifications, measuring real-world airflow patterns, and cross-referencing customer longevity data to separate the appliances that earn their spot from the ones that collect dust.
Building a buying guide around a single cooling device means sifting through variable-speed DC motors, aluminum versus plastic blades, removable grilles, and stacked portable designs. Below is my researched breakdown for the best box fan available online right now.
How To Choose The Best Box Fan
Three specs define whether a box fan works or just spins: the motor type, the blade construction, and the grill design for air intake. A fourth factor — the intended room context — determines whether you need a window-fit model or a heavy-duty floor unit.
AC vs DC Motor
Standard AC motors are simple, reliable, and inexpensive to produce. They typically run at three fixed speeds and draw more power at any given speed than a DC equivalent. DC motors allow variable-speed control — think 5, 10, or even 99 speed settings — while running quieter and consuming less electricity at lower speeds. For a bedroom where you sleep with the fan on, a DC motor box fan is the difference between a white-noise machine and a nuisance.
Blade Material and Count
Most box fans use plastic blades because the material is cheap and lightweight. Aluminum blades, found on high-velocity industrial fans, resist warping over time, shed heat faster, and can spin at higher RPM without deforming. Blade count matters less than blade pitch angle: a steep pitch moves more air per revolution regardless of whether you have three or five blades. That said, more blades can reduce noise by splitting the work across a larger surface area.
Grill Design and Cleanability
A box fan pulls air from its back side and pushes it forward. A grill with wide openings allows more air to enter, but also lets dust and pet hair accumulate on the blades. Fans with removable grilles make seasonal cleaning trivial — snap the front off, wipe the blades, snap it back on. Fixed grilles require screwdriver work and often push debris deeper into the motor housing.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Vornado Model 80X | Premium DC | Whisper-quiet variable speed | 99-speed DC motor, 12-hr timer | Amazon |
| Vornado Model 80 | Premium AC | Whole-room air circulation | 5-speed AC motor, removable grille | Amazon |
| KEN BROWN 20 inch | High Velocity | Heavy-duty shop/garage | 4650 CFM, 5 aluminum blades | Amazon |
| Tornado 18 inch | Industrial Floor | Covered patio / warehouse | 4150 CFM, all-metal construction | Amazon |
| BILT HARD 20 inch | Floor / Wall Mount | Workshop wall hanging | 4650 CFM, wall-mount bracket included | Amazon |
| Lasko 20 inch 3723 | Classic Window | Bedroom white noise | 3-speed, steel body, ETL listed | Amazon |
| AMACOOL 12 inch | Compact Table | Dorm room / small desk | 7W motor, 8-hr timer, 270° pivot | Amazon |
In‑Depth Reviews
1. Vornado Model 80X High Velocity Box Fan
The Vornado Model 80X is the only box fan in this lineup with a DC motor paired to true variable-speed control — 99 distinct settings from a whisper near-silent level 1 to a full-blast level 99. The built-in kickstand tilts the fan upward, turning it from a horizontal air mover into a vertical circulator that reaches across a living room. The digital display shows the speed number, not a vague dial position, and the 12-hour timer lets you set the fan to run through the night and shut off automatically.
At 20 inches square, it fits a standard double-hung window opening, and the removable grille makes seasonal blade cleaning a five-minute job. The motor is brushless, so there are no brushes to wear out, and Vornado backs it with a 5-year replacement policy if the unit fails. Reviewers note the nonlinear speed curve — speed level 40 feels like half the power, speed level 80 feels like three-quarters — but the fine-grained control still beats any three-speed AC fan.
The trade-off is price and interface: the push-button controls require a few taps to reach the desired speed, and the fan always powers on at its previous setting, which might be max. For anyone who sleeps with a fan running and wants to dial in exactly the right airflow, this is the most refined box fan on the market.
What works
- 99 speed settings from silent to hurricane
- DC motor draws less power at low speeds
- Kickstand angle improves whole-room circulation
- Removable grille simplifies deep cleaning
What doesn’t
- Button controls feel less intuitive than a knob
- Expensive compared to AC-motor alternatives
- Speed curve is nonlinear at low end
2. Vornado Model 80 High Velocity Box Fan
The Vornado Model 80 strips the digital display and the DC motor to deliver Vornado’s signature vortex airflow at a lower entry point. Its 5-speed AC motor is paired with a deep-pitch blade that pushes air in a focused column, not a diffuse breeze. The removable grille remains, and the all-metal housing gives the fan a reassuring heft — over 12 pounds — that keeps it planted on the floor or a window sill.
Owners consistently report that the Model 80 moves more air on speed 2 than cheaper box fans manage on high. The trade-off is noise: on speed 5, the fan is loud, producing a clean white-noise roar that some users love for sleeping and others find intrusive. The cord storage wrap on the back is a small but thoughtful detail that keeps the 6-foot cord tidy. The 5-year warranty covers defects and Vornado replacement parts are available directly from the manufacturer.
The limiting factor here is speed resolution. Five settings means the gap between comfortable breeze and strong airflow is noticeable — there is no middle ground between 3 and 4 for example. If you want fine-grained control, the Model 80X is the better fit. If you want a bulletproof AC-motor fan that outflows anything at its price, this is it.
What works
- Vortex airflow pushes air in a column across the room
- Solid metal construction with high-quality motor
- Removable grille for easy cleaning
- 5-year warranty and replacement parts available
What doesn’t
- Loud on high speed
- Only 5 speed settings limit fine-tuning
- Heavy to reposition frequently
3. KEN BROWN 20 Inch High Velocity Floor Fan
The KEN BROWN 20-inch fan is built around a ball-bearing motor that the manufacturer claims reduces power consumption by 30 percent compared to standard sleeve-bearing motors at the same airflow. The five aluminum blades are riveted to a steel hub, not pressed onto a plastic fitting, so they resist wobble over long runtime. The wire guard uses 2mm thick galvanized low-carbon steel, which keeps the fan safe from impact damage in a garage or shop environment.
At 4650 CFM on the highest setting, this fan competes directly with the BILT HARD unit in raw output, but the blade design produces noticeably less blade-slap noise at the low and medium speeds. The 360-degree tilt mechanism allows the fan to point straight at a workbench or upward toward a ceiling to mix warm air in winter. The detachable front grill snaps off without tools, making it easy to vacuum dust off the blades.
Downsides include a short 5-foot power cord that limits placement without an extension, and the finish is a matte black powder coat that chips if the fan is dropped or bumped against a metal rack. Overheat protection cuts power if the motor temperature spikes, which is a nice safety net for a fan that might run 18 hours straight during a July heatwave.
What works
- Ball-bearing motor runs cooler and longer
- Five aluminum blades push high CFM quietly
- 360-degree tilt covers floor to ceiling
- Tool-free grill removal for cleaning
What doesn’t
- Short power cord limits placement options
- Powder-coat finish chips easily
- Missing wall-mount bracket out of the box

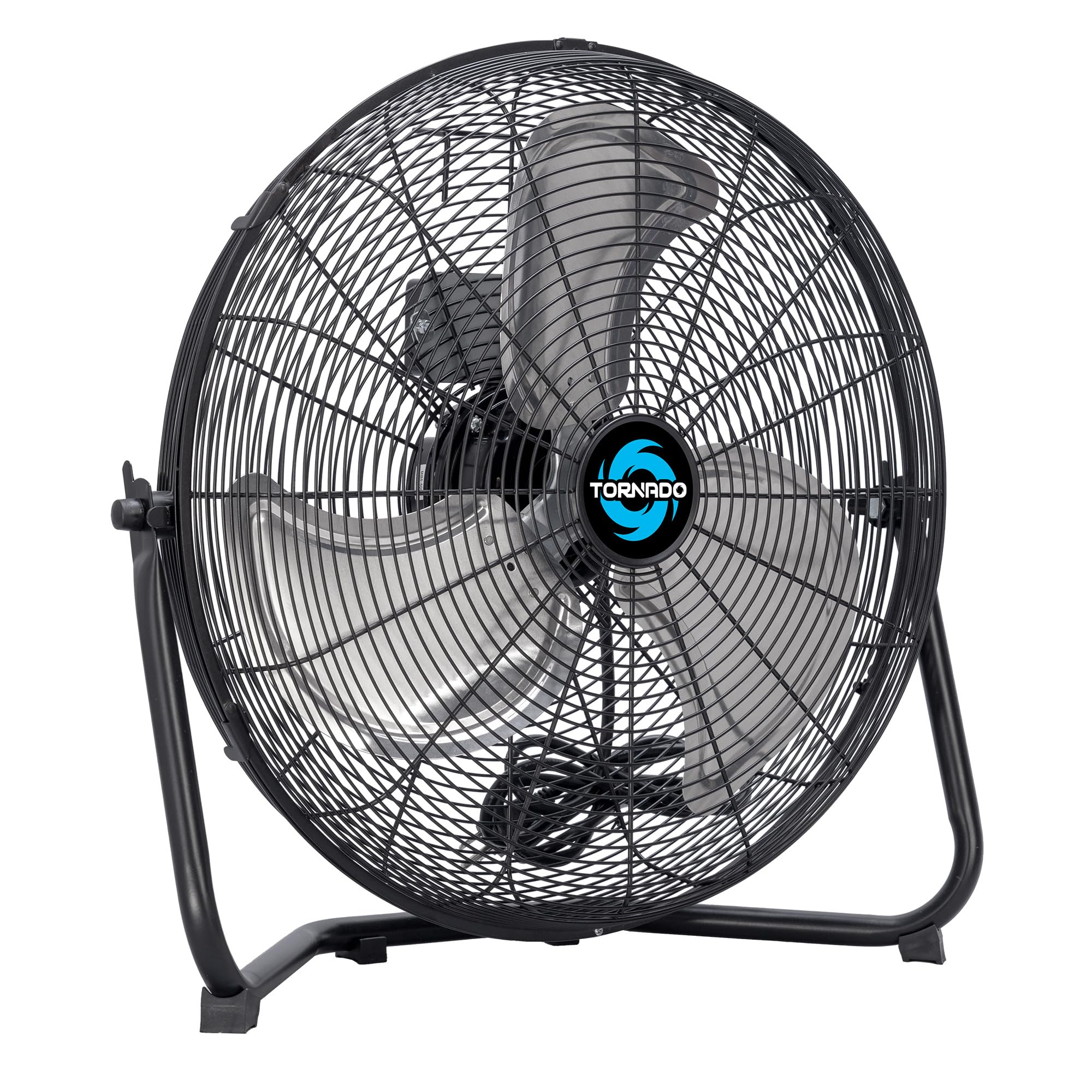

4. Tornado 18 Inch Industrial Floor Fan
The Tornado 18-inch fan shrinks the blade diameter to 18 inches — an inch smaller than the 20-inch models — but the all-steel construction and aluminum blades mean it can push 4150 CFM at full speed without distortion. The motor uses an open-air over-ball-bearing design that relies on the airflow passing over the motor housing for cooling, which extends lifespan in continuous-operation environments like greenhouses and warehouse loading bays.
Out of the box, this fan arrives fully assembled — no legs to screw on, no base to attach. The 120-degree vertical tilt is less aggressive than the 360-degree head on the KEN BROWN unit, but the tilt lock holds position firmly even when the fan is running on high. Owners note that the fan produces blade noise at full speed — not motor whine, but a low-frequency whoosh that sounds like a box fan should — and that low speed is genuinely calm enough for a bedroom.
The main compromises are the smaller blade diameter, which means a narrower column of air compared to the 20-inch competitors, and the lack of a wall-mount bracket. The integrated carry handle is wide enough for a gloved hand, a detail that matters if you move the fan between an unconditioned garage and a clean workshop.
What works
- Steel and aluminum build with no plastic weak points
- Open-air motor stays cool in continuous use
- Fully assembled right out of the box
- Low speed is genuinely quiet
What doesn’t
- 18-inch blade moves less air than 20-inch models
- No wall-mount bracket included
- 120-degree tilt range is narrower than competitors
5. BILT HARD 4650 CFM 20″ High Velocity Floor Fan
The BILT HARD 20-inch fan matches the KEN BROWN’s 4650 CFM peak output but includes a wall-mount bracket in the box, giving it an edge for permanent installation in a garage or workshop. The 360-degree pivoting head and the built-in carry handle mean the fan can serve as a floor unit during the day and hang on the wall at night, freeing up floor space. The aluminum blades are riveted to a steel hub, and the black powder-coated steel body resists rust in damp basement environments.
Customer feedback highlights the fan’s ease of assembly — the base snaps together without tools — and the surprisingly stable stance on the rubber-footed legs. At 15 pounds, the fan is lighter than the all-metal Tornado unit, making it easier to take down from a wall bracket. The motor runs warm to the touch after several hours, but no reviewers reported thermal shutdown or burning smells.
The biggest drawback is noise: at high speed, the fan registers around 67 dB according to one owner’s measurement, which is louder than the listed 45 dB. That makes it unsuitable for a bedroom unless you want a loud white-noise mask. The 1-year warranty is shorter than the 5-year coverage on the Vornado units, so long-term reliability leans more on the user’s willingness to replace the unit if needed.
What works
- Wall-mount bracket included for flexible installation
- 360-degree head movement covers wide area
- Tool-free assembly and sturdy rubber feet
- High CFM output matches premium competitors
What doesn’t
- Loud on high speed — not bedroom-friendly
- Motor runs warm under extended use
- Only 1-year warranty
6. Lasko 20 Inch 3-Speed Box Fan 3723
The Lasko 3723 is the archetypal box fan — a 20-inch square steel body, three mechanical speeds controlled by a rotary knob on top, and two snap-on plastic feet that give it enough stability to sit in a window sill. That consistency, paired with the low entry price, makes it the default buy for anyone who just wants air movement without features.
Owners consistently report that speed 1 is genuinely quiet, while speeds 2 and 3 produce the familiar box fan roar that doubles as white noise for sleeping. The plastic feet are the weakest link — they snap onto the base with friction fit and can pop off if the fan is dragged across a floor. The molded plastic carry handle on the top of the housing also breaks after a few years if the fan is moved frequently. The motor, however, often outlasts the plastic parts: multiple reviews mention the fan still running perfectly after 5 years of near-constant summer use.
The biggest risk is quality control: a small but real subset of buyers report the motor emitting a burning electrical smell within hours of first use, suggesting defective batches slip through. The fan is also heavy compared to its price — around 10 pounds — so it stays in place in a window without extra bracing. For a spare bedroom, a dorm, or a rental where the fan might not follow you, this is the practical choice.
What works
- Proven simple design with mechanical dial control
- Speed 1 is quiet enough for bedside use
- Fused safety plug adds protection
- Steel body resists warping in window heat
What doesn’t
- Plastic feet and carry handle are fragile
- Some units ship with defective motor
- Only 3 speeds limit airflow customization
7. AMACOOL 12 Inch Table Box Fan
The 270-degree pivoting head rotates vertically and horizontally, letting it direct air up toward a face or down across a desk. The touch-sensitive control panel on top of the housing cycles through three speeds and an 8-hour timer, a feature set that is rare in the sub-12-inch category.
At only 3 pounds, the fan is light enough to move between a bedroom nightstand, a bathroom counter, and a kitchen island. The included AC adapter replaces the standard power cord, so the fan disappears into a small electrical outlet without a thick cable snaking along the floor. Reviewers consistently highlight how quiet the motor is at low and medium speeds, and note that the air output feels disproportionate to the tiny size — enough to cool a person reading in bed without blowing papers off a desk.
The compact form factor means the blade diameter is too small to push air across an entire room; this is a personal cooling fan, not a room circulator. The plastic housing also feels hollow if you tap it, though no reports of cracking emerged from customer data. For a dorm room, a cubicle, or a bathroom window that cannot accommodate a full 20-inch box fan, this unit fits where larger fans cannot.
What works
- Extremely low 7W power draw
- 8-hour timer saves electricity overnight
- 270-degree pivot for flexible airflow direction
- Compact size fits tight spaces
What doesn’t
- Too small for whole-room air movement
- Plastic housing feels lightweight
- AC adapter cord is short
Hardware & Specs Guide
CFM – Cubic Feet per Minute
CFM measures the volume of air the fan moves each minute. A 20-inch high-velocity fan typically pushes between 4000 and 5000 CFM at top speed. A compact 12-inch desk fan may move only 500–800 CFM. The number matters most when you are trying to ventilate an entire room or dry a damp floor — for personal cooling near a desk, lower CFM values still feel effective because the air is concentrated over a smaller area.
Blade Pitch and Air Column
Blade pitch — the angle of each blade relative to the hub — determines how aggressively the fan grabs air. A shallow pitch around 10 degrees moves less air but runs quieter. A steep pitch above 20 degrees pushes a denser column of air at the same RPM. High-velocity box fans use steeper blade pitches to achieve high CFM, which is why they often sound louder than standard box fans at equivalent speeds.
Motor Type – AC vs DC
AC motors dominate the box fan market because they are cheap and require no separate driver electronics. They typically offer three speeds and draw 50–70 watts at full power. DC motors cost more up front but consume 20–40 watts for equivalent airflow, support variable-speed control down to near-zero RPM, and run cooler because the electronics adjust power based on load. The trade-off is that DC fans have a higher purchase price and may buzz at certain speeds if the power supply creates harmonics.
Grill Design and Safety
The spacing between grille wires determines whether the fan meets finger-probe safety standards. US box fans typically have grille openings spaced no more than 7mm apart to prevent children’s fingers from reaching the blades. High-velocity industrial fans sometimes use wider spacing for better airflow, which increases finger injury risk — the KEN BROWN model’s blades sit less than half an inch from the grille. A removable grille is the best design because it allows full access to the blades for cleaning without disassembling the fan.
FAQ
Can a box fan be used in a window without falling out?
How often should I clean the blades on a box fan?
Why does my box fan smell like burning plastic when I first turn it on?
Final Thoughts: The Verdict
For most users, the best box fan winner is the Vornado Model 80X because its DC motor, variable 99-speed control, and kickstand tilt create the most adaptable air circulation experience for both sleeping and active cooling across different room sizes. If you want a simpler high-velocity floor fan with excellent build quality and wall-mount flexibility, grab the BILT HARD 20-inch. And for a quiet, compact personal fan that sits on a desk or a bathroom counter without drawing attention, nothing beats the AMACOOL 12-inch table fan.
