That damp, dark patch spreading across your interior fireplace wall after a heavy rain isn’t a plumbing issue—it’s your brickwork signaling failure. Water intrusion through porous masonry is the primary cause of spalling, efflorescence, and structural freeze-thaw damage. Applying the wrong sealant traps moisture inside the brick, accelerating the very destruction you’re trying to prevent.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent the last five years deep in the material science of masonry protection, analyzing penetration depth, breathability ratings, and real-world performance data across residential and commercial sealant categories.
This guide dissects five chemically distinct formulas to help you identify the brick sealant that delivers genuine, long-term water repellency without suffocating your masonry.
How To Choose The Best Brick Sealant
Selecting a brick sealant is a chemistry decision, not a brand preference. The wrong choice locks moisture inside your masonry, causing the brick face to pop off in freeze-thaw cycles. Focus on three critical technical dimensions before opening a can.
Active Chemistry: Siloxane vs. Silicone vs. Acrylic
Siloxane and silane-siloxane formulas penetrate deep into the brick pore structure, chemically bonding to the substrate. This creates a hydrophobic barrier below the surface that allows water vapor to escape—critical for brick that experiences regular temperature swings. Silicone-based sealers typically form a surface film. Acrylic variants, often used in Thompson’s Water Seal, provide a clear coating but lack deep penetration, making them more appropriate for low-moisture scenarios or non-vertical applications.
Penetration Depth and Coverage Rate
Look for sealants that advertise penetration of 1/4 inch or deeper into the masonry. This determines how much physical buffering the brick has before water reaches the bond line. Coverage rates vary dramatically: a siloxane concentrate might cover 40 square feet per gallon on porous chimney brick, while a silane-siloxane blend on dense concrete pavers can stretch to 150 square feet per gallon. Match the coverage rate to the porosity of your specific brick.
Breathability and Vapor Transmission
Film-forming sealants trap moisture, leading to efflorescence (white salt deposits) and spalling. A breathable sealant allows water vapor to migrate outward while preventing liquid water from penetrating inward. This is non-negotiable for exterior brick in climates with freeze-thaw cycles. Check the product’s description for explicit “breathable” or “vapor permeable” language.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ChimneyRx 300119 | Siloxane | Vertical brick chimneys | Penetrates up to 1/4 inch | Amazon |
| MasonryDefender All Purpose | Silane-Siloxane | Multi-surface masonry | 150 sq ft per gallon coverage | Amazon |
| MasonryDefender Concrete Sealer | Silane-Siloxane | Driveways & flatwork | Advanced water repellent tech | Amazon |
| Black Diamond Stoneworks | Silicone/Siloxane | Small projects & birdbaths | 32 oz quart bottle | Amazon |
| Thompson’s Water Seal 24111 | Acrylic | Budget exterior sealing | 1.2 gallon low VOC formula | Amazon |
In‑Depth Reviews
1. ChimneyRx 300119 Masonry Chimney Water Repellent
ChimneyRx is not a general-purpose sealer—it is a precision siloxane formulation engineered specifically for vertical masonry exposed to the harshest conditions: chimney flues. The active siloxane chemistry penetrates up to a quarter-inch into the brick, chemically bonding with the substrate to create a water-repellent barrier that remains fully breathable. This is the exact chemical profile required to stop freeze-thaw spalling on a chimney crown without trapping moisture inside the stack.
Real-world users report that after five years, water intrusion through previously leaky chimney walls has stopped entirely. The application demands attention: you’ll need a pump or airless sprayer, and coverage checks in at roughly 40 square feet per gallon. Bricks with high porosity will consume more product than the label suggests. The dry time sits between two and six hours depending on humidity, and you must apply at least six hours before any rainfall.
ChimneyRx is the correct choice for anyone whose primary concern is a leaking brick chimney or retaining wall. The formula does not alter the brick’s appearance, and because it bonds beneath the surface, UV degradation is not a concern. For vertical masonry where breathability is non-negotiable, this is the reference standard.
What works
- Deep siloxane penetration that chemically bonds to brick substrate
- Breathable barrier prevents trapped moisture and spalling
- Transparent finish with zero color or gloss change
What doesn’t
- Coverage is limited to about 40 sq ft per gallon on porous brick
- Requires careful temperature and humidity windows for proper curing
2. MasonryDefender All Purpose Brick Stone & Concrete Sealer
MasonryDefender’s All Purpose formula uses a silane-siloxane hybrid, which gives it a broader substrate compatibility than straight siloxane sealers. It bonds to concrete, brick, stone, cultured sandstone, limestone, and granite—and does so without altering the visual finish. The silane component enhances penetrating ability on denser substrates, while the siloxane component provides long-term hydrophobic durability. This is a true surface-agnostic solution for homeowners managing multiple masonry types.
Users report excellent water beading on treated brick porches and walkways, with rain visibly sheeting off treated areas while untreated sections absorb moisture. The coverage range of 90 to 150 square feet per gallon is wider than ChimneyRx because the blend is optimized for both porous brick and denser cast stone. The liquid applies easily with a pump-up garden sprayer and cleans up with water. Some users reported a temporary white haze on first application that resolved after cleaning with a mild detergent.
If your project includes a mix of brick, concrete pavers, and natural stone—such as a patio with a brick border and limestone steps—this single-gallon purchase eliminates the need for multiple specialty sealers. The formula is waterproof-rated rather than merely water-repellent, adding a margin of safety for horizontal surfaces that pool water.
What works
- Broad compatibility across brick, stone, concrete, and limestone
- Silane-siloxane blend offers deep penetration on dense substrates
- Waterproof rating for horizontal surfaces prone to pooling
What doesn’t
- Initial white haze may require a second cleanup pass
- Not specialized for high-stack chimney vertical applications
3. MasonryDefender Concrete Sealer – Deep Penetrating Water Repellent
This MasonryDefender variant is the driveway and flatwork specialist. While it shares the silane-siloxane chemistry of the All Purpose version, its formulation is tuned for horizontal concrete surfaces that endure vehicle weight, tire rubber, and de-icing salts. The deep-penetrating action blocks chloride ion ingress—the primary chemical pathway that turns reinforced concrete into a crumbling mess—while the breathable profile prevents vapor lock that causes surface delamination.
Users in Pacific Northwest climates report that after three years, treated driveway slabs remain visibly whiter and cleaner than untreated neighbors, with dirt and mold slides off rather than staining the surface. The application process is straightforward: clean the concrete thoroughly, apply with a low-pressure garden sprayer, and let the chemistry do the work. One gallon covers 90 to 150 square feet. Overapplication can create a temporary wet-looking stain, but this resolves as the carrier evaporates and the active bond forms.
This is the correct pick if your primary pain point is a driveway, sidewalk, or garage floor. The silane-siloxane chemistry provides the same breathable protection as a chimney-grade sealer but at a viscosity and coverage rate optimized for large horizontal surfaces. The annual reapplication recommendation from experienced users is cheap insurance against slab replacement costs.
What works
- Blocks chloride ions and de-icing salt damage on driveways
- Breathable film prevents vapor lock and surface delamination
- Proven three-year performance in wet climates
What doesn’t
- Overapplication can leave a temporary wet-looking stain
- Annual reapplication recommended for maximum protection

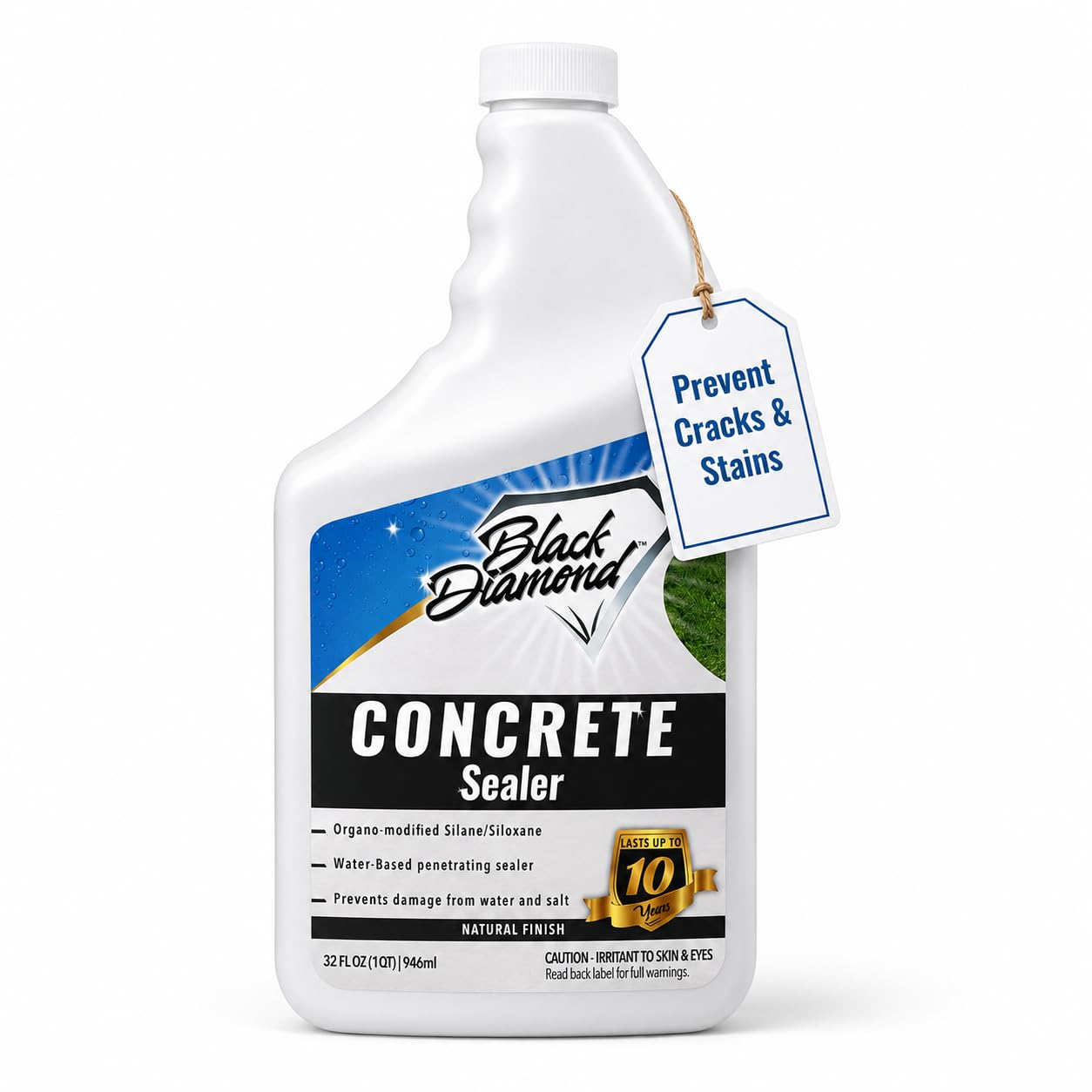

4. Black Diamond Stoneworks Concrete Sealer
Black Diamond Stoneworks offers a silicone and siloxane blend in a compact 32-ounce quart format that is ideal for small-scale projects and decorative masonry. The formula is water-based, low-odor, and non-toxic, making it safe to use around pets and landscaping. This is the right product for sealing a birdbath, a single planter, a small section of patio, or grout lines where you do not want to commit to a full gallon that will degrade in storage.
The sealer applies with a brush or small sprayer and cleans up with soap and water. Users note that the liquid is very thin and watery, which is characteristic of penetrating sealers—do not mistake the low viscosity for weakness. It dries clear and has successfully prevented water absorption in outdoor ceramic planters and birdbaths across multiple winter cycles. The 10-year protection claim is optimistic for exterior exposure, but the manufacturer suggests reapplication every five to seven years.
One critical note: this product must be stored in a dry, temperature-controlled environment. Exposure to freezing temperatures permanently compromises the formula. If you only need a quart and you can store it properly, this avoids the waste and cost of a gallon you’ll never finish. For larger projects, the cost per ounce is higher than the gallon jugs, so scale up to MasonryDefender if you’re covering a full patio.
What works
- Compact quart size perfect for small masonry projects
- Low-odor, non-toxic formula safe near plants and pets
- Dries clear and prevents water absorption in decorative masonry
What doesn’t
- Freeze-sensitive formula requires climate-controlled storage
- Cost per ounce is higher than gallon-sized alternatives
5. Thompson’s Water Seal 24111 Clear Low VOC Water Sealer
Thompson’s Water Seal is the legacy name in DIY waterproofing, and the 24111 1.2-gallon clear acrylic formula remains a serviceable entry-level option for general exterior sealing. The acrylic-based chemistry forms a clear surface film that beads water on contact, making it effective for low-stakes applications like shed walls, fence posts, and basement masonry that does not experience heavy freeze-thaw cycling. The low VOC rating is a plus for interior-adjacent applications where fumes are a concern.
Users report success sealing soft brick chimneys to stop freeze-thaw deterioration, as well as treating concrete that was allowing water ingress into a basement. The application method is flexible—brush, roller, or sprayer all work—and the dry time is roughly 30 hours depending on conditions. The product ships internationally from China, and several users noted dented cans upon arrival, so inspect the container before use.
The key limitation is the acrylic chemistry itself. Unlike siloxane-based sealers that bond below the surface, Thompson’s sits on top. This makes it vulnerable to UV degradation and physical abrasion, and it can trap moisture in the brick if applied too thickly. For decorative or non-critical surfaces where you need a quick, inexpensive water bead, this fulfills that role. For chimney stacks or historic brickwork, spend the extra dollars on a penetrating siloxane formula.
What works
- Low-cost per gallon for large-area exterior coverage
- Low VOC formula reduces fumes during application
- Versatile brush, roller, or sprayer application
What doesn’t
- Acrylic surface film is UV-sensitive and less durable than penetrating formulas
- Can trap moisture in brick if overapplied, risking spalling
- Packaging frequently arrives dented with potential leakage
Hardware & Specs Guide
Active Chemistry Comparison
Siloxane sealers (ChimneyRx) penetrate up to 1/4 inch and bond chemically to brick silicates, providing a breathable hydrophobic layer. Silane-siloxane hybrids (MasonryDefender) add a smaller silane molecule that penetrates even denser substrates like granite and limestone. Acrylic sealers (Thompson’s) form a surface film that does not penetrate, making them suitable for low-moisture environments but risky for exterior brick in freeze-thaw climates. Silicone blends (Black Diamond) offer intermediate penetration but require careful storage to prevent formula degradation.
Coverage Rate and Application
Coverage varies directly with substrate porosity. Chimney-grade siloxane on porous chimney brick: approximately 40 sq ft per gallon. Silane-siloxane blends on concrete pavers: 90-150 sq ft per gallon. Always buy more than the label suggests for first-time applications on untested brick. Application temperature must remain between 40-90°F, and the surface must be dry. All penetrating sealers require a minimum of 6 hours dry time before rain exposure. Pump-up garden sprayers provide the most even application for vertical surfaces.
FAQ
What is the difference between a film-forming and a penetrating brick sealant?
How long does a siloxane brick sealant last before reapplication is needed?
Can I apply a brick sealant over existing efflorescence?
Final Thoughts: The Verdict
For most users, the brick sealant winner is the ChimneyRx 300119 because its deep-penetrating siloxane chemistry provides the breathable protection that brick masonry requires, with proven long-term results on vertical chimney surfaces. If you want a single formula that works across brick, stone, concrete, and limestone, grab the MasonryDefender All Purpose Sealer. And for a budget-friendly, large-coverage option on non-critical exterior surfaces, nothing beats the value of Thompson’s Water Seal 24111.
