The gap between your side mirror and your trailer’s rear bumper is a dangerous blind zone that eats up focus every single lane change, backup, and parking maneuver. A 10-inch display is the minimum canvas needed to actually see your surroundings in a full-size vehicle—anything smaller forces you to squint at four split-screen feeds and still miss a child or a concrete pylon. The wrong system leaves you with grainy night vision, laggy wireless signals, or cameras that fog up after one rainstorm.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent over a decade analyzing dash cam hardware, studying real-world durability data from long-haul fleets, and comparing the sensor tech, waterproofing certifications, and cable architecture that separate a reliable 10-inch system from a frustrating one.
Whether you pilot an 18-wheeler, a Class A motorhome, or a box truck, this guide cuts through the noise to deliver the most practical camera for truck drivers with 10 inch display options based on real specs, real reviews, and long-term value.
How To Choose The Best Camera For Truck Drivers With 10 Inch Display
A 10-inch display opens up enough real estate for a true quad-camera split view, but the hardware behind the screen determines whether that extra size helps or hurts. Focus on signal architecture, waterproofing, sensor quality, and cable length—these four specs make or break a system designed for a heavy vehicle that lives outdoors.
Wired vs. Wireless Signal Stability
Wireless systems advertise quicker installs, but the 2.4 GHz band competes with CB radios, toll pass transponders, and other truck cab electronics. On a 40-foot trailer, even a premium wireless signal can flicker at highway speeds or when passing under overpasses. Wired systems using 4-pin aviation connectors deliver zero-lag, interference-free video to a 10-inch quad-split monitor. If your truck pulls a fifth-wheel or a gooseneck, prioritize wired for reliability.
IP Rating and Build Material
Look for IP68 or IP69K—these ratings confirm the camera can survive being pressure-washed, submerged during flooding, and blasted with road salt. Budget-tier systems often list IP67 or no rating at all, which leads to moisture creep inside the lens housing after a few winter months. Full metal camera bodies dissipate heat better than plastic and resist cracking from vibration on a diesel frame.
Sensor Technology and Night Vision
CMOS sensors are standard in modern backup cameras, but not all CMOS sensors are equal. Look for dedicated IR LED rings around the lens rather than relying on the vehicle’s reverse lights for illumination. True AHD 1080P sensors maintain clarity at night, while lower-cost CCD-based cameras wash out dark details and introduce motion blur above 10 mph.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ASLONG 4K Backup Camera | Premium / Wired | Long-haul semi trucks | 10.36″ Quad Split / 170° Lens | $196.99Amazon |
| JOINLGO V80-00X | Premium / Wired | Fleet / commercial buses | Dual SD Slots / 512GB Max | Amazon |
| Fookoo Ⅱ DY104 | Premium / Wired | Box trucks / 18-wheelers | CCD Sensor / 1080p / 170° | $360.99$379.99Amazon |
| ZEROXCLUB BY104A | Premium / Wired | RVs / fifth-wheel trailers | IP69K / Remote Control | $379.99Amazon |
| Losuudy 4CH System | Mid-Range / Wired | Value-focused RV owners | Apple CarPlay / 2-Year Warranty | Amazon |
| DVKNM 4K System | Mid-Range / Wired | Off-road / lifted trucks | 10.1″ IPS / Bluetooth Music | Amazon |
| Fubedo 4CH System | Mid-Range / Wired | Dump trucks / heavy equipment | 9″ IPS / 64GB Included | $189.99Amazon |
| Xrizuo Wireless System | Budget / Wireless | Quick DIY on travel trailers | 500ft Range / Dual Antenna | $179.97Amazon |
In‑Depth Reviews
1. ASLONG 4K Backup Camera 4CH Dash Cam
$196.99as of Jun 28, 2:27 AMThe ASLONG system uses the largest display in this roundup—a 10.36-inch IPS touchscreen—and pairs it with four cameras that each claim a 170-degree field of view. That extreme angle means the side cameras cover nearly the entire length of a semi-trailer, dramatically reducing blind spot anxiety during lane changes. The monitor runs on a 9-36V DC input, which makes it compatible with both 12V and 24V truck electrical systems without a separate converter.
Real users report that image quality is sharp in daylight and low-light scenarios, though the 4K advertising is technically misleading—the system records at 1080p per channel. Side camera focus can be inconsistent straight out of the box; some units arrive with one camera slightly blurry at distance. The included 128GB max support means you can record for days without overwriting critical footage, and the FM transmission feature lets you pipe audio from the monitor through the truck’s stereo.
Installation is fully wired using a single power cord that feeds all four cameras, eliminating any pairing hassles. The system auto-powers on with ignition and supports parking monitoring with adjustable alarm times. For a long-haul driver who needs four clear feeds on the biggest screen possible, this is the most complete package.
What works
- Largest 10.36″ touchscreen in this class, easy to read in quad-split
- 170° lens angle covers nearly the entire trailer side
- Wide 9-36V input works on 12V and 24V trucks without adapters
What doesn’t
- Claims 4K but each camera outputs 1080p only
- Side camera focus can be inconsistent from the factory
- Motion blur becomes noticeable above highway speeds
2. JOINLGO V80-00X Mobile Vehicle DVR
See price on AmazonThe JOINLGO V80 is built for commercial environments—it ships with an aluminum die-cast chassis that has no fan, relying on passive cooling to handle the vibration and dust of a Class 8 truck cab. The 10-inch IPS touchscreen runs at 1024×600, which is slightly lower pixel density than some competitors, but the tradeoff is exceptional durability. The dual SD card slots accept cards up to 512GB each, giving you over 80 hours of continuous 1080p recording before any overwrite cycle begins.
The G-sensor integration is the standout feature for fleet operators. It detects hard acceleration, abrupt braking, and impacts, then locks that footage into a protected folder that cannot be overwritten by loop recording. The 4-channel alarm input triggers full-screen display on any channel when a turn signal or reverse light is activated, which means the monitor automatically shows the relevant camera without manual switching. Real users on school buses and Sprinter vans confirm the system survives years of daily use without signal degradation.
Night vision performance is solid thanks to the IR LEDs on each IP68-rated metal camera, though the 120-degree field of view is narrower than the 150-170 degree lenses found on most RV-focused systems. The menu interface is not the most intuitive—first-time setup requires digging through submenus to configure recording schedules and alarm zones. If you manage a fleet and need tamper-proof recording with event-lock functionality, this is the most dependable option.
What works
- Dual SD slots support up to 512GB each for extreme recording capacity
- Passive cooling aluminum chassis designed for constant vibration
- G-sensor locks impact footage into a protected folder
What doesn’t
- Menu system is clunky and not beginner-friendly
- 120° lens angle is narrower than competitors
- 1024×600 display resolution is lower than newer IPS panels
3. Fookoo Ⅱ DY104 Wired Backup Camera System
$360.99$379.99as of Jun 28, 2:27 AMThe Fookoo Ⅱ DY104 stands out because it uses true CCD sensors rather than CMOS. CCD chips deliver superior color accuracy and lower noise in dim conditions, which is noticeable when backing into a dark loading dock at 3 AM. The 1080p resolution per camera is consistent across all four channels, and the 170-degree wide-angle fixed lens offers one of the broadest views in the wired category. The IP69 rating means these cameras can survive high-temperature pressure washing—essential for box trucks that run through automated truck washes weekly.
The quad-split monitor runs at 1920×1080 native resolution, which is a full HD panel rather than the reduced-resolution screens used on some budget 10-inch systems. Users report that the daytime image is vibrant and the IR night vision produces sharp black-and-white footage in total darkness. The circular recording function automatically overwrites the oldest video when the SD card fills, and the adjustable parking guidelines help with precise dock alignment.
Installation requires hardwiring to ACC and battery—there is no cigarette lighter adapter included. The turn-signal trigger feature is useful but requires a DIY voltage stabilizer circuit because the monitor lacks a built-in delay relay; without it, the signal trigger can cause false activations. The cables included in the package are generous, but the rear camera’s 120-degree horizontal coverage is designed more for rearview mirror duty than as a primary backup cam. For an owner-operator who wants CCD image quality and can handle a more technical install, this is a top-tier choice.
What works
- True CCD sensors deliver better color and low-light accuracy than CMOS
- Full HD 1920×1080 monitor panel, not a scaled-down display
- IP69 rated for high-temperature pressure washing
What doesn’t
- Turn signal trigger requires DIY voltage stabilizer circuit
- Rear camera lens is too narrow for backup duties
- No cigarette lighter adapter—hardwire only
4. ZEROXCLUB BY104A 4 Wired Backup Camera System
$379.99as of Jun 28, 2:27 AMThe ZEROXCLUB BY104A is designed for the driver who wants a complete kit with zero aftermarket part hunting. It includes four metal-bodied IP69K cameras, a 10-inch 1080p monitor, a 32GB SD card, and a remote control that lets you switch camera views without reaching for the screen. The cameras use a CMOS sensor array with 18 automatic IR LEDs, producing usable night vision down to 0.1 lux. The 170-degree field of view on each camera provides full wrap-around coverage on a 40-foot RV or trailer.
Real-world performance is impressive—users report flawless operation through sun, rain, sleet, and snow over 2,400-mile trips. The pre-paired cameras connect via 4-pin aviation connectors, so there is no pairing process or signal drop. The mirror/flip function allows you to orient each camera feed independently, which is critical when mounting a camera upside down on a truck bed cap or under a trailer frame. The parking guidelines are fixed and not adjustable, which is a minor limitation for drivers who prefer custom grid overlays.
The included remote control works reliably from the driver’s seat and covers all menu navigation, including switching between single-camera full-screen and quad-split views. The monitor’s suction cup mount is sturdy but bulky—some drivers prefer a permanent bracket mount for a cleaner cab look. A small number of users reported condensation inside the camera housing after prolonged heavy rain, so applying additional sealant around the lens base during installation is a smart precaution. For a premium wired kit that truly is plug-and-play, this system delivers exceptional value.
What works
- Pre-paired plug-and-play cameras with 4-pin aviation connectors
- Remote control for safe view switching while driving
- IP69K metal bodies survive extreme weather and pressure washing
What doesn’t
- Parking guidelines are fixed and not user-adjustable
- Condensation can occur inside camera housing in heavy rain
- Bulkier suction mount takes up dashboard space
5. Losuudy 4 Channel Backup Camera Dash Cam System
See price on AmazonThe Losuudy system is the only unit in this roundup that integrates Apple CarPlay and Android Auto directly into the 10-inch monitor. That means you can run Google Maps or Waze for real-time traffic rerouting, stream music, and take hands-free calls through Siri or Google Voice Assistant without needing a separate phone mount. The inclusion of a 64GB SD card in the box removes an immediate accessory cost that most competitors force you to cover separately.
The quad-camera setup records in 1080p per channel, and the AHD sensors produce clear daytime images. Night vision is a mixed bag—early units shipped with cameras that lacked true IR capability, though the manufacturer has since replaced those with IR-equipped units under warranty. The 24-month warranty and responsive customer service (users report one-hour reply times on Saturdays) provide meaningful backup if you encounter a defective camera, which is not uncommon at this price tier.
Installation is straightforward for anyone comfortable with basic 12V wiring, but the 10-inch monitor is physically large and may not fit cleanly in smaller truck cabs. The 49-foot main cable and 23-foot extension cables cover even the longest trailers and buses. Parking lines are visible but cannot be adjusted. For the RV owner who also wants smart navigation features without a separate device, this system packs exceptional value into one package.
What works
- Built-in Apple CarPlay and Android Auto for navigation and calls
- 64GB SD card included, saving an immediate accessory purchase
- 24-month warranty with fast customer service responses
What doesn’t
- Early camera units lacked true IR night vision
- Large monitor may not fit smaller or mid-size truck cabs
- Parking guidelines are not adjustable

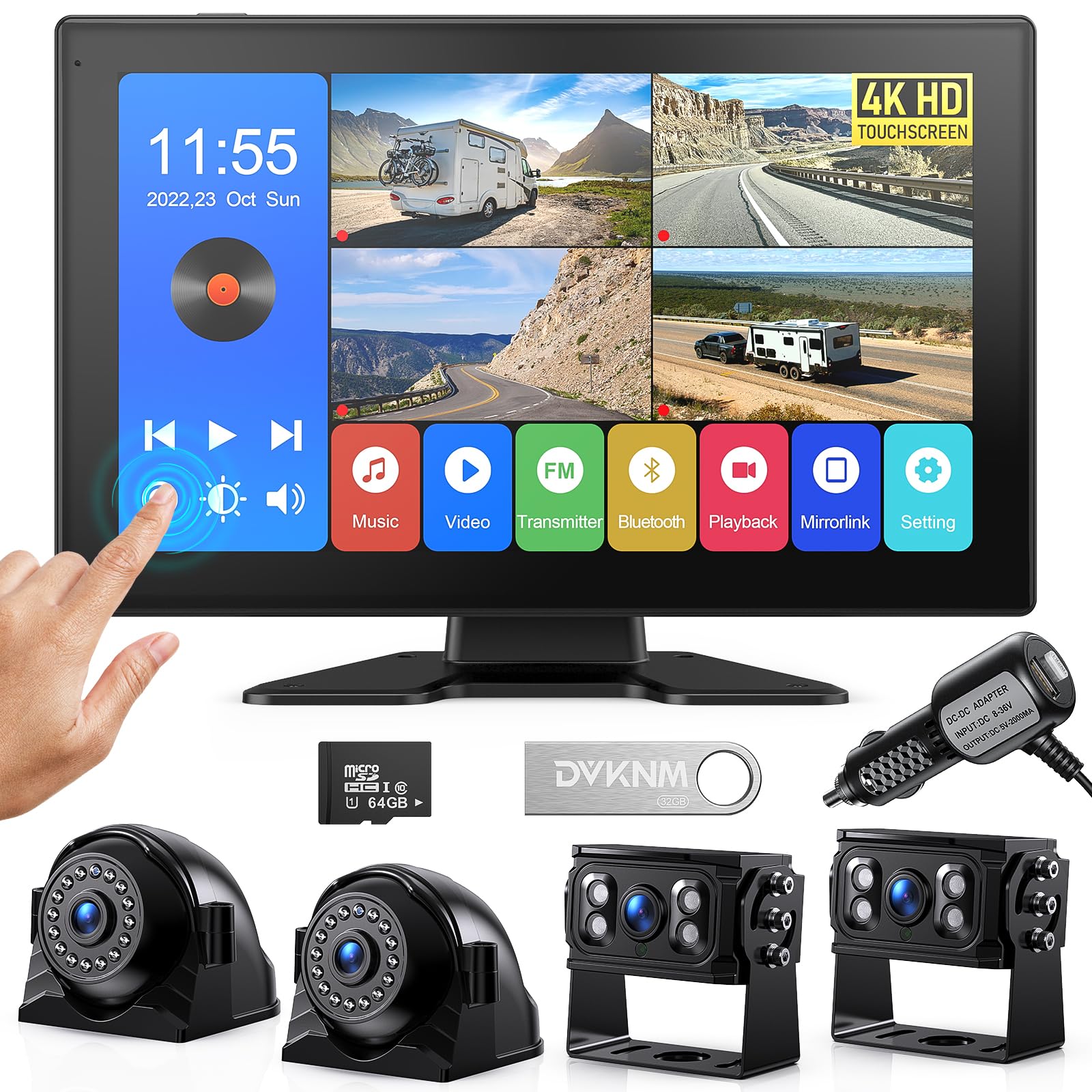

6. DVKNM 4K RV Backup Camera System
See price on AmazonThe DVKNM system pairs a 10.1-inch IPS touchscreen with four 1080p AHD cameras and a 64GB memory card, all housed in a wired configuration that avoids any signal dropout. The touchscreen interface is responsive and offers ten different split-screen modes, including a double-tap to enlarge any single camera feed. The Bluetooth connectivity lets you play music through the monitor’s built-in tweeter speaker and answer calls via the integrated microphone—a useful feature when you do not want to pair your phone to a separate head unit.
Users who installed this on lifted Ford F250s and Class A motorhomes report that the cameras withstand serious off-road abuse without failing, thanks to the IP69 potting process that seals the electronics completely. Night vision performance is strong, switching seamlessly between IR black-and-white and natural color as ambient light changes. The parking monitoring feature works well, but the minimum timer is set to one hour, which is longer than some drivers want for short stops at rest areas.
The main complaint across reviews is the cable management: the supplied wires are excessively long for most installations, leaving yards of cable to hide behind panels. The left and right camera full-screen views do not function correctly in all vehicle configurations, forcing you to stay in quad-split mode. Boot-up time is also slower than competitors—about 8-10 seconds before the display shows live feeds. For the off-road enthusiast or RV owner who wants a robust touchscreen with entertainment features, this system delivers solid performance with a few quirks.
What works
- Responsive IPS touchscreen with ten split-screen modes
- Bluetooth music streaming and hands-free calling
- IP69 waterproofed cameras withstand off-road abuse
What doesn’t
- Excessively long cables require careful management
- Left/right camera full-screen views do not work in all vehicles
- Slow 8-10 second boot time after ignition
7. Fubedo 1080P 4-Wired Backup Camera System
$189.99as of Jun 28, 2:27 AMThe Fubedo system uses a 9-inch IPS panel rather than a full 10-inch display, which means it barely qualifies for this guide but earns a spot because of its exceptional camera clarity and reliability. The anti-glare IPS screen outperforms many 10-inch monitors in direct sunlight, maintaining vivid colors and sharp contrast even when the sun is streaming through the windshield. The four 1080p cameras use a high-definition chipset that delivers noticeably crisper images than the older CCD cameras on some comparable systems.
The 150-degree wide-angle lenses include IR LEDs for night vision, and real-world users—including dump truck operators and 18-wheeler drivers—confirm the system provides a true 360-degree view with zero blind spots. The DIY parking guidance lines are adjustable, which is a rare feature at this price tier and allows you to calibrate the overlay to your exact trailer length. The 64GB SD card is included and supports loop recording, automatically overwriting the oldest footage.
The wired connection uses 4-pin aviation connectors that are waterproof and rust-proof, ensuring no signal loss even after years of exposure. The system supports 12-36V wide voltage, so it works on 24V commercial trucks without an additional converter. One serious complaint appears in reviews: glare from the monitor can be terrible in certain cab angles, making the screen completely unusable during midday driving. The manufacturer includes a hood or you can fabricate a simple sun shade. For the price, the camera quality is hard to beat, but the glare issue is a real usability problem for day drivers.
What works
- Anti-glare IPS screen outperforms larger displays in direct sun
- Adjustable parking guidance lines for custom trailer calibration
- Wide 12-36V input works on commercial 24V trucks
What doesn’t
- 9-inch display is smaller than the 10-inch category spec
- Severe glare in certain dashboard mounting angles
- No cigarette lighter adapter included for quick power
8. Xrizuo Wireless Backup Camera System
$179.97as of Jun 28, 2:27 AMThe Xrizuo system is the only wireless option in this guide, making it the quickest to install for a travel trailer or camper van. The 10-inch IPS touchscreen monitor communicates with the cameras via a 2.4 GHz digital signal with dual antennas rated for up to 500 feet. In practice, users report the signal remains stable well beyond that distance—some drivers report clear video from over three blocks away. The system ships with two 1080p cameras, but it is expandable to four channels if you add cameras later.
Picture quality is surprisingly good for a wireless system: daytime images are crisp, and the IR night vision activates automatically in low light, producing usable black-and-white footage. The IP69K rating on the cameras means they can survive the same pressure washing and extreme temperatures as wired systems. The DVR loop recording function (with a separately purchased SD card) allows the monitor to double as a dash cam, capturing your journey continuously.
The wireless convenience comes with tradeoffs. The monitor and cameras still require 12V power—this is not a battery-operated setup. The monitor connects to the cigarette lighter, and each camera must be wired to the vehicle’s backup lights or ACC. Some users find the automatic switching between IR and color modes overly sensitive, causing the screen to cycle annoyingly at dusk. The monitor glare on sunny days is noticeable, and the 10-inch screen may require a custom mount or fabrication to fit securely in a truck cab. For the RV owner who wants a fast DIY install with zero cable runs between the trailer and cab, this system offers solid value.
What works
- Fastest installation—no long cables between camera and monitor
- Dual antennas provide stable signal far beyond 500ft
- Expandable to four channels for full vehicle coverage
What doesn’t
- IR/color switching is overly sensitive at dusk
- Monitor glare is noticeable on sunny days
- Large screen may require custom fabrication to mount safely
Hardware & Specs Guide
Sensor Type: CMOS vs. CCD
CMOS sensors dominate modern backup cameras because they consume less power and integrate image processing on the same chip. However, CCD sensors—found on the Fookoo Ⅱ DY104—produce less electronic noise in low light and render truer colors across the frame. If you regularly back into unlit loading docks or drive rural roads without streetlights, a CCD-based system delivers a cleaner image at night despite being older technology.
Waterproofing: IP68 vs. IP69K
IP68 guarantees the camera can be submerged in over 1 meter of water for an extended period. IP69K goes further—it withstands high-pressure, high-temperature spray from all angles, which is the standard for truck washes and industrial cleaning. For a dump truck, garbage truck, or any vehicle that runs through an automated wash weekly, IP69K cameras will outlast IP68 units by multiple seasons. The ZEROXCLUB and Xrizuo systems both carry IP69K certification.
Display Resolution and Touch Quality
A 10-inch monitor running at 1024×600 (like the JOINLGO V80) has about 600,000 pixels, while a 1920×1080 panel (like the Fookoo Ⅱ) has over 2 million pixels. In a quad-split view, each camera feed shrinks to roughly 480×270 on the lower-resolution screen—enough to see a car behind you but not enough to read a license plate. If reading details in split-screen matters, choose a monitor with native 1080p resolution rather than a scaled-up 1024×600 panel.
Cable Length and Connectors
A semi-truck with a 53-foot trailer plus a 20-foot cab requires at least 80 feet of total cable to reach the rear camera. Look for systems that include a 49-foot main cable plus extension cables—the Losuudy system offers 49 feet plus 23 feet, covering even extended-cab configurations. Wired systems should use 4-pin aviation connectors that are weatherproof and lock securely, unlike cheap RCA connectors that corrode and cause signal flicker over time.
FAQ
Do I need a wired or wireless backup camera for a 53-foot trailer?
Can a 10-inch dash cam monitor fit in a sleeper cab?
What does IP69K mean for a truck camera?
Why do some backup cameras switch to black-and-white at night?
Final Thoughts: The Verdict
For most users, the camera for truck drivers with 10 inch display winner is the ASLONG 4K Backup Camera because it combines the largest 10.36-inch touchscreen with a 170-degree lens angle and wide 9-36V voltage support, making it the most versatile option for both 12V RVs and 24V commercial trucks. If you need event-lock recording for fleet management, grab the JOINLGO V80-00X. And for the best value with Apple CarPlay and a 2-year warranty, nothing beats the Losuudy 4 Channel System.
