A PC case that looks stunning but suffocates your components is a thermal disaster waiting to happen. The difference between a stable, high-performance rig and one that thermal-throttles mid-game often comes down to a single design choice: how freely air moves through the chassis. Mesh panels, fan placement, and interior layout aren’t aesthetic decisions—they’re the difference between a quiet 65°C CPU and a noisy 85°C one.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent countless hours poring over thermal test data, airflow diagrams, and user build reports to understand exactly which chassis designs move the most cubic feet of air per minute with the least noise penalty.
Whether you are rocking an air-cooled RTX 4090 or a custom loop with a 360mm radiator, the right chassis keeps temps in check without sounding like a server rack. I’ve broken down the top contenders to help you find the absolute best case for airflow that fits your hardware and budget.
How To Choose The Best Case For Airflow
Airflow performance isn’t about how many fans a case can hold—it’s about how easily air moves from intake to exhaust with minimal resistance. The front panel material, the size and position of intake vents, and the path air takes over the CPU socket and GPU are what actually determine thermals. Ignoring these factors leads to higher noise and lower boost clocks.
Front Panel Design: Mesh vs. Glass vs. Solid
A fully mesh front panel lets fans breathe unrestricted, pulling cool air directly into the chassis. Tempered glass fronts with side intakes restrict flow by forcing air to make a 90-degree turn before reaching the fans, which reduces effective static pressure. If raw airflow is your priority, high-density mesh with wide perforations beats any closed-front design hands down.
Fan Size and Configuration
Larger fans move more air at lower RPMs, which means less noise for the same volume of airflow. Two 140mm front intakes can push more cubic feet per minute than three 120mm fans while running quieter. A case that ships with 140mm or 180mm fans has a built-in acoustic advantage over one packed with smaller, faster-spinning 120mm units.
Radiator Support and Layout
If you plan to run liquid cooling, consider how the radiator mounts. Top-mounted radiators exhaust heat naturally away from the GPU, while front-mounted radiators blow warm air into the case, raising GPU temps by 3–5°C. Cases with dedicated radiator chambers or offset mounts provide better thermal separation and lower overall system temperatures.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| HAVN BF 360 Flow | Premium | Ultra-low-noise airflow | 2x 180mm + 1x 140mm fans included | Amazon |
| CORSAIR AIR 5400 RS-R | Premium | Isolated triple-chamber cooling | Triple-chamber design, 3x RS120-R fans | Amazon |
| Antec Flux Pro | Premium | Full-tower with included 140mm fans | 6x PWM fans included, 420mm rad support | Amazon |
| Corsair Frame 4500X RS | Mid-Range | Curved glass with reverse-rotor fans | Reverse-rotor side fans, InfiniRail system | Amazon |
| LIAN LI LANCOOL 205 MESH C | Mid-Range | Mesh front with 140mm fans | 2x 140mm front + 1x 120mm rear fans | Amazon |
| Corsair 3500X RS ARGB | Mid-Range | Panoramic glass with good stock cooling | 3x pre-installed RS120-R fans, E-ATX | Amazon |
| NZXT H5 Flow 2024 | Budget | Compact mid-tower value | 2x 120mm fans, perforated PSU shroud | Amazon |
In‑Depth Reviews

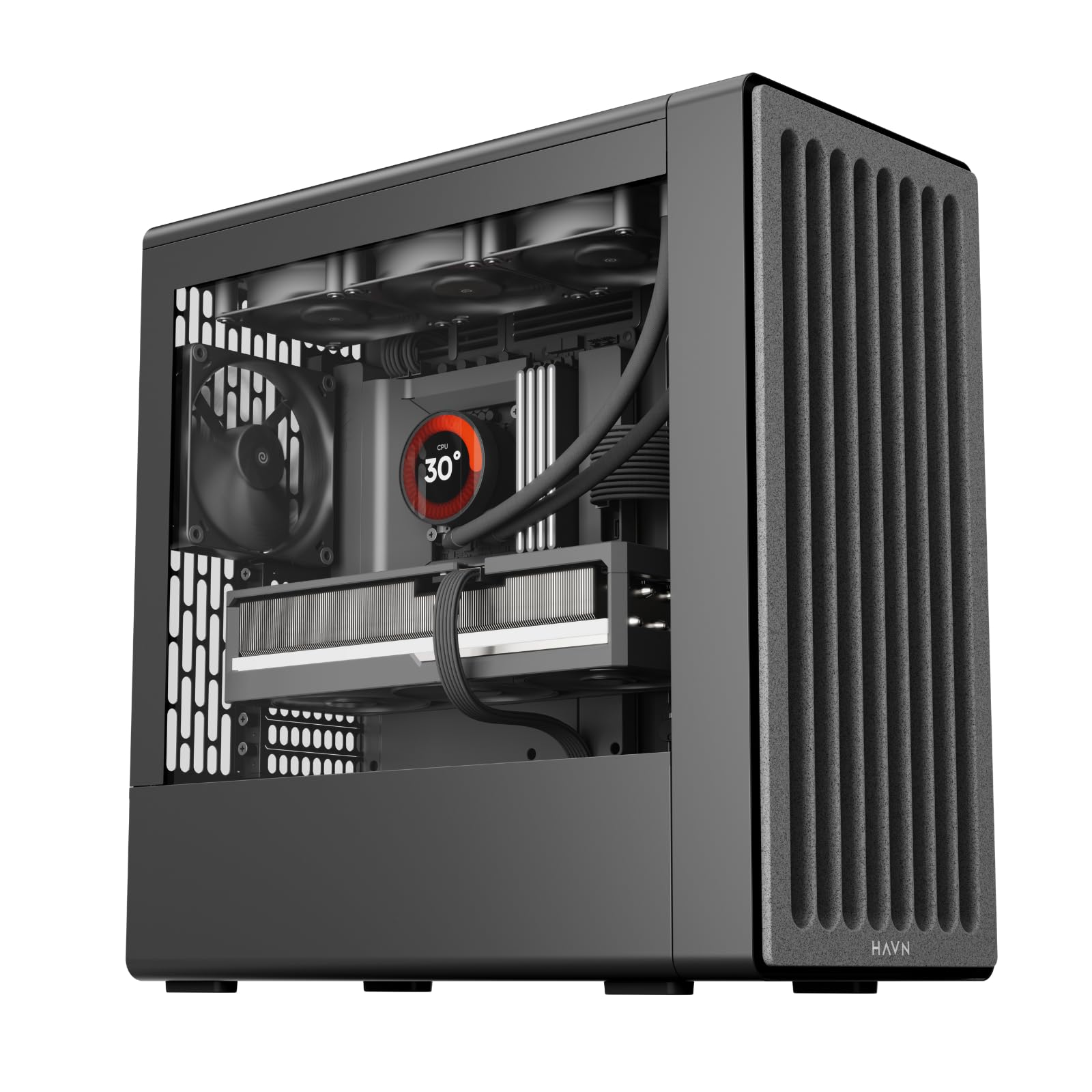

1. HAVN BF 360 Flow
The HAVN BF 360 Flow takes a fundamentally different approach to chassis cooling by pairing two massive 180mm front intakes with a 140mm rear exhaust. Those 180mm fans move 160 CFM at low RPM, which means your GPU gets a torrent of cool air without the whine you’d expect from high-speed 120mm fans. The integrated 135-degree angled air duct actively directs airflow toward the GPU’s hot zones, a level of thermal engineering most cases in this segment simply skip.
Build quality is equally premium—the semi-open SGCC steel frame uses a detachable U-shaped top fan bracket that makes radiator installation painless, and the 33mm of cable management depth behind the motherboard tray keeps even thick PSU cable bundles hidden. The SimpliCable system with integrated channels and Velcro straps means you spend minutes on cable routing, not hours. The magnetic side panels snap on and off with satisfying precision.
For those running air-cooled flagship GPUs or dual 360mm radiator setups, this case delivers the lowest noise-to-airflow ratio in the mid-tower class. The only trade-off is limited 3.5-inch drive support—you get two vibration-dampened trays that each hold either a single 3.5-inch HDD or two 2.5-inch SSDs. If you need massive mechanical storage, look elsewhere, but for pure thermal performance, this is the benchmark.
What works
- Massive 180mm fans deliver exceptional airflow at very low noise levels
- Angled air duct targets GPU hot zones for improved thermal performance
- Tool-less magnetic panels and excellent cable management channels
What doesn’t
- Limited 3.5-inch drive support with only two trays
- Top 420mm radiator does not fit; 360mm is the max
- Premium price point
2. CORSAIR AIR 5400 RS-R ARGB
Corsair’s triple-chamber architecture is the defining feature here, and it works. An isolated front chamber holds a 360mm radiator for CPU cooling, meaning the heat rejected by your CPU cooler never passes through the main GPU and motherboard chamber. The central chamber is designed for massive vertical airflow across the GPU, aided by airflow ducts that accelerate intake velocity without bumping fan speed. Users report CPU temps dropping from 85°C to 58°C and GPU temps from 90°C to 55°C under full load after moving to this chassis.
The three pre-installed reverse-rotor RS120-R ARGB fans are positioned as side intakes, blowing cool air into the main chamber while keeping their RGB faces unobstructed. The InfiniRail mounting system on the roof lets you slide 120mm or 140mm fans anywhere along the rail, which is handy when your radiator or fan placement conflicts with motherboard VRM heatsinks. Cable management is excellent thanks to the separate PSU and storage chamber that hides all the cabling clutter.
The big practical consideration is size: this is a very wide mid-tower at nearly 14 kilograms, so measure your desk clearance before buying. The back exhaust fan is partially blocked by the glass panel, which means you lose a small percentage of rear exhaust efficiency. But if you are running dual AIOs—one for CPU, one for GPU—the triple-chamber layout is unmatched for keeping each loop’s thermal load isolated.
What works
- Triple-chamber design isolates CPU and GPU heat sources effectively
- Reverse-rotor fans provide clean RGB view with strong intake
- InfiniRail roof mounting offers flexible radiator placement
What doesn’t
- Very wide chassis requires significant desk space
- Rear exhaust fan partially obstructed by glass panel
- AIO hose routing can be tight with thick 400mm radiators
3. Antec Flux Pro
The Antec Flux Pro comes with six pre-installed 140mm PWM fans: three Tranquil 140 units at the front, two reverse-flow P12R fans on the PSU shroud, and one more Tranquil 140 at the rear. That is a complete cooling solution out of the box—no additional fan purchases needed for most builds. The front panel combines high-density mesh with a walnut wood accent strip, giving it a classy aesthetic that doesn’t look like a gaming spaceship.
The iShift PSU 90-degree mount is genuinely useful: it rotates the power supply so its fan intakes from the side panel rather than the floor, which improves PSU thermals if your case sits on carpet. The CPU/GPU dual temperature display on the front panel is a nice touch for enthusiasts who want to monitor thermals without software. Radiator support is generous—it can fit a 420mm radiator up top and a 360mm in the front simultaneously, which is rare in any chassis at this price tier.
Build quality is excellent with thick steel panels and minimal flex, and the removable cooling brackets make fan and radiator swaps much less frustrating. The only drawback is that this is a full tower, not a mid-tower, so it takes up substantial floor or desk space. At 29 pounds empty, moving it around is a two-person job. But if you want a full-tower with best-in-class stock cooling, this is the one.
What works
- Six high-quality 140mm PWM fans included, no extras needed
- iShift PSU mount improves thermals on carpeted floors
- Simultaneous 420mm + 360mm radiator support
What doesn’t
- Full-tower footprint requires significant space
- Very heavy at 29 pounds empty
- Front panel cables are slightly short for large PSUs

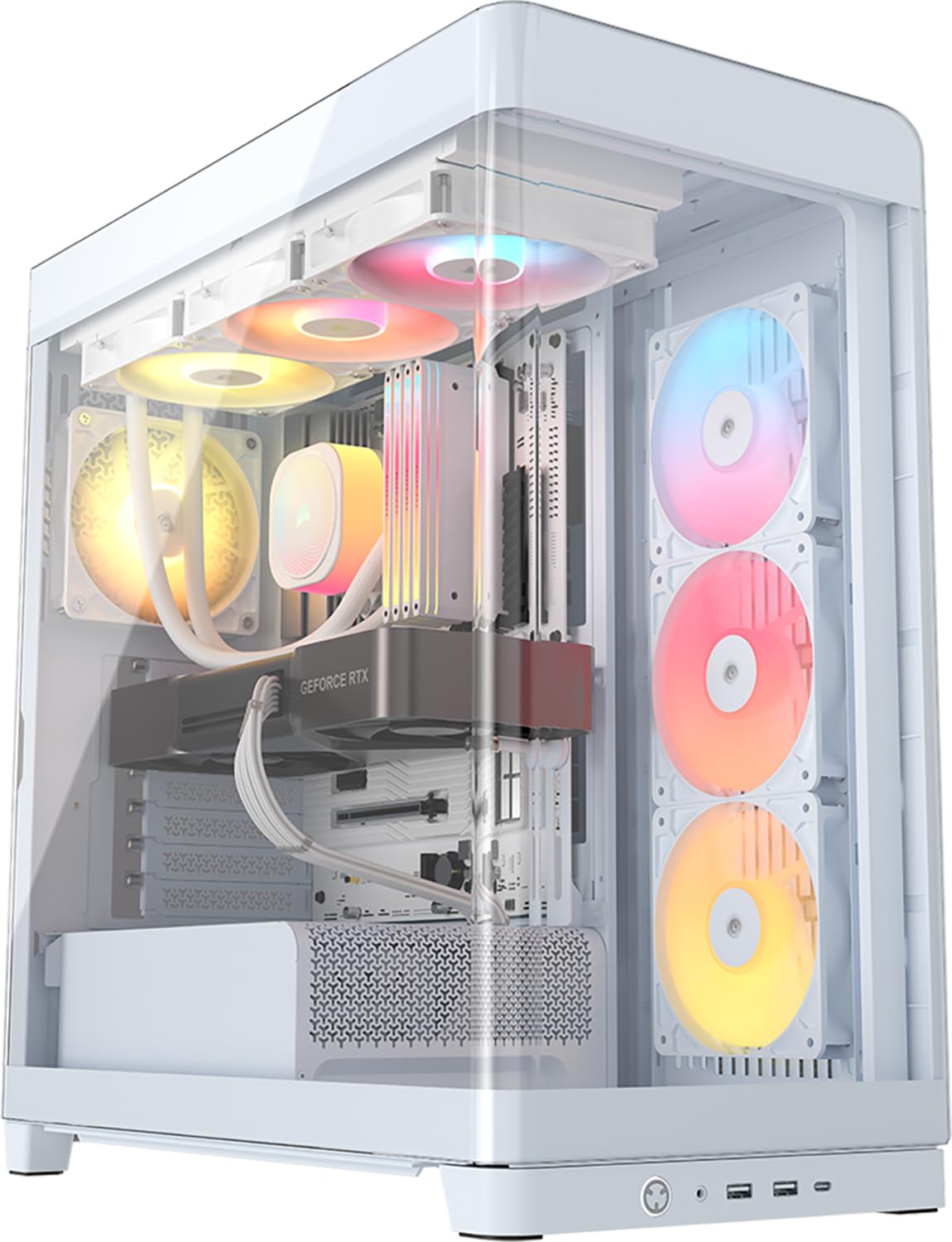

4. Corsair Frame 4500X RS ARGB
The Frame 4500X RS uses a single-piece curved glass front and side panel—a design that normally signals terrible airflow—but Corsair avoids the trap by using reverse-rotor side-mounted 120mm fans. These fans spin in the opposite direction to pull cool air in from the side mesh while keeping the RGB-facing side unobstructed for viewing. The FRAME modular system lets you swap the motherboard tray, cable cover, and PSU shroud, so the case can adapt as your build evolves.
The InfiniRail fan mounting system on the roof is a standout feature. Instead of fixed screw holes, a steel rail slides to let you position 120mm or 140mm fans anywhere along the top. This eliminates the common headache of radiator fan alignment conflicting with motherboard capacitors or VRM heatsinks. Cable management is equally refined, with removable cable trays and deep routing channels behind the motherboard.
Thermal performance is strong for a glass-front case. The reverse-rotor side fans push substantial cool air into the GPU zone, and the spacious interior supports up to E-ATX motherboards with room to spare. Some users report that the included GPU anti-sag bracket can block the front-panel USB 3.0 header depending on motherboard layout, but the overall build experience is polished. It is a great choice if you refuse to compromise on looks but still demand real airflow.
What works
- Reverse-rotor side fans provide good airflow despite curved glass design
- FRAME modular system allows customizable motherboard tray and shroud
- InfiniRail roof mounting eliminates fan alignment frustrations
What doesn’t
- GPU support bracket can interfere with USB 3.0 header placement
- No iCUE support for fan control; requires motherboard RGB software
- No top dust filter included
5. LIAN LI LANCOOL 205 MESH C
Lian Li’s LANCOOL 205 Mesh C is a straight-ahead mesh front mid-tower that ships with two 140mm ARGB PWM fans up front and a 120mm rear fan. The 140mm front intakes move a high volume of air at lower RPM than 120mm alternatives, which directly translates to quieter operation under load. The mesh front panel uses a fine steel grid with magnetic dust filters on top and bottom that are easy to remove and wash.
The interior layout is clean and well-thought-out: the PSU is hidden beneath a shroud with a bottom intake, there are removable SSD mounting brackets, and the top fan bracket is swappable to accommodate different radiator sizes. The included I/O panel has two USB 3.0 Type-A ports and a USB Type-C port, which is welcome at this tier. RGB control is handled via a button on the top panel with seven color modes and seven lighting effects, or you can sync it to your motherboard at the eighth mode.
Clearance for GPU lengths is generous at around 350mm, which fits most triple-slot cards including the RTX 3080 and 4080, but the very largest 4090 models require you to remove the HDD cage. The rear cable management space is tight—plan your PSU cable routing carefully if using non-modular units. The mesh design delivers excellent thermals out of the box, and for builders who want a solid mid-tower with big fans and no frills, this is a top-tier value.
What works
- Two 140mm front fans provide quiet, high-volume intake
- Mesh front panel with easy-to-clean magnetic dust filters
- Includes USB Type-C port on front I/O
What doesn’t
- Rear cable management channel is tight for thick PSU cables
- Motherboard screw hole alignment can be inconsistent
- Huge GPUs may require removing the HDD cage
6. Corsair 3500X RS ARGB
The Corsair 3500X RS ARGB wraps around your build with tempered glass on the front and side, but it avoids the thermal trap of sealed glass panels by using side, roof, and PSU fan mounting points that support up to ten 120mm fans. The three pre-installed RS120-R fans are positioned as side intakes, drawing cool air in through the side mesh while keeping the glass panels clear for a panoramic component view. It also supports reverse-connection motherboards like ASUS BTF and MSI Project Zero, which hides all cables behind the board for an ultra-clean aesthetic.
Build quality is solid—the metal chassis has acceptable thickness with no sharp edges, and the removable glass panels snap off with a gentle pull. Cable management is straightforward thanks to wide routing channels and plenty of tie-down points. The included GPU anti-sag bracket is a thoughtful addition for large cards. The daisy-chained fan system means less wire clutter, but the fans have a noticeable hum at low speeds that some users find annoying.
Thermal performance is good for a glass-front case but not class-leading. The side intake location means air has to change direction before reaching the CPU and GPU, which creates a small pressure drop compared to a mesh front. The case also ships with three intake fans and no exhaust fan, so you will want to add at least one exhaust to avoid positive pressure trapping hot air. If the panoramic look is your priority and you are willing to add one exhaust fan, this case delivers adequate cooling with top-tier aesthetics.
What works
- Panoramic tempered glass provides excellent component visibility
- Supports reverse-connection motherboards for clean cable hiding
- Removable dust filters on all intake points
What doesn’t
- Ships with three intake fans but no exhaust fan included
- Pre-installed front fan wires visible through glass if not rerouted
- Daisy-chained fans produce a low hum at minimal speed
7. NZXT H5 Flow 2024
The NZXT H5 Flow 2024 is a compact ATX mid-tower that proves you don’t need to spend heavily to get good airflow. The PSU shroud is perforated on both the side and bottom, which means two 120mm fans mounted on the shroud can pull cool air directly from below into the GPU chamber. This is a smart thermal trick that improves GPU thermals without taking up space that larger cases reserve for front intakes. It ships with two 120mm Quiet Airflow fans—one front intake and one rear exhaust—which is enough for moderate builds.
Build quality is impressive at this tier, with all-metal construction, no sharp edges, and a tempered glass side panel that feels sturdier than expected. Cable management is excellent thanks to wide routing channels, attached hooks, and Velcro straps that make it easy to hide even non-modular PSU cables. Radiator support includes up to 360mm in front and 240mm up top, giving you plenty of liquid cooling headroom despite the compact footprint.
The downsides are minor but worth noting: the ultra-fine mesh on the top, front, and side panels does an excellent job filtering dust but slightly restricts airflow compared to more open mesh designs. The case also lacks intake holes directly under the PSU, which can make the PSU fan slightly louder if it has to work harder for air. But for a compact chassis that fits a full-size ATX board with a 360mm AIO and supports the latest GPUs, the H5 Flow delivers outstanding thermal performance per dollar.
What works
- Perforated PSU shroud improves GPU cooling by pulling air from below
- Excellent cable management with wide channels and Velcro straps
- Compact footprint fits ATX boards with 360mm radiator support
What doesn’t
- Ultra-fine mesh restricts airflow slightly compared to open mesh
- No bottom intake holes for PSU, making PSU fan slightly louder
- Paint on metal panels can chip during assembly
Hardware & Specs Guide
Fan Size and Airflow Volume
Fan diameter directly determines how much air moves at a given RPM. 120mm fans typically spin faster to match the airflow of a 140mm fan running at lower speed, producing more noise. 180mm fans, like those in the HAVN BF 360 Flow, move the most air at the quietest operation due to their longer blade arcs and slower rotational speed. For pure silence with high flow, prioritize cases that support 140mm or 180mm fans over 120mm-only designs.
Static Pressure vs Airflow Fans
Static pressure fans are designed to push air through restrictive obstacles like radiators and dense mesh filters. High-airflow fans are optimized for unrestricted intake and exhaust with minimal resistance. Most modern case fans attempt to balance both, but if you plan to mount a radiator, look for fans with rated static pressure above 1.5 mmH₂O. For open intake with mesh panels, standard airflow fans with high CFM ratings perform better.
FAQ
Is a mesh front panel always better for airflow than tempered glass?
How many case fans do I actually need for good airflow?
Does radiator placement significantly affect GPU temperatures?
Final Thoughts: The Verdict
For most users, the best case for airflow winner is the HAVN BF 360 Flow because its 180mm fans deliver unmatched airflow volume at whisper-quiet noise levels, and the angled GPU duct is a genuinely innovative thermal feature. If you want isolated chamber cooling that stops CPU heat from reaching your GPU, grab the CORSAIR AIR 5400 RS-R. And for a budget-friendly mid-tower that still punches above its weight in thermal performance, nothing beats the NZXT H5 Flow 2024.
