A Raspberry Pi board without a proper case is a ticking thermal time bomb. The exposed PCB flexes under pressure from cables, static discharge can short exposed pins, and the tiny heatsinks included with starter kits often fail to keep the Broadcom SoC below its thermal throttle threshold during any sustained workload. A well-designed enclosure does more than shield the board — it directs airflow across the voltage regulator and CPU, provides rigid mounting for add-on HATs, and ensures every port aligns so you don’t snap a micro HDMI connector.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I track thermal performance data, stack compatibility, and fan noise profiles across the most popular single-board computer enclosures to separate the functional designs from the flashy ones.
Whether you are building a retro game console, a silent NAS, or a desktop replacement, the right enclosure determines whether your project stays cool under load or thermal-throttles into a stuttery mess. This guide breaks down the current field to help you find the best case for raspberry pi that matches your specific build and budget.
How To Choose The Best Case For Raspberry Pi
Picking the right enclosure starts with understanding your Pi’s thermal behavior. The Pi 5’s BCM2712 runs significantly hotter than the Pi 4’s BCM2711, so a case with an active cooler is basically mandatory for stable performance under load. For Pi 4 projects, a well-ventilated passive case with aluminum heatsinks can be sufficient, but adding a small fan will always extend the board’s lifespan.
Active vs Passive Cooling
Active cooling uses a fan to force air over the heatsink and voltage regulator. Look for cases that include a PWM fan — the Pi 5 firmware can control the fan curve based on CPU temperature, keeping noise low during light tasks and ramping up only when needed. Passive cases rely entirely on ventilation slots and the thermal mass of the enclosure itself, which works for low-power Pi Zero projects but will cause a Pi 5 to throttle within minutes of running a CPU stress test.
Material, Stacking, and Port Alignment
ABS plastic cases are lightweight and cheap but trap heat. Aluminum cases double as a large passive heatsink but can short exposed solder points if not designed with standoffs. Acrylic cases look clean but often have poor airflow and require careful assembly. Regardless of material, verify that the case has precision-cut openings for the micro HDMI ports, USB-C power jack, Ethernet, and SD card slot. A misaligned case can break a connector during insertion or block airflow through the VRM.
GPIO and HAT Compatibility
If your project uses GPIO pins, a 40-pin header on a ribbon cable, or an M.2 NVMe HAT, the case must have an open top or a removable side panel that lets you route cables without lifting the board. Many cases with active coolers physically block the GPIO access because the fan shroud sits directly above the pins. Check that a case labeled “GPIO accessible” doesn’t require you to remove the fan assembly every time you need to connect a sensor.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Official Pi 5 Case w/ Fan | Premium | Desktop & overclocking builds | 2.79 CFM PWM fan with tachometer | Amazon |
| ElectroCookie Mini Tower | Mid-Range | Builds using M.2 NVMe HATs | Swing-open side door for GPIO | Amazon |
| GeeekPi ABS + V5 Cooler | Mid-Range | Quiet, budget Pi 5 builds | 3510 PWM fan + aluminum heatsink | Amazon |
| GeeekPi Game5Pi | Mid-Range | Retro gaming enclosures | Aluminum body + V5 active cooler | Amazon |
| Miuzei Pi 4 Kit | Budget | First-time Pi 4 buyers | 5V 3A USB-C PSU included | Amazon |
In‑Depth Reviews
1. Raspberry Pi Official Pi 5 Case with Cooling Fan & Heatsink
The first-party design from the Raspberry Pi Foundation delivers the most thermally sophisticated enclosure for the Pi 5 at a mid-range price. The integrated fan moves 2.79 CFM of air and includes a tachometer output so the OS can report actual fan RPM — a feature third-party cases rarely offer. The ABS and PC composite shell feels sturdy without flexing, and the removable top lid lets you access the fan for cleaning or replacement without removing the board from its mounting.
Benchmarks consistently show this case keeping the Pi 5 below the 80°C thermal throttle threshold even during sustained multicore loads, thanks to the included aluminum heatsink that sits directly over the BCM2712 die. The PWM fan curve is preconfigured to stay silent at idle and only ramp up under heavy workloads, making it quiet enough for a living room media center setup. The bottom mounting system also supports stacking with official HATs without needing additional standoffs.
The most notable drawback is the top cover’s lack of a GPIO cutout — you cannot connect a 40-pin ribbon cable or a sensor array without leaving the lid off entirely. Some users also report that the micro HDMI ports require a firm push to fully seat, but that cosmetic issue does not affect functionality. For a pure desktop or home server build where you rarely touch the GPIO header, this is the gold standard.
What works
- OEM fan speed control with tachometer feedback
- Stays below thermal throttle under continuous load
- Removable lid for easy fan servicing
What doesn’t
- No GPIO cutout in the top cover
- Micro HDMI alignment can be slightly tight
2. ElectroCookie Mini PC Case for Raspberry Pi 5
The ElectroCookie case solves the most frustrating pain point of Pi enclosures — needing to fully disassemble the case every time you want to connect a sensor or swap an SSD. The transparent acrylic side door swings open on a hinge, giving you unrestricted access to the GPIO pins and any top-mounted M.2 NVMe HAT board. The mini tower form factor also provides enough internal space to accommodate taller components and custom cable routing.
It ships with the official Raspberry Pi PWM cooler pre-installed, so you get the same reliable thermal performance as the first-party case with added expansion flexibility. The included external power button mechanically interfaces with the Pi 5’s onboard power button, letting you shut down gracefully without reaching behind the case. During testing, users reported idle temperatures dropping from 47°C to 34°C after adding a supplemental Noctua fan, demonstrating the excellent airflow from the fully vented acrylic panels.
Assembly is straightforward, though the power button tab can be too tight against the Pi 5’s button, causing accidental shutdowns until you bend the tab slightly. The clear acrylic also scratches more easily than ABS plastic. But for builders who frequently tinker with HATs, SSDs, and GPIO cables, the side-door convenience alone justifies the mid-range investment.
What works
- Swing-open door provides tool-free GPIO access
- Official PWM cooler included with the kit
- Plenty of room for M.2 NVMe HATs
What doesn’t
- Power button tab may need manual adjustment
- Acrylic material shows scratches easily
3. GeeekPi ABS Case with Armor Lite V5 Active Cooler
GeeekPi’s ABS case with the Armor Lite V5 active cooler is the entry-level sweet spot for Pi 5 owners who need effective active cooling without spending extra for bells and whistles. The 3510 PWM fan uses speed regulation that integrates directly with Raspberry Pi OS, unlike cheaper fixed-speed fans that run at full blast constantly. The aluminum heatsink combined with the included thermal pads provides direct die contact, which is critical for efficient heat transfer from the Pi 5’s higher-power SoC.
Assembly is tool-free with a screwdriver included in the package — the ABS layers slip together and are secured with screws rather than plastic clips that can break. The removable top cover provides access to the GPIO and camera connectors, though the fan shroud does partially obstruct full-height HAT boards. Port cutouts are precisely aligned, and the case maintains a compact footprint that doesn’t take up much more desk space than the board itself.
The main trade-off is that the layers are held together by friction rather than snap-fit, so the case can separate if you pick it up by the top cover. The included instructions rely on pictograms that are nearly unreadable, but the physical assembly is straightforward enough that most users won’t need them. This is the smart pick for anyone building a cost-sensitive Pi 5 project that still needs reliable active cooling.
What works
- PWM fan runs nearly silent and responds to OS fan curve
- Precise port cutouts for all Pi 5 connectors
- Complete kit with screws, pads, and driver
What doesn’t
- Friction-fit layers can separate when picked up
- Unclear pictogram instructions
4. GeeekPi Game5Pi Case for Raspberry Pi 5
The Game5Pi case from GeeekPi takes visual design seriously without compromising real-world thermal performance. The lightweight aluminum body serves as a large passive heatsink, and combined with the Armor Lite V5 cooler, users report temperature drops as high as 30°C compared to open-air operation. The retro mini-console aesthetic makes this an obvious choice for RetroPie and other emulation builds where the case sits on a shelf in plain view.
Port alignment is accurate, and all connectors — USB-C, dual micro HDMI, Ethernet, USB 3.0, and the SD card slot — remain fully accessible. The included fan kit uses thermal pads that make solid contact with the SoC, and the PWM speed control keeps noise levels low. Those building a dedicated game station will appreciate that the microSD slot is unblocked, which is crucial for swapping game images without disassembling anything.
Some units have shipped with defective fan bearings that produce a whining noise at certain RPMs, so it is worth testing the fan during the return window. The micro HDMI ports can also be too tight, requiring minor filing of the plastic surround for a secure click. These manufacturing inconsistencies aside, the Game5Pi offers the best visual experience for anyone building a dedicated gaming Pi.
What works
- Aluminum construction acts as additional heatsink
- Dramatic temperature reduction under gaming loads
- Retro design fits perfectly in a console shelf setup
What doesn’t
- Some units arrive with defective fan bearings
- Micro HDMI ports may need plastic filing

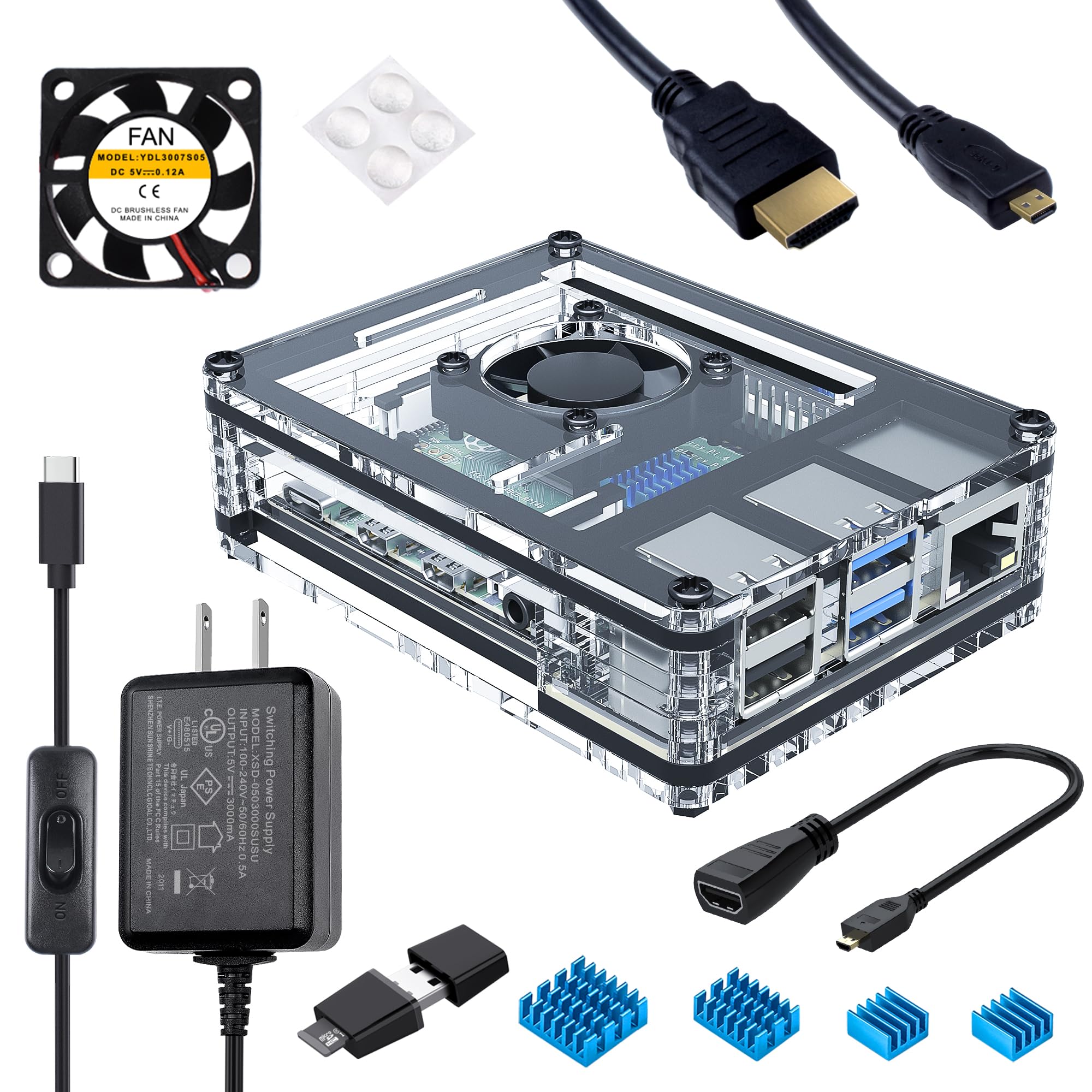

5. Miuzei Case for Raspberry Pi 4 with Fan & Accessories
Note that this kit is designed specifically for the Raspberry Pi 4 Model B — it does not fit the Pi 5 due to different board dimensions and connector locations. For Pi 4 owners, however, the Miuzei kit is the most complete starter bundle available. The clear acrylic case lets you see the board’s status LEDs and any connected HATs, while the included 30mm cooling fan and four aluminum heatsinks provide sufficient active cooling for the Pi 4’s lower TDP.
The bundled 5V 3A USB-C power supply with an On/Off switch is the standout inclusion — it eliminates the need to buy a separate high-quality PSU and power cable. The package also includes a micro HDMI to HDMI adapter, a 6-foot micro HDMI cable, and a USB card reader, covering every accessory you need to set up a Pi 4 as a desktop computer. Assembly takes roughly five minutes, and the fan runs quietly enough for a bedroom or office environment.
The acrylic layers are held together more by compression from the screws than by any interlocking mechanism, so the case can feel fragile when handled. The fan cable routing is also slightly awkward and requires careful tucking to avoid obstructing the airflow path. For the price of a single accessory elsewhere, this kit delivers a fully outfitted Pi 4 setup that is ideal for beginners or anyone building a low-cost media server.
What works
- Complete all-in-one kit with PSU, cables, and reader
- Transparent design lets you see board status easily
- Quiet fan and heatsinks cool Pi 4 effectively
What doesn’t
- Not compatible with Raspberry Pi 5
- Acrylic case feels fragile and scratches easily
Hardware & Specs Guide
PWM Fan Control
The Pi 5 has a dedicated 4-pin PWM fan header on the board that outputs a speed-control signal. Cases that include a 4-wire fan can be managed entirely by software — the OS reads the CPU temperature and adjusts the fan curve automatically. 2-wire fans run at a fixed speed and are louder. Always verify the fan connector matches the Pi 5’s pinout before buying.
Aluminum vs ABS vs Acrylic
Aluminum cases double as a heatsink and offer the best thermal performance, but they can short components if the internal standoffs are not properly insulated. ABS plastic is lightweight and durable but traps heat inside unless ventilation is generous. Acrylic is the worst thermal conductor and is mostly used for aesthetic builds where the board is not under heavy load.
FAQ
Does the official Pi 5 case block the GPIO header?
Can I use a Pi 5 case on a Pi 4 board?
Final Thoughts: The Verdict
For most users, the best case for raspberry pi winner is the Raspberry Pi Official Case because it delivers the most reliable active cooling with full OS-integrated fan control at a fair price. If you need regular access to GPIO pins and M.2 HAT boards, grab the ElectroCookie Mini Tower and its convenient swing-open door. And for a cost-sensitive Pi 5 build that still handles the heat, the GeeekPi ABS Case with Armor Lite V5 offers the best price-to-thermal-performance ratio on the market.
