A projector dangling overhead is only as good as the metal holding it in place. A weak mount turns even the sharpest 4K image into a vibrating mess, and a poor ceiling fit leaves you staring at a trapezoid instead of a rectangle. The right bracket locks your projector into the perfect plane, hides the cables, and never thinks about slipping—because once it’s up, you should forget it exists.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years dissecting mounting hardware specifications, from thread pitch and ball-joint torque to drop-ceiling weight distribution, to find which brackets actually deliver the advertised stability.
After analyzing dozens of models across standard joists, suspended ceilings, and angled soffits, these are the picks that earn a permanent spot in my buy list. This guide covers the best ceiling mount for projector options across every common ceiling type.
How To Choose The Best Ceiling Mount For Projector
Not all ceilings are wood joists, and not all projectors share the same bolt pattern. Before you buy, match the mount to your ceiling type, your projector’s weight, and the cable routing path.
Ceiling Type Determines Everything
Standard drywall over wood joists works with a simple flat plate and lag bolts. Drop ceilings require a mount that replaces a full 2×2 foot tile with a steel plate—never trust a bracket clamped to the thin tile grid alone. Concrete ceilings need wedge anchors and a mount that accepts 1.5-inch NPT thread pipes.
Ball Joint vs. Pivot Arm Precision
A locking ball joint gives you infinite tilt and swivel in one compact sphere, ideal for fine-tuning the image after the mount is fixed. Pivot arms with separate tilt and swivel screws offer more brute-force adjustment but can drift over time if the lock nuts aren’t captured. For a heavy projector, a metal-on-metal ball joint with a single locking lever wins on long-term stability.
Cable Channel Diameter
The hollow center pole hides your power cord and HDMI cable. Measure the plug head and HDMI connector width against the pole’s inner diameter. Many mounts claim cable management but the pass-through hole is too narrow for a standard HDMI end—this is the single most common install complaint in user reviews.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| SCREEN PRO PM-1500-B | Full Motion | High sloped ceilings | 42.5–59 inch extendable arms | Amazon |
| QualGear QG-KIT-CA-3IN-W | Universal Kit | Large Epson projectors | 1.5-inch NPT thread | Amazon |
| Amer AMRP150H | Ball Joint | Heavy 25kg max load | 380mm mounting circle | Amazon |
| BenQ CM00G3 | OEM Fit | BenQ projector owners | Angled ceiling +/-25° | Amazon |
| Amer AMRDCP100KIT | Drop Ceiling | 2×2 foot tile replacement | Reinforced steel plate | Amazon |
| VIVO MOUNT-VP08DP | Drop Ceiling | Adjustable 15–23 inch drop | 29.7 lbs weight capacity | Amazon |
| Valerion CMB1 | Brand Match | Valerion VisionMaster | Aluminum alloy, 360° rotation | Amazon |
In‑Depth Reviews

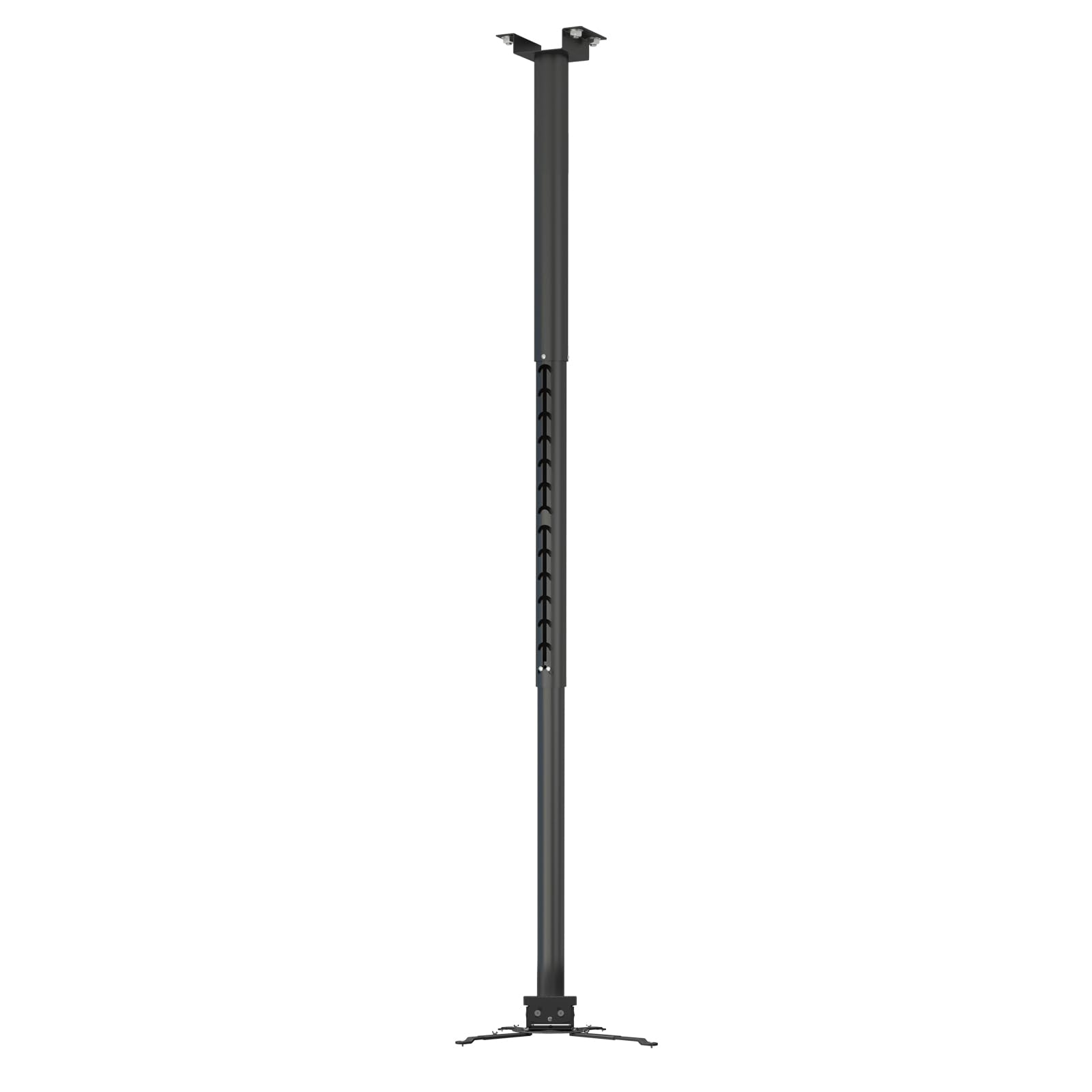

1. SCREEN PRO PM-1500-B
The SCREEN PRO PM-1500-B uses a retractable aluminum column and thickened Ф45mm steel tubing, making it one of the most rigid telescoping mounts for projectors weighing up to 22 lbs. The arms extend from 42.5 to 59 inches, which is unusually long—most competitors max out around 20 inches. This matters if you need to clear a ceiling fan or position the projector off-center from the joist.
The 30-degree tilt and 10-degree swivel give enough fine-tuning to square the image without a separate ball joint. The powder-coated black finish blends into dark ceilings, and the hidden cable channel runs through the column. A few users reported the arms arrived slightly bent, but the steel flexes back without losing structural integrity. The wingnut locks on the extension arms are simple but secure.
Installation uses standard lag bolts into a joist; the quick-release hooks make one-person mounting feasible. If you have a vaulted ceiling or need an unusually long drop, this mount covers distances that most brackets can’t reach.
What works
- Exceptional arm extension range up to 59 inches
- Thick steel tubing resists wobble over long drops
- Quick-release hooks simplify solo mounting
What doesn’t
- Arms can arrive slightly bent from shipping
- Maximum 22 lbs limits heavy professional projectors
2. QualGear Pro-AV QG-KIT-CA-3IN-W
The QualGear Kit is a professional-grade solution designed for large-format projectors from Epson and Sony that need a wide mounting footprint. The 1.5-inch NPT thread compatibility means it works with standard threaded pipe extensions, giving you custom drop lengths without proprietary parts. Owners of 26-pound Epson 4010 and 5030UB units report that the mount locks solidly and doesn’t drift after tightening.
The kit includes a joist ceiling adapter, a pipe section, and a white metal bracket with separate tilt, swivel, and rotation adjustments. The tube diameter comfortably hides power and HDMI cables. Some users noted that the proprietary allen screws with a center nipple can strip under heavy torque, so using the supplied tool carefully is important.
With a 5-year limited warranty and a paper mounting stencil included, this kit is built for installers who value repeatable precision. The removable logo stickers are a small but appreciated detail for clean aesthetics.
What works
- Metal build handles 26+ lb projectors without sag
- NPT thread accepts standard extension pipes
- Extremely versatile adjustment range for lens offset
What doesn’t
- Allen screws with center nipples can strip easily
- Price sit higher than universal alternatives
3. Amer AMRP150H
The Amer AMRP150H is built around a heavy-duty locking ball joint that provides +-25 degrees of tilt and 360-degree swivel. With a maximum load of 25kg, it handles the heaviest consumer projectors such as the Epson LS11000 and LS12000. Users confirm the ball joint requires significant force to adjust initially, but once locked it holds the image plane without any creeping over time.
The height adjustment range runs from 5 inches up to approximately 22.7 inches via included pole sections. There is a notable gap in coverage between 5.5 and 14.5 inches if you need a mid-range drop, so check your ceiling height carefully. The hollow tubing passes cables cleanly and the included mounting fasteners cover M3 through M6 thread sizes.
The silver aluminum finish stands out against white ceilings, and the 380mm mounting circle accommodates almost any mounting hole pattern. If you own a heavy 4K projector and want a single mount that will never need replacing, this is the one.
What works
- Ball joint locks extremely tight with no drift
- Supports nearly any projector up to 25kg
- Wide mounting pattern fits large devices
What doesn’t
- Ball joint adjustment can be stubborn on first use
- No height coverage between 5.5 and 14.5 inches
4. BenQ CM00G3
The BenQ CM00G3 is the first-party mount specifically engineered for BenQ HT series, TK series, and X3000i projectors. The screw pattern and center-of-gravity alignment are matched to BenQ chassis, eliminating the guesswork that comes with universal brackets. Users mounting the HT4550i confirm all four holes align perfectly with the included screws.
Angled ceiling compensation is a standout feature here: the ball joint adjuster compensates for plus/minus 25 degrees of ceiling slope. Extended drop ranges from 5 inches to 22.7 inches, covering most standard ceiling heights. The hollow pole provides clean cable routing, and the semi-quick release plate makes bulb changes or filter cleaning manageable without full disassembly.
A common complaint is that the included M5 and M6 screws do not fit the older HT2050A model, which requires M4 threads. Check your projector’s thread size before buying, as buying a separate M4 kit adds to the overall cost. For current BenQ models, this mount is a drop-in solution with zero adapter hassle.
What works
- Perfect screw alignment for BenQ projector chassis
- Angled ceiling compensation up to 25 degrees
- Sturdy and rigid with no wobble
What doesn’t
- Included screws can be the wrong thread for older models
- Premium price compared to universal alternatives
5. Amer AMRDCP100KIT
The Amer AMRDCP100KIT replaces a standard 2×2 foot drop ceiling tile with a reinforced steel plate that supports the projector and distributes the load across the ceiling grid rails. This design eliminates the shaking that long-arm mounts can introduce in suspended ceilings. The included projector bracket attaches to the plate via multiple mounting holes for fine positioning.
The lightweight aluminum bracket has a heat-dissipating surface, which helps keep the projector chassis cooler during extended movie sessions. Installation takes about 30 minutes, as one user noted, and the steel plate does not bow or sag under the weight. The white finish blends well with most ceiling tiles, and the provided tether adds safety redundancy.
A notable limitation is the lack of vertical adjustability—the mount keeps the projector at a fixed height determined by the ceiling grid. If you need precise height control, you’ll need to combine this kit with an extension post. For a clean, flush-mounted setup in a drop ceiling, this is the most straightforward option.
What works
- Eliminates wobble by replacing the ceiling tile itself
- Simple 30-minute installation with included hardware
- Aluminum bracket dissipates projector heat
What doesn’t
- No vertical height adjustmen
- Build feels heavier and clunkier than modern mounts
6. VIVO MOUNT-VP08DP
The VIVO MOUNT-VP08DP is the only truly telescoping drop-ceiling mount in this list, extending from 15 to 23 inches below the ceiling grid. This gives you the flexibility to position the projector far below the tile for better clearance over furniture or lighting fixtures. The steel plate replaces a full 2×2 foot tile, and there’s no drilling required—just drop the plate into the grid.
The adjustable mounting points fit projectors with mounting hole diagonals up to 12.5 inches. If your projector has three mounting holes, you can remove one arm for a custom fit. The tilt and swivel range is +-15 degrees each, plus 360-degree rotation. Cable management holes in the plate keep the wiring neat, and the quick-release hooks make projector removal straightforward for maintenance.
Some users found the actual mount bracket has limited articulation compared to standalone mounts, and heavy projectors over 18 lbs work best in a straight-down orientation. The 29.7-pound weight capacity is generous on paper, but the bracket’s range of motion is noticeably constrained at higher loads. For a lightweight to mid-weight projector in an office or classroom, this is an excellent drop-ceiling solution.
What works
- Telescoping arm gives 15-23 inch adjustable drop
- No drilling required—drops into ceiling grid
- Patented design with strong steel plate
What doesn’t
- Mount bracket articulation is limited
- Best performance limited to straight-down orientation for heavy units
7. Valerion CMB1
The Valerion CMB1 is precision-machined from high-strength aluminum alloy for the VisionMaster and StreamMaster series. The 360-degree horizontal rotation and 20-degree vertical tilt are sufficient for fine image alignment. The extension rod provides height adjustment from 31 cm to 40.5 cm, or 12 cm without the rod for a flush mount.
The quick-release mechanism uses a sturdy tab that allows the projector to detach in seconds, which is convenient for ceiling access or burner swaps. The hidden cable channel is designed to keep wires tidy, but several users noted the internal diameter is too tight to fit a standard HDMI connector—you’ll need to fish the cable through before attaching the connector or use a thin HDMI cable.
The powder-coated black finish matches the VisionMaster’s aesthetic perfectly. For Valerion owners, this mount is the only way to guarantee an exact screw pattern and center-of-gravity alignment. For owners of other brands, the universal mounts above will offer better value.
What works
- Machined aluminum build with zero wobble
- Quick-release tab for fast projector removal
- Perfect screw pattern for Valerion projectors
What doesn’t
- Cable channel too narrow for standard HDMI ends
- Limited compatibility outside Valerion brand
Hardware & Specs Guide
Ball Joint vs. Pivot Bracket
A ball joint uses a single sphere captured between two concave plates, allowing infinite tilt and swivel within its range. A pivot bracket uses separate mechanical hinges for tilt and swivel, each with its own locking screw. Ball joints are more compact and offer finer adjustment, but can be harder to loosen under load. Pivot brackets are easier to lock at extreme angles but add more length to the mount profile. For home theater setups where fine image alignment matters, ball joints are preferred. For conference rooms where mount-and-forget is the goal, pivot brackets are adequate.
Drop Ceiling Reinforcement
Standard drop ceiling tiles are thin fiberboard or mineral fiber that cannot support a projector’s weight. Proper drop-ceiling mounts use a 2×2 foot steel plate that rests on the ceiling grid T-rails and spreads the load across multiple rails. Some plates include a safety tether that wraps around the grid for additional security. Never attach a mount bracket directly to a ceiling tile—always use a full replacement plate. For heavier projectors (over 15 lbs), look for a plate with cross-bracing welded to the underside to prevent sagging.
Thread Pitch and Mounting Hardware
Projector mounting holes are most commonly M4, M5, or M6 machine screws with 0.7mm or 0.8mm pitch. The mount must include a kit with all three sizes to be truly universal. Some projectors also use a 1/4-20 UNC thread. The mount’s base plate can be up to 380mm (15 inches) wide to accommodate large projectors like the Epson LS12000. Check your projector’s manual for the exact thread size and hole pattern before buying—many returns happen because the wrong screw was used or the bracket arms couldn’t span the projector’s mounting holes.
Cable Pass-Through Diameter
The hollow center pole of most ceiling mounts is meant to hide power and HDMI cables, but the internal diameter varies wildly. Budget mounts often have a pole ID of only 10-15 mm, which forces the HDMI cable to be routed externally. Premium mounts with 25 mm or larger ID can accommodate both a power cord and a standard HDMI cable with the connector head attached. Check the mount’s specifications for “cable management capacity” or look for images showing the pole’s interior. If in doubt, measure the diameter of your HDMI connector and add 3 mm for the power cord.
FAQ
Can I screw a ceiling mount into a ceiling tile directly?
Why is my projector image trapezoid-shaped even after adjusting the mount?
What is the maximum drop length I should use for a safe installation?
Final Thoughts: The Verdict
For most users, the best ceiling mount for projector is the SCREEN PRO PM-1500-B because it combines the longest extendable arms with a rigid steel column at a sensible mid-range price point. If you own a large Epson or Sony projector, grab the QualGear Pro-AV Kit for its bulletproof build and NPT thread compatibility. And for drop ceiling setups that need a proper tile replacement, nothing beats the VIVO MOUNT-VP08DP for its telescoping arm and simple no-drill installation.
