Closed-circuit systems remain the gold standard for property surveillance, but the market is flooded with kits that deliver grainy 1080p footage and finicky motion alerts. Choosing a wired system means accepting a permanent installation in exchange for uninterrupted 24/7 recording, no Wi-Fi dropouts, and no monthly subscription fees — but only if the DVR and camera specs actually match your property’s layout.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing security camera hardware specifications, compression standards, and sensor performance to separate true 24/7 recording solutions from overhyped kits that fail in low-light conditions.
This guide breaks down the top closed circuit security cameras by real-world specs like AI detection accuracy, H.265+ compression efficiency, and night vision range — not marketing hype — so you can invest in a system that actually protects your property.
How To Choose The Best Closed Circuit Security Cameras
Unlike wireless cameras that rely on your home network, closed-circuit systems use dedicated DVR or NVR recorders with local storage. Your main decisions revolve around camera resolution, compression codec, storage capacity, and the connection type — BNC analog or PoE (Power over Ethernet) digital.
Resolution and Sensor Quality
Resolution determines how much detail you can capture. A 4K (8MP) system reveals license plates and facial features at distances where 1080p (2MP) footage becomes blurry. However, resolution alone doesn’t guarantee night vision quality — that depends on the CMOS sensor size and aperture. Look for 1/2.7″ or larger sensors with F1.2 or lower apertures for usable color night vision beyond 50 feet.
Compression: H.264 vs H.265 vs H.265+
H.265+ reduces file sizes by up to 50% compared to standard H.265 without sacrificing quality. This directly impacts how many days of continuous footage your hard drive can hold. A 1TB drive with H.265+ can store roughly 15 days of 8-camera 1080p recording, while the same drive with H.264 would fill up in under a week.
AI Motion Detection vs Basic Motion Detection
Basic pixel-based motion detection triggers alerts from rain, leaves, or passing cars — drowning you in false notifications. AI detection that specifically filters humans and vehicles using trained algorithms cuts nuisance alerts by over 90%. Systems with configurable activity zones take this further by ignoring motion outside defined areas.
Wired Connection: BNC vs PoE
BNC (coaxial) systems are cheaper and easier to install with pre-terminated cables, but they max out at lower resolutions and require separate power cables for each camera. PoE systems send both power and data through a single Ethernet cable, support 4K and higher resolutions, and allow cable runs up to 300 feet. PoE is the clear choice for anyone building a new system from scratch.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ANNKE 16CH 4K PoE | Premium PoE | Large properties needing 4K AI | 8MP / 12MP NVR / 4TB HDD | Amazon |
| Reolink RLK8-800B6 | Premium PoE | Best 4K value with rock-solid app | 8MP / 2TB HDD / 6 cams | Amazon |
| Hiseeu 360° View PoE PTZ | Premium PoE PTZ | Full property with auto tracking | 5MP PTZ / 4TB HDD / 12 cams | Amazon |
| LongPlus 4K PoE NVR | Mid-Range PoE | Affordable 4K with wide-angle view | 8MP / 2TB HDD / 4 cams | Amazon |
| ZOSI 16CH 4TB HDD | Mid-Range BNC | Large coverage on a budget | 1080p / 4TB HDD / 16 cams | Amazon |
| Night Owl FTD4-81-8L | Mid-Range BNC | Brand trust with mixed connectivity | Wide-angle / 8 cams / DVR | Amazon |
| Hiseeu 5MP PTZ DVR | Mid-Range BNC | PTZ coverage with no monthly fees | 5MP / 1TB HDD / 8 cams | Amazon |
| ANNKE 8CH 3K Lite DVR | Mid-Range BNC | Balanced 8-cam system with audio | 1080p / 1TB HDD / 8 cams | Amazon |
| ZOSI 3K Lite 8CH | Budget BNC | Entry-level 4-cam setup | 2MP / 500GB HDD / 4 cams | Amazon |
In‑Depth Reviews
1. ANNKE 16CH 4K PoE Security Camera System
The ANNKE 16CH system anchors itself with a 12MP NVR that handles up to 8 cameras at 4K (8MP) resolution using H.265+ compression. The 4TB pre-installed hard drive stores roughly two weeks of continuous footage from eight cameras before overwriting, and the dual SATA slots let you expand to 16TB. The turret cameras use a 1/2.4″ CMOS sensor — larger than typical 1/2.7″ sensors — which captures more light and produces cleaner color night vision with the built-in supplemental LEDs.
AI motion detection 2.0 discriminates between humans and vehicles with high accuracy, and the Annke Vision app allows filtering playback by person or vehicle type. The 120dB WDR ensures details aren’t blown out in scenes with mixed bright and dark areas, such as a sunlit driveway next to a shaded porch. The cameras are IP67 rated, and the PoE interface supports long-distance mode up to 1,000 feet with Cat6 cable.
Some users report that camera-specific settings like motion zones and OSD text can only be reliably configured through the NVR’s direct menu, not the mobile app or desktop client. This isn’t a dealbreaker — the NVR interface is straightforward — but it adds a step if you need fine-grained per-camera adjustments. Overall, this is the most comprehensive wired kit for a large property that demands 4K detail and robust AI filtering.
What works
- Superior 1/2.4″ CMOS sensor for low-light color clarity
- H.265+ compression with 4TB HDD for extended storage
- Accurate AI human/vehicle detection with app filtering
What doesn’t
- Camera motion zone settings prefer NVR direct configuration
- PoE long-distance mode requires Cat6 cable
2. Reolink RLK8-800B6
The Reolink RLK8-800B6 delivers true 4K (8MP, 3840×2160) footage through six bullet PoE cameras connected to a dedicated NVR with a pre-installed 2TB hard drive. The fixed-lens cameras use 18 infrared LEDs for night vision up to 100 feet, and the 3D-DNR digital noise reduction keeps the image clean in low-light conditions. The PoE connection eliminates the need for separate power cables — each camera runs a single Ethernet cable up to 300 feet from the NVR.
Smart detection identifies people, vehicles, and animals separately, so you can program alerts only for the shapes you care about. The Reolink app is widely regarded as one of the most reliable in the industry, offering seamless live view and playback with an intuitive interface. The system records continuously 24/7, and the 2TB drive holds approximately 6.5 days of footage with six cameras recording at 4K resolution.
A minority of buyers have reported DOA NVR units, and Reolink’s direct customer support has drawn mixed reviews for response times. However, Amazon’s return policy covers this risk, and the vast majority of users find the hardware flawlessly reliable after initial setup. For buyers who want true 4K resolution without stepping up to premium pricing, this kit offers the best balance of performance and user experience in the sub-eight-hundred-dollar range.
What works
- True 4K sensor with excellent daytime detail capture
- Best-in-class mobile app stability and UX
- PoE simplifies cabling with single Ethernet per cam
What doesn’t
- Night IR glare can blur reflective license plates in rain
- Customer support response can be slow for RMA requests
3. Hiseeu 360° View PoE PTZ
The Hiseeu 360° system brings PTZ (pan-tilt-zoom) functionality to every camera in the kit — a rarity at this tier. Each 5MP PoE camera offers 350° pan and 90° tilt, eliminating blind spots that plague fixed-lens systems. The AI auto-tracking feature automatically follows a detected human as they move through the camera’s field of view, which is invaluable for monitoring large yards or driveways. The 12MP 16-port NVR comes with a 4TB HDD pre-installed, giving you room for all 12 cameras plus four additional future expansions.
Three night vision modes — standard black-and-white IR, full color using built-in spotlights, and alarm-triggered lighting — give you flexibility depending on the scene. The system works entirely without internet if you only need local monitor viewing, which is a solid privacy advantage. The two-way audio and strobe light alarm can deter intruders in real time through the app.
Some users note that the frame rate drops noticeably at night when the cameras switch to color mode, which can make motion appear less smooth. A small number of buyers report difficulty with initial installation and poor night face recognition at distances over 50 feet. If you need 360° mechanical coverage and auto-tracking, this kit offers capabilities that no fixed-lens system at this price point can match.
What works
- Full PTZ with auto human tracking on every camera
- 12MP NVR supports up to 16 cameras total
- Three switchable night vision modes including color
What doesn’t
- Nighttime frame rate drop in color mode
- Face recognition limited at distances beyond 50 feet
4. LongPlus 4K 8CH PoE NVR
The LongPlus 4K system punches well above its price tier by offering a true 8MP PoE kit with a pre-installed 2TB HDD. The bullet cameras feature a 2.8mm wide-angle lens with a 132° diagonal field of view and an F1.6 aperture for improved low-light sensitivity. Triple night vision modes — IR only, full color, and smart (auto-switch on human detection) — let you balance visibility with power consumption. The 2TB drive stores roughly 10-14 days of continuous 4K footage from four cameras, depending on scene complexity.
AI object detection classifies humans and vehicles with 99% accuracy claims, and the activity zone setting lets you mask out areas like public sidewalks to avoid nuisance alerts. The strobe light alarm and two-way audio can be triggered automatically on detection, making this an active deterrent system rather than just a passive recorder. The PoE cabling runs up to 60 feet per camera out of the box, and longer cables are easy to add.
The NVR supports up to 10TB total storage via a single SATA slot, but the included 2TB drive is already generous for a 4-camera setup. Some users wish the app had faster timeline scrubbing for motion events, but the live view and playback are reliable. For anyone wanting 4K resolution without jumping into the premium price bracket, this system delivers the most bang per dollar.
What works
- True 4K 8MP resolution at a mid-range price point
- Wide 132° field of view reduces camera count needs
- Active deterrent with strobe light and two-way audio
What doesn’t
- Only 4 cameras included in base kit
- App timeline scrubbing could be smoother
5. ZOSI 16CH 3K Lite with 4TB HDD
The ZOSI 16CH system is built for covering large properties without breaking the bank. The DVR supports up to 16 cameras using H.265+ compression at 1080p (1920TVL) resolution, and the 4TB pre-installed hard drive gives it exceptional endurance — expect over 30 days of continuous footage from 16 cameras before overwriting begins. The bullet cameras feature aluminum metal housings rated for outdoor use and deliver 80 feet of night vision in total darkness and 130 feet with ambient light.
AI human and vehicle detection works across the system, sending push notifications only for the classifications you define. Privacy masking is available per camera, which is useful if you need to block out a neighbor’s window or public sidewalk. The ZOSI Smart app allows remote live viewing and playback on iOS and Android devices.
The cameras use BNC coaxial connections rather than PoE, which means each camera needs both a video cable and a separate power adapter. This adds complexity to installation, especially in attics or crawl spaces. A few users report that the image takes on a slight blue tint when the BNC connection is loose — check and tighten all connections during setup. For buyers who prioritize maximum camera count and storage duration over 4K resolution, this system is unmatched in its tier.
What works
- Massive 4TB HDD supports 16 cameras for months of footage
- Aluminum bullet cameras are durable for outdoor mounting
- Reliable AI human/vehicle classification
What doesn’t
- BNC requires separate power cables per camera
- Image tint can appear with loose BNC connections
6. Night Owl FTD4-81-8L
Night Owl has been a household name in home security for years, and the FTD4-81-8L kit continues that tradition with a straightforward DVR and eight wide-angle cameras. The system records at 1080p resolution with 30 fps frame rate, and the wide-angle lenses capture broad coverage without needing many cameras. The DVR supports both wired and wireless connectivity, offering flexibility if you want to add a few Wi-Fi cameras later.
Video quality is solid in well-lit conditions, and the included cameras have built-in audio recording — a feature that some competitors reserve for higher tiers. Night Owl’s no-monthly-fee model is a core selling point: the DVR records locally, and the free app provides remote viewing and playback without any subscription.
The system lacks AI-based detection; motion alerts are triggered by basic pixel changes, which results in more false notifications from animals or moving branches. Some users have reported needing a DVR exchange early on, though Night Owl’s warranty and support process generally resolves these issues. If you value brand reliability and audio recording over advanced AI features, this kit delivers a stable baseline experience.
What works
- Trusted brand with reliable DVR performance
- Built-in audio recording on all cameras
- No monthly fees for remote app access
What doesn’t
- No AI human/vehicle filtering — high false alert rate
- Some units require early DVR replacement
7. Hiseeu 5MP PTZ Wired DVR System
The Hiseeu 5MP PTZ system offers PTZ capabilities on eight cameras at a price point where most competitors sell fixed-lens kits. Each camera provides 355° pan and 90° tilt, and the 5MP resolution is 2.5 times sharper than standard 1080p. The 1TB HDD records continuously for about 15 days from eight cameras using H.265 compression. The PTZ control works via the DVR remote or mobile app, letting you manually steer cameras to investigate activity in real time.
Smart night vision offers two modes: black-and-white IR up to 100 feet and triggered color mode that activates spotlights when human detection is triggered on up to four cameras. AI human/vehicle filtering keeps false alerts low, and the one-way audio lets you hear what’s happening around the cameras. The system can operate without internet if connected to a local TV monitor.
Some users note that the PTZ cameras cannot zoom out far enough for close-up front door viewing, so you may need to position cameras farther away than ideal. Cable lengths vary between 58 and 96 feet, which works for most homes but requires planning for longer runs. If you want PTZ flexibility without paying for PoE premium, this system offers impressive mechanical coverage for the price.
What works
- PTZ on all eight cameras at a mid-range price
- 5MP resolution is noticeably sharper than 1080p
- Triggered color night vision with spotlights
What doesn’t
- Camera zoom range can make door-facing positioning tricky
- Included cable lengths vary and may require extension
8. ANNKE 8CH 3K Lite DVR System
ANNKE’s 8CH system comes with eight 1080p dome cameras that include built-in microphones for one-way audio recording — a feature often reserved for higher tiers. The 3K lite DVR uses H.265+ compression to maximize the 1TB hard drive, storing around 10-15 days of continuous 8-camera footage. The 3.6mm fixed lens at F1.2 aperture captures more light than typical F2.0 lenses, giving this kit surprisingly good low-light performance for a 1080p system.
Three switchable night modes — smart light, white light, and IR only — allow you to choose how the system behaves at night. The AI analysis reportedly achieves 99% accuracy in distinguishing humans from vehicles, and the app push notifications and email alerts keep you informed. The cameras are IP67 weatherproof and built to handle rain and dust.
Color night vision works best when there’s some ambient light; in completely dark areas, the IR mode still produces a black-and-white image. The 60-foot BNC cables included are adequate for many homes, but larger properties may need longer cables. For buyers who want a complete eight-camera kit with audio and AI detection at a reasonable price, this ANNKE system offers strong value.
What works
- Built-in microphones on every camera for audio recording
- F1.2 aperture lens captures more light than typical budget cams
- Three flexible night vision modes
What doesn’t
- Color night vision requires some ambient light
- Limited to 1080p resolution at this price tier

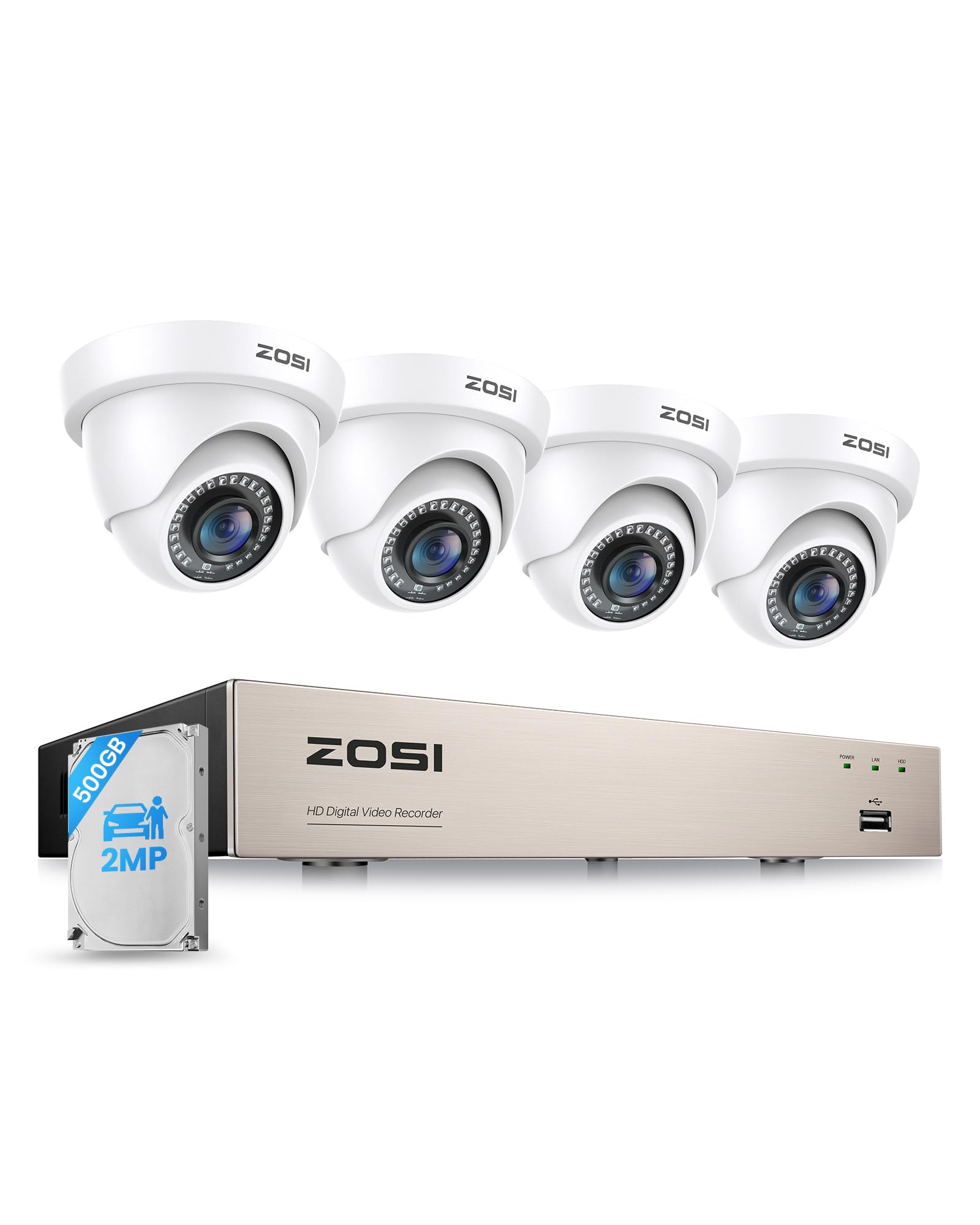

9. ZOSI 3K Lite 8CH DVR System
The ZOSI 3K Lite 8CH is the most accessible entry point into wired surveillance. The kit includes four 2MP dome cameras and an 8-channel DVR with a 500GB hard drive pre-installed. The system uses H.265+ compression to stretch storage, giving you roughly 7-10 days of continuous recording from four cameras. The IP66-rated dome cameras are suitable for both indoor and outdoor use, and the 80-foot night vision range with 24 IR LEDs is respectable at this price.
Human and vehicle detection with push notifications works reliably, and the ZOSI Smart app provides remote viewing and playback. The DVR supports TVI, CVI, CVBS, and AHD analog cameras, so you can mix and match camera types or expand up to eight total channels later. The 500GB hard drive automatically overwrites oldest footage, and you can back up clips via USB.
The 2MP (1080p) resolution is adequate for general monitoring but won’t capture fine details like license plates at distance. Some users report that night vision quality drops off beyond 40 feet, with images becoming soft. One camera failed after three months for one reviewer, though ZOSI’s warranty support covers such issues. For someone new to wired security who wants to test the waters without a large investment, this kit gets the job done.
What works
- Lowest entry cost for a complete wired surveillance kit
- H.265+ compression extends the 500GB drive’s capacity
- Expandable to 8 channels with mix-and-match camera types
What doesn’t
- 2MP resolution limits detail at distances over 40 feet
- Night vision image softens beyond 40 feet
- Only 4 cameras and 500GB storage in base kit
Hardware & Specs Guide
Sensor Size and Low-Light Performance
The image sensor’s physical size — measured in inches (1/2.7″, 1/2.4″, 1/3″) — determines how much light each pixel can collect. Larger sensors like the 1/2.4″ found in premium ANNKE cameras produce cleaner color night vision with less digital noise. The aperture rating (F1.2 vs F2.0) controls light intake: F1.2 lenses let in roughly three times more light than F2.0 lenses, which is the difference between recognizable color footage at dusk versus a grainy black-and-white image.
Compression Codecs: H.265+ vs H.264
H.265+ is the most storage-efficient codec currently available for consumer security cameras. It uses smart encoding to reduce file sizes by 30-50% compared to standard H.265 and 60-80% versus H.264. This directly determines how long your hard drive can record before overwriting. A 1TB drive recording eight 1080p cameras on H.265+ can store roughly 15 days of footage, while the same setup on H.264 would fill up in 5-7 days. Always check which compression version a DVR or NVR supports before buying.
FAQ
What is the difference between BNC and PoE wired camera systems?
How much hard drive storage do I need for 8 cameras recording 24/7?
Can I view my closed-circuit cameras remotely without a subscription?
Final Thoughts: The Verdict
For most users, the closed circuit security cameras winner is the Reolink RLK8-800B6 because it delivers true 4K resolution with a polished app experience and reliable PoE connectivity at a price that doesn’t require a second mortgage. If you need maximum coverage with AI auto-tracking and PTZ flexibility, grab the Hiseeu 360° View PoE PTZ system. And for the best balance of 4K value and active deterrent features like strobe lights and two-way audio, nothing beats the LongPlus 4K PoE NVR kit.
