A lightning strike a block away sends a spike through the coax line straight into your modem’s Ethernet port, taking the router and the connected PC with it. A standard power strip’s metal-oxide varistor does nothing to stop a voltage surge traveling down the braided shield and center conductor of a 75-ohm or 50-ohm cable. A dedicated coaxial cable surge protector grounds that transient before it reaches the equipment, acting as a sacrificial gas-discharge or quarter-wave choke that shunts energy to earth.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing coaxial signal-path protection hardware, comparing gas-tube breakdown voltages, insertion-loss figures, and return-loss specs across dozens of surge arrestors to separate the gear that actually protects from the gadgets that just look the part.
Regardless of whether you are securing a cable modem, an amateur radio transceiver, or a home-theater tuner, the single most important component in that signal chain is a properly grounded surge protector that adds less than 0.5 dB of loss. This guide reviews the top five models on the market so you can confidently choose the right coaxial cable surge protector for your specific setup.
How To Choose The Best Coaxial Cable Surge Protector
A coaxial surge protector is only as good as its weakest electrical junction. The three decisions that make or break protection are the arrestor technology, the connector impedance and frequency range, and the grounding scheme you deploy at the cable entry point.
Gas-Discharge Tube vs. Quarter-Wave Design
A gas-discharge tube (GDT) contains a sealed chamber of inert gas that ionizes when voltage exceeds a threshold — typically 90V to 300V DC — creating a low-impedance path to ground. GDTs handle repeated surges and self-restore, making them ideal for broadband (DC-3 GHz) applications like cable modems and VHF/UHF radios. Quarter-wave designs use a shorted stub that presents a high impedance at the target frequency band, shunting DC and low-frequency energy to ground. Quarter-wave units work well for single-band amateur setups but fail outside their tuned frequency, so a GDT is the safer choice for mixed-signal households.
Impedance, Frequency Range, and Insertion Loss
A 75-ohm F-type protector is standard for cable TV and DOCSIS modems. A 50-ohm UHF (PL-259/SO-239) connector suits amateur radio, CB, and most RF communication gear. Frequency range matters: a protector rated DC-1 GHz covers cable and satellite, while a unit rated DC-3 GHz also handles Wi-Fi extenders and L-band GPS. Insertion loss should stay under 0.5 dB — anything higher degrades downstream signal power and reduces SNR noticeably on fringe-signal channels.
Grounding Is Not Optional
A surge protector that is not connected to a verified earth ground is a placebo. The ground lug must bond to the building’s electrical ground via 10 AWG or larger copper wire, run as short and straight as possible. Many mid-range protectors include a set-screw or ring-terminal ground post; premium models add a weather-sealed grommet to keep moisture out of the connector interface. Install the protector at the cable entry point before any splitters or amplifiers — putting it downstream defeats the purpose.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Diamond SP1000 | Premium | Amateur radio HF/VHF/UHF base stations | 6 kA impulse, <0.3 dB loss | Amazon |
| Belkin BV107030-04-BLK | Premium | Home theater AV racks with coax in | 7 outlets + coax, 2000 J | Amazon |
| Foboiu 2-Pack UHF Arrestor | Mid-Range | Multi-band radio & CB dual setups | GDT up to 230 VDC, UHF-F | Amazon |
| Zerone CA-35RS | Mid-Range | HAM radio 40M-10M portable rigs | Gas tube, 0-2500 MHz, 50 Ω | Amazon |
| SKYCABLE TII-210 | Budget | Cable modem entry protection | F-F, DC-1 GHz, <0.3 dB loss | Amazon |
In‑Depth Reviews
1. Diamond Antenna SP1000
The Diamond SP1000 is widely regarded as the gold standard in coaxial lightning arrestors for amateur radio, and the engineering specs back that reputation. It uses a replaceable gas-discharge element rated for a 6,000-amp impulse wave, with an insertion loss quoted under 0.3 dB across its full frequency range. The body is machined from corrosion-resistant material and sealed against moisture, making it suitable for outdoor mounting at the antenna feed point where protection is most effective.
Signal integrity remains transparent: operators report no measurable degradation on HF bands from 80M through 10M, and the unit maintains a VSWR low enough that it can be left inline permanently without retuning the antenna. The ground lug accepts a substantial ring terminal, encouraging a low-resistance bond to a copper grounding plate or rod. One reviewer bolted theirs to an 8-foot ground rod and reported zero issues after eight years of exposure.
The premium price reflects the build quality and the peace of mind that comes from a device trusted by serious DXers and contest stations. The only meaningful drawback is that the replaceable element, while convenient, is an additional part to source and stock. For any operator running an external antenna, the SP1000 is the most confident investment you can make in equipment survival.
What works
- 6000A impulse rating far exceeds household surge needs
- Replaceable GDT element extends service life indefinitely
- Under 0.3 dB insertion loss preserves signal strength
What doesn’t
- Higher initial cost than commodity coax protectors
- Requires stocking replacement gas tubes for long-term maintenance
2. Belkin BV107030-04-BLK
The Belkin AV surge protector is unique on this list because it bundles AC power protection with a pass-through coaxial surge path in a single unit designed for home theater racks. The 2,000-joule metal-oxide varistor array handles AC line surges, while the coax circuit shields the tuner or cable box from inbound spikes on the F-type connector. The 4-foot cord and low-profile plug make it easy to position behind an AV cabinet without blocking adjacent outlets.
Build quality reflects Belkin’s long history in surge protection: the housing is flame-retardant, the outlets are spaced to accommodate wall-wart transformers, and the rocker switch includes a built-in circuit breaker. Several reviewers note that the coaxial protection path has saved their television’s tuner during nearby lightning events. The unit also carries a lifetime warranty and connected equipment guarantee, which adds real financial backing to the technical claims.
The limitation is that the coax protection appears to use a simpler gas-tube design than the dedicated inline suppressors; the insertion loss is not published, and some users report needing to reseat connectors periodically to maintain grounding contact. This unit is best suited for a home-theater setup where convenience and consolidated protection matter more than absolute RF transparency. For someone who wants a single plug-and-play solution for a TV and modem rack, it is hard to beat.
What works
- Combines AC surge and coax protection in one package
- Low-profile plug fits tight behind furniture
- Lifetime warranty with connected equipment guarantee
What doesn’t
- Coaxial insertion loss specifications are not published
- No ground indicator to show protection status
3. Foboiu 2-Pack UHF Arrestor
The Foboiu 2-Pack delivers two identical gas-discharge-tube protectors with UHF-female connectors on both ends, making them a practical choice for multi-radio setups or for protecting both the transmit and receive paths on a single antenna system. Each unit is rated for a DC breakdown voltage of 230 V, suitable for most 50-ohm amateur radio and CB applications. The brass nickel-plated outer conductor provides corrosion resistance for outdoor installation, and the PTFE inner insulator keeps signal leakage low.
Reviewers consistently praise the machining quality: the threads are clean, the body feels solid, and the ground terminal accepts a ring terminal without stripping. The dual-pack pricing works out to roughly half the per-unit cost of single-pack premium arrestors, which makes it a compelling budget value for a base station with two radios or for adding protection to a separate scanner antenna. Several operators report using them on VHF/UHF repeaters with no measurable increase in VSWR.
The most common complaint is the small grounding screw — a few users wish for a larger post that could accept heavier AWG wire for a more robust bond. Additionally, the included gas tube is not field-replaceable on these units, so the entire body must be swapped if the tube degrades after a major strike. For the price of a two-pack, however, replacing both is still less expensive than a single premium unit, making this a sensible compromise for the budget-conscious operator.
What works
- Two units for the price of one budget-friendly protector
- Brass nickel-plated body resists outdoor corrosion
- Excellent machining with low VSWR at VHF/UHF
What doesn’t
- Grounding stud is smaller than ideal for 10 AWG wire
- Gas tube is not user-replaceable; entire unit must be swapped

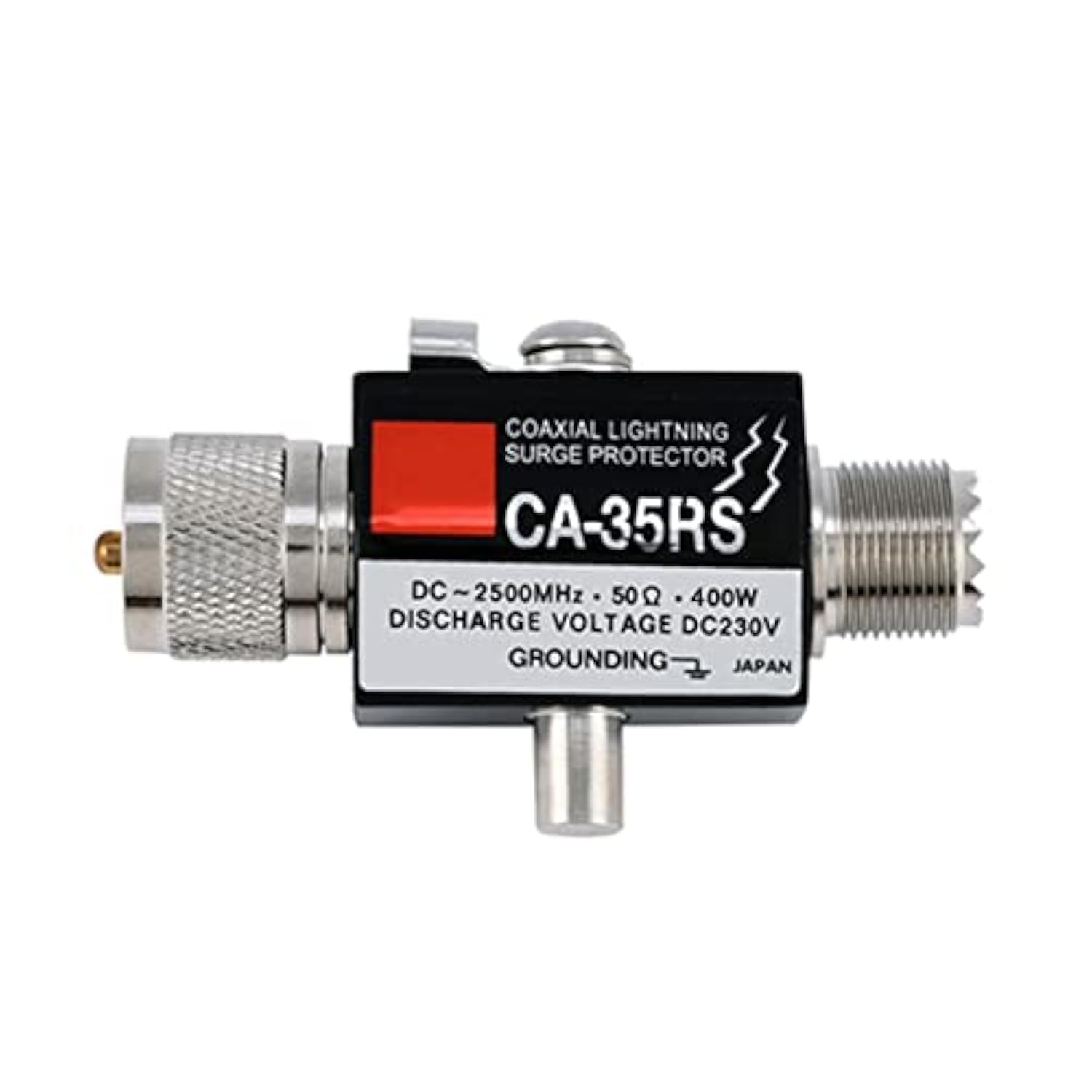

4. Zerone CA-35RS
The Zerone CA-35RS is a male-to-female 50-ohm UHF arrestor that uses a built-in gas-discharge tube to provide surge protection across a massive 0-2500 MHz bandwidth. The one-quarter wavelength design principle gives it a simple, rugged construction with no moving parts, and the 500-amp maximum current rating provides adequate protection for most amateur radio stations operating within suburban lightning zones. The connector pair is standard UHF (PL-259 male / SO-239 female), so it drops directly into an existing coax run without adapters.
Reviewers who are active on HAM bands from 40M through 10M report that the CA-35RS works well without introducing noticeable attenuation. Several buyers confirmed the unit arrived in genuine Diamond packaging, suggesting it is either a rebranded or parallel-manufactured product at a lower price point. The weatherproof construction makes it viable for outdoor mounting, though some users add dielectric grease to the connector threads for extra moisture sealing.
The main caveat is that some operators note increased RF attenuation on 80M and below, which limits its usefulness for low-band DXers. The male-to-female orientation also means the device may extend the physical coax run further from the radio than a female-to-female unit. For the average ham running 40M through 10M, this is a solid mid-range protector that delivers Diamond-grade reliability for less.
What works
- Wide 0-2500 MHz range covers most VHF/UHF bands
- Built-in gas tube self-restores after each surge
- Weatherproof construction suitable for outdoor mount
What doesn’t
- Attenuates RF on 80M and lower frequency bands
- Male-to-female layout adds length to coax path
5. SKYCABLE TII-210
The SKYCABLE TII-210 is a female-to-female F-type surge suppressor designed for 75-ohm cable TV and DOCSIS modem installations. It covers DC-1 GHz with an insertion loss of less than 0.3 dB and a return loss of 30 dB, meaning it introduces almost no signal degradation into the cable path. The DC breakdown voltage is rated between 150 and 300 V, which is well matched to the transient voltages that couple into residential coax runs during nearby lightning strikes.
Real-world user testing confirms the signal transparency: one reviewer measured 459 Mbps on a 400 Mbps plan with no speed loss, and another found downstream signal drop under 0.5 dBmV with upstream power unchanged. The unit is small enough to tuck behind a modem or TV and includes a threaded ground post for attaching a wire to the building’s electrical ground. Several users report that Comcast’s own field technicians have recommended this exact model for preventing fried modems and TVs.
The biggest installation challenge is securing the ground wire — the set-screw ground lug is small and can be difficult to torque without stripping. A few users also note that the unit requires a female-to-female F-type coupler if your existing coax cable terminates in a male connector. At its competitive price, however, the TII-210 is the simplest and most proven way to add a protection layer to a cable modem or TV tuner without measurable signal penalty.
What works
- Negligible signal loss verified by multiple users with speed tests
- Small form factor fits easily behind a modem or TV
- Proven reputation among cable ISP technicians
What doesn’t
- Ground lug is small and tricky to secure properly
- Requires an F-F adapter if existing cable has male ends
Hardware & Specs Guide
Gas-Discharge Tube Breakdown Voltage
The DC breakdown voltage of a GDT determines the threshold at which the tube ionizes and shunts the surge to ground. Typical residential protectors break down between 90 V and 300 V DC. A lower threshold triggers protection sooner but risks nuisance activation from static buildup; a higher threshold allows small transients to pass harmlessly while reserving protection for real lightning events. For cable modem use, 150-300 V is the sweet spot that aligns with standard coaxial transient suppression specifications.
Insertion Loss and Return Loss
Insertion loss measures how much signal power is lost passing through the protector. Values under 0.3 dB are excellent for both 50-ohm and 75-ohm systems and are unlikely to degrade your signal-to-noise ratio. Return loss (typically 25-30 dB for quality units) indicates how well the impedance of the protector matches the cable impedance. A high return loss minimizes reflected power that could cause ghosting on analog TV channels or packet loss on digital data streams.
Frequency Bandwidth and Impedance
A protector designed for 75-ohm cable TV systems typically covers DC-1 GHz or DC-3 GHz to accommodate DOCSIS 3.0/3.1 and satellite IF signals. A 50-ohm UHF unit covers DC-2500 MHz or wider for amateur radio and CB use. Installing a 50-ohm protector in a 75-ohm system creates a mismatch that will increase insertion loss and cause standing-wave reflections, so matching the impedance of your specific coax run is critical.
Ground Path and Bonding
The ground terminal on a coax surge protector must connect to the same earth ground as the building’s electrical service panel using 10 AWG or larger copper wire. The path should be as short and straight as possible — long, coiled ground wires present high impedance at high frequencies and defeat the protection. Weather-sealed grommets and corrosion-resistant ground lugs are important for outdoor installations where moisture can compromise the bond over time.
FAQ
Can I use a 50-ohm surge protector on a 75-ohm cable line?
Does a coaxial surge protector need to be grounded to work?
Will a coax surge protector reduce my internet speed?
How often should I replace a coaxial surge protector?
Final Thoughts: The Verdict
For most users, the coaxial cable surge protector winner is the Diamond Antenna SP1000 because its 6 kA impulse rating, sub-0.3 dB insertion loss, and weather-sealed build provide the highest confidence protection for both amateur radio and home-theater applications. If you want a consolidated solution for a home theater rack, grab the Belkin BV107030-04-BLK. And for pure cable-modem protection on a budget, nothing beats the SKYCABLE TII-210 for its proven signal transparency and simple F-type installation.
