A magnifying glass simply cannot reveal the fine die cracks, subtle doubling, or tiny pitting that determines whether a coin is worth a few dollars or a few hundred. A real coin microscope puts a crisp LCD screen between you and the surface, letting you inspect mint marks, rotation errors, and wear patterns with controlled LED illumination and enough magnification to separate genuine detail from wishful thinking.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent hundreds of hours breaking down the magnification specs, screen resolutions, stand stability, and lighting configurations that actually matter when you are trying to authenticate or grade a coin without sending it to a third-party service.
Whether you hunt error coins from bank rolls or catalog a lifetime collection, choosing the right imaging tool changes everything. I built this guide to help you find the absolute best coin microscope for your specific workflow, budget, and workspace.
How To Choose The Best Coin Microscope
Not all digital magnifiers are built for numismatic work. A microscope that works for soldering circuit boards often fails for coin inspection because of insufficient working distance, poor diffusion, or a tiny field of view. Here are the specific specs you need to evaluate before buying a dedicated coin scope.
Screen Size and Resolution
The screen is your window into every scratch and strike detail. A 4.3-inch 720P display is adequate for inspecting individual coins, but a 7-inch or 10.1-inch 1080P IPS panel gives you the full surface in one view without panning. For error coin hunting, you want the highest pixel density so micro doubling and die chips pop without digital zoom artifacts.
Stand Height and Field of View
This is the most overlooked spec for coin collectors. Many digital microscopes only offer 3 to 4 inches of working distance, which means a Morgan dollar or a large cent fills the entire frame with no border for reference. A stand that allows 6 to 12 inches of clearance lets you see the whole coin at once, critical for detecting edge damage or rotation alignment.
Lighting Configuration
Fixed ring lights create a single bright spot that can wash out cartwheel luster or hide fine scratches. The best coin microscopes use adjustable brightness LEDs around the lens plus at least one gooseneck side light to rake light across the surface at an angle. This side-lighting technique reveals die scratches and luster breaks that overhead light completely misses.
Photo and Video Capture
If you sell coins online or submit them for third-party grading, being able to save 12MP or higher resolution images directly from the scope saves setup time. Look for a model that includes an SD card in the box and supports wired or wireless remote capture to eliminate camera shake when pressing the shutter.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Elikliv EDM4 | Mid-Range | All-around entry-level coin viewing | 4.3″ 720P screen, 8 LED ring, 3h battery | Amazon |
| Elikliv EDM4B | Mid-Range | Better contrast on silver coins | 4.3″ 720P screen, black base | Amazon |
| Elikliv EDM4C | Mid-Range | Instant coin weighing + inspection | 4.3″ IPS screen, built-in 0.1g scale | Amazon |
| Leipan DM9 | Premium | Larger 7-inch viewing with side lights | 7″ 1080P, 12MP, 8 LED + 2 side lights | Amazon |
| TOMLOV DM9 | Premium | High-res detail for error coin hunters | 7″ 1080P, 12MP, aluminum stand, 16GB | Amazon |
| TOMLOV DM9 Max | Premium | Whole coin imaging and at-grade analysis | 10.1″ IPS, 20MP, 1500X, HDMI, 12.6″ stand | Amazon |
| Elikliv EM4K-AF | Premium | Auto-focus for high-volume grading | 8″ IPS, 52MP, 4K UHD, autofocus, 10″ stand | Amazon |
In‑Depth Reviews
1. Elikliv EDM4
The EDM4 hits the sweet spot between cost and capability for someone starting to inspect coins seriously. The 4.3-inch 720P screen is bright enough to show pitting and bag marks clearly, and the eight adjustable LED lights let you dial in overhead illumination without washing out luster details. Reviewers consistently note that it reveals fine details like die scratches and small gouges that a standard loupe would never show.
What makes this tough to beat is the overall package: a built-in rechargeable battery that lasts up to three hours, a height-adjustable stand that gives you enough clearance for half-dollar sized coins, and PC connectivity if you want to display on a larger monitor. The stand can feel a bit top-heavy with the screen extended, and the 720P resolution is noticeably softer than 1080P units, but at this price point the trade-off is reasonable.
The EDM4 includes photo and video capture to a memory card, letting you document your finds without needing a separate camera. If you are working with a tight budget and want a dedicated coin scope rather than a universal soldering tool, this is the one to start with.
What works
- Sharp 4.3-inch LCD with adjustable LED brightness
- Rechargeable battery provides real portability
- Easy PC connection for screen sharing
What doesn’t
- Stand feels wobbly at full extension
- 720P resolution limits fine-grade detail
- Memory card not included in box
2. Elikliv EDM4B
The EDM4B is essentially the same hardware as the EDM4, but with one important swap: the white base is replaced with a black base that minimizes light reflection under bright LED illumination. For silver coin collectors who often struggle with glare off reflective surfaces obscuring cartwheel luster, this small change makes a real difference in image contrast during inspection.
Beyond the base color, you get the same 4.3-inch 720P display, eight adjustable LED lights, and a rechargeable battery offering up to three hours of continuous use. The height-adjustable stand allows the same working distance range, and PC connectivity via USB works with both Windows and Mac without additional software. Reviewers note the same positives — crisp screen for the price, easy setup — alongside the same negatives regarding the stand being top-heavy and the resolution cap at 720P.
If you work predominantly with silver coins, high-grade proof sets, or polished surfaces where glare is a constant annoyance, the black base on the EDM4B justifies the slight premium over the EDM4. For general coin viewing on mixed metals, the white base version offers the same optical performance.
What works
- Black base reduces glare on reflective surfaces
- Same reliable imaging as EDM4
- Long battery life for field use
What doesn’t
- 720P display limits detail at high zoom
- Stand stability could be better
- No significant upgrade beyond base color

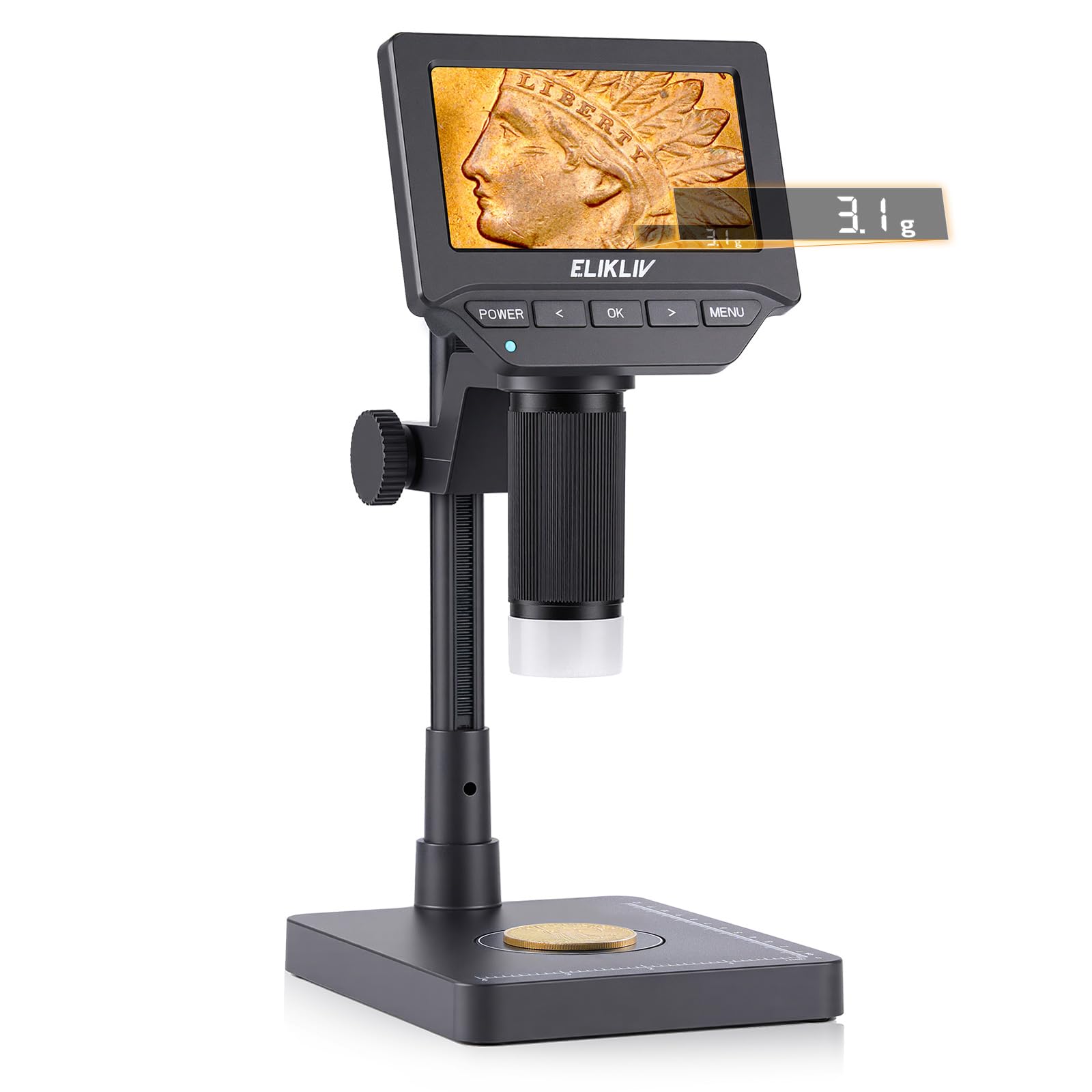

3. Elikliv EDM4C
The EDM4C is the first production coin microscope to integrate a precision weighing scale directly into the base, and it solves a real workflow bottleneck for error coin hunters and grading enthusiasts. Instead of inspecting a coin under the scope, then moving it to a separate scale to check weight against standard specifications, you can inspect and weigh in one step. The 0.1-gram resolution sensor is accurate enough to flag coins that fall outside normal weight tolerance, a common counterfeit indicator.
The screen is a 4.3-inch IPS panel with 500 cd/m² brightness and a 178-degree viewing angle, which provides better color accuracy and off-axis clarity than the standard EDM4’s TN display. The stand is taller than the regular Elikliv models at 8 inches with a gear-driven metal column, offering more vertical space for larger coins and improved stability. The eight adjustable LEDs are sufficient for most inspection scenarios.
Where the EDM4C stumbles is in the same area as its siblings: the 720P resolution limits how much fine detail you can see at the upper end of the 1000X maximum magnification. The weight function also adds complexity — some users find the zeroing process finicky if the coin shelf is not perfectly clean. For collectors who already own a separate high-precision scale, the extra cost may not be worth it.
What works
- Built-in 0.1g scale streamlines grading workflow
- IPS screen shows better color than standard TN panels
- Taller metal stand improves stability
What doesn’t
- Same 720P resolution as base models
- Scale adds calibration steps to setup
- Premium price over standard EDM4
4. Leipan 7-Inch DM9
The Leipan DM9 makes a strong case for itself by jumping from the typical 4.3-inch display to a full 7-inch 1080P panel, which is a transformative upgrade for coin inspection. The larger screen means you can see an entire half-dollar or large cent at a useful magnification level without having to pan or zoom out. The 12MP camera captures 4023×3024 stills, giving you enough resolution to crop and enlarge specific features for error documentation.
What really sets this model apart for numismatic work is the dual lighting system. In addition to the eight adjustable LED ring lights around the lens, the DM9 includes two flexible gooseneck side lights that you can angle to rake light across a coin’s surface. This side-lighting technique is how professionals spot die polish lines, luster breaks, and hairline scratches that are invisible under direct overhead illumination. The rotatable 90-degree screen design helps reduce neck strain during extended grading sessions.
The aluminum alloy stand and base provide a stable platform that resists the wobble common in plastic-based models, and the wired remote trigger minimizes camera shake when capturing photos. The maximum magnification is rated at 1200X, and while real-world usable detail tops out well below that, the 1080P output gives you much cleaner images at moderate zoom levels than 720P alternatives. The only drawback is the lack of a built-in battery — this unit requires a USB-C power connection to operate.
What works
- 7-inch 1080P display shows whole coins at useful magnification
- Dual gooseneck side lights enable critical raking illumination
- Aluminum alloy stand provides stable, wobble-free viewing
What doesn’t
- No internal battery; must be plugged in
- Limited third-party support for included software
- Stand height can be restrictive for very large coins

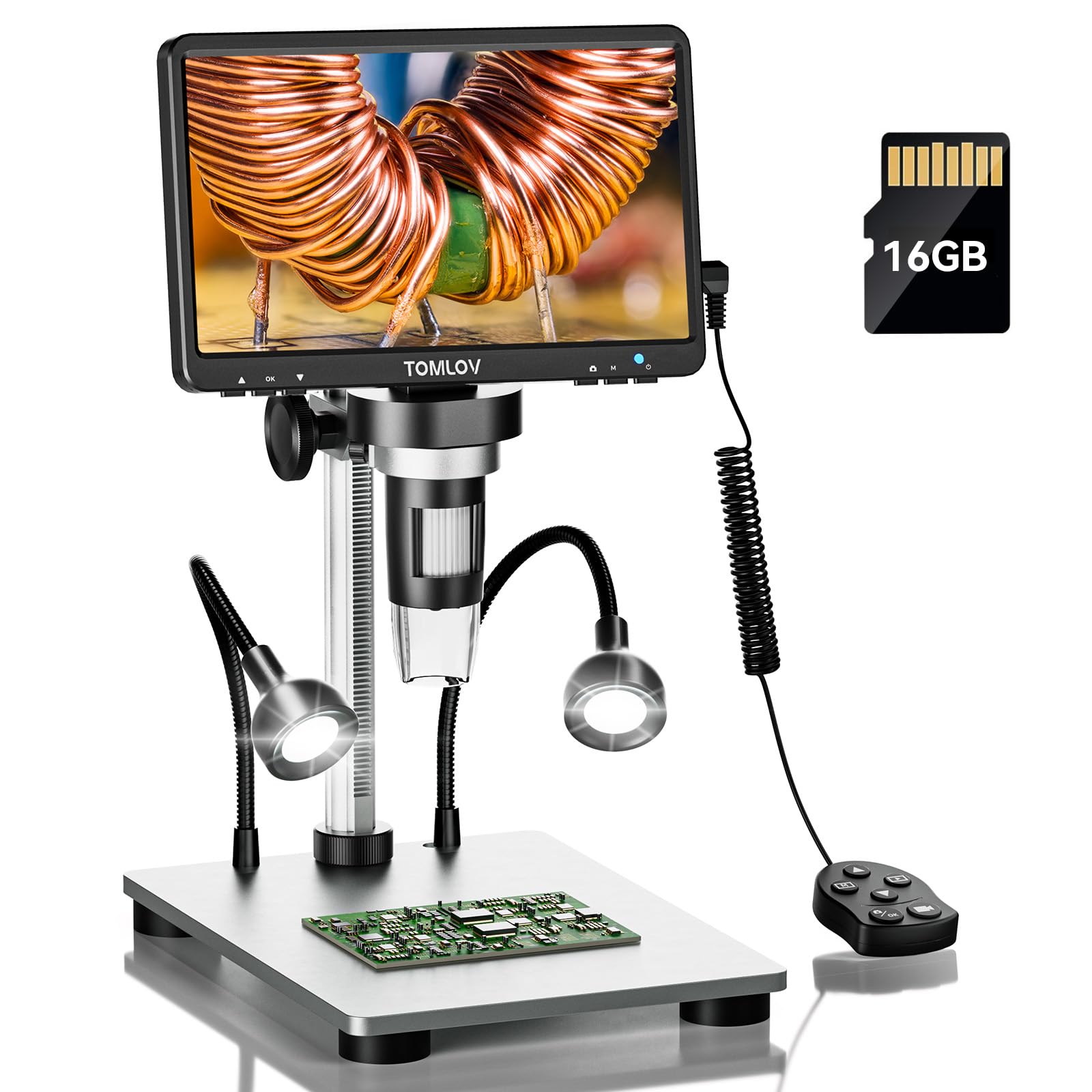

5. TOMLOV DM9
The TOMLOV DM9 is one of the most popular digital microscopes among coin collectors for good reason — it delivers consistent, sharp 1080P imaging on a 7-inch screen with a 12MP sensor that handles fine detail without introducing noise at moderate zoom levels. The 1200X maximum magnification is more than enough to reveal die cracks, RPMs, and strike doubling on error coins, and the included 16GB SD card means you can start capturing photos immediately without a separate purchase.
The build quality stands out at this price point. The aluminum alloy base, stand, and holder give the microscope a solid, premium feel that resists vibration when you adjust focus. The lighting system features eight adjustable LED ring lights plus two additional gooseneck side lights, giving you the same raking-light capability as the Leipan but in a slightly more refined package. Users report that the side lights are particularly effective for showing luster breaks on uncirculated coins and die wear patterns on older types.
One common complaint is that the stand height is too short to view a full Morgan dollar or other large silver coin without resorting to a riser block. The maximum working distance is roughly 4 inches at full extension, which frames large coins too tightly for comfortable whole-coin inspection. For most other tasks — nickels, dimes, quarters, small cents — the height is adequate, and the image quality is excellent for the price.
What works
- Sharp 1080P 7-inch screen with 12MP sensor
- Aluminum alloy construction feels solid and durable
- 16GB SD card included for out-of-box functionality
What doesn’t
- Stand height too short for full view of large dollars
- PC view software requires app (not plug-and-play on all systems)
- Side lights can produce focus artifacts at certain angles
6. TOMLOV DM9 Max
The DM9 Max is the first model in this roundup that solves the stand-height problem definitively. The 12.6-inch adjustable stand with a 7×8-inch base provides enough vertical clearance to image a full Morgan silver dollar or even a large copper cent with generous border margin. The 10.1-inch IPS screen is a full inch larger than the 7-inch models and renders at a true 1280×800 resolution with a 178-degree viewing angle, giving you a bright, detailed workspace.
The imaging chain is also a significant step up: a 20MP sensor captures stills at 6096×3424 pixels and video at 1080P 30fps. The magnification range goes from 5X to 1500X, and the included wireless remote control lets you adjust zoom, capture photos, and record video without touching the head, eliminating the camera shake that plagues manual-button designs. The dual lighting system — eight adjustable LEDs plus two gooseneck side lights with dimming — provides full control over surface illumination.
A less obvious but useful feature is the HDMI output, which lets you connect the DM9 Max directly to a TV or projector for group viewing or classroom demonstrations. The built-in rechargeable battery lasts about one to two hours, but most users leave it plugged in for long sessions. Some collectors note that the focusing mechanism feels slightly plastic compared to the premium metal body, but the image quality is consistently rated as spectacular for the price.
What works
- 12.6-inch stand enables full view of large dollar coins
- 20MP sensor delivers high-resolution still images for grading
- HDMI output for TV and projector display
What doesn’t
- Focusing mechanism feels less refined than metal body
- Short USB cables included; AC adapter not provided
- Stand stability can be disrupted by accidental touch
7. Elikliv EM4K-AF
The EM4K-AF is the first digital coin microscope to bring real AI-driven autofocus to the category, and it fundamentally changes how fast you can move through a large coin collection. Instead of twisting a focus knob and waiting for the image to stabilize, the TOF sensor measures distance and adjusts focus in about two seconds, even as you swap coins of different thicknesses or change working distance. The 52MP sensor captures images at 9600×5400 pixels, which is overkill for most cataloging but gives you enormous cropping freedom for error documentation.
The 8-inch IPS screen runs at 1280x800P resolution and is bright enough for outdoor or bright-room use. The triple-output capability — HDMI, USB, and the built-in screen — lets you display simultaneously on a large monitor while using the local screen for control. The 10-inch stand extends up to 6.3 inches of working distance, which allows whole-coin viewing of most denominations. The smart controller with freeze-frame and split-screen functions is genuinely useful for comparing a suspect coin side by side with a known reference.
The trade-offs are real. The 2000mAh battery lasts only about one hour on a full charge, so serious grading sessions need to be near an outlet. The AC power cord is short, and the build quality on some toggle switches feels budget-grade despite the premium price tag. But if your workflow demands rapid, shake-free focusing across hundreds of coins, the EM4K-AF saves enough time to justify the cost.
What works
- AI autofocus eliminates manual focus fiddling during batch inspection
- 52MP sensor with 4K video for high-resolution documentation
- Freeze and split-screen features simplify side-by-side comparison
What doesn’t
- Battery life limited to roughly one hour
- Some build quality inconsistency on control switches
- Short AC power cord included in box
Hardware & Specs Guide
Working Distance
This is the gap between the lens and the coin surface when the image is in focus. A working distance of 2 to 4 inches is typical for entry-level models and works for small cents and nickels. For larger coins like Morgan dollars or Peace dollars, you need at least 6 inches of clearance. The TOMLOV DM9 Max offers 12.6 inches of stand height, which is the most generous in this roundup and allows full-coin framing of nearly any denomination.
Sensor Resolution
Measured in megapixels, the sensor determines how much detail the microscope can capture in a single still image. A 12MP sensor (as found on the TOMLOV DM9 and Leipan DM9) is sufficient for identifying die varieties and most error types. The 20MP sensor on the DM9 Max and the 52MP sensor on the Elikliv EM4K-AF provide extra resolution for cropping into diagnostic details without losing clarity. For coin photography intended for online sales or grading submissions, 12MP is the practical baseline.
LED Lighting Configuration
Overhead ring lights are the standard configuration, but the angle of incidence matters. For revealing die scratches, luster breaks, and edge marks, you need side-lighting capability — either via gooseneck LEDs or by rotating the microscope head. The Leipan DM9 and both TOMLOV models include at least two flexible side lights, which is a major advantage over basic ring-light-only designs. The brightness should be continuously adjustable to avoid washing out the coin’s natural patina.
Display Panel Type
IPS panels offer wider viewing angles, better color reproduction, and higher contrast than standard TN displays. The Elikliv EDM4C, Leipan DM9, TOMLOV DM9, TOMLOV DM9 Max, and Elikliv EM4K-AF all use IPS screens. The Elikliv EDM4 and EDM4B use TN panels, which look dimmer when viewed from an angle. For coin grading, where accurate color assessment of toning and patina matters, an IPS display is the better choice.
FAQ
What magnification level do I actually need to grade coins?
Can I use a soldering microscope for coin inspection?
What memory card type do coin microscopes require?
Why does my coin microscope show a blurry image at high zoom?
Final Thoughts: The Verdict
For most users, the best coin microscope winner is the TOMLOV DM9 because it delivers sharp 1080P imaging on a 7-inch screen with an aluminum stand and included SD card at a price that undercuts competitors with similar specs. If you want a screen large enough to see whole dollar coins without a riser block, grab the TOMLOV DM9 Max. And for automated high-volume grading where manual focus is a bottleneck, nothing beats the Elikliv EM4K-AF with its AI-driven autofocus system.
