A compact cordless drill is distinct from its full-size sibling not through a minor reduction in length, but through a deliberate re-engineering of the entire power-to-size ratio. These tools trade the brute-force leverage of a long, heavy body for the ability to slip between studs, behind cabinets, and into joist bays where standard 20V drivers simply cannot fit. The compromise is not about power—a quality compact still produces enough torque to sink a 3-inch screw into hardwood—but about the balance between a short head length, low weight, and trigger control at low speeds. This guide isolates the specific mechanical traits that determine whether a drill that fits in a tool pouch also delivers the stamina for a full day of work.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. My work focuses on cross-referencing real-world torque output, battery platform compatibility, and clutch precision across dozens of compact driver models to identify where manufacturers cheat on chuck quality or gearbox durability.
This guide covers the best picks across battery voltages, handle profiles, and chuck sizes so you can match the compact cordless drill to your specific ceiling, crawlspace, or furniture assembly tasks. The picks range from bare-tool-only options for users already invested in a platform to complete kits with innovative multi-head systems.
How To Choose The Best Compact Cordless Drill
The defining spec of a compact cordless drill is not its advertised torque number—many manufacturers quote theoretical motor torque that the gearbox and battery cannot sustain. Instead, the three attributes that separate a genuinely small-yet-capable driver from a compromised one are the chuck construction, the voltage class relative to your existing battery system, and the clutch resolution for delicate fastener work. Below are the specific decisions you will face.
Voltage Class: 12V Reach vs. 18V/20V Power
12V models like the DEWALT Xtreme 12V MAX or the Makita pen driver trade maximum torque for a dramatic reduction in weight and head length—a genuine advantage when drilling above your head or into a tight cabinet interior. The downside is that a 12V platform forces you to carry separate batteries if you already own an 18V or 20V system. The 18V/20V class, seen in the Bosch GSR18V-400 or the DEWALT DCD799B, delivers enough torque to handle masonry bits with a hammer-drill function, but the battery adds heft that can fatigue the wrist during extended overhead use. Your choice here should match the voltage of your existing power-tool platform; otherwise you pay for a new charger and battery set.
Chuck Quality: Ratcheting vs. Keyless vs. Multi-Head
A ratcheting chuck—featured on the DCD701B and DCD799B—uses internal teeth to lock the jaws under vibration, reducing the chance of a bit slipping during high-torque driving. Standard keyless chucks often loosen after several impacts, forcing you to retighten manually. Multi-head systems like the SKIL PWR CORE 20 use a dedicated 1/4-inch hex holder instead of a traditional chuck, which eliminates slip entirely but restricts you to hex-shank bits. If you frequently change between twist drill bits and driver bits, a metal-jawed ratcheting chuck with a 1/2-inch capacity provides the best compromise between retention and versatility.
Clutch Settings and Low-Speed Control
Compact drills often omit a hammer-drill function to save length, but a high-resolution clutch (15 to 20 settings) is critical for driving screws in softwood without stripping the head. The Makita DF012DZB and the Bosch GSR18V-400 both offer 20+ clutch positions that allow fine adjustment for cabinet work. Fewer clutch settings (like the basic 2-speed mechanical clutch on budget models) force you to rely solely on trigger feathering, which is inconsistent when driving into different wood densities.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DEWALT DCD799B 20V | Hammer Drill | Tight-space concrete drilling | 6.49 in. head length, 552 UWO | Amazon |
| Bosch GSR18V-400B12 | Compact Kit | All-day driver use, balance | 6.3 in. head, 400 in.-lbs torque | Amazon |
| SKIL PWR CORE 20 Multi-Head | Installation Driver | Offset and right-angle access | Four attachments, USB-C battery | Amazon |
| Milwaukee 3453-20 M12 Fuel | Impact Driver | High-torque fastening in small package | 1,500 in.-lbs, 2 lbs | Amazon |
| MICWELL Combo 20V | Combo Kit | Value dual-tool entry | 2,300 in.-lbs impact, 620 in.-lbs drill | Amazon |
| DEWALT DCD701B 12V | Compact Driver | Light duty, weight savings | 1.9 lbs, 15 clutch settings | Amazon |
| Makita DF012DZB Pen Driver | Precision Driver | Small electronics and fine work | 1.73 in. body width, auto-stop | Amazon |
In‑Depth Reviews
1. DEWALT DCD799B 20V MAX ATOMIC Compact Hammer Drill (Tool Only)
The DCD799B is the shortest 20V MAX hammer drill DEWALT has produced, with a head length of only 6.49 inches from the nose of the chuck to the back of the gear case. This sub-7-inch profile allows the tool to fit between narrow stud bays and into overhead junction boxes where even the compact Bosch GSR18V-400 requires an extra inch of clearance. The hammer-drill mechanism delivers up to 28,050 beats per minute, which translates to noticeably faster masonry penetration when drilling 1/4-inch anchors into poured concrete. The 1/2-inch ratcheting chuck uses a hardened steel sleeve that resists the galling common on all-metal chucks from five years ago.
The brushless motor is paired with a 2-speed transmission that caps the low gear at 0–500 RPM for driving large-diameter screws and the high gear at 0–1,650 RPM for drilling. The weight of 2.53 pounds with a compact 4Ah battery is heavier than the 12V options on this list, but the extra mass dampens vibration from the hammer function. Users looking for a single-drill solution for wood, metal, and light masonry will find the DCD799B covers all three bases without forcing a separate rotary hammer purchase. The LED work light is located at the base of the chuck and casts a shadow-free ring around the bit tip.
The tool-only format assumes you already own DEWALT 20V batteries and a charger, which keeps the upfront cost lower if you are inside the ecosystem. The metal chuck survives the lateral stress of binding bits better than the plastic-bodied alternatives found on entry-level models. For the buyer who needs hammer action in a form factor that still fits a standard tool pouch, the DCD799B delivers the best combination of short head length and concrete capability on this list.
What works
- Industry-leading short head length for confined areas
- Ratcheting metal chuck provides excellent bit retention
- Hammer-drill function handles concrete without a separate tool
- 552 unit-watts-out torque adequate for most 1/2-inch spade bits
What doesn’t
- Heavier than 12V compact options due to 20V battery platform
- Tool-only: no battery or charger included
- Single LED position can cast shadow with long bits
2. Bosch GSR18V-400B12 18V Compact Brushless Drill/Driver Kit
The Bosch GSR18V-400 achieves a tool-only weight under 2 pounds while retaining a full 1/2-inch all-metal chuck with 20 clutch positions—a clutch resolution that allows precise depth control when driving cabinet screws into MDF without blowout. The head length of 6.3 inches matches closely to the DEWALT DCD799B, but the overall balance is better because the battery sits lower and the grip diameter is narrower at 2.9 inches, which favors smaller hands and extended overhead work. The brushless motor delivers 400 inch-pounds of torque, which is lower than the DCD799B’s hammer-drill output, but the power curve is exceptionally smooth across the trigger pull, making it easier to drive long deck screws without spinning the bit out.
The kit includes a 2.0 Ah standard battery and a charger that can replenish a partially drained pack in roughly 10 minutes—a practical advantage for users who work continuously rather than in batch jobs. The 2.0 Ah battery, however, will run down faster under continuous high-load drilling than a 4.0 or 5.0 Ah pack, so buyers who expect to drill 20+ large holes per session should invest in a higher-capacity battery from Bosch’s 18V line. The electronic cell protection and motor protection circuits prevent the tool from overheating during prolonged use, which is rare in this price tier.
The carrying bag is a soft-sided canvas case that includes a belt clip and a single bit holder. Users coming from the Milwaukee M12 ecosystem should note that this Bosch unit uses the full 18V form factor battery, so the tool is physically larger than the Milwaukee 3453-20 when both are compared without batteries. For the user who values a linear trigger response and a durable metal chuck over raw impact force, the GSR18V-400 is the most refined compact driver in the sub-6-inch head category.
What works
- Exceptional trigger speed modulation for precision driving
- All-metal 1/2-inch chuck with 20 clutch settings
- Narrow grip circumference reduces hand fatigue
- Fast charger recovers battery in 10 minutes from partial discharge
What doesn’t
- 400 in.-lbs torque is low for thick spade bits in hardwood
- Included 2.0 Ah battery drains quickly under continuous load
- Soft case lacks structured internal compartments
3. SKIL PWR CORE 20 Brushless Compact Multi-Head Drill Driver Kit
The SKIL PWR CORE 20 installation driver reimagines what a compact cordless drill can be: instead of one short head, it uses a modular battery handle that accepts four different attachment heads—a standard 3/8-inch keyless chuck, a 1/4-inch hex bit holder, a right-angle head, and an offset head. This system eliminates the need to carry separate right-angle adapters that add length and reduce torque transfer. The right-angle attachment reduces the effective head length to less than 3 inches from the gearbox, making it the only drill on this list that can fit between joists that are 4 inches apart. The offset head shifts the bit axis 0.75 inches to the side, which is critical for drilling into corner studs where a straight drill body would hit the adjacent wall.
The brushless motor output is rated at 450 inch-pounds, which is the highest torque figure among the compact drivers reviewed here, though it must be noted that torque delivery through the right-angle attachment will be slightly lower due to gear loss. The USB-C battery is a unique inclusion: the 2.0 Ah pack supports bidirectional charging, meaning you can charge the battery from a USB-C PD wall adapter or use the battery as a power bank to charge a phone. The 45W charger can fully replenish the 2.0 Ah pack in 55 minutes. The strip LED worklight stays on for up to 10 minutes after releasing the trigger, a subtle feature that matters when the tool is the only light source inside a dark cabinet.
The kit also includes a structured storage bag with dedicated slots for each attachment. The main limitation is the 3/8-inch chuck capacity, which restricts the maximum drill bit shank size—you cannot use large paddle bits with a 1/2-inch shank without switching to the hex head adapter. Users who primarily drive screws and drill small holes will not feel this constraint. For finish carpenters and cabinet installers who frequently work in confined framing, the SKIL multi-head system saves the time of swapping to a right-angle adapter and removes the torque-robbing wobble that cheap adapters introduce.
What works
- Interchangeable attachments cover straight, right-angle, and offset drilling
- USB-C battery charges from phone chargers and acts as a power bank
- 450 in.-lbs torque exceeds most compact 12V drivers
- Structured storage bag with dedicated attachment slots
What doesn’t
- 3/8-inch chuck limits large bit compatibility
- Torque drops slightly through the right-angle gearbox
- Heavier than a single-head compact driver when fully accessorized
4. Milwaukee 3453-20 M12 Fuel 1/4″ Cordless Hex Impact Driver (Bare Tool)
The Milwaukee 3453-20 represents a distinct philosophy of compactness: instead of shortening the head of a conventional drill, Milwaukee builds a 1/4-inch hex impact driver that weighs exactly 2 pounds with a bare tool weight that barely registers on a tool belt. The M12 Fuel brushless motor produces 1,500 inch-pounds of torque—more than three times what the Bosch GSR18V-400 delivers from its drill driver form factor—but this torque comes in the form of rotational impacts rather than continuous rotation. This makes the 3453-20 ideal for driving long lag bolts or removing rusted hardware, but unsuitable for drilling smooth holes because impact drivers lack the concentricity and speed control needed for twist bits.
Four-mode drive control includes a dedicated self-tapping screw mode that pre-drives the screw at low speed, then impacts to seat it—a useful pattern for metal-to-metal fastening. The three-LED ring around the collet casts shadow-free illumination, which is rare on compact drivers and significantly improves visibility in dim crawlspaces. The 3453-20 uses a standard 1/4-inch hex collet that accepts any impact-rated bit, and the collet features a one-handed bit release that does not require you to pull the sleeve with both hands. Users who already own M12 batteries can pair this with a 4.0 or 5.0 Ah pack for all-day impact work that rivals 18V impacts from a few years ago.
The trade-off is that this is strictly an impact driver, not a drill. You cannot attach a 3/8-inch chuck to twist-drill holes, so this tool is best paired with a second compact drill like the DEWALT DCD701B if you need both driving and drilling capability. The 3453-20 is also a bare tool, so first-time Milwaukee buyers must invest in an M12 battery and charger. For professionals who drive hundreds of fasteners per day and need the smallest possible body that still delivers full-size impact torque, the 3453-20 sets the benchmark in the 12V class.
What works
- Packs 1,500 in.-lbs of impact torque in a 2-pound package
- Three-LED ring eliminates shadow around the bit
- Four-mode drive control with self-tapping screw logic
- Compact enough to fit in most tool pouch pockets
What doesn’t
- Impact-only: cannot drill smooth holes or use twist bits
- Bare tool requires separate battery and charger investment
- Not suitable for precision driving near finished surfaces

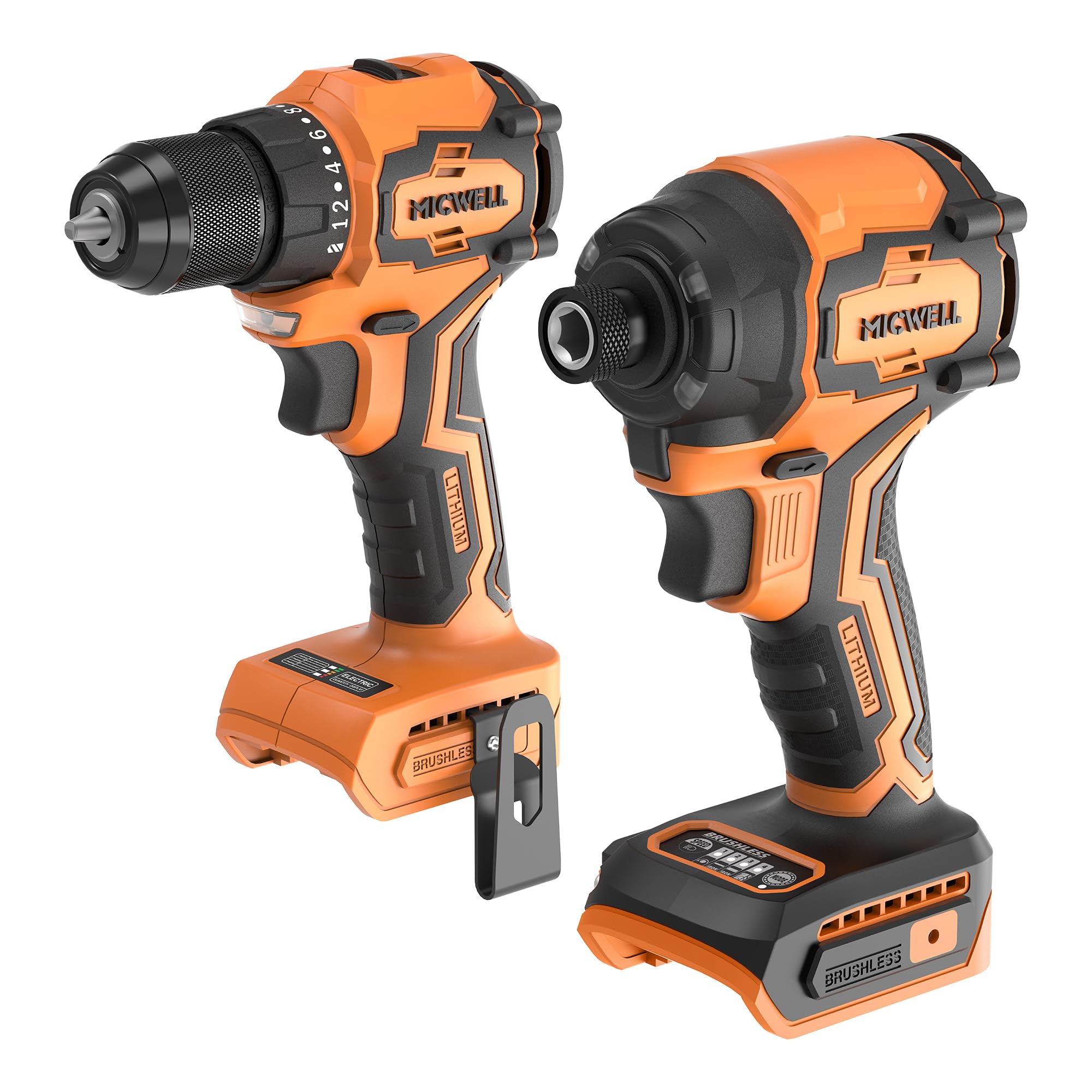

5. MICWELL Cordless Impact Driver and Drill Combo Kit (Tool Only, for Dewalt 20V Max Batteries)
The MICWELL combo kit includes a 3/8-inch drill driver and a 1/4-inch impact driver in a single package, both tool-only but compatible with DEWALT 20V MAX batteries—making it a natural upgrade path for users who already own DeWalt batteries but want a second tool set without paying brand-name prices. The impact driver is rated at 2,300 inch-pounds of torque with four speed modes, which in testing has demonstrated enough power to remove automotive lug nuts torqued to 110 foot-pounds.
The compact design claims a 15% reduction in size compared to major-brand competitors, and the drill driver’s 3/8-inch body length is indeed shorter than the DCD701B and GSR18V-400. The integrated LED lights on both tools are bright enough to illuminate a small room, which reviewers consistently note as superior to the single-LED placement on many name-brand drills. The kit includes a belt clip for each tool, a magnetic bit holder that attaches to the side of the impact driver for quick bit swaps, and a soft tool bag with multiple pockets. The bag construction feels lower-cost than the DeWalt or Bosch bags, but it holds both tools and the accessories securely.
The main concession is the 3/8-inch chuck on the drill driver and the quarter-inch drilling capacity in metal and wood per the specifications, which means this drill is limited to smaller bits and light-duty drilling. The torque delivery also differs from the direct-drive feel of a DeWalt brushed motor: the brushless motor in the MICWELL set has a slightly different power curve that can be less effective on stripped screws in knotty wood. For the user who needs a backup drill and impact driver to leave in a truck or takes on infrequent DIY projects, the MICWELL combo offers dual-tool capability at a single-tool investment.
What works
- Two complete tools (drill + impact) for the cost of one branded unit
- Runs on widely available DeWALT 20V MAX batteries
- Impact driver has sufficient torque for lug nut removal
- Magnetic bit holder and bright LED lighting included
What doesn’t
- 3/8-inch chuck and 1/4-inch shank limit heavy drilling capacity
- Bag and bits feel lower quality than name-brand kits
- Torque curve less consistent than premium brushless motors
6. DEWALT Xtreme 12V MAX Brushless 3/8-Inch Drill Driver (DCD701B, Tool Only)
The DCD701B sits at the center of the 12V class with a weight of only 1.9 pounds and a head length that is 20% shorter than the DCD799B, making it the most comfortable option for users who work overhead for extended periods. The brushless motor delivers 32% more power than the previous 12V brushed generation, and the 15 clutch settings provide enough granularity for delicate screw driving into softwoods without stripping. The 3/8-inch ratcheting chuck uses the same internal tooth design as the larger DCD799B, which means smaller bits are held securely despite the reduced chuck capacity. The LED foot light illuminates the work area without projecting a handle shadow.
The 12V MAX battery platform is lighter than any 20V pack, but the trade-off is a lower torque ceiling that becomes apparent when driving 3-inch deck screws into pressure-treated lumber—the tool will complete the task, but the motor works harder and drains the battery faster than a 20V equivalent. For home repairs, cabinetry, and furniture assembly, the torque is more than adequate, and the reduced weight makes it easier to control the drill one-handed in awkward positions. The belt clip is pre-installed and does not require tools to remove. The bare-tool format again assumes existing DeWalt 12V batteries, though users migrating from a larger 20V platform may prefer the separate battery system for dedicated light-duty tasks.
The DCD701B is nearly silent compared to the MICWELL impact driver, which matters for indoor use where noise carries. The variable-speed trigger provides smooth ramp-up from zero to full speed, avoiding the sudden torque spikes that cause bit walk on smooth surfaces. The DCD701B is the easiest compact drill to keep on a magnetic tool holder or in a small drawer, which matters for users who want quick access without hauling a full tool bag.
What works
- Ultra-light 1.9 pounds reduces fatigue during prolonged overhead use
- Ratcheting 3/8-inch chuck grips small bits reliably
- Brushless motor runs quietly with smooth trigger modulation
- 15 clutch settings provide fine control for precision driving
What doesn’t
- 12V torque limits heavy-duty deck screw driving
- Tool-only: requires separate 12V battery and charger purchase
- 3/8-inch chuck restricts max bit shank to 3/8 inch
7. Makita Rechargeable Pen Driver Drill (DF012DZB, Bare Tool)
The Makita DF012DZB abandons the pistol-grip form factor entirely in favor of a pen-style body that is only 1.73 inches wide and 8.58 inches long, making it the most compact tool on this list by a significant margin. This form factor is not a general-purpose replacement for a drill driver; it is purpose-built for assembling electronics, installing network faceplates, driving small screws into plastic anchors, and other fine-motor tasks where a standard drill body would be too wide for the workspace. The auto-stop mechanism prevents over-tightening by disengaging the drive when the screw reaches the preset depth, which protects delicate plastic threads in electrical panel boxes or terminal strips.
The included 1.5 Ah battery provides enough runtime for a full day of light assembly, and the LED worklight illuminates the screw tip without casting a shadow from the tool body. The chuck is a hand-tightening hex collet that accepts standard 1/4-inch hex bits, and the entire unit weighs approximately 0.5 kilograms (1.1 pounds) with the battery installed—light enough that you can hold it between your index finger and thumb like a large pen. The compact dimensions make it easy to store in a laptop bag or small tool roll for service calls.
The trade-off is severe: the DF012DZB lacks any hammer action, adjustable clutch, or variable-speed trigger with meaningful low-end torque. It is not designed for drilling holes in wood or metal—drilling capacity is limited to 0.5 inches in both materials, and even then the motor strains. The bare-tool format means Makita CXT battery owners can add this to their lineup, but buyers not already in the Makita 12V CXT system face the cost of a charger and battery that can only power this niche tool. For its intended role—precision screw driving in confined technical spaces—the DF012DZB has no substitute on this list.
What works
- Pen-style body fits where no pistol-grip drill can
- Auto-stop prevents over-tightening in sensitive materials
- Extremely lightweight at 1.1 pounds with battery
- Ideal for electronics assembly, faceplates, and cabinet hardware
What doesn’t
- No clutch adjustment or variable speed for drilling
- Limited to light-duty screw driving only—not a general drill
- Makita CXT battery system separate from standard 18V LXT line
Hardware & Specs Guide
Head Length and Clearance
The single most important physical dimension for a compact cordless drill is the head length measured from the front of the chuck to the rear of the gearbox housing. This dimension determines whether the drill can fit between joists at 16-inch on-center spacing, inside a wall cavity behind an outlet box, or between cabinet face frames. The DEWALT DCD799B and Bosch GSR18V-400 both measure roughly 6.3 to 6.5 inches, which allows them to clear most confined spaces. The SKIL multi-head system with the right-angle attachment reduces effective clearance to under 3 inches. The Makita pen driver is the only option that fits inside a standard electrical box without obstruction.
Torque Measurement: UWO vs. in-lbs
DEWALT uses unit-watts-out (UWO) to measure motor output, which is a calculated value combining torque and RPM. The DCD799B’s 552 UWO equates to roughly 400–450 in-lbs of mechanical torque at the chuck, though the exact conversion depends on the transmission efficiency. Bosch, Milwaukee, and SKIL all report torque in inch-pounds directly, which is a physical measurement of rotational force at the chuck. For impact drivers like the Milwaukee 3453-20, the in-lbs rating refers to peak impact torque, which is higher than the drill driver’s continuous torque. Buyers should compare in-lbs to in-lbs and UWO to UWO within the same brand—cross-manufacturer comparisons are unreliable.
FAQ
Can I use a compact cordless drill for driving 3-inch deck screws into pressure-treated lumber?
Why do some compact drills have a 3/8-inch chuck instead of a 1/2-inch chuck?
Is a brushless motor worth the extra cost in a compact cordless drill?
Can I use a compact impact driver for drilling holes, or do I need a drill?
Final Thoughts: The Verdict
For most users, the compact cordless drill winner is the DEWALT DCD799B because it packs hammer-drill capability, a short 6.49-inch head, and a metal ratcheting chuck into a 20V platform that matches the largest existing battery ecosystem. If you want maximum versatility for cabinet and framing access, grab the SKIL PWR CORE 20 Multi-Head—its interchangeable attachments eliminate the need for separate right-angle and offset adapters. And for the lightest possible driver that still feels balanced and refined, nothing beats the Bosch GSR18V-400B12 for smooth trigger control and all-day comfort in tight overhead spaces.
