Nothing is more frustrating than hammer drilling a perfect pilot hole only to have a concrete anchor spin free the second you torque it down. The real work of concrete anchoring isn’t the drilling — it’s choosing a fastener that won’t shear under load, corrode in a damp slab, or strip out when you cinch the nut. A bad anchor turns a 15-minute job into a half-day rework session.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend my time digging into installation data, ICC-ES reports, and corrosion-testing results across dozens of anchor families so you don’t have to guess which fastener will actually hold a sill plate or a machinery base in solid concrete.
This guide breaks down the top five anchor types by real-world holding power, thread geometry, and substrate compatibility — everything you need to confidently pick from the best concrete anchors for your next pour, retrofit, or structural tie-down.
How To Choose The Best Concrete Anchors
Concrete anchors come in two broad families — expansion-type (wedge anchors) and screw-type (concrete screws). Neither is universally better: wedge anchors rely on a sleeve that expands inside the hole to create mechanical grip, while concrete screws cut threads directly into the substrate. Your choice depends on base material, load direction, and whether you ever need to remove the fastener later.
Substrate Type and Condition
Solid concrete rated 2,500 psi or higher accepts both wedge anchors and concrete screws. Hollow block or brick, however, cannot develop expansion force — you must use a screw-type anchor that threads into the thin walls of the masonry cell. Cracked concrete also demands an ICC-ES-approved fastener that maintains grip when the slab shifts under thermal or seismic movement.
Embedment Depth and Edge Distance
Every anchor has a spec sheet that states minimum embedment — typically 1 to 2 inches for a 3/16-inch screw, and 2 to 3 inches for a wedge anchor of the same diameter. If you drill too shallow, the fastener will pull out before reaching its rated tension. Edge distance (the space between the anchor center and the concrete edge) also matters: wedge anchors need at least 4 diameters of clearance to avoid spalling the concrete face.
Corrosion Environment
Interior slabs in conditioned air can use plain or zinc-plated anchors. Exterior decks, retaining walls, or coastal installations demand a coating system like Tapcon’s Climaseal (a multi-layer fluoropolymer that blocks chloride ingress) or a full stainless-steel alloy like the Red Head TruBolt. Never substitute zinc-plated anchors for outdoor structural work — red rust will compromise the fastener within 12 to 18 months.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Tapcon 3/16 x 2-1/4 Climaseal | Concrete Screw | General framing, furring strips, window jambs | 3/16 in diameter, T-25 star recess | Amazon |
| Tapcon+ 3/8 Hex Head | Concrete Screw | Sill plates, ledger boards, post caps | 3/8 in diameter, ICC‑ES seismic approved | Amazon |
| RVSurve 3/8 x 3 25‑Pack | Concrete Screw | Scaffolding, guardrails, heavy brackets | 3/8 in diameter, fully threaded | Amazon |
| Wensilon 1/2 x 8 Wedge | Wedge Anchor | Steel columns, carports, machine bases | 1/2 in diameter, 8‑inch length | Amazon |
| Red Head TruBolt 3/4 x 5-1/2 SS | Wedge Anchor | Heavy machinery, structural supports, lifts | 3/4 in diameter, stainless steel | Amazon |
In‑Depth Reviews
1. Tapcon 3/16 x 2-1/4 Inch Blue Climaseal Star Head Concrete Anchors
The Tapcon 3/16-inch Climaseal is the most-installed concrete screw in North American framing for good reason. Its star-drive recess eliminates cam-out at the worst moment — when you’re torquing the last screw holding a furring strip against a cast-in-place wall. The Climaseal coating isn’t just a dip; it’s a multi-layer barrier that passes 720-hour salt-spray tests, making these screws viable for covered exterior work where plain zinc would bloom rust in six months.
Each box delivers 75 screws plus a T-25 bit — enough to fasten an entire wall of rigid foam and strapping without a supply run mid-job. The bugle head profile sits flush or slightly countersunk, which matters if you’re laying up fire-rated assemblies where proud fastener heads eat clearance. A precise 3/16-inch pilot hole is non-negotiable: too tight and the screw risks snapping, too loose and the thread strips in lightweight block.
Verified buyers report consistent grip in both 4,000-psi slabs and aged concrete flooring, with no reports of shank fracture under normal installation torque. The only recurring complaint is that the star drive bit wears after 60 to 80 screws in hard aggregate — plan to carry a spare T-25 insert if you’re running a production crew.
What works
- Star recess prevents bit slip in deep pours
- Climaseal coating resists outdoor corrosion effectively
- 75-count box includes the correct drive bit
What doesn’t
- Bit life limited in hard aggregate — keep a spare T‑25
- Bugle head won’t suit all bracket applications
2. Tapcon+ 3/8 x 2-1/4 Inch Heavy-Duty Hex Head Concrete Anchors
When a 3/16-inch screw isn’t enough, the Tapcon+ steps up with double the diameter and an ICC-ES seismic rating (ESR-3699) that qualifies it for sill plate anchorage in high-risk zones. The hex head couples with a socket or impact driver for full torque transmission — no star-bit wear concerns here. Each 10-pack covers niche applications like ledger-board tie-downs or post-cap connectors where shear loads approach 2,000 pounds per fastener.
The Climaseal coating carries over from the smaller Tapcon line, so this anchor works outdoors against rain and freeze-thaw cycling. Installation calls for a 3/8-inch carbide bit drilled to a minimum embedment of 1-3/4 inches in solid concrete. Because the hex head sits on top of the fastened material rather than countersinking, you need to verify clearance if you’re mounting flush assemblies. The partially threaded shank leaves room for thick brackets without bottoming out in the hole.
Installers report easy driving in block and cinder concrete, with one buyer using them to hang a TV on concrete board — a scenario where the lower thread profile prevented the board from cracking. The trade-off is price per unit: a 10-pack runs higher than the 75-count of smaller screws, but you’re paying for the additional shear capacity and code compliance.
What works
- Seismic-rated for structural and sill plate use
- Hex drive transfers full torque without cam-out
- Climaseal coating handles damp exterior conditions
What doesn’t
- Higher per-unit cost compared to 3/16‑inch screws
- Hex head doesn’t countersink for flush mounting

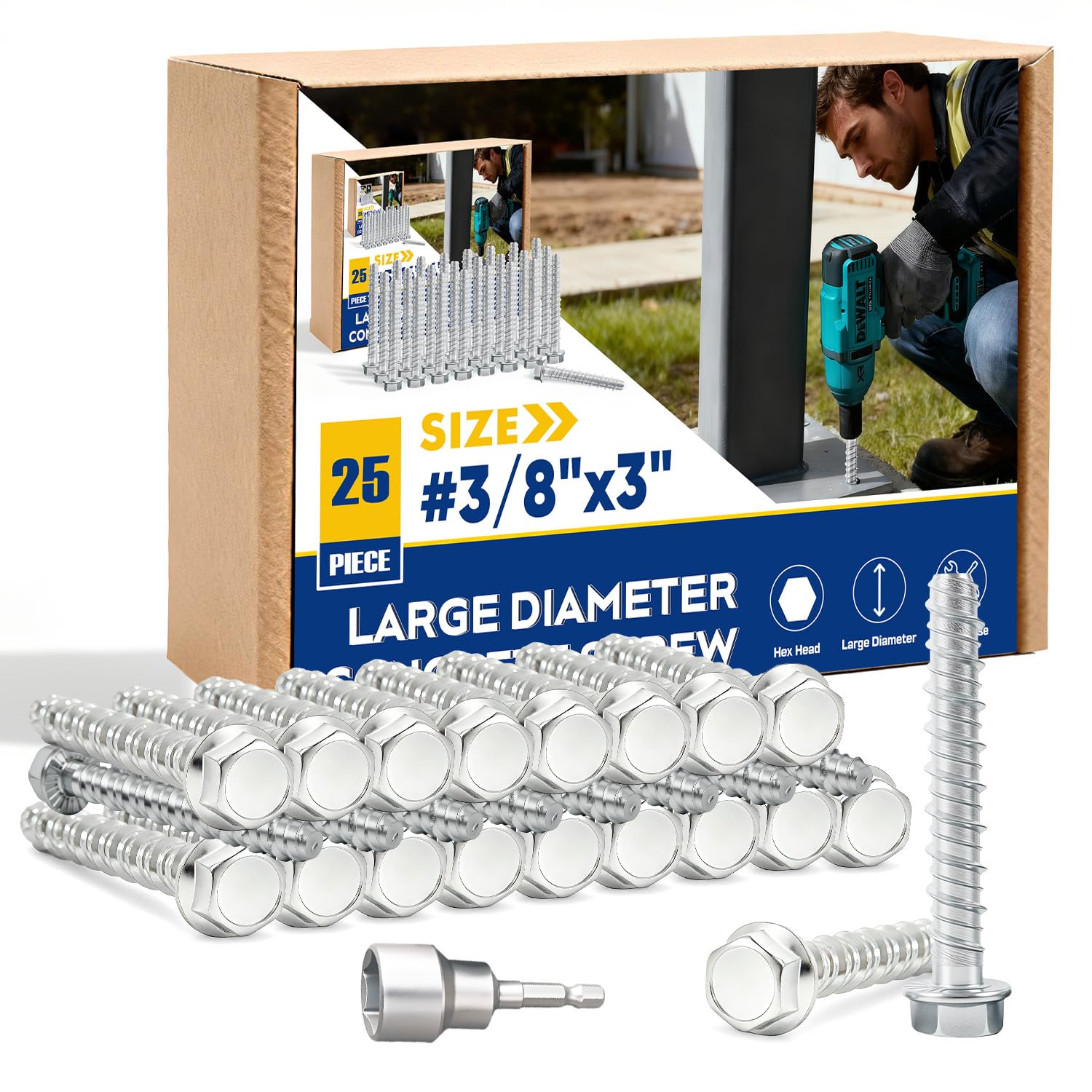

3. RVSurve 3/8 x 3 Inch Large Diameter Concrete Screw 25 Pack
The RVSurve 3/8-inch screw stands out for its fully threaded design — every millimeter of the 3-inch shank carries cutting teeth. That means grip starts at the tip and continues all the way to the head, eliminating the unthreaded zone that can leave a gap in softer substrates. The zinc galvanized finish is adequate for interior slabs and dry sheltered applications, though not rated for continuous outdoor exposure like the Climaseal-coated competition.
With 25 pieces per pack, the per-unit cost undercuts the premium Tapcon+ by a wide margin, making this a solid choice for projects that need many anchors — scaffolding bracing, guardrail posts, or multiple wall brackets in a single pour. The hex head accepts a standard 3/8-inch socket, and the Type G point initiates the hole without walking. Because the screw is fully threaded, you must drill to the exact full depth of the anchor; a shallow hole will leave threads exposed above the surface.
Commercial users on verified accounts report using these for blocking attachments to block walls and temporary safety toe boards on larger jobsites. The consistent sizing and straight shanks reduce installation friction. Expect to replace the masonry bit after a few dozen holes in hard aggregate — that’s normal for any 3/8-inch concrete screw system.
What works
- Full-thread engagement from tip to head
- Low per-unit cost for large-volume work
- Hex drive works with standard impact sockets
What doesn’t
- Zinc finish not suited for long-term outdoor use
- Requires drilling to full anchor depth
4. Wensilon 1/2 x 8 Inch Wedge Anchors for Heavy-Duty Cement and Concrete
When you need to anchor a heavy steel column or a carport to a slab, a wedge anchor is the mechanical solution. The Wensilon 1/2-inch by 8-inch anchor uses a tapered plug at the base that forces the expansion sleeve outward as the nut is torqued, creating 360-degree contact against the concrete wall. This anchor does not rely on thread engagement — grip comes entirely from the wedge action, which means it works in concrete that is too hard or too inconsistent for a screw-type fastener to thread reliably.
Each anchor comes pre-assembled with a hex nut and washer, saving fumbling time on a ladder or in a tight footing trench. The 8-inch length provides enough shank to pass through a 4-inch-thick bracket and still achieve the 2-1/2-inch minimum embedment required for the rated 1,200-pound shear load. Use a 1/2-inch carbide bit and blow out the hole before driving — dust in the bore prevents the wedge sleeve from expanding fully, which drops pull-out resistance by roughly 30 percent.
Buyers confirm consistent sizing and a solid hold after installation, with one verified review noting these anchors survived an “extreme test” without pull-out. The only weak point reported is the washer, which can deform slightly under high torque; upgrading to a thicker grade-8 washer eliminates the issue. Note that wedge anchors should not be used in hollow block or brick — expansion force will crack thin masonry walls.
What works
- Wedge expansion grip works in hard or variable concrete
- Pre-assembled nut and washer save setup time
- 8-inch length accommodates thick brackets
What doesn’t
- Unsuitable for hollow block or brick substrates
- Included washer may deform under high torque
5. Red Head TruBolt 3/4 x 5-1/2 Inch Wedge Concrete Anchors, Stainless Steel, 10 Count
The Red Head TruBolt is the professional contractor’s anchor for heavy machinery, vehicle lifts, and permanent structural supports. At 3/4-inch diameter, this wedge anchor develops a pull-out load in excess of 4,000 pounds in 4,000-psi concrete — you’re not hanging a ladder shelf with this fastener. The 304 stainless steel construction resists chloride attack in coastal environments or indoor wash-down areas where galvanized steel would pit within months.
ICC-ES recognized under ESR-2251 for uncracked concrete, the TruBolt meets the code requirements for seismic and wind-rated connections. Installation follows the standard wedge anchor procedure: drill a 3/4-inch hole to the required depth, clear the dust, hammer the anchor flush, and torque the nut to the manufacturer’s specification. The 5-1/2-inch length offers enough shank to pass through a thick base plate while maintaining the 3-inch minimum embedment that the rating demands.
Verified buyers include a contractor who used these to replace base-plate hardware on an entire commercial structure and a shop owner who secured a two-post lift with the same anchors. Cutting the bolt down to length is straightforward with an angle grinder after the nut is torqued. The premium price reflects both the material upgrade and the ICC-ES listing — if your project requires an engineer’s stamp, this is the anchor that passes inspection.
What works
- Stainless steel resists coastal and chemical corrosion
- ICC-ES listed for code-approved structural work
- 3/4‑inch diameter handles extreme shear loads
What doesn’t
- High per-unit cost reflects stainless alloy
- Not rated for cracked concrete applications
Hardware & Specs Guide
Embedment Depth
The depth from the concrete surface to the bottom of the anchor determines pull-out resistance. For concrete screws, the threaded portion must be fully below the surface. For wedge anchors, the expansion cone needs to clear the surface by at least the manufacturer’s stated minimum, typically 2 inches for 3/8-inch diameters and 2-1/2 inches for 1/2-inch diameters. Shallow embedment is the leading cause of anchor failure in field installations.
Thread vs. Expansion Grip
Concrete screws cut matching threads into the substrate — they work by interlocking the screw thread with the concrete thread they create. Wedge anchors rely on a sleeve that expands against the hole wall when the nut is tightened. Screws offer faster installation and easier removal, while wedge anchors provide more consistent grip in concrete that varies in density. Neither system outperforms the other universally; match the mechanism to the base material and load direction.
FAQ
Can I use wedge anchors in hollow cinder block?
How deep should a 3/8-inch concrete screw pilot hole be?
Does the Climaseal coating make a screw truly outdoor-safe?
Can I reuse a concrete anchor after removing it?
Final Thoughts: The Verdict
For most users, the best concrete anchors winner is the Tapcon 3/16 Climaseal because its star drive reliability, corrosion coating, and 75-count volume balance everyday framing tasks with structural confidence. If you need heavy-duty seismic-rated holding for sill plates or ledger boards, grab the Tapcon+ 3/8 Hex. And for anchoring machinery or lift equipment in a coastal shop where rust cannot be tolerated, nothing beats the Red Head TruBolt 3/4 Stainless.
