Struggling to keep your dowel holes perfectly aligned is the quickest way to turn a simple woodworking project into a frustrating pile of scrap. A loose finger joint or a crooked shelf support compromises the entire build, and measuring each hole by hand invites human error every single time. The right self-centering guide changes that entirely, turning a finicky operation into a repeatable, stress-free process.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing joinery hardware, comparing bushing tolerances, and studying how different clamping mechanisms affect hole accuracy in real workshop conditions.
This guide breaks down the exact features that separate a precise tool from a frustrating one, so you can choose the right dowel jig for your shop without wasting time or money.
How To Choose The Best Dowel Jig
Not every dowel jig delivers the same hole consistency. The material of the body, the number and type of bushings included, the maximum clamping width, and the centering mechanism all play a role in the final joint quality. Understanding these factors saves you from buying a tool that introduces more error than it solves.
Self-Centering vs. Fixed-Guide Designs
A self-centering jig uses spring-loaded arms or a V-shaped cradle to automatically position the drill guide at the exact midpoint of your board’s thickness. This removes the need to measure and mark each piece individually. Fixed-guide jigs, common on budget-friendly models, require manual alignment and are prone to drift if the workpiece shifts during clamping.
Bushing Material, Count, and Diameter
Hardened steel bushings outlast brass or uncoated aluminum sleeves by a wide margin — they resist wear from drill bit flutes and maintain tight tolerances over hundreds of holes. A good kit includes at least six bushings covering 1/4-inch, 5/16-inch, and 3/8-inch diameters. Some premium kits also include 1/2-inch bushings for heavy structural joints.
Clamping Capacity and Jaw Design
The jig must grip the workpiece securely without marring the surface. Look for a maximum opening that matches the thickest stock you regularly joint — a 2-inch capacity works for most cabinet work, while a 6-inch-plus capacity accommodates face frames and thick table aprons. Elongated jaws with textured grip patterns provide more lateral stability than short, smooth pads.
Multi-Hole Drilling and Repeatability Stops
Production-oriented jigs allow you to drill two or three adjacent holes without repositioning the tool, which speeds up edge-joining significantly. A repeatable edge-stop system with positive indexing in 1/8-inch or 1/16-inch increments lets you clone the same hole pattern across multiple workpieces — essential for building multiple cabinet doors or matching drawer fronts.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| GOINGMAKE Dowel Jig Kit | Premium Multi-Hole | Production joinery | 3 simultaneous holes, 1/2″ bushings | Amazon |
| Milescraft 1311 Joint Pro | All-Steel Clamp | Professional edge joints | Clamps both boards simultaneously | Amazon |
| Kreg Dowel Jig Kit KHJD345 | Removable Guide | Cabinet alignment | Hardened steel removable guides | Amazon |
| Milescraft 1334 Joint Master | Self-Clamping | Corner & surface joints | Retractable edge stops | Amazon |
| ELEON Self Centering Dowel Jig | Wide Clamp | Thick stock joinery | 6.7″ max clamping opening | Amazon |
| DAYDOOR 2.1″ Self Centering Jig | Mid-Range Alloy | Versatile edge drilling | 45 steel reinforced body | Amazon |
| BLEKOO Self Centering Jig Kit | Aircraft Alloy | Lightweight precision | Laser-etched scales, 2.51 lbs | Amazon |
| Saker Cabinet Hardware Jig | Cabinet Specific | Handle & knob installation | 5-hole pattern, folding design | Amazon |
| DFM Tool Works Dowel Plate | Dowel Maker | Shaping custom dowels | A2 steel plate, 17 hole sizes | Amazon |
In‑Depth Reviews

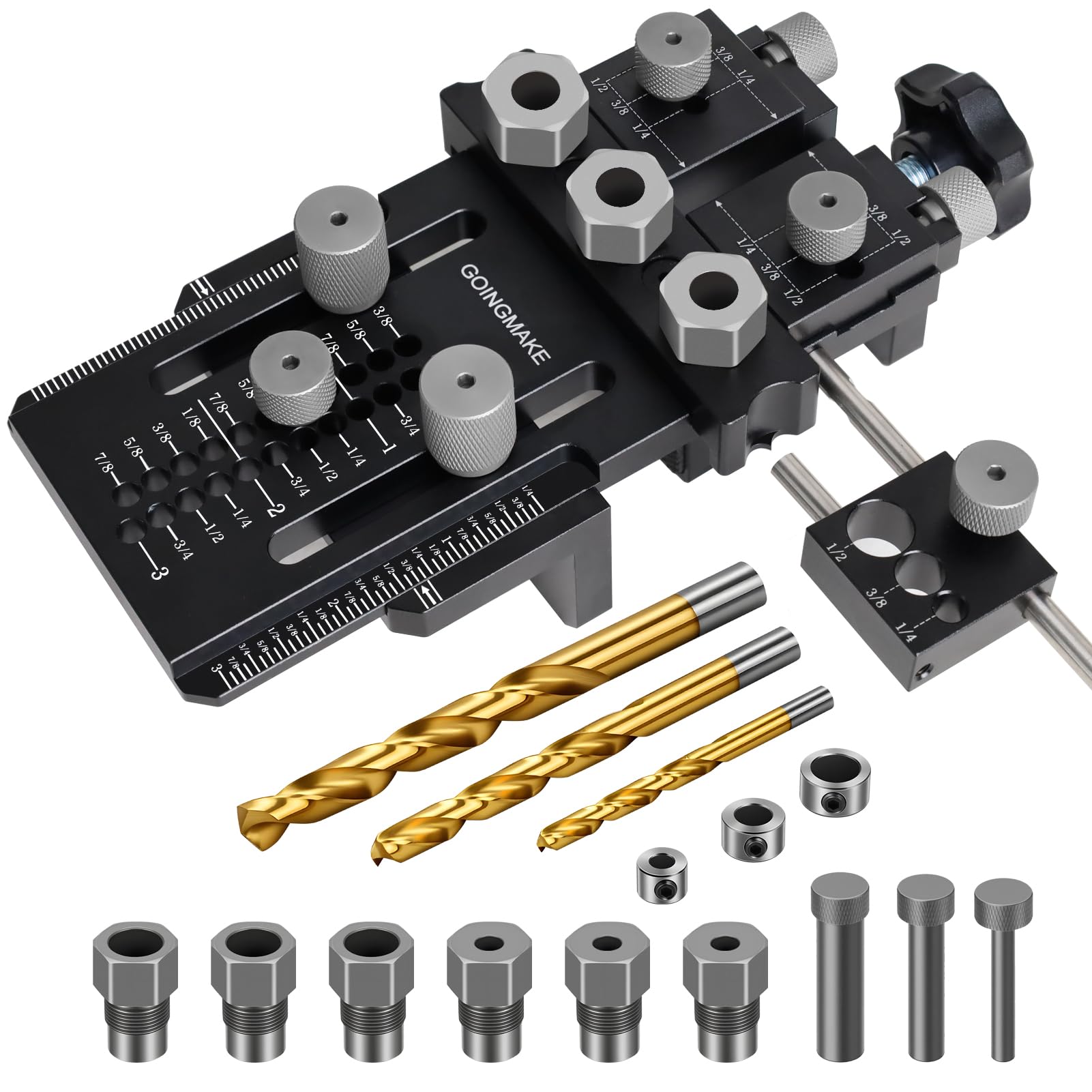

1. GOINGMAKE Dowel Jig Kit
The GOINGMAKE kit is engineered for speed and repeatability. Its standout feature is the ability to drill three perfectly spaced dowel holes simultaneously, with a center-line pointer that aligns to your layout marks in seconds. The included extension rod and position pins let you space dowel rows wherever the joint demands, and the positive stop system indexes in 1/8-inch increments so you can replicate the same pattern across dozens of workpieces without remeasuring.
Build quality is impressive — the body is machined aluminum with a substantial 4.13-pound heft that resists flexing under heavy drilling force. Hardened steel bushings come in 1/4-inch, 3/8-inch, and 1/2-inch diameters (three of each), and the kit also includes matching drill bits. The quick-clamp system grips boards firmly, and it can be detached if you prefer using your own F-clamp for unconventional stock shapes.
Accuracy reports from users show the centering mechanism hits within tight tolerances out of the box, though a few early units required a slight calibration adjustment on the sliding scale. Once dialed in, the tool produces clean, straight holes that line up consistently on mating boards. This is a production-level jig that justifies its price through repeatable precision and time savings on multi-part projects.
What works
- Three simultaneous holes dramatically speed up edge joining
- Positive stop system ensures repeatable positioning on identical parts
- Includes 1/2-inch bushings for heavy-duty structural dowels
What doesn’t
- Thicker than some single-hole jigs, making it less pocket-friendly
- Scale calibration required out of the box for some units
2. Milescraft 1311 Joint Pro
What separates the Milescraft 1311 from most dowel jigs is its dual-board clamping design. Instead of drilling one board, then marking and drilling the second separately, this jig holds both boards together and guides the drill through both simultaneously. That guarantees the holes align perfectly across the joint line — no transfer errors, no offset. It handles edge, corner, and surface joints with the same setup.
The body is all steel, not aluminum, which gives it a rigid, non-flexing feel when drilling. It includes hardened steel bushing blocks for 1/4-inch, 5/16-inch, and 3/8-inch dowels, and you can drill up to six holes per setup by sliding the block along the guide rail. The clamping screws have comfortable knurled knobs that grip tightly without needing a separate wrench.
Some woodworkers note that the dual-clamp approach takes slightly longer to position than a simple self-centering jig, but the trade-off is absolute alignment between the two halves of the joint. For furniture-grade edge-joining where gaps are unacceptable, this method delivers results that rival a dedicated biscuit joiner. This is a professional-grade tool built to survive daily shop use.
What works
- Clamps and drills both boards simultaneously for perfect alignment
- All-steel construction eliminates flex during drilling
- Supports up to six holes per setup for stronger joints
What doesn’t
- Heavier and bulkier than simple self-centering jigs
- Setup takes longer for single-board centering tasks

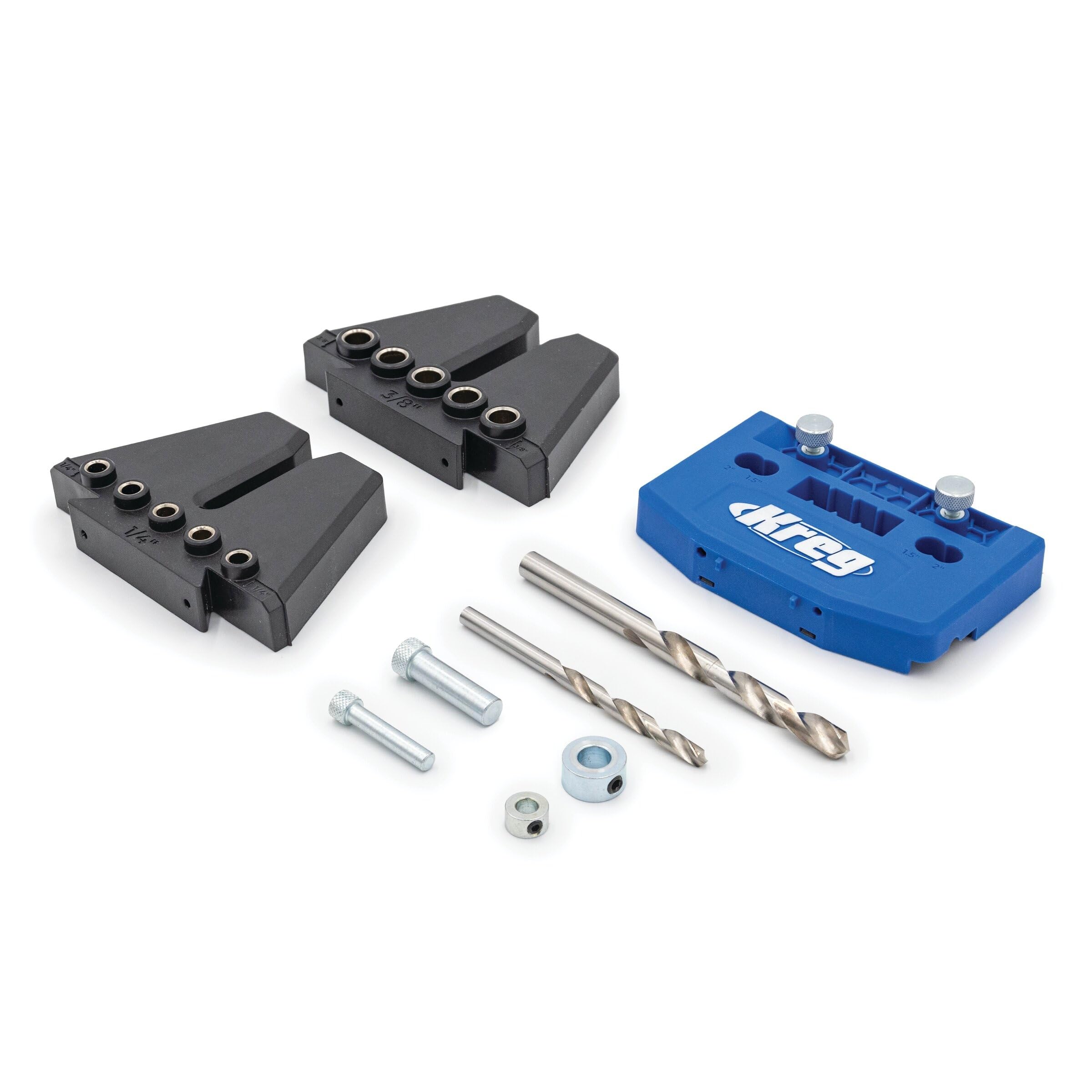

3. Kreg Dowel Jig Kit KHJD345
Kreg brings its pocket-hole engineering philosophy to the dowel jig category with a focus on simplicity and cabinet-specific alignment. The kit includes removable hardened steel drill guides that drop into the aluminum body and lock in place, which makes swapping between dowel sizes fast. The built-in centering mechanism positions the guide at the midpoint of the board thickness automatically, removing the need for manual measurement.
At 1.46 pounds, this is one of the lighter precision jigs on the market, making it easy to move between benchtop and job site. It includes an alignment pin that indexes into previously drilled holes to maintain spacing across long runs. The jig works with standard trigger clamps, and Kreg’s accessory ecosystem means replacement bushings and additional guide sizes are readily available.
Users highlight the tool’s ease of use for cabinet face frames and drawer boxes where consistent hole depth and location are critical. The removable guides also simplify cleaning — you can pull them out to clear sawdust buildup. Some users wish the kit included a wider range of bushing diameters out of the box, but the 1/4-inch and 3/8-inch sizes cover the vast majority of cabinetry joints.
What works
- Removable steel guides make size changes quick and cleaning easy
- Lightweight body is ideal for mobile work and benchtop use
- Alignment pin maintains spacing across multiple holes
What doesn’t
- Limited selection of bushing diameters included in the kit
- Requires a separate trigger clamp for operation

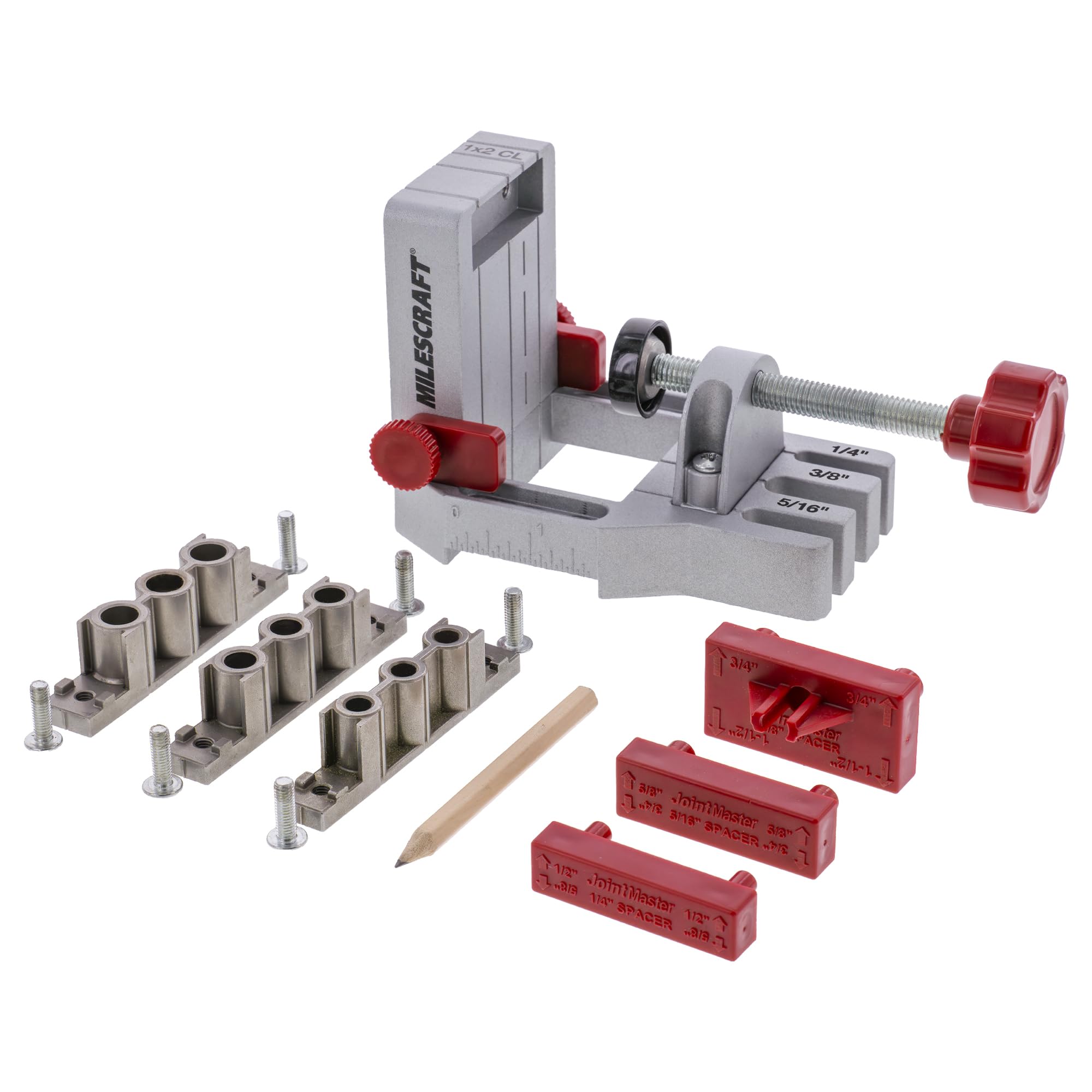

4. Milescraft 1334 Joint Master
The Joint Master strikes a smart balance between affordability and functional versatility. It creates edge, corner, and surface joints using a self-clamping mechanism that eliminates the need for a separate clamp. The all-aluminum body is lightweight yet stiff enough to resist deflection during moderate drilling, and the retractable edge stops automatically align boards to position dowel pins at the same depth every time.
It comes with hardened steel bushings for 1/4-inch, 5/16-inch, and 3/8-inch dowel pins — the three most common sizes for furniture and cabinet joinery. The centering spacers included in the kit allow you to adjust the bushing block height for material thicknesses that don’t match the standard center position. This is a thoughtful addition that extends the jig’s usability to thinner panels and trim pieces.
Users appreciate the tool’s intuitive setup and the fact that it requires no additional accessories to start drilling. The self-clamping design holds stock securely for edge joints, though some find it less stable on very narrow or very thick boards. For the price point, the Joint Master offers a well-rounded feature set that makes it an excellent entry point for woodworkers who need reliable dowel alignment without investing in a premium system.
What works
- Self-clamping design removes the need for a separate clamp
- Retractable edge stops automate board alignment
- Centering spacers adapt the jig to non-standard stock thicknesses
What doesn’t
- Less stable on very narrow or very thick workpieces
- Aluminum body may flex under aggressive drilling pressure
5. ELEON Self Centering Dowel Jig
The defining advantage of the ELEON jig is its extra-large clamping opening, which extends to 6.7 inches. That capacity lets you work with wide boards, face frames, and thick tabletops that standard 2-inch jigs cannot accommodate. The elongated jaws provide more lateral contact with the workpiece, reducing the chance of the jig tipping or shifting during the drilling stroke.
Ruler markings are etched directly into the aluminum body, allowing you to measure dowel spacing without reaching for a tape. The kit includes six hardened steel bushings and a starter set of dowels so you can begin a project immediately. The self-centering mechanism uses spring-loaded arms that center the guide on stock from roughly 0.4 inches up to the full 6.7-inch capacity.
One trade-off for the wide clamp range is weight — at 1.63 kilograms, this jig is heavier than most self-centering models. That mass actually helps dampen vibration during drilling, but it makes the tool less convenient to carry between workstations. For woodworkers who routinely join oversized panels, the ELEON’s clamping reach solves a problem no standard jig can address.
What works
- Massive 6.7-inch clamping opening handles thick stock and wide panels
- Elongated jaws with grip pattern improve lateral stability
- Ruler markings eliminate separate measuring step
What doesn’t
- Heavier than standard jigs, less portable
- Bushing diameter options are limited to common sizes only
6. DAYDOOR 2.1″ Self Centering Dowel Jig
DAYDOOR reinforces its aluminum body with hardened 45 steel sections at stress points, giving this jig a rigidity that belies its mid-range price. The self-centering mechanism handles stock from 0.4 inches to 2.1 inches, which covers most cabinet and furniture components. A large viewing window with engraved center lines lets you see exactly where the drill bit will enter the wood, reducing alignment guesswork.
The kit includes six hardened steel bushings, and users report that the centering holds within a few thousandths of an inch after an initial calibration adjustment. The clamping mechanism uses a threaded knob that applies even pressure across the jaws, and the non-slip grip pads prevent the workpiece from sliding out of position during drilling. The tool feels substantial in hand without being overly heavy at 2.4 pounds.
Some users note that the initial setup instructions are unclear, particularly regarding how to adjust the spring tension on the centering arms. Once that is dialed in, however, the jig produces consistent results across multiple test joints. The combination of reinforced construction, clear visual alignment, and a practical clamping range makes the DAYDOOR a reliable choice for shop use.
What works
- Reinforced steel sections prevent flex in high-stress areas
- Large viewing window with engraved lines aids visual alignment
- Non-slip grip pads keep workpieces stable during drilling
What doesn’t
- Centering calibration needed out of the box for some units
- Instructions lack clarity on spring-tension adjustment
7. BLEKOO Self Centering Doweling Jig Kit
The BLEKOO jig is built from aircraft-grade aluminum alloy with laser-etched dimensional scales that resist wearing off over time. It supports stock up to 2.4 inches thick and includes six hardened steel bushings — two each of 1/4-inch, 5/16-inch, and 3/8-inch. The self-centering action uses a threaded calibration nut under two Allen screws, allowing you to adjust the centering accuracy down to within 0.002 inches if needed.
Weighing 2.51 pounds, the jig has a solid, confidence-inspiring heft. The clamping mechanism tightens with a knurled knob, and the jaws grip round and square stock alike without marring. Users report that the tool works well for mortise-and-tenon reinforcement, furniture repair, and planking projects. The laser scales are legible even in low shop lighting, which is a small but meaningful convenience.
A common point among reviews is that the centering requires calibration out of the box — many units are off by a noticeable margin before adjustment. The adjustment process is straightforward once you understand the mechanism, but it is an extra step that not every mid-range jig demands. Once tuned, the BLEKOO delivers reliable centering that meets the needs of both hobbyists and semi-professional users.
What works
- Aircraft-grade aluminum body is lightweight and corrosion-resistant
- Laser-etched scales remain legible with repeated use
- Fine-thread calibration nut allows precise centering adjustment
What doesn’t
- Requires centering calibration before first use
- Clamping range is limited to 2.4 inches maximum
8. Saker Cabinet Hardware Doweling Jig
The Saker jig takes a specialized approach — it is designed specifically for installing cabinet handles, knobs, and pulls, not for general wood joinery. The tool supports five standard hole-spacing patterns ranging from 2.5 inches to 5 inches, with a fixed drilling diameter of 4mm. This makes it the go-to choice for kitchen and bathroom cabinet hardware installation where consistent handle alignment is the priority.
Constructed from aluminum alloy, the jig folds together via the center nut, collapsing into a compact 7.6 x 2.09 x 1.34-inch package that stores easily in a tool bag. The self-centering punch locator marks the hole position before you drill, and the adjustable edge distance nut lets you set the setback from the cabinet face consistently across multiple doors. Setting requires no prior experience, as users note in reviews.
One limitation is the single 4mm bushing — you cannot use this jig for larger dowels or structural joinery. A small number of units have arrived with thread issues on the spacer legs, requiring a tap to clean the threads before assembly. If your primary need is cabinet hardware installation rather than furniture joinery, this tool saves massive time and frustration over manual measuring.
What works
- Five fixed hole patterns cover standard cabinet hardware spacing
- Folding design stores compactly for portable use
- Adjustable edge distance ensures consistent setback on every door
What doesn’t
- Single 4mm bushing limits use to handle installation only
- Some units have thread defects on screw-in spacer legs
9. DFM Tool Works Doweling Tool
This is not a dowel jig in the conventional sense — the DFM Tool Works plate is a dowel-making tool that lets you shape square stock into round dowels of various diameters. Machined from 3/8-inch thick A2 tool steel and made in the USA, it features 17 precision-ground holes that cover a wide range of imperial sizes. You hammer a square blank through the tapered holes to progressively round it down to the desired diameter.
The A2 steel is heat-treated to hold its edge and dimensions under repeated impacts. The plate measures roughly 4 x 3 inches and includes mounting screw holes if you want to secure it to a workbench. This tool is invaluable when you need a non-standard dowel size, want to match an existing dowel from an antique piece, or prefer to make your own dowels from the same wood species as your project for a seamless grain match.
It is not a jig for drilling holes — it does not clamp to a board or center a drill bit. Users looking for a traditional dowel jig will find this tool serves a completely different purpose. For woodworkers who frequently repair furniture or need custom dowels, the DFM plate is a durable, permanent addition to the shop that pays for itself over time by eliminating the need to buy pre-made dowels.
What works
- 17 precision-ground holes for a wide range of custom dowel sizes
- A2 tool steel construction is extremely durable and long-lasting
- Made in the USA with tight machining tolerances
What doesn’t
- Does not drill holes — it is a dowel-shaping tool, not a jig
- Requires a hammer and square stock to produce dowels
Hardware & Specs Guide
Steel Bushings vs. Integral Guides
Removable hardened steel bushings are the gold standard because they can be replaced when worn and they resist deformation better than integral aluminum guides. Most quality jigs include bushings in at least three diameters — 1/4-inch, 5/16-inch, and 3/8-inch — while production-focused kits add 1/2-inch for structural work. Always check whether replacement bushings are available separately, as some budget jigs use proprietary sizes that are difficult to source later.
Self-Centering Mechanism Types
Spring-loaded V-arms are the most common self-centering design, automatically pushing the guide to the midpoint of the board. Some jigs use a threaded screw adjustment instead, which is slower but allows fine-tuning. The calibration tolerance matters more than the mechanism type — a well-tuned spring arm can center within 0.005 inches, while a poorly machined screw mechanism can drift by 1/32 inch or more. Look for jigs with an accessible calibration nut so you can correct any factory misalignment.
Clamping System Variations
Integrated clamps are convenient but must be designed with enough throat depth to reach the center of wide boards. Separate trigger-clamp systems offer more flexibility because you can choose a clamp with the reach and pressure you need. Jaw pads with rubber or textured grip patterns prevent the jig from walking during drilling. For production work, a quick-release clamp mechanism saves seconds per cycle that add up over dozens of joints.
Repeatability and Edge Stop Systems
An edge stop is a physical fence that indexes the jig’s position relative to the board’s edge, ensuring every hole is drilled at the same depth. Positive stops with detents at 1/8-inch or 1/16-inch increments let you reposition quickly without measuring. The best systems include an extension rod that maintains spacing across multiple rows of dowels. Without a repeatable stop, each hole placement requires a separate measurement, slowing production and inviting cumulative error.
FAQ
What is the difference between a self-centering dowel jig and a fixed-center jig?
How many bushings do I need for cabinet and furniture joinery?
Can I use a dowel jig with a handheld drill or do I need a drill press?
Why do some dowel jigs need calibration before first use?
What is the ideal maximum clamping thickness for a general-purpose dowel jig?
Final Thoughts: The Verdict
For most users, the dowel jig winner is the GOINGMAKE Dowel Jig Kit because it combines three-hole simultaneous drilling, a repeatable positive stop system, and 1/2-inch bushing support in a rigid aluminum body that handles production work without compromise. If you want a professional-grade dual-board clamping system that guarantees hole alignment between mating pieces, grab the Milescraft 1311 Joint Pro. And for woodworkers who need to tackle oversized panels and thick stock that standard jigs cannot accommodate, nothing beats the ELEON Self Centering Dowel Jig with its 6.7-inch clamping opening.
