Every drilling and fastening job hinges on having the right tool for the task — a drill for clean, precise holes and an impact driver for sinking screws without stripping. These aren’t interchangeable tools, yet the market pressures buyers into buying standalone kits that break the bank or, worse, a mismatched pair that leaves half the work undone.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend hundreds of hours cross-referencing torque curves, battery chemistry, and real-world reviews to separate the combos that earn their spot on a pro’s belt from those that belong in the junk drawer.
When matched with the right bit and material, a well-engineered drill and impact driver combo saves minutes on every fastener and prevents the frustration of cam-out and stripped heads in dense lumber.
How To Choose The Best Drill And Impact Driver Combo
Buying a drill and impact driver combo is essentially choosing a battery platform for years to come. Focus on three pillars: the motor type (brushless is non-negotiable for runtime), the torque curve of the impact driver (higher inch-pounds doesn’t always mean better control), and the ergonomics of the chuck and bit retention system. The best combos balance these factors without forcing you into a proprietary battery ecosystem that limits future tool purchases.
Brushless Motors and Battery Voltage
Every combo in this guide uses a brushless motor. This isn’t a luxury feature — brushless motors deliver 30–50% more runtime per amp-hour than brushed equivalents and generate less heat under sustained load. Voltage determines the power ceiling: 12V platforms (like the Bosch GXL12V) trade absolute torque for extreme compactness, while 18V and 20V systems handle heavy lag bolts and spade bits in dense material. Always check the amp-hour rating of the included batteries, not just the voltage.
Torque Ratings and Real-World Performance
Impact driver torque is measured in inch-pounds (in-lbs). A rating around 1,500 in-lbs is sufficient for deck screws and medium lag bolts. Ratings above 1,800 in-lbs are overkill for most DIY work but necessary for sinking large structural fasteners into pressure-treated lumber. Drill torque is a separate spec — look for 300–500 in-lbs for general drilling. More torque on the drill side means less stalling when using hole saws or twist bits in metal.
Chuck Quality and Bit Retention
A metal chuck with a single-sleeve design allows one-handed bit changes and resists slipping under high torque. Plastic chucks wear out faster and often require two hands to tighten. On the impact driver side, a collet with a quick-release mechanism and a spring-loaded retention ring prevents bits from walking out during high-vibration driving. These mechanical details separate a combo that feels cheap from one that performs like a pro-grade setup.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Milwaukee 3610-22CT | Premium Compact | Pro trades, tight spaces | 550 in-lbs drill torque | Amazon |
| DEWALT DCK360D3 | 3-Tool Combo | Whole-system buyers | 1,500 in-lbs impact | Amazon |
| Bosch GXL18V-27B22 | Pro Compact | Proximity & overhead work | 1,800 in-lbs impact | Amazon |
| CRAFTSMAN V20 CMCK2530C2 | Mid-Range Power | Heavy driving tasks | 1,800 in-lbs impact | Amazon |
| SKIL PWR CORE 20 CB8437B-10 | Value Compact | Compact with features | 450 in-lbs drill torque | Amazon |
| Bosch GXL12V-220B22 | Ultra-Compact 12V | Cabinetry & light work | 975 in-lbs impact | Amazon |
| Greenworks CK341 24V | Multi-Tool Value | DIY starter ecosystem | 1,950 in-lbs impact | Amazon |
In‑Depth Reviews
1. Milwaukee 3610-22CT M18 Compact Hammer Drill/Impact Combo
Milwaukee’s new-gen compact combo packs a hammer drill with 550 in-lbs of torque and a brushless impact driver into a form factor that fits between studs. The all-metal gearboxes on both tools deliver the durability professionals expect — these units survive drops from ladders and repeated high-torque use without developing chuck wobble. The impact driver breaks loose stubborn bolts and even removes lug nuts with a fresh battery, a capability that surprises given its compact dimensions.
The 18V battery platform, while powerful, has some limitations. Battery life is noticeably shorter than larger Fuel-series packs, requiring frequent swaps during extended use. The drill operates on a single speed, which reduces fine control for delicate pilot holes in metal. Users report the compact size as the standout feature — it reaches into tight engine bays and cabinet interiors where bulkier tools simply won’t fit. Professional electricians and automotive mechanics find the trade-off acceptable for the access gained.
For weekend warriors who occasionally drill into masonry, the hammer function on the drill adds genuine utility without the weight penalty of a dedicated hammer drill. The set earns its premium standing through build quality and the peace of mind that all-metal internals provide under heavy daily use.
What works
- Extremely compact with no compromise on metal gearboxes
- Hammer drill function works well on light masonry
- Impact driver has surprising torque for removal work
What doesn’t
- Single-speed drill limits precision at low RPM
- Included batteries drain quickly under sustained load
- Premium price point doesn’t include Fuel-class batteries
2. DEWALT 20V MAX 3-Tool DCK360D3
The DCK360D3 bundles the DCD777 1/2-inch drill driver with the DCF787 1/4-inch impact driver and adds the DCS356 oscillating multi-tool — a third tool that expands its usability far beyond a standard combo. The drill delivers 340 unit watts out, which translates to reliable power for spade bits and twist drills through dimensional lumber. The impact driver provides 1,500 in-lbs of torque, sufficient for deck screws and light lag bolts without being overbearing on smaller fasteners.
Three 2 Ah batteries and a charger are included, offering extended runtime for all-day projects. Users consistently praise the lightweight feel of both primary tools — the drill and impact driver weigh noticeably less than previous-generation DEWALT models, reducing fatigue during overhead work. The ecosystem advantage here is significant: DEWALT 20V MAX batteries work across hundreds of tools, from circular saws to leaf blowers, making this combo a smart entry point for building a tool collection.
Some users note the batteries are non-standard types, which means replacements must come from DEWALT directly. The oscillating multi-tool adds real value for remodeling tasks — cutting drywall, plunge cuts in wood, and sanding — but the set lacks a hammer drill function for masonry work. For general construction and homeowner use, the DCK360D3 delivers exceptional bang for the buck without sacrificing brand reliability.
What works
- Includes oscillating tool for expanded project range
- Lightweight design reduces arm fatigue
- Strong DEWALT battery ecosystem for future tools
What doesn’t
- Drill lacks hammer function for light masonry
- Batteries are non-standard type requiring brand-specific replacements
- Impact driver torque is lower than competing pro-grade units
3. Bosch GXL18V-27B22 18V Brushless Combo
Bosch’s 18V compact combo is engineered for professionals who work in confined crawlspaces, inside cabinets, or above ceilings. The GDR18V-1800N impact driver delivers 1,800 in-lbs of torque with a head length of just 4.9 inches, making it one of the shortest high-torque impact drivers available. The GSR18V-400N drill driver matches this compactness with a 6.3-inch head length, yet still produces 400 in-lbs of torque — enough for most drilling tasks without the bulk that causes fatigue during overhead use.
The drill features 20 clutch settings and a metal chuck, a combination that prevents fastener damage during sensitive assembly while ensuring bit retention under high torque. Users consistently highlight the ergonomic grip and the balanced weight distribution of both tools. The 2.0 Ah batteries are standard power packs — adequate for light framing and cabinet work, but users driving many lag bolts may want to invest in higher-capacity batteries later. The five-year warranty on tools and three-year warranty on batteries add long-term confidence typically reserved for industrial-grade brands.
Where this combo truly excels is in maneuverability. The impact driver fits easily between studs spaced 16 inches on center, and the drill’s short nose allows drilling close to edges and corners. For plumbers, electricians, and cabinet installers who spend their days working in tight spaces, the GXL18V-27B22 is purpose-built and unmatched in its class.
What works
- Extremely short head lengths for confined access
- 20 clutch settings prevent fastener damage
- Industry-leading warranty coverage on tools and batteries
What doesn’t
- Included 2.0 Ah batteries are standard power, not high-capacity
- No hammer drill function in this kit
- Price is premium without including a third tool
4. CRAFTSMAN V20 RP CMCK2530C2
CRAFTSMAN’s V20 RP combo brings real driving power at a mid-range price point. The brushless impact driver offers a maximum torque of 1,800 in-lbs, while the drill driver features a two-speed gearbox with a maximum speed of 2,000 RPM. This pair is designed for heavier tasks than what typical budget combos handle — driving 3.5-inch screws into southern yellow pine or mixing thinset with a paddle mixer attachment becomes practical without stalling.
The set includes two batteries — though users note they are 1.5 Ah packs, which requires swapping more frequently during long sessions. The compact, lightweight design of both tools makes them comfortable for all-day use. The bit retention system on the impact driver holds bits securely during high-vibration driving, and the metal-reinforced chuck on the drill maintains grip without slipping. Users report that the batteries are interchangeable with the broader CRAFTSMAN V20 line, which includes saws, sanders, and automotive tools.
Where this combo falls slightly short is the lack of advanced features like a control mode for reducing cam-out, and the 1.5 Ah batteries limit runtime for heavy users. However, for homeowners and light contractors who need torque on a budget, the CMCK2530C2 delivers genuine 60% more power and 40% faster driving when compared to previous CRAFTSMAN generations, making it a solid value proposition.
What works
- High torque for heavy driving tasks and mixing
- Compact and lightweight for extended use
- Batteries compatible with CRAFTSMAN V20 ecosystem
What doesn’t
- Included 1.5 Ah batteries are low capacity
- No cam-out reduction control mode on impact driver
- Chuck feels less robust than premium metal alternatives
5. SKIL PWR CORE 20 CB8437B-10
SKIL’s PWR CORE 20 combo stands out for its innovative lighting system and compact ergonomics at a value-driven price. The drill delivers 450 in-lbs of torque with a 17-stage clutch, while the impact driver offers three speed selections including a control mode that eliminates screw cam-out and cross-threading. The strip LED worklight on the drill and the Halo light on the impact driver cast 5X more illumination than standard LEDs, reducing shadows in dim workspaces — a feature that matters when working under sinks, inside attics, or after sunset.
The digital brushless motor keeps both tools lightweight while delivering sufficient torque for home renovation tasks. The 2.0 Ah battery and PWR Jump charger are included, but some users note the included charger is a jump charger rather than a standard fast charger, which means longer wait times between full charges. Users praise the compact dimensions — the set is one of the most space-efficient brushless combos available, fitting easily into small tool bags. The one-handed collet on the impact driver allows quick bit changes even while holding workpieces.
The biggest compromise is that the impact driver can bog down with heavy spade bits in dense materials like tree stumps or thick oak. For typical framing, deck building, and cabinet assembly, the torque is adequate. The SKIL combo is best suited for homeowners and hobbyists who want brushless performance without paying premium-brand prices.
What works
- Excellent LED lighting with Halo technology reduces shadows
- Control mode prevents screw cam-out effectively
- Very compact form factor fits in small bags
What doesn’t
- Impact driver struggles with dense hardwoods and large bits
- Included jump charger is slower than standard fast chargers
- Lower torque ceiling compared to pro-grade combos
6. Bosch GXL12V-220B22 12V Max Combo
The Bosch 12V Max combo is the lightest and most compact set in this guide, designed for cabinet installers, light assembly, and automotive work where access is limited. The 3/8-inch drill driver weighs only 1.6 pounds and has a 6.0-inch head length, while the impact driver measures just 5.4 inches from tip to rear. This size advantage is dramatic when working inside a kitchen cabinet or under a car dashboard — most 18V tools simply cannot fit in these spaces.
The EC brushless motor on both tools delivers higher runtime than previous 12V generations, and the 2.0 Ah batteries provide enough power for a full day of light driving and drilling. The hammer-and-anvil impact system generates 975 in-lbs of torque, which drives deck screws through plywood sheathing without hesitation. Users consistently praise the spring-loaded impact mechanism for reducing fatigue during repetitive fastening. The 20+1 clutch settings on the drill allow precise torque control for delicate work like driving small screws into hardwood without splitting.
The 12V platform is a trade-off: you won’t drive large lag bolts or use hole saws in this combo. But for its intended role — precision work in tight quarters — the GXL12V-220B22 is unmatched. Bosch’s three-year warranty and the availability of higher-capacity batteries make this a professional-grade choice for trades that prioritize compactness over brute force.
What works
- Incredibly compact and lightweight for tight access
- Spring-loaded impact mechanism reduces vibration fatigue
- Excellent 20+1 clutch for precision driving
What doesn’t
- Limited torque for heavy drilling and large fasteners
- 3/8-inch chuck restricts large bit sizes
- 12V platform limits future tool ecosystem expansion

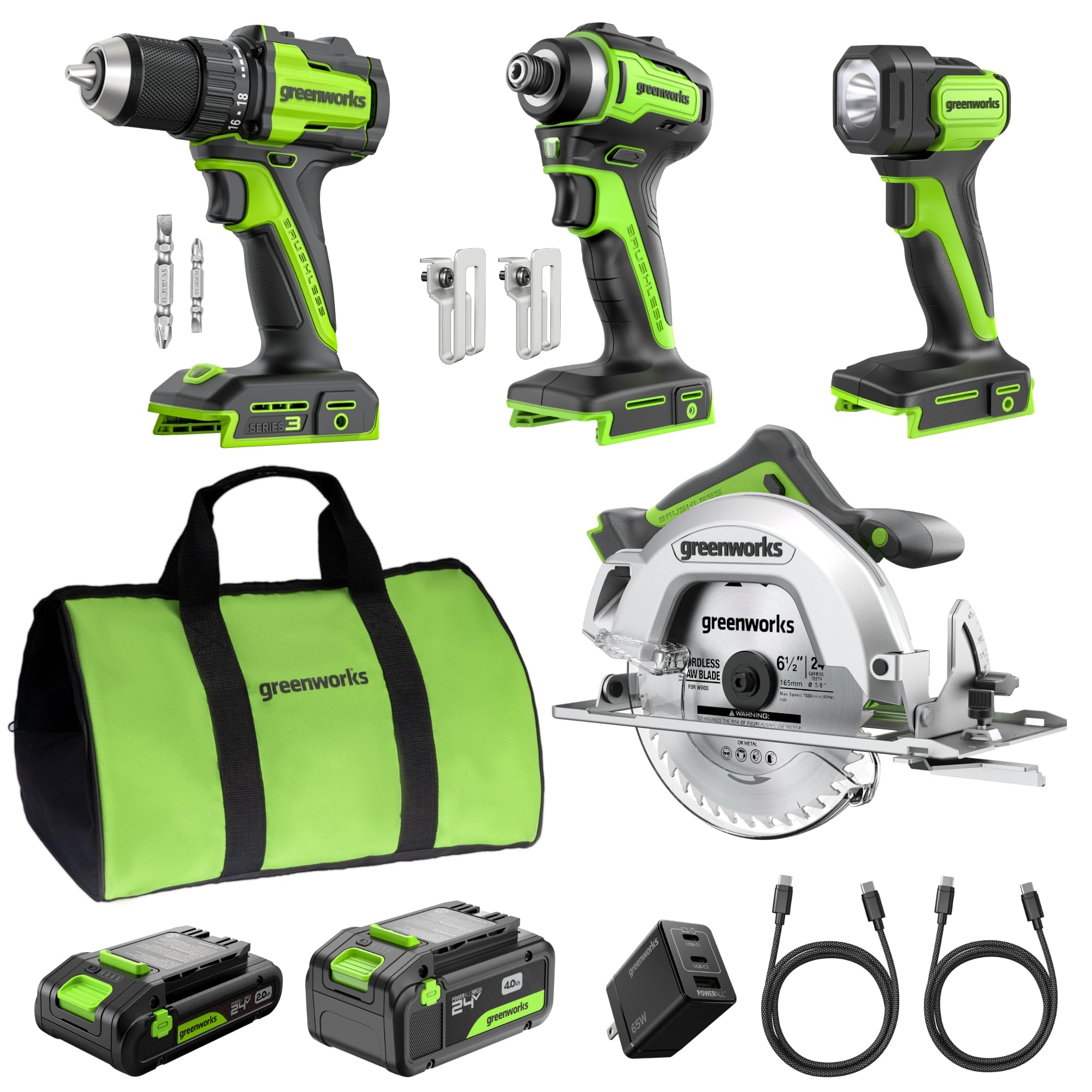

7. Greenworks 24V CK341 Combo with Circular Saw
Greenworks enters the drill and impact driver combo category with a 24V platform that competes directly with 20V systems, offering 20% more power and 35% longer runtime according to the manufacturer. This CK341 set is a 4-tool bundle — adding a 6.5-inch circular saw and a 200-lumen flashlight to the standard drill and impact driver pair. The impact driver delivers 1,950 in-lbs of torque and 3,400 RPM, making it the most powerful impact driver in this comparison on paper. The drill driver provides 400 in-lbs of torque with a two-speed transmission.
The included batteries are a major differentiator: a 4.0 Ah pack and a 2.0 Ah pack, both featuring USB-C bidirectional charging. The USB-C port supports 65W fast charging, which means the battery doubles as a portable power bank for phones and laptops. This is a genuinely useful feature for job sites without wall power. The circular saw operates at 4,800 RPM and includes a 24-tooth carbide blade, though users report the 6.5-inch blade size limits cut depth on bevel cuts compared to standard 7.25-inch saws.
Build quality is a step below established pro brands — the plastic chuck and non-metal gear housing feel less premium than Bosch or Milwaukee offerings. For a budget-conscious user, the combination of high torque, USB-C charging, and a bundled circular saw makes this a compelling value. The 3-year warranty and compatibility with 150+ Greenworks 24V tools add long-term utility for homeowners building a battery system.
What works
- Highest impact torque in the comparison
- USB-C bidirectional charging on batteries adds utility
- Excellent value with four tools included
What doesn’t
- Plastic chuck and housing feel less durable than metal alternatives
- 6.5-inch saw blade limits cut depth on bevels
- Brand has smaller pro-tier ecosystem compared to DEWALT or Milwaukee
Hardware & Specs Guide
Chuck Types and Materials
The chuck is the mechanical heart of a drill driver. Metal chucks with a single-sleeve design allow one-handed bit changes and grip twist bits more securely under high torque. Plastic chucks, common in budget combos, wear down over time and often slip when tightening larger spade bits. Many impact drivers use a 1/4-inch hex collet with a spring-loaded retention ring — this design is standardized, so any 1/4-inch hex accessory works. The key spec to check is whether the collet has a quick-release button; without it, changing bits requires two hands.
Battery Chemistry and Runtime
Lithium-ion cells are the standard, but the number of cells inside the battery pack determines voltage and current delivery. An 18V/20V MAX system typically uses five cells in series, while a 12V system uses three. Amp-hour (Ah) ratings indicate runtime: a 2.0 Ah battery provides roughly half the runtime of a 4.0 Ah pack under the same load. Higher Ah packs also sustain voltage better under heavy load because they contain more parallel cell groups, reducing voltage sag during high-torque driving.
Brushless Motor Efficiency
Brushless motors eliminate carbon brushes that create friction and heat, converting electrical energy into mechanical rotation more efficiently. This translates to 30-50% more runtime per charge and less motor wear under sustained use. Brushless motors also allow the tool to be smaller because the stator windings can be packed more tightly around the rotor. A brushless impact driver can pulse at higher speeds without overheating, which directly increases fastener-driving speed.
Torque Measurement Standards
Impact driver torque is measured in inch-pounds (in-lbs) — the rotational force the tool applies. The advertised number typically represents peak torque at maximum settings under optimal conditions. Real-world torque varies based on battery voltage, state of charge, and fastener hardness. A rating of 1,500 in-lbs is sufficient for deck screws; 1,800 in-lbs handles larger lag bolts. Drill torque is also measured in in-lbs but is significantly lower — 400-550 in-lbs is typical — because drills prioritize rotational speed and clutch precision over brute impact force.
FAQ
Can I use a drill driver as an impact driver?
Is a 12V combo powerful enough for home projects?
Why does my impact driver make a grinding noise?
Final Thoughts: The Verdict
For most users, the drill and impact driver combo winner is the Milwaukee 3610-22CT because its compact metal-gearbox design delivers professional durability without the bulk of larger kits. If you want the best value in a full-system bundle with an oscillating tool, grab the DEWALT DCK360D3. And for tight-space work inside cabinets or under dashboards, nothing beats the Bosch GXL12V-220B22.
