316 stainless steel is the workhorse of marine, chemical, and food-grade environments because its molybdenum content resists corrosion better than any common steel — that same molybdenum hardens the alloy to the point where standard high-speed steel drill bits dull after a few revolutions. The material work-hardens as you drill; a dull bit creates friction, the friction hardens the steel further, and your bit spins uselessly while generating enough heat to ruin both the bit and the workpiece. This is not a problem of technique — it is a problem of metallurgy.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing drill bit metallurgy across dozens of cobalt, carbide, and HSS formulations specifically for hardened stainless alloys.
This guide isolates the bits that actually cut 316 without burning up, measuring every option against the specific demands of work-hardening marine-grade stainless steel. Whether you are drilling a single hole in a boat railing or production-drilling custom brackets, the right drill bit for 316 stainless steel determines whether the job takes five minutes or ends with a snapped bit embedded in the metal.
How To Choose The Best Drill Bit For 316 Stainless Steel
Selecting a bit for 316 is different from choosing a general-purpose drill set. The combination of nickel, chromium, and molybdenum in 316 creates a gummy, tough chip that clogs standard flutes and generates extreme localized heat at the cutting edge. Four factors separate a usable bit from a failure.
M35 Cobalt Content: The Non-Negotiable Minimum
Standard HSS (M2) has no place near 316. The 5% cobalt in M35 steel raises the red hardness — the temperature at which the cutting edge softens — by several hundred degrees compared to M2. Without that cobalt, the edge anneals in seconds against 316’s work-hardened surface. The price difference between an M35 set and an M2 set is trivial compared to the cost of a ruined workpiece.
Split-Point Geometry: 118° vs. 135°
On 316, the drill tip must engage the material immediately without skating. A 118° conventional point tends to walk on the rounded or smooth surfaces common in 316 tubing and sheet. A 135° split-point geometry creates a self-centering chisel edge that bites into the alloy on contact. This is particularly critical when drilling without a center punch on curved marine handrails or thin-gauge 316 panels.
Coating Strategy: TiAlN and AlTiN for Thermal Defense
Bare HSS bits transfer heat directly into the substrate. Titanium aluminum nitride coatings form a ceramic thermal barrier that reflects a portion of the cutting heat back into the chip instead of letting it soak into the bit body. For continuous drilling in 316, a coated M35 bit stays sharp measurably longer than uncoated cobalt. The AlTiN variant offers slightly better oxidation resistance at extreme spindle speeds.
Flute Design and Chip Evacuation
316 produces stringy, tough chips that pack into standard flutes and cause binding. A spiral flute with a 25–30° helix angle actively lifts chips out of the hole, keeping the cutting zone clear. Straight-flute or slow-helix bits intended for soft metals will clog within the first few millimeters of a 316 hole, leading to seizure and bit fracture.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| FRITZFURT 3-Piece Step Set | Step Bit | Sheet metal, conduit knockouts | M35 Cobalt, AlTiN Coating, CBN Ground | Amazon |
| toolant 108-Piece Set | Jobber Set | Comprehensive workshop inventory | M35 Cobalt, 135° Split Point, 1/16″–1/2″ | Amazon |
| BOYOUYS Step Bit Set | Step Bit | Deep reaming, oversized holes | M35, Four Spiral Flutes, TiAlN, 1/8″–1″ | Amazon |
| toolant 99-Piece Set | Jobber Set | High-volume small-bit drilling | M35 Cobalt, 135° Split, Bulk 1/16″–3/8″ | Amazon |
| WildBossy 29-Piece Set | Jobber Set | Budget-friendly broad size range | M35, Gold Oxide, 135° Split, 1/16″–1/2″ | Amazon |
| NordWolf 14-Piece Set | Hex Shank | Impact driver compatibility | M35, 135° Split, 1/4″ Hex Shank, SAE | Amazon |
| ss shovan Step Bit Set | Step Bit | Thin 316 sheet, deburring | M35 Cobalt, TiAlN, 118° X-Type, 1/4″–7/8″ | Amazon |
In‑Depth Reviews

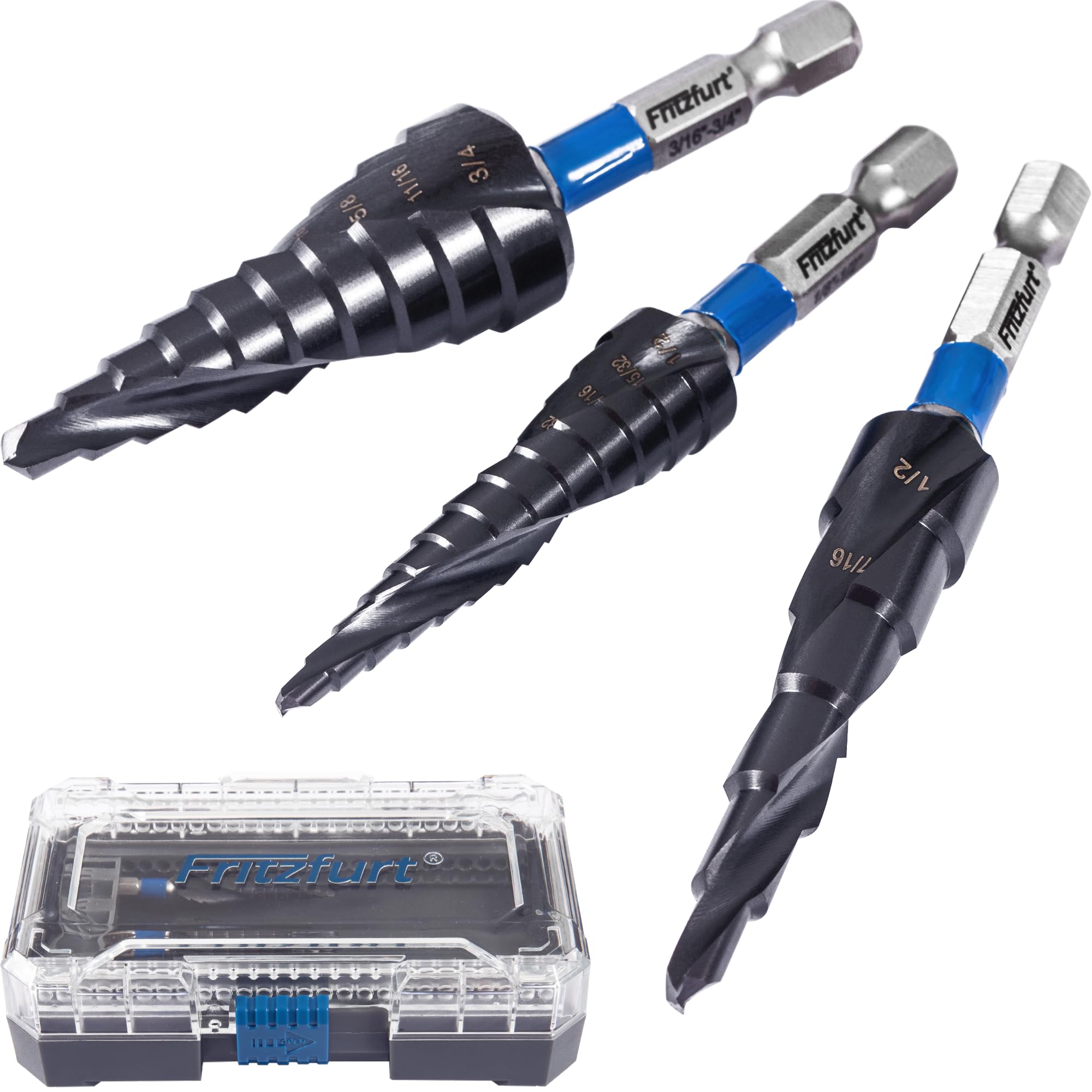

1. FRITZFURT 3-Piece M35 Cobalt Step Drill Bit Set
The FRITZFURT set stands alone in this roundup for its industrial CBN grinding process — cubic boron nitride grinding produces a cutting edge geometry that standard abrasive wheels cannot match, with micro-geometry precision that reduces edge micro-chipping when entering 316 sheet. Each of the three bits covers a specific range: the 13-step bit starts at 1/8″, the 10-step reaches 3/4″, and the 6-step tops at 1/2″, covering every knockout and fastener hole an electrician or fabricator encounters in marine-grade enclosures.
The AlTiN coating is not decorative; it forms a dense ceramic layer that reflects thermal energy back into the chip rather than letting it soak into the cobalt substrate. On 316 sheet under 1 mm, these bits cut with noticeably less scorching than the TiAlN-coated competitors at the same price tier. The 25–28° spiral flute angle is optimized for hand-held drilling — aggressive enough to lift chips out of deep holes without stealing edge strength from the step transitions.
The 1/4″ hex shank eliminates the slip risk of round-shank bits in impact drivers, and the interlocking hard case keeps the bits organized on truck beds and in gang boxes. For professionals who regularly encounter 316 in HVAC, electrical, or marine fabrication, this set pays for itself in avoided bit replacements and trashed workpieces.
What works
- CBN-ground edges start cutting without skating on polished 316
- AlTiN coating resists heat buildup in continuous production drilling
- Hex shank eliminates chuck slip under impact driver torque
- Three bits cover 29 hole sizes from 1/8″ to 3/4″
What doesn’t
- Bits arrived loose in packaging for some buyers, risking edge damage
- Case rivet design causes confusion when opening
- Not intended for thick structural 316 plate — designed for sheet and conduit
2. toolant 108-Piece Cobalt Drill Bit Set
The 108-piece toolant set is the largest comprehensive M35 cobalt index in this group, spanning from 1/16″ through 1/2″ with multiple duplicates of the high-wear sizes most commonly used in 316 drilling. Each bit is individually sealed in a plastic bag inside the index case, protecting the 135° split points from collision damage during transport — a design detail that matters when you are carrying the case between job sites in a loaded toolbag.
Users report drilling over a dozen holes in thick I-beam steel with a single small bit from this set, and multiple verified reviews confirm the bits handled 316 wheel studs and structural brackets without chipping. The 135° self-centering point engages 316 immediately with no pilot-hole requirement on thin sheet, though the straight round shank means you need a keyed or keyless chuck rather than a quick-change impact driver collar.
The trade-off for this size breadth is that the smaller bits — 1/16″ and 5/64″ — are brittle, as expected with M35 at those diameters. At slow RPM with cutting oil, they survive 316 drilling, but any lateral force snaps them. For a shop that drills 316 regularly and wants one case covering every diameter from fine pilot holes to half-inch bolts, this set offers the best per-bit cost of any M35 option here.
What works
- Massive size range covers every 316 drilling scenario from pilot to 1/2″
- Individually bagged bits prevent edge dulling from case rattling
- 135° split point drills true on curved marine tube without walking
- Multiple duplicates of common sizes reduce downtime when bits wear
What doesn’t
- Case markings are small and hard to read in low light
- small-diameter bits (1/16″) snap under any lateral load in 316
- Round straight shank not compatible with hex-chuck impact drivers

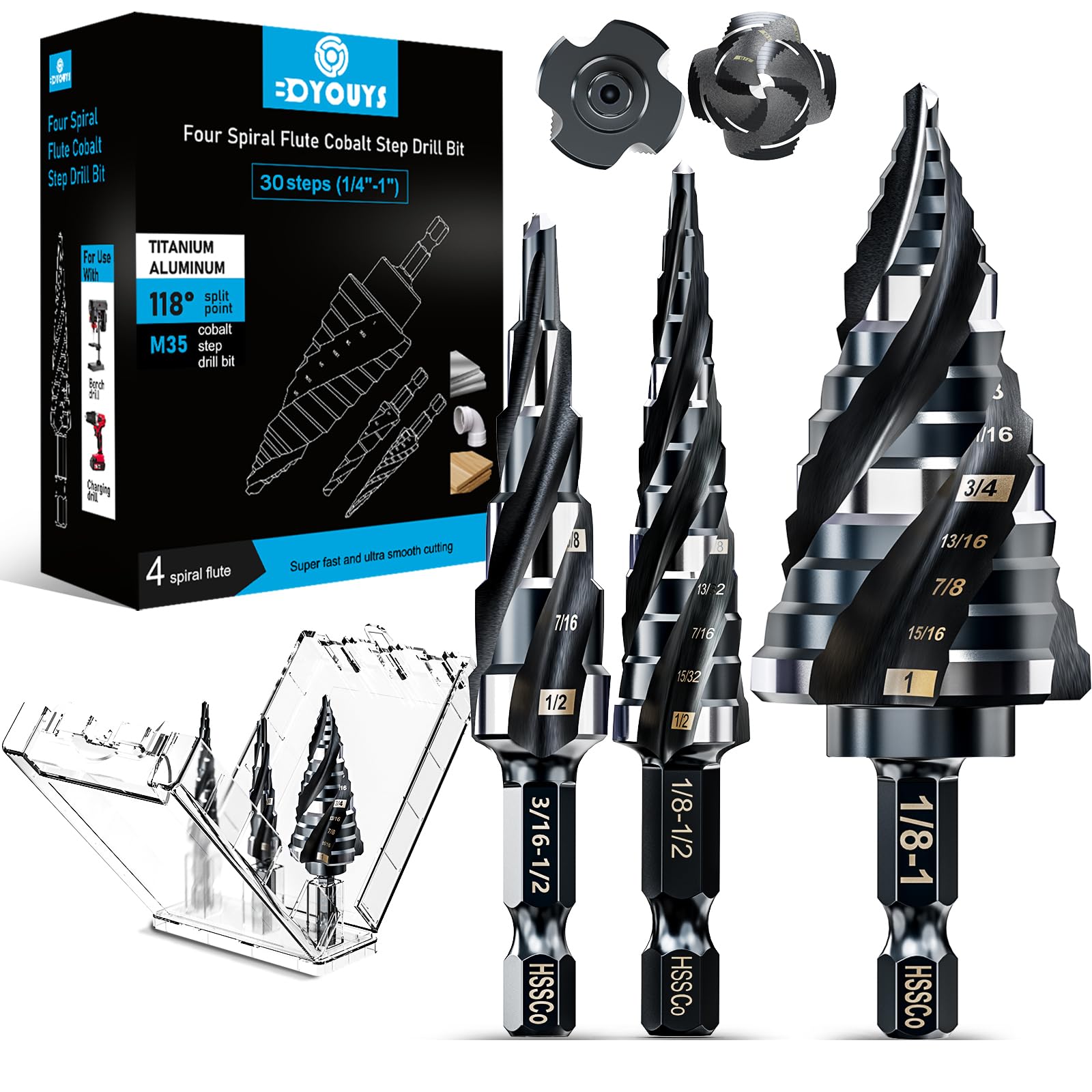

3. BOYOUYS M35 Step Drill Bit Set (Four Spiral Flute)
The BOYOUYS set distinguishes itself with a four-spiral-flute design on each step bit — most step bits in this category use two flutes, which means chip evacuation is only half as efficient. In 316, where the chip is tough and stringy, the four-flute geometry breaks chips into smaller segments and forces them up the flutes faster, reducing the heat that builds when chips pack against the wall of a deep hole.
The TiAlN coating on these bits has been applied at an industrial-grade thickness that buyers describe as holding up through 7–10 holes in metal studs before showing wear. The set covers 30 sizes across three bits, with the largest bit reaching 1″ in diameter — the widest range of any step bit set in this review. That makes it the only choice here if you are drilling oversized holes in 316 strut channel or reaming out misaligned pipe penetrations in marine bulkheads.
The 1/4″ hex shank locks into any impact driver without adapters, and the four-flute geometry is particularly noticeable when drilling freehand in overhead or vertical 316 panels where chip clearing is gravity-opposed. The included hard case uses individual slots for each bit, though the bits are not individually bagged like the toolant set, so the case foam must be kept clean to avoid grit embedding in the coating.
What works
- Four spiral flutes evacuate chips faster than standard two-flute step bits
- Widest diameter range of any set here, up to 1″
- Hex shank works natively with impact drivers and drill chucks
- TiAlN coating withstands heat from continuous 316 drilling
What doesn’t
- Tip sharpness drops noticeably after 7–10 holes in 316
- Four-flute design creates more friction, requiring higher torque at low RPM
- Not for daily production use — optimized for occasional fabrication

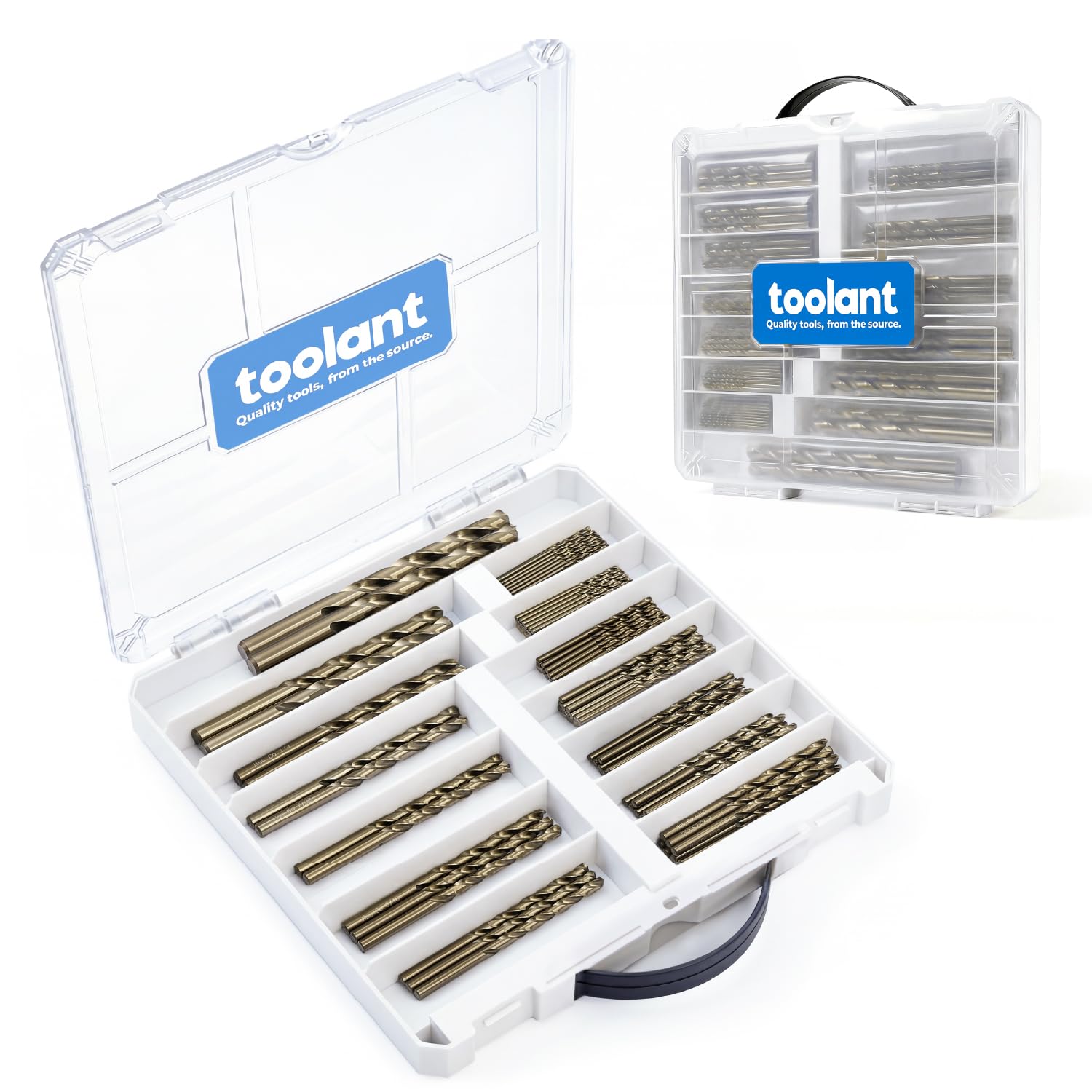

4. toolant 99-Piece Cobalt Drill Bit Set
The 99-piece toolant set is the smaller sibling of the 108-piece kit but tailored for a different user: instead of spanning up to 1/2″, it focuses its duplicate count on the sub-3/8″ sizes that mechanics and metal fabricators burn through fastest. It includes sixteen 1/16″ bits, sixteen 5/64″ bits, and fifteen 3/32″ bits — recognizing that small-diameter bits are the ones that dull, snap, or vanish in a busy shop.
The M35 substrate with 135° split points performs identically to the larger toolant set on 316, and verified buyers confirm drilling through thick I-beam steel and Jeep wheel studs without dulling. The bits come individually sealed in plastic bags inside a compact case, keeping the cutting edges pristine in a damp marine workshop environment where rust attacks exposed steel.
The limitation is the maximum diameter of 3/8″, which will not cover larger 316 bolt holes or conduit knockouts. If your 316 work stays within the 1/16″ to 3/8″ range — pilot holes, small fasteners, sheet metal — this set gives you more usable bits per dollar than any other option here. For larger holes, you would need to pair it with a step bit set like the BOYOUYS or FRITZFURT.
What works
- Heavy duplicate count on high-wear small sizes reduces restocking frequency
- Individual sealed bags prevent corrosion in humid workshop environments
- 135° split point eliminates walking on thin 316 sheet
- Compact case fits in toolbox drawers without taking up index-space
What doesn’t
- Maximum bit size is 3/8″ — cannot drill larger 316 holes
- Case markings are printed in low-contrast ink on dark plastic
- Bits shift in their slots during transport, requiring re-sorting
5. WildBossy 29-Piece M35 Cobalt Drill Bit Set
The WildBossy 29-piece set covers every SAE step from 1/16″ to 1/2″ with no gaps — a rare completeness for a set at this tier. The gold oxide surface finish is not just cosmetic; it provides a mild corrosion barrier and reduces friction during the initial cut, though it wears off after the first few holes in 316. The underlying M35 cobalt substrate with 135° split points does the real work.
Verified reviews show mixed durability: some bits drill through stainless effectively with slow speed and cutting oil, while others arrived with portions of the cutting edge dull out of the box. The 5% cobalt formulation tests to approximately 67 Rockwell C hardness, which is adequate for occasional 316 drilling but leaves less margin for error on speed and feed compared to the higher-end sets. The straight round shank requires a standard drill chuck.
The metal indexed storage case is a step up from the thin plastic cases found at the same price point, and the clear size markings on each slot make quick identification possible without squinting. For a home shop or light fabrication environment where 316 appears intermittently, this set covers the most common diameters without overspending on exotic coatings that may never be needed.
What works
- Complete SAE range from 1/16″ to 1/2″ with no size gaps
- Metal indexed case resists crushing in a tool belt or gang box
- 135° split point prevents walking on 316 sheet without center punching
- Gold oxide provides initial corrosion resistance in humid shops
What doesn’t
- Quality control varies — some bits arrive with dull or chipped edges
- Small bits (1/16″) snap easily if feed pressure is not perfectly vertical
- Not recommended for 316 thicker than 1/4″ without constant oil application

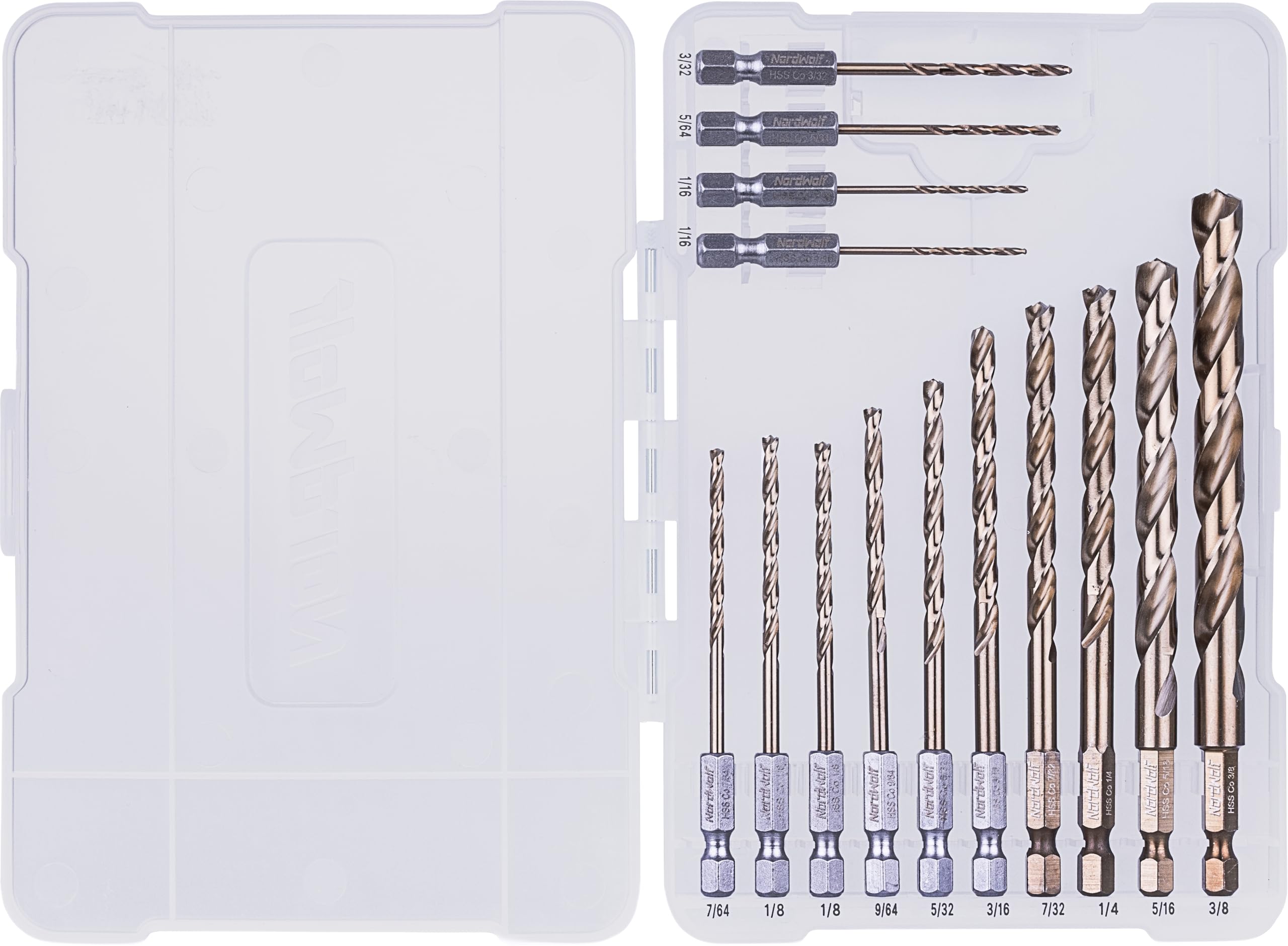

6. NordWolf 14-Piece M35 Cobalt Drill Bit Set with Hex Shank
The NordWolf 14-piece set is the only option here where every single bit features a 1/4″ hex shank, making it the go-to choice for impact driver users who do not want to swap chucks. The M35 cobalt formulation with 135° split point matches the metallurgical baseline required for 316, and the hex geometry eliminates the spin-out problem that round-shank bits suffer in quick-change chucks under impact driver vibration.
The set covers SAE sizes from 1/16″ up to 3/8″, with duplicates of the most common small sizes. Verified reviews consistently note that these bits cut through thick steel and stainless with less effort than standard hardware-store bits, though the range limitation to 3/8″ means you will need a separate solution for larger holes. The plastic storage case includes a sliding clip for pegboard hanging, which keeps the set accessible in a workshop layout.
One caveat: at this count, you are paying a premium per bit for the hex-shank convenience. If you rarely use an impact driver for drilling 316 and work primarily from a drill press, the toolant or WildBossy sets give you more bits for less. But for an electrician drilling 316 enclosures one-handed from a ladder, the hex shank prevents the bit from spinning in the chuck when the metal grabs.
What works
- Every bit has a 1/4″ hex shank for instant impact driver use
- 135° split point self-centers on 316 without pilot holes
- Pegboard-compatible case keeps bits visible and organized
- Duplicates of high-wear small sizes included
What doesn’t
- Limited to 3/8″ maximum diameter — no larger sizes
- Case hinge clips can loosen after repeated field use
- Not cost-effective if you only use standard-chuck drills
7. ss shovan 3-Piece Unibit Step Drill Bit Set
The ss shovan set is the most budget-conscious entry in this roundup, and its limitations reflect its tier. The M35 cobalt substrate with TiAlN coating is the correct material approach for 316, but the 118° X-type tip geometry is less aggressive than the 135° split-point standard that dominates in the step-bit market. On 316, the 118° point requires more downward pressure to initiate the cut and is more prone to walking on smooth surfaces.
Buyers report success drilling thin 316 sheet — under 1 mm — especially when used with cutting oil, but the set encounters problems on thicker 316 plate. The three bits cover from 1/4″ to 7/8″ across 23 step sizes, which is a practical range for HVAC and electrical work. The 1/4″ hex shank fits impact drivers, and the spiral flute design provides adequate chip removal for short holes.
The durability reports are mixed: one user noted the second-largest step lost its edge after about 20 uses on hard material, while others report excellent performance on 316 with oil. For a DIY enthusiast who needs to drill a handful of holes in 316 sheet metal and does not want to invest in a premium set, this option works — but for regular 316 work, the FRITZFURT or BOYOUYS sets justify their higher cost in edge retention alone.
What works
- M35 cobalt with TiAlN coating is the correct metallurgy for 316
- Three bits cover 23 sizes from 1/4″ to 7/8″
- Hex shank compatible with impact drivers and drill chucks
- Box case stores bits securely
What doesn’t
- 118° X-type tip walks on 316 without a center punch
- Step edges dull faster than 135° split-point competitors
- Not effective on 316 plate thicker than 1 mm
Hardware & Specs Guide
M35 Cobalt Steel (HSS-Co5)
M35 high-speed steel contains approximately 5% cobalt by weight, raising its red hardness to the point where the cutting edge remains sharp at temperatures exceeding 1100°F. This is the minimum grade for 316 because the alloy work-hardens under friction, and standard M2 HSS softens at exactly the temperature range that 316 generates during cutting. Bits labeled HSS without a cobalt percentage or M35 designation will fail rapidly on 316.
135° Split Point Geometry
The split point creates a self-centering chisel edge that reduces the thrust required to penetrate 316 by approximately 40% compared to a standard 118° point. The additional notch grinds on each cutting lip eliminate the dead-center zone that causes walking on curved or polished 316 surfaces. This is a non-negotiable feature for drilling 316 tubing, handrails, or thin sheet without center-punching.
TiAlN and AlTiN Coatings
Titanium aluminum nitride coatings form a ceramic surface layer with a hardness around 3300 HV. The coating reduces the coefficient of friction between the bit and the 316 chip, lowering cutting temperatures by up to 30% compared to uncoated bits. AlTiN (aluminum-rich titanium aluminum nitride) offers slightly better oxidation resistance, maintaining its protective layer at temperatures above 1500°F where standard TiAlN begins to degrade.
Spiral Flute Angle and Chip Evacuation
A 25–30° spiral flute angle provides the optimal balance between cutting edge strength and chip lifting for 316. Higher angles (35°+) evacuate chips faster but weaken the cutting edge, leading to chipping on the interrupted cuts common in step drilling. Lower angles (15–20°) strengthen the edge but allow chips to pack in the flute, causing heat buildup and galling. The four-flute step bit design from BOYOUYS achieves the same chip-breaking effect through additional cutting edges rather than a steeper helix.
FAQ
Can I use standard cobalt bits on 316 stainless steel?
What speed should I run a drill bit when drilling 316?
Is TiAlN coating necessary for drilling 316?
Why does my bit keep catching and snapping when drilling 316?
Can I use a step bit on 316 stainless steel thicker than 1 mm?
Final Thoughts: The Verdict
For most users, the drill bit for 316 stainless steel winner is the FRITZFURT 3-Piece M35 Cobalt Step Bit Set because its CBN-ground edges and AlTiN coating deliver the best edge retention on 316 sheet, and the hex shank eliminates chuck slip. If you want a comprehensive jobber set covering every size from pilot to half-inch, grab the toolant 108-Piece Set. And for oversized holes up to 1″ with aggressive chip evacuation, nothing beats the BOYOUYS Four-Spiral-Flute Step Set.
