Drilling into cast iron feels different from any other material. The brittle, graphitic structure demands a bit that can shear through without chattering, walking, or snapping under pressure. A standard high-speed steel bit dulls fast against the abrasive flakes, while a cheap carbide tip can shatter from the vibration. You need a tool engineered specifically for this dense, unforgiving metal.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing drill bit metallurgy, point geometries, and heat-treat processes to separate real performance from marketing claims on hard-metal tooling.
After digging through hundreds of customer reports and technical specs, these picks represent the best-balanced options for your next job involving a drill bit for cast iron. Each one here proved itself in the consumer reviews, not just on the product page.
How To Choose The Best Drill Bit For Cast Iron
Cast iron is not steel. Its carbon content sits around 2 to 4 percent, forming graphite flakes that act as a lubricant but also as an abrasive that wears standard HSS edges quickly. Choosing the wrong bit leads to glazing, breakage, or an oversized hole. Here are the three specs that matter most.
Cobalt Content and Material Grade
M35 cobalt steel, containing 5% cobalt, retains its hardness at elevated temperatures far better than standard M2 HSS. This matters because cast iron’s abrasive dust heats the cutting edge rapidly. A cobalt bit stays sharp longer and resists the micro-chipping that ruins cheaper bits mid-hole. Avoid general-purpose titanium-nitride coated HSS sets for this specific material.
Point Geometry: 135° Split Point Is Non-Negotiable
A 135° split point creates a chisel edge that bites into the material without skating across the surface. On cast iron, which can be slippery from residual graphite, a standard 118° point wanders and produces bell-mouthed holes. The split-point design also reduces the force needed to start the cut, making it safer when drilling on uneven or curved cast surfaces.
Shank Design and Chuck Compatibility
Most jobber-length bits come with a straight round shank, but a 3-flat or hex shank offers superior grip in the chuck, preventing the bit from spinning when torque spikes. This is especially important when drilling deeper holes in cast iron where binding is more likely. Hex shanks also work with quick-change chucks for faster bit swaps between pilot and finish sizes.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| HIDOTOL 60-Piece Set | Premium Set | Full size range coverage | 60 pieces, #1 to #60 wire sizes | Amazon |
| NordWolf 14-Piece Set | Mid-Range Set | Impact driver compatibility | 1/4 inch hex shank | Amazon |
| CRALY 21-Piece Set | Mid-Range Set | Walk-free starts | Dash Tip + 3-flat shank | Amazon |
| Narwhal 9/16 Inch 3-Pack | Individual Pack | Large hole drilling | 9/16 inch diameter, 6 inch length | Amazon |
| HYMNORQ 25/64 Inch 5-Pack | Budget Pack | Multi-hole production runs | 5 pieces, bronze finish | Amazon |
In‑Depth Reviews
1. HIDOTOL 60-Piece M35 Cobalt Drill Bit Set
This set delivers the widest size run in the roundup — 60 pieces from #1 (the finest) to #60 (the thickest), all made from M35 cobalt steel with a 135° split point. The fully ground flutes evacuate the fine, abrasive cast iron dust efficiently, preventing the bit from clogging and overheating mid-hole. That metal index case keeps every bit organized and protects the points from knocking against each other during transport.
Customers consistently report that these bits cut through hardened metals that their previous HSS sets could not touch. The smaller diameters, often the first to snap on less precise sets, are correctly ground with a double bevel on the cutting edge, giving them the structural integrity to handle cast iron’s interrupted cuts. One user noted they were surprised by the fabrication quality, even on the tiny sizes that budget sets usually neglect.
If you need one kit that covers everything from a tiny pilot to a serious through-hole, this is the most versatile long-term investment. The only drawback for some is the round shank, which may spin in a worn chuck under heavy torque, but a quality three-jaw chuck holds them securely. For the shop that encounters cast iron regularly, this set earns its premium position.
What works
- Complete size range from #1 to #60 covers every common job.
- M35 cobalt with 135° split point holds edge on abrasive cast iron dust.
- Sturdy metal case with size index keeps bits organized and safe.
- Smaller bits are correctly ground with double bevel, reducing snap risk.
What doesn’t
- Round shank can slip in worn or lightly tightened chucks under high torque.
- Premium pricing puts it out of reach for one-off hobbyist jobs.
2. NordWolf 14-Piece M35 Cobalt Drill Bit Set
What sets the NordWolf apart from every other set in this guide is the 1/4-inch hex shank on every bit. This allows direct chucking into an impact driver or a quick-change chuck without the bit walking out of alignment. For drilling into cast iron engine blocks, machinery housings, or thick flanges, the hex shank eliminates the annoying bit spin that wastes cutting energy and rounds the shank itself.
The M35 cobalt material and 135° split point are present, same as the premium set, but here you get 14 SAE sizes from 1/16 to 1/4 inch, each stored in a plastic box that clips onto a pegboard. Customers who work on thick steel and stainless report these bits cut far better than standard hardware store sets, though they caution that the smaller diameters are brittle — drill straight and use oil to prevent snapping.
If your primary drill is an impact driver rather than a conventional drill, this set saves you from constantly swapping chucks or fighting with round shanks. The trade-off is the limited size range, capped at 1/4 inch, so you will need larger bits for bigger holes. For the metalworker who values speed and grip, this is a focused, high-value kit.
What works
- 1/4 inch hex shank fits impact drivers and quick-change chucks without slipping.
- M35 cobalt and 135° split point provide clean starts in hardened material.
- Compact storage case clips onto pegboard for quick access.
- Good size range for pilot holes and small through-holes.
What doesn’t
- Size range stops at 1/4 inch, requiring separate bits for larger holes.
- Smaller bits are brittle if drilling is not perfectly straight.
3. CRALY 21-Piece M35 Cobalt Drill Bit Set
CRALY’s set uses a “Dash Tip” design, a secondary bevel on the cutting edge that starts cutting on contact, reducing the walking that plagues standard bits on cast iron. Combined with the 135° split point, this gives you two stages of self-centering — the split point bites, and the Dash Tip shears the edge cleanly without skating across the graphitic surface. Users report zero walk-out, even on old rivets and hardened bolt shafts.
The 21-piece set covers the most common jobber sizes from 1/16 to 1/2 inch, and the 3-flat shank design prevents the bit from rotating inside the chuck when torque spikes. The titanium coating adds a layer of corrosion resistance, though the real cutting performance comes from the M35 cobalt base. One customer used these to drill out broken bolts in a power chair frame and noted they ate through the metal without dulling.
The smaller bits in this set, particularly below 3/32 inch, are vulnerable to snapping if you lean on them sideways. But for most cast iron work in the 1/8 to 3/8 inch range, these bits deliver a confident, chatter-free cut. The pricing places it in the mid-range, offering a balanced compromise between a full set and a targeted pack.
What works
- Dash Tip + 135° split point virtually eliminates walking on cast iron.
- 3-flat shank prevents bit spin in the chuck under heavy torque.
- Titanium coating adds rust resistance in humid shop environments.
- 21-piece range covers most common cast iron hole sizes.
What doesn’t
- Very small sizes (under 3/32 inch) snap easily if not drilled perfectly straight.
- Titanium coating can flake off on extremely abrasive castings over time.

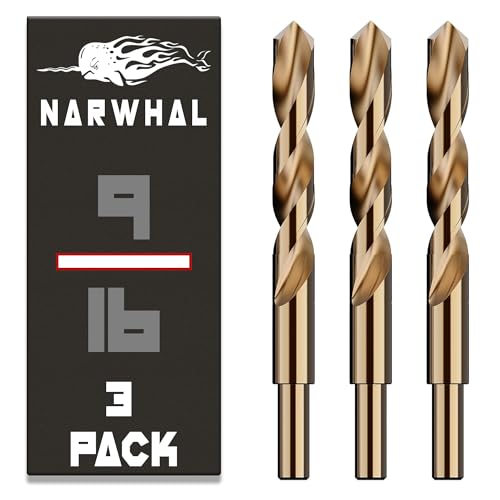

4. Narwhal 9/16 Inch Cobalt Drill Bits 3-Pack
When you need to punch a 9/16-inch hole through cast iron, you need a bit with a 1/2-inch shank to handle the torque without twisting. Narwhal delivers exactly that: a 3-pack of 9/16-inch M35 cobalt bits with a 3-inch flute length and a total length of 6 inches, giving you the reach to go through thick walled castings or engine blocks. The 135° split point ensures that even at this larger diameter, the bit starts on the mark and stays there.
Customers report that a single bit stayed sharp through 30 holes in thick stainless steel, which speaks to the M35 material’s edge retention. The uncoated finish means you are getting pure cobalt performance without a coating that could wear unevenly on cast iron’s micro-flakes. The plastic storage case keeps the three bits separated, preventing point damage during storage in a toolbox drawer.
The obvious trade-off is that you only get one size, and at three bits per pack, you are paying for redundancy rather than variety. If your project requires multiple large holes in cast iron, having two backup bits saves the hassle of a mid-job trip to the hardware store. For the fabricator or mechanic who regularly drills large holes in cast iron, this is a focused, durable option.
What works
- 1/2 inch shank provides the torque capacity needed for large diameter drilling.
- M35 cobalt with 135° split point cuts clean starts on cast iron.
- 6 inch total length reaches through thick castings and flanges.
- Three bits per pack offer redundancy for multi-hole jobs.
What doesn’t
- Only available in 9/16 inch, limiting use to a single hole size.
- Uncoated finish offers no additional lubrication or corrosion protection.

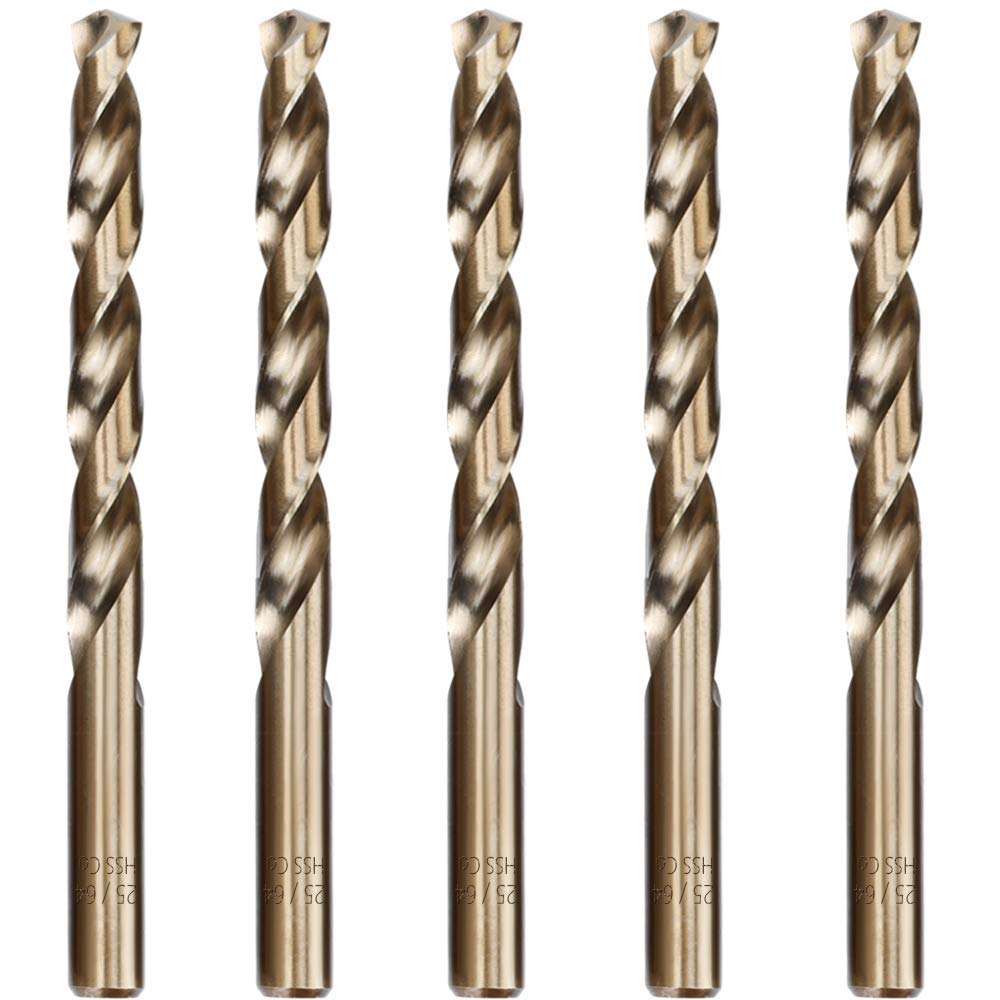

5. HYMNORQ 25/64 Inch Cobalt Drill Bits 5-Pack
For high-volume work — think production runs of pilot holes or repetitive flange drilling — the HYMNORQ 5-pack gives you five identical 25/64-inch bits at a price that makes each hole cost negligible. The M35 cobalt composition and 135° split point mirror the higher-end sets, but the bronze hue finish adds a layer of friction reduction that helps when drilling through abrasive cast iron dust repeatedly.
One customer reported drilling 225 holes through mild steel with only two bits from this pack, and the bits still cut cleanly afterward. Another user noted that these bits sharpen well on a Drill Doctor, extending their service life far beyond what you would expect from a pack at this tier. The transparent PP case keeps the bits visible and protected, though it is not as rugged as a metal index box.
The limitation here is the single size — 25/64 inch — which is useful for specific bolt clearance or tapping prep holes, but not a general-purpose solution. If you need one reliable size in bulk for repeated cast iron work, this pack offers the best per-bit value in the lineup. For the small shop owner who burns through bits on repetitive jobs, this is the economic choice that does not sacrifice material quality.
What works
- Five identical bits provide low per-hole cost for high-volume work.
- Bronze finish reduces friction on abrasive cast iron dust.
- M35 cobalt and 135° split point match the performance of premium packs.
- Bits sharpen well on a Drill Doctor, extending usable life significantly.
What doesn’t
- Single 25/64 inch size limits application to specific hole dimensions.
- PP storage case is less durable than a metal or heavy-duty plastic box.
Hardware & Specs Guide
M35 Cobalt vs. Standard HSS
M35 high-speed steel contains 5% cobalt, which boosts red hardness — the ability to stay sharp at elevated cutting temperatures. Cast iron generates abrasive dust that heats the cutting edge rapidly, and standard M2 HSS softens above 500°F. M35 maintains its hardness up to roughly 1100°F, meaning the bit cuts longer between sharpenings. For one-off holes, HSS may survive, but for any project with more than a few holes, M35 is the baseline requirement.
135° Split Point Mechanics
A standard 118° point has a chisel edge that pushes material away, causing the bit to walk. A 135° split point grinds that chisel edge into two separate cutting lips, creating a self-centering action that pulls the bit into the work. On cast iron, where the surface can be slick from graphite residue, this geometry is the difference between a clean hole and a damaged drill bushing. All bits in this guide use a 135° split point.
FAQ
Can I use a standard titanium-coated HSS bit on cast iron?
Do I need to use cutting oil when drilling cast iron?
Why do my bits keep snapping when drilling cast iron?
How do I sharpen a cobalt drill bit for cast iron?
Final Thoughts: The Verdict
For most users, the drill bit for cast iron winner is the HIDOTOL 60-Piece Set because it covers every size from pilot to large through-hole with consistent M35 quality and a 135° split point. If you want the convenience of impact driver compatibility with no chuck slip, grab the NordWolf 14-Piece Set with its hex shanks. And for a specific large-diameter job where you need reach and torque capacity, nothing beats the Narwhal 9/16 Inch 3-Pack.
