Drilling into stainless steel is a battle against work-hardening and extreme heat. Standard drill bits dull instantly or snap under the torque, leaving you with a ruined workpiece and a stripped hole. The difference between a clean pass and a smoking failure lies entirely in the bit’s metallurgy, geometry, and coating — generic hardware-store bits simply cannot handle the chromium oxide layer that makes stainless so tough.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. My research focuses on metallurgical composition, cutting-edge coating technologies, and real-world drilling performance across hundreds of industrial and DIY-grade bits to separate marketing claims from genuine cutting power.
Whether you are enlarging a sink hole or fabricating a metal bracket, finding a capable drill bit for stainless steel means selecting the right material, flute geometry, and heat management strategy for your specific project demands.
How To Choose The Best Drill Bit For Stainless Steel
Choosing the right bit for stainless steel is less about brand and more about three critical factors: the alloy the bit itself is made from, the geometry of its cutting edge, and the coating that manages frictional heat. Ignore any of these and you will burn through bits faster than the steel itself.
Metallurgy: M2 HSS vs M35 Cobalt vs Tungsten Carbide
Standard high-speed steel (HSS) lacks the red hardness to withstand stainless steel’s heat. M2 HSS adds 50 percent more tungsten and 150 percent more molybdenum, allowing it to stay sharp at higher temperatures. M35 cobalt bits (5 percent cobalt) push further, retaining hardness even under sustained heavy feed. For the toughest applications — thick plate or repeated production holes — tungsten carbide tipped (TCT) bits offer the longest life, though they are brittle and require rigid setups to avoid chipping.
Geometry: Split Point vs Standard Point
Standard 118-degree points tend to walk across stainless steel’s slick surface, ruining hole placement. A split-point grind (often 135 degrees) creates a self-centering chisel edge that bites immediately without a center punch. Step drills with spiral flutes further reduce walking because the graduated steps engage the material gradually, while straight-flute step bits rely on a pilot hole for guidance.
Coating and Heat Management
Uncoated bits friction-weld to stainless steel in seconds. TiAlN (Titanium Aluminium Nitride) coating withstands temperatures exceeding 800 degrees Celsius and reduces the coefficient of friction significantly. Nitride surface hardening treatments on M2 bits also improve wear resistance. Regardless of coating, using cutting oil or another lubricant at low RPM — between 300 and 900 RPM depending on hole diameter — is non-negotiable for preventing work-hardening and bit failure.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| toolant 1/4″–1-3/8″ Step Bit | Step Bit | Precision burr-free holes | M2 HSS + Nitriding | Amazon |
| HIGHFIRE 20pc TCT Hole Saw Kit | Hole Saw Kit | Heavy plate steel | TCT 3-Blade Teeth | Amazon |
| REKCKRUL 21pc TCT Hole Saw Kit | Hole Saw Kit | Versatile multi-material cutting | Carbide Tipped Teeth | Amazon |
| Bestwork 5pc Spiral Flute Step Set | Step Bit Set | Rapid multi-size single-bit drilling | HSS 62-65 HRC | Amazon |
| ss shovan 3pc M35 Cobalt Step Set | Step Bit Set | Thin stainless sheet drilling | M35 Cobalt + TiAlN | Amazon |
| Jerax 5-Step Single Bit | Step Bit | Enlarging holes up to 1-3/8″ | M2 HSS Nitrided | Amazon |
| DKIBBITH 4pc TCT Hole Saw Set | Hole Saw Set | Entry-level conduit and pipe holes | TCT Carbide Teeth | Amazon |
In‑Depth Reviews

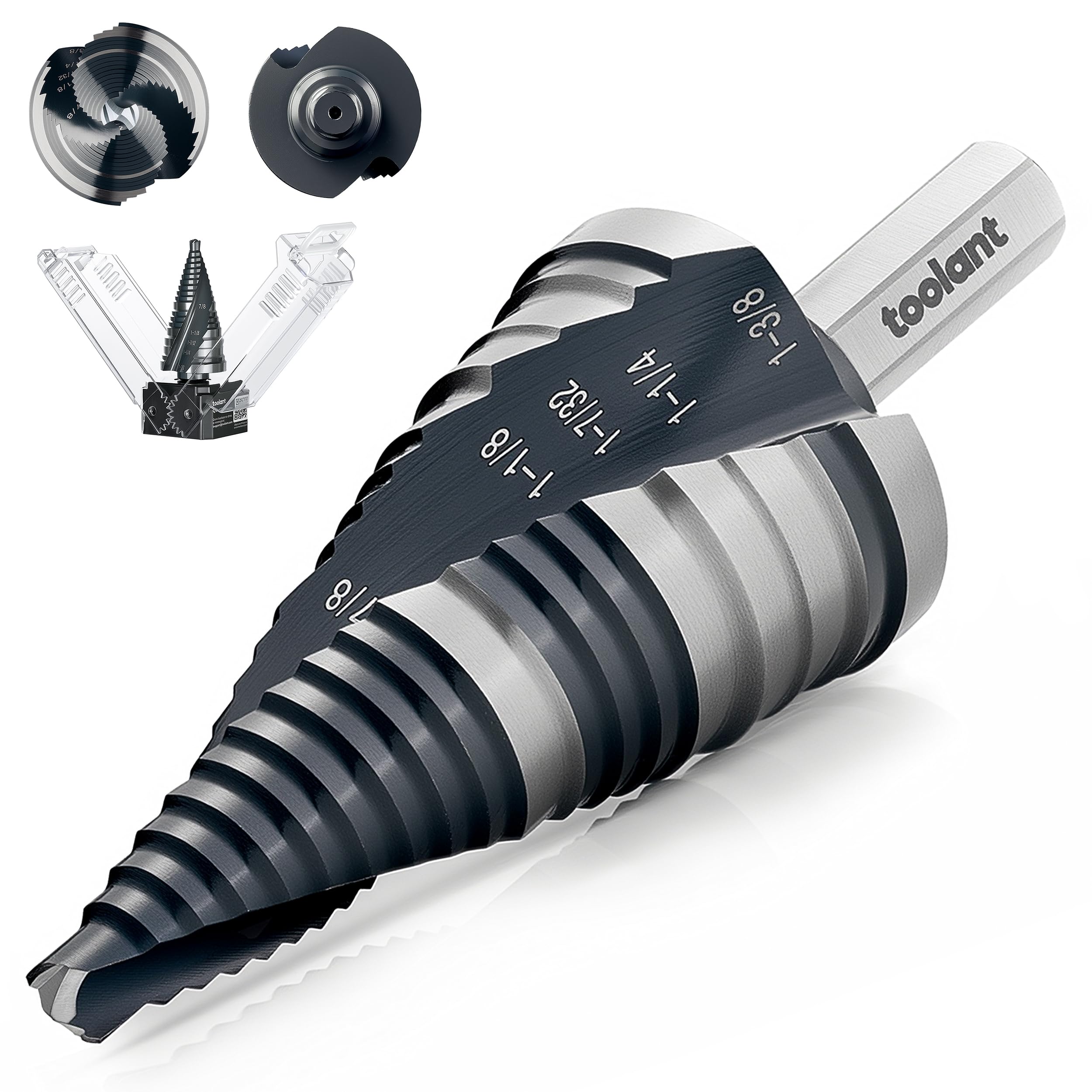

1. toolant 1/4″ to 1-3/8″ Step Drill Bit
This single step bit from toolant represents the pinnacle of M2 HSS engineering for DIY and professional metalworkers. The dual-angle flute geometry is not a gimmick — it actively shears material away rather than scraping it, producing noticeably faster cuts with less downward pressure. The nitride hardening treatment pushes surface hardness up to 76 HRC, allowing this bit to endure repeated passes through stainless steel without edge breakdown.
The 135-degree split point eliminates the need for center punching on most surfaces, while the 3/8-inch six-sided hex shank provides a rock-solid grip in drill chucks and avoids the twisting failure common on round-shank step bits. Laser-etched markings at each size remain legible after heavy use, and the included storage case keeps the bit protected when not in use.
One important limitation: toolant explicitly advises against using this bit in impact drivers, as the hammering action can crack the nitride layer. Stick to a standard drill or drill press operating at the recommended RPM — below 290 for diameters over 1-1/4 inches — and always use cutting fluid on stainless steel for best results.
What works
- Dual-angle flutes cut aggressively with minimal burrs
- Split-point geometry eliminates bit walking
- Naturally stays cool with proper lubricant use
What doesn’t
- Not compatible with impact drivers
- Single bit covers limited size range per session
2. HIGHFIRE 20pc Carbide Hole Saw Kit
When the job demands cutting through 3/4-inch plate steel or sch 80 pipe, standard hole saws burn out in minutes. HIGHFIRE’s 20-piece kit uses a three-blade tungsten carbide tipped design — outer, middle, and inner cutting edges — that distributes the cutting load and prevents the catastrophic tooth stripping common on two-blade designs. Users report drilling 32 holes through 3-inch sch 80 pipe with no visible damage to the teeth.
The kit includes 13 hole saws ranging from 1/2 inch to 2-1/8 inches, two pilot drill bits, hex keys, and three ejector springs. The double-round circle cooling channels on each saw body are more than aesthetic — they channel cutting fluid directly to the cutting interface and eject metal chips efficiently, reducing the heat that work-hardens stainless steel.
These saws require a firm grip and consistent low speed; the aggressive carbide teeth can grab and kick back if the drill wavers. The case is durable enough for job site transport, though the individual saws are not labeled on the body, requiring you to check the size before mounting.
What works
- Three-blade design resists tooth breakage
- Cooling channels effectively manage heat buildup
- Excellent longevity through heavy plate steel
What doesn’t
- Teeth require consistent low-speed feed to avoid grabbing
- Individual saw sizes not printed on the body

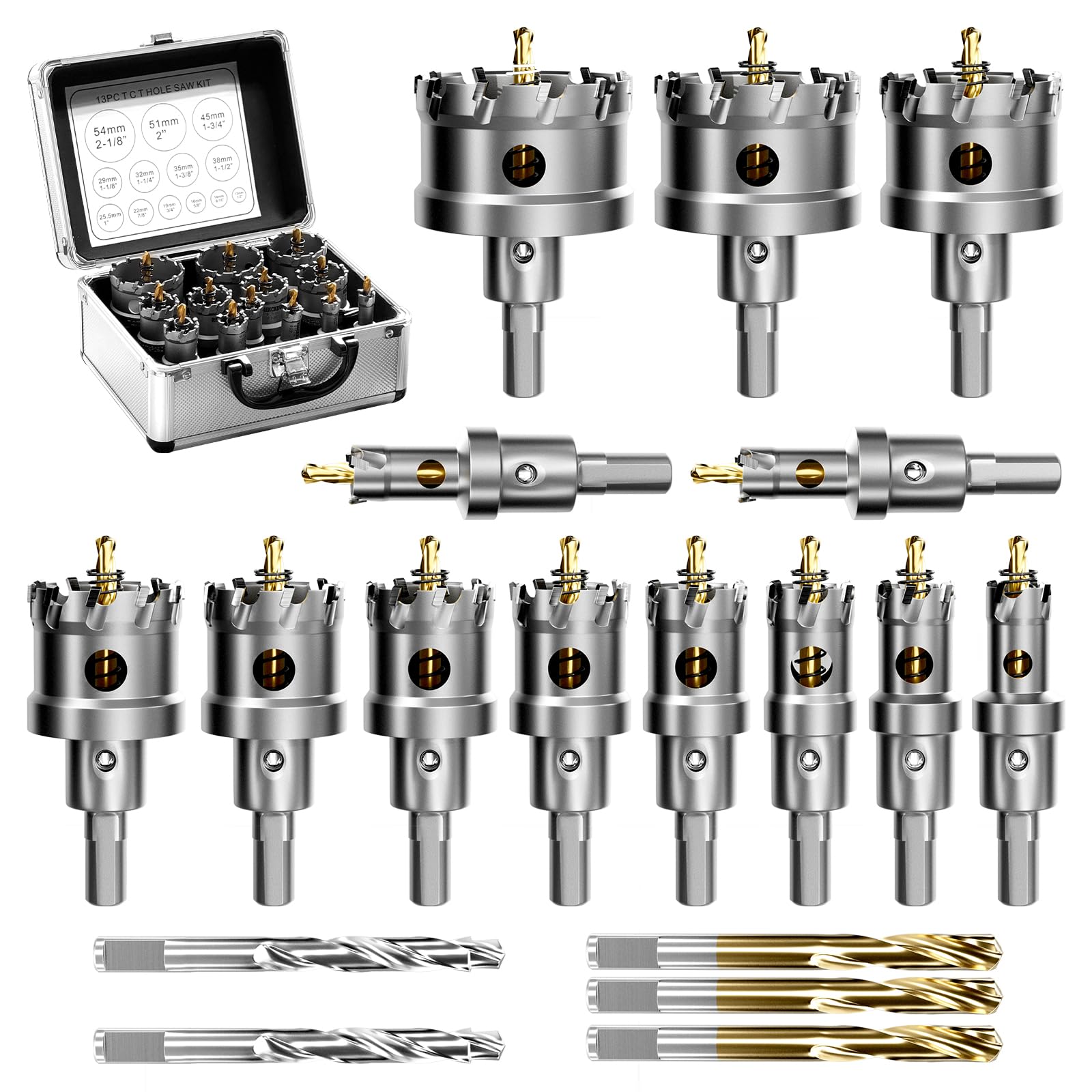

3. REKCKRUL 21-Piece TCT Carbide Hole Saw Kit
REKCKRUL’s offering bridges the gap between premium kits and budget sets with 13 TCT hole saws covering every common size from 1/2 inch to 2-1/8 inches. The industrial-grade carbide teeth are noticeably thicker than those on cheaper sets, and the titanium-plated pilot bits resist wear far longer than bare steel. Users consistently praise the clean, burr-free holes even in stainless steel sink gauge material.
This kit includes three extra titanium-plated pilot drills and two step pilot drill bits, giving you spares when the inevitable breakage happens on a tough start. The spring-loaded slug ejection works reliably, and the deep gullet design prevents chip clogging during continuous cuts. The aluminum carrying case keeps everything organized but may show dents on active job sites.
The weakest link is the pilot bits — while the titanium coating extends life, they can snap if the drill is angled during entry. Always start each hole with the pilot bit fully engaged before the saw teeth make contact, and use cutting fluid at every stage.
What works
- Thick carbide teeth handle multiple materials
- Includes spare pilot bits for extended use
- Slug ejection system prevents jams
What doesn’t
- Pilot bits can snap if entry angle drifts
- Case is decent but not job site rugged
4. Bestwork 5pc Four Spiral Flute Step Drill Bit Set
Five step bits covering 59 graduated sizes from 1/8 inch to 1-3/8 inch sounds like overkill until you are on a project requiring multiple hole diameters in varying materials. Bestwork’s set uses four spiral flutes per bit — not the standard two — which dramatically improves chip evacuation and reduces the vibration that causes bit walking. The HSS is hardened to 62-65 HRC, giving it respectable wear resistance for its price tier.
Each bit features both a 1/4-inch hex shank and a 3/8-inch round shank, allowing quick changes between impact drivers and drill chucks without adapter fiddling. The laser-etched markings are deep enough to survive regular use, though the storage case is thin plastic that may crack under heavy abuse. The spiral flute design also allows these bits to double as deburring tools on existing holes.
A 50-year mechanic reviewer noted these bits cut steel “like hot knife through butter” and remained sharp after 20 holes in a metal railing. The main compromise is the case quality, and some users report that the largest bit (1-3/8 inch) starts to chatter if the material thickness exceeds the flute length.
What works
- 59 size steps cover nearly all common diameters
- Spiral flutes clear chips cleanly
- Dual shank design fits multiple tools
What doesn’t
- Storage case is flimsy plastic
- Large step chatters on thick material
5. ss shovan 3pc M35 Cobalt Step Drill Bit Set
The M35 cobalt content in this three-piece step set gives it a genuine advantage over standard HSS bits when drilling thin stainless sheet under 1mm. The TiAlN coating handles the extreme frictional heat that causes uncoated bits to weld to the workpiece, and the 118-degree X-type openings are specifically ground to prevent skating on curved or uneven surfaces.
The three bits cover incremental sizes from 1/4 inch up to 7/8 inch, with Bit #3 offering nine steps for fine diameter control. The hex shank design prevents slipping in drill chucks, and the included storage box is better organized than many competitors’ — each bit has a dedicated molded slot. Users report excellent results drilling custom guitar amp chassis and HVAC panels.
The coating does wear at the highest step after approximately 20 holes through tough material, as one user noted. These bits perform best with cutting oil applied liberally at each step transition, and they are not intended for material thickness exceeding 2mm — the cobalt becomes brittle under heavy lateral load.
What works
- True M35 cobalt handles heat cycles well
- TiAlN coating reduces friction significantly
- Fine step increments for precise diameter control
What doesn’t
- Coating wears at highest step after repeated use
- Not suitable for material over 2mm thick
6. Jerax 5-Step Single Bit 7/8″–1-3/8″
Jerax’s single step bit focuses on the large hole range — 7/8 inch through 1-3/8 inch — making it ideal for enlarging sink knockouts, conduit pass-throughs, and panel grommet holes. The M2 HSS material with additional vacuum heat treatment and nitride hardening gives it better edge retention than standard HSS bits at a lower price than premium cobalt alternatives. The split-point grind starts cleanly without a center punch.
Users consistently praise the polished step surfaces that allow visual size checking without stopping mid-drill. The straight groove double flute design is simpler than spiral flutes but produces remarkably clean holes in stainless steel up to 12 gauge thickness. Electricians report this bit lasting months of daily panel work when used at constant speed with appropriate pressure.
The straight flutes do not clear chips as efficiently as spiral designs — expect to peck and retract on deeper holes. This bit also requires more downward pressure than premium step bits to maintain cutting engagement, which can be fatiguing over long sessions.
What works
- Polished steps allow visual size identification
- Nitride hardened M2 resists dulling
- Excellent value for large-diameter drilling
What doesn’t
- Straight flutes require pecking on deep holes
- Needs firm pressure to maintain cut
7. DKIBBITH 4pc TCT Hole Saw Drill Bit Set
For occasional users who need to drill a few stainless steel holes without investing in a full kit, DKIBBITH’s four-piece TCT hole saw set offers a practical entry point. The set includes sizes 3/4 inch, 1 inch, 1-1/4 inch, and 1-1/2 inch — the most common conduit and pipe diameters — with detachable pilot drill bits that extend the saws’ usable life when the pilots wear out.
The carbide-tipped teeth are effective on stainless steel up to 1 inch cutting depth, and the 3/8-inch three-flatted shank provides a secure grip that resists twisting. Users report clean, nearly burr-free holes on 1/2-inch 1018 steel plate, with the carbide faces remaining pristine after 16 incisions. The reinforced body with debris removal holes prevents clogging in softer materials.
Quality control is noticeable at this price — a user reported snapping a pilot bit on the second hole through rosewood (not even metal), though Amazon replaced the set quickly. The included Allen wrench for blade changes is functional but small. These saws lack the aggressive tooth geometry of premium TCT sets and will cut slower through heavy stainless plate.
What works
- Covers four most common hole sizes
- Detachable pilot bits extend set life
- Impressive cut quality on mild steel
What doesn’t
- Pilot bits can snap under light misalignment
- Slower cut rate through thick stainless
Hardware & Specs Guide
M2 High Speed Steel vs M35 Cobalt
M2 HSS contains approximately 6 percent tungsten and 5 percent molybdenum, giving it 50 percent more tungsten and 150 percent more molybdenum than standard HSS. This translates to better red hardness — the ability to stay hard at elevated cutting temperatures. M35 cobalt adds 5 percent cobalt to the matrix, further improving hot hardness and wear resistance. For stainless steel drilling, M2 is sufficient for occasional work on sheet metal up to 3mm thick, while M35 is better suited for repeated heavy feeding or material over 3mm.
Point Geometry: Split Point vs Standard 118°
A split-point grind (typically 135 degrees) creates a secondary cutting edge at the chisel that reduces the area of pure scraping at the center of the bit. This results in a self-centering action that eliminates the need for center punching on most stainless steel surfaces. Standard 118-degree points tend to skate on the hardened chromium oxide layer, causing off-center starts and increased bit breakage. All bits in this guide with a split-point design are marked accordingly.
FAQ
What RPM should I use when drilling stainless steel with a step bit?
Do I really need cutting oil or can I use water?
Why do my bits keep breaking at the tip on stainless steel?
Final Thoughts: The Verdict
For most users, the drill bit for stainless steel winner is the toolant 1/4″–1-3/8″ Step Drill Bit because its dual-angle flutes, M2 metallurgy, and nitride coating deliver the best balance of cut quality, heat management, and value for both sheet metal and thicker plate. If you need to cut multiple large holes through plate steel, grab the HIGHFIRE 20pc TCT Hole Saw Kit for its incredible three-blade durability. And for a comprehensive step set that covers nearly every small-to-mid diameter you will encounter, nothing beats the Bestwork 5pc Spiral Flute Step Drill Bit Set.
