Drilling into plexiglass is a uniquely frustrating experience when you get it wrong — one wrong angle, one bit that grabs too hard, and a clean sheet turns into a spiderweb of cracks that ruins your entire project. The plastic grabs, the bit walks, and suddenly your hours of measuring and marking are wasted on a piece that belongs in the trash.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend my time analyzing drill geometries, cutting-edge coatings, and the specific heat-management specs that separate a clean plexiglass hole from a shattered panel.
For this guide, I evaluated five drill bit sets that handle the unique demands of acrylic and polycarbonate. Whether you are building a display case or retrofitting a window, these are the drill bits for plexiglass that deliver clean entry and exit holes without stress fractures.
How To Choose The Best Drill Bits For Plexiglass
Plexiglass is not forgiving. The wrong drill bit grabs, spins, and generates frictional heat that melts the acrylic around the hole. Choosing the right set requires understanding three things: how the bit cuts, how the shank holds, and whether the coating prevents heat buildup from welding plastic to steel.
Bit Geometry: The Cutting Edge Matters
Standard 118-degree twist bits are designed for metal. On plexiglass, that sharp point creates a wedging action that pushes the material apart instead of cutting cleanly through. Look for ground point angles engineered for plastics — often 60 or 90 degrees — or diamond-coated cylindrical bits that abrade rather than wedge.
Heat Management and Chip Evacuation
Acrylic softens at roughly 160 °C. If your drill bit spins fast without clearing chips, the debris melts and re-welds to the hole wall. A wide flute design or a coolant channel helps. Diamond bits with cooling wax embedded inside the barrel reduce the temperature spike at the cutting face.
Shank Type and Clamp Stability
A hex shank prevents the bit from spinning inside the chuck — especially important when the bit suddenly grabs on the breakthrough side. Round shanks work in a standard three-jaw chuck, but a hex shank locks into impact drivers and quick-change adapters without slippage, keeping your spindle speed consistent.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| FOCSTOL Diamond Bits | Diamond-Coated | Wet drilling tile and thick plexiglass panels | Cooling wax core, 5/16″ max cut | Amazon |
| toolant Diamond Bits | Diamond-Coated | General glass and acrylic drilling | Thickened diamond coating, 3/8″ max | Amazon |
| GRENPRO Serrated Masonry Bits | Carbide Serrated | Multi-material projects including acrylic | YG6X carbide, 93 HRA tip | Amazon |
| DKIBBITH Masonry Bits | Carbide General Purpose | Glass and plexiglass pilot holes on a budget | Hex shank, ground carbide tip | Amazon |
| Craft911 Pin Vise Set | Manual Micro Bits | Precision micro holes in thin acrylic sheets | HSS micro bits, 0.1 mm to 2.5 mm | Amazon |
In‑Depth Reviews
1. FOCSTOL Diamond Drill Bits Set 10pcs
The FOCSTOL set stands apart because of its internal cooling wax — a paraffin-based core that melts at a controlled rate during drilling, lubricating the cutting face and lowering the temperature spike that causes plexiglass to melt and bind to the bit. This is the single most important feature for acrylic work because it allows continuous operation without stopping to dip the bit in water or oil.
Each of the eight diamond-coated bits — 3/16-inch up to 3/8-inch — uses vacuum-brazed diamond particles that stay sharp much longer than electroplated alternatives. The 1/4-inch hex shank locks into any quick-change chuck without runout, meaning the bit stays centered and does not wobble when you reach the breakthrough side of a plexiglass panel.
Some users reported that the smallest bit heated up fast even with water, which suggests the cooling wax works best at the higher spindle speeds the manufacturer recommends. For plexiglass sheets thicker than 1/4-inch, you want to run at least 2,000 RPM and let the wax do its job rather than forcing the bit through.
What works
- Cooling wax prevents melt-weld on acrylic
- Vacuum-brazed diamond coating lasts through dozens of holes
- Hex shank eliminates wobble on breakthrough
What doesn’t
- Smallest bit overheats easily below 2000 RPM
- Only one bit per size, no backup for the most used diameters
2. toolant Diamond Drill Bits Set 10PCS
Toolant differentiates itself with a noticeably thicker diamond coating — the electroplated layer is dense enough that the bits retain cutting aggression even after drilling into abrasive tile or porcelain. For plexiglass, that thickness translates to a consistent cutting action that does not suddenly go dull mid-hole, which is exactly when the bit starts generating extra heat and melting the edge.
The large-diameter chip flute is a rare feature among diamond-coated bits. Most diamond bits have a solid barrel with no relief, which means debris packs inside the hole and insulates the cutting face. Toolant’s flute design gives the chips a path out, reducing the frictional heat that causes acrylic to soften and deform around the hole perimeter.
One user reported that the largest bit warped after drilling four holes in tile, which suggests the barrel wall thickness may be too thin for sustained high-torque applications. For plexiglass, where the material is softer than tile, this is less of a concern, but it is worth keeping a spray bottle of water handy to keep the bit cool on longer runs.
What works
- Thick diamond coating stays sharp through multiple acrylic passes
- Chip flute prevents debris packing inside the hole
- Includes PH2 bits for pre-drilling screw pilots
What doesn’t
- Largest barrel can warp under heavy torque on hard materials
- No built-in lubrication core like higher-end diamond bits

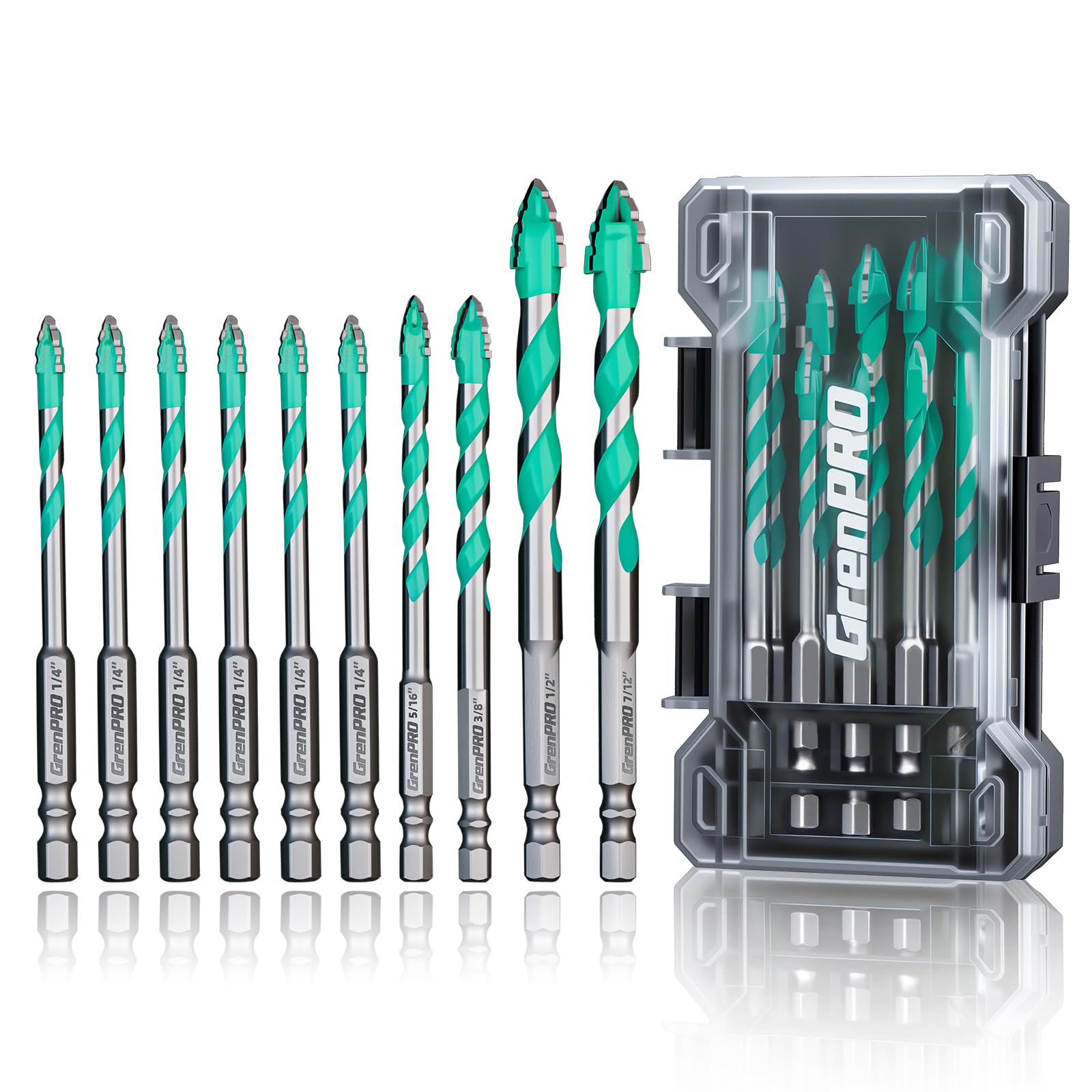

3. GRENPRO 10PCS Serrated Masonry Drill Bit Set
The GRENPRO bits use a serrated carbide tip with a YG6X hardness rating of 93 HRA. While this set is marketed for concrete and masonry, the serrated cutting action actually works well on plexiglass because each serration acts like a miniature scoring tooth that shears the plastic rather than wedging it apart. The result is a cleaner entry hole with less radial stress on the acrylic sheet.
The hex shank is made from 40Cr steel tempered to 50 HRC, which means the shank resists bending even if you accidentally apply too much side pressure. The set includes four 1/4-inch bits — a practical choice because that is the most common size for plexiglass pilot holes and mounting screws.
A few users noticed the tip edges dulled after two holes in cinder block, but on plexiglass the wear rate is substantially lower because acrylic is much less abrasive than concrete. For mixed-material projects where you switch between brick and plastic, these bits offer the versatility to handle both on the same job site.
What works
- Serrated tip score-cuts acrylic instead of wedging
- Four 1/4-inch bits cover the most common plexiglass pilot size
- Case keeps bits organized and protected
What doesn’t
- Tip edges wear faster on concrete than on plastic
- Not specifically designed for thin plexiglass — watch the breakthrough
4. DKIBBITH 11-pc Masonry Drill Bits
The DKIBBITH set offers eleven bits from 5/32-inch up to 1/2-inch, covering the full range you would need for plexiglass shelving brackets, display case hinges, and even larger pass-through holes for cables. The ground carbide tip is sharpened to a precise geometry that reduces walking — a common problem when starting a hole on smooth acrylic surfaces.
Each bit uses a 1/4-inch hex shank that is compatible with both standard drill chucks and impact driver quick-change collets. The wide flute design on the larger bits helps clear plastic chips that would otherwise melt and clog the cutting edge. Users who drilled tile and glass reported success when using water as a coolant, which translates directly to plexiglass best practices.
Some reviewers noted that the bits are best treated as semi-disposable for heavy masonry work, but on plexiglass the wear is minimal. If you are drilling a few dozen holes in acrylic sheets, these bits will hold up fine. For production-level plexiglass work, you might want a diamond-coated set with a longer lifespan.
What works
- Eleven size options cover nearly any plexiglass hole diameter
- Ground carbide tip reduces bit walk on glossy acrylic
- Hex shank prevents slippage at high torque
What doesn’t
- Not designed for micro holes under 5/32-inch
- Needs water cooling for holes thicker than 1/4-inch
5. Craft911 Micro Drill Bits Set with Pin Vise
For plexiglass work that requires holes smaller than 1/8-inch — such as model building, jewelry display stands, or circuit board enclosures — the Craft911 pin vise set is the only manual option that eliminates heat generation entirely. Since you spin the bit by hand, there is no friction spike that could melt or crack thin acrylic sheets.
The set includes ten HSS micro bits ranging from 1.2 mm up to 2.5 mm and ten PCB bits from 0.1 mm up to 1 mm. That coverage means you can drill sub-millimeter pilot holes and step up to larger diameters without ever engaging a power tool. The pin vise body is lightweight and ergonomic, giving you tactile feedback so you feel the moment the bit breaks through.
Several users noted that the bits are brittle and can snap if you push sideways. The trick is to let the bit do the cutting with gentle rotational pressure — exactly the same principle that applies to power drilling plexiglass. For any project where precision outweighs speed, this set gives you the control that a power drill simply cannot match.
What works
- Zero heat generation — impossible to melt the acrylic
- Sub-millimeter bits for ultra-precise pilot holes
- Compact and portable, no battery or power cord needed
What doesn’t
- Not suitable for holes larger than 2.5 mm
- Bits are brittle and can snap under side load
Hardware & Specs Guide
Point Geometry for Plastics
The standard 118-degree twist drill point works well for metal but wedges acrylic apart. Bits designed specifically for plexiglass use a 60 to 90-degree pointed angle or a cylindrical diamond-coated head that abrades rather than wedges. A point geometry that cuts on the periphery first reduces the force that causes edge chipping on the exit side.
Diamond Coating vs Carbide
Electroplated diamond coatings excel on glassy materials because the diamond particles act as individual cutting teeth that score the surface before penetrating. Carbide bits rely on a sharp ground edge that can dull quickly if the acrylic contains filler additives or if the bit runs too hot. Vacuum-brazed diamond coatings last longer than electroplated ones because the particles are embedded deeper.
Cooling and Lubrication Methods
Plexiglass softens at temperatures above 160 °C, which is easily reached during power drilling. Internal cooling wax cores melt and lubricate the cutting face without requiring an external drip. For bits without wax cores, a spray bottle with water or a drop of dish soap in water provides enough heat dissipation for holes up to 1/4-inch thick.
Hex Shank vs Round Shank
A hex shank prevents rotational slippage inside the chuck, which matters most when the bit grabs on the breakthrough side of a plexiglass panel. Round shanks work in standard three-jaw chucks but can spin if the chuck is not fully tightened. For impact drivers and quick-change adapters, a hex shank is a requirement, not an option.
FAQ
Can I use a standard wood twist bit on plexiglass?
What speed should I run my drill at for plexiglass?
Do I need to lubricate when drilling acrylic?
Final Thoughts: The Verdict
For most users, the drill bits for plexiglass winner is the FOCSTOL Diamond Drill Bits Set because the internal cooling wax directly addresses the heat problem that ruins acrylic holes. If you need ultra-precise sub-millimeter holes in thin sheets, grab the Craft911 Pin Vise Set for manual control with zero heat generation. And for mixed-material projects where you switch between plexiglass, tile, and concrete, the GRENPRO Serrated Set offers the carbide durability and hex shank stability to handle all three without swapping kits.
