You know the pain: you’re stuffing a 12/2 romex into a tight junction box and there’s no room for your drill to move. An electrician’s drill isn’t about brute force in the open — it’s about getting into the stud bay, overhead in a drop ceiling, or between joists with a tool that doesn’t weigh your belt down. This guide cuts through the marketing noise to find the one driver, hammer drill, or multi-head that actually fits the way you work on a commercial job site.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend my time digging into torque curves, chuck quality, and battery platform compatibility across dozens of compact and full-size drills to separate the tools that last a decade from those that burn out mid-wire pull.
The right drill for electricians is small enough to slip into a pouch yet packs enough in-lbs to drive self-tappers through strut and unistrut without stalling out on the last thread.
How To Choose The Best Drill For Electricians
Residential electricians, commercial wiremen, and industrial techs each need a different weight class of drill. Before you buy, match these specs to your daily task load.
Head Length and Body Profile
Your drill will spend half its life between studs or inside an electrical panel. Look for a head length under 7 inches. Subcompact bodies under 6 inches let you drill centered holes in tight corners without fighting the drywall. A short nose also keeps the tool balanced on your belt loop.
Torque vs Speed Curve
Driving self-drilling screws through 14-gauge metal stud requires sustained torque at low RPM, not peak speed. Impact drivers that deliver north of 1000 in-lb with a hydraulic or brushless motor can pull metal strap without stripping. Hammer drills need at least 500 in-lb to bite into concrete block for box anchors.
Battery Ecosystem and Runtime
If you already run M18 or 20V MAX for your saws and lights, a bare tool saves money. If you’re starting fresh, a kit with a compact 2.0Ah battery is fine for trim work, but a 5.0Ah High Output pack will keep a hammer drill running through a dozen 3/8” tapcon holes without a recharge.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DEWALT DCF860B | Impact Driver | Driving lags & self-tappers | 2500 in-lb max torque | Amazon |
| Milwaukee M18 3602-20 | Hammer Drill | Masonry anchors | 550 in-lb, 1700 RPM | Amazon |
| Skil QD6293B-10 | Multi-Head | Panel installations | 450 in-lb, 4 attachments | Amazon |
| Milwaukee 3450-20 | Impact Driver | Tight-space driving | 1.7 lb, 4.3” head length | Amazon |
| Skil DL6300D-12 | Flip Drill | Speed drilling & driving | 350 in-lb, flips bits | Amazon |
| Bosch GSR18V-400B12 | Drill Driver | General electrical work | 400 in-lb, 6.3” head | Amazon |
| HOTO 16V Brushless | Drill Driver | Service calls | 442 in-lb, USB-C | Amazon |
In‑Depth Reviews
1. DEWALT 20V MAX XR 1/4 Inch Cordless Impact Driver (DCF860B)
DEWALT’s highest torque impact driver — rated at 2500 in-lb — is built for electricians who drive lag bolts into wood or install self-tapping TEK screws into heavy-gauge steel studs all day. The brushless motor delivers up to 3800 RPM with three speed modes that match common driving speeds for self-drilling screws. At 2.8 lb, it’s heavier than a subcompact but the grip and balance let you bear down without fatigue.
The variable speed trigger in Mode 1 gives you feathering control for delicate switch plate screws, while Mode 3 ramps up torque for pulling wire through conduit bodies. Users switching from older Makita or 18V platforms report driving fasteners 50% faster with less chatter. The LED worklight with a built-in delay keeps your work area lit after you release the trigger.
Bare tool format suits electricians already invested in DEWALT 20V MAX batteries. The chuck accepts standard 1/4” hex bits, and the all-metal collet keeps the bit locked tight during high-torque applications. Some find the head length slightly long for cramped junction boxes, but the power-to-weight ratio justifies the extra half-inch.
What works
- Highest torque in class for self-tapping screws
- Three speed modes match electrical fastener types
- Excellent runtime on 5.0Ah XR packs
What doesn’t
- Bare tool — no battery or charger included
- Head length can feel tight in panel work
2. Milwaukee M18 Compact 1/2 Inch Hammer Drill (3602-20)
Milwaukee’s M18 compact delivers 550 in-lb of torque in a hammer-drill format that electricians rely on for drilling Tapcon anchors into poured concrete and block walls. The all-metal 1/2-inch chuck and gear case absorb shock from hammer drilling, while the 0-1700 RPM range lets you slow down for larger diameter bits. The head length is short enough to fit between stud cavities.
The brushless motor runs cooler during extended drilling, and the REDLINK intelligence monitors temperature to prevent winding burnout. A 5.0Ah High Output battery drives this drill through 60+ 3/16” holes in concrete foundation before needing a swap. The two-speed mechanical gearbox gives you high torque at low speed or faster rotation for wood boring.
Some users note the hammer function may not engage as aggressively as a full-size rotary hammer, but for 3/8” and smaller anchors it handles the job without switching tools. The bare tool format keeps cost predictable for M18 fleet owners. The belt clip is included but the tool is bare — battery and charger must be purchased separately.
What works
- All-metal chuck and gear case for impact durability
- Compact body fits tight workspaces
- Powerful enough for concrete anchors up to 3/8”
What doesn’t
- Hammer mode less aggressive than full rotary hammers
- Bare tool — battery and charger sold separately
- Some units ship without original packaging
3. SKIL PWR CORE 20 Multi-Head Drill Driver Kit (QD6293B-10)
SKIL’s multi-head system is purpose-built for electricians who install panels, mount devices, and run cable in confined spaces. The kit includes four interchangeable attachments: a 3/8” keyless chuck, a 1/4” hex bit holder, a right-angle head, and an offset adapter. Swapping heads takes seconds and the digital brushless motor delivers 450 in-lb of torque.
The right-angle and offset attachments let you drive screws into tight corners inside electrical panels and behind drywall where a standard drill simply won’t fit. The 2.0Ah USB-C battery charges in 55 minutes via the included 45W PD charger, and the battery can double as a power bank for your phone on long job days. The belt clip and lightweight body reduce fatigue during overhead work.
Trim carpenters and cabinet hangers love the versatility, but the torque is noticeably lower than a full-size 20V impact driver. For driving 6-32 machine screws into boxes and securing covers, it’s plenty. For driving self-tappers into steel studs, you’ll want the gear set in low. The 3/8” chuck limits bit selection compared to a 1/2” platform.
What works
- 4 interchangeable heads for extreme versatility
- USB-C battery doubles as phone charger
- Compact and light for all-day carry
What doesn’t
- Torque falls short for heavy self-tapping
- 3/8” chuck limits bit options
- Not as powerful as 18V installation drills
4. Milwaukee M12 Subcompact Impact Driver (3450-20)
The Milwaukee M12 Subcompact Impact Driver is 4.3 inches long and weighs just 1.7 lb with a battery pack, making it the go-to tool for electricians working in drop ceilings, above grid, or inside tight enclosures. Despite its size, the brushless motor churns out 1100 in-lb of torque — enough to drive 1/4” self-tapping screws through strut channel.
The internal metal gearcase adds durability for dropping off ladders, while REDLINK Intelligence monitors temperature and prevents overload during extended use. Users pair it with M12 3.0 or 4.0 batteries for a full day of light- to medium-duty driving. Performance does drop off noticeably as the battery drains, so swapping fresh packs is a good habit for consistent driving.
For electricians already in the M12 ecosystem, this bare tool is a no-brainer upgrade. It will not replace an M18 for heavy structural work, but for 80% of everyday electrical fastening—switch boxes, cover plates, wire staples, and MC cable connectors—it becomes the first tool you reach for. The belt clip is included; battery and charger are sold separately.
What works
- Extremely short 4.3” head length
- Impressive 1100 in-lb torque for its size
- Excellent for overhead and tight-space work
What doesn’t
- Torque drops off with low battery charge
- Bare tool — no battery or charger
5. SKIL PWR CORE 20 Flip Drill Driver Kit (DL6300D-12)
SKIL’s Flip Drill is a kit built around a double-collet flip head: one side holds a drill bit, the other a driver bit, and you flip between them with a twist. This dramatically speeds up the process of drilling pilot holes and immediately driving screws, a workflow electricians do hundreds of times per day.
The 20V brushless motor delivers 350 in-lb of torque, which is sufficient for drilling through wood studs and driving drywall screws or small self-tappers. The electronic torque display lets you dial in precise clutch settings for fragile device plates. The magnetic onboard storage holds screws or bits for quick access without a pouch.
The kit includes a 2.0Ah USB-C battery and a 20W charger that tops up in 85 minutes. The battery can also charge your phone. Users note that the included bits are lightweight and prone to breaking. This tool is optimized for speed over raw power, making it ideal for production electricians doing trim-out and device installation.
What works
- Flip head saves time between drilling and driving
- Magnetic storage keeps screws accessible
- USB-C battery charges phones and drills
What doesn’t
- Included bits are low quality
- Torque is low for heavy metal stud work
6. Bosch GSR18V-400B12 Drill/Driver Kit
Bosch’s GSR18V-400B12 is a compact 18V drill/driver with a 6.3-inch head length and a weight under 2 lb, making it one of the most comfortable tools for overhead drilling and panel work. The brushless motor delivers 400 in-lb of torque and supports 20 clutch settings for precise fastener control. The all-metal 1/2-inch chuck grips bits firmly without slipping on larger diameters.
Electronic cell protection keeps the 2.0Ah battery from overloading, and the 1-hour charger can refresh a partially discharged pack in 10 minutes. The ergonomic grip zone is slightly smaller than typical 18V drills, which helps when working one-handed on a ladder. Users report long runtime with the included 2.0Ah battery for basic drilling and driving on residential and light commercial jobs.
This drill is not built for concrete anchors or high-impact use. It is a straightforward driver that excels at electrical trim work, device mounting, and drilling through wood. The kit includes a canvas carry case, one battery, and a charger. For electricians already running Bosch 18V, this is a reliable second tool for the service van.
What works
- Lightweight and compact for overhead use
- All-metal chuck with strong bit retention
- Very fast battery recharge time
What doesn’t
- Not designed for masonry drilling
- Only one battery included in kit

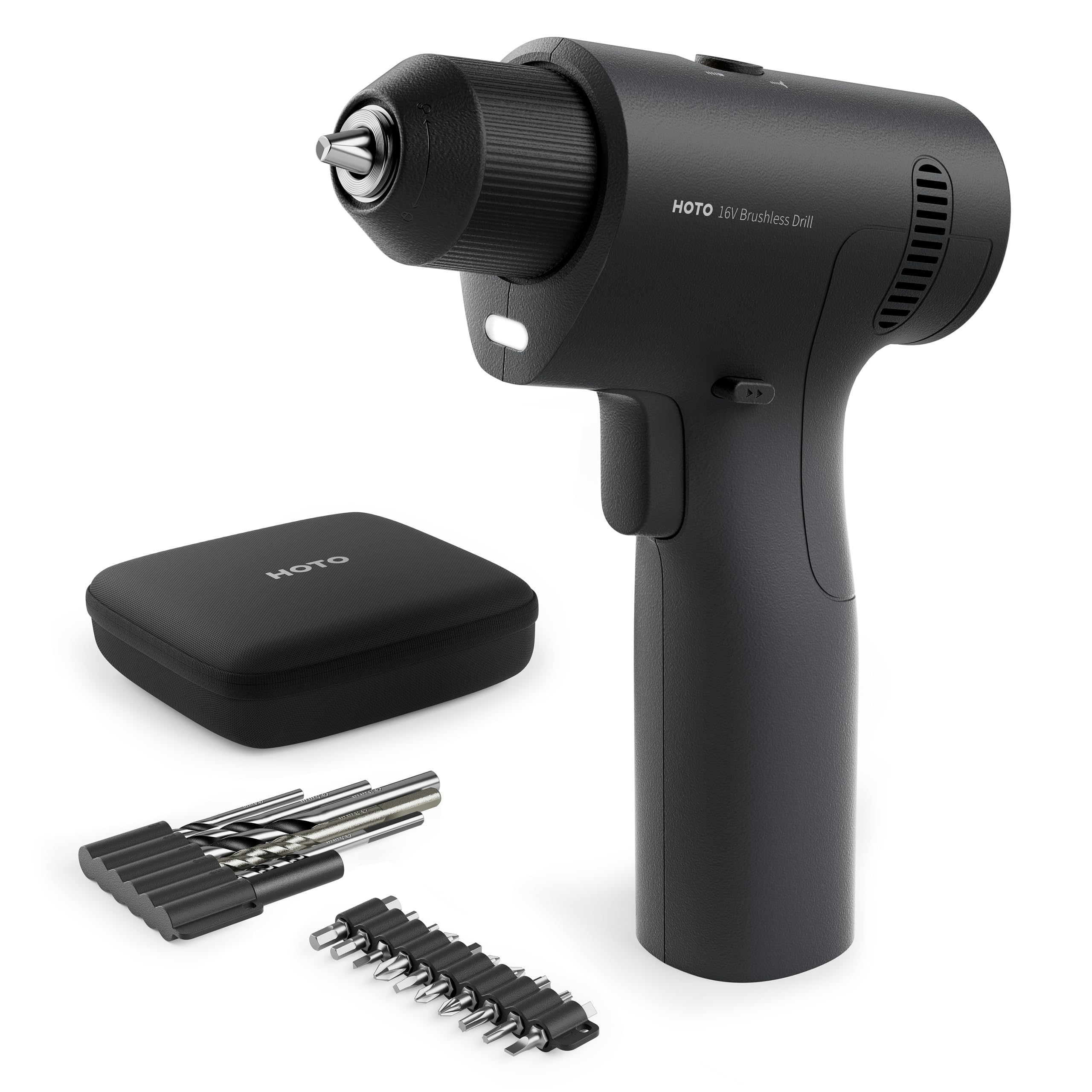

7. HOTO 16V Brushless Power Drill
HOTO’s 16V drill packs a unique smart display that shows real-time torque settings, battery status, and operating mode — a clear departure from traditional analog drills. The brushless motor delivers 442 in-lb of torque across 32 precise torque levels with dual speed settings of 400 and 1700 RPM, and an auto-stop feature that prevents overdriving screws.
The USB-C charging 1900mAh battery provides enough runtime for a full day of service calls and light electrical work. The included kit has 10 screwdriver bits, 5 drill bits (metal + wood), a ceramic bit, and an extension rod in a storage case. The LED light with bright illumination helps you see inside dark panels and crawl spaces.
Electricians accustomed to rugged 20V platforms may find the 16V voltage and plastic body less durable for repeated drops on concrete. The auto-stop is fantastic for preventing stripped screws in plastic gang boxes. This drill suits the apprentice starting their tool collection or the service electrician who wants an organized, self-contained kit in the truck for residential work.
What works
- Smart digital display with 32 torque levels
- Auto-stop prevents overdriving into boxes
- USB-C charging and complete bit set included
What doesn’t
- 16V voltage less powerful than 18V/20V drills
- Not designed for heavy commercial use
Hardware & Specs Guide
Torque Rating (in‑lb)
Torque determines how well your drill drives screws into dense materials. For electrical work, aim for at least 350 in-lb for driving into wood studs and 500+ in-lb for self-tapping screws into steel studs. Impact drivers typically exceed 1000 in-lb, making them ideal for heavy-gauge metal and lags.
Chuck Type and Size
A 1/2-inch keyless chuck accepts the widest range of drill bit sizes, including paddle bits for large holes. A 3/8-inch chuck is lighter but limits bit selection. Metal chucks outlast plastic ones on impact-heavy jobs. Some installation drills use hex collets instead of chucks, which swap bits faster but cannot hold round shanks.
Battery Voltage and Amp Hours
12V platforms (M12) are lightweight and perfect for driving only. 18V/20V platforms deliver higher torque and run hammer drills and hole saws. Battery Ah rating indicates runtime: a 2.0Ah pack runs about 30-40 minutes under load, while a 5.0Ah pack can last a full shift for light to medium work.
Brushless Motor Technology
Brushless motors run cooler, last longer, and deliver up to 50% more runtime per charge compared to brushed motors. All modern drills for electricians should be brushless. They also provide more consistent torque at low RPM, which is critical for delicate driving into plastic boxes without cracking them.
FAQ
Should I buy an impact driver or a hammer drill for electrical work?
What size chuck do I need for drilling through studs?
Is bare tool worth buying if I don’t have batteries yet?
What is the difference between a multi-head drill and a standard drill driver?
Final Thoughts: The Verdict
For most users, the drill for electricians winner is the DEWALT DCF860B because its 2500 in-lb torque and three speed modes drive everything from delicate machine screws to heavy lags without a second tool. If you want a hammer function for concrete anchors, grab the Milwaukee M18 Compact Hammer Drill. And for panel installations and tight corner driving, nothing beats the SKIL QD6293B-10 Multi-Head.
