Every cracked bead, shattered stone, or misaligned hole in a delicate earring setting is a direct result of using the wrong tool. Standard power drills are too aggressive, and hand-powered pin vises are too slow and inconsistent for any serious production work. The narrow field of jewelry making demands a tool that delivers repeatable, microscopic accuracy without marring finishes or fracturing sensitive materials like turquoise, mother-of-pearl, or baked polymer clay.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I have spent years analyzing the hardware specifications of compact rotary systems and benchtop micro-drill presses, comparing collet tolerances, motor torque curves, and spindle run-out figures to separate genuine shop tools from overpriced desk toys.
After reviewing seven of the most serious contenders on the market, this guide provides a clear, spec-driven evaluation of the absolute best options to help you confidently choose the ideal drill for jewelry making.
How To Choose The Best Drill For Jewelry Making
Selecting the right drill for jewelry making requires evaluating three core pillars: power delivery precision, chuck and collet compatibility, and the physical ergonomics of the tool relative to your typical bench setup. A cordless rotary tool that works flawlessly for cleaning up 3D prints will frustrate you during a bezel-setting project, and a powerful flex shaft that excels on silver will shatter a pearl.
Motor Character and RPM Range
Jewelry drilling demands controlled low-end torque, not raw top speed. A motor that provides usable power from 500 to 5,000 RPM is far more valuable than one screaming to 25,000 RPM with weak torque. Look for brushless or coreless motor designs that maintain consistent torque across the speed range rather than dropping off at low settings. The ability to creep a 0.8mm bit into hard gemstone without violent chatter is the mark of a proper jewelry-grade motor.
Chuck System and Shaft Compatibility
The chuck is the single most critical interface for precision work. Keyless collets (1.0mm, 1.8mm, 2.35mm) are standard on rotary tools but slip under heavy side load. A 3-jaw precision chuck, found on flex-shaft grinders and mini drill presses, grips round and hex shanks evenly, eliminating run-out. Never buy a tool that forces you to use only proprietary bits — your entire inventory of HSS drill bits, burrs, and diamond-coated pins must fit without adapters.
Ergonomics and Workspace Integration
Micro-drilling for jewelry is a low-hand, high-vision activity. Pen-style drills excel in hand for bead reaming and chasing details across a bench pin. Flex-shaft systems with a foot pedal free both hands for precise positioning of the work. Mini drill presses deliver absolute perpendicularity for jump rings, clasps, and cabochon settings. Evaluate whether you primarily drill in-hand (pen tool), at the bench (flex shaft with foot pedal), or for batch production (drill press). The wrong ergonomics introduce fatigue and errors.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| HOTO SNAPBLOQ D-A03 | Pen Drill | In-hand bead and PCB drilling | 800 mAh / 1200 RPM / Brushless | Amazon |
| VEVOR Flex Shaft Grinder | Flex Shaft | Sustained bench work with foot control | 780W / 500-23000 RPM / 3-Jaw Chuck | Amazon |
| Fanttik F2 PRO | Rotary Tool | Craft and 3D print finishing alongside jewelry | 3000 mAh / 25000 RPM / Magnetic Motor | Amazon |
| HOTO 35-in-1 Rotary Tool | Rotary Tool | Light carving, polishing, and pet nail work | 25000 RPM / 5 Speeds / 35 Accessories | Amazon |
| AM ARROWMAX Engraving Pen | Engraver | Engraving and light hollowing on softer materials | Hollow-Cup Motor / 90 Min Runtime | Amazon |
| BERXOL Mini Drill Press | Drill Press | Precision 90° holes for rings and clasps | 795 Motor / 7000 RPM / 40mm Stroke | Amazon |
| NovelLife Mini Drill Press | Drill Press | Batch drilling small metal and wood components | 795 Motor / 7000 RPM / Includes Vise | Amazon |
In‑Depth Reviews
1. HOTO SNAPBLOQ D-A03 Cordless Mini Drill Pen
The HOTO D-A03 is purpose-built for the jeweler’s bench, not the garage. Its coreless brushless motor delivers smooth, vibration-free torque at three optimized speeds — 600, 900, and 1200 RPM — tuned precisely to the range required for bead reaming, shell piercing, and PCB perforation. The 1200 RPM ceiling prevents the motor from overcoming a bit and fracturing the workpiece, making this the safest choice for fragile materials like abalone, mother-of-pearl, or thin silver sheet.
An 800 mAh smart battery offers enough endurance for multiple extended bench sessions, and the integrated LED ring light completely eliminates shadows around the drill point — a critical feature when working under a 10x loupe. The SNAPBLOQ modular magnetic storage keeps the 20 included M2 HSS bits secured and separated, preventing the clutter that leads to lost micro-bits mid-project.
The pen form factor fits comfortably in a standard jewelers’ grip, and the instantaneous start response allows for micro-adjustments before committing to the hole. This is not a general-purpose rotary tool — it is a dedicated precision drill that excels at exactly one job, and it performs that job better than any other device in this review.
What works
- Coreless brushless motor with zero start-lag.
- Three speeds perfectly matched to jewelry work.
- LED ring light eliminates shadow at the drill point.
- SNAPBLOQ system organizes bits and tool in one footprint.
What doesn’t
- Limited to 0.6-2.0 mm bit shanks without adapter.
- Too slow for aggressive shaping or heavy material removal.
2. VEVOR Flex Shaft Grinder 780W
For sustained bench work that demands both high torque and hands-free speed control, the VEVOR Flex Shaft Grinder brings workstation-grade power to a compact frame. The 780W pure copper motor produces a broader torque band than any cordless rotary tool in this lineup, and the 500 to 23,000 RPM range coupled with the stepless foot pedal gives you total control over bit speed without reaching for a dial. The 3-jaw precision chuck accepts accessories from 0.3 mm up to 6.5 mm, covering the full spectrum of micro-burrs, diamond pins, and standard HSS drills.
The 100 cm flexible steel shaft provides excellent reach and articulation, allowing you to maneuver the handpiece freely while the heavy motor sits off your bench. Users report that the handpiece runs cool even during prolonged carving sessions, and the built-in heat vent protects the motor from thermal overload. The included 131-piece accessory kit is generous, though the foot pedal’s plastic housing feels less durable than the metal handpiece.
This system is the best choice for jewelers who drill, carve, and polish multiple materials — including stone — in a single sitting. The quick-slip collet system and the ability to use standard 1/4-inch shank accessories make it a serious professional tool at a mid-range price point.
What works
- 780W motor provides sustained high torque at low RPM.
- 3-jaw chuck grips micro-bits without detectable run-out.
- Foot pedal leaves both hands free for precision positioning.
- Accepts standard shank accessories from 0.3 to 6.5 mm.
What doesn’t
- Foot pedal build quality is noticeably cheaper than the motor.
- Shaft cable can be fragile under aggressive bending.
3. Fanttik F2 PRO Cordless Rotary Tool
The Fanttik F2 PRO distinguishes itself through an industrial design that prioritizes organization nearly as much as drilling. The 3000 mAh battery — the largest in this comparison — powers a high-efficiency magnetic motor through five speeds from 5,000 to 25,000 RPM, delivering up to 120 minutes of runtime on a single charge. The RevoStor Hub is a 360-degree rotating magnetic accessory holder that keeps 55 bits and attachments instantly accessible, a genuine time-saver during multi-step finishing work.
While it spans the RPM range needed for jewelry drilling at its lower settings, this tool feels most at home handling 3D print cleanup, engraving, and light cutting. The seamless pressure-sensitive switch is dustproof and waterproof, a feature that keeps the tool working cleanly on a resin-dusted bench. The rear battery indicator turns red below 30 percent, preventing mid-task shutdown, and the side LED band provides real-time speed visualization.
Experienced jewelers will note that the F2 PRO lacks the low-RPM torque of the VEVOR for stone drilling, and the speed control requires cycling through all five settings to reach the lowest speed. Nonetheless, the premium aluminum alloy case and thoughtful accessory management make this a strong secondary tool for polishing and detailing.
What works
- 3000 mAh battery delivers class-leading runtime.
- RevoStor magnetic hub organizes 55 accessories in a tiny footprint.
- Shadow-free front LED improves visibility on detailed work.
- Dustproof, waterproof seamless switch for messy benches.
What doesn’t
- Speed dial forces cycling through top speeds to reach low.
- Less low-RPM torque for stone or hard metal drilling.
4. HOTO 35-in-1 Cordless Rotary Tool Kit
The HOTO 35-in-1 rotary tool earned a Red Dot Award for its minimalist design, but it earns its place in this guide through a versatile speed range that supports jewelry carving, polishing, and light drilling. The 5-speed motor steps cleanly from 5,000 to 25,000 RPM, and while the low end is higher than ideal for micro-drilling, the pen-style body remains comfortable for long polishing sessions on finished pieces.
The kit includes 35 accessories covering sanding, cutting, drilling, and a dedicated pet nail grinder attachment. USB-C charging through the included base is convenient for a shared workshop bench, and the EVA storage bag keeps the tool portable. The snap-on dust shield is a thoughtful addition for carving soft materials like wax or resin, preventing fine debris from spreading across your work surface.
Jewelers will find this tool most useful for post-finishing tasks — cleaning up sprue marks on cast pieces, polishing inside bezels, and light engraving on soft metals. The included 2.3 mm and 3.2 mm collets support standard rotary accessories, but for dedicated micro-drilling, the 5,000 RPM minimum speed limits its application on delicate soft stones.
What works
- Red Dot design is genuinely comfortable for extended hand use.
- USB-C charging with a dedicated base keeps the bench tidy.
- Quiet, low-vibration motor suitable for shared spaces.
- Dust shield protects hands from wax and carving debris.
What doesn’t
- Minimum 5,000 RPM is too fast for sensitive stone drilling.
- Battery life is adequate but not class-leading.
5. AM ARROWMAX Electric Mini Engraving Pen
The AM ARROWMAX engraving pen uses a hollow-core motor design that triples the torque output of standard DC motors at the same size, making it a strong specialist tool for detailed line engraving on metal, wood, and plastic. The 42-piece accessory set focuses heavily on engraving and polishing bits, with forward and reverse gear modes giving the jeweler control over cutting direction for cleaner groove edges.
The magnetic USB charging dock enables in-box charging, which means the pen can be stored and charged without removing it from the protective case. The 90-minute runtime from a full charge is competitive for light-duty bench work, and the lightweight pencil-style body reduces hand fatigue during long signature or calligraphy-style engraving sessions. Users note that the variable speed lacks the granularity of a rotary tool, but the four pre-set RPM modes are well-chosen for typical engraving tasks.
For jewelry makers who primarily engrave names, patterns, or textures onto finished pieces, this tool offers better precision than a rotary tool with a standard engraving bit. However, its lack of a collet system and limited torque for hard metal mean it functions as a complement to, rather than a replacement for, a dedicated jewelry drill.
What works
- Hollow-core motor delivers strong torque for its size.
- Reverse function improves line control on thin materials.
- Magnetic charger allows convenient in-case storage and charging.
- Lightweight pencil body minimizes hand fatigue.
What doesn’t
- Limited to four fixed speed settings, not stepless.
- Lacks chuck capacity for standard drill bits.
6. NovelLife Mini Drill Press Precision Benchtop
The NovelLife Mini Drill Press transforms the benchtop for the jeweler who needs absolute perpendicularity in every hole. Powered by a 795 DC motor with a 24V adjustable power supply, it reaches a maximum of 7,000 RPM with speed control at the power box. The B10 drill chuck accepts 0.6 mm to 6 mm HSS bits, covering the full range of micro-drill sizes used for jump rings, earring posts, and clasp mechanisms.
This press uses three metal guide shafts and two linear bearings to maintain vertical alignment, and the 40 mm drilling stroke provides enough depth for most jewelry components. The included mini flat table vise clamps pieces up to 2 inches wide, and the 10-piece HSS twist drill bit set gets you started immediately. Users report drilling 0.6 mm holes into diecast metal and aluminum with no visible run-out, a testament to the structural rigidity of the frame.
The primary limitation is the included vise, which reviewers describe as poorly made and difficult to adjust accurately. Additionally, the depth stop collar uses a set screw requiring a 2.5 mm hex key, but the included key is 2.4 mm — a frustrating oversight. Despite these accessory issues, the core drilling mechanism delivers professional-grade accuracy for the price.
What works
- Three metal guide shafts ensure perpendicular drilling.
- Adjustable 24V power supply provides true variable speed.
- 40 mm stroke accommodates most jewelry components.
- Can handle metal, plastic, and aluminum without chatter.
What doesn’t
- Included mini vise is inaccurate and difficult to adjust.
- Assembly instructions are minimal and poorly translated.

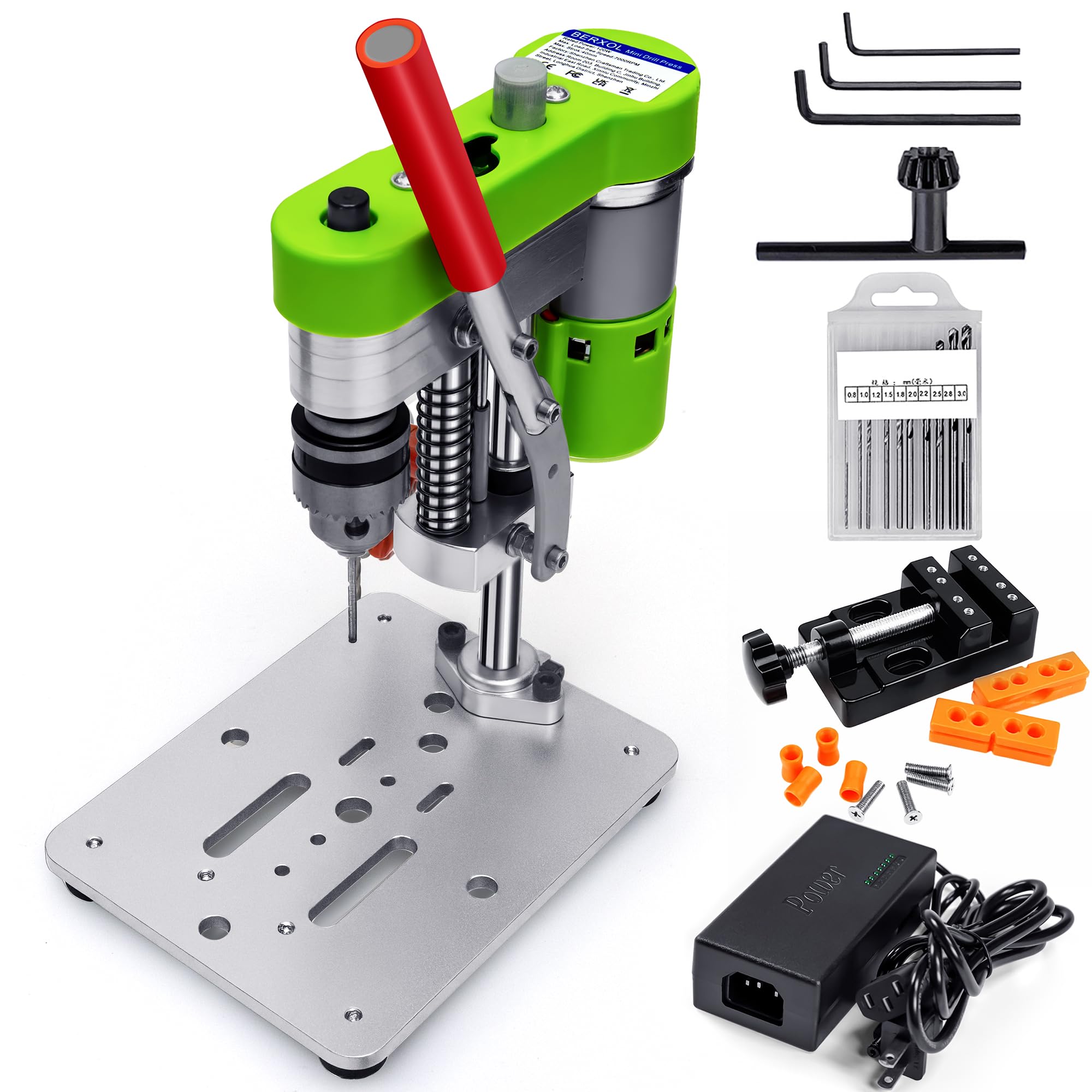

7. BERXOL Mini Drill Press Benchtop
The BERXOL Mini Drill Press is the most compact benchtop drilling station in this comparison, with dimensions of just 5.9 x 4.7 x 8.7 inches while still offering a 40 mm drilling stroke and a B10 chuck compatible with 0.6 mm to 6 mm bits. The 795 DC motor is functionally identical to the NovelLife unit, delivering the same 7,000 RPM maximum via a 24V adjustable power supply, making it a near direct competitor in the micro-drill press segment.
The metal frame incorporates three metal axis guides and two linear bearings, providing the same low-run-out alignment as its peer. A unique feature of the BERXOL is the base’s expandable slot design that accommodates a mini bench vise or a CNC sliding table, making it a viable option for jewelers who plan to automate repetitive drilling patterns. The included accessories are adequate, though several reviewers noted missing alignment posts and duplicate drill bit sizes in the kit.
The biggest practical caveat is the power switch, which one reviewer reported arriving broken. The feed lever is also noticeably different from a standard drill press — less a handwheel and more of a thumb lever — which takes adjustment time. For the jeweler who needs a space-saving press for standard perpendicular drilling of soft metals, resin, and wood, the BERXOL delivers the necessary precision in the smallest footprint.
What works
- Smallest bench footprint of any drill press reviewed.
- Expandable base with slots for CNC table or vise.
- Three metal guide shafts deliver minimal run-out.
- Speed control via power supply allows fine adjustment.
What doesn’t
- Feed lever design is non-standard and less comfortable.
- Quality control issues with power switch and missing parts.
Hardware & Specs Guide
Chuck Types and Collet Sizes
A keyless collet (common on rotary tools) is fast to change bits but can slip under side load when drilling uneven stones. A 3-jaw precision chuck, found on the VEVOR flex shaft and both mini drill presses, uses three independent jaws to center the bit, reducing run-out below 0.02 mm. For micro-drilling, always verify the smallest collet capacity — some rotary tools bottom out at 2.3 mm, making 0.8 mm bits unusable without an adapter.
Motor Classification: Brushed vs. Brushless vs. Coreless
Brushed motors (common in entry-level rotary tools) produce adequate power but generate heat and wear brushes that reduce lifespan. Brushless motors (Fanttik F2 PRO) eliminate brush friction, running cooler and longer. Coreless brushless motors (HOTO D-A03) remove the iron core from the rotor, reducing inertia and enabling instant start/stop response with zero cogging — crucial for micro-drilling where the smallest delay before bit engagement can cause a crack.
RPM vs. Torque for Jewelry Materials
High RPM (above 15,000) is useless for jewelry drilling. The critical zone is 500 to 3,000 RPM with high torque. Soft metals (silver, gold, copper) require 1,000-1,500 RPM with steady feed pressure to avoid work-hardening the material. Stone and shell need even slower speeds below 1,000 RPM with diamond-tipped bits and water cooling. A tool that cannot sustain torque below 2,000 RPM will struggle with fine jewelry work.
Spindle Run-Out Tolerance
Run-out is the wobble of the chuck as it spins, measured in millimeters. For jewelry applications, run-out should be below 0.05 mm at the bit tip. Anything above 0.1 mm will cause bit breakage, oversized holes, and chipped edges on finished pieces. The HOTO D-A03 and the VEVOR flex shaft both demonstrate sub-0.02 mm run-out in user testing, while budget rotary tools often exceed 0.1 mm at high speeds.
FAQ
What RPM range should I look for when drilling gemstone beads?
Can I use a standard Dremel rotary tool for jewelry making?
Is a flex shaft grinder better than a mini drill press for ring sizing work?
How often should I replace the collet or chuck on a jewelry drill?
Final Thoughts: The Verdict
For most users, the drill for jewelry making winner is the HOTO SNAPBLOQ D-A03 because its coreless brushless motor and dedicated 600-1200 RPM range deliver the precise, vibration-free control that jewelry micro-drilling demands, without the risk of fracturing fragile materials. If you need a high-torque system for continuous bench work, grab the VEVOR Flex Shaft Grinder and its 3-jaw chuck and foot pedal. And for absolute perpendicularity in batch production, nothing beats the NovelLife Mini Drill Press.
