The gap between a casual arcade racer and a true sim driver isn’t the game—it’s the rig. A flimsy wheel clamped to a desk that wobbles under braking kills any sense of traction, while a cockpit that flexes under 5 Nm of force feedback makes every corner feel vague. The right foundation locks you into the physics engine, letting you feel the slip angle through the seat and the steering rack’s vibration through the wheel.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve analyzed over a hundred wheel bases, aluminum profiles, and pedal load cells to find the configurations that actually translate digital road texture into usable driver feedback rather than noisy vibrations.
Whether you’re chasing tenths in iRacing or learning heel-toe in Assetto Corsa, the driving simulator setup must eliminate slop before it reaches your hands—or you’re just playing a game, not driving a simulation.
How To Choose The Best Driving Simulator Setup
Every sim racing purchase is a compromise between chassis rigidity, wheelbase torque, and pedal fidelity. Beginners often over-spend on a wheel while mounting it to a kitchen table, masking what the hardware can actually deliver. The hierarchy matters: cockpit first, then wheelbase, then pedals.
Chassis Rigidity: The Unseen Foundation
A wheelbase delivers force feedback forces measured in Newton-meters (Nm). If your cockpit flexes under those forces, the energy dissipates into the frame rather than your hands. A folding tubular rig may handle 3.9 Nm, but a 40x80mm aluminum profile can absorb 15 Nm without a hint of twist. Material type—steel tube vs. extruded aluminum vs. pressed steel—dictates how much detail survives the trip from motor to your palms.
Direct Drive vs. Gear vs. Belt: Which Motor Topology?
Gear-driven wheels (like the Logitech G series) use mechanical teeth that introduce notchiness and rattle. Belt-driven systems smooth that out but still suffer from belt stretch and cogging. Direct drive (DD) motors couple the wheel rim directly to the rotor with zero mechanical slip, delivering instantaneous force updates. The measurable spec is Nm torque: entry DD starts around 3.9 Nm, mid-range hits 6-8 Nm, and enthusiast-class exceeds 15 Nm. Higher torque gives you more headroom for clipping-free detail at lower output percentages.
Pedal Technology: Potentiometer vs. Hall Effect vs. Load Cell
Pedals measure either position or pressure. Potentiometer-based pedals (common on entry bundles) use a wiper that wears over time and reads only travel distance—meaning you modulate brake by how far your foot moves, not by how hard you press. Hall-effect sensors replace the physical contact with magnetic field detection, improving lifespan but still measuring position. Load-cell pedals measure force directly; you push against a stiff spring, and the controller translates pressure into brake input. This matches how real brakes work—by leg tension, not foot travel—and is the single biggest lap-time improvement per dollar.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Fanatec Gran Turismo DD Pro | Premium | PS5 & PC Native Integ | 5 Nm FluxBarrier DD | Amazon |
| Marada 8040 Alu Profile | Premium | Zero-Flex Damping | 40x80mm Profile Rig | Amazon |
| ARES WING Cockpit + Monitor Mount | Mid-Range | All-In-One w/ Screen | 50″ VESA Monitor Mount | Amazon |
| PXN VD6 Bundle | Mid-Range | Complete PC DD Bundle | 6 Nm / 7 Nm Peak DD | Amazon |
| Playseat Evolution Suede | Mid-Range | Space-Saver / Fold Away | Foldable GT Tubular | Amazon |
| MOZA R3 Bundle | Mid-Range | Entry DD for PC | 3.9 Nm DD Base | Amazon |
| ARES WING Racing Cockpit (Seat Only) | Mid-Range | Budget Cockpit + Stability | 8 Non-Slip Support Feet | Amazon |
| Dardoo G29 Adj. Cockpit | Budget | Entry Adjustable Frame | Steel Frame + Rubber Feet | Amazon |
| RACGTING Foldable Cockpit | Budget | Compact Fold / Low Price | Foldable Tubular Frame | Amazon |
In‑Depth Reviews
1. Fanatec Gran Turismo DD Pro
This is the gold standard for PlayStation sim racing. The 5 Nm FluxBarrier direct drive motor is custom-designed in Germany and uses a patented magnet topology to reduce cogging torque, giving you smooth transitions at corner entry and exit. The 280mm Polyphony Digital wheel includes a crisp OLED display and a diffused RevLED strip that shows engine RPM without looking away from the racing line.
The housing uses an aluminum heatsink as the primary structural component, which means passive cooling keeps the motor consistent even through 60-minute GT7 endurance stints. The four 5-way directional sticks are mapped directly to Gran Turismo 7’s rapid-adjust traction control, brake balance, torque split, and fuel mapping—functions you’d otherwise need a button box for.
The included 2-pedal set uses Hall-effect sensors, so you won’t get wiper wear drift over time. The stock 5 Nm is detailed, but the upgrade path to 8 Nm via a separate power supply is well-documented by the community. Note that the wheel base is officially licensed for PS5 and PS4, with full PC compatibility when you want to cross-platform to iRacing or Assetto Corsa Competizione.
What works
- Zero notchiness—FluxBarrier DD is silky smooth under load
- OLED screen and RevLED reduce HUD dependency
- Passive aluminum cooling means no fan noise during long stints
- Full PS5 native integration with GT7 telemetry
What doesn’t
- Stock 5 Nm feels limited after experiencing 8 Nm upgrade
- No mounting screws included for hard-mounting to a rig
- Standard pedals lack load-cell brake (upgrade recommended)
- Premium price tier—you’re paying for console licensing
2. Marada Aluminum Profile 8040 Racing Simulator
The Marada 8040 is an extruded aluminum profile rig built from 40x80mm T-slot rails, the same structural standard used by high-end commercial simulators. This isn’t a bent-tube frame that relies on welding strength; the T-nuts and bracket joints allow infinite adjustment with zero flex up to at least 15 Nm of wheel torque. The sliding rails and embedded slots let you reconfigure the pedal plate angle, wheel deck height, and seat position without drilling.
The ergonomic black seat uses a double-track slider for fore-aft adjustment, and the back reclines independently. Some users report the reclining mechanism can flex under heavy braking, but the main aluminum chassis remains immobile. Build time averages 4-5 hours with over 100 bolts—this is a set-and-forget rig, not a quick-folding stand. The included rubber feet keep it planted on hard floors.
Compatibility spans Logitech G29 through Fanatec DD Pro and Moza R-series—the universal T-slot holes accept most mounting brackets directly. Owners of 18 Nm Asetek Forte units have bolted this frame without any perceptible chassis twist. It’s roughly half the price of a Next Level Racing F-GT Elite but includes the same 40-series profile standard.
What works
- Aluminum profile is inherently stiffer than any tubular steel rig
- Infinite adjustments let you fine-tune pedal and wheel deck positions
- Handles 18 Nm direct drive bases without measurable flex
- Excellent value compared to competitor profile rigs without seat
What doesn’t
- Assembly is time-consuming with over 100 separate bolts
- Instructions are schematic-heavy and lack angled reference views
- Seat reclining mechanism feels less solid than the main chassis
- Low to the ground—consider a riser platform for easy entry/exit

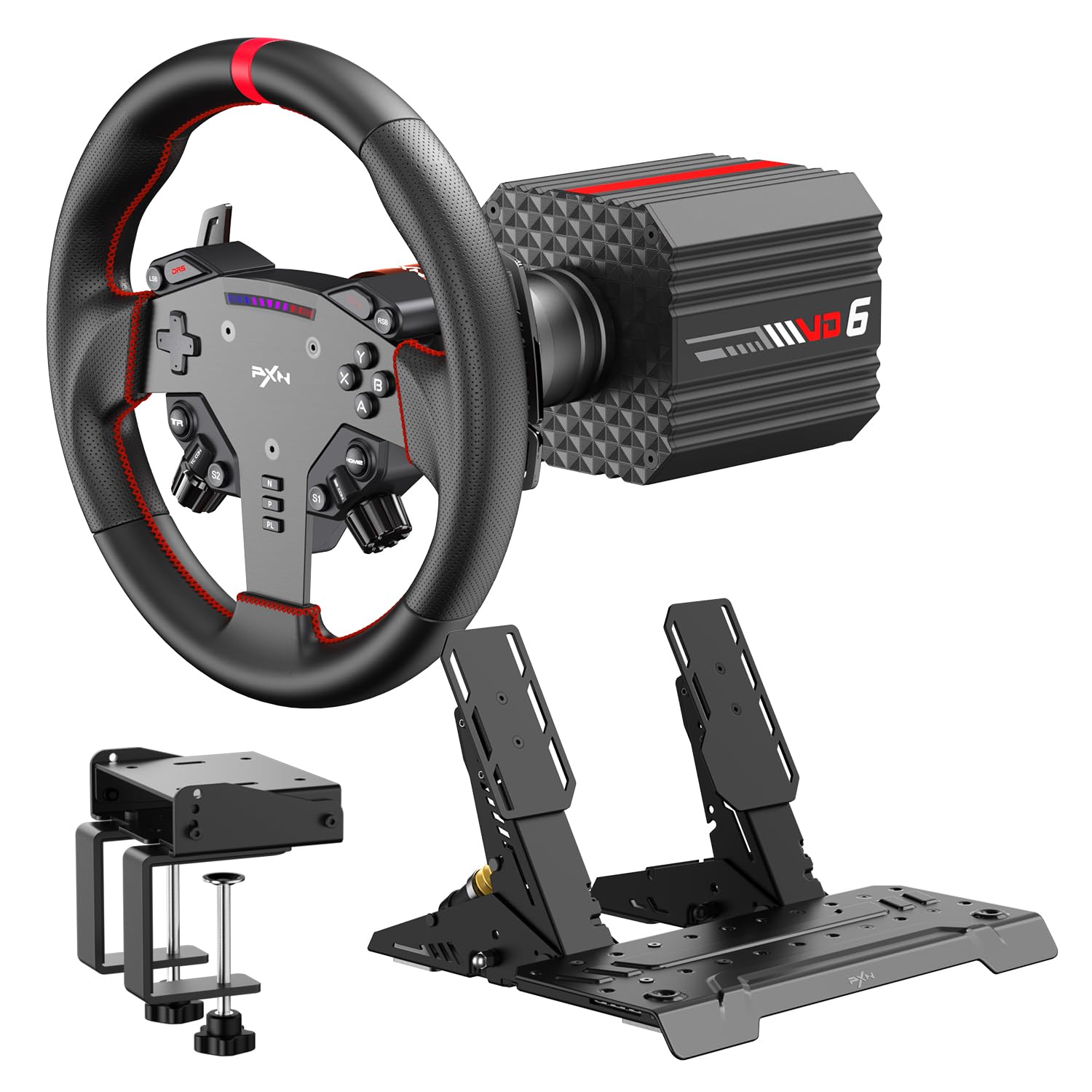

3. PXN VD6 Direct Drive Bundle
The PXN VD6 bundle is a complete PC direct drive package: wheel base, 11-inch steering wheel, 2-pedal set with Hall-effect sensors, and a desk clamp—everything arrives in one box except a shifter. The 20-pole low-inertia servo motor delivers 6 Nm continuous and 7 Nm peak torque with a 24-bit encoder for smooth linear force reproduction across the steering arc. The Sense+ algorithm processes road texture, tire slip, and damper effects separately before blending them into the output PWM signal.
The W AS wheel features an aluminum alloy frame wrapped in microfiber leather with a dynamic RGB telemetry light bar that changes color based on RPM windows or speed thresholds. Nineteen programmable buttons, two rotary encoders, and four aluminum paddle shifters (two linear, two tactile) give you enough inputs for GT3 racing or truck simulation without reaching for a keyboard. The quick-release system attaches via a spring-loaded collar.
The PD HM pedal set uses full-metal construction with Hall-effect sensors on throttle and brake for consistent analog input—no potentiometer wear. A brake mod insert is included to increase pedal stiffness for better muscle memory. The desk clamp has an angle-adjustable plate to tilt the base for ergonomic fit. This bundle targets PC Windows 7-11 only, with no console compatibility.
What works
- 6 Nm DD at a competitive price point for a full bundle
- High-resolution 24-bit encoder captures fine force-feedback detail
- Aluminum paddle shifters with two distinct tactile profiles
- Brake mod insert included for improved pedal stiffness
What doesn’t
- PC-only compatibility—no PlayStation or Xbox support
- Wheel rim is on the small side for truck simming at 280mm
- Software UI feels less polished than MOZA Pit House or Fanatec Control Panel
- Shifter disconnects from base on some units; needs direct PC USB connection
4. Playseat Evolution Racing Suede Edition
The Playseat Evolution is the most recognizable foldable cockpit on the market, built around a tubular steel frame with a patented folding mechanism that keeps the steering wheel and pedals attached when stored. The racing suede fabric offers better grip and less sweat accumulation than the standard fabric model, with a foam-padded backrest that supports a more upright GT driving posture similar to actual race car seating.
The seat slider gives you 6-8 inches of fore-aft adjustment, while the pedal plate angle and wheel deck height can be set with manual knobs. Assembly takes about 30 minutes from box to track, making it the fastest setup in this comparison. The frame weighs around 50 lbs and is easy to relocate for cleaning or room reconfiguration.
This cockpit is best suited for gear-driven wheels (Logitech G29/G920/G923) and belt-driven units up to about 3.9 Nm. At higher torque levels—say a 6 Nm Moza R5 or Fanatec CSL DD—the central steering column tube flexes noticeably under hard cornering loads. The suede surface also traps dust and pet hair, which is worth noting if the rig lives in a multi-pet household.
What works
- Genuinely foldable design takes minutes to deploy or store
- Racing suede offers high grip and breathable feel
- Fast 30-minute assembly with basic tools included
- Compact footprint fits into tight corner spaces when folded
What doesn’t
- Steering column flex is noticeable with direct drive bases above 5 Nm
- Suede is high maintenance—vacuuming and brushing needed regularly
- Seat back is non-adjustable; only fore-aft slider on the rails
- Not deep enough to drive a stiff load-cell brake without reinforcement
5. MOZA R3 Direct Drive Bundle
MOZA’s R3 is the cheapest path to a true direct drive system, delivering 3.9 Nm of torque through a low-cogging servo motor. While the torque figure is modest compared to 6-8 Nm units, the lack of gear teeth or belt delay means every minuscule tire load shift is transmitted to your hands in real time. For context, a Logitech G923 generates about 2.4 Nm through a gear train—the R3 is smoother and more responsive at lower output percentages.
The ES Lite steering wheel is an 11-inch round design with a PU leather grip over an aluminum alloy rim. Twenty-two customizable buttons give you plenty of inputs without needing a separate button box, and the car-style quick-release mechanism allows future wheel rim swaps within the MOZA ecosystem. The SR-P Lite pedal set uses Hall-effect sensors for corrosion resistance and long-term accuracy.
Setup requires the MOZA Pit House software for calibration and profile saving. The brake pedal uses a basic rubber bumper rather than a load cell, but an upgrade kit is sold separately for better stiffness. This bundle is PC-only and not compatible with Xbox or PlayStation—you lose console access but gain the most detailed force feedback available under a certain budget.
What works
- Smooth, gearless DD performance at the lowest entry price
- 22 programmable buttons provide extensive input flexibility
- Compact base fits easily on desks with the included clamp
- MOZA ecosystem allows future upgrades (R5/R9 base, load-cell pedal)
What doesn’t
- Only 3.9 Nm torque—less headroom for high-torque scenarios
- Brake pedal feels spongy without load-cell upgrade kit
- No console compatibility locks out Gran Turismo and Forza players
- Wheel attachment to base can feel tight on initial installation

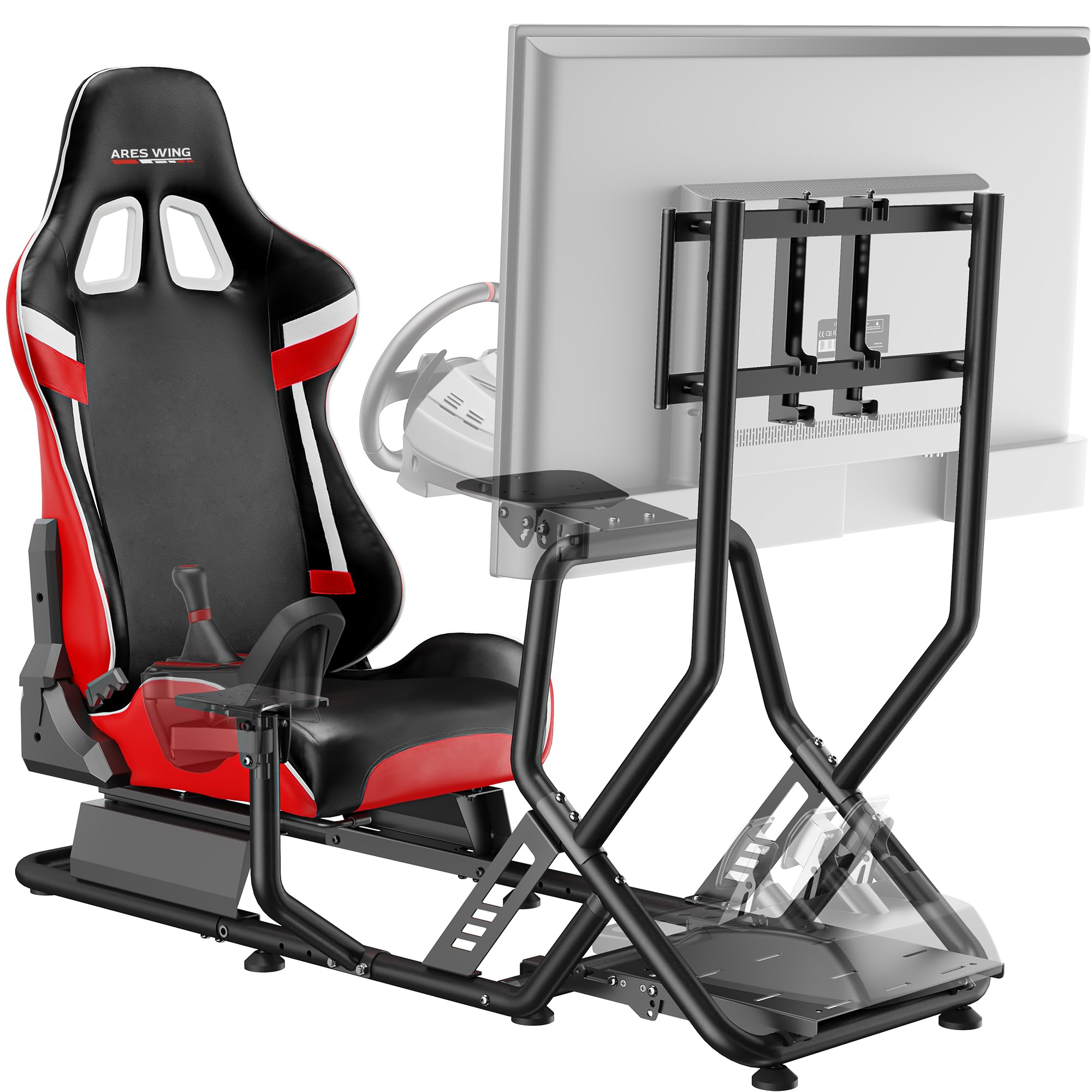

6. ARES WING Cockpit + Monitor Mount
This is the same heavy-gauge steel frame as the ARES WING cockpit but with the addition of a detachable monitor mount that holds screens up to 50 inches and 77 lbs with VESA patterns from 75×75 up to 400×200. This transforms the rig from a standalone seat into an integrated racing cell—you can place the entire station against a corner wall without needing a separate TV stand or monitor arm.
The frame uses the same strengthened sheet-metal construction with 8 non-slip support feet, which is adequate for belt-driven wheels and lower-torque direct drive units up to about 5 Nm. The seat slides 7.1 inches fore-aft and the backrest reclines from 90 to 150 degrees. The shifter mount can be installed on either the left or right side and has its own fore-aft adjustment track. Six cable management clips keep USB and power wires routed along the frame.
Assembly takes about 1.5 hours, and all holes are pre-drilled with consistent alignment. The black PU leather seat interior has widened foam padding for longer sessions. Owners of 6’4” height report adequate headroom, but the rig sits low to the ground—a wooden riser platform is a common DIY mod for easier entry and exit in between races.
What works
- Integrated monitor mount saves floor space and eliminates a separate TV stand
- Sturdy enough for belt-driven wheels and 5 Nm direct drive bases
- 6 cable clips keep wiring organized along the frame rails
- Widened foam seat padding reduces pressure points during 2+ hour sessions
What doesn’t
- Rig flexes noticeably with high-torque direct drive bases above 6 Nm
- Monitor mount’s vertical height adjustment range is limited
- Low ground clearance means a riser platform is almost mandatory
- Seat foam breaks in over time and may need supplemental cushion
7. ARES WING Racing Simulator Cockpit (Seat Version)
The base ARES WING cockpit is a tubular steel frame with an upgraded strengthened cross-brace design that’s marketed as compatible with high-torque direct drive wheels, though real-world testing shows it handles best with gear-driven and belt-driven units. The 8 non-slip rubber feet at the bottom corners prevent the frame from drifting on hardwood or tile during aggressive steering inputs.
The seat slides 7.1 inches and the backrest reclines from 90 to 150 degrees, while the pedal plate and wheel deck each have independent angle and distance adjustments. The shifter mount can be bolted to either side of the frame. The PU leather seat surface uses widened foam padding that helps distribute weight across the thighs and lower back.
Assembly is straightforward with the included parts and tools, though some metal decorative pieces are purely cosmetic and may loosen over time. The welded pedal plate uses pre-drilled holes that align with Logitech G-series pedals but may need partial alignment for other brands. Some users have replaced the stock seat with a junkyard car seat for improved lumbar support—a common budget-minded upgrade path for this frame.
What works
- Sturdy enough for belt-driven wheels with no visible frame twist
- Full adjustability on wheel, pedal, and shifter positions
- Cable management clips help with wire routing and strain relief
- PU leather seat is easy to wipe down after sweat-heavy sessions
What doesn’t
- Seat foam is low-density and compresses significantly over 6 months of use
- Some decorative metal pieces along the frame have loose tolerances
- Seat back lock mechanism can feel uneven between left and right sides
- Not recommended for direct drive bases above 5 Nm without reinforcement
8. Dardoo Adjustable Sim Cockpit
The Dardoo cockpit is a heavy-gauge carbon steel frame with a race-style bucket seat covered in PU leather. The standout feature here is the multi-point adjustability: the steering wheel height can be raised or lowered along the vertical tube, the shifter bracket can be mounted left or right and moved through four different fore-aft holes, and the pedal plate angle is adjustable at the pivot point. The seat back also reclines independently.
Eight rubber feet contact the floor to absorb vibration and prevent sliding during aggressive driving. The entire frame is powder coated with a smooth protective paint that resists rust and can be wiped clean with a damp rag. Assembly typically takes 45 minutes with the included hex wrenches and bolts. Two separate packages ship for the seat base and the frame.
Compatibility covers Logitech G25 through G923, Thrustmaster T300 and TX series, Fanatec bases, and PXN controllers. The drilled mounting plates accept bolts from underneath for a clean installation. Users from 4 feet to 6 feet tall report the adjustment range accommodates family sharing—the pedal distance and seat slide give enough travel for quick driver swaps between sessions.
What works
- Wide height and distance adjustment range fits multiple family members
- Thick powder-coated finish resists rust and wipes clean easily
- Pedal plate angle adjustment gives better heel-toe ergonomics
- Stable enough for gear-driven wheels with no perceivable wobble
What doesn’t
- Seat attachment bolts are difficult to thread during assembly
- Wheel deck is less rigid than dedicated profile-based rigs
- Shifter bracket can feel wobbly under fast sequential shifting
- Not built to handle the lateral forces of a high-torque direct drive
9. RACGTING Foldable Racing Simulator Cockpit
The RACGTING cockpit is the most compact entry in this guide, built as a folding tubular frame that collapses from a full-race configuration into a flat package you can lean against a wall or slide under a bed. The design includes a hinged central steering column that tilts up for easy ingress, plus a stabilizer foot at the rear that prevents the frame from tipping when you’re pulling on the wheel during corner exit.
Adjustability covers pedal distance, shifter position (left or right), seat angle, and wheel tilt—all without disassembling any bolts. The seat is a molded bucket with foam cushioning that’s comfortable for drivers up to about 6’2” and 190 lbs. Assembly takes roughly 30 minutes with the provided hex keys, and you can leave the wheel and pedals attached when folding, which saves setup time for short after-work sessions.
Compatibility is broad: Logitech G Pro/G29/G920/G923, Thrustmaster T248/T300RS/T-GT, Fanatec CSL DD/GT DD Pro/ClubSport, MOZA R3–R21, and SIMAGIC Alpha Mini/Alpha. The pedal plate uses spring clamps to hold pedals down, which can tangle during folding but works fine once positioned. On carpet, the frame sits solidly; on hard floors, the included rubber feet prevent sliding.
What works
- Genuinely foldable to a flat storage position with controls attached
- Compatibility list spans nearly every major wheel brand from Logitech to SIMAGIC
- Hinged steering column makes entry/exit much easier than fixed-tube cockpits
- 30-minute assembly makes it the fastest deployable rig here
What doesn’t
- Spring clamp pedal support tangles wires when folding
- Wheel pivot hinge loosens over time—tightening risks stripping the plastic
- Not stable enough for high-torque direct drive above 5 Nm
- No manufacturer-provided storage dimensions for planning closet space
Hardware & Specs Guide
Direct Drive vs. Gear vs. Belt Motors
Gear-driven wheels use plastic or metal teeth to multiply torque, producing a characteristic notchiness at center. Belt-driven systems use a cogged belt to transmit motor rotation, which smooths out the noise but introduces belt tension variance and rubber resonance. Direct drive motors couple the rotor directly to the steering shaft with zero mechanical intermediary. The measurable spec is torque ripple—the variation in motor output across each electrical rotation. A well-tuned DD motor has less than 1% torque ripple, while a budget belt system can exceed 5-8%, resulting in imprecise centering and grainy force feel through the corners.
Nm Torque and What It Actually Means in a Car
Nm measures rotational force at the motor shaft. A 3.9 Nm wheelbase produces enough force to provide clear tire slip cues at street-car simulation levels—you’ll feel the front tires washing out mid-corner. A 6 Nm base adds enough headroom to feel curb strikes and understeer vibration without saturating the signal. Beyond 10 Nm, you’re into GT3/Formula-style territory where the wheel can physically resist your steering input at high speeds, forcing you to strain against the simulated steering rack load. In practical terms: 3.9 Nm is a Miata, 6 Nm is a Porsche Cayman, 10+ Nm is a race-prepped Cup car with manual steering.
Load Cell vs. Hall Effect vs. Potentiometer
Potentiometer pedals measure brake travel by voltage drop across a sliding wiper—wear on the resistive track causes non-linear readings over time. Hall-effect pedals use a stationary sensor and a moving magnet to detect pedal angle, eliminating contact wear but still measuring position. Load cell pedals measure compressive force directly via a strain gauge: you push against a stiff spring or elastomer, and the cell outputs voltage proportional to leg pressure. Load cell pedals give repeatable braking because distance traveled doesn’t matter—only how hard you push—which aligns with real car brake pedal behavior.
Aluminum Profile vs. Tubular Steel Rigidity
Tubular steel frames (round or square tube) rely on welded joints and gussets for stiffness. Steel’s modulus of elasticity (200 GPa) means it bends less per unit cross-section than aluminum, but typical tube diameters (25-40mm) create leverage arms that flex under lateral load—especially at the steering column. Aluminum profile rigs use 40x80mm rectangular extrusions with T-nut joints that distribute force across a large surface area. The 80mm dimension resists bending moment in the primary load direction (driver pulling on the wheel) and the T-slot allows infinite bracket positioning without drilling or welding.
FAQ
Can I use a direct drive wheel with a foldable cockpit?
Is the Fanatec Gran Turismo DD Pro compatible with Xbox?
What Nm torque do I need for realistic Assetto Corsa feeling?
Can I mount a Moza R9 or Simagic Alpha Mini to the Marada aluminum rig?
Why do load cell pedals improve lap times more than a better wheel?
Final Thoughts: The Verdict
For most users, the driving simulator setup winner is the Fanatec Gran Turismo DD Pro because the FluxBarrier direct drive motor delivers PlayStation-certified 5 Nm smoothness with an integrated OLED/RevLED wheel that reduces HUD reliance—a complete package for console-first sim racers. If you want zero-flex aluminum profile rigidity that can handle future upgrades to 15+ Nm wheelbases, grab the Marada 8040 Profile Rig and build a foundation that outlasts every wheel you’ll ever own. And for budget-conscious PC racers who need a complete direct drive bundle out of one box, nothing beats the PXN VD6 Bundle with its 7 Nm peak torque, Hall-effect pedals, and full RGB telemetry wheel—the best torque-per-dollar ratio in this entire guide.
