12 Best Drone For Mapping | Geotagging Precision That Saves Time

Check Price on Amazon

The DJI Mavic 4 Pro is the pinnacle of consumer-to-pro mapping hardware. Its 100MP Hasselblad main camera paired with dual telephoto lenses gives you the ability to capture wide orthomosaic tiles and zoom in on specific features without sacrificing resolution. The 360-degree infinity gimbal unlocks camera angles that are normally impossible on a traditional fixed-gimbal drone, allowing you to capture nadir and oblique imagery in a single flight pass.

Flight endurance hits 51 minutes under ideal conditions, and the O4+ video transmission maintains a stable 10-bit HDR feed up to 30 kilometers — meaning you can map a 200-acre parcel without moving your ground station. The Nightscape obstacle detection works down to 0.1 lux, so low-light evening flights are actually usable for preliminary site scouting. The charging hub accepts three 6654 mAh batteries simultaneously, keeping your mission cycle short.

The primary tradeoff is cost. This drone sits at the high end of the market, and the RTK module is not included in the base Fly More Combo — you will need to add the DJI RTK 2 separately for survey-grade accuracy. If you are doing high-volume commercial mapping with legal reporting requirements, the investment pays back within a few projects. For occasional hobbyist mapping, the price may be hard to justify.

Check Price on Amazon

The Autel EVO II Pro V3 stands out for its 1-inch Sony CMOS sensor with a mechanical shutter, a rare combination at this price tier. The adjustable aperture from F2.8 to F11 gives you full control over depth of field and exposure in bright survey conditions — a critical feature for overexposed concrete or snow-covered terrain. The 12-bit DNG format captures 68.6 billion colors, providing post-processing latitude that is essential for precise orthomosaic color balancing.

The SkyLink 2.0 transmission system gives you 15 kilometers of range across tri-band frequencies (2.4GHz, 5.8GHz, 900MHz), which matters when mapping large quarries or pipeline corridors. The Smart Controller SE with its 6.4-inch OLED screen eliminates the need for a phone or tablet, keeping the setup clean and reducing failure points. Users have noted that the Autel Explorer app supports autonomous grid missions, making it a genuine alternative to DJI Pilot 2.

Where this drone loses ground is the ecosystem. Third-party integration with DroneDeploy and Pix4D is available but not as polished as the DJI workflow. The battery system charges slowly via the standard charger, and the customer support turnaround is slower than DJI Care Refresh. For surveyors who need open-architecture mapping without geofencing restrictions, this is a strong candidate.

Check Price on Amazon

The DJI Air 3S bridges the gap between consumer portability and professional mapping utility. Its dual-camera system — a wide 48MP main sensor and a 3x telephoto camera — allows you to capture context overviews and detailed close-ups in a single flight. The 46-minute maximum flight time is generous for a sub-700g drone, and the six-antenna O4 transmission system provides a stable 1080p feed up to 20 kilometers.

Omnidirectional obstacle sensing gives you confidence when navigating around trees, power lines, and buildings during a pre-programmed grid mission. The 48MP effective still resolution is enough for GSD in the 0.5–1.0 cm range at typical mapping altitudes of 60–100 meters. The Fly More Combo includes three batteries, a charging hub, and a waterproof backpack — everything you need for a full day in the field.

The limiting factor is the electronic shutter. Like most DJI consumer drones, the Air 3S uses a rolling electronic shutter, which introduces distortion when the drone is moving at higher speeds or when capturing overlapping images for SfM processing. For casual property mapping and construction progress shots, it performs admirably. For precision engineering surveys, invest in the Mavic 4 Pro or an Autel platform.

Check Price on Amazon

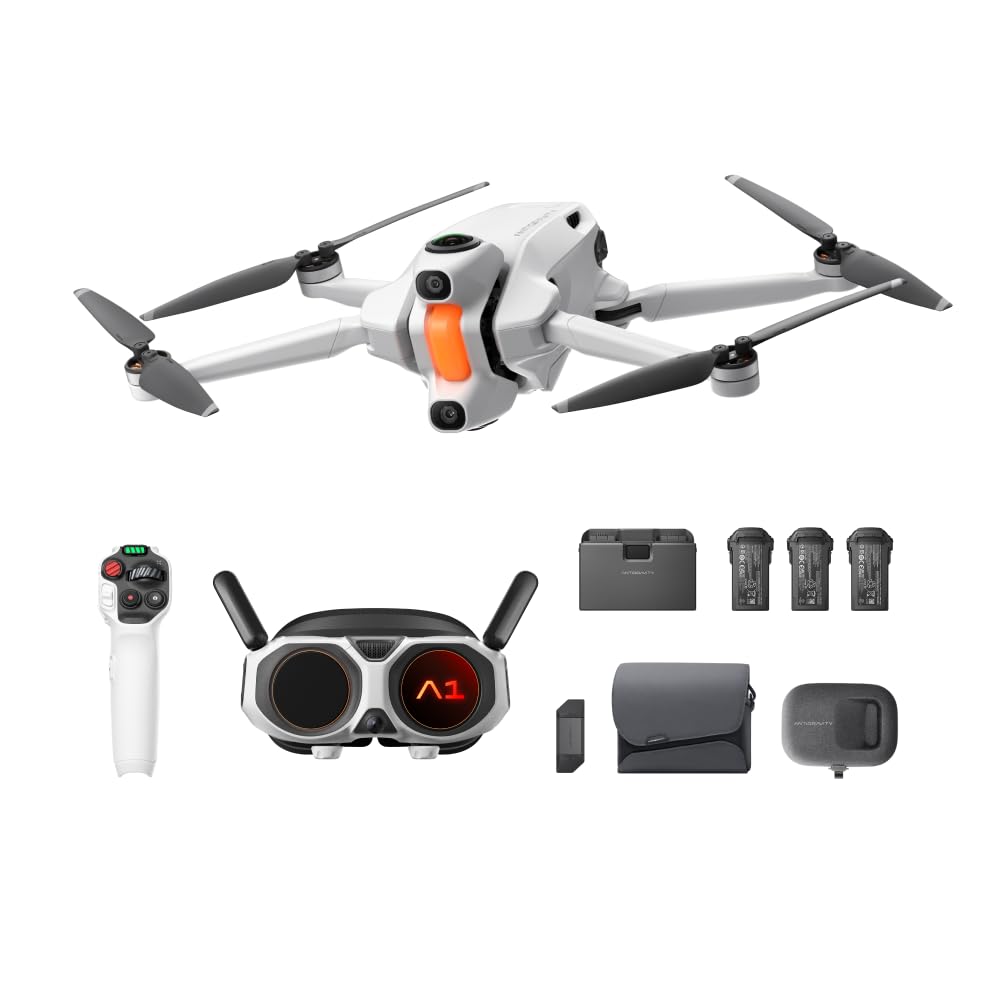

The Antigravity A1 redefines mapping data capture by using a 360-degree spherical camera that captures every angle in a single shot. Instead of stitching multiple nadir and oblique passes, the A1 records the entire surrounding scene in 8K resolution, allowing you to reframe and extract ortho-rectified views after the flight. This approach slashes flight time for detailed reality capture, especially for complex structures and interiors.

The Vision Goggles provide a 90-degree FOV with dual micro-OLED panels, making waypoint review and real-time framing immersive. The drone weighs under 249 grams with the standard battery, meaning no FAA registration is required for recreational mapping. Swapping to the high-capacity battery gives you 39 minutes of flight time. The automatic editing software processes 360 footage into usable clips, but professional users will need third-party photogrammetry software to extract metric data.

The biggest drawback is the lack of RTK or PPK support. Without centimeter-level GNSS corrections, the geolocation accuracy is limited to standard GPS drift of 1–3 meters. This makes the A1 suitable for visual mapping, marketing flythroughs, and historical documentation, but not for legal survey or engineering-grade orthophotos. If your mapping requirement includes precise measurement, this is not your primary tool.

Check Price on Amazon

The Autel EVO II Dual 640T V3 is a specialized mapping tool for professionals who need simultaneous visual and thermal data. The 640×512 thermal sensor captures temperature gradients at 30 fps, while the 50MP RYYB visual camera records detailed color imagery. The D-RI (Detection, Recognition, Identification) ranges allow you to classify objects by size and intent — useful for search-and-rescue, roof inspection, and power line surveys.

The Smart Controller V3 features a 7.9-inch display that is bright enough for outdoor use. The bundled three-battery setup provides 38 minutes per flight, and the multi-charger supports simultaneous charging to reduce downtime. Autel’s Explorer app includes a flight planner for grid missions, and the thermal analysis tool allows real-time temperature measurement with isotherm overlays. Users running WEB ODM report good results from the 50MP visual stream.

The price point places this drone firmly in enterprise territory. The thermal measurement accuracy is high, but the system relies on Autel’s proprietary software for post-processing — exporting to FLIR Tools or third-party GIS platforms requires extra steps. A small number of users reported thermal sensor failure within the first year, and Autel’s warranty process can be slow. For dedicated thermal mapping teams, it is a capable tool.

Check Price on Amazon

The DJI Mini 4 Pro Fly More Combo Plus is the most portable mapping drone that still delivers usable output. Weighing under 249 grams, it avoids most FAA registration requirements, making it ideal for quick reconnaissance flights over small construction sites or farmland. The 48MP effective still resolution is captured via a 1/1.3-inch sensor, and with proper overlap settings, you can generate orthophotos with a GSD around 1 cm per pixel at 200 feet.

The three Plus batteries in this combo provide roughly 135 minutes of total flight time (45 minutes each in ideal conditions), allowing extended mapping sessions without returning to the car. The omnidirectional obstacle sensing keeps the Mini 4 Pro safe during automated grid missions, and the RC 2 controller with the built-in screen simplifies field operation. ActiveTrack 360 is not mapping-specific, but the waypoint functionality in the DJI Fly app covers basic grid missions.

The critical limitation is the electronic rolling shutter, which creates distortion in photogrammetry stitching, especially on windy days. The Mini 4 Pro also lacks RTK support, so your positional accuracy is GPS-only. This drone works best for low-stakes mapping, progress tracking, and pre-survey walkthroughs where absolute precision is not required. For serious survey work, step up to the Air 3S or Mavic 4 Pro.

Check Price on Amazon

This bundle version of the DJI Mini 4 Pro adds a 128GB SD card, USB 3.0 card reader, landing pad, and strobe lights to the standard Fly More setup. For a beginner who wants to start mapping small sites immediately, this kit removes the friction of buying accessories separately. The core drone remains the same — under 249g, 48MP stills, and omnidirectional obstacle avoidance.

The RC 2 controller with the built-in display works seamlessly with DJI Fly, and the bundled SD card is enough for hundreds of 48MP DNG files. The landing pad helps maintain sensor cleanliness during takeoff and landing on dusty surfaces, and the strobe lights improve visibility during twilight mapping sessions. The included USB card reader speeds up file transfer to your processing computer.

The accessories are lower quality than the drone itself — the landing pad is small and the strobe lights are fragile. Several users noted that the bundle overpriced the accessories by a significant margin. If you already have an SD card and a landing pad, skip this bundle and buy the drone alone. The mapping limitations of the Mini 4 Pro (electronic shutter, no RTK) apply here as well.

Check Price on Amazon

The DJI Mini 5 Pro introduces a 1-inch CMOS sensor — a massive upgrade from the Mini 4 Pro and a meaningful step toward professional-level mapping. The 4K/60fps HDR video and true vertical filming with 225 degrees of gimbal rotation allow you to capture both nadir and vertical facade shots without repositioning. The forward-facing LiDAR combined with vision sensors provides nightscape obstacle sensing, enabling pre-dawn and dusk mapping missions.

The Fly More Combo includes three batteries, ND filters, a charging hub, and spare propellers — everything needed for extended field sessions. The ActiveTrack 360 upgrade improves subject tracking, which is useful when mapping dynamic environments like construction sites with moving vehicles. The 42GB of internal storage provides a buffer if you forget your SD card.

However, the Mini 5 Pro retains the electronic shutter from its predecessor, which is disappointing for a sensor upgrade of this magnitude. The 1-inch sensor captures better dynamic range, but rolling shutter distortion still affects photogrammetry stitching. A few early units shipped with firmware issues that required multiple updates before the drone would arm. The bundle accessories have received negative feedback for quality.

Check Price on Amazon

This third-party bundle packages the DJI Mini 4 Pro with three batteries, a two-way charging hub, a shoulder bag, a 128GB SD card, a USB card reader, a landing pad, strobe lights, and a screwdriver kit. For someone buying their first mapping drone, this one-box solution eliminates multiple shopping trips. The core drone itself is proven — stable in wind, reliable return-to-home, and beginner-friendly flight characteristics.

The three batteries provide roughly 60 minutes of total flight time, enough for a couple of grid missions on a 5–10 acre site. The RC 2 controller with the built-in screen is included, and the omnidirectional obstacle sensing adds confidence for automated waypoint flights. The drone consistently receives praise for its video and photo quality straight out of the camera, which makes it suitable for quick visual mapping of property boundaries and crop canopy health.

The downsides mirror the Mini 4 Pro: no mechanical shutter, no RTK support, and GPS-only positioning. Additionally, the bundle items — particularly the backpack and strobe lights — are widely described as cheap and poorly made. The landing pad is too small for safe takeoff in tall grass, and some users received generic SD cards instead of the advertised Samsung brand. For the mapping-specific buyer, the drone is the only thing worth the money.

Check Price on Amazon

The DJI Avata Pro-View Combo is a first-person-view drone built for close-quarters inspection, not wide-area mapping. Its 155-degree super-wide FOV and built-in propeller guard make it ideal for flying inside infrastructure — bridges, tunnels, industrial tanks, and building facades. The 4K stabilized video from the 1/1.7-inch sensor is smooth enough to capture detailed visual data for structural assessment.

The Goggles 2 and Motion Controller combination provides an intuitive, hands-free control experience that allows you to focus on navigating tight spaces. The DJI O3+ video transmission delivers an HD live feed up to 10 kilometers, though in practice the range inside structures is far less. The 18-minute flight time is short, but the drone’s agility and crash tolerance make it more productive in confined environments than a larger mapping drone.

This drone is not built for photogrammetry. The rolling shutter and fisheye-like distortion from the wide-angle lens make it unsuitable for creating orthomosaics or 3D models without heavy preprocessing. Battery charging is slow — a full charge takes over 4 hours, and the flight time-to-charge ratio is poor. For mapping applications that require precise spatial data, look elsewhere. For visual inspection of inaccessible areas, it excels.

Check Price on Amazon

This variant of the Autel EVO II Pro V3 ships with the same 1-inch Sony CMOS sensor and mechanical shutter as the Rugged Bundle, but includes only two batteries and a hard plastic case instead of three. The key selling point remains — no geofencing. For mapping pilots who work in remote or restricted areas where DJI’s geo-zone system would block takeoff, Autel puts the responsibility on the pilot to fly legally.

The 12-bit DNG capture and Moonlight Algorithm 2.0 (up to ISO 44000) give you flexibility for low-light mapping, and the tri-band SkyLink 2.0 transmission maintains a stable signal up to 15 kilometers. The Smart Controller SE with its 6.4-inch OLED display is included, and users who fly autonomous missions via Autel Explorer report reliable grid execution and waypoint navigation. The 40-minute flight time per battery is competitive with the DJI Mavic 3 series.

The two-battery configuration is limiting for large mapping projects. You will need to buy additional batteries, and the charging system still takes hours to replenish a depleted pack. The digital zoom on the telephoto camera gets grainy quickly, and the obstacle avoidance system does not detect power lines or thin cables. For surveyors who need unrestricted access and open architecture, this is a strong pick.

Check Price on Amazon

The Sunseeker S4 is not a flying drone — it is a robotic lawn mower included here because its mapping technology is directly relevant to readers researching autonomous ground mapping. The Vision AI plus 360-degree 3D LiDAR navigation system creates a detailed 3D point cloud of your lawn in minutes, establishing a centimeter-level map without GPS. The wire-free virtual boundary feature eliminates the need for buried perimeter cables.

The 10 TOPS AI chip processes LiDAR point-cloud data and vision input in real time, enabling the mower to navigate around moving pets, garden furniture, and narrow passages under tree canopies. The 42% slope rating handles uneven terrain, and the systematic parallel cutting pattern is analogous to grid-like mapping missions. The app allows you to drive the mower manually to generate the initial 3D map — a workflow similar to survey-grade drone mapping.

For dedicated aerial photogrammetry work, this product does not replace a drone. Its cutting width is only 7 inches, coverage is limited to 0.25 acres, and the mowing function is its primary purpose. If you are looking for a ground-based mapping companion to complement your aerial surveys for property documentation, it is worth considering. Otherwise, this sits as an outlier in a drone-focused guide.
