Finding a bathtub that lets you actually submerge your shoulders without resting your knees on the far wall is harder than most homeowners expect. The ceiling on standard alcove tubs sits at a measly 14-inch water depth, leaving even average-height adults half-exposed to the cold air. That’s why the drop-in category exists: you build a surround to your exact height, freeing the tub body to go deeper without worrying about step-over clearance. The trade-off is that the surround, the framing, and the tile work all fall on you or your contractor — so the quality and shape of the tub shell itself become the foundation of the entire installation.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend my time digging into the structural differences between acrylic reinforcement methods, actual internal dimensions versus external envelope numbers, and the warranty language that separates a legitimate soaker from a glorified wash basin.
Every model reviewed here was selected for its published soaking depth, material rigidity, and drain configuration flexibility. Whether you need something compact for a 54-inch rough opening or a 60-inch-wide deep soak behemoth, the drop-in tub you pick sets every downstream decision — from deck height to faucet reach to water heater capacity.
How To Choose The Best Drop-In Tub
Drop-in tubs are less constrained by step-over height than alcove or freestanding models, so the manufacturer can push the internal water depth much further. That freedom makes soaking depth the single most important figure — but manufacturers often hide the real water depth behind the overflow opening or use external dimensions to make a tub seem larger than its usable basin. Understanding the interplay between material, internal shape, and drain layout prevents the expensive mistake of ordering a tub that looks big on paper but leaves your shoulders dry.
Soaking Depth vs. Overall Tub Height
A tub might stand 21 inches tall externally, but the water depth to the overflow could be as shallow as 14 inches. The difference is the thickness of the bottom, the slope of the floor toward the drain, and the vertical position of the overflow hole. For a true soaking experience, look for a water depth of at least 15 inches from the overflow to the floor of the tub — ideally 17 inches or more if you are over 5 feet 10 inches. Be prepared to set the tub in mortar or thinset, which adds roughly 1 inch to the finished floor height inside the basin but also improves heat retention and prevents flex cracking.
Material Rigidity and Reinforcement
Most drop-in tubs are vacuum-formed acrylic sheet backed by hand-laid fiberglass and resin. The thickness of the fiberglass layers and whether the manufacturer uses strand mat or chopped strand directly affects how much the walls flex under a full load of water plus a bather. A tub that bows noticeably during a soak will eventually develop stress cracks at the corners or around the drain. Models with adjustable metal legs or integrated support rails add a secondary structural path that takes weight off the acrylic shell itself — a feature worth prioritizing if you plan to fill the tub near its capacity of 70-plus gallons.
Drain Configuration and Rough-In Alignment
Drop-in tubs give you more flexibility than alcove models, but you still need to match the drain position to your existing plumbing or budget for a rough-in relocation. Left-hand drain, right-hand drain, and reversible drain are the three common configurations. A reversible drain — where the overflow and waste assembly can be installed on either side — saves significant subfloor work if you are swapping into an existing footprint. Also verify whether the manufacturer sells the drain separately or includes a compatible overflow plate: some premium models require proprietary drain kits that are hard to source locally.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Kohler Underscore 20201-LA-0 | Alcove | Deep soak in standard 60×30 footprint | 19 in step-over with integral flange | Amazon |
| American Standard Evolution 2422V002 | Drop-In | Deepest soaker for compact bathrooms | 74 gal capacity, dual armrests | Amazon |
| American Standard Evolution 2771V002 | Drop-In | High-volume soak with wide deck | 87 gal, 60×36 footprint | Amazon |
| PROFLO PFS6042A Lansford | Drop-In | Generous width for two-person comfort | 60×42 in, 60 gal, reversible drain | Amazon |
| Kingston Brass Aqua Eden VTAP603622L | Alcove | Wide 36-inch alcove with deep water depth | 60.85 gal, 14.375 in water height | Amazon |
| Swiss Madison SM-AB555 72×36 | Alcove | Extra-long deck with integrated armrests | 72 in length, 76 gal, right-hand drain | Amazon |
| Fine Fixtures B104-NEW | Drop-In | Slip-resistant floor for safety | 60×30 in, 60 gal, slip-resistant interior | Amazon |
| Fine Fixtures BTA102-L | Alcove | 5-year warranty alcove with lumbar support | 60×32 in, 58 gal, sloped lumbar | Amazon |
| Kingston Brass Aqua Eden VTAP543022L | Alcove | Compact 54-inch layout for tight spaces | 54 in length, 55.6 gal, left-hand drain | Amazon |
| Swiss Madison SM-DB570 60×36 | Drop-In | Reversible drain with no tile flange | 60×36 in, 60 gal, 15.5 in depth | Amazon |
| Swiss Madison SM-DB560 60×30 | Alcove | Best value for standard 60×30 alcove replacement | 60×30 in, 56 gal, integrated tile flange | Amazon |
In‑Depth Reviews
1. Kohler Underscore 20201-LA-0
The Kohler Underscore is engineered around a 19-inch step-over height that retains the same internal depth as standard 21-inch tubs — a deliberate design choice that makes entry safer without sacrificing soak quality. The acrylic shell is backed by a rigid fiberglass substrate that resists flexing, and the integral flange simplifies alcove installation by preventing water intrusion behind the wall. At 68 gallons, it demands a robust water heater, but the slotted overflow allows a deeper fill than traditional overflow plates.
Molded lumbar support runs the full length of the backrest, which keeps your spine aligned during extended soaks. The left-hand drain position and requirement for a K-7271 or K-7272 Clearflo drain (sold separately) add a small coordination step before installation. Several owners report that the glossy finish chips if hard objects drop on it, so care during the tile surround phase is essential.
For a 60×30 alcove footprint, this is the most thoughtfully engineered shell available. The support base — either a mortar bed or the Kohler-recommended foam foundation — must be executed precisely to avoid stress cracks from the weight of a full tub. Contractors familiar with Kohler installs note that the integral flange eliminates the need for a separate waterproofing membrane at the wall/tub junction.
What works
- Smart 19-inch step-over height for easier entry
- Molded lumbar support for posture during long soaks
- Integral flange simplifies wall waterproofing
What doesn’t
- Proprietary drain kit required, sold separately
- Glossy acrylic chips more easily than fiberglass-reinforced alternatives
- High water capacity may need water heater upgrade
2. American Standard Evolution 2422V002.020
The American Standard Evolution 2422V002 delivers one of the deepest soaking experiences available in a 60×32 drop-in format, with a 74-gallon capacity that translates to roughly 17 inches of water depth to the overflow. The acrylic shell is reinforced with fiberglass and features dual molded-in armrests that keep your arms from floating uncomfortably. The reversible drain orientation makes it straightforward to align with existing plumbing without rerouting the waste line.
Owners consistently note that the tub must be set in a mortar bed for stability and heat retention — the bottom is pre-leveled, but unsupported spans will flex under the weight of a full soak. The limited lifetime warranty on the acrylic shell is a strong indicator of material confidence, though the finish can show scratches from abrasive cleaners. The lack of an integral tile flange means the tiled surround needs a separate waterproofing layer.
For users under 5 feet 10 inches, the internal width provides a comfortable recline with the sloped backrest. Taller bathers may find the 32-inch width restrictive at the shoulders. The deep soak drain system (Deep Soak Max Drain) must be ordered separately, and the faucet holes are spaced for a Roman tub trim — standard widespread faucets may not cover the deck punch-outs without modification.
What works
- Exceptional soaking depth for a compact footprint
- Reversible drain for flexible rough-in alignment
- Limited lifetime warranty on the acrylic shell
What doesn’t
- Narrow internal width limits shoulder room for taller users
- No integral tile flange; requires separate waterproofing
- Deep Soak Max Drain must be purchased separately
3. American Standard Evolution 2771V002.020
The American Standard Evolution 2771V002 expands on the 2422 design by stretching the width to 36 inches and bumping the capacity to 87 gallons — making it one of the highest-volume drop-in tubs available without moving to a custom fiberglass unit. The fiberglass-and-plastic composite shell is heavier than pure acrylic models, which contributes to a more solid feel under load. The 60×36 footprint fits into a standard drop-in deck opening, but the internal basin is noticeably smaller than the external dimensions suggest.
Multiple reviews point out that the interior basin measures roughly 48×30 inches, which can feel cramped for anyone over 6 feet tall. The backrest angle is not reclined enough for full relaxation according to some owners, and the molded armrests sit farther forward than expected. The absence of a tiling flange means the deck installation must include a separate waterproofing membrane at the tub edge.
The Structo-lite base reinforcement helps the shell resist cracking, but the tub still requires a full mortar bed for proper support. The separate drain system is not included, and the faucet hole spacing requires a standard 8-inch widespread faucet. For users who prioritize water volume and width over internal contouring, this model delivers a deep soak experience that few competitors match in the same price tier.
What works
- Massive 87-gallon capacity for deep full-body immersion
- 36-inch width provides generous shoulder clearance
- Structo-lite reinforcement reduces flex and cracking risk
What doesn’t
- Internal basin significantly smaller than outer dimensions
- No tiling flange; requires separate waterproofing
- Backrest angle not suitable for long reclining soaks
4. PROFLO PFS6042A Lansford 60×42
The PROFLO Lansford is a 60×42-inch drop-in soaker that prioritizes width over length, making it one of the few tubs in this category that accommodates two bathers or a single tall person who wants to stretch diagonally. The acrylic shell with reinforced composites is backed by a 5-year warranty — five times the industry standard — and every unit is factory-tested before shipment. The reversible drain allows for left or right configuration without modifying the subfloor.
Owners rave about the indented arm and leg rests that create a natural reclining position, and the 60-gallon capacity provides a water depth that reaches the neck for average-height users. The tub arrives without an apron, so it requires a finished deck on all four sides. Some buyers note that the fiberglass surface scratches easily during cleaning and that the bottom slope is insufficient for complete drainage, leaving a small puddle that needs to be squeegeed out.
The sheer width demands a deck opening that most standard 60-inch surrounds cannot accommodate. Contractors should plan for a reinforced subfloor to handle the 90-pound empty weight plus roughly 500 pounds of water. For a luxury master bath where deck space is generous, the Lansford provides a soaking experience that rivals much more expensive custom units.
What works
- Exceptional 42-inch width for spacious shoulder clearance
- Indented arm and leg rests for natural reclining posture
- 5-year factory warranty with pre-shipment testing
What doesn’t
- Surface scratches easily during routine cleaning
- Insufficient bottom slope leaves residual water puddle
- No apron; requires custom deck on all sides
5. Kingston Brass Aqua Eden VTAP603622L 60×36
The Kingston Brass Aqua Eden VTAP603622L is a 60×36-inch three-wall alcove tub that uses acrylic reinforced with fiberglass and resin — a construction method that yields a glossy, impact-resistant surface with minimal flex. The water depth to the overflow is 14.375 inches, which is on the shallower side for the category, but the 36-inch width provides generous elbow room that compensates for the moderate depth. The left-handed drain orientation is fixed, so verify your rough-in before ordering.
Owners consistently praise the packaging and delivery experience, with many reporting next-day arrival and zero damage. The anti-slip layer molded into the floor is a rare inclusion that eliminates the need for adhesive stickers. The thin edge shelf around the perimeter is about 3 inches wide — enough for a bar of soap but not for holding a book or tablet. Installation requires 6 to 8 bags of thinset mortar to create a stable base; owners who skipped the mortar reported significant flex under full water load.
The Aqua Eden line has been on the market long enough to accumulate data on long-term durability. Multiple 1-year and 2-year follow-up reviews report no cracking, warping, or gloss degradation, suggesting the fiberglass resin matrix holds up well under standard use. The absence of a tile flange means the wall-tub junction needs separate sealing.
What works
- Wide 36-inch deck for comfortable shoulder space
- Molded anti-slip floor layer for safety
- Consistent long-term durability from fiberglass resin reinforcement
What doesn’t
- Water depth limited to 14.375 inches to overflow
- Fixed left-handed drain; not reversible
- Requires extensive thinset mortar base for stability
6. Swiss Madison SM-AB555 72×36
The Swiss Madison SM-AB555 extends the alcove format to 72 inches, making it the longest model in this lineup and a strong option for tall bathers who want full leg extension without diagonal positioning. The fiberglass-reinforced acrylic shell includes a pre-installed apron and integrated armrests that stabilize the upper body during a soak. At 76 gallons, it requires a substantial water heater capacity, but the 15-inch soaking depth provides true full-body immersion for most users.
The right-hand drain configuration is fixed, which limits compatibility with existing left-drain rough-ins. Owners of the black matte finish report that it shows every speck of body oil, soap residue, and dead skin, requiring a wipe-down after every single use to maintain the aesthetic. The glossy white version avoids this maintenance issue entirely. The tub arrived well-packaged in most reports, with early delivery being common.
The 1-year limited warranty is shorter than the competition, which gives some buyers pause given the investment level. The sheer length also means the tub occupies a full 6-foot wall section, which may crowd adjacent fixtures in a standard bathroom layout. For a dedicated wet room or a large master bath, the 72-inch deck creates a luxurious lounging soak that shorter tubs cannot match.
What works
- 72-inch length accommodates tall bathers with full leg extension
- Integrated armrests and pre-installed apron simplify installation
- Deep 15-inch soak depth for full immersion
What doesn’t
- Black matte finish shows all residue and requires constant cleaning
- Fixed right-hand drain limits rough-in flexibility
- Short 1-year warranty compared to category standards

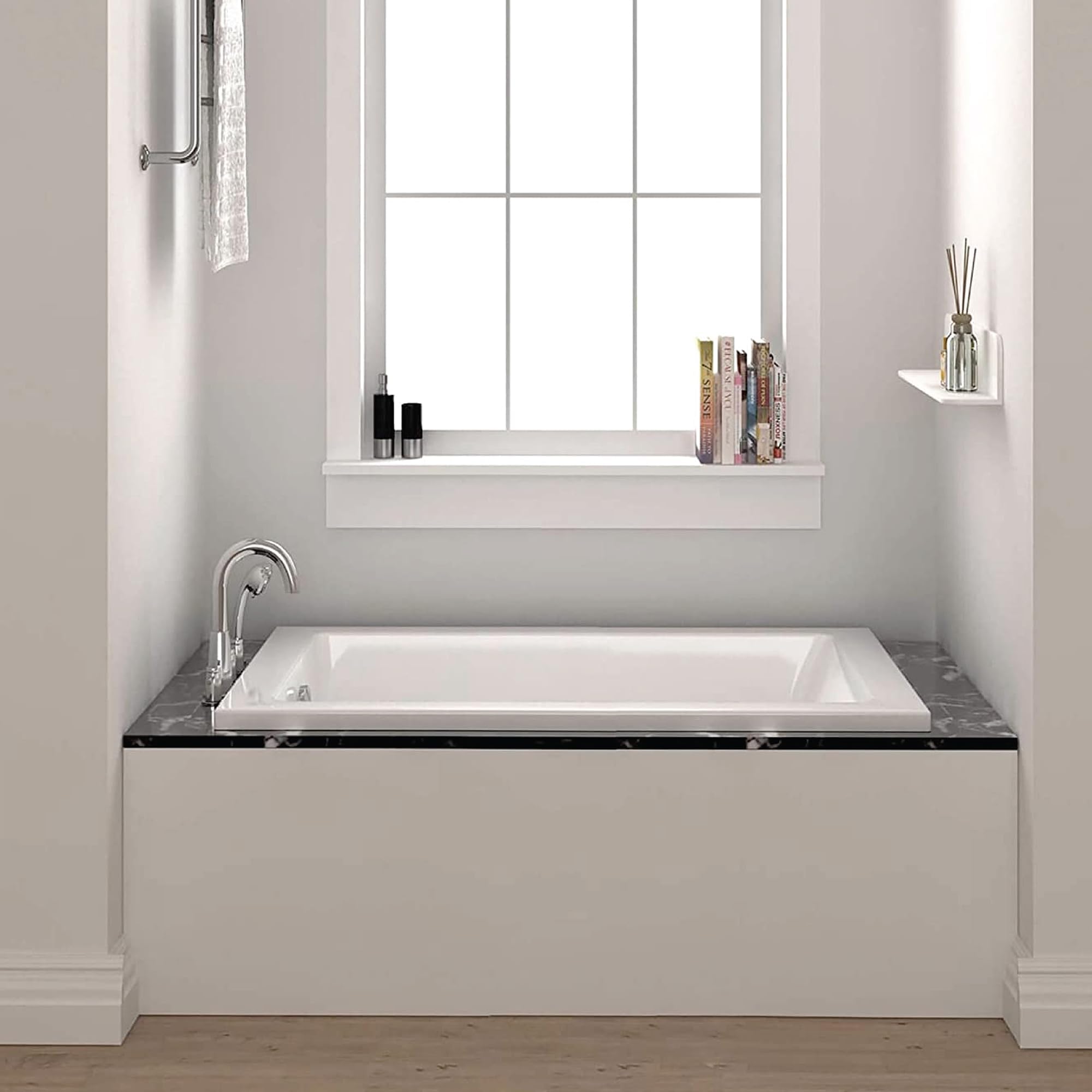

7. Fine Fixtures B104-NEW 60×30 Drop-In
The Fine Fixtures B104-NEW is a 60×30 drop-in that focuses on safety and versatile placement, with a slip-resistant textured floor that provides secure footing without adhesive strips. The acrylic fiberglass construction feels lighter than many competitors at 55 pounds, making it easier for a two-person crew to maneuver into position. The side bathtub drain allows it to be configured for either right or left orientation depending on how the tub is rotated during installation.
The 60-gallon capacity paired with a 19-inch overall height suggests a decent soaking depth, though the overflow position is not published in the spec sheet — measure the actual overflow opening height upon delivery. Customers report that the smooth glossy finish is easy to clean and resists staining from bath salts and oils. The drop-in format means the tub has no apron, so it relies entirely on the deck surround for structural support.
Fine Fixtures includes a 5-year limited warranty, which is above average for this price tier. The tub does not come with a faucet or drain, but the side-drain flexibility reduces the chance of a rough-in mismatch. For a straightforward drop-in replacement where safety texture is a priority, this model delivers reliable performance without premium pricing.
What works
- Slip-resistant floor texture for safe entry and exit
- Lightweight shell makes handling and positioning easier
- 5-year limited warranty for long-term coverage
What doesn’t
- Exact soak depth to overflow not published in specs
- No apron; relies entirely on deck surround for support
- Faucet and drain not included in the box
8. Fine Fixtures BTA102-L 60×32 Alcove
The Fine Fixtures BTA102-L is a 60×32 alcove tub that combines an integral apron front with a pre-fixed tile flange, reducing the number of waterproofing steps during installation. The acrylic fiberglass shell is designed with a sloped lumbar support section that reduces lower back strain during extended soaks, and the 58-gallon capacity provides a respectable water depth for a standard alcove footprint. The left-hand drain is fixed, so confirm your rough-in before buying.
Buyers consistently describe the finish as bright and glossy, with one contractor noting that the fiberglass side panel is solid without the thin metal reinforcement bars found on some competitors. The adjustable legs at the base allow for leveling on uneven subfloors before the mortar bed is applied. The 5-year limited warranty covers manufacturing defects, which is longer than what many larger brands offer on their alcove models.
The built-in ledge for toiletries is a thoughtful addition, but the ledge width is narrow — enough for a washcloth but not for a bottle of shampoo. The tub is designed for a three-wall alcove installation, so the unfinished side will need to be tiled or covered by the surround. For a straightforward alcove replacement with lumbar comfort, this model delivers consistent quality at a mid-range price point.
What works
- Sloped lumbar support reduces back strain during soaking
- Pre-fixed tile flange simplifies wall waterproofing
- Adjustable legs for leveling on uneven subfloors
What doesn’t
- Fixed left-hand drain limits rough-in flexibility
- Toiletries ledge is narrow and cannot hold bottles
- Unfinished side must be tiled or covered by surround
9. Kingston Brass Aqua Eden VTAP543022L 54×30
The Kingston Brass Aqua Eden VTAP543022L is engineered for tight spaces where a full 60-inch tub will not fit, squeezing a 55.6-gallon deep soak into a 54×30-inch alcove footprint. The acrylic fiberglass-reinforced shell features a 14.375-inch water depth to the overflow, which is deeper than many full-length tubs and provides genuine immersion for shorter bathers. The left-hand drain is fixed, so plumbing alignment must be confirmed before purchase.
Contractors who installed this model report that the fiberglass reinforcement is thicker than expected for the price, with adjustable metal feet that simplify leveling. The glossy white finish on all exposed sides allows the tub to work in alcove configurations where the apron is visible. The ergonomic contour includes a sloped back that supports a semi-reclined position, though the 30-inch width means elbow room is limited for broader users.
Some owners reported that blemishes appeared on the surface over the course of a year, and the manufacturer was slow to respond to warranty claims. Inspecting the finish carefully upon delivery and documenting any defects immediately is recommended. For a small bathroom or a cabin where floor space is at a premium, this tub delivers a deep soak that outperforms most standard 60-inch alcove models in terms of immersion.
What works
- Compact 54-inch footprint fits where 60-inch tubs cannot
- Thick fiberglass reinforcement with adjustable leveling feet
- Deep water depth for genuine immersion in a small space
What doesn’t
- Fixed left-hand drain limits rough-in flexibility
- Finish blemishes reported after extended use
- Narrow 30-inch width restricts shoulder room
10. Swiss Madison SM-DB570 60×36 Drop-In
The Swiss Madison SM-DB570 is a 60×36 drop-in tub that omits the tile flange entirely, making it a true deck-mount shell that sits flush with the surrounding surface. The reversible drain offers full left/right flexibility, and the fiberglass-reinforced acrylic construction keeps the weight down to 75 pounds — manageable for a two-person carry. The 15.5-inch soaking depth is published clearly, which is a welcome transparency in a category where dimensions are often obfuscated.
Owners describe the finish as beautifully glossy and note that the 60-gallon capacity provides a deep soak for most users. The tub retains heat well, though the glossy surface does attract soap scum faster than matte alternatives, requiring more frequent cleaning. One buyer reported a hairline crack in the top layer during installation that did not compromise water tightness, but it suggests the acrylic layer may be thinner than some competitors.
The drop-in format means the tub has no apron, so the deck must be built to the same height as the tub rim on all sides. The reversible drain is a genuine advantage for remodels where the existing plumbing is fixed. For a budget-friendly entry into the 60×36 drop-in category with drain flexibility, this model offers solid value if you are willing to clean the glossy surface regularly.
What works
- Reversible drain allows left or right configuration
- Lightweight 75-pound shell for easier handling
- Published 15.5-inch soak depth for informed buying
What doesn’t
- Glossy surface attracts soap scum and requires frequent cleaning
- No tile flange; deck must seal the wall-tub gap
- Thin acrylic layer may crack under stress during installation
11. Swiss Madison SM-DB560 60×30 Alcove
The Swiss Madison SM-DB560 is a 60×30 alcove tub that punches above its price tier with a 16-inch soaking depth — rare for a budget-friendly model. The fiberglass-reinforced acrylic shell includes an integrated tile flange that prevents water seepage behind the wall, and the right-hand drain is set for a standard alcove rough-in. At 156 pounds, it is one of the heavier models in this list, which reflects the thickness of the fiberglass layup rather than any metal reinforcement.
Reviews from 6-foot-tall bathers confirm that the 60-inch length allows full leg extension without bent knees, and the 30-inch width provides comfortable shoulder room for average builds. The glossy white finish has held up well in installations over one year old, with no reports of cracking or chipping under normal use. The tub does not include a faucet or drain, so factor those costs into the overall budget.
The integrated tile flange eliminates the need for a separate waterproofing membrane at the wall-tub junction, which simplifies the tile installation and reduces the risk of leaks. The 56-gallon capacity is modest compared to wider models, but the water depth means you get more immersion per gallon. For a standard alcove replacement where budget is the primary constraint, this Swiss Madison delivers the deepest soak in its price bracket.
What works
- Exceptional 16-inch soak depth for a budget-friendly price
- Integrated tile flange prevents wall water intrusion
- 60-inch length fits tall bathers with comfortable leg extension
What doesn’t
- Fixed right-hand drain limits rough-in flexibility
- Heavy 156-pound shell requires strong crew for handling
- Faucet and drain not included in the box
Hardware & Specs Guide
Acrylic vs Fiberglass Shells
Most drop-in tubs use vacuum-formed acrylic (the glossy visible surface) backed by a hand-laid fiberglass-and-resin substrate. The acrylic layer determines gloss retention and stain resistance, while the fiberglass thickness determines structural rigidity. A thin fiberglass layup — typically under 3/16 inch — will flex noticeably under a full load, increasing the risk of stress cracks at the drain hole and corner radii. Look for models that specify “fiberglass reinforced” rather than just “acrylic,” and check the weight: a 60-inch tub under 50 pounds is likely using a minimal substrate layer that requires a full mortar bed to prevent deformation.
Mortar Bed Support Requirements
Every drop-in and alcove tub in this category benefits from — and many require — a continuous mortar or thinset support base beneath the entire floor area. The mortar serves three functions: it transfers the weight of the water and bather directly to the subfloor, it prevents the acrylic floor from flexing and cracking under dynamic loads, and it acts as a thermal mass that keeps the water warm 20 to 30 minutes longer than a hollow installation. Plan for 6 to 8 bags of pre-mixed thinset for a standard 60×30 tub. Skip this step and many warranties become void the moment a crack appears.
Overflow Height and Water Depth
The single most misleading number on a tub spec sheet is the overall height. A 21-inch-tall tub may only hold 14 inches of water before the overflow engages, because the bottom is sloped toward the drain and the overflow opening sits several inches below the rim. Always look for the “water depth to overflow” number — this is the actual soaking depth you will experience. For a true deep soak, aim for 15 inches minimum; 17 inches or more qualifies as a deep soaker. If that number is not published, estimate it by subtracting 4 to 6 inches from the internal height or 6 to 8 inches from the overall height.
Drain Configuration Options
Drop-in tubs typically offer three drain configurations: left-hand, right-hand, or reversible. Left and right are determined by facing the tub from the front — the drain side corresponds to the direction the waste and overflow assembly exits. Reversible drains use a symmetrical overflow plate that can be installed on either side, giving you critical flexibility when replacing an existing tub without moving the subfloor plumbing. Alcove tubs are almost always fixed-direction because the apron and integral flange lock the orientation. Confirm your drain side before ordering, and verify whether the manufacturer includes a compatible overflow assembly or requires a separate purchase.
FAQ
What is the minimum soaking depth I should look for in a drop-in tub?
Can a drop-in tub be installed without a mortar bed?
What is the difference between a drop-in tub and an alcove tub for the same footprint?
How do I know if my water heater can handle a deep soak tub?
Why do some drop-in tubs require a separate drain purchase?
Final Thoughts: The Verdict
For most users, the drop-in tub winner is the American Standard Evolution 2422V002.020 because it delivers a 74-gallon true deep soak in a manageable 60×32 footprint with reversible drain flexibility and a limited lifetime warranty. If you want the most spacious width for two-person comfort or diagonal lounging, grab the PROFLO PFS6042A Lansford with its 42-inch deck and 5-year factory warranty. And for a compact replacement where a full 60-inch tub will not fit, nothing beats the Kingston Brass Aqua Eden VTAP543022L for its deep 55.6-gallon soak packed into a 54-inch alcove footprint.
