The fine, airborne gypsum and silica particles from sanding drywall compound are among the most pervasive and hazardous dusts in any renovation. Unlike sawdust, drywall dust stays suspended in the air for hours, coats every surface in a fine white haze, and bypasses standard shop vac filters to blow straight back into your breathing zone. A proper vacuum for this task requires a sealed HEPA filtration system, high static lift to capture dust at the source, and a dust containment strategy that minimizes filter clogging.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. My market analysis focuses on how filtration efficiency, airflow dynamics, and dust separation technology separate a true drywall dust vacuum from a standard wet/dry vac that just recirculates the problem.
To help you finish your next taping and sanding job with zero airborne fallout and a filter that still pulls air, I’ve broken down the specific specs and real-world performance of the current market leaders. This is your detailed guide to finding the best drywall dust vacuum for your specific job site demands.
How To Choose The Best Drywall Dust Vacuum
Choosing the wrong vacuum for drywall sanding means breathing hazardous dust, spending more time cleaning the filter than the room, and possibly contaminating your entire job site. The right system pairs a high-efficiency particulate air (HEPA) filter with sufficient static lift to pull dust through a long hose, and often a pre-separator to handle the volume.
HEPA Filtration is Non-Negotiable
Drywall dust particles range from 0.5 to 10 microns. Standard cartridge filters stop visible debris but let the smallest, most lung-penetrating particles pass through. A true HEPA H-13 filter captures 99.97% of particles at 0.3 microns. If the vacuum does not have a sealed HEPA system, it is not suitable for drywall work. The DEWALT DWH161B and the Shop-Vac 12 Gallon Ultra Quiet both offer certified HEPA-grade filtration that keeps the exhaust air cleaner than the ambient room air.
Cyclone Pre-Separation Extends Filter Life
Without a pre-separator, a standard shop vac filter will clog solid after sanding two sheets of drywall. A cyclone separator spins the heavy dust into a collection bin before it reaches the main filter, maintaining full suction for hours. The Cen-Tec Systems Quick Click Separator is a dedicated add-on that converts any shop vac into a drywall-ready system with minimal airflow loss. For permanent setups, vacuums with bagged systems, like the DEWALT STEALTHSONIC DXV05S-QT, also reduce filter loading.
Airflow and Static Lift
For drywall dust extraction at the source, static lift (measured in inches of water lift or kPa) is more important than raw CFM. You need enough lift to pull dust through a 15- to 20-foot hose without losing velocity. The WEN DW5062 sander pairs its own 5-amp motor with a 15-foot hose, while the Seesii wall-mounted unit delivers 19 kPa of suction. Look for at least 50 CFM at the tool end for effective source capture.
Capacity and Mobility
A 5-gallon tank fills quickly with joint compound dust from a single room. Larger capacities, like the 12- or 16-gallon tanks from Shop-Vac and DEWALT, reduce the frequency of emptying. For overhead sanding, a lightweight cordless extractor like the DEWALT DWH161B allows you to carry the filter unit on a belt, but its dust box fills fast. Balance your tank size against your mobility needs and whether you are working in a single room or moving through a whole house.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| DEWALT DXV16P-QTA | Premium | Heavy-Duty Jobsite | 135 CFM, 6.5 HP, 16 Gal | Amazon |
| Shop-Vac 5430098 | Mid-Range | Quiet Operation | 108 CFM, 5.5 HP, 12 Gal | Amazon |
| DEWALT DXV05S-QT | Premium | Home Renovation | 4 HP, 5 Gal, 50% Quieter | Amazon |
| DEWALT DWH161B | Premium | Cordless Mobility | HEPA, 20V MAX, 23 CFM | Amazon |
| Shop-Vac 9522205 | Mid-Range | Wall-Mounted Storage | 5.5 HP, 5 Gal, 18 Ft Hose | Amazon |
| WEN DW5062 | Mid-Range | Dedicated Drywall Sander | 5 Amp, 600-1500 RPM | Amazon |
| Seesii Wall Mount | Mid-Range | Cordless Versatility | 19 kPa, 6.6 Gal, 30 Ft Hose | Amazon |
| Cen-Tec Systems 98438 | Accessory | Cyclone Pre-Separator | 2.25″ Inlet, 5 Gal Bucket | Amazon |
| EyeVac Air | Specialty | Touchless Floor Sweeping | 1000W, HEPA H-13 | Amazon |
In‑Depth Reviews
1. DEWALT 16 Gallon STEALTHSONIC DXV16P-QTA
The DEWALT STEALTHSONIC DXV16P-QTA is the most capable drywall dust vacuum on this list, combining a massive 16-gallon capacity with 135 CFM of airflow and 6.5 peak horsepower. The noise reduction technology cuts perceived volume by 50%, making it tolerable for full-day sanding without hearing fatigue. The 2.5-inch crush-resistant hose maintains high velocity over distance, and the onboard cord and hose wraps keep the job site organized.
For drywall dust, the washable cartridge filter paired with a disposable dust bag creates a dual-stage system that clogs far slower than a filter alone. Users report that the suction remains consistent through multiple rooms of sanding. The four casters and relatively lightweight poly tank make it easy to pull through doorways, though the 20-foot cord occasionally requires a cord reel for large spaces.
This is a jobsite-grade unit built for professionals who need to sand dozens of sheets without stopping. The quiet motor also makes it the best choice for occupied homes where noise is a concern. The 16-gallon tank rarely needs emptying mid-job, which is the single biggest productivity advantage over smaller 5-gallon units.
What works
- Extremely quiet for its power class, allowing conversation nearby
- 16-gallon capacity minimizes downtime for emptying dust
- 135 CFM with 2.5-inch hose handles high-volume dust extraction
What doesn’t
- Large footprint is less maneuverable in tight closets
- Plastic hose can curl in cold temperatures, pulling the unit

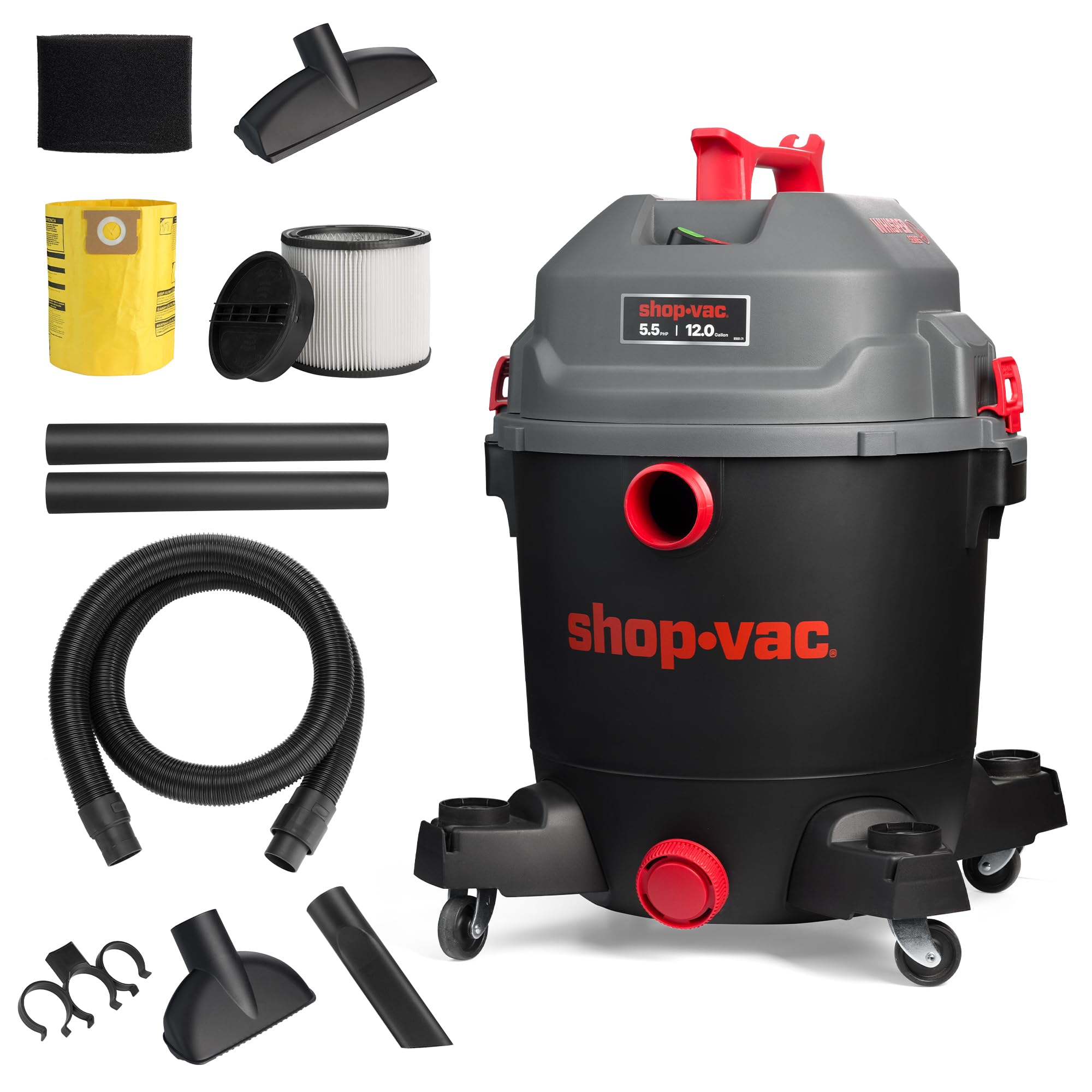

2. Shop-Vac 5430098 Ultra Quiet 12 Gallon
The Shop-Vac 5430098 runs up to 60% quieter than standard models, which is a huge advantage when sanding drywall in an occupied space. With a 5.5 HP motor and 12-gallon tank, it balances extended run time with strong suction. The 2.5-inch diameter hose delivers 108 CFM, which is more than adequate for capturing dust at the sanding head, but the 7-foot hose length means you might need an extension for large rooms.
The cartridge filter with a disposable filter bag adds a layer of protection against fine dust. Users in mobile grooming and detail shops praise the noise reduction, noting they can wear standard hearing protection and still hear conversations. The tank is plastic and relatively lightweight at 25.9 pounds, but the lack of a dedicated wall-mount bracket is a missed opportunity for a unit this quiet.
For drywall contractors who work in finished homes or multi-tenant buildings, this is the most considerate option. The 25-foot power cord provides excellent reach without extension cords, and the 2-in-1 wet/dry capability means you can also handle mud mixing spills. The primary trade-off is the short hose, which requires you to reposition the vacuum more often.
What works
- Remarkably quiet operation, 60% less noise than standard vacs
- 12-gallon capacity with filter bag extends filter life significantly
- 25-foot power cord reduces need for extension leads
What doesn’t
- Short 7-foot hose requires frequent unit repositioning
- Hose sections can separate during use until broken in
3. DEWALT 5 Gallon STEALTHSONIC DXV05S-QT
The DXV05S-QT is the compact premium option for drywall dust, offering 50% quieter operation than standard DEWALT vacs with a 4 HP motor that still provides strong suction for a 5-gallon unit. The bagged system catches dust at the entry point, preventing the pleated cartridge filter from loading with fine gypsum particles. The 360-degree non-marring casters glide smoothly on finished floors.
Users with 20 years of construction experience rank this as the best shop vac they have owned, specifically citing the bag extension system that keeps the filter clean. The 7-foot hose with two extension wands provides a 17-foot reach, adequate for a single room. The compact size means it fits under workbenches and in vehicle trunks without issue.
The main limitation is the 5-gallon tank size. For a full-house drywall project, expect to change the bag multiple times per day. This vacuum is best suited for touch-up sanding, small rooms, or contractors who prefer to empty frequently to keep the unit lightweight. The included accessories cover all basic needs, though the black hose is noted as less durable than the yellow pro hose.
What works
- Bagged system keeps the main filter clean for consistent suction
- Very quiet operation, safe for occupied homes
- Compact and lightweight with excellent mobility
What doesn’t
- 5-gallon tank fills fast with drywall dust
- Included hose feels less robust for daily pro use
4. DEWALT 20V MAX Dust Extractor DWH161B
The DWH161B is not a shop vac — it is a HEPA-rated dust extractor designed for tool-mounted dust capture on rotary hammers and sanders. With a brushless motor and 20V MAX battery platform, it delivers 23 CFM of suction at the tool. For drywall dust extraction, this unit excels when paired directly with a compatible sander or shroud, as it captures dust at the source before it becomes airborne.
It is OSHA Table 1 compliant, meaning it meets the silica dust control standard for construction. The built-in HEPA filter captures 99.97% of particles at 0.3 microns. The belt hook and strap connection points allow you to wear it on your hip, making it ideal for overhead sanding where dragging a hose from a floor-mounted vac is awkward.
The main drawbacks are the limited dust box capacity and the fixed hose design — the hose cannot be detached for cleaning or replacement. Users note that the suction is insufficient for heavy tasks like cutting tile, but for drywall sanding and surface prep, it performs exactly as designed. This is a specialist tool for professionals who prioritize mobility and source capture over raw tank capacity.
What works
- Fully cordless with a belt hook for overhead mobility
- HEPA filtration certified for OSHA Table 1 compliance
- Wireless Tool Control for remote activation
What doesn’t
- Dust box fills very quickly with drywall compound
- Fixed hose cannot be detached for service
- Not suitable for high-volume floor-level collection

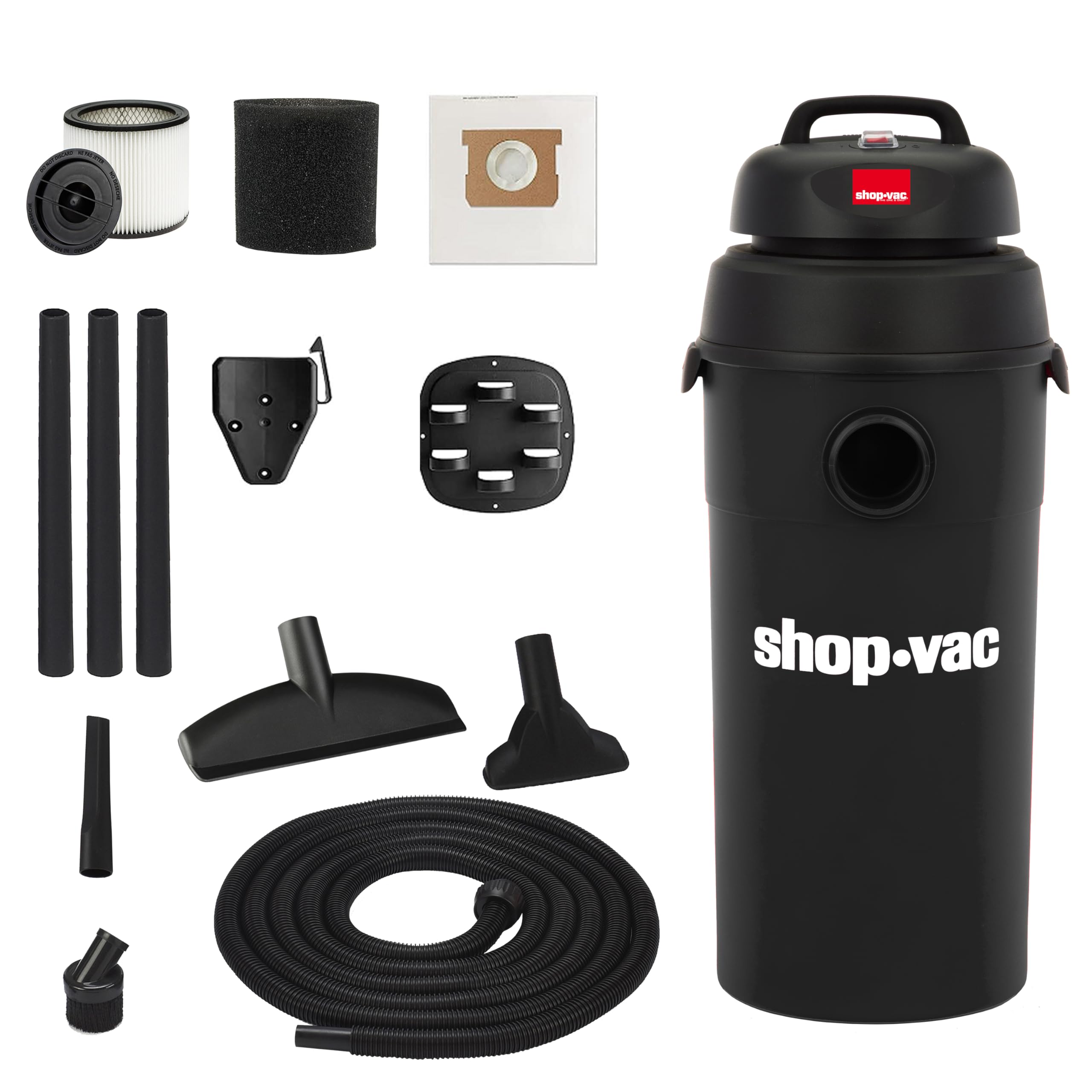

5. Shop-Vac 9522205 5 Gallon HangUp
The Shop-Vac 9522205 is a classic wall-mounted 5-gallon wet/dry vac that pairs well with a drywall sanding setup when combined with a cyclone separator. The 5.5 HP motor provides strong suction for its size, and the included 18-foot hose — unusually long for a 5-gallon unit — allows you to reach across a room without moving the vacuum. The wall-mount bracket is included and keeps the unit off the floor.
For drywall dust, the cartridge filter is adequate but will clog quickly without a pre-separator. The clear tank lets you see when it is filling, and the included filter bag adds a useful first line of defense. Users report the vacuum is loud — ear protection is mandatory — but the suction power is reliable and the build quality has been proven over 15-year ownership cycles.
This is the most cost-effective option for a dedicated wall-mount setup in a garage or workshop. The 18-foot hose and three extension wands provide excellent reach. The main downsides are the noise level and the fact that the cartridge filter alone cannot handle drywall dust without a cyclone add-on. Plan to pair with the Cen-Tec separator for drywall work.
What works
- Long 18-foot hose reduces unit repositioning
- Wall-mounted design saves valuable floor space
- Proven durability with 15-year ownership reports
What doesn’t
- Extremely loud; hearing protection is essential
- Cartridge filter clogs rapidly without a cyclone separator
6. WEN DW5062 Variable Speed Drywall Sander
The WEN DW5062 is not a vacuum — it is a dedicated drywall sander with an integrated dust collection shroud and a 15-foot dust hose. The 5-amp motor drives a 9-inch sanding pad at 600 to 1500 RPM. The improved hole pattern on the pad maximizes dust extraction through the vacuum port. This tool attaches directly to any shop vac with a 1.25-inch or 2.5-inch hose adapter.
Users report dust collection effectiveness around 98% when paired with a HEPA vacuum, which is transformative compared to hand sanding. The variable speed control lets you dial down for finish coats and up for high spots. The collapsible body makes transport and storage straightforward. The included six assorted-grit sanding discs get you started immediately.
The main complaint is weight — at 6.15 kg, it is heavy for overhead work, and users recommend taking breaks. The lack of a built-in light is a minor oversight for shadow-free sanding. For the price, this is the most efficient way to attack a drywall sanding job, but you must pair it with a proper HEPA vacuum to avoid dust recirculation. The WEN is not a standalone dust solution.
What works
- 98% dust capture rate with a HEPA shop vac
- Variable speed dial from 600 to 1500 RPM
- Reduces sanding time to a third of hand sanding
What doesn’t
- Heavy for extended overhead ceiling work
- No integrated light for spotting imperfections

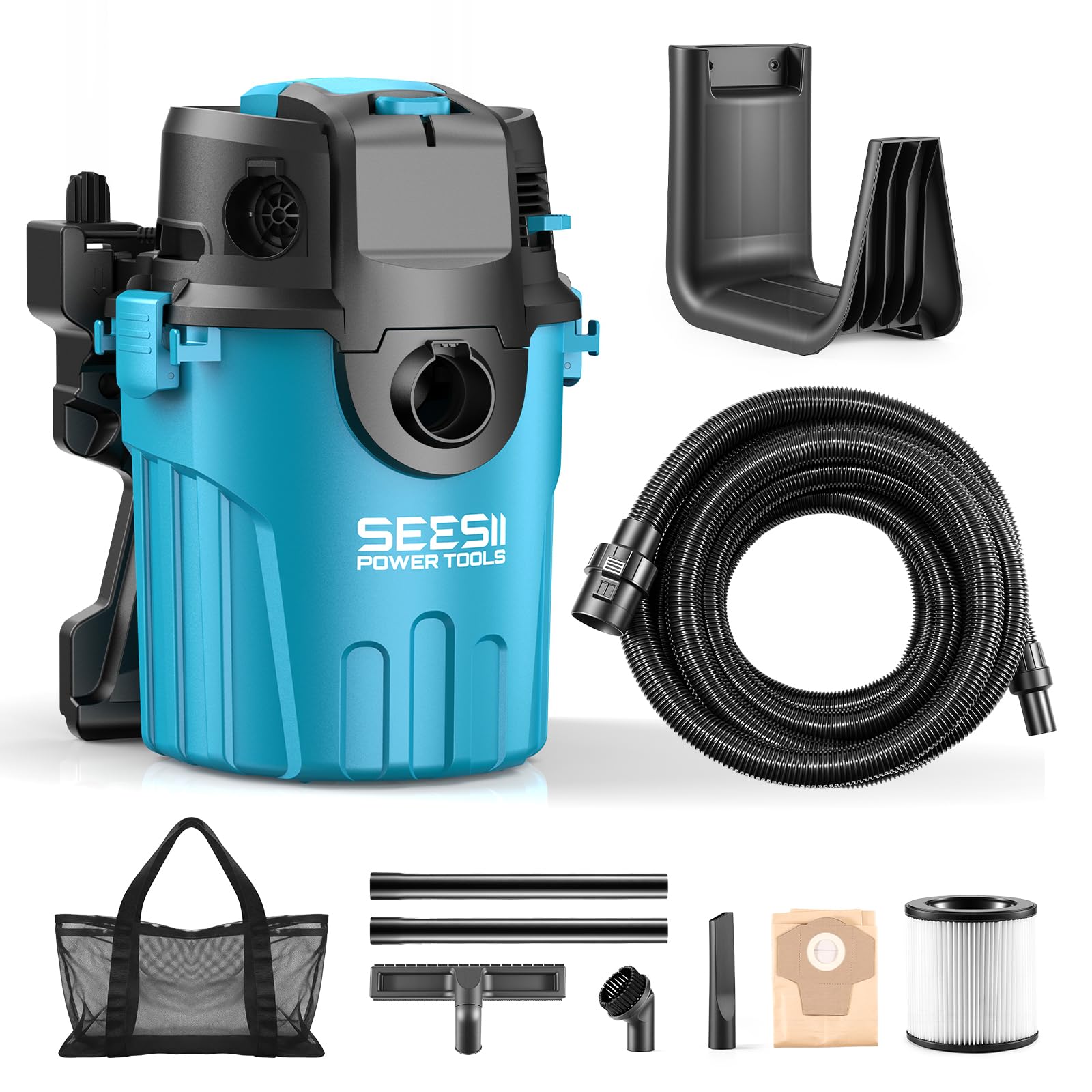

7. Seesii 6.6 Gallon Wall Mounted Shop Vac
The Seesii wall-mounted vac brings cordless convenience to drywall dust extraction with two 4Ah batteries that deliver impressive runtime. The 5.5 peak HP motor generates 19 kPa of static lift and 50 CFM, which is competitive with many corded units. The 6.6-gallon tank is larger than most cordless vacs, and the 30-foot flexible hose provides exceptional reach without repositioning.
For drywall work, the washable filter is a HEPA-grade cartridge, but the unit lacks a bagged system, meaning fine gypsum dust will load the filter over time. Users praise the strong suction for its size, but note that the attachment holder can knock off easily during transport. The two included batteries allow continuous operation by swapping packs, and the battery platform is shared with other Seesii tools.
This is the best cordless option for drywall dust extraction in spaces without power or when you need to move quickly between rooms. The wall-mount bracket saves floor space, and the compact footprint stores easily. The main trade-off is filter maintenance — without a cyclone separator, expect to wash or replace the filter frequently if sanding drywall all day.
What works
- Cordless operation with two batteries for continuous runtime
- 30-foot hose provides maximum coverage
- 19 kPa suction rivals corded units in its class
What doesn’t
- Filter requires frequent cleaning for drywall dust
- Attachment holder is not securely mounted
8. Cen-Tec Systems Quick Click Dust Separator
The Cen-Tec Systems Quick Click is a cyclone pre-separator that sits between your tool and your shop vac. It spins heavy drywall dust out of the airstream and collects it in a 5-gallon HDPE bucket with a threaded locking lid. This prevents the majority of dust from ever reaching your vacuum filter, extending filter life from minutes to hours of continuous sanding.
The full-size separator has a 2.25-inch inlet and exit, optimizing airflow for high-volume dust. The included adapter set fits most major brands of power tools, including DEWALT, Makita, Milwaukee, and Bosch. Users report collecting only a teaspoon of dust in the main vac filter after 80 linear feet of cutting, whereas previously the filter clogged after 15 feet. The ratchet-locking lid stays sealed even if the bucket tips.
This is not a standalone vacuum, but it is the single most important accessory for drywall dust management. It is assembled and tested at the factory, though one user reported an internal misorientation that was fixed in seconds. The main limitation is the lack of a 1.75-inch adapter for Ridgid vacuum hoses — a duct tape seal works, but it is not elegant. For any drywall dust application, plan to add this to your cart alongside whatever vacuum you choose.
What works
- Dramatically extends shop vac filter life during drywall sanding
- Includes broad adapter kit for most major power tools
- Threaded lid is secure and easy to empty
What doesn’t
- No adapter for 1.75-inch Ridgid hoses
- Generates static shock; a grounding wire is recommended
- Bulky in tight spaces
9. EyeVac Air 2-in-1 HEPA Purifier & Vacuum
The EyeVac Air is a stationary, touchless floor vacuum with an integrated HEPA air purifier, designed to be placed in a room where drywall dust settles. It is not a tool-mounted extraction system. Instead, it uses infrared sensors to activate a 1000W vacuum when you sweep dust near the unit, and it continuously filters the room air through a true HEPA H-13 filter and activated carbon layer.
For drywall sanding, this is a secondary cleanup device — it captures the settled dust that escapes your primary extraction system. The 4-hour purification cycle in Auto mode helps clear airborne particles after sanding stops. Users with pets report excellent capture of fine dust and hair, and the touchless activation eliminates the need to bend down with a dustpan.
This unit works on hard floors only and is best placed in the room being sanded as a continuous air scrubber. The vacuum motor is loud, but the air purifier is whisper-quiet. The canister is bagless and easy to empty. For a comprehensive drywall dust strategy, this is the final line of defense after source extraction and cyclone pre-separation, not the primary tool.
What works
- Continuous HEPA air purification reduces airborne dust
- Touchless sensor activation is convenient for sweeping
- Combined air purifier and vacuum saves counter space
What doesn’t
- Not a replacement for a tool-mounted dust extraction setup
- Vacuum is loud; air purifier is quiet
- Only effective on hard floors, not carpets
Hardware & Specs Guide
HEPA H-13 Filtration Standard
HEPA H-13 is the minimum filtration grade for drywall dust control. It captures 99.97% of particles at 0.3 microns, which includes the respirable silica and gypsum particles that cause the most health risk. Vacuums without a sealed HEPA system cannot safely handle drywall dust — standard cartridge filters let these particles pass through the motor and exhaust back into the room.
Static Lift vs CFM for Dust Extraction
Static lift (measured in inches of water lift or kPa) determines how well a vacuum pulls dust through long hoses and narrow tool ports. For drywall sanding, look for at least 60 inches of water lift (15 kPa). CFM (cubic feet per minute) matters for moving air volume, but static lift is the critical metric for capturing dust at the sanding pad before it becomes airborne.
FAQ
Can I use a standard shop vac for drywall dust?
Does a cyclone separator eliminate the need for a HEPA filter?
How often do I need to change the filter when sanding drywall?
Is a dedicated drywall sander like the WEN DW5062 better than a pole sander?
Final Thoughts: The Verdict
For most users, the best drywall dust vacuum winner is the DEWALT 16 Gallon STEALTHSONIC DXV16P-QTA because its 135 CFM airflow, 6.5 HP motor, and 16-gallon capacity handle full-house sanding projects without frequent stops, and the noise reduction makes it tolerable for all-day use. If you want the quietest setup for finished homes, grab the Shop-Vac 5430098 Ultra Quiet 12 Gallon. And for cordless mobility on belt-compatible overhead work, nothing beats the DEWALT 20V MAX Dust Extractor DWH161B.
