Factory car audio systems are designed for the average listener, not for clarity at speed. They compress dynamics, smear the soundstage, and roll off bass long before your speakers reach their potential. A standalone digital signal processor is the tool that fixes these compromises, giving you parametric EQ per channel, precise time alignment, and active crossover control that no head unit alone can match.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing DSP performance metrics, from AD converters and sampling rates to the practical differences between 10-band and 31-band equalizers, so you can match the processor to your specific vehicle layout and listening goals.
Whether you are building a full active system or just trying to salvage the sound from an OEM head unit, finding the best dsp car audio solution means understanding channel counts, crossover slopes, and how each unit handles signal summing without introducing noise.
How To Choose The Best DSP Car Audio
Choosing a DSP for your vehicle comes down to how many channels your system needs, how much control you want over the equalizer, and whether you need an integrated amplifier or a standalone processor. Focus on channel count and EQ resolution first — the rest follows from there.
Channel Count and Routing
A 6-channel DSP can handle a standard front-stage with subwoofer. An 8-channel unit opens the door to a fully active three-way front stage plus rear fill and sub. Matrix routing lets you assign any input to any output, critical for summing factory signals that have built-in crossovers. If you plan to run active, do not settle for fewer channels than your speaker count demands.
Equalizer Resolution and Filter Slopes
Parametric EQ bands per channel determine how precisely you can notch out cabin resonances. A 10-band per channel unit is adequate for basic correction; 31-band per channel allows surgical removal of peaks and dips. Crossover filter slopes — Butterworth, Linkwitz-Riley, Bessel — affect how cleanly frequencies blend between drivers. Lower slopes (12 dB/octave) sound more natural, while steeper slopes (24 dB/octave) protect tweeters better.
OEM Integration Features
Factory head units often roll off bass as volume increases and may use equalization that fights aftermarket processors. Look for features like AccuBASS, signal summing, and balanced differential inputs to restore lost low end and prevent noise. A DSP with high-level speaker inputs and automatic signal sensing simplifies installation without requiring a separate line-output converter.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| AudioControl D-6.1200 | DSP Amp | All-in-one integration | 30-band EQ + 6 x 125W RMS | Amazon |
| AudioControl DM-810 | Processor | Complex OEM builds | 10 in x 8 out matrix | Amazon |
| Hertz S8 DSP | Processor | Hi-Res audio purists | 96 kHz / 24-bit processing | Amazon |
| Rockford Fosgate DSR1 | Processor | Ford/Chrysler factory swap | 245-band EQ total | Amazon |
| Kicker 47KEY2004 | DSP Amp | Quick auto-tune setup | 40-band auto EQ | Amazon |
| DS18 DSP2.6DBT | Processor | App-based tuning | 3-band PEQ per channel | Amazon |
| Dayton Audio DSP-408 | Processor | Budget active systems | 10-band PEQ per channel | Amazon |
| Deaf Bonce DB-530DSP | Head Unit | Complete head unit swap | 31-band EQ + 4x25W RMS | Amazon |
| NVX XDSP66BT | Processor | Standalone LCD tuning | 15-band parametric EQ | Amazon |
In‑Depth Reviews
1. AudioControl D-6.1200
The AudioControl D-6.1200 is a class D amplifier and a 6-channel matrix DSP fused into one chassis. It delivers 125 watts per channel at 4 ohms and 200 watts at 2 ohms, with bridged capability delivering 400 watts per channel for subwoofer duty. The DSP side includes a 30-band graphic EQ and a 10-band parametric EQ per output channel, plus high-pass, low-pass, and band-pass crossovers with selectable 12, 18, and 24 dB/octave slopes.
AccuBASS processing is the standout feature here: it detects when the factory head unit begins rolling off low frequencies and restores them automatically. The eight high-level speaker inputs accept signal from OEM radios directly, and the GTO signal-sense turn-on eliminates the need for a remote wire in most installations. The DM Smart App provides laptop-grade control over every filter and delay parameter.
Owners consistently praise the clean power delivery and the effective OEM integration. The main trade-off is the learning curve — expect several hours of tuning with pink noise and an RTA to get the system dialed in. This unit is ideal for the builder who wants one box that handles both amplification and signal processing without compromise.
What works
- AccuBASS restores factory bass roll-off effectively
- 30-band PEQ plus 10-band PEQ per channel for deep tuning
- GTO signal sensing eliminates remote wire hassles
What doesn’t
- Tuning requires pink noise and RTA, no auto-EQ
- Large footprint at 12 x 8 x 2.1 inches

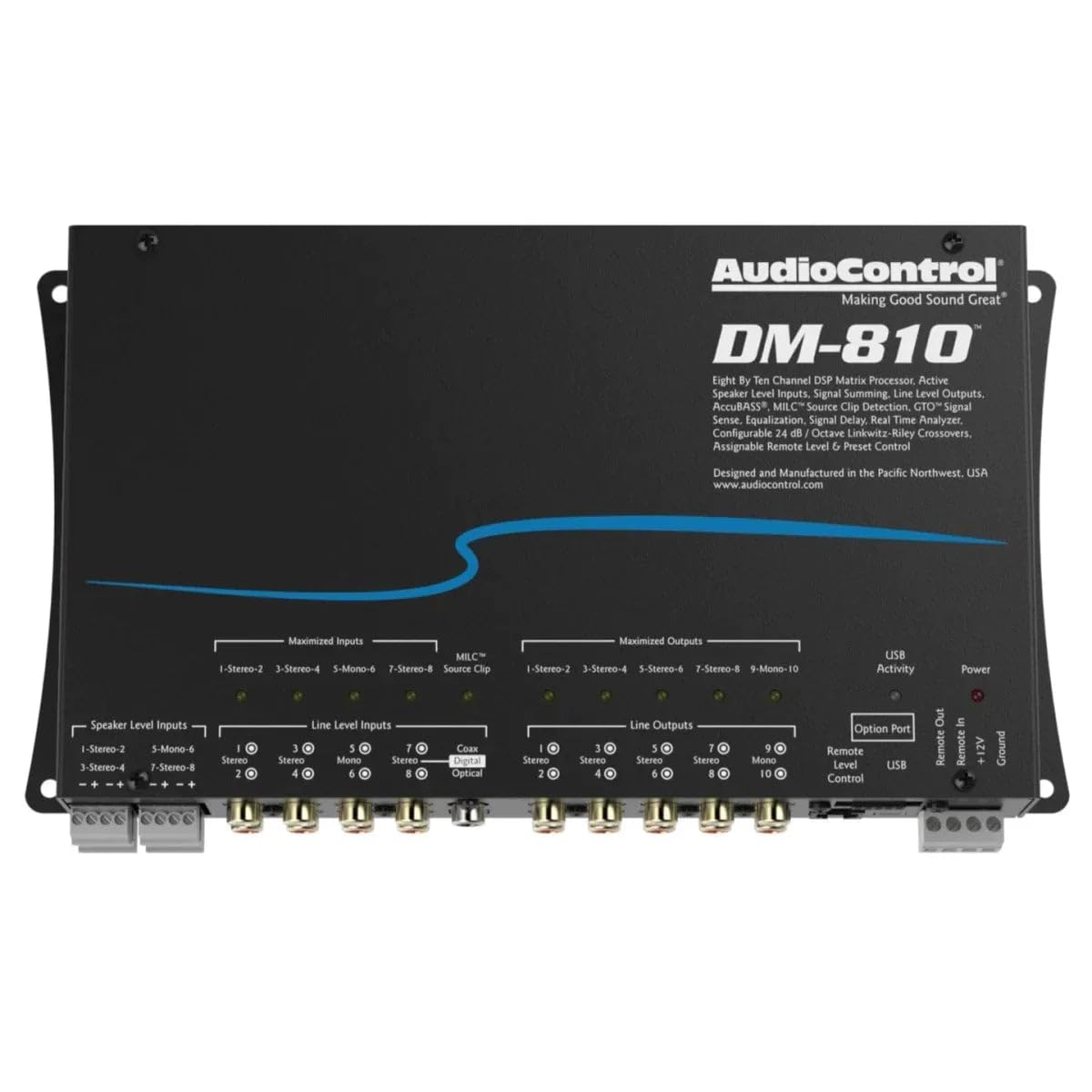

2. AudioControl DM-810
The AudioControl DM-810 is a standalone processor with 10 inputs and 8 outputs, making it the go-to choice for complex OEM integration jobs. Inputs include four sets of speaker-level inputs, four sets of RCA preamp inputs, plus S/PDIF and TOSLINK digital inputs. The 30-band graphic EQ and 10-band parametric EQ apply per output channel, and input/output RTAs allow you to visualize and sum signals from the factory radio.
AccuBASS remains the flagship feature, recovering bass that the factory radio tries to cut at higher volumes. The internal channel summing lets you combine front and rear signals into a full-range output when the factory head unit applies its own crossovers. The DM Smart App runs on a laptop and provides a clear, intuitive interface for all adjustments, though there is no standalone LCD on the unit itself.
Build quality is excellent, and the unit includes MILC (Maximum Input Level Control) with a clipping indicator to prevent distortion. The main complaint is the customer support experience, which some owners describe as difficult to reach. For the installer who needs maximum routing flexibility and factory signal restoration, this processor is hard to beat.
What works
- Matrix routing allows any input to feed any output
- Built-in RTA aids signal summing and tuning
- AccuBASS effectively restores lost low end
What doesn’t
- Customer support responsiveness is inconsistent
- No EQ presets, requires manual PC tuning
3. Hertz S8 DSP
The Hertz S8 DSP is a compact processor that processes audio at 96 kHz / 24-bit resolution and carries Hi-Res certification from the Japan Audio Society. It accepts six high/low-level analog input channels plus one SPDIF coaxial digital input, and outputs eight channels. The 32-bit DSP engine provides full parametric EQ, time alignment, and active crossover control for each output.
The SPDIF digital input is a differentiating feature — it allows direct connection to a Hi-Res music player, bypassing the factory DAC entirely for the cleanest signal path. The unit is housed in a corrosion-resistant metal and composite case, and the compact size fits easily behind a glovebox or under a seat. Bluetooth 5.0 integration enables wireless tuning via the Hertz Configurator App on iOS and Android.
Reviewers report that the S8 DSP effectively flattens an OEM signal and sums front and rear channels for a full-range output. Quality control has been inconsistent, with some units arriving with connectivity or software glitches. When it works, the sound quality is excellent, making it a strong choice for listeners who prioritize high-resolution playback.
What works
- Hi-Res certification with 96 kHz/24-bit processing
- SPDIF input bypasses factory DAC cleanly
- Very compact form factor for tight installs
What doesn’t
- Quality control issues reported by multiple buyers
- Tech support is slow and hard to reach
4. Rockford Fosgate DSR1
The Rockford Fosgate DSR1 is an eight-channel processor that integrates an iDatalink Maestro module, making it purpose-built for replacing factory amplifiers in Ford and Chrysler vehicles. It offers 245 bands of total equalization across all channels, with 31 bands per channel available for precise in-vehicle tuning. Time alignment provides up to 10 milliseconds of delay, and crossovers have selectable slopes for each output pair.
The DSP communicates via Bluetooth 4.0 for wireless tuning through the Perfect Tune app on iOS and Android. Input options include four high-level channels with signal-sense turn-on, four balanced differential inputs, auxiliary RCA, and SPDIF coaxial. The compact dimensions — 5.12 x 4.04 x 1.26 inches — allow it to tuck into tight spaces like behind factory radios.
Owners highlight the dramatic sound upgrade when paired with factory radios, especially in vehicles where the stock amp is the weakest link. The app has been noted to work better on iOS than Android, and initial firmware updates are required before the unit functions correctly. This DSP is the best option for anyone wanting to retain factory controls while upgrading to an aftermarket sound system.
What works
- Designed specifically for Ford/Chrysler factory amp replacement
- 31-band EQ per channel for deep correction
- Compact size fits behind dash easily
What doesn’t
- Android app stability lags behind iOS version
- Firmware update process is required and not intuitive
5. Kicker 47KEY2004
The Kicker 47KEY2004 is a four-channel DSP amplifier that uses automated calibration to simplify setup. Press a button, and the included microphone measures the cabin acoustics while the onboard computer applies a 40-band equalizer to correct tonality and a 24 dB/octave crossover to optimize each speaker band. The result is a dramatically improved soundstage and clarity in minutes rather than hours.
Power output is 50 watts RMS per channel at 4 ohms, enough to drive a set of quality component speakers to high output without distortion. The amplifier is compact at 10.75 x 8.5 x 2.75 inches and weighs only 2.2 pounds. Color-coded wiring simplifies installation, though signal-sense turn-on has been reported to not work consistently in some late-model Ford trucks.
Reviewers consistently describe the sound as clear and powerful, with many noting that the auto-tune reveals details in familiar music that were previously masked. The lack of manual parametric EQ control may frustrate experienced tuners, but for the majority of users who want a plug-and-play solution, this unit delivers immediate results.
What works
- Auto-EQ tunes the system in minutes via included mic
- Compact form factor fits under seats easily
- Dramatic clarity improvement over stock systems
What doesn’t
- No manual parametric EQ for advanced tuning
- Auto turn-on fails in some Ford/Lincoln models
6. DS18 DSP2.6DBT
The DS18 DSP2.6DBT is a 2-channel input, 6-channel output processor with Bluetooth connectivity and a built-in LCD screen. It offers three independent parametric EQ bands per channel with selectable crossover filters — Butterworth, Linkwitz-Riley, and Bessel — giving you flexibility in tuning slopes. Tuning is accomplished entirely through the DS18 smartphone app, which allows real-time adjustments while listening.
The LCD screen displays current settings and preset information, and the unit can store multiple presets for different music genres or listening scenarios. The compact form factor fits easily into most vehicles, and the app interface is described as didactic and intuitive by the manufacturer. RCA inputs and outputs are all standard size for easy connection.
Owner feedback is mixed. Several users report that the unit relies entirely on the Bluetooth connection for operation — if the Bluetooth signal drops, the DSP stops passing audio. Other complaints include RCAs failing and presets not saving properly. When functioning correctly, the DSP provides good sound shaping for the price, but reliability concerns push it down the list.
What works
- App-based tuning is convenient for real-time adjustments
- LCD screen provides useful visual feedback
- Multiple crossover filter types available
What doesn’t
- Bluetooth signal loss causes audio dropout
- Preset saving and loading can be buggy
7. Dayton Audio DSP-408
The Dayton Audio DSP-408 is a 4-input, 8-output processor that punches well above its price class. Each of the eight output channels has a fully adjustable 10-band parametric EQ with adjustable Q factor, plus independent high-pass and low-pass filters with selectable slopes. Time alignment is available for each channel, and the unit includes input/output mixing so you can route and combine signals flexibly.
The GUI software runs on a PC and is straightforward to use, though the optional Bluetooth dongle for app-based control has a rougher interface. Output voltage maxes out around 3.5 volts RMS, which is adequate for most aftermarket amplifiers but lower than some competitors. The processor also has an optional wired remote control for volume adjustments on the fly.
A common issue reported in vehicle installations is alternator whine when using RCA inputs. The solution involves using the high-level speaker inputs with a quality balanced preamp. Owners who work around this find the DSP-408 to be a game-changer for fixing dead spots in the soundstage and cleaning up muddy midrange. The PC app is functional, but the mobile app is widely considered underdeveloped.
What works
- 10-band PEQ per channel with adjustable Q is rare at this price
- Flexible signal mixing and channel assignment
- PC software is intuitive and easy to use
What doesn’t
- Alternator whine common with RCA input in cars
- Mobile app is poor; tuning requires PC
- Output voltage under 4V limits flexibility
8. Deaf Bonce DB-530DSP
The Deaf Bonce DB-530DSP is a 1-DIN head unit with a built-in DSP, making it a complete solution for anyone who wants to replace their factory stereo and gain full DSP control in one step. It features a 31-band EQ, time alignment, crossover controls, and eight RCA outputs for active system configurations. A built-in 4 x 25 watt RMS amplifier provides enough power to drive door speakers cleanly.
Smartphone app control is available for both iOS and Android, allowing full DSP adjustment and music playback control. The unit also supports high-resolution audio formats like FLAC and WAV via USB or microSD. The VA display is bright and readable in daylight, and Bluetooth streaming is included for wireless music playback.
Owner reviews highlight the significant improvement in sound clarity and bass response compared to stock head units. Some users report Bluetooth dropout issues that affect wireless streaming reliability. The USB-C port has also been noted to not function as expected in some units. For the price, this is a compelling all-in-one package if you are willing to swap out your entire head unit.
What works
- 31-band EQ built into a single-DIN chassis
- Eight RCA outputs enable active system setup
- Higher than expected power from built-in amp
What doesn’t
- Bluetooth connection can be unreliable
- USB-C input functionality is inconsistent
9. NVX XDSP66BT
The NVX XDSP66BT is a 6-channel DSP with a 15-band parametric equalizer and a 2.75-inch LCD display for on-device tuning. It does not require a phone or tablet to make adjustments — the rotating control knob lets you access all menus and settings directly from the unit. Time alignment is adjustable in 0.02 millisecond increments, and crossover slopes are selectable for each channel pair.
RCA output voltage reaches 6.5 volts, which is significantly higher than many budget DSPs and helps overcome long cable runs to amplifiers. The unit can store up to six presets, and a USB Bluetooth adapter is included for wireless music streaming from your phone. The compact 15.8-ounce weight makes it easy to mount behind the dash or under a seat.
Customer feedback notes that the onboard LCD screen is convenient for basic adjustments, but the lack of phone or tablet tuning limits more complex fine-tuning while sitting in the driver seat. Some units have arrived defective or developed issues with channel output. For the price, it offers impressive voltage output and a useful display, but reliability concerns are worth noting.
What works
- High 6.5V RCA output drives amplifiers cleanly
- Onboard LCD allows tuning without a phone or laptop
- Very affordable entry into DSP ownership
What doesn’t
- No mobile app, tuning requires walking to the unit
- Defective units reported more often than ideal
Hardware & Specs Guide
Parametric EQ Bands
The number of parametric equalizer bands per output channel determines how precisely you can correct frequency response issues in your vehicle. A 10-band PEQ can handle broad peaks and dips, while 31-band per channel allows surgical removal of cabin resonances. Look for adjustable Q factor on each band, which lets you control how wide or narrow the correction is applied.
Time Alignment Resolution
Time alignment compensates for the physical distance difference between each speaker and the listening position. Processors offer adjustment in increments of 0.02 ms (about 0.27 inches) or 0.1 ms (about 1.35 inches). Finer resolution produces a more precise soundstage, especially important when tweeters are mounted far from midrange drivers in A-pillar or sail panel locations.
Input Voltage and Signal Summing
Factory head units often use internal crossovers that send only bass to rear speakers and only midrange to fronts. A DSP with input summing can combine these signals into a full-range output before applying its own filters. Balanced differential inputs reject noise picked up along long cable runs, critical for preventing alternator whine in vehicles with factory amplified systems.
Crossover Filter Types
Butterworth filters provide a smooth passband with minor ripple but less stopband rejection. Linkwitz-Riley filters offer steeper rolloff and zero phase difference between channels, making them ideal for active systems. Bessel filters preserve waveform shape through the crossover point, reducing phase shift but with gentler slopes. The ability to select between these types per channel pair gives you maximum control over driver integration.
FAQ
Do I need a DSP if I already have an aftermarket head unit?
What is the difference between a DSP and a line output converter?
Why does my DSP produce alternator whine after installation?
Can I use a DSP with a factory Bose or premium audio system?
Final Thoughts: The Verdict
For most users, the best dsp car audio winner is the AudioControl D-6.1200 because it combines a high-quality class D amplifier with a full matrix DSP and AccuBASS in one chassis, simplifying installation while delivering professional-grade tuning. If you want a pure processor with maximum routing flexibility for complex OEM builds, grab the AudioControl DM-810. And for an auto-tune solution that requires almost no learning curve, nothing beats the Kicker 47KEY2004.
