The real test of a dual bevel sliding miter saw isn’t the spec sheet — it’s whether the head stays square under load, the rails don’t introduce deflection, and the detent plate actually locks repeatably at every stop. A miter saw that wobbles through a 12-inch crosscut on a 4×4 isn’t just inaccurate; it’s a waste of material and time. The gap between a well-sorted slider and a frustrating one comes down to rail geometry, fence stability, and how the bevel mechanism locks at extreme angles.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend my days digging through mechanical tolerances, motor windings, and user reports on every sliding compound miter saw in this class, weighing real-world accuracy against factory setup consistency.
Whether you’re trimming out a whole house with crown or ripping through treated lumber on a deck build, the right dual bevel sliding miter saw needs to hold its calibration through hundreds of cuts without constant re-squaring.
How To Choose The Best Dual Bevel Sliding Miter Saw
Sliding compound miter saws are the most mechanically complex saws in a typical shop. The sliding rails introduce a second axis of potential deflection beyond the pivot joint, and the dual bevel mechanism adds extra joints that can drift over time. You need to evaluate three critical subsystems before you buy.
Rail System Architecture
Traditional sliding rails extend out the back of the saw, requiring 12 to 20 inches of rear clearance. Compact designs use either a front-mounted rail system or an articulated axial-glide mechanism that eliminates rear overhang entirely. The trade-off: front-rail systems often use smaller bearings and can develop slop faster under heavy use, while axial-glide mechanisms are smoother but heavier and more expensive to repair.
Bevel Lock and Detent Plate Quality
A stamped steel detent plate with painted marks will lose precision as debris wears the indentations. Premium saws use stainless steel or aluminum plates with machined positive stops. The bevel lock itself should be an upfront cam-lever or knob — reaching behind the saw to loosen a wing nut every time you switch bevel sides defeats the purpose of dual bevel capability.
Blade Size vs. Crosscut Capacity
12-inch blades deliver deeper crosscuts at 90 degrees and taller vertical capacity for baseboards, but they introduce more rotational mass and blade deflection during sliding cuts. Ten-inch blades spin up faster, produce less wobble, and cost significantly less per blade. For trim work and crown molding under 6 inches, a quality 10-inch saw often cuts more accurately than a budget 12-inch model.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Bosch CM10GD | Premium Compact | Space-limited shops, trim work | Axial-Glide, 0 rear clearance | Amazon |
| Makita LS1219L | Premium 12-Inch | Fine furniture, production work | Linear bearings, dual steel rails | Amazon |
| Makita LS1019L | Premium 10-Inch | Jobsite portability, crown molding | 6-5/8″ nested crown capacity | Amazon |
| Milwaukee 2734-21HD | Cordless High-End | Jobsites without power, framing | M18 Fuel, 45 lb weight | Amazon |
| Metabo HPT C12RSH3 | Mid-Range Value | General carpentry, budget pro | Shadow line, 4,000 RPM | Amazon |
| DeWalt DWS716 | Mid-Range 12-Inch | Reliable trim work, baseboards | Stainless steel detent plate | Amazon |
| WEN MM1214T | Budget 12-Inch | Entry-level, DIY deck building | Front-slide rail design | Amazon |
| Evolution R255SMS-DB+ | Multi-Material Budget | Metal cutting, embedded nails | TCT blade, mild steel rated | Amazon |
| Einhell 4300395 | Entry-Level Import | Occasional home workshop use | Dual sliding arms, 24T blade | Amazon |
In‑Depth Reviews
1. Bosch CM10GD Compact Glide Miter Saw
The Bosch CM10GD replaces traditional sliding rails with the Axial-Glide system — articulating arms that glide on ball bearings with zero rear overhang. This eliminates the single biggest complaint about sliders: needing 18 inches of space behind the saw. The saw sits flush against a wall, making it the most space-efficient dual bevel slider on the market. Depth of cut at 90 degrees reaches 13.75 inches, which handles most baseboard and casing work without repositioning.
Bevel adjustments happen entirely from the front using large metal knobs — you never reach behind the saw head to change angle. The Square Lock precision fences stay parallel through the full miter sweep, and the detent override allows micro-adjustments without fighting the positive stops. The 60-tooth carbide blade cuts clean out of the box, and the ergonomic trigger handle reduces fatigue during long crown runs.
The main trade-off is weight: at 64 pounds, this is a heavy 10-inch saw. Dust collection with a shop vac is solid, but the stock dust chute has a shallow neck that some users modify for better airflow. The lack of soft-start means the motor lurches on startup, and the trigger safety can be awkward depending on your grip angle. For shops where floor space is the limiting factor, this saw is the clear answer.
What works
- Zero rear overhang, flush-to-wall placement
- Smooth, slop-free Axial-Glide articulation
- Front-mounted bevel controls with metal detents
- Accurate out-of-box with micro-adjustable fences
What doesn’t
- No soft-start feature, sudden motor engagement
- Stock dust chute needs modification for full flow
- Heavy at 64 pounds for a 10-inch class saw
2. Makita LS1219L 12-Inch Dual-Bevel Sliding Compound Miter Saw
The Makita LS1219L uses a two-steel-rail linear bearing system with a single slide-glide motion that keeps the saw head tracking true with minimal lateral play. This rail design reduces the saw’s footprint compared to traditional 12-inch sliders while still providing 15 inches of crosscut capacity at 90 degrees. The direct-drive motor reaches vertical cutting capacity of 6-3/4 inches, enough for standing baseboards without flipping the workpiece.
Dual dust collection ports at the blade guard and the lower saw body capture more debris than single-port designs, and the in-front bevel lock means you can angle the head without reaching around the motor housing. The detent plate is aluminum with machined positive stops at common crown angles. The stock 60-tooth micro-polished blade produces clean kerfs on hardwoods without burn marks at moderate feed rates.
Factory calibration consistency is the biggest variable. Multiple users report needing to adjust rail parallelism by loosening set screws and twisting the rails into alignment — a step not documented in the manual. The laser is dim and difficult to align, and the plastic square included for setup is essentially useless. Once dialed in, this saw holds its settings well, but the setup curve is steep for a premium-tier tool.
What works
- Linear bearing rails minimize deflection during slide cuts
- Dual dust ports capture fine debris effectively
- Tall removable fences support nested crown molding
- Quiet operation and smooth soft-start motor
What doesn’t
- Frequent need for post-purchase rail parallelism adjustment
- Weak, unalignable laser line
- Heavy build at over 80 pounds shipped
3. Makita LS1019L 10-Inch Dual-Bevel Sliding Compound Miter Saw
The Makita LS1019L packs the nested crown capacity of a 12-inch saw — 6-5/8 inches — into a 10-inch platform that weighs 57.9 pounds. The direct-drive gearbox eliminates belt maintenance and keeps the blade guard slim, improving visibility during compound cuts. The linear ball bearing system rides on two precision-ground steel rails that retract fully, allowing the saw to sit snug against a wall.
The laser guide is the weakest link here — it projects multiple lines until the blade descends, and it’s nearly invisible under bright shop lighting. The vertical vise clamp requires many rotations to tighten, slowing down repetitive work. Dust collection with the included bag is adequate for drywall cleanup, but connecting a shop vac improves capture to over 80 percent of airborne particles.
Users who receive a unit with properly parallel rails report exceptional accuracy at both 45-degree bevel settings and full miter sweeps. The up-front bevel knob and smooth sliding action make angle changes quick without losing reference. This saw competes directly with the Bosch CM10GD for the best compact 10-inch title, trading the Axial-Glide’s zero-clearance for Makita’s rail-based precision and lower price point.
What works
- Exceptional crown nested capacity for a 10-inch saw
- Smooth linear bearing rails with minimal deflection
- Compact footprint, flush wall placement possible
- Powerful direct-drive motor with quiet operation
What doesn’t
- Laser is dim and unalignable in bright conditions
- Vertical vise is slow to operate
- Some units suffer from non-parallel rails out of the box
4. Milwaukee M18 Fuel 2734-21HD 10-Inch Dual Bevel Sliding Miter Saw
The Milwaukee 2734-21HD brings the M18 Fuel ecosystem to the dual bevel sliding category with a brushless PowerState motor that delivers corded-level performance from an 18V battery. At 45 pounds, it’s one of the lightest sliders in this roundup, making it feasible to carry up stairs or across jobsites without a dedicated cart. Side carrying handles are integrated into the frame, not tacked on as an afterthought.
Run-time on a fully charged 12.0Ah battery covers a full day of trim work — users report cutting baseboards in a whole house on a single charge with the included blade still serviceable after months. The sliding mechanism uses standard rails with a low-friction coating, and the bevel lock is a handle-style lever at the front of the saw. The guard design is robust and clears chips well.
Dust collection is the primary letdown. Even with a shop vac connected, the saw throws a significant amount of debris to the sides rather than into the chute. Several reports of broken blade guards arriving in shipping suggest the packaging could be better. The price is the highest per-inch of blade in this list, reflecting the battery platform premium rather than raw cutting capability.
What works
- Full-day run-time on a single battery charge
- Lightweight at 45 pounds, easy to transport
- Powerful brushless motor matches corded output
- Integrated side handles for balanced carrying
What doesn’t
- Mediocre dust collection, side-throw debris
- Fragile guard in shipping packaging
- Premium price for battery platform vs. corded saws
5. Metabo HPT C12RSH3 12-Inch Dual Bevel Sliding Miter Saw
The Metabo HPT C12RSH3 uses a shadow line instead of a laser to indicate the cut path — a sharp shadow cast by an LED that stays visible even in bright sunlight, unlike typical laser guides. The 4,000 RPM no-load speed is above average for a 12-inch saw, and the forward rail design allows the saw to sit closer to walls than traditional rear-rail sliders. Bevel range reaches 45 degrees to both sides with positive stops at 0, 22.5, 33.9, and 45 degrees.
The one-touch bevel and miter locks disengage with a single lever, allowing angle changes without fumbling with separate knobs. The included 5-year warranty is class-leading for a mid-range-priced saw. Users report that the saw holds calibration well for general carpentry and light furniture work, with the stock blade producing clean crosscuts on dimensional lumber and hardwoods up to 1-inch thick.
The sliding mechanism uses a bushing system that can feel sticky out of the box — some owners loosen a single set screw on the top bushing to improve glide. Dust collection is poor with the bag, and even with a vac connected, fine dust escapes around the guard. The plastic miter scale is a decal rather than an engraved plate, which can peel over time in humid shops.
What works
- Shadow line stays visible in bright workshop conditions
- 5-year warranty provides long-term coverage
- Forward rail design saves rear bench space
- One-touch locks speed up compound angle changes
What doesn’t
- Bushing-based slide can feel sticky initially
- Decal miter scale may peel over time
- Dust collection is weak, especially with the bag
6. DeWalt DWS716 12-Inch Double-Bevel Compound Miter Saw
The DeWalt DWS716 skips the sliding rails entirely — this is a non-sliding 12-inch miter saw with dual bevel, making it an important counterpoint in this list. The stainless steel miter detent plate with 14 positive stops maintains repeatable accuracy without the rail deflection inherent in sliding designs. Tall sliding fences support crown molding up to 6-5/8 inches nested and base molding up to 6-1/2 inches vertically against the fence.
The cam lock miter handle with detent override lets you dial in fractional angles quickly. The double-bevel mechanism reaches 48 degrees left and right with positive stops, and the bevel lock is a robust handle that holds position under spring tension. Users consistently report this saw is accurate straight out of the box, requiring only minor fine-tuning for critical trim work.
The absence of a sliding mechanism means this saw cannot cut wide boards in a single pass — maximum crosscut at 90 degrees is limited to approximately 8 inches. For wide material, you’ll need a slider. Dust collection is decent with a shop vac but unimpressive with the bag. The included blade is sharp but dulls faster than aftermarket options when cutting treated lumber.
What works
- Stainless steel detent plate resists wear and debris
- Excellent out-of-box accuracy minimal setup needed
- Tall fences support tall baseboards and nested crown
- Cam lock miter handle allows fast micro-adjustments
What doesn’t
- No sliding mechanism limits crosscut capacity to 8 inches
- Stock blade dulls faster on treated lumber
- Dust collection with bag is poor
7. WEN MM1214T 12-Inch Dual Bevel Sliding Miter Saw
The WEN MM1214T uses a front-slide rail system that eliminates rear overhang, allowing placement against a wall. The 15-amp motor cuts boards up to 13-3/8 inches wide and 3-1/2 inches thick, with a crown molding nested capacity of 7-1/2 inches. The combined laser guide and LED work light provide two visual references for cut alignment, though neither is independently adjustable for kerf width.
The included 60-tooth carbide-tipped blade is serviceable for framing lumber and pressure-treated material but will leave a slightly rough edge on hardwoods. The retractable table extensions with work stops repeat reliably when flipping multiple pieces to the same length. The dust bag is nearly useless — a shop vac connection is essential for keeping the work area clean.
Long-term accuracy is the weak point. The heavy return spring introduces enough force to push the rails out of parallel over extended use, causing deflection on cuts wider than 8 inches. The bevel and miter indicators are adhesive decals that can peel. Several users report needing to shim the rear fence with card stock to achieve a true 90 degree cut. This saw is a capable budget option for deck building and rough carpentry but not for fine woodworking.
What works
- Front-slide design saves rear shop space
- Powerful 15-amp motor handles demanding cuts
- Excellent value for the cutting capacity provided
- Retractable extensions with repeatable work stops
What doesn’t
- Rails can drift out of parallel under spring tension
- Decal indicators may peel with use and humidity
- Inconsistent out-of-box fence squareness
8. Evolution Power Tools R255SMS-DB+ 10-Inch Dual Bevel Sliding Miter Saw
The Evolution R255SMS-DB+ is the only saw in this roundup specifically engineered for multi-material cutting. The included Tungsten Carbide Toothed (TCT) blade slices through wood, composite decking, plastic, and mild steel up to 1/8-inch thickness without changing blades. Cutting steel produces virtually no sparks and leaves the material cool to the touch with a burr-free finish, which is unique for a miter saw at this price point.
The bevel range reaches 45 degrees left and right, and the miter angle sweeps 50 degrees in both directions — wider than most saws in this class. The soft-start feature prevents the motor from jerking the saw during startup, and the 3-year warranty backs the tool against defects. Evolution’s customer support receives consistent praise for replacing damaged units without hassle.
The included TCT blade dulls notably faster when cutting steel repeatedly — users cutting 1/8-inch mild steel tubing report noticeable wear after 50 to 100 cuts. Switching to a dedicated ferrous-metal blade improves longevity but defeats the multi-material convenience. The fence casting on early units was prone to cracking if the blade bound during a cut; Evolution revised the design and replaces cracked fences under warranty.
What works
- Cuts wood, metal, plastic, and composites with one blade
- Virtually spark-free and cool-touch steel cutting
- Wider miter sweep (50° both directions) than most competitors
- Strong warranty and responsive customer support
What doesn’t
- Blade dulls faster on repeated metal cuts
- Fence casting vulnerable to binding damage on early units
- Slow spin-up despite soft-start feature

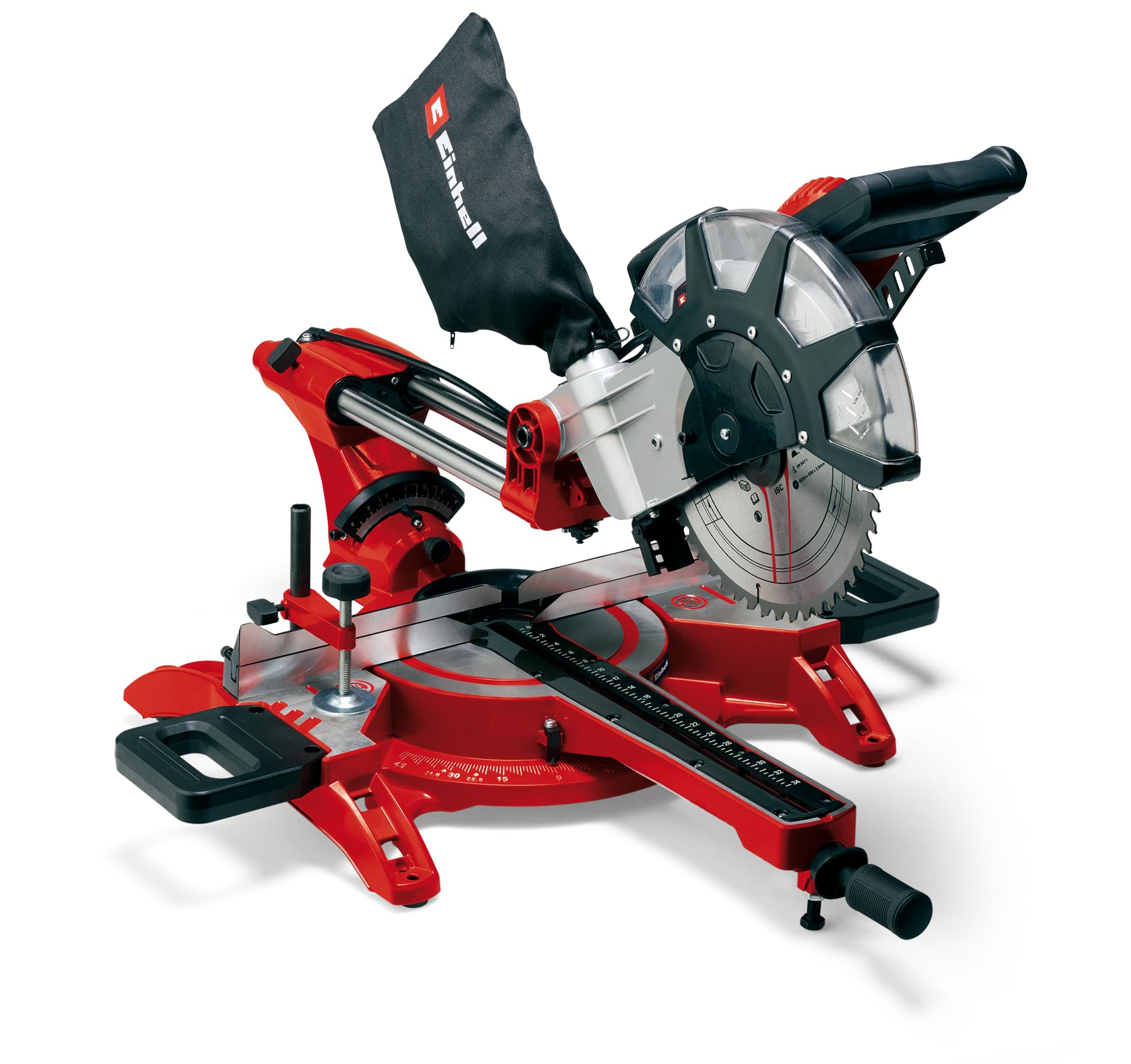

9. Einhell 4300395 TC-SM 2534/1 Dual Sliding Mitre Saw
The Einhell 4300395 is a budget-oriented dual sliding miter saw aimed at the home workshop user who needs occasional crosscut capacity beyond what a standard miter saw offers. The dual sliding arms extend the cutting width beyond the base capacity, and the 24-tooth High Speed Steel blade is designed for framing lumber and sheet goods rather than fine trim work.
Setup requires a thorough calibration process — the saw needs adjustment across all axes to achieve square cuts. Users report that the locking mechanism on the sliding arms can bind slightly, requiring manual easing to achieve smooth extension. The included blade produces a somewhat frayed cut on cross-grain cuts, which is not unexpected for a 24-tooth general-purpose blade.
This saw delivers adequate performance for occasional DIY projects like building shelves, cutting fence posts, or rough-framing a shed. The build quality and material tolerance do not support daily production use or fine woodworking. The value proposition hinges entirely on the low entry price rather than any standout feature.
What works
- Dual sliding arms provide extended crosscut capacity
- Very low entry price for a sliding dual bevel saw
- Suitable for occasional home workshop use
What doesn’t
- Requires extensive calibration out of the box
- Coarse 24-tooth blade produces frayed cross-grain cuts
- Sliding arm lock can bind during extension
Hardware & Specs Guide
Rail Systems — Linear Bearings vs. Bushings vs. Glide
Linear bearing systems use recirculating ball bearings running on precision-ground steel rods. They offer the lowest friction and best long-term accuracy but require perfect rod parallelism. Bushing systems use sintered bronze or PTFE-lined sleeves that slide on fixed rods; they cost less but develop play as the bushings wear. Axial-glide mechanisms use articulated arms with sealed ball bearings, eliminating the need for rear clearance but adding mechanical complexity and weight.
Detent Plates — Machined vs. Stamped vs. Stainless
Machined aluminum detent plates provide crisp, repeatable positive stops at common angles and are less prone to wear than stamped steel. Stamped steel detent plates are cheaper but the indentations can deform over time, introducing slop. Stainless steel plates resist corrosion and debris buildup but are heavier. The number of detent positions (typically 9 to 14) determines how many common angles click in without manual adjustment.
Shadow Line vs. Laser vs. LED
Shadow lines use a focused LED at the top of the blade guard to cast a sharp shadow on the workpiece exactly at the cut line. They remain visible in bright ambient light because they rely on occlusion rather than projected light. Lasers project a red line onto the workpiece but can be difficult to see in sunlight and may drift out of alignment. Basic LED work lights illuminate the cut area but do not indicate the kerf path.
Motor Technology — Direct Drive vs. Belt Drive
Direct-drive motors connect the armature directly to the blade arbor, eliminating belts and pulleys. This reduces maintenance and allows the motor to sit in line with the blade, keeping the saw more compact. Belt-drive motors provide higher torque at the blade but add width and require periodic belt replacement. Most modern sliders use direct-drive for the compact profile, but belt-drive units often have lower vibration at the handle.
FAQ
Can a dual bevel saw cut crown molding lying flat on the table?
Why does my sliding miter saw produce curved cuts on wide boards?
Final Thoughts: The Verdict
For most users, the dual bevel sliding miter saw winner is the Bosch CM10GD because it eliminates the rear clearance problem entirely with the Axial-Glide system while delivering dead-straight cuts and front-accessible bevel controls. If you want maximum crosscut capacity in a 12-inch blade platform, grab the Makita LS1219L for its linear bearing rails and dual dust ports. And for budget-conscious buyers who need occasional sliding capacity, the WEN MM1214T offers front-slide convenience at a fraction of the premium-tier price.
