If your desk is burdened with two sets of monitors, two keyboards, and two mice for a work laptop and a personal desktop, the cable tangle and constant reach-behind-the-desk swapping is costing you minutes daily and breaking your workflow rhythm. A dual monitor KVM switch solves this by letting a single keyboard, mouse, and two screens control two or more computers with the press of a button — turning a cluttered command center into a clean, single-cable-per-machine workspace.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years parsing the fine print on EDID emulation, DP 1.4 vs. HDMI 2.1 bandwidth, MST support, and USB power delivery specs so you don’t have to figure out which KVM actually works with your specific laptops and monitors.
After digging through specifications, port configurations, and real-world user reports across seven distinct models, I’ve narrowed the field to the most reliable dual monitor kvm switch for every setup — whether you run twin desktops, a MacBook and a PC, or four machines you need to toggle between.
How To Choose The Best Dual Monitor KVM Switch
Picking the right dual monitor KVM switch comes down to matching the video ports on your computers and monitors, understanding whether your laptops support MST for extended dual displays, and deciding how many USB 3.0 shared ports you need for peripherals like webcams and external drives. Ignore these three details and you risk buying a switch that forces you into mirrored screens or fails to charge your laptop.
Video Port Compatibility: DisplayPort vs. HDMI
A dual monitor KVM switch must match your output ports. DP 1.4 switches like the TESmart handle high refresh rates up to 144Hz at 4K and are ideal for gaming desktops. HDMI 2.1 switches like the UGREEN support up to 8K@60Hz but require your computers to have two HDMI outputs each. If your laptops rely on USB-C with DP Alt Mode, look for a switch with dedicated USB-C MST inputs — otherwise you may only get mirrored, not extended, displays on macOS.
EDID Emulation: The Window-Saver
EDID emulation tells each computer what monitor is connected even when the KVM switches away. Without it, your desktop rearranges open windows every time you switch back — a maddening frustration in a productivity setup. Mid-range and premium units like the ATLAHET and TESmart include built-in EDID emulation. Cheaper models often omit it, so check the fine print before buying.
USB Power Delivery and Docking Features
If you run laptops, a KVM with USB-C PD eliminates the need for separate laptop chargers. The AV Access iDock C20 delivers 60W per laptop, enough for business ultrabooks, while the KCEVE offers 85W total. For dual-desktop setups without laptops, focus on the number of USB 3.0 ports and whether you need Ethernet passthrough — models like the AV Access 11-in-1 include a Gigabit LAN port shared between both PCs.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| TESmart 8K DP KVM | Premium | Gaming dual-desktop setups | DP 1.4, 8K@60Hz, EDID, Hotkeys | Amazon |
| AV Access iDock C20 | Premium | USB-C laptop dual-monitor docking | 2 USB-C MST, 60W PD, 1G Ethernet | Amazon |
| AV Access 11-in-1 Dock | Mid-Range | Laptop office with Ethernet & SD | 100W PD, 11 ports, EDID emulation | Amazon |
| StarTech DP KVM | Mid-Range | Creative pros needing DP 1.2 | DP 1.2, 4K@60Hz, 2-port USB hub | Amazon |
| UGREEN 3-Monitor KVM | Mid-Range | Triple-monitor home offices | 2 DP + 1 HDMI, 8K@60Hz, 4 USB 3.0 | Amazon |
| ATLAHET 4-Port HDMI | Mid-Range | 4-computer HDMI-only setups | 8K@60Hz, EDID, IR remote, 4 USB 3.0 | Amazon |
| KCEVE USB-C HDMI KVM | Budget-Friendly | 3-computer mixed USB-C/HDMI setups | 4K@60Hz, 85W PD, wired remote | Amazon |
In‑Depth Reviews
1. TESmart 8K@60Hz DP KVM Switch
The TESmart is the most technically complete dual monitor KVM switch for DisplayPort users who demand uncompromised video fidelity. It supports DP 1.4 with DSC compression for dual 8K@60Hz or 4K@144Hz, and includes EDID emulation on each input port — so your monitors are never lost to the computer, and windows stay put across switches. G-Sync, FreeSync, VRR, and ALLM are all supported, making this the only unit on this list that truly caters to high-refresh-rate gaming across two displays.
Four switching methods — customizable keyboard hotkeys, front panel button, mouse wheel, and IR remote — give you flexibility no other model matches. The integrated microphone and L/R audio output allow independent audio routing, letting you listen to music from one PC while working on another without breaking a meeting.
The USB HID ports with emulation keep keyboard and mouse sessions stable, though some users report USB 3.0 ports resetting on switch. This is a pure DP-to-DP solution — no HDMI or USB-C inputs — so it targets desktop users with DP monitors. For that specific audience, nothing else comes close in feature depth.
What works
- Dual 8K@60Hz with DSC and EDID emulation on each port
- Customizable hotkeys plus mouse wheel and IR remote switching
- G-Sync, FreeSync, VRR, and ALLM gaming support
- Independent audio routing with microphone pass-through
What doesn’t
- High premium price
- USB 3.0 ports reset on switch, no hub compatibility on HID ports
- No HDMI or USB-C video inputs; DP monitors only
2. AV Access iDock C20 KVM Switch Dock
The AV Access iDock C20 is the rare dual monitor KVM switch that truly functions as a docking station, with two full-featured USB-C MST inputs (20Gbps each) that deliver dual 4K@60Hz extended displays, 60W power delivery per laptop, and 5Gbps data simultaneously over a single USB-C cable to each machine. This eliminates the cable salad of separate power bricks and dock cables — each laptop connects with one USB-C cable for video, data, and charging.
With 8 total USB ports (2x USB 3.0, 4x USB 2.0, 1x USB-C), a 1G Ethernet port shared between laptops, a 3.5mm headset jack, and an SD card slot, this is a complete workstation hub. The EDID emulation and auto PC wake-up allow seamless 2-3 second switching via the front button or an optional wired remote.
The critical catch: macOS does not support MST, so MacBooks will only output mirrored displays, not extended dual screens. Also, the 60W PD is sufficient for business ultrabooks but won’t fully power a 16-inch MacBook Pro under heavy load. Thunderbolt 4 cables may cause compatibility hiccups, a known limitation of the USB-C implementation.
What works
- Single USB-C cable per laptop for video, data, and 60W charging
- 12-in-1 hub with Ethernet, SD, 3.5mm audio, and 8 USB ports
- EDID emulation keeps windows stable across switches
- Supports 2K@144Hz and 1080P@240Hz for gaming
What doesn’t
- macOS only mirrors displays — no extended dual screens
- 60W PD underpowered for high-performance gaming laptops
- Thunderbolt 4/USB4 cables may cause compatibility issues
3. AV Access 11-in-1 Docking Station KVM
The AV Access 11-in-1 KVM dock strikes a pragmatic balance between premium docking features and mid-range pricing, making it the smart choice for office workers who need Ethernet, SD card access, and robust peripheral sharing without spending flagship-level money. It connects two laptops to two HDMI monitors with 4K@60Hz output, and delivers 100W PD to each laptop — enough for 15-inch MacBook Pros and Dell XPS machines.
The port array is unusually generous for this price tier: 3x USB 3.0, 2x USB 2.0, 1x USB-C data, a 1G Ethernet port shared between both laptops, a 3.5mm headset jack, and an SD card slot. The dedicated charging USB-C port next to each input means you can charge both laptops at full speed while the KVM handles video and data. EDID emulation and auto wake-up ensure 2-3 second switching.
Like all USB-C MST switches, macOS delivers two duplicate, not extended, displays — a dealbreaker for Mac users needing independent screens. A handful of reports note the KVM defaults to low monitor resolution and introduces visible delay on some HDMI laptop docks. Verified customers praise the 3.5mm audio passthrough, a feature many competitors omit.
What works
- 100W PD per laptop — charges even power-hungry ultrabooks
- 11 ports including Ethernet, SD, 3.5mm, and multiple USB 3.0
- EDID emulation with fast 2-3 second switching
- Supports 2K@144Hz and 1080P@240Hz for secondary gaming
What doesn’t
- macOS mirrors only — no extended dual displays
- Some users report resolution drops and display delay
- Not compatible with certain USB-C docks and adapters
4. StarTech.com 2-Port DisplayPort KVM
The StarTech SV231DPDDUA2 is a rock-solid, no-frills DisplayPort 1.2 KVM built for creative professionals who value reliability and independent audio above flashy specs. It supports dual 4K@60Hz output per DP 1.2 port and includes dedicated 3.5mm auxiliary jacks for both input and output, giving you complete control over audio routing without sharing it with the USB data stream. This is rare and matters if you run studio monitors or a dedicated DAC.
The steel chassis and TAA compliance make it suitable for government and enterprise environments where build standards matter. A built-in 2-port USB hub allows sharing a keyboard and mouse or a Logitech receiver, and users report excellent image quality with no video dropout or flicker on dual 1080p displays. Linux compatibility is strong — windows restore correctly on switch-back.
The DP 1.2 standard caps resolution at 4K@60Hz, so there’s no path to higher refresh rates or 8K. The 2-port USB hub is sparse compared to modern competitors, and some units have suffered from USB pass-through failure and audio buzz after several weeks of use. The price sits at mid-range but feels justified by the build quality and audio isolation.
What works
- Dedicated 3.5mm audio jacks for clean, independent audio routing
- Steel chassis with TAA compliance for enterprise use
- Reliable dual 4K@60Hz output with no video dropouts
- Excellent Linux compatibility with window restoration
What doesn’t
- DP 1.2 only — no high refresh rates or 8K support
- Only 2 USB ports on the hub
- Reports of USB and audio failure after extended use
5. UGREEN 8K@60Hz KVM Switch (3 Monitors)
The UGREEN KVM is a triple-monitor switch that delivers exceptional value by supporting three displays (2x DP 1.4 + 1x HDMI 2.1) at up to 8K@60Hz or 4K@240Hz, all while maintaining an aluminum chassis and including every cable needed out of the box. For users with two desktop computers each capable of triple output, this eliminates the need to buy separate DisplayPort and HDMI cables — the package includes 4 DP cables and 2 HDMI cables.
The desktop controller lets you place the switch out of sight, and the support for HDR10+, HDCP 2.3, VRR, FreeSync, and G-Sync across all three monitors ensures a tear-free high-refresh experience. Verified customers — including a 30-year systems engineer — praise the fast switching and full 4K support, calling the build quality A+.
The absence of EDID emulation is the single biggest miss: when you switch away from a computer and back, windows may scramble. Hotkey switching is also absent — only button and remote control work. Each computer at the input requires 2 DP cables plus 1 HDMI cable plus 1 USB cable, creating a thick cable bundle behind the unit. This is a triple-monitor switch, not a dedicated dual monitor KVM, so users with only two screens are paying for unused capacity.
What works
- Supports three monitors at 8K@60Hz or 4K@240Hz
- Includes all required cables — 4 DP and 2 HDMI
- Aluminum build with desktop controller for clean setup
- HDR10+, VRR, FreeSync, and G-Sync support
What doesn’t
- No EDID emulation — windows rearrange on switch-back
- No hotkey switching; button and remote only
- Cable-heavy: 5 cables per computer required

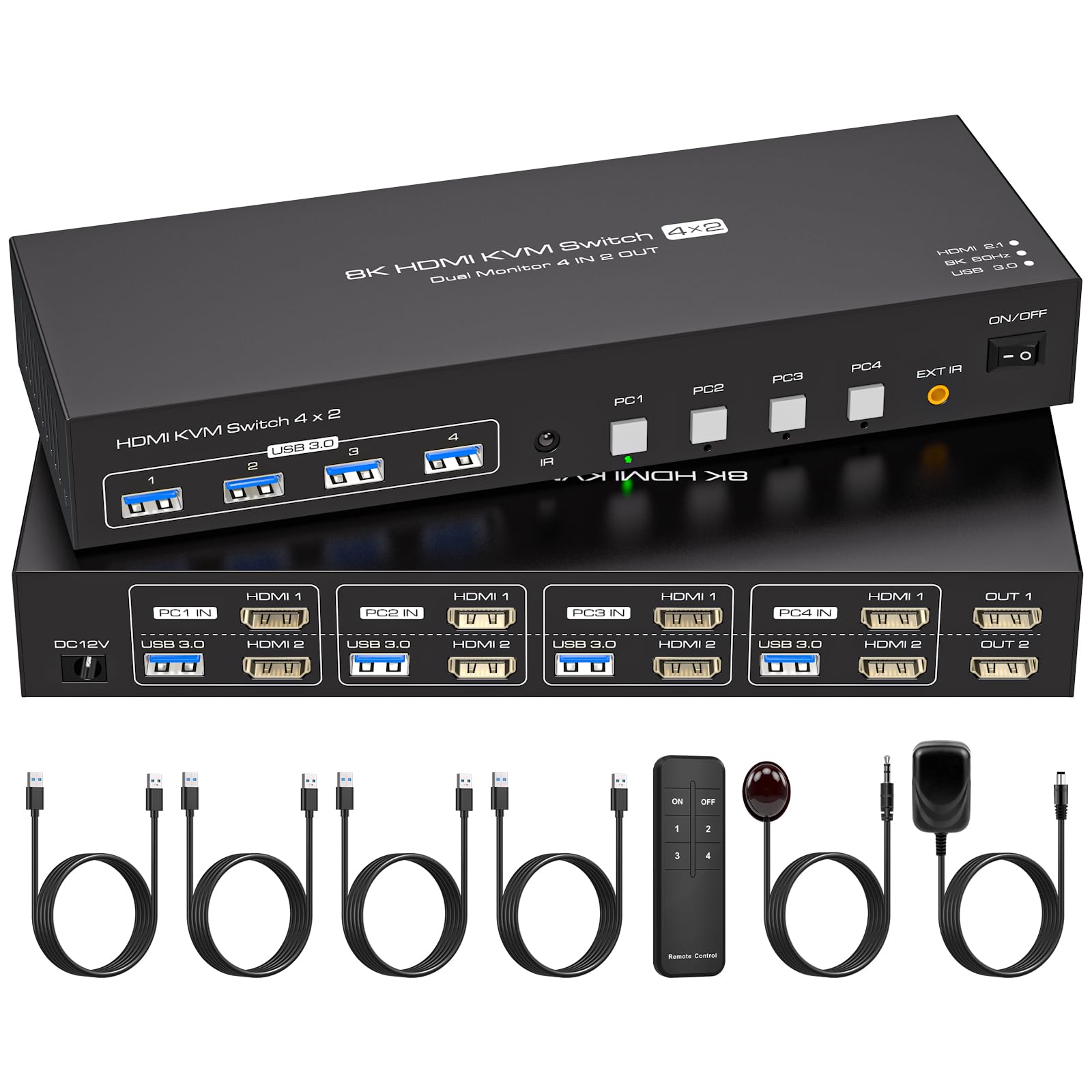

6. ATLAHET 4 Port Dual Monitor HDMI KVM Switch
The ATLAHET 4×2 HDMI KVM is the only unit on this list that switches between four computers across two HDMI monitors, making it the go-to choice for multi-machine test benches, server rooms, or power users who juggle more than three PCs. It supports 8K@60Hz and 4K@120Hz, includes built-in EDID emulation to preserve monitor detection across all four sources, and offers both front-panel buttons and an IR remote for switching.
The aluminum housing stays cool, and the 4 USB 3.0 ports with 5Gbps transfer speed handle mice, keyboards, printers, and webcams without issues. The EDID emulation is a standout feature at this price — it prevents the computer from thinking a monitor was disconnected, so windows and icons stay in place. The extended and duplicate display modes work reliably for multi-tasking or synchronized display.
The documentation is sparse, and the included USB cables are short at around 3 feet — you will need to buy 10 HDMI cables separately to connect four computers to two monitors. Some units arrive defective within days, and the lack of hotkey switching means you rely entirely on the remote or front button. The power adapter is mandatory — the KVM will not function via USB bus power alone.
What works
- Supports 4 computers on 2 HDMI monitors with EDID emulation
- 8K@60Hz and 4K@120Hz compatible
- IR remote included for convenient switching
- 4 USB 3.0 ports with 5Gbps throughput
What doesn’t
- Short included USB cables; no HDMI cables in the box
- No hotkey switching — remote or button only
- Poor documentation; some units arrive with power failures
7. KCEVE USB C HDMI KVM Switch (2 Laptops + 1 Desktop)
The KCEVE KVM is a budget-friendly entry point for users who need to switch between two laptops and one desktop across two HDMI monitors, all while charging one laptop at up to 85W. It supports 4K@60Hz and 2K@144Hz, includes 4 shared USB 3.0 ports for peripherals, and comes with a 1.5-meter wired remote for convenient button-free switching. The compact metal chassis is smaller than most competitors.
Setup is simple for Windows and Linux users — plug-and-play with no drivers. The two included USB-C cables and two HDMI cables mean you can get running immediately with minimal accessory purchases. Users on Windows 11 and Fedora report smooth operation, and the front USB ports are convenient for plugging in flash drives.
The biggest issue is the lack of EDID emulation: when you switch away from the KCEVE and back, your windows will scatter across desktops, requiring manual rearrangement. The 85W PD is advertised but in practice may only slow battery drain on power-hungry laptops rather than charge them. Apple Silicon MacBooks (M1/M2/M3) are explicitly not recommended because they cannot output dual displays over USB-C simultaneously. Some customers report the power delivery port does not work at all.
What works
- Handles 3 computers (2 laptops + 1 desktop) on 2 monitors
- 85W PD for laptop charging on one port
- Compact metal chassis with wired remote
- 4 USB 3.0 front ports for easy peripheral access
What doesn’t
- No EDID emulation — windows scatter on switch-back
- 85W PD may not charge; only slows battery drain
- Not compatible with Apple Silicon MacBooks for dual output
- Some units have non-functional power delivery ports
Hardware & Specs Guide
EDID Emulation
EDID (Extended Display Identification Data) tells the computer what monitor is connected, including its resolution, refresh rate, and timing. A KVM switch with built-in EDID emulation maintains this information even when the computer is deselected. This prevents the operating system from treating the monitor as disconnected and keeps open windows, icons, and toolbars exactly where you left them. Without it, every switch forces a re-detection cycle, scattering windows and disrupting your layout.
MST vs. Mirrored Output
Multi-Stream Transport (MST) allows a single USB-C or DisplayPort connection to drive two independent monitors with different content. Windows, Linux, and Chrome OS support MST natively. macOS does not — it treats the same physical port as a single display output, so two screens connected via MST will show duplicate content. This is a hardware-level limitation of Apple Silicon and Intel Macs. If you use a MacBook, you need a KVM with two separate physical video outputs per computer (e.g., one HDMI and one USB-C) to get extended desktop mode.
USB Power Delivery Wattage
USB-C Power Delivery (PD) wattage determines how fast the KVM can charge your laptop through its incoming USB-C cable. Business ultrabooks like the Dell XPS 13 or Lenovo ThinkPad X1 Carbon need 45-65W for full-speed charging. 16-inch MacBook Pros and gaming laptops can draw up to 100W. A KVM that advertises 60W PD may only slow the battery drain on a high-demand laptop rather than actually charge it. Always match the PD wattage to your laptop’s charger spec for best results.
DP 1.4 vs. HDMI 2.1 Bandwidth
DisplayPort 1.4 delivers 32.4 Gbps bandwidth, enough for dual 4K@120Hz or single 8K@60Hz with DSC compression. HDMI 2.1 pushes 48 Gbps, supporting 8K@60Hz without compression and enabling 4K@240Hz. For dual monitor KVM switches, the choice matters most if you run high-refresh gaming monitors — DP 1.4 handles 4K@144Hz while HDMI 2.1 can push past to 4K@240Hz. For standard office monitors at 4K@60Hz, both standards are functionally identical.
FAQ
Will a dual monitor KVM switch work with Apple Silicon MacBooks for extended dual displays?
Why do my open windows scatter when I switch back with my KVM?
Can I use a USB-C to HDMI adapter with a DP-only KVM switch?
Final Thoughts: The Verdict
For most users, the dual monitor kvm switch winner is the TESmart 8K DP KVM Switch because it delivers the best combination of EDID emulation, hotkey switching, and high-refresh gaming support across two DisplayPort monitors. If you need a laptop-centric docking KVM with single-cable convenience, grab the AV Access iDock C20. And for multi-machine setups with four HDMI computers on two screens, nothing beats the ATLAHET 4-Port HDMI KVM Switch.
