Setting a precise grade for drainage, foundations, or parking lots is the difference between a job that passes inspection and water that pools where it should not. A dual slope laser does the math for you, but picking the right one means navigating accuracy specs, ruggedness ratings, and whether the kit includes the rod and receiver you need to work solo.
I am Mo Maruf — the founder and writer behind The Tools Trunk. I spend my time dissecting contractor grade tool specifications, cross-referencing real world field reviews, and tracking how laser hardware holds up under the dust and drops of daily job site use.
Whether your next job involves laying pipe at a precise fall or cutting a flat pad for a structure, finding the right dual slope laser is an investment in avoiding rework and keeping inspections on the first pass.
How To Choose The Best Dual Slope Laser
Choosing a dual slope laser is different from buying a simple line laser. You need to match the tool to the specific grades you set every day, and a wrong pick means slow setup or inaccurate cuts. Here are the factors that separate a weekend-grade laser from a machine control-ready unit.
Self-Leveling Range and Accuracy
The self-leveling range, usually listed as a ± degree value, determines how much setup time you save on uneven ground. A larger range like ±5 degrees lets you place the laser on rough terrain without fumbling with the tripod legs. Accuracy is stated as a fraction at a distance, such as ±1/8 inch at 100 feet. Lower fractions mean tighter tolerances for concrete and pipe work. For drainage and flatwork, ±1/8 inch over 100 feet is the practical standard.
Working Range and Receiver Compatibility
The diameter working range, measured without and with a receiver, dictates which job sites the laser can cover. A 1000-foot range covers a medium residential lot, while 4000-foot models handle large commercial excavations. The receiver must pick up the beam reliably in direct sunlight, and some receivers offer adjustable precision settings for fine versus rough grade checking. A remote control that works from 300 feet or more allows one person to adjust slope while standing at the grade rod.
Dual Slope Capability and Grade Range
Not all dual slope lasers let you set independent grades on the X and Y axes. Some offer a single slope across one axis only, while full-featured models allow separate percentages on both axes simultaneously. The grade range, often up to ±8 or ±10 percent, matters for drainage, asphalt, and sports field crown work. A higher grade percentage range gives you more flexibility for steep commercial drainage requirements.
Durability and Weather Resistance
An IP54 rating protects against dust and splashes, enough for a dry job site, but IP66 or IP67 means the laser survives heavy rain and being hosed off. Drop rating is equally important — a 3-foot drop resistance protects against a tripod tip-over, while 6-foot protection handles falls from the back of a truck bed. Rugged construction matters because a misaligned laser costs you time recalibrating or worse, a missed grade.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Klein Tools 93PLL | Line Laser | Indoor layout, fine finishing | 3×360 plane, IP54 | Amazon |
| LotaTools Rotary Kit | Rotary Laser | Budget grading kit | 2000 ft range with receiver | Amazon |
| Johnson 99-028K | Rotary Laser | Drainage, flatwork | 5 deg dual slope | Amazon |
| Bosch GRL900-20HVK | Rotary Laser | General exterior grading | 1000 ft range, ±1/8″ at 100 ft | Amazon |
| DEWALT DCLE34033D1 | Line Laser | Indoor, 3-plane layout | 3×360 green, 10 hr runtime | Amazon |
| Johnson 40-6541 | Rotary Laser | High accuracy grading | 8 deg dual slope | Amazon |
| Johnson JRT300-RDHV-S | Rotary Laser | Large site grading | 4000 ft range, IP67 | Amazon |
| Topcon RL-SV2S | Rotary Laser | Professional, long battery life | 120 hr battery life | Amazon |
| Spectra Precision GL720 | Rotary Laser | Heavy grading, machine control | 3000 ft range, ±10% X-axis grade | Amazon |
In-Depth Reviews
1. Johnson Level & Tool 99-028K
The Johnson 99-028K strikes a rare balance: a fully equipped dual slope rotary system at a mid-range investment. Its programmable 5-degree dual slope function handles drainage, flatwork, and complex landscaping without manual grade calculations. The kit arrives with a NiMH rechargeable battery pack, alkaline battery compartment backup, remote control, detector with clamp, tripod, and a 13-foot grade rod — everything a contractor needs to start grading on day one.
Accuracy hits the standard ±1/8 inch at 100 feet, and the self-leveling range (±5 degrees) saves setup time on uneven terrain. The laser self-levels both horizontally and vertically, making it equally useful for aligning footings, fencing, and drywall track. The visual and audible alarm triggers if the unit is knocked out of level, a critical safety net when working around heavy equipment.
The hard-shell carrying case keeps everything organized, though the case latches can be fragile. The rotational speed takes 10 to 20 seconds to spin up, which is a minor wait. Users consistently report dead-on calibration straight from the box, with one buyer saving over in contractor costs on a single greenhouse pad project. For the contractor who needs true dual slope capability without jumping to the premium tier, this is the sweet spot.
What works
- Dead-on calibration with zero variance reported by users
- Complete kit with rod, tripod, and receiver
- Dual slope function is intuitive via remote control
What does not
- Carrying case latches and hinges can break during handling
- Takes 10-20 seconds to reach full rotational speed
- Only IP54 rated against dust and water

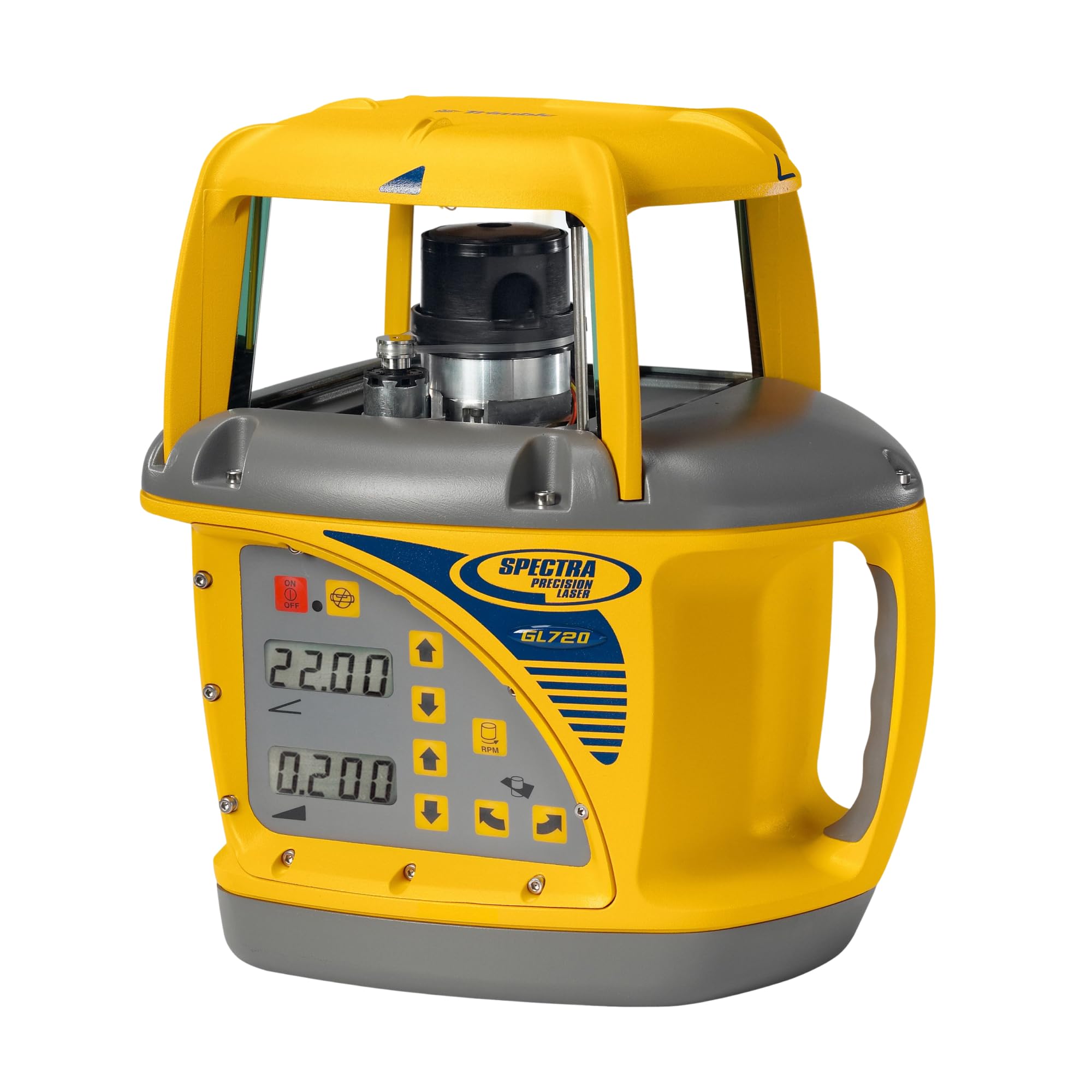

2. Spectra Precision GL720
The Spectra Precision GL720 is the unit you buy when grade tolerances on a pipeline or large pad are non-negotiable. Its dual slope capability covers ±10 percent on the X-axis and a -0.5 to +25 percent range on the Y-axis, handling everything from road crown to steep agricultural drainage. With a working range of 3,000 feet with the HL700 receiver, this laser covers massive job sites without relocating the tripod.
The automatic self-leveling and grade reverse feature enable crowning applications without physically realigning the laser head — a time-saver when setting asphalt grade transitions. The NiMH batteries provide solid runtime, with a D-cell backup compartment for remote sites without power. The included HL700 receiver has adjustable precision settings for fine versus rough grade work, and the rod clamp holds firm during repeated raising and lowering.
The price tag places this firmly in the heavy-use professional tier, and the learning curve for the receiver and remote is steeper than entry-level kits. One user reported receiving a miscalibrated first unit that Amazon quickly replaced, emphasizing the importance of verifying calibration upon arrival. For farm drainage, sports field construction, and large-scale concrete work, the GL720 delivers reliability that justifies the investment.
What works
- Grade reverse feature for crowning without realignment
- 3,000 foot range covers large commercial sites
- NiMH packs with D-cell backup for field flexibility
What does not
- Setup instructions are overly complex for first-time users
- Red beam is hard to see in direct sunlight without receiver
- Premium price barrier for small contractors
3. Topcon RL-SV2S
The Topcon RL-SV2S is engineered for crews that need a laser to run an entire work week on a single set of batteries. The 120-hour runtime from D-cell batteries means no mid-week charging stops, and the 100-hour operating life from the standard D cells provides a comfortable margin for extended grading sessions. The build quality handles dust, sudden showers, and torrential rainfall without flinching.
The dual slope capability integrates with the included remote for one-person operation, and the long-range performance keeps the signal locked across large excavations. Users with over 15 years of Topcon ownership report consistent reliability across multiple units, with the RL-SV2S being a noticeable step up in battery efficiency and waterproofing compared to older models. The self-leveling mechanism is fast and holds calibration well after transport in a truck bed.
The kit does not include a tripod or grade rod, so factor those into the total investment. The red laser beam, like most red units, requires the receiver for outdoor use beyond about 200 feet. For a contractor who values uninterrupted runtime and has existing tripod and rod equipment, the Topcon RL-SV2S is a workhorse built for remote, long-duration grading jobs.
What works
- 120-hour battery life covers a full work week
- Weatherproof design withstands heavy rain
- Fast self-leveling with reliable long-term calibration
What does not
- No tripod or grade rod included in the kit
- Red beam is difficult to see outdoors without the receiver
- Premium price expected for a Topcon-branded instrument
4. Bosch GRL900-20HVK
The Bosch GRL900-20HVK REVOLVE900 is a comprehensive kit built for contractors who want a reliable exterior rotary laser without the full premium price. It delivers ±1/8 inch accuracy at 100 feet and a working range of up to 1,000 feet, which covers most residential and light commercial grading tasks. The kit includes the laser head, LR10 receiver, BT160 aluminum tripod, an 8-foot grade rod, remote control, wall mount, and a hard carrying case.
The vertical beam function provides a 90-degree point for squaring and plumb layout on foundations and walls. The laser runs on two D-cell batteries with impressive longevity, and users report it lasting through multiple days of grading. The receiver produces a loud audible beep that cuts through job site noise, and the self-calibration feature ensures the laser is level each time you power it on after bouncing in a truck bed.
The 8-foot grade rod is shorter than the 13-foot rods included with some competitors, which can be a limitation on deep excavations. Users also note the tripod and rod lack a dedicated carrying bag, making transport awkward. The red laser is invisible in bright sunlight, so you rely on the receiver for all outdoor work. For a balanced, out-of-the-box kit from a trusted brand, this is a strong contender.
What works
- Complete kit with tripod, rod, and receiver included
- D-cell batteries provide long runtime for extended grading
- Vertical beam function for plumb and squaring tasks
What does not
- 8-foot grade rod is short for deeper excavation work
- No bag for transporting tripod and rod
- Red beam invisible outdoors without the receiver
5. Johnson Level & Tool 40-6541
The Johnson 40-6541 steps up the grade range to 8 degrees on the dual slope function, giving you more headroom for steep drainage and aggressive site grading compared to the 5-degree 99-028K. This is a horizontal-only rotary system, so vertical alignment for walls and fencing is not its primary role. The kit is equipped with a NiMH rechargeable battery pack, charger, remote control, detector with clamp, tripod, 13-foot grade rod, magnetic target, and tinted glasses.
The visual and audible out-of-level alarms remain a strong safety feature, especially when heavy machinery is operating nearby. The self-leveling mechanism handles uneven ground well, and the build quality feels robust with a metal construction. Users report the unit works great out of the box, though some have experienced issues with rechargeable batteries arriving fully depleted and refusing to charge on the included adapter.
The remote control range is limited, and the sensor eye on the back of the laser must face the remote for adjustments, which can be awkward when you are positioned on the opposite side of the job site. The 8-degree range is genuinely useful for commercial drainage work, but the potential for battery QA issues means you should test the charging system immediately upon arrival. For horizontal grading with steep slopes, this is a capable tool.
What works
- 8-degree dual slope range handles steep commercial grades
- Complete kit with 13-foot rod and sturdy tripod
- Out-of-level visual and audible alarms are reliable
What does not
- Rechargeable battery and charger issues reported out of box
- Remote range is short and requires line of sight to sensor
- Horizontal-only system, no vertical beam for walls
6. Johnson JRT300-RDHV-S
The Johnson JRT300-RDHV-S is the newest model in the Johnson rotary lineup, and it brings a 4,000-foot working range and IP67 dust and water resistance. The 4,000-foot diameter coverage means you can grade an entire large commercial lot without moving the laser. The IP67 rating goes beyond splash resistance — this laser can survive being submerged in a meter of water for 30 minutes, which is essential for rainy season work.
Five rotational speeds (0, 100, 300, 600, and 1,200 RPM) let you match the beam visibility to the ambient light conditions and distance. The 400-foot remote range enables one-person operation across large areas, and the detector picks up the beam reliably even in direct sunlight. The lithium-ion batteries provide solid runtime, and the kit includes a magnetic target, laser detector, remote, tripod, and a 13-foot grade rod.
The included grade rod is marked in eighths of an inch rather than the tenths that many contractors expect, which requires some mental conversion during cut and fill calculations. The detector bracket is made of plastic and one user found it would not tighten sufficiently on the grade rod. For large-scale commercial contractors who need maximum range and weather toughness, the JRT300 delivers features found in far more expensive units.
What works
- 4,000-foot range covers the largest commercial job sites
- IP67 rating protects against submersion and heavy dust
- Five rotational speeds for different light and distance conditions
What does not
- Grade rod marked in eighths instead of tenths
- Detector bracket is plastic and may loosen during use
- Premium pricing for maximum range capability
7. DEWALT DCLE34033D1
The DEWALT DCLE34033D1 is a 3×360 green line laser, not a rotary dual slope laser, but it earns a spot here for contractors who need dual slope functionality in a line laser for indoor and smaller outdoor grading. It offers ±1/8 inch accuracy at 50 feet, which is 40 percent more accurate than DEWALT’s previous generation. The green beam is visible up to 230 feet indoors and reaches 330 feet when paired with the DW0892G detector.
The dual voltage compatibility with both 20V MAX and 12V MAX batteries is a smart feature for crews already invested in the DEWALT platform. The 10-hour runtime on a single 2Ah battery means it lasts a full shift without swapping packs. The integrated magnetic pivoting base with 1/4-inch and 5/8-inch tripod threads and rear-mounted magnets allow flush attachment to metal studs and beams.
This is not a replacement for a rotary dual slope laser on large exterior grading projects. The line laser format does not spin a beam 360 degrees like a rotary unit, so you need multiple setups for large areas. The micro adjustment knob is a nice touch for fine alignment, and the included hard case and ceiling bracket add value. For indoor layout and small exterior slopes where green visibility matters, this is a top-tier line laser.
What works
- Green beam is highly visible indoors and in shade
- 10-hour runtime from a single 2Ah battery
- Dual voltage compatibility with 12V and 20V batteries
What does not
- Line laser format limits use on large exterior grading
- No dedicated dual slope function like rotary lasers
- Premium pricing for a line laser system

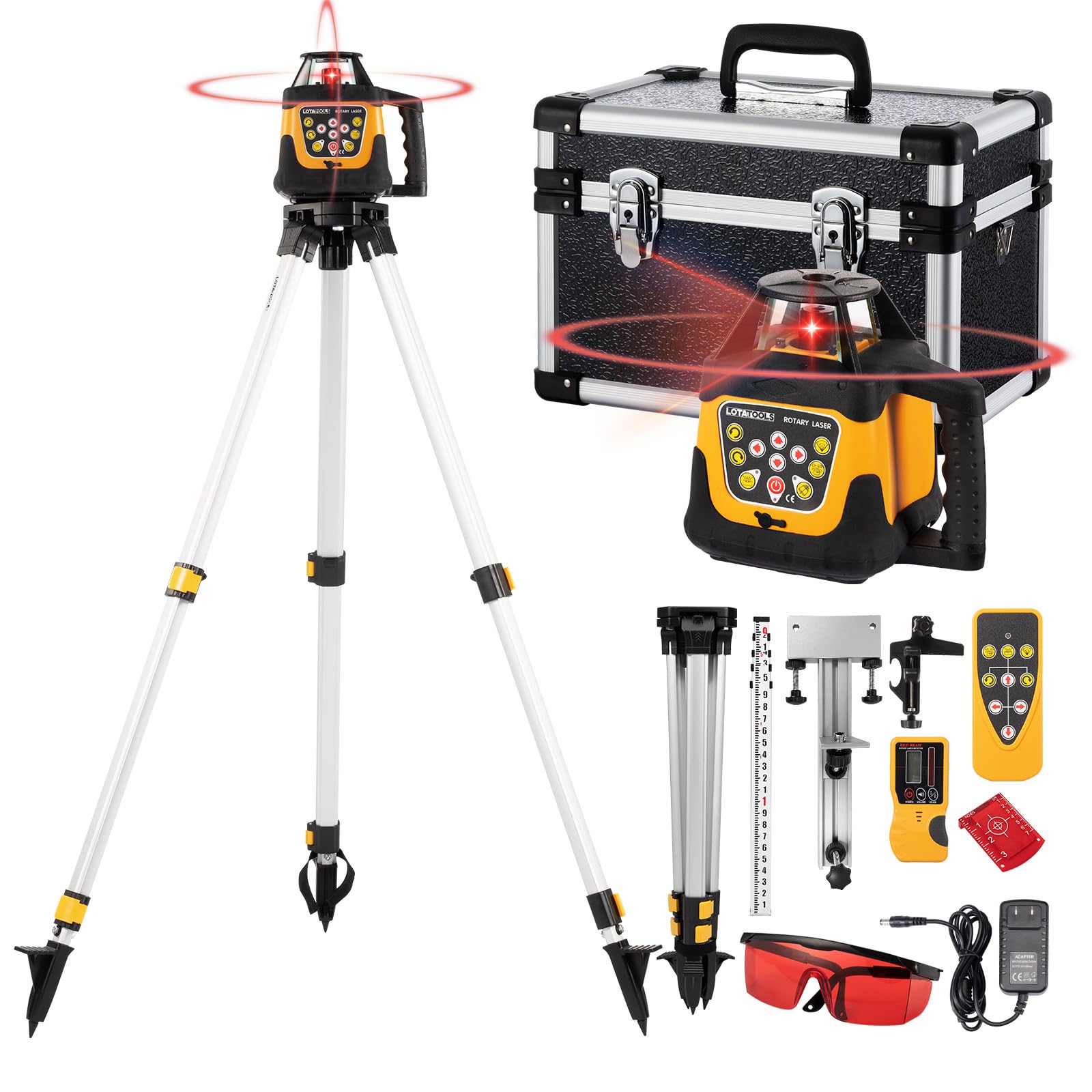

8. LotaTools Rotary Laser Kit
The LotaTools Rotary Laser Kit is the budget entry point for contractors who need a full setup without spending thousands. It delivers ±1/8 inch accuracy at 100 feet with a red Class II laser, and when paired with the included receiver, the working range expands to 2,000 feet in diameter. The IP66 rating protects against powerful water jets and dust, exceeding the protection of many mid-range lasers.
The kit is impressively complete: rotary laser unit, receiver with clamp, remote control, target plate, laser glasses, five-section grade rod, 5.5-foot aluminum tripod, heavy-duty wall mount, and a protective aluminum carrying case. The rechargeable battery is a welcome upgrade over D-cell-dependent units at this level, and the self-leveling mechanism handles rough terrain with a ±5 degree range.
There are quality control risks at this price point. One user reported the unit stopped charging after three hours of use and received no response from the manufacturer. The grade rod is marked in tenths of a foot rather than inches and tenths, which can be confusing for contractors accustomed to imperial measurements. For the small contractor or serious DIYer on a tight budget, this kit offers a lot of hardware, but the gamble on reliability is real.
What works
- Complete kit with tripod, rod, receiver, and case
- 2,000-foot range covers most residential grading tasks
- IP66 rating exceeds typical mid-range durability
What does not
- Quality control issues with charging reported by some users
- Grade rod marked in tenths, not inches and tenths
- Manufacturer support response can be slow
9. Klein Tools 93PLL
The Klein Tools 93PLL is a 3-plane self-leveling green laser, not a traditional dual slope rotary laser, but it deserves consideration for indoor layout tasks that involve slope reference. The three independent 360-degree green planes (X, Y, and Z) provide full room coverage with a single setup, and the plumb up-and-down marks at the Y and Z plane intersection simplify wall and ceiling alignment. The accuracy is specified at 1/8 inch at 33 feet, which is tighter than many general-purpose line lasers.
The removable and rechargeable lithium-ion battery delivers over 9 hours of runtime, and the magnetic mounting bracket with 1/4-inch-20 threads offers flexible attachment to metal surfaces and tripods. The IP54 rating handles dust and splashes on indoor job sites. Users report the green beam is visible indoors at over 200 feet, and the included hard plastic carrying case keeps everything organized.
This unit lacks the rotating beam and long-range receiver setup needed for exterior grading over large distances. The 3-plane layout excels for drop ceilings, electrical conduit, and cabinetry alignment where establishing multiple reference planes quickly is the goal. For contractors who split their time between indoor finish work and light slope layout, the Klein 93PLL is a bright, accurate, and well-built tool.
What works
- Three independent 360-degree planes for complete room coverage
- Bright green beam visible indoors at over 200 feet
- Rechargeable battery with 9-plus hour runtime
What does not
- No rotary function for large exterior grading
- No included receiver for outdoor beam detection
- Not designed for true dual slope grading applications
Hardware & Specs Guide
Self-Leveling Range
The self-leveling range, measured in degrees, indicates how far off level you can place the laser before it stops compensating. A ±5 degree range is standard and handles most tripod setups on rough terrain. A smaller range like ±2 degrees requires nearly level ground and more tripod leg adjustment. This spec directly affects your daily setup speed.
Grade Range
The grade range, specified as a percentage, determines how steep a slope the laser can set. A ±5 percent range covers standard drainage, while ±10 percent handles commercial stormwater and agricultural work. Some units offer asymmetric grade ranges on the X and Y axes, which is critical for applications like road crown where each side slopes in opposite directions.
FAQ
What is the difference between dual slope and single slope on a rotary laser?
Why does my red laser beam disappear in sunlight even with the receiver?
Can I use a dual slope laser for vertical layout?
How does rotational speed affect dual slope laser performance?
Do I need a separate receiver for every dual slope laser kit?
Final Thoughts: The Verdict
For most contractors, the dual slope laser winner is the Johnson Level & Tool 99-028K because it delivers a full kit with reliable 5-degree dual slope capability at a mid-range investment that pays for itself quickly on drainage and flatwork. If you need maximum range for large commercial sites, grab the Johnson JRT300-RDHV-S. And for heavy grading and machine control work, nothing beats the Spectra Precision GL720.
