A single sump pump is a gamble. When the spring melt hits hard or a summer storm knocks out the grid, that lone unit is the only thing standing between your basement and thousands of dollars in water damage. A proper dual sump pump system adds a layer of mechanical redundancy and often a battery backup, turning a single point of failure into a coordinated defense.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years digging into the engineering specs, flow curves, and real-world durability patterns of residential water management hardware to separate the pumps that actually last from those that fail at the worst possible moment.
Whether you are finishing a basement or protecting an existing one, the right dual sump pump system needs to match your pit dimensions, head pressure, and local weather patterns without breaking your budget.
How To Choose The Best Dual Sump Pump System
Selecting a dual system means balancing pump horsepower, switch reliability, and backup power. Most setups fall into one of two camps: a single primary pump with a DC battery backup pump in the same basin, or two full-size AC pumps with separate float switches. The right choice depends on your water inflow rate and whether your area experiences frequent power outages.
Pump Material and Motor Type
Cast iron housings dissipate heat better than aluminum or plastic, allowing longer continuous run times without thermal shutdown. A permanent split capacitor (PSC) motor draws fewer amps than a standard split-phase motor, reducing electrical load and typically running quieter. For systems running hundreds of cycles per storm, a PSC motor in a cast iron volute is the most durable combination.
Float Switch Configuration
A dual float switch in a protective cage adds mechanical redundancy if one float sticks. Vertical float switches take up less horizontal space, making them ideal for narrow pits where a tethered float might snag on the basin wall. Some systems use a microreed switch that is separate from the pump body, which lets you replace a failing switch without pulling the entire pump out of the pit.
Battery Backup Capacity
If your system includes a DC backup pump, the battery amp-hour (Ah) rating determines how long the pump can run. A 75 Ah battery will typically power a ½ HP DC pump for 8 to 12 hours of intermittent cycling, while a 110 Ah or larger battery extends that to 20 hours or more. Match the battery capacity to your pit fill rate — a fast-filling pit burns through backup battery charge much faster.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| WAYNE WSS30VN | Integrated AC/DC | Power outage protection | 5,100 GPH / 85 GPM | Amazon |
| Basement Watchdog SIT-33D | Single Primary | Narrow pit replacement | 3,720 GPH / 62 GPM | Amazon |
| Basement Watchdog BWT050 | Single Primary | High-volume backup pairing | 4,200 GPH / 68 GPM | Amazon |
| Acquaer Sewage Pump | Sewage/Ejector | Wastewater and solids handling | 6,400 GPH / 106 GPM | Amazon |
| JACKEL JPACK22S-250V | Pre-Plumbed Kit | Complete DIY install | 22 gal basin, SJE switch | Amazon |
| Liberty Pumps 405 | Drain Pump | Laundry/sink drainage | 52 GPM, Quick Tree | Amazon |
| SEC America 822PS | Battery Backup Inverter | AC pump backup power | 1,200W inverter, 9A max | Amazon |
In‑Depth Reviews
1. WAYNE WSS30VN Integrated AC/DC Sump Pump System
The WAYNE WSS30VN is a true dual system out of the box — a ½ HP AC primary pump and a DC backup pump housed in the same pre-assembled unit. The primary moves 5,100 GPH at 0 ft lift, and the DC backup can evacuate up to 10,000 gallons on a single battery charge with the proper 75 Ah battery. The compact footprint fits 16-inch diameter basins or larger, and the integrated vertical float switch reduces the risk of snagging in narrow pits.
Users consistently report whisper-quiet operation, with the AC pump barely audible above ambient basement noise. The system is tested to one million cycles, which is significantly higher than many residential-grade units. The backup pump activates automatically within seconds of a power loss, and the built-in charger reconditions the battery when grid power returns.
The baseplate is wider than some standalone pumps, so measure your basin carefully — it barely fits an 18-inch round pit. The battery is not included, and pairing an external battery with an external charger can extend the lifespan of deep-cycle marine batteries beyond what the internal charger provides.
What works
- True AC/DC dual system in one drop-in unit
- Extremely quiet primary pump operation
- Tested to one million cycles
- Backup pump runs effectively against 7 ft head
What doesn’t
- Wide base requires 16-inch or larger basin
- Battery not included — adds significant cost
- Customer support response can be slow
2. Basement Watchdog SIT-33D Cast-Iron ⅓ HP Submersible
The SIT-33D uses a ⅓ HP PSC motor that draws less power than standard split-phase motors, saving on electric bills over years of operation. It pushes 3,720 GPH at 0 ft lift and 3,100 GPH at 10 ft, which is respectable for a compact pump designed to fit narrow pits. The top-discharge design keeps the discharge pipe close to the pump body, and the caged dual float switch prevents debris from jamming the mechanism.
The cast iron housing adds weight and improves heat dissipation, allowing longer run cycles without thermal overload. Dual carbon-ceramic shaft seals plus a Buna-N seal provide three layers of water protection for the motor. Several owners report these pumps lasting 10 years or more before needing replacement.
This is a primary pump only — it does not include a backup pump or battery system. For a true dual setup, you would pair this with a separate DC backup pump mounted higher in the same basin. The ⅓ HP motor may struggle in pits with very high inflow rates where a ½ HP or larger pump would be more appropriate.
What works
- Energy-efficient PSC motor lowers operating cost
- Cast iron housing with triple shaft seals
- Caged dual float adds redundancy
- Compact enough for narrow pit installations
What doesn’t
- ⅓ HP may be underpowered for high inflow
- No backup pump or battery included
- Top-discharge can complicate pipe routing in some pits
3. Basement Watchdog BWT050 ½ HP Submersible
The BWT050 features a ½ HP motor that draws only 3.8 amps, making it one of the most energy-efficient pumps in its class while still moving 4,200 GPH at 0 ft lift. The cast iron and cast aluminum construction keeps the weight manageable at 17 pounds, and the separate microreed float switch can be replaced without removing the pump from the pit — a major maintenance advantage.
At 2,770 GPH at 10 ft of head, this pump maintains strong flow under realistic basement discharge conditions. The narrow body makes it a popular choice as a secondary or backup pump in a dual configuration, mounted higher in the pit to activate only when the primary cannot keep up. Owners consistently report 10 to 12 years of service life when the pit is kept clean and the pump is elevated off the bottom.
The special piggyback plug must be seated correctly for the pump to operate in automatic mode. Some returns occur because buyers do not realize the float switch plug needs to be fully engaged. The separate switch design adds a potential failure point at the electrical connection if the plug is jostled loose.
What works
- Very low amp draw for a ½ HP pump
- Replaceable float switch without pump removal
- Strong flow at 10 ft head
- Narrow body fits dual configurations well
What doesn’t
- Piggyback plug must be seated carefully
- Aluminum housing less durable than cast iron
- Occasional early failures reported with sludge buildup

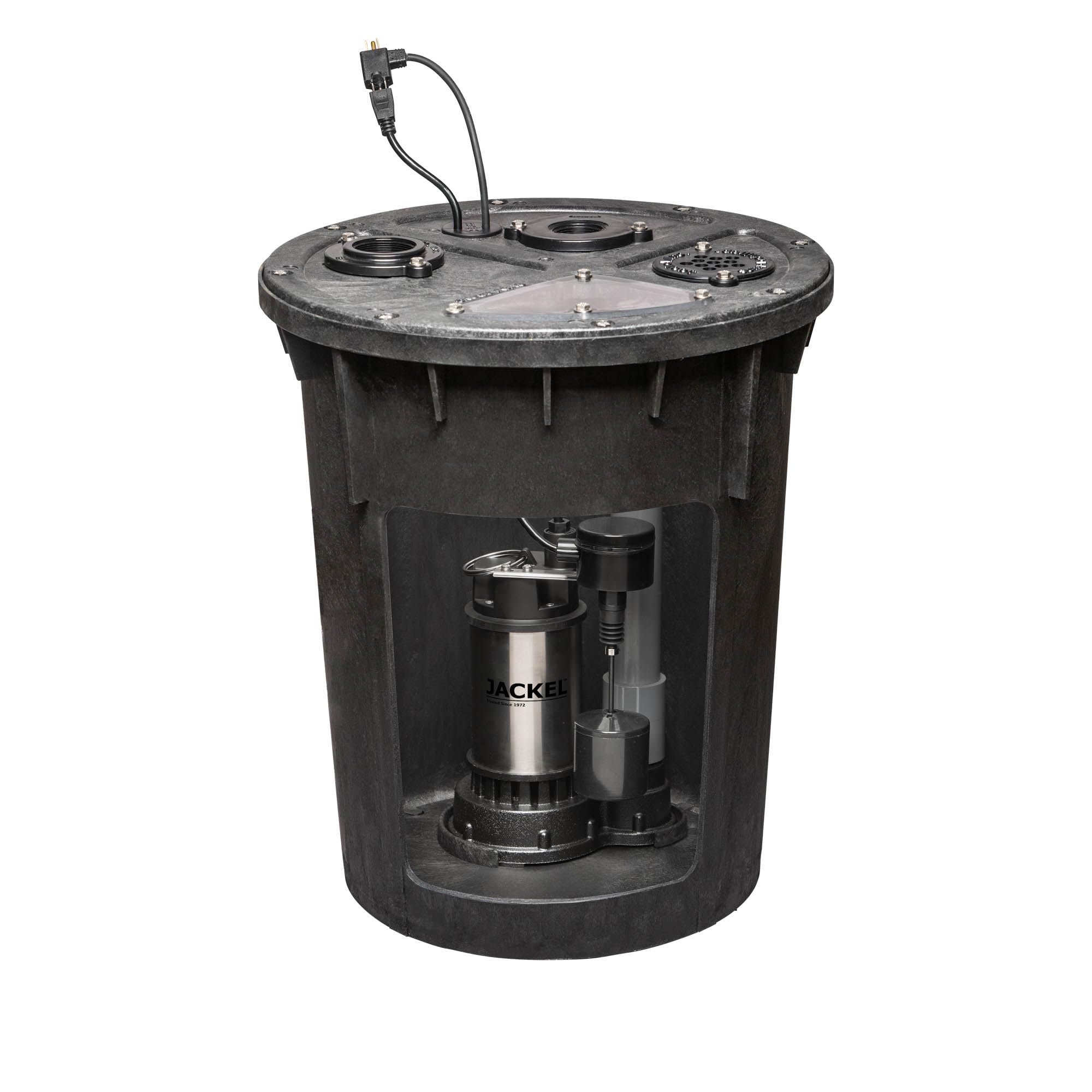

4. JACKEL JPACK22S-250V Pre-Plumbed Sump Pump System
The JACKEL kit includes an 18 x 24 inch polyethylene basin with a 22-gallon capacity, a ½ HP pump with stainless steel housing and cast iron volute, and pre-installed Schedule 80 PVC discharge plumbing with a check valve. The SJE-Rhombus vertical float switch is known for reliability, and the piggyback plug allows manual override if needed. This is a complete above-ground installation kit — you do not need to source separate components.
The basin cover includes a clear-view inspection plate and a DrainTrap fitting, simplifying maintenance access. The 1.5-inch threaded discharge flange and 2-inch vent flange accept standard plumbing connections. The 4-inch inlet hub connects directly to drain tile or foundation footing drains.
The kit includes only one pump. To make this a true dual system, you would need to add a second pump and modify the discharge plumbing. The 22-gallon basin provides enough volume for a second pump, but the cover may need modification for an additional discharge port.
What works
- Complete kit with basin, pump, and plumbing
- Stainless steel and cast iron pump construction
- SJE vertical switch is very reliable
- Clear-view inspection plate for easy maintenance
What doesn’t
- Single pump system — requires expansion for dual
- Above-ground design may not fit all pit depths
- Basin weight is 48 pounds empty
5. Liberty Pumps 405 Commercial ½ HP Drain Pump
The Liberty Pumps 405 is a pre-assembled drain pump designed for applications like laundry sink drainage, dishwasher effluent, and light commercial use. The oil-filled motor with thermal-overload protection runs cooler and quieter than air-cooled motors, and the Quick Tree technology lets you inspect or remove the float switch without disconnecting the discharge plumbing. Flow rate is 52 GPM at 0 ft lift, which is adequate for drainage applications but lower than dedicated sump pumps.
The 23-pound unit is easy to handle during installation, and the metal and plastic construction resists corrosion in damp environments. Owners report service lives of 10 to 12 years, with many replacing older 404 models with this 405 for the quieter operation and increased power. The fully automatic operation requires no manual intervention once installed.
This is a drain pump, not a standard sump pump — it is optimized for lower-head, moderate-flow applications like pumping wastewater up to a sewer line. It is not designed for high-volume basement groundwater management or for use as a primary sump pump in a high-inflow pit.
What works
- Quick Tree switch removal without plumbing disassembly
- Oil-filled motor runs cool and quiet
- Long service life reported by owners
- Compact and easy to install
What doesn’t
- Not designed for high-volume groundwater pumping
- Flow rate lower than dedicated sump pumps
- Instructions are sparse — YouTube recommended
6. SEC America 822PS Pump Sentry Battery Backup System
The SEC America 822PS is not a pump — it is a 1,200-watt pure sine wave inverter that powers your existing AC sump pump from a 12-volt deep-cycle marine battery during a power outage. It supports pumps drawing up to 9 amps, which covers most ⅓ HP and ½ HP residential sump pumps. The compact aluminum housing is UL and CSA accredited, and the system switches from AC to battery power in seconds with no user input.
Installation is straightforward: connect the provided heavy-duty cables to a 90 to 200 Ah battery, plug your pump into the Pump Sentry, and plug the unit into wall power. The internal charger automatically reconditions the battery when grid power is restored. With a 110 Ah battery, owners report approximately 20 hours of backup pumping time under intermittent cycling. The cooling fan only activates when the inverter is under load, keeping noise to a minimum.
This system only works with submersible pumps — it is not compatible with pedestal pumps. The battery is purchased separately, adding to to the total cost depending on capacity. Some owners recommend pairing this with a separate water level alarm for additional peace of mind during extended outages.
What works
- Supports most AC sump pumps up to 9 amps
- Silent operation with fan only under load
- Automatic switchover in seconds
- Compact aluminum housing mounts easily
What doesn’t
- Not compatible with pedestal pumps
- Battery not included — significant added cost
- Inverter may fail after 5+ years of use
7. Acquaer ¾ HP Sewage Pump with Tethered Float
The Acquaer sewage pump is built for handling solids up to 2 inches in diameter, making it appropriate for basement bathrooms, laundry ejector pits, or sewage lift stations rather than clean water sump applications. The ¾ HP oil-filled motor delivers 6,400 GPH at 0 ft lift with 29 ft of maximum head. The cast iron casing and vortex impeller resist clogging from fibrous materials and small debris.
The adjustable tethered float switch enables automatic operation with a piggyback plug for manual override. Thermal overload protection shuts the motor down during dry-run conditions to prevent burnout. Several owners report using this as an ejector pump for laundry rooms with great success, and the price point is significantly lower than comparable commercial sewage pumps.
This pump is not designed for clean water sump pit use — the vortex impeller trades some efficiency for solids handling. There are reports of motor burnout within the first year in continuous-duty applications, though the manufacturer offers a 2-year warranty and responsive customer service. The tethered float requires more horizontal clearance than a vertical switch, making it less suitable for narrow basins.
What works
- Handles 2-inch solids without clogging
- Cast iron casing is very durable
- High flow rate for a ¾ HP motor
- Good customer service from manufacturer
What doesn’t
- Not ideal for clean water sump applications
- Tethered float needs wide basin clearance
- Some reports of early motor burnout
Hardware & Specs Guide
Pump Horsepower and Flow Rate
The horsepower rating determines how much water the pump can move against the vertical lift (head) of your discharge pipe. A ⅓ HP pump is sufficient for moderate inflow rates in a standard basement, pumping roughly 3,500 to 3,700 GPH at 0 ft. A ½ HP pump handles higher inflow with 4,000 to 5,000 GPH, while a ¾ HP pump is typically reserved for sewage ejector applications or very high groundwater tables. Always check the GPH rating at 10 ft of head — that is closer to real-world conditions than the zero-lift rating.
Float Switch Types
Vertical float switches take up minimal horizontal space and are ideal for narrow pits, but they can be prone to sticking if debris accumulates. Tethered float switches have a wider activation arc and are less likely to stick, but they need several inches of clearance around the pump. Caged dual float switches place a secondary float inside a protective cage as a mechanical backup. Microreed switches use a magnetic reed sensor and can be replaced separately from the pump, reducing maintenance costs over the pump’s lifespan.
Battery Backup Chemistry
Deep-cycle marine batteries are the standard for sump pump backup systems because they tolerate repeated deep discharges better than standard car batteries. A 75 Ah battery provides roughly 8 to 12 hours of intermittent pump operation, while a 110 Ah battery extends that to 20 hours or more. AGM (Absorbent Glass Mat) batteries are preferable to flooded lead-acid because they are sealed and can be installed in any orientation without acid leak risk. Gel cell batteries offer similar performance but require specific charging profiles that may not match all backup systems.
Pump Housing Materials
Cast iron is the most durable pump housing material because it absorbs vibration, dissipates heat efficiently, and resists corrosion. It is also the heaviest option, which can make installation more difficult in tight spaces. Aluminum is lighter and resists rust but does not dissipate heat as effectively, which can shorten motor life in continuous-duty applications. Stainless steel offers excellent corrosion resistance but typically costs more and is less common in residential sump pumps. Thermoplastic housings are the least expensive but are best reserved for low-duty-cycle applications.
FAQ
Can I install a second pump in an existing single-pump basin?
What size battery do I need for a DC backup sump pump?
Should my dual system use two identical pumps or a primary plus a smaller backup?
How often should I test a dual sump pump backup system?
Can a single check valve serve two pumps in one basin?
Final Thoughts: The Verdict
For most users, the dual sump pump system winner is the WAYNE WSS30VN because it combines a powerful AC primary pump with a DC backup in a single pre-assembled unit that drops into most standard basins. If you want maximum control over pump selection, the Basement Watchdog SIT-33D makes an excellent primary paired with the SEC America 822PS for backup power. And for a complete DIY installation kit that includes the basin, pump, and all plumbing, the JACKEL JPACK22S-250V delivers exceptional value.
