A DVR security camera system isn’t just about recording — it’s your hardwired fortress against spotty Wi-Fi, dead batteries, and subscription traps. If you’re tired of grainy footage that can’t identify a license plate or false alarms triggered by a stray cat, you need a system built on a dedicated recorder with local storage and zero monthly bills.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing surveillance hardware across every price tier, digging into archival data on channel counts, H.265+ compression efficiency, hard drive longevity, and sensor sensitivity that separates a usable system from a paperweight.
Whether you’re securing a warehouse or your front door, the right dvr security camera system delivers consistent 24/7 recording, accurate motion detection, and enough storage to review crucial moments without compromise.
How To Choose The Best DVR Security Camera System
Before buying, understand that the DVR is the brain — its chipset, compression engine, and hard drive determine how long you keep footage, how fast you find events, and whether that 4K camera feeds actually look sharp on playback.
Channel Count & Camera Resolution
An 8-channel DVR can handle up to eight cameras, but mixing 4K and 1080p cameras on the same unit forces the recorder to downscale all inputs to the lowest common resolution in some models. Check whether the DVR supports mixed-resolution recording on independent channels. For large properties, a 16-channel unit provides room for expansion without swapping out the recorder later.
Compression & Storage Math
H.265+ cuts file size nearly in half compared to standard H.265, and by up to 70% versus H.264. A 2TB hard drive on an H.264 system might store seven days of continuous 1080p footage; the same drive using H.265+ can push past two weeks. For 4K systems, compression efficiency is critical — without it, a 4TB drive fills in under a week of 24/7 recording.
AI Detection That Works
Standard motion sensors trigger on every waving branch. Look for DVRs that process human and vehicle detection on-board using the video feed itself (not a separate sensor) — these systems push a smartphone alert only when a person or car enters the zone. The accuracy ceiling for most consumer systems sits around 95–99% in good light, but low-contrast night scenes still fool some algorithms.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Reolink 12MP System | Premium PoE | Ultra-high detail recording | 12MP (4512×2512) UHD | Amazon |
| Reolink 5MP System | Mid-Range PoE | Reliable plug-and-play smart detection | 5MP with 100ft IR night vision | Amazon |
| LongPlus 4K PoE | Mid-Range PoE | AI detection with strobe/siren deterrence | 4K 8MP with 132° FOV | Amazon |
| ZOSI 16CH 1080p | Mid-Range BNC | Large property 16-camera coverage | 4TB HDD with H.265+ compression | Amazon |
| Hiseeu 16CH 5MP | Mid-Range BNC | 16-channel active deterrence spotlight system | 3TB HDD with AI person/vehicle filter | Amazon |
| ANNKE 16CH 1080p | Mid-Range Hybrid | Hybrid DVR/NVR flexibility with dual light | 16 channel 5-in-1 hybrid DVR | Amazon |
| Lorex 4K DVR | Premium DVR Only | Smart home voice integration upgrades | 4K (8MP) DVR with 2TB HDD | Amazon |
| ANNKE 8CH 1080p | Value BNC | Cost-effective 8-camera bundle with dual light | 3K lite DVR with 1TB HDD | Amazon |
| OOSSXX 4K PoE | Value PoE | Budget 4K PoE entry with PIR detection | 4K 8MP with 130° ultra-wide lens | Amazon |
In‑Depth Reviews
1. Reolink 12MP PoE Security Camera System (RLK16-1200D8-A)
The Reolink 12MP system pushes beyond the typical 4K ceiling to 4512×2512 resolution, capturing face details and license plates that 1080p cameras simply miss. Each camera includes a built-in spotlight for full-color night vision and two-way talk, so you can scare off an intruder while the NVR records everything locally on a 4TB HDD. The 16-channel NVR with 16 PoE ports supports expansion to 24 channels when adding Reolink plug-in Wi-Fi cameras, making it future-proof for growing properties.
Smart detection separates people, vehicles, and pets with shape-based algorithms, which reduces false alerts compared to older PIR-only systems. In practice, the spotlight can be scheduled to switch between color and IR modes depending on the time of day — giving you color footage all night if you want, or black-and-white IR with longer range. The 4TB drive fills faster than expected at 12MP constant recording (roughly five days of 24/7 footage), but H.265 compression helps stretch that window, and upgrading to a larger SATA drive is straightforward.
Installation requires running Ethernet cables to each camera location, which is non-negotiable for a PoE system. The dome cameras mount securely when fully twisted, though the lack of a locking set screw on the mounting plate has been noted as a minor inconvenience. Overall, the RLK16-1200D8-A sets the benchmark for residential and small-business surveillance where detail is non-negotiable.
What works
- 12MP resolution captures details 4K systems miss
- Full-color spotlight night vision with schedule control
- 16 PoE ports with expandable NVR to 24 channels
- Reliable app with instant push on person/vehicle detection
What doesn’t
- 4TB fills quickly at 12MP 24/7 recording
- Vehicle detection accuracy inconsistent compared to person detection
- Camera mounting plate lacks a locking mechanism
2. Reolink 5MP PoE Security Camera System (RLK8-410B6-5MP)
The RLK8-410B6-5MP delivers 5MP super HD recording across six PoE cameras, bridging the gap between budget 1080p kits and premium 4K+ setups. Each camera incorporates 18 IR LEDs for black-and-white night vision up to 100 feet, and the integrated microphone adds an audio layer to video evidence. The NVR ships with a 2TB hard drive that holds roughly one week of continuous recording at 5MP — a reasonable retention window for most home users.
Smart detection differentiates people, vehicles, and animals, which cuts down on false alerts from stray cats or swaying branches. The plug-and-play PoE design means each camera connects to the NVR with a single Ethernet cable for both power and data, simplifying installation for DIY users. The NVR supports HDMI direct connection to a monitor and remote access via the Reolink app on iOS, Android, or PC.
Some users report that the included 60-foot Cat5 cables are too short for larger homes, requiring additional cable runs. Playback date selection in the app has been described as occasionally unresponsive on the first tap, and the PC client can freeze during extended use. Still, for the price, the image quality and detection reliability are difficult to beat.
What works
- 5MP resolution provides clear detail at a mid-range price
- Reliable person/vehicle/animal detection with minimal false alerts
- Truly plug-and-play PoE setup
- Built-in microphone on each camera records ambient audio
What doesn’t
- Included 60ft Ethernet cables may be too short for larger homes
- PC client and playback UI can feel sluggish
- IR LEDs attract bugs, causing some false motion alerts
3. LongPlus 4K 8CH PoE Security Camera System (LP8ME84B1)
LongPlus enters the 4K PoE arena with four bullet cameras each packing an 8MP 1/2.7″ CMOS sensor, a 2.8mm lens offering a 132-degree diagonal field of view, and an f/1.6 fixed aperture for improved low-light sensitivity. The NVR supports up to eight 12MP/8MP PoE cameras, giving you room to add four more units later. A 2TB HDD is included, and the system supports encrypted cloud storage as an optional backup layer.
Triple night vision modes — IR, color, and smart — let you switch based on the scene. In smart mode, the camera uses its built-in spotlight to illuminate the area in full color when motion is detected, then reverts to IR between events. AI detection claims 99% accuracy for humans and vehicles, and in practice the system reliably pushed alerts for people walking within the activity zone while ignoring leaves and small animals. The integrated strobe light and siren serve as active deterrence when a threat is classified.
Wiring is simple thanks to PoE, but the camera bodies are all-plastic rather than metal, which may affect long-term durability in direct sun. Some users note that the siren and strobe can become a nuisance if the system falsely triggers during a windstorm unless the activity zone is carefully set. The Longvision app is responsive and supports quick clip downloading to your phone.
What works
- True 4K 8MP resolution with wide f/1.6 aperture for low light
- Triple night vision modes including color spotlight
- Strobe light and siren for active deterrence
- 2-year warranty with responsive support team
What doesn’t
- All-plastic camera housing feels less rugged than metal alternatives
- Strobe/siren can trigger unnecessarily in windy conditions
- Website download section for software has usability issues
4. Lorex 8 Channel 4K DVR (D841A82B)
The Lorex D841A82B is a standalone 8-channel 4K DVR without bundled cameras, designed for users who already own compatible Lorex cameras or want to mix and match from the extensive Lorex ecosystem. It records up to 8MP on all channels simultaneously and supports up to 10TB of total HDD storage (the pre-installed 2TB drive can be swapped). Smart home voice control via Amazon Alexa and Google Assistant provides handsfree playback and camera access.
This DVR integrates with the Lorex Home mobile app for remote viewing and active deterrence controls when paired with Lorex’s deterrent cameras. The device is compatible with more than 30 Lorex camera models across analog HD and some IP lines, so upgrading a legacy system often requires no rewiring — a major convenience for existing Lorex owners. The HDMI output connects directly to a TV or monitor for local playback without a computer.
Setup is not beginner-friendly: configuring recording schedules and motion zones requires using the DVR’s on-screen menu with a mouse, and there’s no desktop application for setting changes — you must use the local monitor or the mobile app. A small number of users experienced hardware failure within months, though Lorex customer service was responsive. For those already in the Lorex ecosystem, this DVR is a straightforward upgrade path.
What works
- True 4K 8MP recording on all 8 channels
- Alexa and Google Assistant voice control integration
- Backward compatible with many existing Lorex cameras
- Up to 10TB expandable storage
What doesn’t
- Setup menus require local monitor and mouse — not desktop-friendly
- DVR-only unit: no cameras included
- Occasional reports of hardware failure within the first year
5. ZOSI 16CH 1080p Security Camera System (16FKA-106B16S-40-US)
ZOSI’s 16-channel kit equips you with sixteen 2MP 1080p cameras and a 4TB enterprise-grade hard drive, making it the highest-capacity bundled system in this lineup at the mid-range tier. H.265+ compression is key here — it roughly doubles the recording time compared to standard H.264, allowing the 4TB drive to store months of footage rather than weeks. The wired BNC connection ensures stable 24/7 recording without the signal drop-offs common to Wi-Fi cameras.
AI detection distinguishes people and vehicles from pets and shadows, and pushes app alerts with snapshot attachments — a feature that dramatically reduces notification fatigue compared to standard motion sensing. The system supports four recording modes: continuous, scheduled, motion-only, and recycle overwrite, so you can fine-tune storage allocation per camera. Night vision reaches 80 feet using IR LEDs, delivering usable black-and-white footage in complete darkness.
At 1080p, the resolution is the weakest link here — you won’t read a license plate from 40 feet away like you could with a 4K system. The plastic camera housings feel less premium than metal alternatives, and the BNC cables, while reliable, require more careful routing than Ethernet. For covering a warehouse or large property where coverage matters more than pixel-level detail, this system offers the best storage-per-dollar ratio in the list.
What works
- 4TB HDD with H.265+ for months of footage retention
- 16 cameras eliminate blind spots on large properties
- Stable wired BNC connection, no Wi-Fi dropouts
- AI person/vehicle detection cuts false alerts significantly
What doesn’t
- 1080p resolution cannot read small details like license plates at distance
- Plastic camera housings feel less rugged than metal
- BNC cables require careful routing and management
6. Hiseeu 16CH 5MP Wired Security Camera System
Hiseeu’s 16-channel kit features 5MP (1944p) cameras that step above standard 1080p without jumping to the storage hunger of 4K. The DVR comes pre-loaded with a 3TB hard drive and supports AI-based human and vehicle detection on up to 8 channels, with standard alarm detection on the remaining 8. Smart playback lets you filter event clips by person or vehicle, then review at up to 256x speed — a significant time saver when scanning through overnight footage.
Active deterrence is a core feature: up to 8 cameras can activate built-in spotlights upon detection, and the one-way audio microphone picks up sounds around the camera. The IP67 weatherproof rating means the cameras handle rain, snow, and dust without issue, and the free XMEye Pro app provides remote access without subscription fees. In practice, the dual-light system switches between IR and white light depending on the triggering event, giving you color footage when motion is active and IR the rest of the time.
Longevity is a mixed bag — some users report the system running flawlessly for years with excellent customer support, while others experienced power box failures or HDMI port degradation after 12–24 months. The all-plastic mounts can develop play over time, and the cameras lack built-in microphones for two-way talk. For users who prioritize a high camera count with decent resolution and active deterrence, the Hiseeu packs strong value.
What works
- 5MP resolution with 100ft IR night vision range
- Built-in spotlights on 8 cameras for active deterrence
- Smart playback with AI filtering (person/vehicle)
- IP67 weatherproof rating
What doesn’t
- Long-term hardware reliability concerns on some units
- All-plastic mounts can loosen over time
- No two-way audio — one-way microphone only
7. ANNKE 16CH 1080p Hybrid Security Camera System
ANNKE’s 16-channel system uses a 5-in-1 hybrid DVR that accepts TVI, AHD, CVI, CVBS, and up to 2 additional IP cameras — offering unmatched format flexibility if you’re mixing camera types or upgrading from an older analog system. It ships with twelve 1080p cameras and a 2TB HDD, using H.265+ compression to stretch storage efficiency by up to 50% compared to H.265. Color night vision reaches 66 feet under white light, while IR black-and-white extends to 100 feet.
Human and vehicle detection is handled by built-in AI algorithms that push app alerts only for actionable events, and the motion-detection zone settings allow you to mask out high-traffic areas like public sidewalks. The ANNKE Vision app supports remote access via 3G/4G/5G, and the DVR is compatible with Google Chrome, Firefox, Edge, and Internet Explorer for desktop viewing. IP67-rated cameras handle outdoor exposure well.
Some users reported that 3 of the 12 cameras arrived with artifacts or display issues, though ANNKE customer support quickly sent replacements. Audio recording is not supported on these cameras — they capture video only. The hard drive’s overwrite feature did not reliably recycle on one unit, requiring a manual full-format reset after the drive filled. For large properties needing a high camera count with hybrid input support, the flexibility is hard to match at this tier.
What works
- 5-in-1 hybrid DVR supports TVI/AHD/CVI/CVBS/IP cameras
- 12-camera bundle covers large properties out of the box
- H.265+ compression extends recording time
- IP67 weatherproof cameras with dual light (IR + white)
What doesn’t
- No audio built in — video-only cameras
- Some units had camera artifacts on arrival; support replaced quickly
- HDD overwrite functionality has intermittent reliability issues
8. ANNKE 8CH 1080p Home Camera Security System
ANNKE’s 8-channel bundle includes eight 1080p cameras with built-in microphones and a 3K lite DVR that records at a slightly higher bitrate than standard 1080p DVRs. The 3.6mm fixed focal lens at F1.2 captures more light than typical F2.0 lenses, giving the color night vision mode a real advantage in dusk and dim-lighting conditions. A 1TB HDD is included, which provides roughly two weeks of continuous recording at 1080p with H.265+ compression active.
Three switchable night modes — smart light, white light, and IR — let you tune the cameras to your environment. In smart mode, the dual LEDs illuminate only when motion is detected, providing color footage during alerts and black-and-white IR the rest of the night. Human and vehicle detection delivers 99% claimed accuracy, and in real-world use the app pushes far fewer false notifications than simpler PIR-based systems. IP67 weatherproofing ensures the cameras survive direct rain and snow exposure.
The thin BNC cables require gentle handling during installation — they can kink or break if stapled too aggressively. The all-plastic camera housings feel lightweight compared to metal units, but the easy elbow adjustment simplifies aiming. For users who want a solid 8-camera system without paying for 4K resolution they don’t need, this is a well-balanced entry-level kit.
What works
- F1.2 lens captures more light for superior low-light color footage
- Three switchable night vision modes (IR/white/smart)
- Built-in microphone on each camera
- Reliable human and vehicle detection with minimal false alerts
What doesn’t
- Thin BNC cables require gentle handling during installation
- Plastic camera bodies feel less durable than metal
- Performance in very dim lighting is weaker than in well-lit areas

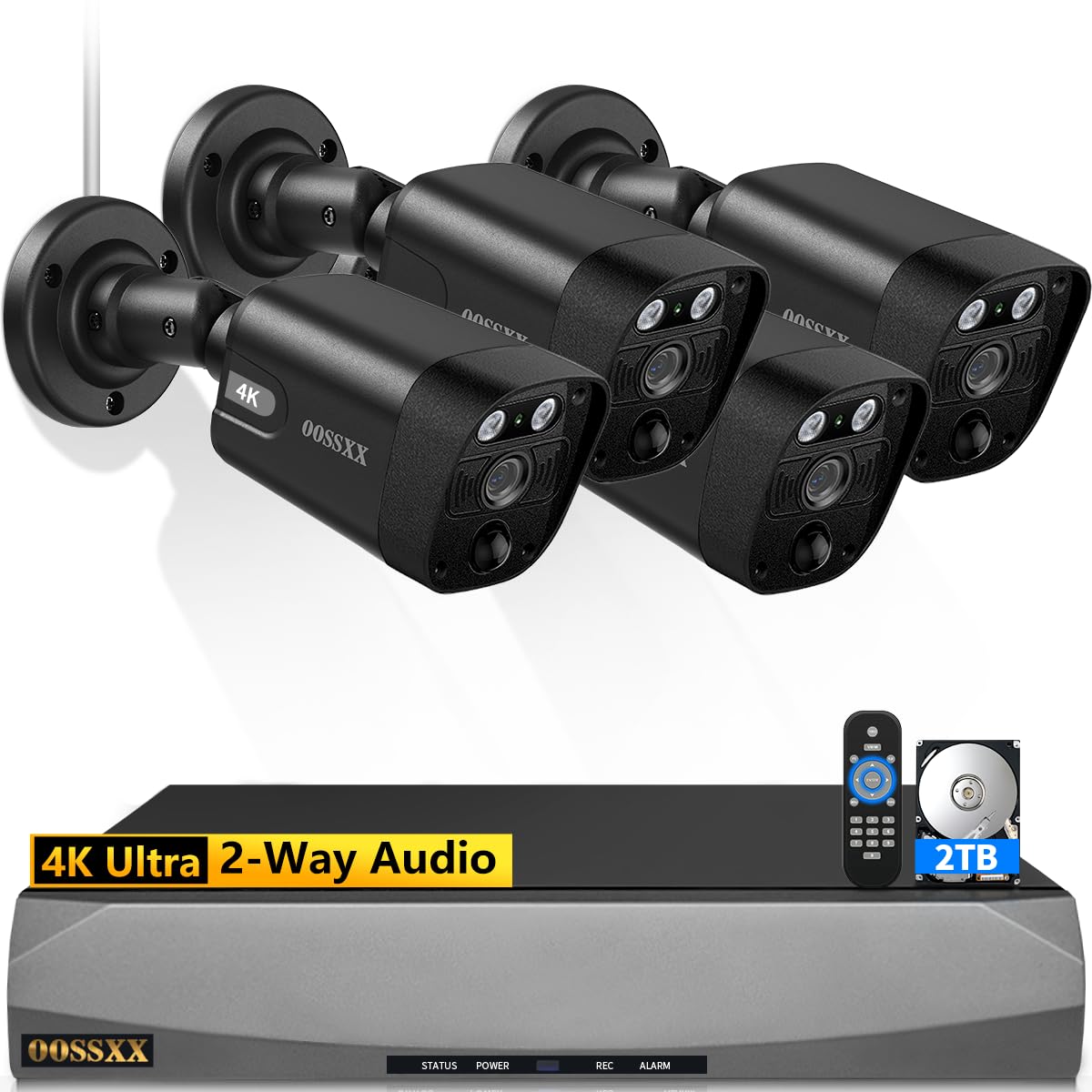

9. OOSSXX 4K PoE Outdoor Home Security Camera System
The OOSSXX system punches above its tier by offering 4K 8MP resolution via PoE cameras with a 130-degree ultra-wide-angle lens — one of the widest fields of view in this review. It combines PIR sensor data with AI human detection to reduce false alerts, pushing notifications only when a person triggers the zone. The included 2TB HDD supports up to 60 days of continuous recording at 4K if motion-only recording is configured, thanks to H.265 compression.
Two-way audio is built into the cameras, allowing you to speak through the system remotely via the free app. A physical remote control is included for local DVR navigation — a rare inclusion at this level. The PoE design simplifies cabling (single Ethernet per camera), and the aluminum + ABS construction provides decent weather resistance. Night vision delivers clear black-and-white footage, though true color night vision is not available without additional IR illumination.
Some units shipped with a 1TB HDD instead of the advertised 2TB, and the claimed 180° viewing angle measured closer to 90° in independent checks — a clear mismatch in the listing specifications. The included LAN cable was also shorter than advertised. For budget-conscious buyers who prioritize 4K PoE over bulletproof accuracy in marketing, the video quality per dollar is strong, but double-check the received configuration against the listing.
What works
- 4K 8MP resolution at an entry-level price point
- 130° ultra-wide field of view covers large areas
- Two-way audio and physical remote control included
- PIR + AI detection reduces some false alarms
What doesn’t
- Shipping configuration may differ from advertised specs (HDD容量/cable length)
- Claimed 180° FOV measured closer to 90°
- No true color night vision — IR only at night
Hardware & Specs Guide
H.265+ Compression Engine
The DVR’s video codec determines how much footage fits on your hard drive. H.265+ (also called Smart H.265+) analyzes each frame and discards static background data while keeping moving objects sharp. On a 2TB drive, this can extend recording from 7 days (H.264) to 30+ days (H.265+) at 1080p. For 4K systems, H.265+ is non-negotiable — without it, a 4TB drive fills in under a week of 24/7 recording.
AI Detection on the DVR
Not all motion detection is equal. DVRs with onboard AI process video from each channel in real time, classifying objects as person, vehicle, or animal before deciding whether to trigger an alert. This happens inside the recorder itself, not on a cloud server — so there are no monthly fees and no latency. Systems that rely only on PIR sensors or pixel-change analysis will generate far more false alarms from leaves, bugs, and shadows.
BNC vs PoE Cabling
BNC (coaxial) systems use analog HD signals over RG59 cable and require a separate power cable or power-over-coax adapter. They are cheaper per camera but limited to 1080p-5MP resolution in most cases. PoE (Power over Ethernet) uses a single Cat5e/Cat6 cable for both data and power, supporting up to 12MP resolution and longer runs (100m). PoE is easier to install if you can run Ethernet, but requires a PoE switch or NVR with built-in PoE ports.
Hard Drive Sizing & Overwrite
Standard DVRs ship with 1TB to 4TB drives. At 4K with H.265+, budget roughly 500GB per camera per month of continuous recording. Most DVRs support upgrading to larger 3.5″ SATA drives up to 10TB. The “recycle record” or “continuous overwrite” feature automatically deletes the oldest footage when the drive fills — critical for systems that record 24/7 rather than on motion trigger only.
FAQ
Can I mix 4K and 1080p cameras on the same DVR?
How long does a 2TB hard drive record on a 4-camera 4K system?
What is the difference between PIR and AI human detection on a DVR system?
Final Thoughts: The Verdict
For most users, the dvr security camera system winner is the Reolink 12MP System because its 12MP resolution, full-color spotlight night vision, and expandable 16-channel NVR offer the best detail-to-storage balance in a complete bundle. If you want a proven mid-range PoE setup with reliable smart detection, grab the Reolink 5MP System. And for covering large properties with the highest camera count per dollar, nothing beats the ZOSI 16CH 4TB Kit.
