The motor determines everything about how an e-bike feels — whether it launches you up a steep grade effortlessly, silently hums on a long commute, or overheats halfway through a trail ride. While most riders fixate on battery amp-hours or frame geometry, the real performance ceiling of any electric bicycle is set by the motor’s power delivery, thermal management, and drivetrain integration. Choosing the wrong unit can turn a promising build into a sluggish, breakdown-prone project.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing e-bike motor specifications, real-world dyno results, and conversion kit compatibility across hub and mid-drive platforms to separate marketing hype from genuine engineering.
For serious riders and builders alike, the e-bike motor you choose directly impacts torque availability, thermal thresholds, and long-term reliability — making it the single most consequential decision in any electric bike build.
How To Choose The Best E-Bike Motor
Selecting an e-bike motor involves more than looking at the wattage badge. You must evaluate physical mounting, thermal capacity, controller pairing, and the type of riding terrain you’ll tackle most often. A 5000W motor used for a trail build will behave very differently from a 750W mid-drive on a commuter — and both require specific frame and battery considerations.
Hub Motors vs Mid-Drive Motors
Hub motors — both front and rear — are self-contained units that replace the wheel’s axle. They offer simpler installation, silent operation, and are ideal for flat commutes or conversion kits. The trade-off? Unsprung weight affects handling, and they struggle on steep, sustained climbs because they lack gear multiplication. Mid-drive motors mount at the bottom bracket and drive the chain directly, leveraging the bike’s gearing. This gives superior climbing torque and better weight distribution but adds drivetrain wear and requires more complex installation.
Continuous vs Peak Wattage
Many motors advertise high peak numbers — 1000W, 5000W, even 10kW. Continuous (rated) wattage is what the motor can sustain under load without overheating. A 500W continuous motor with a 1000W peak will handle short bursts of acceleration but will drop power during a long hill climb. For commuting, a 500W continuous motor is often sufficient. For off-road or cargo, look for at least 750W continuous. For high-performance builds, 3000W continuous and above is where serious torque lives.
Controller Compatibility and Thermal Management
The motor controller governs throttle response, phase current, and regenerative braking. A sine-wave controller provides quieter, smoother power delivery than a square-wave controller. Motors with an external hall sensor (like the Kunray V-magnet designs) dissipate heat better and last longer than internal sensors. An IP54 or higher waterproof rating protects against moisture ingress, and a temperature sensor inside the motor (KTY84-130 or similar) allows the controller to reduce power before damage occurs — a critical feature for high-wattage builds.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| BAFANG BBS02B/BBS-HD | Mid-Drive | Reliable conversion builds | 750W continuous / 160 N.m peak | Amazon |
| Kunray KR5V 72V 5000W | Mid-Drive | High-power Razor / go-kart builds | 5000W rated / 10kW peak | Amazon |
| doinal KR5V 72V 5000W Kit | Mid-Drive | Complete plug-and-play kit with controller | 5000W rated / Fardriver 100A included | Amazon |
| Varstrom TSDZ2B/TSDZ16 | Mid-Drive | Natural pedal-feel with torque sensor | 500W continuous / 160 N.m peak | Amazon |
| isinwheel M10 Pro | Hub Motor | Fat-tire mountain e-bike | 1000W peak / 22 mph top speed | Amazon |
| Funhang City Cruiser | Hub Motor | Comfortable urban commuting | 1000W peak / 55 N.m torque | Amazon |
| Oslich 26″ Mountain Ebike | Hub Motor | All-terrain / budget trail riding | 750W peak / 60+ N.m torque | Amazon |
| Hoverfly OUREA | Hub Motor | Entry-level commuter e-bike | 750W peak / 20-40 mile range | Amazon |
| MOCHAG 1500W Rear Hub Kit | Hub Motor Kit | Budget conversion / snow e-bike | 1500W peak / 330 lbs load capacity | Amazon |
In‑Depth Reviews
1. BAFANG BBS02B / BBS-HD Mid Drive Kit
BAFANG is the de facto standard in the mid-drive conversion world, and this BBS02B/BBS-HD kit shows exactly why. The CAN bus protocol allows parameter tuning directly from BAFANG displays or the BAFANG GO app without needing a USB programming cable — a massive convenience for dialing in throttle curves and assist levels. The 750W continuous unit delivers up to 160 N.m at the crank, translating to genuine hill-climbing capability that hub motors simply cannot match.
The kit includes everything needed for a full conversion: throttle, brake levers, speed sensor, chainwheel, optional battery, and choice of displays from the EKD01 to the DPC080. It fits 68-73mm bottom brackets natively, with 100mm and 120mm options for fat bikes. Owners report over 2,000 miles on the 750W version with consistent cadence response and silent operation, though a few note that sensor connections can be loose out of the box and require re-seating.
Where this kit truly shines is the ecosystem. Replacement parts, upgraded chainrings, and aftermarket programming cables are widely available. The IP54-rated motor handles wet conditions, and the external hall sensor design improves heat dissipation compared to older BBS units. If you want a mid-drive conversion that balances power, serviceability, and aftermarket support, this BAFANG kit is the benchmark.
What works
- CAN protocol enables app-based parameter tuning without a cable
- Proven reliability beyond 2,000 miles in real-world builds
- Multiple bottom bracket and display options for custom builds
What doesn’t
- Included manual is vague; YouTube tutorials are required for assembly
- Battery mounting hardware may not fit all frames without additional adapters
2. doinal KR5V 72V 5000W Brushless Motor Kit with Fardriver Controller
This doinal kit bundles the Kunray KR5V 5000W motor with a Fardriver 100A programmable controller and twist throttle — a complete powertrain for high-performance projects. The motor’s V-magnet rotor with five magnet pairs provides stable torque output across the RPM range, and the external hall sensor placement on the back cover improves heat dissipation compared to internal designs. At 6800 RPM rated speed with an 8000 RPM no-load peak, this is a motor built for speed and sustained power delivery.
The included Fardriver controller uses sine-wave modulation for quiet operation and includes a self-learning function that auto-matches the motor’s timing. After binding the controller via the Fardriver app, you can monitor real-time parameters like phase current and motor temperature. Owners report straightforward installation on Razor MX650 frames and go-kart builds, with one noting excellent dependability once the initial Bluetooth pairing was completed.
The IP54 rating and class F (155°C) insulation allow operation in varied conditions, though the motor runs hot under sustained load — the heat sink and air cooling are essential, not optional. At this price point, getting a matched controller and motor with programmable tuning capability is rare. If your build demands 5kW continuous output and you want a single-box solution, this kit delivers.
What works
- Complete kit with motor, controller, and throttle — no separate parts to source
- Fardriver app provides real-time monitoring and parameter tuning
- External hall sensor placement reduces overheating failure risk
What doesn’t
- Initial Bluetooth pairing with the app can be finicky
- Motor runs very hot; avoid direct skin contact during operation
3. Kunray KR5V Electric Brushless DC Motor 72V 5000W
The Kunray KR5V is the bare motor option for builders who already have a controller and want the raw power of a 5kW continuous, 10kW peak mid-drive. Rated for 72V with a peak 35 N.m of torque and 8000 RPM no-load speed, this motor is a direct upgrade for MY1020-based Razor and go-kart projects. The V-magnet rotor provides smoother torque delivery and better efficiency at high RPM compared to older radial-magnet designs.
One of the most important features is the KTY84-130 temperature sensor embedded in the motor windings. When paired with a compatible programmable controller, this sensor enables thermal rollback — reducing current as temperatures approach 130°C — which prevents demagnetization and winding failure. The IP54 rating and class F insulation mean it can handle rain and dust exposure on off-road builds. Owners report it “beats the my1020 by miles” in torque and acceleration, with heat management that stays under control on aggressive runs.
The motor ships with a #35 9-tooth sprocket compatible with #35 chain. At 12.7 pounds with a 4.56 by 5.35-inch footprint, it is compact for its power output. However, some units have arrived with quality-control issues — one reviewer received a clearly used motor with signs of damage. This makes inspecting the unit upon delivery critical. For builders who need a high-power mid-drive and have a controller ready, the KR5V offers excellent power density.
What works
- KTY84-130 temp sensor enables active thermal protection with compatible controllers
- V-magnet rotor improves high-RPM torque stability
- Compact and lightweight for a 5kW motor
What doesn’t
- Quality control is inconsistent; some units arrive used or damaged
- No controller included — must source separately and ensure correct pairing
4. Varstrom TSDZ2B/TSDZ16 Torque Sensor Mid Drive Kit
What distinguishes the Varstrom TSDZ-series from other mid-drive kits is its integrated torque sensor. Instead of cadence-based assist that feels binary — either full power or nothing — the torque sensor measures how hard you press the pedals and meters assistance proportionally. The result is a ride that feels like a natural extension of your own leg power, with the motor adding to your effort rather than overriding it. The kit delivers up to 160 N.m peak torque in the 1000W configuration, climbing any hill on assist level 2.
The IP65 waterproof rating is a genuine differentiator — this kit is rated for rain, snow, and temperatures from -20°C to 45°C. It fits 68-73mm bottom brackets and is compatible with road bikes, mountain bikes, hybrids, and even tricycles. Owners report an easy two-hour assembly, and the torque sensor’s throttle integration works smoothly once dialed in. One reviewer noted 35+ mph uphill on assist level 5 with a 48V 20Ah battery, covering 42 miles while only depleting 35% of the battery.
The included LCD display tracks speed, mileage, and battery level, with an optional Bluetooth EKD01 display for navigation and ride analytics. The main complaints are that the speedometer can jump erratically below 7 mph, and the exposed wiring is not ideal for aggressive mountain bike trail use. Customer support responsiveness has been inconsistent based on several reports. Still, for riders who prioritize a natural pedaling feel and all-weather reliability, this is the most refined torque-sensing mid-drive at this price.
What works
- Genuine torque sensor provides smooth, proportional pedal assist
- IP65 waterproof rating for reliable all-weather operation
- Available in 500W, 750W, and 1000W configurations for different power needs
What doesn’t
- Speedometer is inaccurate below about 7 mph
- Exposed wiring is vulnerable on technical mountain bike trails
5. isinwheel M10 Pro Electric Bike
The isinwheel M10 Pro is a complete e-bike built around a 1000W peak rear hub motor paired with a 48V 13Ah or 10.4Ah battery. Hub motors in this segment are valued for their simplicity — they require no drivetrain modification and run silently — but the M10 Pro adds a dual-crown suspension fork and 20×4.0 puncture-resistant fat tires for trail comfort. The motor produces enough torque to reach 22 mph and handle 25% grade climbs without overheating.
The 375 Wh battery offers a realistic 25-30 miles in pure electric mode and up to 65 km (about 40 miles) in pedal-assist. The trigger shifter and 7-speed drivetrain give you mechanical gearing to complement the motor. Assembly is 90% pre-done, requiring only front wheel, handlebars, pedals, and seat installation — manageable with two people due to the bike’s 70+ pound weight. Owners consistently praise the robust build quality, calling it a “beast of an e-bike at a great price.”
The included hydraulic disc brakes provide confident stopping power on descents, and the UL 2849 certification adds a layer of safety assurance. The main downside reported is inconsistent battery life, with some owners experiencing significant capacity loss after a few months of use. The 20-inch fat tires are great for stability but add rolling resistance that cuts into range. For riders who want a turnkey fat-tire e-bike with a reliable hub motor, the M10 Pro delivers strong value.
What works
- Smooth 1000W peak hub motor with hydraulic disc brakes
- Dual-crown fork and fat tires absorb rough terrain effectively
- UL 2849 certified for safety compliance
What doesn’t
- Battery life is inconsistent and may degrade faster than expected
- Heavy build (70+ lbs) makes manual handling awkward
6. Funhang City Cruiser Ebike
The Funhang City Cruiser uses a 500W continuous / 1000W peak rear hub motor with 55 N.m of torque. For urban commuting, this is the sweet spot — enough power to accelerate from stops and maintain 20 mph on flat roads without the weight or complexity of a mid-drive. The 48V 374.4Wh battery is removable and IPX5-rated, delivering 25-30 miles on throttle alone or 40-50 miles in pedal-assist mode.
This bike prioritizes comfort over performance. The step-through frame makes mounting easy, and both the handlebar stem and seat are adjustable for riders between 5’3” and 6’1”. A front suspension fork smooths out pavement cracks, while the rear rack and fenders add practicality for grocery runs. The 7-speed drivetrain handles modest inclines, but the hub motor’s lack of gear multiplication means sustained climbs will drain the battery faster than a mid-drive would.
Assembly is straightforward at 85% pre-assembled, and buyers note that the bike feels solid for its price tier. The UL 2271 (battery) and UL 2849 (whole bike) certifications are a strong safety signal in this segment. One owner had a bent front fender in the box and found the seat uncomfortable for wider hips. If you need a reliable commuter with a comfortable geometry and certified components, the Funhang is a well-rounded choice.
What works
- Removable IPX5 battery with UL-certified safety
- Adjustable stem and step-through frame for rider comfort
- Practical accessories: rear rack, fenders, and headlight included
What doesn’t
- Saddle is uncomfortable for wider hip profiles
- Hub motor struggles on sustained steep grades

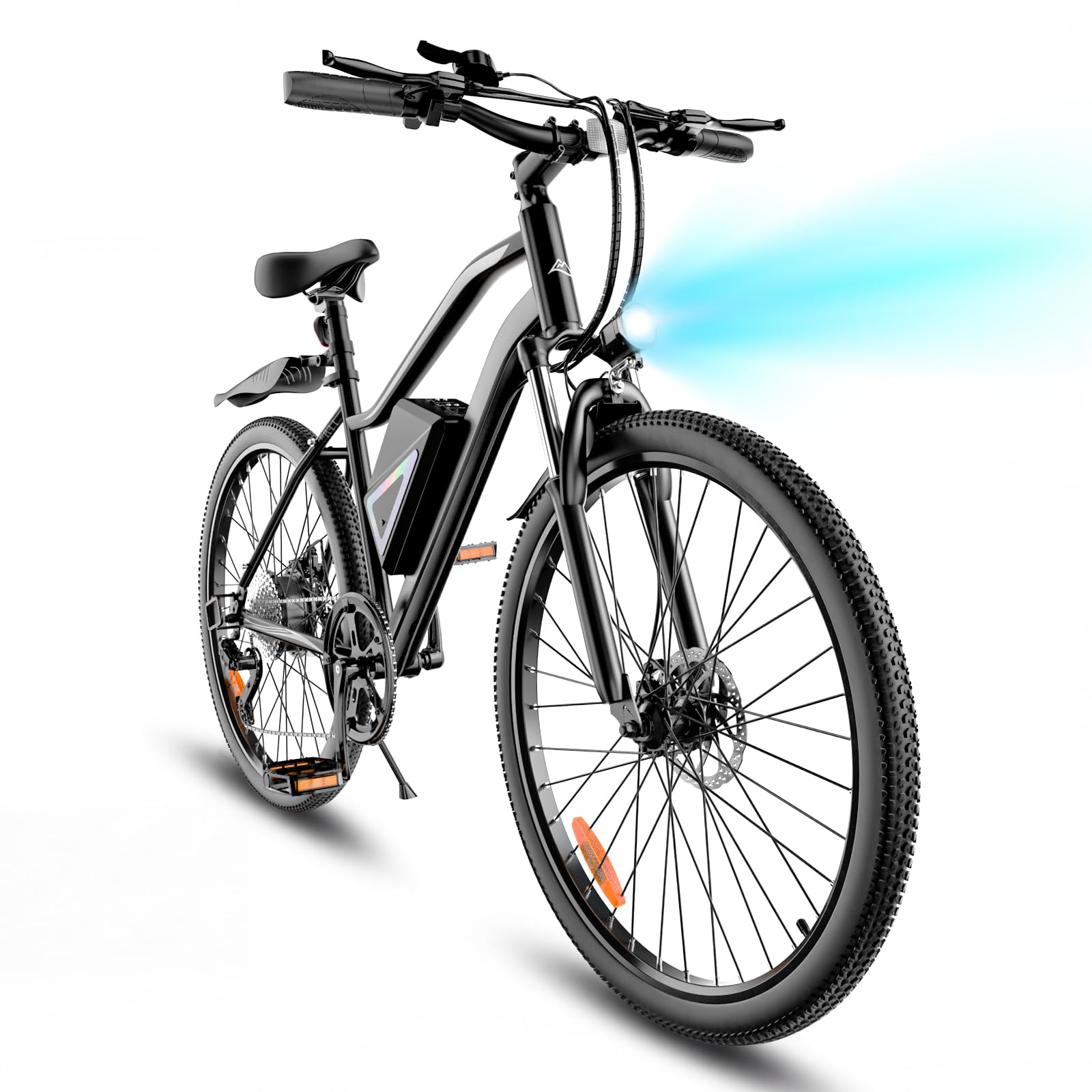

7. Oslich 26″ Electric Bike
The Oslich 26″ e-bike runs a 750W peak (500W continuous) rear hub motor with 60+ N.m of torque. While the peak number is modest compared to the 5000W monsters on this list, the efficiency of the 36V 7.8Ah battery allows for an advertised 55 miles in pedal-assist mode when ridden conservatively — 37 to 60 miles in real-world testing. This makes it a strong choice for budget-conscious riders who need maximum range per-dollar.
The 26-inch tires with front suspension provide a balanced ride on gravel, pavement, and light trails. The 7-speed trigger shifter allows gear selection for varying terrain, and the IPX4 rating means it can handle rain without concern. At 49.6 pounds, it is lighter than most fat-tire e-bikes, making it easier to lift onto a bike rack or up stairs. Owners consistently describe the motor as “powerful yet smooth,” with responsive pedal assist that feels natural at lower speeds.
One of the more thoughtful features is the LCD display with MAX and AVG speed data, which is useful for tracking performance. The included LED lights and mudguards reduce the need for aftermarket accessories. The main trade-off is the smaller 36V battery: while it charges quickly in 5 hours, the range in throttle-only mode drops to about 20 miles. For riders who use pedal-assist on flat to rolling terrain, this Oslich delivers impressive range at an accessible entry point.
What works
- Exceptional pedal-assist range for a 36V system — up to 60 miles reported
- Lightweight 49.6 lb frame for easier handling
- Includes lights, mudguards, and pump for a complete setup
What doesn’t
- 36V battery limits pure throttle range to around 20 miles
- Assembly requires careful adjustment; some components may arrive loose
8. Hoverfly OUREA 26″ Electric Bike
The Hoverfly OUREA is a complete commuter e-bike powered by a 750W peak rear hub motor. It uses a 48V 374.4Wh removable battery that provides a realistic 20-30 miles in throttle-only mode and up to 40 miles in pedal-assist. The UL 2849 certification is present, confirming the entire electrical system has passed safety testing. For new e-bike buyers, this removes a significant variable of uncertainty.
The 7-speed drivetrain and mechanical disc brakes are entry-level but functional, and the front suspension fork absorbs moderate bumps. Included accessories — a frame storage bag, rearview mirrors, double mudguards, and an integrated LED headlight — make it almost ready to ride out of the box without extra purchases. Owners report smooth motor boost from stops and stable handling on roads, trails, and moderate hills, with one reviewer noting the “perfect balance of power, range, and value” for San Francisco terrain.
However, the OUREA has notable quality concerns. Multiple reviewers report that the included tires are fragile and prone to punctures even on moderate curbs, with one case of a tire failing after only 200 miles. The stock saddle is uncomfortable, and the headlight is too dim for unlit trails. Customer service response times have been slow for warranty claims. If you plan to ride exclusively on smooth pavement and are willing to budget for tire upgrades, the OUREA can work as an affordable commuter — but the tire reliability issue is a genuine risk.
What works
- Smooth 750W peak motor with UL 2849 safety certification
- Generous accessory package: bag, mirrors, mudguards, and lights included
- Removable lockable battery adds charging convenience and theft protection
What doesn’t
- Stock tires are fragile and fail quickly on rough surfaces
- Customer service is slow and warranty claims can be difficult
9. MOCHAG 1500W 48V Rear Hub Motor Conversion Kit
The MOCHAG 1500W kit is a complete rear wheel conversion package: the motor is pre-laced into a 20-inch wheel rim with a 3.94-inch wide rubber tire, ready to swap into a bike dropout. This is a gearless brushless hub motor — meaning no internal planetary gears to strip or lubricate — offering quieter operation and lower maintenance than geared hub motors. The 48V 1500W peak rating delivers strong acceleration, with owners reporting 30+ mph out of the box and up to 35 mph when unlocked.
The kit includes a PAS sensor, LCD display, power-off brake levers, and a sine-wave controller that keeps operation quiet. The wheel is built to carry up to 330 pounds, and the stainless steel and aluminum construction resists rust. Assembly is plug-and-play: mount the wheel, connect the wiring, attach the display and PAS sensor, and the system is operational. Owners consistently describe the motor as “torquey” and “surprisingly good value,” with one reviewer calling it a “decent, large generic controller with excellent compatibility.”
The main caveats are the axle material — some owners note it is relatively soft, requiring careful torque specs during installation — and the included tire, which tends to wear out quickly and may need replacement with a premium model. The motor wire exits through the brake rotor side, which can complicate rotor alignment on some frames. For budget-conscious builders converting a fat-tire or snow bike, this kit delivers impressive power per dollar but requires accepting compromises in component longevity.
What works
- Gearless design provides quiet, maintenance-free operation
- Pre-laced wheel with 3.94-inch tire simplifies installation
- Sine-wave controller provides smooth acceleration
What doesn’t
- Included tire wears quickly and may need replacement
- Soft axle material requires careful torque management
E-Bike Motor Specs Guide
Continuous vs Peak Wattage
Continuous (rated) wattage is the power a motor can sustain indefinitely without overheating. Peak wattage is the momentary burst available for acceleration or climbing. A motor with 500W continuous and 1500W peak will climb a hill for 30 seconds at full power but must reduce output thereafter. For commuting on flat terrain, 500W continuous is adequate. For off-road or cargo, look for 750W continuous or more. High-performance builds require 3000W+ continuous to maintain speed on sustained climbs.
Mid-Drive vs Hub Motor Architecture
Mid-drive motors drive the cranks, leveraging the bike’s gearing to multiply torque. This allows them to climb steep hills efficiently and maintain a low center of gravity. Hub motors integrate into the wheel itself, requiring no drivetrain modification. They are simpler and quieter but add unsprung weight that affects suspension performance. Mid-drives are better for off-road and hill climbing; hubs are better for flat commutes and conversions where installation simplicity matters most.
Torque Sensor vs Cadence Sensor
A torque sensor measures actual pedaling force in real-time, providing proportional assist that feels natural — pedal harder, get more power. A cadence sensor simply detects that the pedals are rotating and applies a preset power level, which can feel on/off or “lurchy.” Torque sensors are found on premium mid-drive kits like the Varstrom TSDZ series and cost more. Cadence sensors are common on hub motor kits and budget e-bikes. For a natural riding experience, prioritize torque sensor systems.
Controller Types and Protocols
Sine-wave controllers provide smooth, quiet power delivery by mimicking a sinusoidal current curve. Square-wave controllers are cheaper but create audible motor whine and jerky power onset. The CAN bus protocol (used by BAFANG’s BBS02B/BBS-HD) allows parameter adjustment via app or display, including current limits, pedal assist sensitivity, and wheel diameter. Fardriver controllers include a self-learning function that auto-matches motor timing. For custom builds, programmable controllers are essential for dialing in performance.
FAQ
What is the difference between a 48V and 72V e-bike motor system?
How do I know if a mid-drive motor will fit my bike’s bottom bracket?
What does the IP rating mean on an e-bike motor?
Can I use a hub motor conversion kit on any bicycle?
How important is a temperature sensor in an e-bike motor?
Final Thoughts: The Verdict
For most users, the e-bike motor winner is the BAFANG BBS02B/BBS-HD because it offers the best balance of proven reliability, programmable CAN bus tuning, and broad aftermarket support across all common bottom bracket sizes. If you want a natural pedaling feel with genuine torque sensing and all-weather IP65 durability, grab the Varstrom TSDZ16. And for high-power builds that demand 5kW continuous output and a matched Fardriver controller for app-based parameter tuning, nothing beats the doinal KR5V 72V 5000W Kit.
