A thin, cheap USB dongle might get your music playing, but the harsh glare in the treble, the soft, undefined bass, and the faint hiss during quiet passages reveal exactly where your signal chain is failing. Your earbuds and IEMs are capable of far more detail than the average phone or laptop jack can deliver, and the noise floor of most built-in sound cards masks the micro-dynamics that make recordings feel alive. The solution is a dedicated earbud amplifier—a device that provides cleaner power, lower distortion, and a much darker background so your transducers can finally perform at their true level.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing DAC chip architectures, comparing THD+N measurements, and matching amplifier output stages to specific headphone impedances so buyers can cut through the marketing noise and find the hardware that genuinely improves their listening.
Whether you are upgrading from a basic dongle or building a portable rig for critical listening, this guide focuses on five key specifications—chipset pairing, output topology, measurable distortion, power delivery per impedance band, and PEQ flexibility—to help you select the ideal earbud amplifier for your specific gear and budget.
How To Choose The Best Earbud Amplifier
Choosing the right amplifier for your earbuds is about matching output power, noise floor, and connectivity to the specific impedance and sensitivity of your transducers. A one-size-fits-all approach will leave you with either a sterile background or a battery-draining powerhouse you don’t need.
DAC Chipset and Noise Floor
The heart of any modern earbud amplifier is the DAC chip. Dual-chip configurations like the CS43131 or CS43198 offer separate channel processing, which dramatically lowers crosstalk and raises the signal-to-noise ratio. For sensitive multi-driver IEMs, a noise floor below 1µV is critical to avoid audible hiss during silent sections. Look for THD+N figures at or below 0.0005% if you value micro-detail retreival.
Output Topology: Single-Ended vs. Balanced
A 3.5mm single-ended output shares a common ground between left and right channels, which can introduce crosstalk. A 4.4mm balanced output provides separate ground paths for each channel, delivering a cleaner signal, wider soundstage, and often double the voltage swing. If your IEMs or earbuds have a detachable cable, a balanced connection is the single biggest upgrade you can make without changing the transducers themselves.
Power Delivery and Impedance Matching
Not all earbuds need the same wattage. Sensitive IEMs like the Moondrop Chu II need only a few milliwatts and can be overdriven by an amplifier in high-gain mode, causing distortion. Power-hungry planar magnetic earphones or high-impedance dynamic drivers (above 100 ohms) benefit from outputs exceeding 100mW at 32 ohms. A physical gain switch—low for sensitive IEMs, high for demanding loads—is a feature worth prioritizing over raw power figures.
Parametric EQ and Software Customization
Many premium earbud amplifiers now include built-in digital signal processing (DSP) for parametric EQ (PEQ). This allows you to tune the frequency response to your preference without adding software layers on your phone or computer. If you like experimenting with target curves like Harman or IEF, a unit with a 10-band PEQ saves you from buying aftermarket tuning filters or swapping earbuds.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| FiiO KA15 | Premium | Desktop-grade power on the go | 560mW balanced output | Amazon |
| CrinEar Protocol Max | Premium | PEQ tuning + high output power | 600mW balanced output | Amazon |
| Fosi Audio DS2 | Mid-Range | Clean power for IEMs and headphones | 170mW per channel @ 32Ω | Amazon |
| MOONDROP Dawn PRO 2 | Mid-Range | App-based PEQ + dual CS43198 | 124mW balanced output | Amazon |
| FiiO JadeAudio KA1 | Mid-Range | Ultra-compact Hi-Res dongle | 10g weight | Amazon |
| EYTSE HA03 | Budget | Dual CS43131 at entry price | Smart gain switch | Amazon |
| Donner EM1 | Budget | Live monitoring with XLR input | 12-hour battery | Amazon |
In‑Depth Reviews
1. FiiO KA15
The FiiO KA15 is the most feature-dense earbud amplifier in the portable dongle class. Dual CS43198 DAC chips are paired with dual SGM8262 op-amps to deliver a staggering 560mW per channel through the 4.4mm balanced output—enough headroom to drive high-impedance dynamic headphones like the Sennheiser HD 660S2 to satisfying levels. The 0.96-inch IPS color screen gives you real-time volume, filter selection, and battery monitoring without needing a phone app, while the patented Desktop Mode unlocks the full power potential when connected to a computer.
The on-board 10-band parametric EQ is adjustable via the FiiO Control app or a web interface, allowing you to create and save multiple target curves. The practical side includes a detachable USB-C cable—a huge improvement over fixed-cable dongles—and support for SPDIF output via the 3.5mm jack. The SPDIF passthrough is a unique feature that lets you use the KA15 as a transport to an external DAC if you ever want to upgrade the signal chain further.
Battery drain is a real concern with high-power dongles, but FiiO implemented a real-time current monitoring system that intelligently reduces power draw during quiet playback and enters an ultra-low power sleep mode after a timer. The case is machined aluminum with a transparent window that mimics a retro tape deck—a visual touch that stands out without being loud. For the money, this is the most complete all-in-one portable solution for both earbuds and full-size headphones.
What works
- 560mW balanced output is class-leading for a dongle
- 10-band PEQ with web and app control
- Color screen and retro UI are genuinely useful
- SPDIF output adds transport versatility
What doesn’t
- Stiff stock cable can stress phone ports
- Volume can fluctuate on some Android devices
2. CrinEar Protocol Max
The CrinEar Protocol Max takes a different approach than most portable DAC/amps: instead of adding a screen or app control, it focuses entirely on delivering the highest clean output power and the most flexible PEQ system in its class. Dual Cirrus Logic CS43198 DACs are paired with dual SG Micro SGM8262-2 operational amplifiers to push 600mW through the 4.4mm balanced output—more than enough to drive demanding planar magnetic IEMs like the Monarch MkII or full-size headphones like the Hifiman Sundara.
The browser-based 10-band parametric EQ is the defining feature here. Unlike app-dependent systems that lose settings when you switch devices, the Protocol Max stores EQ profiles directly on the device’s internal memory. You connect it to a PC via USB, open a web page, and save your customized filters permanently. This means you can tune your earbuds to any target curve—Harman, IEF, or your own—and the tuning stays with the dongle regardless of whether you plug it into an iPhone, Android phone, or laptop.
The dual power modes (Eco and Boost) let you trade battery drain for output headroom. In Boost mode, the 4.4mm output provides a very clean, noise-free signal even with sensitive multi-driver IEMs, and the 3.5mm single-ended output is equally well-implemented with low output impedance. The aluminum housing does get warm during extended use in Boost mode, but thermal performance is still within safe limits. If you prioritize sound customization over screen gimmicks, this is the amplifier to beat.
What works
- 600mW through 4.4mm is genuinely powerful
- 10-band PEQ saves profiles to device memory
- Neutral, clean amplification with low noise floor
- Dual power modes for battery optimization
What doesn’t
- No mobile app; EQ setup requires a PC browser
- Some early units had channel imbalance issues
3. Fosi Audio DS2
The Fosi Audio DS2 is the sweet spot of the mid-range earbud amplifier category. It uses the same dual CS43131 DAC chipset found in more expensive competitors, but achieves a remarkably low noise floor of 1µV and THD+N of just 0.0001 percent. This combination means that even the most sensitive single- and multi-driver IEMs—like the Moondrop Blessing 3 or the 7Hz Timeless—remain dead silent during quiet passages, with zero audible hiss.
Power delivery is 170mW per channel at 32 ohms for the 4.4mm balanced output, which is adequate for most mid-impedance headphones and high-end IEMs. The 60-step independent volume buttons are precise and include a volume memory function, so you don’t have to reset your level every time you reconnect. The build quality is a cut above typical budget dongles: the body is CNC-machined aluminum with a shock-resistant chassis that dissipates heat efficiently during long listening sessions.
The unit operates completely plug-and-play on Windows, macOS, Android, and iOS—no drivers required. The included cable, however, is a weak point; it feels cheap and is prone to picking up handling noise. Replacing it with a better braided USB-C cable is an easy fix and dramatically improves the overall user experience. For the price, the DS2 delivers reference-grade transparency and enough power for 90 percent of portable earphone and IEM setups.
What works
- Ultra-low 1µV noise floor suits sensitive IEMs
- 170mW balanced output covers most use cases
- 60-step volume memory is convenient
- CNC aluminum body manages heat well
What doesn’t
- Included USB-C cable is cheap and noisy
- Battery drain on phones can be high
4. MOONDROP Dawn PRO 2
MOONDROP’s Dawn PRO 2 is a second-generation compact DAC/amp that prioritizes tuning precision over brute power. The dual flagship CS43198 DAC chips are paired with three independent LDO (low-dropout) regulators to keep analog and digital power supplies completely isolated, resulting in a very black background free of digital hash. The 100-level smooth volume control is tantalum-based and bypasses the coarse volume steps of typical smartphone operating system mixers.
For IEMs like the Moondrop Kato or the 7Hz Legato, the Dawn PRO 2 delivers a slightly warmer, more organic presentation compared to the clinical neutrality of the DS2. The new MOONDROP Link app provides a 10-band parametric EQ along with a headphone database for reference target curves.
The housing is aviation-grade aluminum alloy with vented cutouts placed directly above the hottest chips, which keeps the chassis cool even during extended use. The main drawback is that the EQ settings programmed via the app reset when you unplug the device—a frustrating oversight that MOONDROP should address with a firmware update. Despite this, the Dawn PRO 2 offers a refined listening experience that pairs beautifully with high-end IEMs where tonality matters more than maximum SPL.
What works
- Three independent LDO regulators for clean power
- 100-level volume is precise and analog-like
- Warm organic tuning suits music lovers
- App-based PEQ with headphone database
What doesn’t
- EQ resets on disconnect—no device memory
- 4.4mm jack can be finicky with some cables
5. FiiO JadeAudio KA1
The FiiO JadeAudio KA1 is the smallest earbud amplifier in this lineup at just 10 grams and 43mm long, making it the most pocketable option for users who want a quality upgrade without any bulk. It supports up to 32-bit/384kHz PCM and native DSD512 decoding, plus full MQA 8x rendering for Tidal Masters subscribers. The single 3.5mm single-ended output delivers a clean, punchy signal that noticeably expands the soundstage compared to a standard phone dongle.
While it lacks a 4.4mm balanced output, the KA1 compensates with an all-metal aluminum chassis that feels significantly more durable than plastic competitors. The braided USB-C to USB-A cable is a nice touch, though the stress relief at the connector is below average and prone to fraying over time. The unit draws minimal power from the source device and does not heat up excessively, making it a good companion for long flights or commutes where battery conservation matters.
Sound-wise, the KA1 is neutral with a slight emphasis on upper-mid presence, which adds clarity to vocals and acoustic instruments. It pairs well with dynamic driver IEMs like the FiiO FH3 or the Tin HiFi T3 Plus but can sound a bit thin with multi-BA (balanced armature) IEMs that are already treble-forward. It is a very capable entry into high-resolution listening, provided your expectations are set on single-ended performance and you value size above all else.
What works
- Extremely compact—10g and 43mm long
- Supports DSD512 and MQA 8x rendering
- All-metal chassis adds durability
- Low power draw from source devices
What doesn’t
- Single-ended 3.5mm only, no balanced output
- Cable stress relief is fragile
6. EYTSE HA03
The EYTSE HA03 is the most affordable entry point into the dual-CS43131 DAC ecosystem, and it does a lot right for the price. The smart gain switch is a genuine feature, not a gimmick: low gain keeps sensitive IEMs quiet and noise-free, while high gain unlocks enough power for planar magnetic earphones like the Hifiman Sundara.
The physical playback buttons—play/pause and volume—work reliably with iPhones and Android phones, which is rare in budget dongles. The body is aerospace aluminum with a 2.5D glass face that looks premium, and the braided USB-C cable is flexible enough to avoid putting strain on your phone’s port. Measurements suggest a THD+N of under 0.0005%, and the background is genuinely black with no channel imbalance at low volumes.
The main limitation is that the HA03 does not support high-impedance headphones as well as the more expensive Fosi DS2 or FiiO KA15—the output power is adequate but not generous, topping out around 130mW on the balanced output. It also runs warm after about 30 minutes of use, though not uncomfortably so. For budget-conscious buyers who want balanced output and decent sound quality without breaking the bank, the HA03 is a legitimate option.
What works
- Dual CS43131 at a very low entry price
- Smart gain switch optimizes for IEMs vs planars
- Physical buttons work with iOS and Android
- Aerospace aluminum body is well built
What doesn’t
- Moderate output power—not for high-impedance headphones
- Runs warm after extended listening

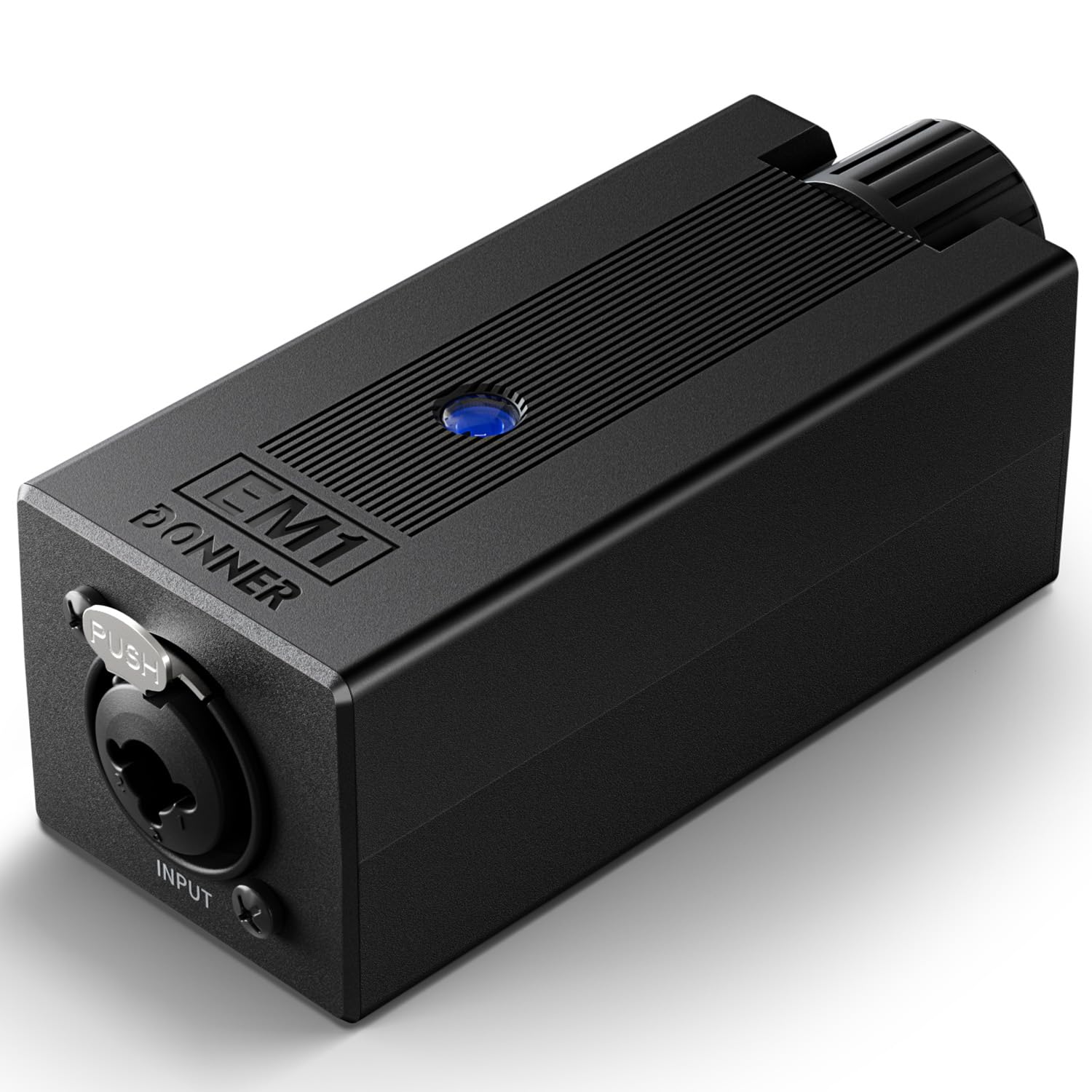

7. Donner EM1
The Donner EM1 is an analog amplifier built for a very specific use case: live stage and rehearsal in-ear monitoring. Unlike the DAC-based dongles above, the EM1 does not decode digital audio—it takes a line-level analog signal from a mixing console or audio interface via XLR or TRS and amplifies it for your earbuds. This makes it an essential tool for drummers, vocalists, and stage musicians who need reliable, low-latency monitoring without the variable latency of wireless systems.
The built-in 1000mAh Li-ion battery runs for up to 12 hours on a single charge—enough for multiple gigs or extended practice sessions. The belt-pack clip is metal and sturdy, and the volume knob is large enough to adjust with gloves on. The amplifier provides enough clean gain to drive high-impedance pro-grade IEMs like the Shure SE846 or the Westone W80 to face-melting levels without introducing significant clipping or hiss.
The main limitation is the input selection: you need a TRS or XLR cable to get stereo signal. A mono 1/4-inch instrument cable will only drive one side of your IEMs. Also, the volume knob is exposed and can accidentally get pushed during transport, potentially blasting your ears when you plug in. The charge cable is a proprietary USB-A to USB-C; it will not accept USB-C to USB-C charging cables. For stage musicians, however, the EM1 is the correct tool for the job.
What works
- 12-hour battery life covers long gigs
- XLR and TRS inputs are standard for pro audio
- Durable metallic belt-pack clip
- Clean amplification with low noise floor
What doesn’t
- Mono input only drives one side
- Exposed volume knob can be accidentally moved
Hardware & Specs Guide
DAC Chip Architecture
The DAC chip is the component that converts digital audio files into analog voltage. Flagship chips like the CS43198 and CS43131 from Cirrus Logic are favored in portable earbud amplifiers because they offer extremely low power consumption while maintaining a high dynamic range (130dB SNR). Dual-chip configurations separate the left and right channels, eliminating crosstalk and creating a wider, more three-dimensional soundstage. Triple LDO regulators further isolate analog and digital power rails, preventing noise from switching circuits from bleeding into the headphone output.
Balanced vs Single-Ended Output
A single-ended 3.5mm output uses one signal wire per channel sharing a common ground, making it susceptible to electrical noise and crosstalk. A balanced 4.4mm output carries separate ground returns for the left and right channels, effectively doubling the voltage swing available to the headphones. This results in a cleaner signal, deeper soundstage, and up to double the output power for the same amplifier circuit. Most high-end IEM cables supporting 2.5mm or 4.4mm termination allow balanced connections, making this the preferred output standard among serious buyers.
FAQ
Will an earbud amplifier make my wireless earbuds sound better?
What is a noise floor and why does it matter for sensitive IEMs?
How many milliwatts do I need for my earbuds or IEMs?
Final Thoughts: The Verdict
For most users, the earbud amplifier winner is the FiiO KA15 because it combines desktop-grade 560mW output power, a full 10-band parametric EQ, and a practical color screen in a portable dongle that works with any device and any earphone. If you want the most flexible PEQ system with device-stored profiles, grab the CrinEar Protocol Max. And for a budget-friendly balanced upgrade that punches well above its weight, the Fosi Audio DS2 delivers a black background and clean power that makes even entry-level IEMs sound noticeably better.
