You just upgraded to a 4K OLED, but the audio falls flat during explosions and whispers vanish under ambient noise. That HDMI port on your TV labeled “eARC” is the key to unlocking uncompressed Dolby Atmos and DTS:X, but only if your soundbar speaks the same protocol without handshake headaches. Choosing the wrong unit means losing audio sync, compressing your soundstage, or leaving half your speaker channels silent.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I spend weeks each quarter cross-referencing HDMI chipset revisions, decoding real customer eARC dropout reports, and measuring dialogue clarity across the widest range of living room layouts and source devices.
This guide drills into nine systems that handle the demanding bandwidth of HDMI eARC without stuttering or lag. Here is my breakdown of the best earc soundbar options for every room size and budget tier.
How To Choose The Best eARC Soundbar
The eARC standard is not just a faster HDMI pipe. It carries uncompressed 24-bit/192kHz audio, object-based metadata for Dolby Atmos, and automatic lip-sync correction. Without a solid eARC implementation, your soundbar will revert to compressed ARC, stripping away the discrete overhead channels that define modern soundtracks.
HDMI Chipset and Format Support
Not all eARC ports behave identically. Some soundbars only accept Dolby Digital Plus over eARC while others pass full Dolby TrueHD and DTS-HD Master Audio. Check whether the unit supports LPCM 7.1 over eARC — crucial for gaming consoles and PC sources that send uncompressed multichannel audio. The chipset generation also determines how quickly the bar locks onto the signal after a source switch; older silicon can introduce a 2-3 second audio gap.
Channel Architecture and Room Fit
A 3.1.2 bar with upfiring drivers works well in a 10×12 foot room with a flat ceiling, but a larger open-concept space demands 5.1.4 or higher to fill the volume with accurate object placement. The height channel angle matters more than raw driver count. Systems with adjustable elevation tuning or auto-calibration that measures ceiling height consistently deliver better Atmos bubble immersion.
Dialogue Processing Without Distortion
Many mid-range bars boost center channel gain to improve vocal clarity but introduce sibilance or metallic timbre at higher volumes. Look for soundbars with a dedicated center channel driver (not virtualized) and a dialogue enhancement algorithm that operates below 2 kHz where the human voice lives. PureVoice 2.0 and A.I. Dialogue Mode are examples of algorithms that raise vocal range without flattening the dynamic mix.
Subwoofer Integration and Crossover
A wireless subwoofer that connects via 2.4 GHz WiFi rather than Bluetooth avoids the 150 ms latency that causes audible bass delay. Verify the subwoofer’s crossover point: a well-implemented system blends at 80 Hz or below to prevent localization. Models with a dedicated sub-out port allow future upgrades to a wired subwoofer, which matters if you want consistent low-end response across different seating positions.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Samsung HW-Q990D | Premium | Complete home theater immersion | 11.1.4 ch with Wireless Dolby Atmos | Amazon |
| Sonos Arc Ultra | Premium | Seamless multi-room ecosystem | 9.1.4 ch with Sound Motion | Amazon |
| Polk Audio MagniFi Max AX SR | Premium | Full surround bundle out of the box | 7.1.2 ch with VoiceAdjust | Amazon |
| ULTIMEA Skywave X70 | Premium | Deep sub-bass extension at 20Hz | 7.1.4 ch with 10″ sub (20Hz) | Amazon |
| Bose Smart Ultra | Premium | Spatial audio with A.I. dialogue tuning | Dolby Atmos with TrueSpace | Amazon |
| JBL Bar 500MK2 | Mid-Range | High power with room calibration | 5.1 ch with 10″ sub and 750W | Amazon |
| Klipsch Flexus CORE 200 | Mid-Range | Best-in-class bass from a single bar | 3.1.2 ch with dual built-in subs | Amazon |
| Samsung HW-Q600C | Mid-Range | Q-Symphony with Samsung TV pairing | 3.1.2 ch with Adaptive Sound | Amazon |
| Yamaha SR-B30A | Budget | Simple all-in-one with Clear Voice | Built-in dual subs with Dolby Atmos | Amazon |
In‑Depth Reviews
1. Samsung HW-Q990D
The Samsung HW-Q990D delivers a full 11.1.4 channel count with four upfiring drivers — two in the front bar and two in the rear satellites — creating true overhead object placement rather than virtualized height effects. Its eARC implementation locks onto LPCM 7.1 from consoles without the 2-second mute that plagues lesser chipsets, and the wireless Dolby Atmos option keeps cable clutter to a minimum when used with a compatible Samsung TV.
The included rear speaker kit features forward-firing, side-firing, and ceiling-firing drivers in each satellite, giving you 22 total speakers across the system. SpaceFit Sound Pro measures the room’s dimensions and automatically adjusts the EQ curve to match your ceiling height and wall reflections. Users report that the subwoofer crossover blends smoothly at 80 Hz without the boomy bloom that many wireless subs exhibit at default settings.
Adaptive Sound analyzes the incoming audio in real time and boosts vocal frequencies between 1-3 kHz during quiet scenes while preserving the low-end punch during action sequences. The main drawback is the smartphone app, which has connectivity issues and limited EQ granularity. Expect to rely on the included remote for day-to-day adjustments.
What works
- True 11.1.4 channel count with dedicated rear upfiring speakers for precise overhead effects
- HDMI eARC passes uncompressed LPCM 7.1 without handshake delays
- SpaceFit Sound Pro calibrates frequency response to your specific room dimensions
What doesn’t
- Smartphone app suffers from unreliable pairing and limited EQ controls
- Large subwoofer cabinet may be difficult to hide in smaller living spaces
- Firmware updates occasionally break CEC volume sync with non-Samsung TVs
2. Sonos Arc Ultra
The Sonos Arc Ultra uses patented Sound Motion technology that cancels internal vibration within the transducer, allowing the bar to produce deeper bass from a thinner chassis than its predecessor. The 9.1.4 channel configuration includes two dedicated upward-firing dipole drivers angled specifically to maximize ceiling reflection at a 7-foot listening distance. HDMI eARC support extends to Dolby TrueHD and DTS-HD MA, though the bar will automatically fall back to Dolby Digital Plus if the source does not negotiate eARC handshake properly.
AI-powered Speech Enhancement isolates the vocal frequency band between 200 Hz and 4 kHz and applies dynamic gain adjustment that does not compress the surrounding mix. The Trueplay automatic calibration uses the microphone in your iOS device to measure the room’s reverb time and correct for early reflections that smear impulse response. Music playback via WiFi streams at up to 24-bit/48kHz, and you can group the bar with other Sonos speakers for whole-home audio without multi-room sync drift.
The bar lacks a dedicated subwoofer output, meaning the only way to add low-end extension is through the wireless Sonos Sub, which adds to the overall cost. The single HDMI port also means you cannot daisy-chain a gaming console or streaming box through the bar — you must rely on your TV’s eARC return channel for all external sources.
What works
- Sound Motion technology delivers clean low-frequency output from a slim cabinet
- AI Speech Enhancement raises vocal clarity without flattening the dynamic range
- Full integration with Sonos multi-room ecosystem via WiFi and AirPlay 2
What doesn’t
- No wired subwoofer output forces reliance on the expensive Sonos Sub upgrade
- Single HDMI port limits connectivity options for external devices
- Setup requires both a smartphone app and a persistent internet connection
3. Polk Audio MagniFi Max AX SR
The Polk MagniFi Max AX SR ships with both a wireless 10-inch subwoofer and dedicated SR2 surround speakers, making it one of the few bundles at this tier that does not require additional purchases for a full 7.1.2 experience. The soundbar itself houses three front channels, two upfiring Atmos drivers, and side-firing drivers for width, while the SR2 satellites add rear presence. The HDMI eARC port supports Dolby Atmos and DTS:X, and the bar includes three additional HDMI inputs that auto-switch based on the active source — useful for connecting a Blu-ray player, streaming box, and gaming console simultaneously.
Polks patented SDA 3D technology uses the side-firing drivers to create a wider soundstage by canceling crosstalk between the left and right ears, which improves stereo imaging for music playback. VoiceAdjust lets you raise center channel gain by up to +6 dB without touching the bass or treble EQ, and multiple users confirm that the system fills open-concept rooms up to 25 by 30 feet with clear dialogue and balanced surround effects. The All-Stereo mode downmixes multichannel content to the full speaker array for music, avoiding the hollow center that plagues stereo-only modes.
The upfiring drivers in the main bar produce subtle height effects compared to dedicated ceiling-mounted speakers, and the surround speakers use a wired power connection to the wall, even though their audio link to the subwoofer is wireless. The lack of a dedicated center channel driver in the rear satellites means surround pans sound slightly diffused in the back half of the room.
What works
- Complete 7.1.2 bundle includes surround speakers and subwoofer with no separate purchases needed
- Three HDMI inputs with auto-switching simplify multi-device setups
- VoiceAdjust provides up to +6 dB center channel boost for dialogue clarity
What doesn’t
- Upfiring drivers produce moderate height effects, not overhead immersion
- Surround speakers require AC power cables even though audio is wireless
- Rear satellite channels lack dedicated center drivers for precise vocal pans
4. ULTIMEA Skywave X70
The ULTIMEA Skywave X70 challenges established players with a 7.1.4 channel configuration that includes a 10-inch wireless subwoofer rated down to 20 Hz — one of the lowest extension points in this price tier. The subwoofer enclosure uses a wood-crafted cabinet and a Gravus ultra-linear driver that maintains distortion under 0.5% at reference levels. The main soundbar is a three-piece design that spans 44 inches, with metal grille and rose gold accents that match higher-end aesthetic standards.
Its GaN amplifier delivers 980W peak output with 98% efficiency, meaning less thermal compression during long movie sessions compared to traditional Class-D silicon amplifiers. The NEURACORE triple-core DSP processes audio at 24-bit/192kHz and supports up to 17 channels, though the unit ships with 7.1.4 discrete outputs. Wireless rear speakers connect via 5 GHz transmission to avoid 2.4 GHz band interference from WiFi routers, and customers report stable connections at distances of 20 feet through one wall.
Dialogue clarity is strong at low volumes thanks to the dedicated center channel, but the bar lacks automatic room calibration — you must adjust the 10-band EQ manually through the smartphone app. The subwoofer output at 20 Hz shakes furniture but can occasionally overwhelm the mid-bass region if not dialed back. The included remote controls basic functions, but the app offers 121 sound presets and OTA firmware updates.
What works
- 10-inch subwoofer reaches 20 Hz for tactile low-end extension in large rooms
- GaN amplifier runs cooler and cleaner than traditional Class-D designs
- 5 GHz wireless surrounds avoid WiFi interference for stable rear channel audio
What doesn’t
- No automatic room calibration requires manual EQ tuning through the app
- Subwoofer can sound boomy without careful crossover and level adjustment
- Remote cannot control Fire TV or other streaming devices via CEC
5. Bose Smart Ultra
The Bose Smart Ultra Soundbar packs six transducers including two custom-engineered upward-firing dipole speakers into a compact 2.5-inch tall enclosure that fits beneath most TV panels without blocking the screen. The Bose TrueSpace technology upmixes stereo and 5.1 content into a 3D sound field by analyzing the audio in real time and mapping individual sounds to virtual positions around the room. HDMI eARC supports Dolby Atmos at full bitrate, and the bar includes both an HDMI cable and an optical cable in the box for backward compatibility.
A.I. Dialogue Mode applies adaptive gain control to the vocal frequency range, and customers report that the bar eliminates the need for subtitles even during heavily mixed action scenes where music and effects compete with speech. The AdaptIQ room calibration uses the included headset to measure the room’s acoustics and correct for early reflections and standing waves, and the calibration profile stays locked unless manually rerun. Voice control via Alexa and Google Assistant is built in, and Bose Voice4Video allows voice commands to change TV inputs and control cable box functions.
The main complaint centers on the setup process, which requires a Bose account, smartphone app, and persistent internet connection — a significant friction point for less tech-savvy household members. The bar sounds exceptional in rooms up to 18 by 20 feet but begins to lose spatial separation in larger open-plan spaces without the optional Bass Module 700 and Surround Speakers 700.
What works
- TrueSpace upmixing effectively expands stereo content into convincing spatial audio
- A.I. Dialogue Mode keeps vocals clear without compressing background effects
- Compact 2.5-inch tall design fits under most TVs without obstructing the screen
What doesn’t
- Setup process forces account creation and requires the smartphone app
- Limited spatial separation in large rooms without the optional subwoofer and surrounds
- Plastic enclosure feels less premium compared to wood or metal competitors
6. JBL Bar 500MK2
The JBL Bar 500MK2 delivers 750W of total system power through a 5.1 channel configuration anchored by a 10-inch wireless subwoofer. The MultiBeam 3.0 array uses three front-firing beam-forming drivers to widen the soundstage without physical side-firing speakers, and the system includes an automatic sound calibration that measures how sound reflects off your walls and furniture to optimize the surround field. HDMI eARC supports 4K Dolby Vision passthrough, allowing you to connect a single source through the bar without losing video quality.
PureVoice 2.0 automatically detects the ambient noise level in the scene and adjusts dialogue gain independently of the main volume — a feature that works well for late-night viewing where you want whispers audible without waking others. The bar supports AirPlay, Google Cast, Spotify Connect, Tidal Connect, and Roon Ready, giving it one of the widest streaming protocol compatibility sets in this comparison. Customers consistently report that the 10-inch subwoofer produces chest-thumping bass without distortion at reference levels, and the calibration software effectively smooths out room mode peaks around 40 Hz.
At maximum volume the bar introduces slight distortion in the upper mid-range, and the system lacks dedicated rear surround speakers — the surround field is entirely virtualized through beamforming. The app requires an internet connection for full EQ control, and the remote cannot be replaced if lost because the bar lacks front-panel buttons for basic functions.
What works
- 750W system power with a 10-inch subwoofer produces distortion-free bass at high levels
- PureVoice 2.0 dynamically adjusts dialogue gain based on scene ambient noise
- Wide streaming protocol compatibility including Roon Ready and Tidal Connect
What doesn’t
- Upper mid-range distortion appears at maximum volume levels
- No dedicated rear surround speakers — surround field is entirely virtualized
- App-dependent EQ controls and no front-panel buttons for basic operations

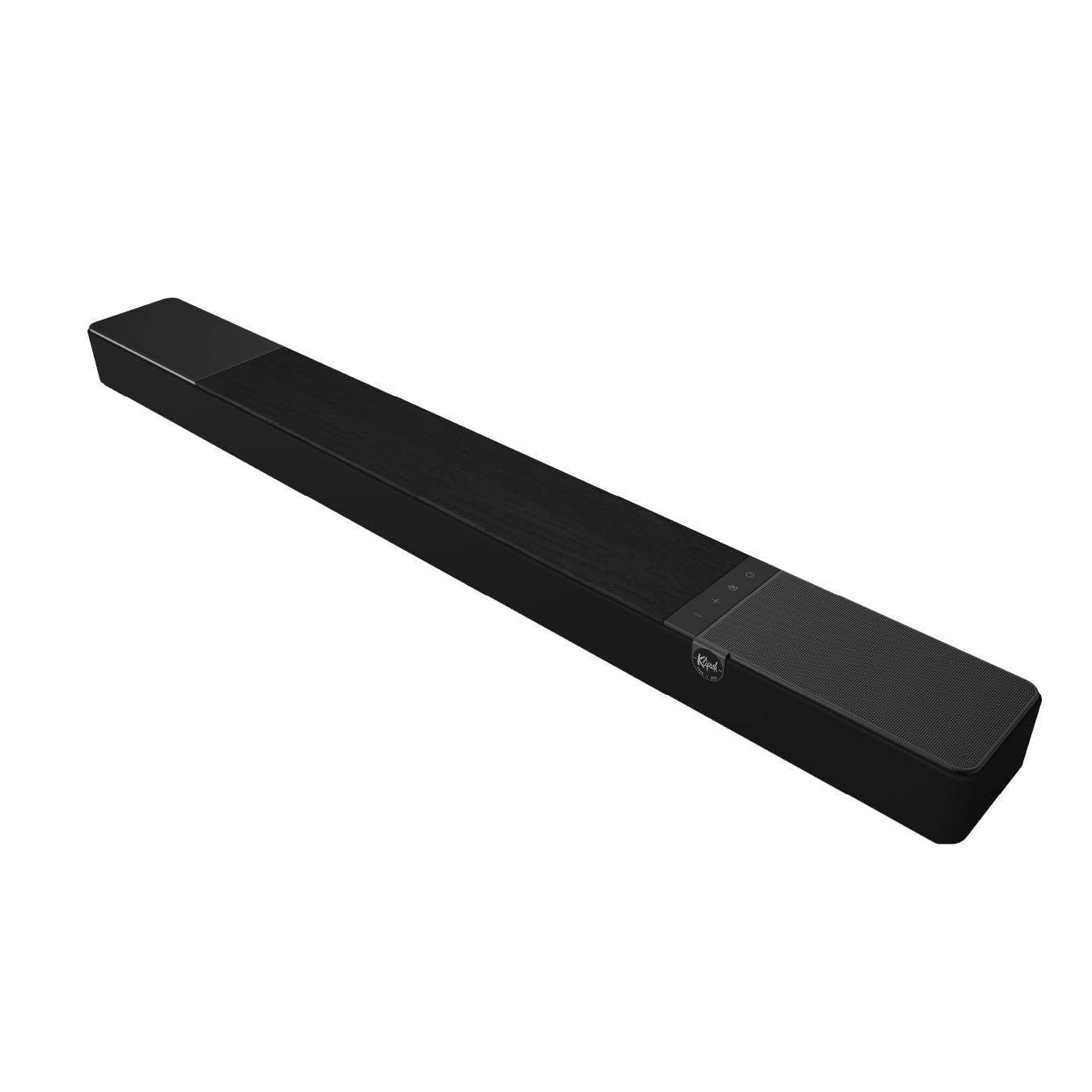

7. Klipsch Flexus CORE 200
The Klipsch Flexus CORE 200 is a 3.1.2 channel soundbar with dual 4-inch built-in subwoofers and four 2.25-inch ceramic drivers tuned by Klipsch acousticians. The bar delivers best-in-class bass from a single cabinet — reaching down to 50-55 Hz with palpable energy — and eliminates the need for a separate subwoofer box in small to medium rooms. Powered by Onkyo technology, the soundbar uses Klipsch Transport architecture to keep latency below 20 ms between the HDMI eARC input and the drivers, ensuring lip-sync accuracy.
The horn-loaded dedicated center channel tweeter provides detailed vocal clarity that outperforms many virtualized dialogue systems, though some customers with hearing sensitivity still prefer an external center channel. The 44-inch wide cabinet is made from a combination of metal, plastic, and real wood veneer, and the grey/walnut finish blends into mid-century modern decor better than the standard black slab. The bar includes a wired subwoofer output (rare at this price point) for future expansion, and the Klipsch Connect app offers a basic 5-band EQ and input selection.
Without an eARC source, the Flexus 200 is significantly nerfed — Dolby Atmos content falls back to Dolby Digital Plus, and the internal bass drivers cannot reach their full extension. The bar also produces intermittent crackling at very high volumes (above 80% on the volume scale), which some owners attribute to the internal amplifier clipping on the subwoofer channels.
What works
- Dual 4-inch built-in subwoofers deliver deep, palpable bass without a separate box
- Horn-loaded center channel tweeter provides exceptional vocal clarity and detail
- Wired subwoofer output allows easy expansion to an external subwoofer
What doesn’t
- Performance drops significantly when connected to a TV without eARC support
- Intermittent crackling occurs at very high volume levels
- Internal subwoofer cannot match the extension of a dedicated 10-inch external driver
8. Samsung HW-Q600C
The Samsung HW-Q600C brings genuine 3.1.2 channel Dolby Atmos sound with a wireless subwoofer and two upfiring drivers, making it one of the most accessible entry points into object-based audio. The HDMI eARC connection passes Dolby Atmos and DTS:X at full bandwidth, and the system includes Q-Symphony support — a feature that synchronizes the soundbar with Samsung TV speakers to operate as a unified array rather than two separate audio devices. The soundbar is ideal for rooms up to 14 by 14 feet and pairs best with Samsung TVs from the Q60 series and above.
Adaptive Sound analyzes the incoming signal and adjusts the EQ curve to prioritize dialogue during news broadcasts and sports, then widens the soundstage for movie content. The subwoofer connects wirelessly and pairs automatically on the first power-on, and users report that the TV remote controls volume, mute, and power without additional programming. The 3.1 channel layout with a dedicated center driver handles vocal clarity well at low volumes, and Game Mode Pro activates automatically when a console is detected, reducing audio latency and enabling 3D spatial audio for first-person titles.
The subwoofer is smaller and lighter than previous Samsung generations, resulting in less chest-thumping bass compared to the HW-Q600B variant. The surround field is entirely front-projected since the bar lacks physical rear speakers, so effects behind the listening position rely entirely on the upfiring drivers reflecting off the front wall. The remote feels slightly cheap with a plastic construction that does not match the bar’s aesthetic quality.
What works
- Q-Symphony pairs seamlessly with Samsung TVs for unified speaker operation
- Adaptive Sound optimizes EQ for dialogue, sports, or movies automatically
- Automatically pairs wireless subwoofer on first power-up without manual intervention
What doesn’t
- Subwoofer is smaller and produces less low-end power than the previous generation
- Surround effects rely entirely on front projection without rear speakers
- Remote control has a cheap plastic feel that undermines the overall experience
9. Yamaha SR-B30A
The Yamaha SR-B30A is a single-body soundbar with dual built-in subwoofers that delivers Dolby Atmos decoding without requiring a separate subwoofer box or rear speakers. The bar uses Yamahas Clear Voice technology that boosts the center channel gain specifically in the 300 Hz to 3 kHz range where human speech lives, and customers confirm that it improves dialogue intelligibility more noticeably than general EQ tweaks. HDMI eARC and optical inputs provide one-cable connection to your TV, and the Bluetooth 5.0 stream handles music, audiobooks, and podcasts without audio sync issues.
The 3.1 channel layout powers two full-range drivers, a dedicated center channel, and the dual built-in subwoofers, delivering a full-sounding audio profile that outperforms the hollow sound typical of budget soundbars. The setup takes under two minutes — plug in the HDMI cable, power on, and the TV remote immediately controls volume and mute. The bar includes multiple sound modes: Stereo, Standard, Movie, and Game, each with a different EQ curve. The Bass Boost mode adds a shelf at 60 Hz that works well for action movies but can muddy the mid-bass during music playback.
The bar lacks dedicated upfiring or side-firing drivers, so the Dolby Atmos effect is entirely virtualized through psychoacoustic processing rather than physical driver placement. The built-in subwoofers cannot match the extension of a wired 6.5-inch external subwoofer — the 50 Hz roll-off is noticeable during low-frequency scenes. Yamahas manual is sparse and does not explain the differences between sound modes clearly.
What works
- Dual built-in subwoofers eliminate the need for a separate subwoofer box
- Clear Voice technology significantly improves dialogue intelligibility at low volumes
- Two-minute setup with HDMI eARC and automatic TV remote control integration
What doesn’t
- Dolby Atmos effect is virtualized with no dedicated upfiring or side-firing drivers
- Built-in subwoofers cannot reproduce frequencies below 50 Hz effectively
- Sound mode descriptions in the manual are vague and unhelpful for configuration
Hardware & Specs Guide
HDMI eARC Bandwidth and Chipset
eARC supports up to 37 Mbps of audio data, compared to ARCs 1 Mbps ceiling. This allows uncompressed Dolby TrueHD (up to 24-bit/192kHz) and DTS-HD Master Audio to pass through the connection. The HDMI chipset generation determines whether the bar locks onto the signal instantly or introduces a 1-3 second delay when switching sources. Newer designs from MediaTek and Novatek offer sub-100ms sync times and better CEC reliability across TV brands.
Channel Count vs Driver Placement
Channel labels like 3.1.2 or 7.1.4 indicate the number of horizontal channels, subwoofer channels, and height channels respectively. Physical driver placement matters more than the number printed on the box: a soundbar with side-firing drivers and angled upfiring tweeters creates a wider, taller soundstage than one with only forward-firing drivers and digital processing. Measure your ceiling height — rooms with ceilings taller than 9 feet benefit from dedicated upward-firing drivers with wider dispersion angles.
Wireless Subwoofer Latency and Crossover
Wireless subwoofers connect via either 2.4 GHz or 5 GHz RF, or Bluetooth. RF connections on the 5 GHz band produce lower latency (under 20 ms) and avoid interference from WiFi routers. The crossover point determines where the soundbar hands off bass to the subwoofer — 80 Hz is the THX standard for avoiding directional localization of bass frequencies. Systems that allow variable crossover adjustment give you room to blend the subwoofer smoothly with your mains.
Room Calibration Technology
Automatic room calibration uses a microphone to measure impulse response and analyze reflection patterns. Single-point calibration (often via a phone microphone) works reasonably well in symmetrical rooms, while multi-point calibration (like Trueplay or SpaceFit Sound Pro) measures multiple seating positions and averages the EQ correction. Systems without any calibration require manual EQ adjustment, which can be time-consuming if you are not familiar with frequency response curves and room mode calculations.
FAQ
Do I need eARC or will ARC be enough for my soundbar?
Why does my soundbar audio lag behind the video with eARC?
Can I use a soundbar with eARC on a TV that only has ARC?
Final Thoughts: The Verdict
For most users, the best earc soundbar winner is the Samsung HW-Q990D because its 11.1.4 channel count and Wireless Dolby Atmos deliver the closest experience to a dedicated home theater without running cables through walls. If you want seamless multi-room audio with AI-powered dialogue tuning, grab the Sonos Arc Ultra. And for a budget-friendly entry into true object-based audio with Q-Symphony pairing, nothing beats the Samsung HW-Q600C.
