EATX motherboards pack in extra RAM slots, expanded PCIe lanes, and beefier VRMs, but finding a case that actually fits them without choking airflow or rattling under load is a different beast entirely. The wrong choice leaves you fighting torqued standoffs, blocked fan ports, or a side panel that refuses to close cleanly.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years analyzing chassis specifications, radiator clearances, and real-world customer feedback on EATX-compatible enclosures to separate marketing claims from actual fitment facts.
Whether you’re planning a custom loop with a 420mm radiator or just need room for a massive air cooler, selecting the right eatx case comes down to four concrete factors: board tray clearance, PSU chamber depth, fan count, and maximum GPU length.
How To Choose The Best EATX Case
Picking an EATX-friendly chassis isn’t about bigger being better — it’s about measuring real clearances. Most cases claiming EATX support still struggle with boards wider than 10.5 inches because the cable routing grommets sit too close to the standoffs. You need to look past the marketing spec sheet and focus on three key areas.
Motherboard Tray Depth and Grommet Placement
The primary pain point with EATX boards is the additional 22-27mm of width beyond an ATX board. A case with a recessed tray or offset grommets lets you route the 24-pin power cable without crushing it against the side panel. Check whether the rear cable channel is at least 25mm deep — shallower channels force tight bends that can loosen connectors over time.
Radiator and Fan Stacking
EATX builds often run hot, so you’ll likely want a 360mm or 420mm radiator. But a thick rad plus push-pull fans can conflict with the VRM heatsinks on an EATX board. Look for at least 70mm of clearance between the top of the motherboard and the top panel when choosing a top-mount rad setup. For front-mount radiators, GPU length clearance drops by the radiator thickness, so subtract your chosen rad’s depth from the max GPU spec before buying.
PSU Shroud and Drive Cage Interference
Many mid-tower cases squeeze EATX boards by cutting into the PSU shroud area. This forces the PSU cables to bend sharply or blocks the bottom fan positions entirely. A case with a removable or segmented PSU shroud gives you room to tuck excess cabling and still install intake fans below the GPU. Always check whether the bottom fan mount screws line up with the drive cage — overlapping components are common in budget-tier enclosures.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| HAVN BF360 | Mid Tower | Quiet airflow with 180mm fans | 33mm cable channel depth | Amazon |
| Corsair 5400 LX-R | Mid Tower | Isolated CPU cooling chamber | Triple-chamber layout | Amazon |
| NZXT H9 Flow | Mid Tower | Dual-chamber cable management | 420mm top radiator support | Amazon |
| ASUS Helios GX601 | Mid Tower | Premium showcase with GPU braces | 420mm front radiator support | Amazon |
| Geometric Future M5 | Mid Tower | Value with 5x140mm pre-installed fans | 460mm GPU clearance | Amazon |
| Thermaltake Ceres 500 | Mid Tower | Porous mesh airflow | GPU support bracket included | Amazon |
| Antec Flux Pro Noctua | Full Tower | Ultra-quiet high-end build | 190mm CPU cooler height | Amazon |
In‑Depth Reviews
1. HAVN BF360 Mid Tower
The HAVN BF360 nails the balance between spacious EATX accommodation and noise-dampened operation. Its 135-degree angled air duct channels airflow directly to the GPU’s hot zone, which matters for oversized boards where the bottom PCIe slot often suffocates. The semi-open SGCC steel frame keeps vibration low even with four 180mm fans spinning, and the detachable top bracket simplifies radiator installation without flipping the entire chassis upside down.
With 33mm of routing space behind the motherboard tray, you can tuck the 24-pin and front-panel cables without bulging the side panel — a common annoyance in enclosures that claim EATX support but skimp on depth. The two vibration-dampened drive trays handle either 2.5-inch SSDs or 3.5-inch HDDs, so storage layout stays flexible without blocking the bottom intake fan. Build quality feels dense; the rubber isolation mounts further quiet the assembly under load.
The main tradeoff is sheer size — this case is physically large and heavy, requiring a sturdy desk or floor stand. Standard PSU cables may fall short for clean routing without extensions. If you prioritize silent operation with high airflow capacity, the BF360 delivers without the hollow plastic feel of budget-tier competitors.
What works
- Excellent noise dampening with rubber isolation mounts
- Deep cable channel fits EATX wiring without bulging
- Detachable top bracket eases rad installation
What doesn’t
- Very heavy and large; confirm desk space first
- PSU cable routing may need extensions for clean runs
2. Corsair 5400 LX-R RGB iCUE Link
Corsair’s triple-chamber design isolates the CPU cooling rad (up to 360mm) in a separate front chamber, so the heat it dumps never lingers around the GPU or VRM area. The central chamber runs massive vertical airflow with three pre-installed reverse-rotor LX-R fans pulling fresh air upward, exhausting hot air through the top. This layout keeps EATX boards with thick VRM sinks consistently cooler than conventional single-chamber designs.
The separate PSU and storage chamber has its own intake and exhaust, meaning the power supply isn’t fighting the GPU for fresh air. Innovative airflow ducts on the bottom fan array accelerate velocity without ramping fan speed, which translates to quieter operation at higher thermal loads. Build quality is dense — thick panels, no sharp edges, and tool-less access to all three chambers.
The premium price is the main barrier, and the PSU slot sits high enough that some stock 12VHPWR cables may not reach the motherboard cleanly. You’ll likely need custom-length cables or a Corsair native PSU to keep the look tidy. If your budget allows, this is a genuine generational leap in thermal compartmentalization for EATX builds.
What works
- Isolated cooling chambers reduce component heat soak
- Airflow ducts increase velocity without added noise
- Tool-less panel access across all three chambers
What doesn’t
- PSU position may conflict with shorter cables
- Premium price places it outside mid-range budgets
3. NZXT H9 Flow
The NZXT H9 Flow uses a dual-chamber layout that separates the PSU and drives from the main motherboard area, improving thermal performance and making cable management significantly easier for EATX boards. The main chamber has room for a 420mm radiator on top and front-right, which is rare in a mid-tower footprint. The wraparound tempered glass panels let you show off the build while the perforated steel panels on the side channel air intake efficiently.
Ten-fan capacity (nine 140mm positions plus one rear 120mm) means you can run push-pull on both top and front rads without sacrifice. The included four F120Q/F140Q case fans get you started, though they’re DC-controlled rather than PWM, so expect a hump at higher RPM. The chassis is also back-connect ready, supporting motherboards that route power connectors to the rear for a cleaner front look.
Stock fans run louder than premium aftermarket options, and there’s no GPU support bracket included — an oversight for heavy cards in a case this spacious. The screw quality on the rear panel has inconsistent reports of stripping. Still, for the price and sheer radiator capacity, the H9 Flow offers strong value in an easy-to-build package.
What works
- Dual-chamber design simplifies cable routing
- Supports 420mm top and front radiators
- Back-connect motherboard compatible
What doesn’t
- Stock DC fans are louder than PWM alternatives
- No GPU support bracket for heavy cards
- Screw quality on rear panel is inconsistent
4. ASUS ROG Strix Helios GX601 White
The Helios GX601 is built as a showcase first and a cooling box second, with three tempered-glass panels and a brushed-aluminum frame that feels far more solid than typical mid-tower construction. Its EATX support is genuine — the motherboard tray can handle wide boards without overlapping the cable grommets — and the bundled multifunction cover includes GPU braces for heavy cards. The translucent rear cable cover hides wiring while still giving access for adjustments.
Front-mounted 420mm radiator support is generous, though fitting a push-pull configuration requires careful planning because the floor modification mentioned in user feedback. The four pre-installed 140mm fans are decent, but the real draw is the integrated Aura Sync strip on the front panel and the fabric carrying handles for LAN transport. The helios also fits three GPUs in standard orientation or two vertically using the bundled bracket.
The older design and high price are the biggest drawbacks — this model hasn’t received a major revision in years, and the + price point puts it against newer options like the Corsair 5400. The sheer weight (around 40 pounds) makes it a permanent desk fixture. If looks matter most and you plan to water cool, the Helios still impresses, but spec-for-spec it’s aging.
What works
- Premium aluminum and tempered glass build quality
- Bundled GPU braces and vertical mount bracket
- 420mm front radiator support
What doesn’t
- Heavy; requires a sturdy desk
- Price is high for an older platform design
5. Geometric Future M5
For the price, the Geometric Future M5 packs five pre-installed 140mm ARGB PWM fans — a rarity in mid-range enclosures. The included fans move enough air to keep a 13600K at 32°C with a modest air cooler, and the 1.2mm steel frame feels solid compared to the flimsier metal found in budget-tier cases. It fits 420mm radiators and EATX boards without wasting internal volume, and the PSU shroud includes a tempered display window to show off sleeved cables.
GPU clearance up to 460mm means even the longest cards fit without touching the front fans, and the tool-less tempered glass panels make access quick. The bottom-only filtered intake is a minor frustration for dust management, and the PSU cage can be tight with larger units — the manual suggests using an SFF power supply for easiest fitment. The ARGB sync works with major motherboard software, so you can unify lighting without extra controllers.
Shipping damage is a common complaint due to packaging that doesn’t fully protect the metal panels. The lower intake fan also requires removal to access some front-panel headers. Despite these quirks, the M5 delivers enthusiast-grade fan count and EATX capacity at a price point that undercuts most competitors by a wide margin.
What works
- Five pre-installed 140mm ARGB PWM fans included
- 460mm GPU clearance fits any modern card
- Robust 1.2mm steel construction
What doesn’t
- Bottom intake is only filtered area; dust enters via side
- PSU cage is cramped with standard-size units
- Packaging can lead to shipping damage
6. Thermaltake Ceres 500 TG ARGB
The Ceres 500 focuses on unrestricted intake with a porous front mesh panel that covers the entire front face, feeding air directly to three 140mm ARGB fans. It supports E-ATX motherboards and includes both a GPU support bracket and a horizontal GPU mount slot (riser cable sold separately). The CT140 fans run quietly around 600 RPM while still pulling good static pressure for a mesh front end.
Cable management is well-thought-out with tie-down points and rubber grommets in the right positions for wide boards. The tool-less side panels make swapping components fast, and the side-mounted power button layout is a smart ergonomic touch. However, the front plastic cover’s finish feels cheap compared to the metal construction of other cases in this list — several customers noted the cosmetic quality is disappointing in person.
Compatibility with Thermaltake’s own TH420 V2 AIO is problematic because hose placement conflicts with the top fan when the radiator is mounted in the front. You’ll need to plan your cooling loop carefully or choose a different radiator brand. The painted finish also scratches easily, so handling during assembly needs extra care. For pure mesh airflow at this price, it works, but fitment testing is required.
What works
- Excellent front mesh airflow with quiet fans
- GPU support bracket and horizontal mount included
- Tool-less panels for quick access
What doesn’t
- Front plastic cover looks cheaper than expected
- Compatibility issues with Thermaltake’s own TH420 V2 AIO
- Paint finish scratches easily during assembly

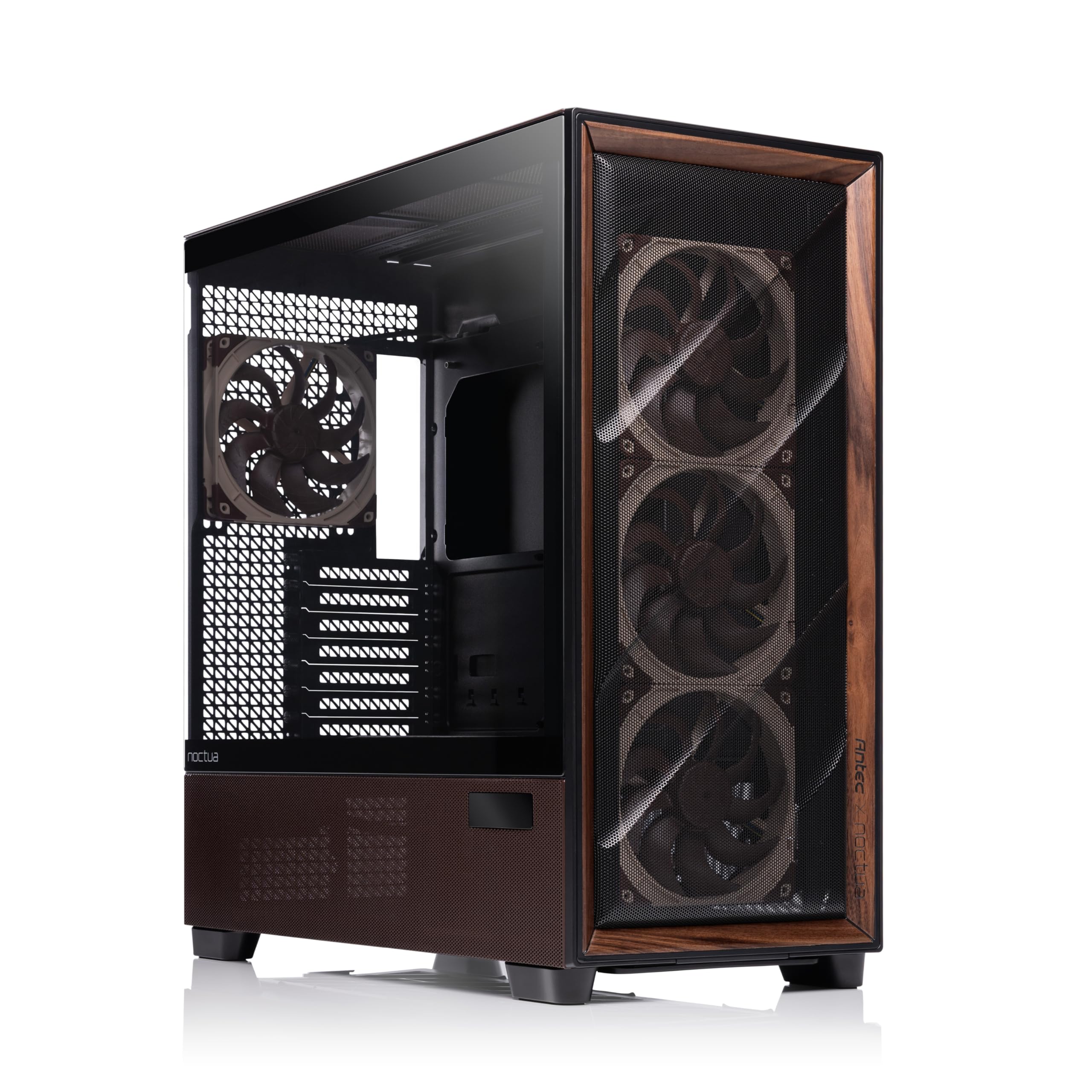

7. Antec Flux Pro Noctua Edition
This collaboration between Antec and Noctua pairs an award-winning Flux Pro chassis with six Noctua fans: three NF-A14x25 G2 for front intake, one NF-A14x25 G2 for rear exhaust, and two NF-A12x25 G2 above the PSU shroud. The result is a system that runs up to 8dB(A) quieter than standard fan configurations while maintaining excellent airflow across large EATX boards. The included NA-FH1 fan hub simplifies control through a single motherboard header.
Clearance is generous across all critical dimensions: CPU coolers up to 190mm (fitting an NH-D15 easily), 360mm and 420mm radiators in both front and top positions, GPUs up to 455mm, and PSUs up to 300mm. The steel frame is robust, and Noctua’s signature brown styling extends to the rubber grommets and top and side panels — a polarizing look that pairs best with other Noctua Edition components like the ASUS RTX 5080 Noctua Edition.
The biggest issue is repeated delivery damage: the top metal panel arrives bent in multiple shipping reports, and replacement units sometimes show the same defect. Also, despite the full-tower dimensions, the tray doesn’t support larger 13×12 inch EATX boards — a critical caveat for extreme workstation builds. For those with standard-width EATX boards who value absolute silence and premium fan quality, this is the quietest option available.
What works
- Ultra-quiet Noctua fans reduce noise significantly
- Massive cooler and GPU clearance
- Premium fan hub included for single-header control
What doesn’t
- Frequent top panel damage during shipping
- Does not support full-width 13×12 inch EATX boards
- Signature brown styling divides visual opinion
Hardware & Specs Guide
EATX Board Tray Width
The true test for EATX compatibility isn’t whether the screw holes line up — it’s whether the 24-pin cable can route through the grommet without bulging the side panel. Boards wider than 10.5 inches need at least 25mm of tray depth behind the motherboard. The HAVN BF360 offers 33mm, which is the deepest in this lineup. Cases with less than 20mm risk pinching cables.
Dual Chamber vs. Single Chamber
Dual-chamber designs (like the NZXT H9 Flow and Corsair 5400) physically separate the PSU and drives from the main compartment, lowering internal ambient temperatures by isolating heat sources. Single-chamber cases run hotter but are easier to cable-manage because there’s no wall restricting access to the front fans. The triple-chamber Corsair 5400 takes this further with an isolated CPU rad chamber.
FAQ
How do I check if a case truly fits my EATX board width?
Can I install a 420mm radiator in any EATX case?
Why do some EATX cases block the bottom fan position?
Final Thoughts: The Verdict
For most users, the eatx case winner is the HAVN BF360 because it combines deep cable channels, quiet noise-dampened operation, and genuine clearance for wide boards. If you want isolated CPU cooling chambers and top-tier airflow design, grab the Corsair 5400 LX-R. And for ultra-quiet builds with Noctua fan quality, nothing beats the Antec Flux Pro Noctua Edition.
