Industrial automation is moving inference out of the data center and onto the production line. Latency-sensitive tasks like defect inspection, predictive maintenance, and real-time machine control demand compute that lives right next to the PLC, not somewhere in a cloud region. Choosing the wrong host for that inference stack means dropped packets, missed frames, and scrapped batches.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent 15 years analyzing embedded compute across industrial use cases, from fanless edge gateways to workstation-class AI nodes, mapping thermal envelopes, connectivity stacks, and software ecosystems against real factory-floor requirements.
This guide breaks down the top computing options for local model inference and automation logic, focusing on raw NPU performance, port count, ruggedization, and OS compatibility. Use it to find the right edge ai devices for industrial automation.
How To Choose The Best Edge AI Devices For Industrial Automation
Industrial edge computing is not a desktop environment. Dust, vibration, thermal cycling, and 24/7 uptime requirements mean the selection criteria shift away from benchmark scores toward reliability, port diversity, and thermal resilience.
NPU & Total Platform TOPS
The dedicated neural processing unit directly determines how fast your model runs inference. For real-time object detection (YOLOv8, ResNet) or LLM-based anomaly reporting, aim for a platform that offers at least 13 TOPS from the NPU. The high-end AMD XDNA 2 stack delivers 55 dedicated NPU TOPS, while Intel’s AI Boost reaches 13 TOPS — both relieve the CPU for control logic.
I/O and Industrial Connectivity
Legacy equipment still talks over RS232 and parallel signaling. A device that only offers USB-C and Thunderbolt will fail in a brownfield plant. Look for dual COM RS232 ports for PLC handshaking, dual 2.5GbE LAN for network segment isolation, and OCuLink if you plan to attach an external GPU for heavier vision models.
Thermal Envelope and Ingress
Fanless metal chassis with passive cooling eliminate the single most common failure point in dirty air environments: the clogged fan. If your cabinet reaches ambient temperatures above 40°C, a fanless design with a wide operating range is non-negotiable. For climate-controlled labs, active vapor-chamber cooling can sustain higher sustained boost clocks.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| NVIDIA DGX Spark | Supercomputer | 200B param local LLM fine-tuning | 1 PFLOPS FP4 / 128GB unified memory | Amazon |
| NVIDIA Jetson Thor | AI Dev Kit | Autonomous robot & humanoid control | 2,070 TFLOPS / 128GB GDDR6X | Amazon |
| GMKtec EVO-X2 (Ryzen AI Max+ 395) | AI Workstation | 80B-120B LLM inference locally | 50+ NPU TOPS / 128GB LPDDR5X | Amazon |
| Reatan X8 (Ryzen AI 9 HX 470) | AI Dev Box | LLM dev & 1080p gaming on Radeon 890M | 86 total TOPS / 48GB DDR5 | Amazon |
| GMKtec EVO-T1 (Core Ultra 9 285H) | Mini AI PC | Multi-screen 8K monitoring & photo AI | 13 NPU TOPS / 64GB DDR5 | Amazon |
| MINISFORUM AI X1 Pro-370 | Copilot PC | Office AI & transcription workloads | Ryzen AI 9 HX370 / 32GB DDR5 | Amazon |
| GEEKOM A7 MAX (Ryzen 9 7940HS) | Compact Creator | 4K video editing & dual 2.5GbE NAS | Radeon 780M / 16GB DDR5 | Amazon |
| ACEMAGIC M5 (i7-14650HX) | Mid-Range Desktop | Local AI testing & app development | 32GB DDR4 / 1TB NVMe Gen4 | Amazon |
| KINGDEL Fanless i7 Industrial PC | Fanless Edge Gateway | Dusty woodshop / observatory 24/7 duty | Dual COM RS232 / 16GB RAM | Amazon |
In‑Depth Reviews
1. NVIDIA DGX Spark
The DGX Spark is a personal AI supercomputer built around the GB10 Grace Blackwell Superchip, capable of 1 PFLOPS at FP4 precision. That raw throughput lets it handle models up to 200 billion parameters locally, which is an order of magnitude larger than any x86 mini PC can manage without a discrete GPU. The 128GB of coherent unified memory acts as VRAM and system RAM simultaneously, so a 70B Q8 model loads entirely on-chip with zero swapping.
Connectivity includes a ConnectX-7 Smart NIC for 400GbE networking and a 4TB self-encrypted NVMe, but the physical I/O on the chassis is limited — two USB-C ports and a single HDMI 2.1. The ARM-based Grace CPU also means standard x86 containers and binaries require recompilation or NGC Docker images, which is a significant workflow consideration for teams running legacy automation software.
The value proposition is clear: if your research or production pipeline demands running huge open-weight LLMs (Llama 3 405B distilled, DeepSeek 120B) on a desk without cloud egress costs, the Spark is unmatched. For basic PLC communication or vision inference on an assembly line, it is overbuilt and under-ported.
What works
- 1 PFLOPS FP4 is class-leading for local inference.
- 128GB unified memory handles 200B param models.
- Extremely quiet; no active cooling noise.
What doesn’t
- Limited native x86 compatibility; needs NGC containers.
- No COM ports or multi-GbE for brownfield factories.
- Premium-tier pricing targets research labs, not PLC racks.
2. NVIDIA Jetson Thor Developer Kit
The Jetson Thor is built around a 2,560-core Blackwell GPU with 96 fifth-gen Tensor Cores, delivering 2,070 TFLOPS of AI compute. That makes it the most powerful embedded AI platform NVIDIA offers below the data center line, designed specifically for humanoid robots and specialized autonomous systems that need real-time perception on the edge.
The 128GB of GDDR6X video memory is soldered and tightly integrated with the GPU die, providing a massive bandwidth advantage for running multiple vision models simultaneously — think 4K depth estimation, segmentation, and 6-DoF pose tracking all at once. The breakout includes HDMI 2.1 and DisplayPort, but like the DGX Spark, industrial I/O like RS232 or 2.5GbE LAN is absent.
A major consideration is the software maturity. The Blackell Jetson stack is still settling — customers report that the SDK flashing tools and some demo libraries are currently unreliable, and the Nvidia ecosystem here expects a developer willing to debug build issues. It is not a plug-and-play SCADA edge gateway; it is a robotics compute node for teams with deep embedded software expertise.
What works
- 2,070 TFLOPS is unmatched in the embedded form factor.
- 128GB GDDR6X supports multi-model vision pipelines.
- Blackwell architecture is future-proof for GenAI robotics.
What doesn’t
- Software toolchain still unstable; not consumer-ready.
- No legacy industrial ports (RS232, dual LAN).
- Premium-tier cost for a develop-noard ecosystem.
3. GMKtec EVO-X2 (Ryzen AI Max+ 395)
The EVO-X2 is the most powerful production-ready mini PC for AI workloads that do not require a discrete NVIDIA GPU. The Ryzen AI Max+ 395 APU uses 16 Zen 5 cores, an XDNA 2 NPU delivering over 50 dedicated AI TOPS, and a Radeon 8060S iGPU with 40 RDNA 3.5 compute units. The 128GB of eight-channel LPDDR5X at 8,000 MT/s provides an aggregate memory bandwidth that enables 70B to 120B parameter models to run comfortably in LM Studio or KoboldCpp.
Physical I/O includes HDMI 2.1, DisplayPort 1.4, dual USB4 40Gbps, a 2.5GbE LAN port, Wi-Fi 7, and an SD 4.0 card reader. The triple-fan cooling system with 360-degree airflow keeps the 140W TDP under control in Performance Mode, though the device needs ventilation clearance. Users report that Fedora 44 detects all hardware out of the box, which is rare for an AMD mobile-APU-based mini PC.
For a factory-edge setup that also serves as a local LLM development box, the EVO-X2 is close to ideal — it has enough GPU grunt to run SDXL image generation, enough NPU TOPS for low-latency vision inference, and enough RAM to keep large context windows open. The lack of dual Ethernet and COM ports means it still needs a separate gateway for PLC communication.
What works
- 128GB LPDDR5X handles 70B+ models locally.
- Excellent Linux support (Fedora 44, Ubuntu 24.04).
- 50+ dedicated NPU TOPS for real-time inference.
What doesn’t
- Needs active cooling clearance; not for sealed enclosures.
- No dual LAN or COM ports for direct PLC links.
- Premium-tier pricing for the Strix Halo platform.
4. Reatan X8 (Ryzen AI 9 HX 470)
The Reatan X8 is built around the AMD Ryzen AI 9 HX 470 — a 12-core, 24-thread Zen 5 processor with a dedicated XDNA 2 NPU delivering 55 TOPS and a total platform capability of 86 TOPS. That NPU performance is almost identical to the generation-leading Strix Halo chip, but the X8 pairs it with a 48GB or 128GB DDR5 5,600 MHz setup — not soldered LPDDR5X — making it user-serviceable and cheaper to repair in the field.
The Radeon 890M iGPU (16 RDNA 3.5 CUs at 3.1 GHz) handles Cyberpunk 2077 at 1080p 60+ FPS and accelerates 4K video encoding. The OCuLink port provides a direct PCIe 4.0 x4 lane to an external GPU if you need to scale past the integrated silicon. Quad 8K display support comes through HDMI 2.1, DP 2.0, and dual USB4, and the dual 2.5GbE LAN ports allow physical network isolation between a corporate data pipeline and the internet.
Reports from buyers confirm stable AI training and LLM development over 12-hour sessions with no throttling in the all-metal chassis. Ubuntu works flawlessly with AMD open-source drivers, and the built-in dual noise-cancellation microphones and speaker make it a viable video-conferencing hub for a remote SCADA monitoring station.
What works
- 55 dedicated NPU TOPS for local inference tasks.
- Dual 2.5GbE LAN for network segmentation.
- OCuLink port enables eGPU expansion for vision models.
What doesn’t
- No COM RS232 ports for legacy PLCs.
- USB-C ports located only on the front panel.
- 1-year warranty is shorter than some competitors.
5. GMKtec EVO-T1 (Core Ultra 9 285H)
The EVO-T1 runs the Intel Core Ultra 9 285H, a 16-core (6 P, 8 E, 2 LPE) processor with 13 TOPS of dedicated NPU throughput and an Intel Arc 140T integrated GPU. The NPU is a modest performer compared to AMD’s XDNA 2, but the Arc 140T excels at video encoding and decoding — particularly AV1 — which makes this box a strong candidate for multi-camera 4K/8K inspection feeds that need real-time transcoding at the edge.
The 64GB DDR5 5,600 MHz RAM and 1TB PCIe 4.0 SSD are backed by three M.2 2280 expansion slots supporting up to 12TB total storage. This is one of the few mini PCs in this class that gives you three independent NVMe slots, which is useful for RAID-1 logging or separating the OS from the model repository. The OCuLink port provides direct eGPU connectivity, and the quad 8K display support over HDMI 2.1, DP 1.4, and USB-C DP Alt mode is generous.
The Intel AI Boost NPU is best suited for lighter models (sub-8B LLMs, classification CNNs) rather than heavy generative workloads. Users report excellent performance in Lightroom and Topaz for industrial photo inspection, but the onboard NPU struggles with continuous large-context inference. The 2.5GbE LAN and Wi-Fi 6 are adequate for most factory floors, though dual 2.5GbE would have been preferable for isolation.
What works
- Three M.2 NVMe slots for massive local storage arrays.
- Intel Arc 140T excels at AV1 encoding for vision pipelines.
- OCuLink port for GPU expansion when needed.
What doesn’t
- Only 13 NPU TOPS limits heavy local LLM use.
- No dual LAN or COM ports for factory bus systems.
- External power brick is bulky for DIN-rail mounting.
6. MINISFORUM AI X1 Pro-370
The AI X1 Pro-370 is centered on the AMD Ryzen AI 9 HX370 processor — the same silicon used in premium ultrabooks — paired with a Radeon 890M iGPU and 32GB DDR5 5,600 MHz RAM. It is designed around Windows Copilot integration, including a dedicated Copilot button, a fingerprint sensor, and built-in real-time subtitle translation and voice transcription via the dual noise-reduction DMIC array.
For an office or clean-room edge deployment, the X1 Pro offers dual USB4 ports, HDMI 2.1, DP 2.0, an OCuLink port, and dual 2.5GbE LAN adapters, which is a rare and welcome combination for this price tier. The total platform TOPS (NPU + GPU + CPU) is competitive for a non-Strix Halo chip, meaning it can run moderate LLMs (8B-14B) and vision models without choking, provided the VRAM allocation is managed.
The biggest risk is the long-term reliability picture. Reports indicate Bluetooth and USB port failures emerging around the 53-week mark, and Minisforum’s warranty support in those cases has been inconsistent — offering only billable repair. For a mission-critical automation node that must run 18 months between maintenance cycles, that failure pattern is a material concern.
What works
- Dual 2.5GbE LAN plus OCuLink in one small chassis.
- Radeon 890M handles 1080p AAA gaming and encoding.
- Copilot AI features for office automation workflows.
What doesn’t
- Reliability issues reported past 12 months of use.
- No COM RS232 ports for legacy equipment.
- Built-in speakers and DMIC are office-grade, not industrial.
7. GEEKOM A7 MAX (Ryzen 9 7940HS)
The A7 MAX packs an AMD Ryzen 9 7940HS (8-core, 16-thread, up to 5.2 GHz) with a Radeon 780M integrated GPU based on RDNA 3 architecture. While the 7940HS predates the dedicated NPU era (it lacks a separate XDNA unit), the Radeon 780M can accelerate AI workloads through shader-based inference, and the platform handles 4K video editing in DaVinci Resolve and Premiere Pro with Ryzen AI acceleration enabled via driver-level optimizations.
The all-aluminum chassis uses the IceBlast 2.0 cooling system with dual copper heat pipes and a silent fan rated under 36 dB, making it quiet enough for a recording studio or a quiet office on the factory mezzanine. Dual 2.5GbE LAN ports allow physical network isolation, which is ideal for a firewall or load-balancing gateway between the production network and the internet. The four-display support via dual USB4 and dual HDMI 2.0 is generous for video-wall monitoring.
One notable issue is the BIOS — the default configuration includes a zero-second “Control H” window that can confuse during cold boots, and some users report needing a jumper on the motherboard to enable power-after-restore behavior. Customer service is responsive, but the tweaks required out of the box may frustrate teams that expect plug-and-play.
What works
- Dual 2.5GbE LAN for network segmentation.
- IceBlast 2.0 cooling keeps noise under 36 dB.
- Excellent multi-display support for video monitoring walls.
What doesn’t
- No dedicated NPU; AI via shader compute only.
- BIOS needs tweaks for fault-tolerant power behavior.
- 16GB single-stick RAM limits bandwidth for iGPU tasks.

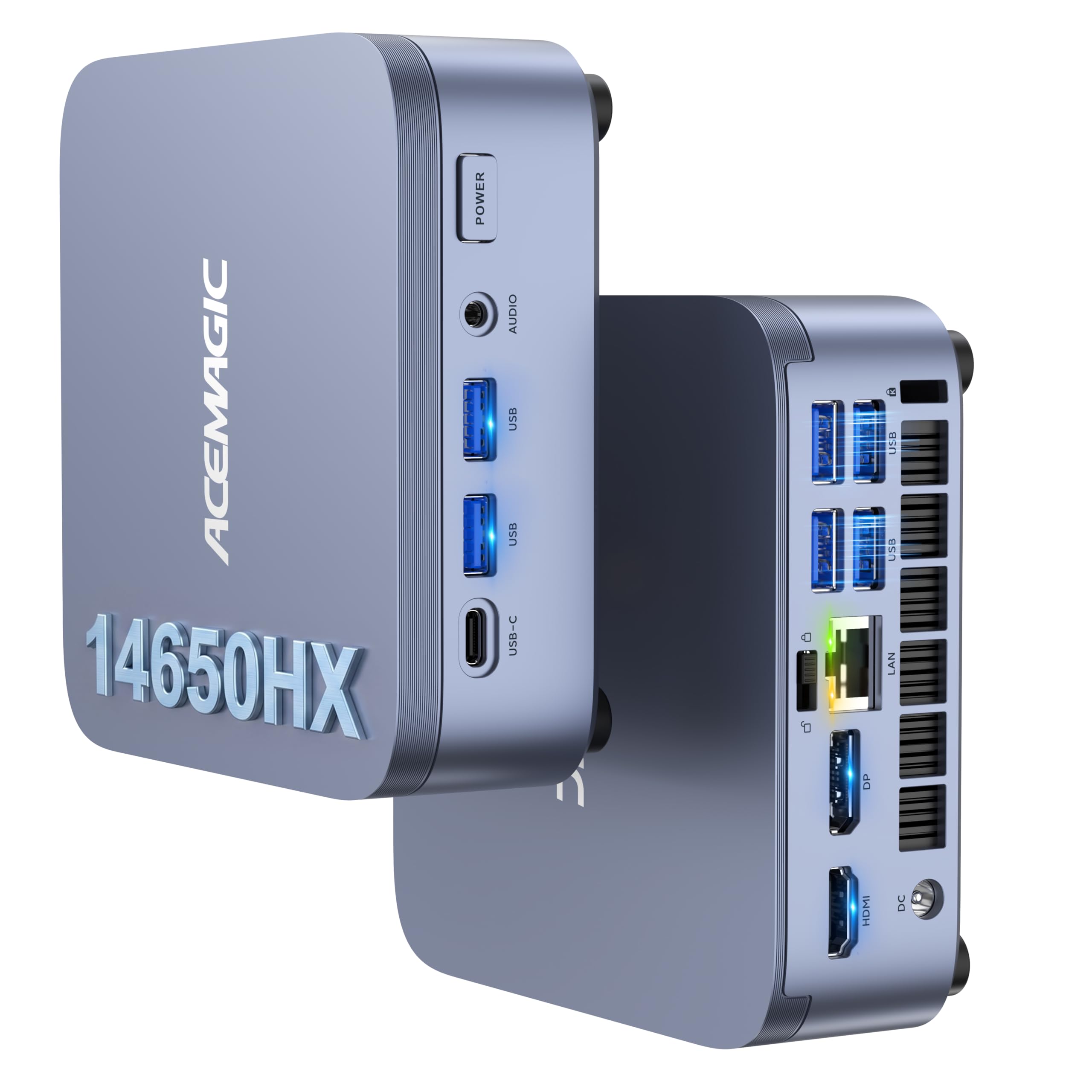

8. ACEMAGIC M5 (i7-14650HX)
The ACEMAGIC M5 uses an Intel Core i7-14650HX (16 cores, 24 threads, up to 5.2 GHz) with Intel UHD Graphics for 14th Gen processors. This is a high-core-count CPU without a dedicated NPU, so it relies entirely on CPU and GPU compute for model inference. With 32GB of DDR4 RAM, users report successfully running DeepSeek R1 8B and Qwen3 4B locally through Ollama, though larger models are constrained by the 32GB ceiling and the lack of Tensor Core acceleration.
The physical connectivity is robust for a mid-range edge device: one USB-C (10 Gbps with DP 1.4 and 15W PD), six USB 3.2 Gen 2 Type-A, HDMI 2.0, DisplayPort 1.4b, and Gigabit Ethernet. The vapor-chamber cooling system plus an SSD heatsink and dustproof design keeps the system stable under sustained load, and the 55W TDP means it stays efficient for 24/7 operation.
For an entry-level edge AI gateway that runs model inference in the 3B-8B range and doubles as a Windows 11 Pro workstation for SCADA HMI interfaces, the M5 offers good value. The lack of 2.5GbE LAN, COM RS232, and any form of discrete or high-TFLOPS iGPU means it is best suited for lightweight classification and monitoring tasks rather than heavy vision or large-language-model workloads.
What works
- High core-count CPU for multitasking and automation.
- Efficient 55W TDP suitable for 24/7 operation.
- Plenty of USB 3.2 Gen 2 ports for sensors.
What doesn’t
- No dedicated NPU or high-TFLOPS iGPU for AI acceleration.
- Gigabit Ethernet only; no 2.5GbE or dual LAN.
- No COM RS232 ports for legacy PLCs.
9. KINGDEL Fanless i7 Industrial PC
The KINGDEL Fanless Industrial PC runs an 8th-gen Intel Core i7 (i7-8565U or i7-8559U) with 16GB DDR4 and a 512GB NVMe SSD, housed in a full metal chassis with zero moving parts. The fanless design is the primary selling point for dusty environments — woodshops, observatories, material handling zones — where a conventional cooling fan would clog within weeks. The dual COM RS232 ports provide native connectivity to legacy PLCs and CNC controllers without requiring USB-to-serial adapters.
The UHD Graphics 620 supports 4K resolution at 4096×2304 via HDMI and VGA, which is enough for an HMI touchscreen panel but not for any modern AI inference load. This unit is not designed to run neural networks locally; it is a reliable communication gateway and data logger that can aggregate sensor data and forward it to a centralized inference server. Users report stable 24/7 operation with multi-boot configurations (FreeBSD, VoidLinux, Windows) and support for wake-on-LAN.
Customer reviews highlight excellent warranty support — one user received a replacement unit after an SSD failure post-Amazon return window. The biggest risk is the limited compute: the 8th-gen CPU and integrated GPU cannot run even a small LLM efficiently, so if your edge AI pipeline requires local inference, this box only works as a data preprocessor, not a model host.
What works
- Fanless metal chassis perfect for dusty industrial floors.
- Dual COM RS232 ports for legacy PLC integration.
- Excellent warranty support from the seller.
What doesn’t
- 8th-gen CPU is too weak for local model inference.
- Integrated UHD 620 GPU cannot accelerate AI tasks.
- No 2.5GbE LAN for high-bandwidth pipelines.
Hardware & Specs Guide
NPU vs GPU Inference
A dedicated Neural Processing Unit (NPU) handles low-power, low-latency AI tasks like real-time image classification or keyword spotting at 1-5W. The GPU is better suited for batch inference (thousands of frames per minute) and running large generative models. For industrial edge deployment, a platform with both an NPU and an integrated GPU (like the Ryzen AI 9 HX 470 or Core Ultra 9 285H) offers the most flexible power budget.
PCIe Expansion (OCuLink vs Thunderbolt)
OCuLink provides a direct PCIe 4.0 x4 connection to an external GPU with lower latency overhead than Thunderbolt 4, which encodes the PCIe signal into a USB-C tunnel. For vision-heavy automation (5+ cameras, 4K inference), OCuLink is the superior choice. If you need hot-plug capability and multi-protocol support, Thunderbolt is more flexible but introduces a 5-10% performance penalty.
FAQ
Can I run YOLOv8 on a fanless edge PC without an NPU?
Is Windows 11 Pro or Ubuntu better for industrial edge AI?
How many TOPS do I need for predictive maintenance models?
Final Thoughts: The Verdict
For most users, the edge ai devices for industrial automation winner is the Reatan X8 because it balances 86 total TOPS, dual 2.5GbE LAN, and OCuLink expansion at a mid-to-premium price point. If you need massive memory bandwidth for 70B+ LLMs, grab the GMKtec EVO-X2. For purely ruggedized legacy PLC environments where AI is handled elsewhere, nothing beats the KINGDEL Fanless Industrial PC.
