The single biggest mistake an eGPU buyer makes is assuming any Thunderbolt enclosure will deliver the same frame rate as a desktop. That assumption costs hundreds in hardware that never performs as expected. The bottleneck isn’t the GPU—it’s the interface between your laptop and the enclosure. OCuLink, USB4, and Thunderbolt 5 each handle PCIe traffic differently, and the wrong choice leaves 20–30 percent of your graphics card’s potential on the table.
I’m Mo Maruf — the founder and writer behind The Tools Trunk. I’ve spent years tracking the shifting landscape of external PCIe enclosures, analyzing how bandwidth ceilings, power supply headroom, and chipset compatibility determine real-world performance across dozens of laptop and mini-PC configurations.
After reviewing nine distinct enclosure styles—from integrated GPU docks to high-capacity storage chassis—I’ve mapped exactly which design trade-offs matter most for different workflows. Whether you’re chasing high-refresh gaming, video production, or AI inference, the egpu dock you choose must align your host’s connectivity with your performance expectations or you’ll burn cash on a solution that never delivers.
How To Choose The Best eGPU Dock
An external GPU dock is not a simple plug-and-play peripheral. Its performance is defined by four interconnected decisions: host interface bandwidth, power supply architecture, physical GPU compatibility, and software support. Each factor changes how much of your desktop GPU’s performance reaches your laptop screen.
Host Interface: OCuLink vs USB4 vs Thunderbolt 4 vs Thunderbolt 5
The interface is the single biggest variable in real-world eGPU performance. OCuLink provides a dedicated PCIe 4.0 x4 lane at 64Gbps with the lowest latency—closest you can get to a desktop experience without a desktop. Thunderbolt 4 caps at 32Gbps for PCIe tunneling, which can bottleneck high-end cards like the RTX 5090. Thunderbolt 5 jumps to 80Gbps for PCIe, matching OCuLink’s raw throughput but adding universal compatibility with USB4 hosts. If your laptop lacks an OCuLink port, Thunderbolt 5 becomes your best option, but you pay a premium for the enclosure.
Power Supply: Integrated vs Brick vs Bring-Your-Own-PSU
An eGPU enclosure with a built-in PSU simplifies the setup and reduces cable clutter. The AOOSTAR AG02 and Razer Core X V2 integrate the power supply directly; the latter requires you to install your own ATX PSU into the chassis. Units like the Startech Thunderbolt 3 chassis include a small power brick (65W) insufficient for graphics cards—those are intended for low-power PCIe cards like capture or RAID controllers. The Nimo eGPU Dock with RX 7600M XT packs a 240W internal PSU matched to its integrated GPU, so you never need to choose a power supply. Match the PSU wattage to the TDP of your intended GPU plus a 20 percent safety margin.
GPU Clearance and Cooling
Width and length limits block many enthusiast GPUs from fitting. The Razer Core X V2 accepts 4-slot-wide cards, while the Startech chassis strictly forbids graphics cards and only fits half-length, single-width PCIe cards. Check the maximum GPU length (the AOOSTAR AG02 is unlimited) and power connector clearance before buying. Active cooling matters: the Sonnet Echo Express SE1 has a notoriously loud 60mm fan many users replace, while the Terramaster D4 uses a whisper-quiet temperature-controlled system. If your enclosure sits near a desk, fan noise at 70 percent duty cycle becomes a daily irritant.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Razer Core X V2 | Premium Enclosure | High-end gaming & creative workloads | TB5 80Gbps / 4-slot GPU / ATX PSU | Amazon |
| Nimo eGPU Dock RX 7600M XT | Integrated GPU | Mobile workstation & handheld gaming | 120W RX 7600M XT / 240W PSU | Amazon |
| AOOSTAR AG02 | Value Enclosure | Mini-PC & OCuLink hosts | 800W PSU / OCuLink + USB4 / 64Gbps | Amazon |
| OWC Thunderbolt 4 Dock | Thunderbolt Hub | MacBook productivity multi-monitor | 96W PD / 40Gbps / Dual 5K | Amazon |
| Sonnet Echo Express SE1 | PCIe Chassis | Pro audio, capture cards, RAID | PCIe 3.0 x8 / 3.5″ x 5.6″ x 3.5″ | Amazon |
| TERRAMASTER D4 SSD Enclosure | NVMe Storage | 4K video editing & fast backup | 40Gbps / 4xM.2 NVMe / 32TB | Amazon |
| TERRAMASTER D6-320 | HDD DAS | Large-scale storage archives | 10Gbps USB 3.2 / 6-bay SATA / 132TB | Amazon |
| StarTech TB3 PCIe Chassis | Expansion Card Box | Legacy PCIe card host (no GPU) | PCIe 3.0 x16 slot / 25W slot power | Amazon |
| SANDISK Pro-Blade Station | Modular SSD Bay | Fast mag-based file transport | TB3 40Gbps / 4-bay / 3000MB/s | Amazon |
In‑Depth Reviews
1. Razer Core X V2
The Razer Core X V2 is the most forward-looking enclosure available today because it supports Thunderbolt 5 at 80Gbps PCIe bandwidth—enough to feed an RTX 5090 without bottleneck. The vented steel chassis clears 4-slot-wide cards, so even the chunkiest aftermarket coolers fit without modification. You must supply your own ATX PSU, which is a pro for upgraders who already own a high-wattage unit, but a con for first-time buyers who expect everything in one box.
Real-world reports show a 5070 Ti paired with a Seasonic 850W PSU running at 120 fps in Cyberpunk 2077 via a Thunderbolt 4 host—a number that should improve further with Thunderbolt 5 hosts. The built-in 120mm fan ramps audibly above 70 percent speed; owners frequently swap it for a Noctua NF-A12x25 to drop the noise floor without compromising cooling. The tool-free thumbscrew design makes GPU swaps fast, and the 140W USB-C power delivery keeps a host laptop charged during extended sessions.
This enclosure is built for users who plan to upgrade their GPU every generation and want an enclosure that ages alongside the card. If you own a Thunderbolt 5 or USB4 laptop and need maximum headroom for AAA gaming or GPU-accelerated rendering, the Core X V2 is the safest long-term bet. Just budget for a quality PSU—the enclosure does not include one.
What works
- Thunderbolt 5 delivers 80Gbps PCIe bandwidth—no bottleneck for top-tier GPUs
- 4-slot width accommodates large aftermarket coolers and high-TGP cards
- Tool-free design makes GPU swaps fast and simple
What doesn’t
- No PSU included; must purchase separately, increasing total cost
- Built-in 120mm fan is loud above 70 percent duty cycle
- Cable management inside the chassis is minimal

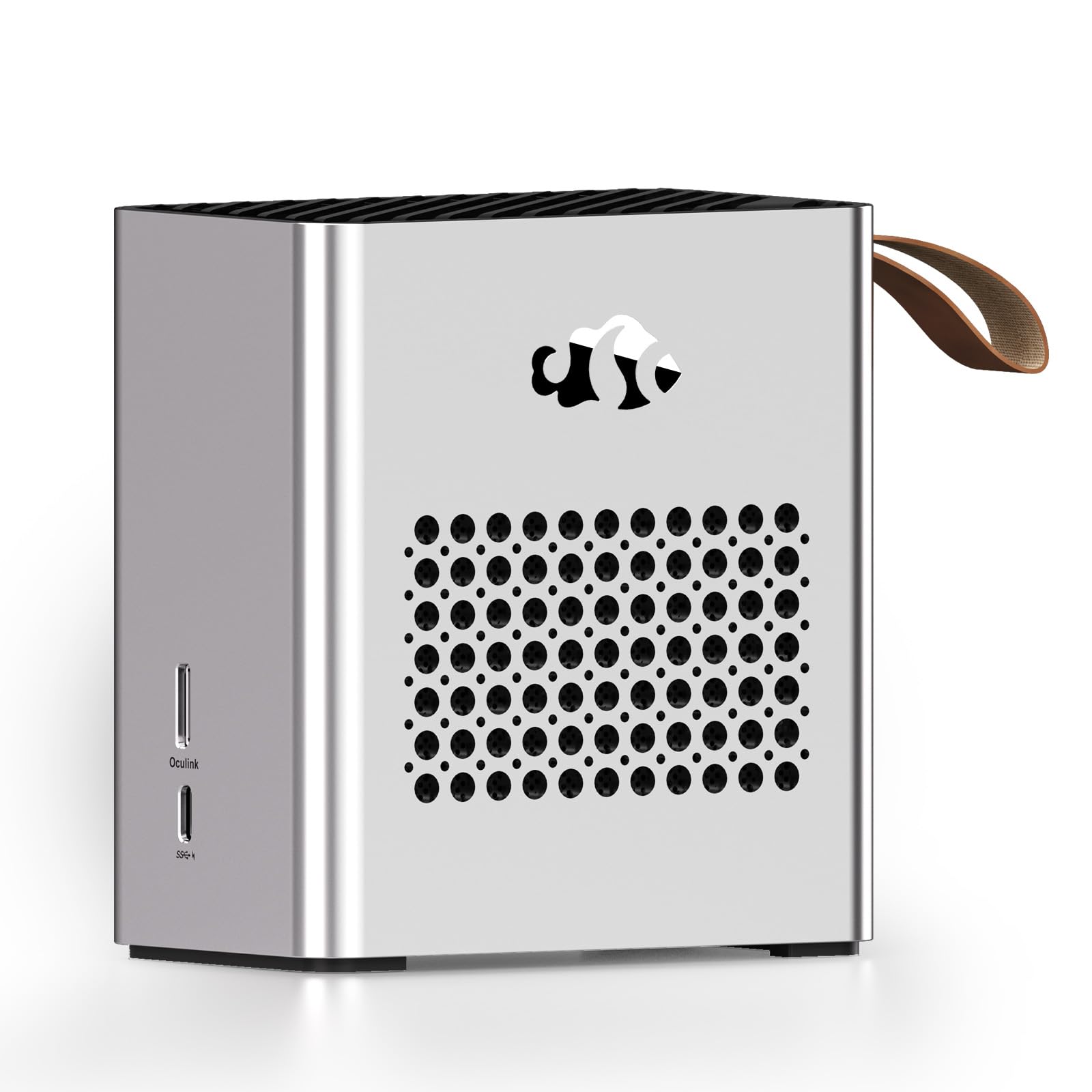

2. Nimo eGPU Dock with RX 7600M XT
The Nimo eGPU Dock is unique in this lineup because it integrates a full AMD Radeon RX 7600M XT GPU directly into the enclosure—no separate graphics card purchase required. The 120W TGP mobile GPU delivers performance comparable to an RTX 4060 laptop GPU, making it an excellent match for handheld gaming PCs and thin-and-light laptops that lack discrete graphics. The 240W internal PSU eliminates the need for a separate power brick, and the 0.8L chassis is genuinely small enough to slip into a backpack.
Bandwidth flexibility is the second standout feature: the dock offers both a USB-C port rated at 80Gbps and an OCuLink port at 64Gbps. One user reported seamless operation with the Legion Go 2, driving AAA titles at max settings with an RTX 5090 attached (via an external PSU). The 65W PD reverse charging on the front USB-C port means a single cable handles both data and laptop power, keeping the desk tidy. HDMI 2.1 and DisplayPort 2.0 outputs support 8K at 60Hz or dual 4K at 120Hz, covering high-end monitor setups.
The integrated GPU is firmly at laptop-class performance, so it will not match a desktop RTX 4080 or 4090 in raw rasterization. Thermal management is competent for the 120W TGP, but sustained benchmarks can push the metal chassis to warm temperatures. This dock is best suited for travelers who need portable GPU acceleration and don’t want to haul a separate GPU box plus a bulky graphics card. For desktop-replacement ambitions, a larger enclosure with a full-size desktop GPU remains the better path.
What works
- Integrated RX 7600M XT eliminates separate GPU purchase for mobile-class performance
- Dual-bandwidth connectivity: USB-C 80Gbps and OCuLink 64Gbps
- Compact 0.8L chassis with 240W internal PSU is genuinely portable
What doesn’t
- GPU performance is laptop-class, not desktop-class
- Limited to GPUs integrated at factory—no user upgrade path
- Chassis runs warm under sustained heavy loads
3. AOOSTAR AG02 eGPU Dock
The AOOSTAR AG02 packs an 800W internal PSU—enough to power a flagship desktop GPU like the RTX 4090—at a price point dramatically lower than most Thunderbolt 5 enclosures. The open metal frame provides unlimited GPU length clearance, so oversized cards fit without issue. The unit connects via OCuLink (64Gbps) for near-native PCIe 4.0 x4 bandwidth, and a secondary USB4 port offers Thunderbolt compatibility for hosts without OCuLink.
User reports confirm the AG02 works with the RTX 4070 Ti, RX 9070 XT, and Arc B580. One owner noted a 10 to 14 percent performance drop when using the USB4 port versus OCuLink—a typical delta for any enclosure using Thunderbolt tunneling. The built-in 800W PSU uses a Chicony 1U 80 Plus Platinum unit that is hot-swappable, adding a maintenance convenience you rarely see at this tier. The front-facing RGB indicator is cosmetic; the enclosure powers on automatically when the host wakes, eliminating the need to reach behind the desk.
The AG02 does not officially support the RTX 5090 or 5090D, and owners of the Legion Go or Xbox Ally X have reported incompatibility with RX 9070 XT GPUs. The OCuLink lock mechanism requires pressing a switch to release the cable—pull too hard and you risk damaging the port. For mini-PC owners with an OCuLink port or laptop users willing to accept the USB4 performance hit, the AG02 delivers desktop-grade PSU headroom at a budget-tier cost. Just verify your GPU fits on the factory bracket, which some reviewers found mediocre for very large cards.
What works
- 800W internal PSU can power RTX 4090-class cards without a separate power brick
- OCuLink provides 64Gbps PCIe bandwidth with minimal latency
- Open metal frame accepts GPUs of unlimited length
What doesn’t
- Not compatible with RTX 5090 or certain handheld devices
- GPU bracket quality is functional but not premium
- OCuLink lock mechanism requires careful handling to avoid port damage
4. OWC 11-Port Thunderbolt 4 Dock
This is not an eGPU enclosure—it’s a Thunderbolt 4 hub with 11 ports that connects to an external GPU through its upstream Thunderbolt port. For MacBook users who want a single-cable dock that drives dual 5K displays, charges the host at 96W, and still leaves a Thunderbolt port available for an eGPU, the OWC dock fills that specific role. It integrates three Thunderbolt 4 downstream ports, three USB-A 3.2 Gen 2 ports (10Gbps), a Gigabit Ethernet jack, a UHS-II SD card slot, and a 3.5mm audio combo port.
The dock supports a single 8K display at 60Hz or dual 5K displays at 60Hz. M1 and M2 Mac users report seamless mirroring with two external monitors via USB-C to DisplayPort cables—no DisplayLink software needed. The 96W host charging is generous enough for a 16-inch MacBook Pro under moderate load, though heavy GPU usage may pull additional power from the laptop’s own battery. The front-facing Thunderbolt 4 port is convenient for quick peripheral swaps but some users prefer it on the rear for cable management.
Compatibility is not guaranteed out of the box. One M1 MacBook Pro owner reported persistent crashes when running full-screen video on a 1440p monitor and had to return the unit. The dock works with Windows Thunderbolt 4 PCs, Chromebooks, and iPads via USB-C. If your workflow requires many peripheral ports plus the ability to daisy-chain an eGPU, the OWC dock is a robust bridge. But if you only need an eGPU enclosure, skip this and go straight to a dedicated box.
What works
- 96W power delivery keeps large laptops charged during heavy use
- Dual 5K display support without DisplayLink on Apple Silicon Macs
- 11 ports offer genuine desktop workflow consolidation
What doesn’t
- Not a standalone eGPU enclosure; requires an eGPU on a downstream port
- Intermittent display crashing reported with specific M1 Mac configurations
- Front-mounted host port frustrates some cable management preferences
5. Sonnet Echo Express SE1
The Sonnet Echo Express SE1 occupies a specific niche: connecting a single full-height, half-length PCIe card to a Thunderbolt 3 host for professional use cases that have nothing to do with gaming. Audio engineers use it to house audiophile USB bridge cards from Pink Faun and JCat. Video professionals install Blackmagic Decklink capture cards for live streaming and broadcast switching. It has also been used to enable HTC Vive wireless adapters on laptops lacking the requisite internal PCIe slot.
The slot is PCIe 3.0 x8, offering 2750 MB/s of bandwidth—plenty for a high-end capture card or RAID controller but deliberately insufficient for a modern graphics card. Sonnet explicitly states this chassis is not for GPUs. The aluminum enclosure is compact at 3.5 x 5.6 x 3.5 inches and weighs 2.6 pounds, sliding easily into a production bag. Two Thunderbolt 3 ports allow daisy-chaining up to five additional Thunderbolt devices or a single 5K display.
The achilles’ heel is the 60mm cooling fan, which reviewers consistently describe as obtrusive in studio or streaming environments. Several owners have replaced it with an 80mm Noctua fan (or a be Quiet model) using a single screw modification to achieve near-silent operation. There is no power switch—the unit powers on automatically with the host, which is convenient except when you want the PCIe card to remain off. For professionals who need a Thunderbolt bridge for a specific PCIe card and can tolerate the fan swap, the SE1 is a proven workhorse.
What works
- Compact aluminum chassis fits easily into a production bag
- PCIe 3.0 x8 bandwidth is sufficient for capture, RAID, and audio cards
- Daisy-chain support for multiple Thunderbolt devices
What doesn’t
- 60mm fan is noisy and often requires aftermarket replacement
- No power switch; unit powers on with host at all times
- Not compatible with graphics cards of any kind
6. TERRAMASTER D4 SSD NVMe Enclosure
The Terramaster D4 is a 4-bay NVMe enclosure, not a traditional eGPU dock. It connects via USB4 or Thunderbolt 5 at 40Gbps and accepts up to four M.2 NVMe 2280 SSDs for a total storage capacity of 32TB. With four WD Black SN850X drives in a software RAID 0 configuration, users report sustained read speeds exceeding 3200 MB/s—fast enough to edit 8K ProRes footage directly from the enclosure. Each drive bay has its own USB controller, so simultaneous access does not degrade bandwidth.
The active cooling system is a highlight: four internal temperature sensors drive a fan that reviewers describe as barely audible even under sustained load. One user reported sustained 2.9 GB/s writes over a 40Gbps USB-C link without thermal throttling. The fan generates about 19 dBA at idle, making this enclosure viable for quiet studio environments where a spinning hard drive NAS would be distracting. The unit comes with a 12V/2A power adapter, though some owners recommend a 90W adapter for heavy multi-drive usage.
The D4 is strictly a storage device—it does not support hardware RAID, so you must configure software RAID (or drive pooling) through your operating system. The built-in TDAS mobile app provides wireless iOS and Android backup, but its utility is secondary to the core speed advantage. If your primary need is ultra-fast NVMe storage alongside an eGPU setup (the enclosure connects via the same Thunderbolt bus), the D4 offers an elegant expansion path without the bulk of a multi-bay hard drive array.
What works
- 40Gbps connection delivers >3000 MB/s read speeds in RAID 0
- Near-silent active cooling with four temperature sensors
- 32TB maximum capacity accommodates large media archives
What doesn’t
- No built-in hardware RAID; requires software configuration
- Included 24W power supply can struggle with four high-power NVMe drives
- Plastic enclosure material feels less premium than metal alternatives
7. TERRAMASTER D6-320 Hard Drive Enclosure
The D6-320 is a 6-bay SATA hard drive enclosure that connects via USB 3.2 Gen 2 at 10Gbps. Each bay holds a 3.5-inch or 2.5-inch SATA drive for a maximum capacity of 132TB. This is not an eGPU or a PCIe storage device; it is a direct-attached storage (DAS) for users who need to archive or access large volumes of data from a single Thunderbolt or USB-C connection. When equipped with six SATA SSDs, the D6-320 delivers sequential read speeds around 1030 MB/s—slow by NVMe standards but entirely adequate for video project archives, server backups, and media libraries.
The enclosure uses independent USB controllers per slot, so saturating all six drives simultaneously does not throttle the bus the way a single-controller enclosure would. Hot-swap support allows drive replacement without powering down. The fan is temperature-controlled and quiet, though the plastic chassis does not damp hard drive vibration as effectively as heavier metal designs. One reviewer noted the USB-C connector disconnects if the cable is bumped, a physical vulnerability for desk setups with frequent cable movement.
Sustained write loads can cause kernel-level USB disconnects—one user reported losing a volume after repeated bus resets during a multi-day transfer. Terramaster’s compatibility list is essential to check before purchase, as newer SSDs may require initial partitioning on a different system. The D6-320 works best as a secondary archive box for media professionals who need cheap, high-capacity spinning storage alongside their faster NVMe or GPU setup. For primary editing storage, the D4 NVMe enclosure is a better fit.
What works
- 6-bay capacity supports up to 132TB for large archiving needs
- Independent USB controllers per slot prevent bus saturation
- Hot-swap drive bays allow easy replacement without power-down
What doesn’t
- USB-C connector is physically vulnerable to cable bumps
- Sustained write loads can cause kernel-level disconnects
- Plastic chassis does little to dampen HDD vibration noise
8. StarTech Thunderbolt 3 PCIe Expansion Chassis
The StarTech Thunderbolt 3 PCIe Expansion Chassis is built for adding legacy PCIe cards to modern laptops, not for graphics cards. The enclosure includes a single PCIe 3.0 x16 slot that delivers 25W of power—insufficient for any modern GPU. StarTech explicitly states the chassis does not support graphics cards. Instead, it targets users who need to integrate a FireWire 800 card for mini DV capture, a professional sound card (like the Sound Blaster Audigy Fx for surround audio), or a high-speed fiber/Ethernet network card into a Thunderbolt-only laptop.
The card slot accepts single-width, full-height cards up to 8 inches long. One laptop gamer used the chassis to host a Sound Blaster Audigy Fx card after their new machine’s motherboard covered all internal PCIe slots—the external box restored their Logitech Z906 5.1 speaker setup. The aluminum chassis includes a 65W universal power adapter and a built-in fan. Reviewers note the fan is audibly noisy—the enclosure is not ideal for quiet recording or streaming environments. The toolless design for card insertion is a minor convenience.
The Thunderbolt 3 interface provides 40Gbps bandwidth, which is more than enough for audio, capture, or network cards. The chassis supports macOS, Windows, and Linux without driver installation. A critical warning for Mac users: upgrading to macOS 26 (Tahoe) will drop FireWire driver support entirely, making this enclosure non-functional for FireWire-based workflows. For the rare use case of adding a legacy PCIe card to a laptop, the StarTech chassis is one of the few options available, but verify your OS compatibility thoroughly before purchase.
What works
- Enables use of legacy PCIe cards (FireWire, audio, fiber) on Thunderbolt-only laptops
- Driverless installation works with macOS, Windows, and Linux
- Toolless design simplifies card swaps
What doesn’t
- Fan is loud and unsuitable for quiet studio environments
- Does not support any graphics card—misleading for generic PCIe chassis searches
- macOS 26 drops FireWire drivers, making the enclosure obsolete for that use case
9. SANDISK Professional PRO-Blade Station
The SanDisk Professional PRO-Blade Station is a modular SSD enclosure system built around proprietary PRO-Blade SSD mags. Four slots accept the mags simultaneously, and the Thunderbolt 3 interface delivers up to 3000 MB/s read speeds—fast enough for 8K video editing and large file transfers. The workflow is the central value: you can move a PRO-Blade mag directly from this desktop station to the PRO-Blade Transport (sold separately) for portable editing without re-copying files. For video teams that shuttle project media between edit bays, this ecosystem reduces transfer wait times to zero.
The station uses flow-through active ventilation to cool the mags during sustained reads. Despite the manufacturer’s thermal engineering, user reports are deeply concerning. Multiple reviewers describe the unit running scorching hot, with PRO-Blade mags becoming uncomfortable to touch after transferring about 1TB of data. One owner had two units fail—the first after 10 months, the second after 90 days—due to what they describe as internal power failure from overheating. Another report claims the station “cooks” 4TB SSDs over three years, causing drive failures and system crashes.
The PRO-Blade Station is fast when it works and is backed by a 5-year warranty, but the RMA process has been described as difficult. The SSD mags themselves have become intermittently unavailable on retail channels, which creates a vendor lock-in risk. For professionals who love the mag-swap workflow and can tolerate the thermal concerns, this system offers a genuine productivity advantage. For everyone else, a standard 40Gbps NVMe enclosure like the Terramaster D4 provides comparable speed with less heat and no proprietary media format.
What works
- Hot-swappable PRO-Blade mags enable instant project transfers between station and portable dock
- Thunderbolt 3 delivers up to 3000 MB/s read for 8K workflows
- 5-year warranty provides long-term coverage
What doesn’t
- Severe overheating reported during sustained transfers—magazines get scorching hot
- Multiple users report unit failure within months due to thermal stress
- Proprietary PRO-Blade mags are expensive and frequently out of stock
Hardware & Specs Guide
PCIe Bandwidth & Interface Type
The interface determines how much of your desktop GPU’s performance reaches the laptop. Thunderbolt 4 tunnels PCIe at ~32Gbps effective, creating a 15–30 percent bottleneck on high-end cards. OCuLink provides a dedicated 64Gbps PCIe 4.0 x4 link with minimal overhead—the closest to a native desktop experience. Thunderbolt 5 doubles PCIe bandwidth to 80Gbps, matching OCuLink’s ceiling while maintaining universal Thunderbolt compatibility. USB4 at 80Gbps (version 2.0) offers similar theoretical speed but depends on host controller implementation. For full utilization of an RTX 4080 or faster, target OCuLink or Thunderbolt 5.
Power Supply Architecture & TGP Matching
Enclosures fall into three PSU categories: integrated (AOOSTAR AG02’s 800W internal unit), bring-your-own (Razer Core X V2 requires an ATX PSU), and brick-fed (Startech’s 65W adapter). The PSU wattage must exceed the GPU’s TDP by at least 20 percent to cover transient spikes. A 450W GPU like the RTX 4090 needs a 600W+ PSU. Built-in PSUs simplify setup but limit your upgrade to the unit’s wattage ceiling, while BYO-PSU enclosures let you reuse a high-quality power supply across future GPUs. Never use an underpowered PSU—it causes instability, performance throttling, and potential hardware damage.
FAQ
Can I use a Thunderbolt 5 enclosure with a Thunderbolt 4 laptop?
Why do OCuLink enclosures consistently outperform Thunderbolt 4 for gaming?
Does macOS support eGPUs on Apple Silicon M-series Macs?
What happens if my enclosure’s power supply is too weak for my GPU?
Can I daisy-chain an eGPU and a storage enclosure on one Thunderbolt port?
Final Thoughts: The Verdict
For most users, the egpu dock winner is the Razer Core X V2 because it combines Thunderbolt 5 bandwidth, 4-slot GPU clearance, and a flexible BYO-PSU architecture that future-proofs through multiple GPU generations. If you need a portable all-in-one solution with an integrated GPU, grab the Nimo eGPU Dock with RX 7600M XT. And for the best value in a desktop OCuLink enclosure with a built-in 800W PSU, the AOOSTAR AG02 is the clear choice—just verify your GPU and host compatibility before ordering.
